As a manufacturer focused on technology export, we provide not only standard switchgear but also customized power distribution solutions tailored to different regional grid codes and project requirements.

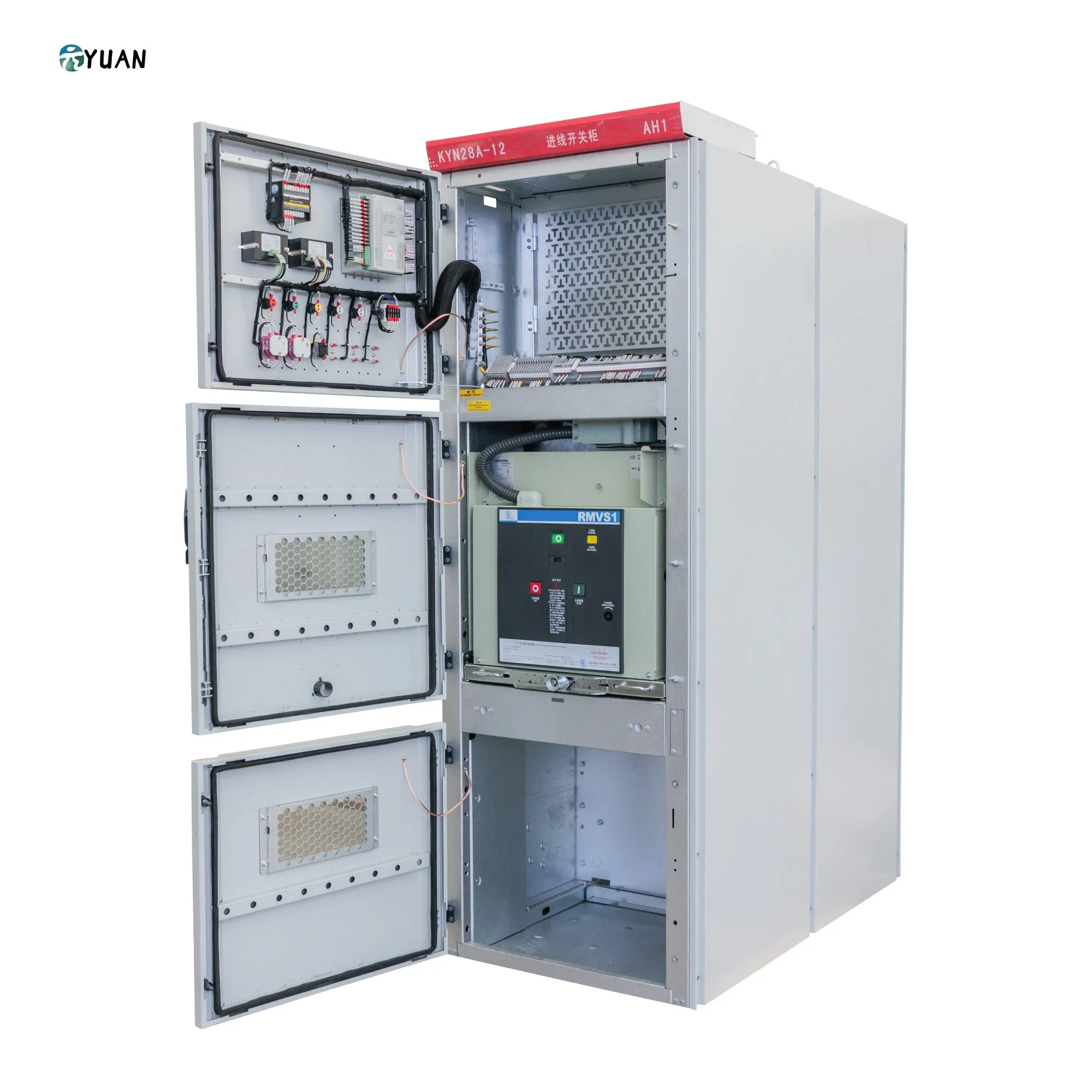

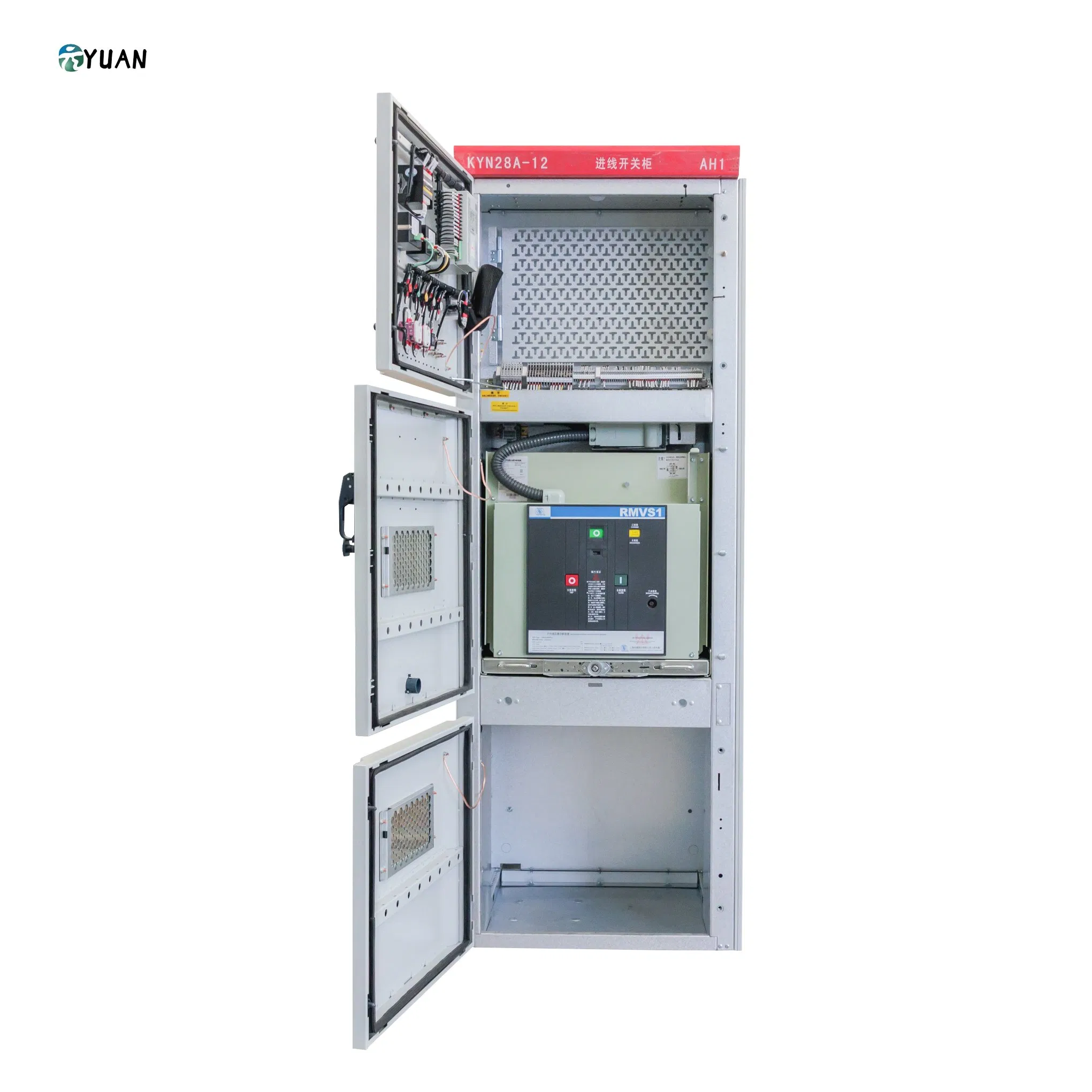

Enables safe breaker handcart extraction without main circuit shutdown. Segregated compartments achieve IP4X protection when closed.

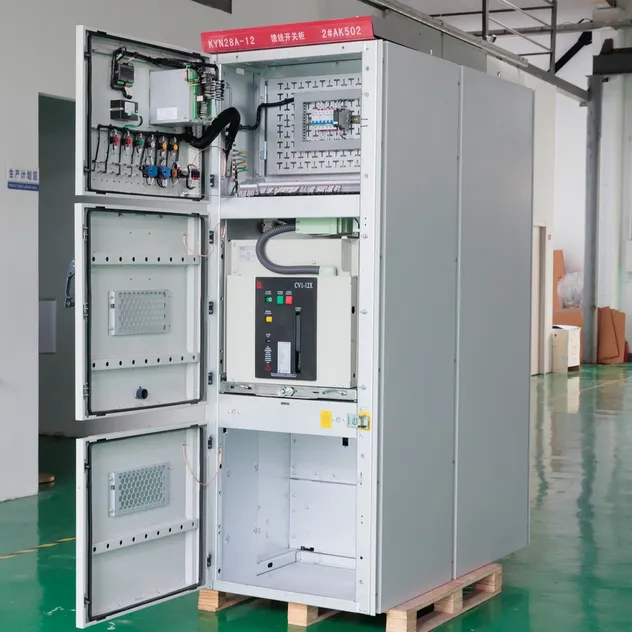

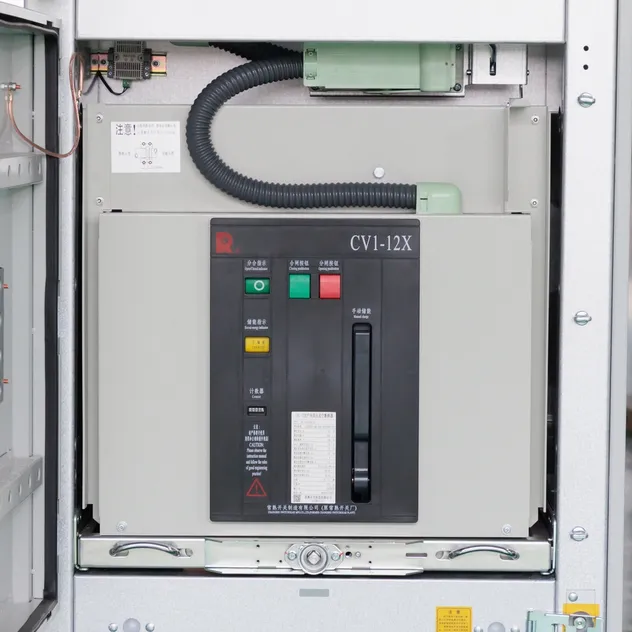

Equipped with CV1-12X vacuum circuit breaker, delivering 630A rated current and up to 25kA short-time withstand capacity.

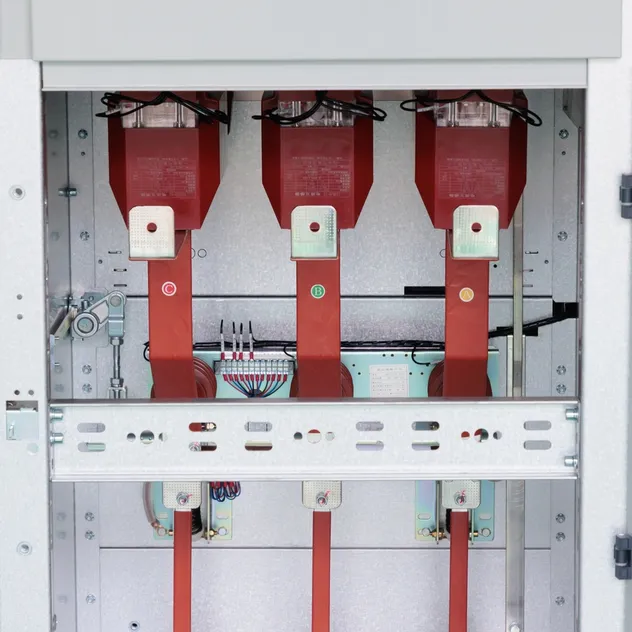

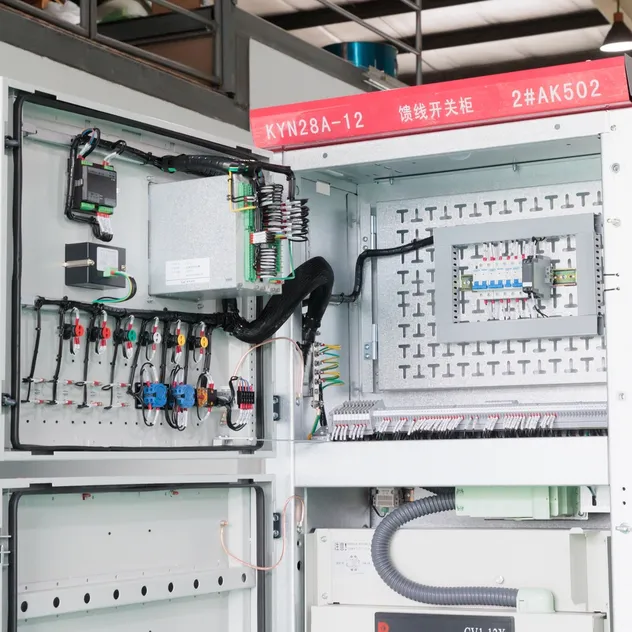

Integrated high-precision CTs and professional relays enable accurate real-time measurement and rapid fault response.
A complete mechanical and electrical interlocking mechanism prevents operational errors and enhances personnel safety.
| TECHNICAL PARAMETERS | |
|---|---|
| Rated Voltage | 12kV |
| Rated Current | 630A |
| Rated Frequency | 50Hz / 60Hz |
| Rated Short-Time Withstand Current | 25kA (3s) |
| Rated Peak Withstand Current | 63kA |
| Power Frequency Withstand Voltage | 42kV (1min) |
| Lightning Impulse Withstand Voltage | 75kV (Peak) |
| Protection Degree | IP4X / IP2X |
| Cabinet Material | High-Quality Galvanized Steel |
| Circuit Breaker Type | CV1-12X Vacuum Circuit Breaker |
| Applicable Standards | IEC 60298, IEC 60694, GB 3906 |
Managing 12kV distribution from transformers to multiple outgoing circuits.
Providing 630A feeder protection and fast fault isolation for manufacturing lines.
Engineered for harsh environments with dust and vibration protection.
Deployed in urban grids, water treatment, and public transit systems.
