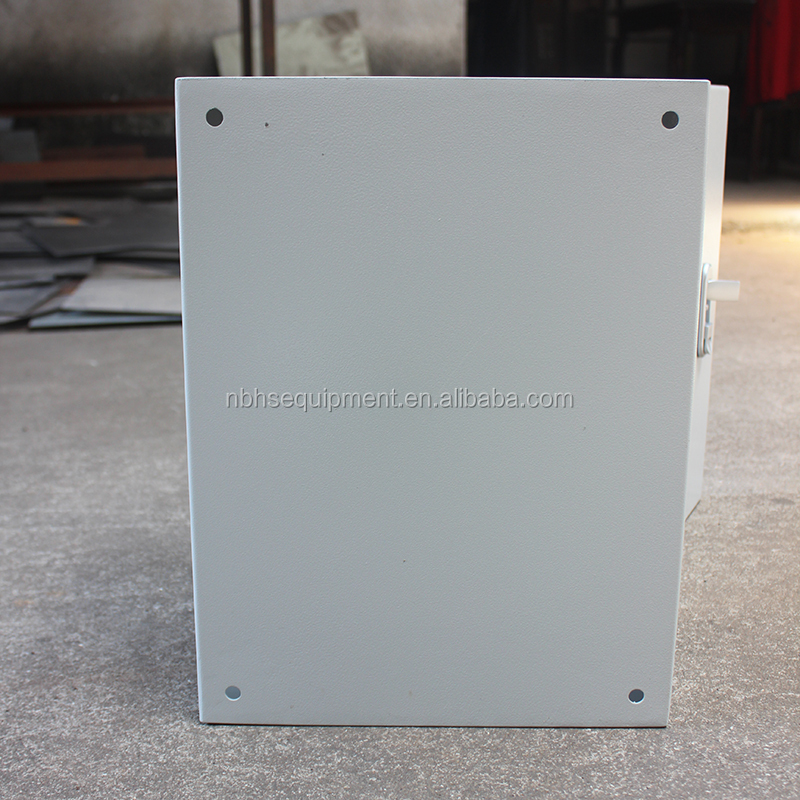

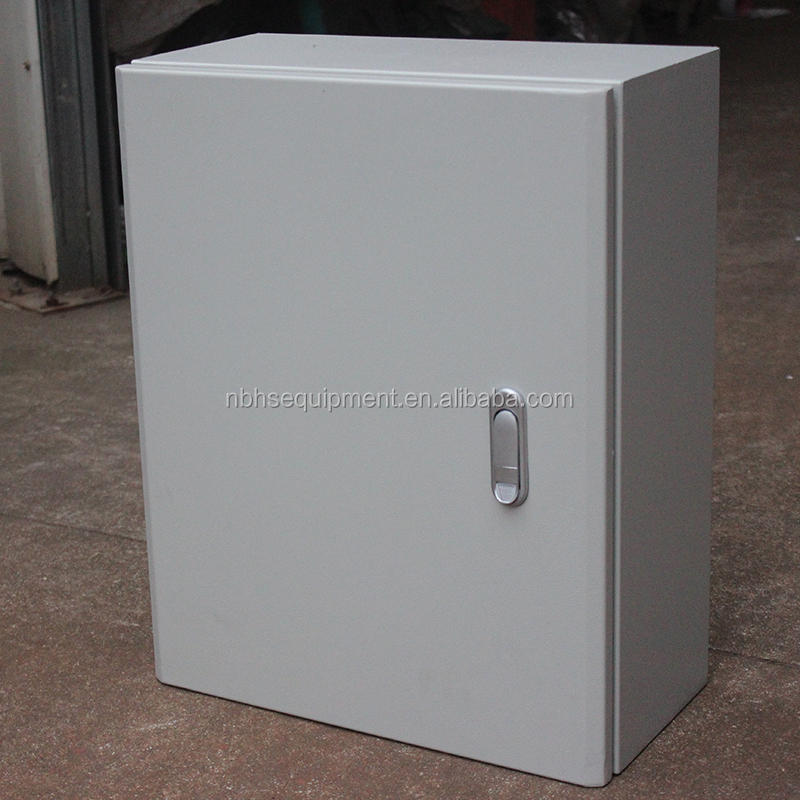

IP65 Electrical Distribution Control Panel Board Wall Mounting Metal Enclosure Solar Panel AC Junction Box Enclosure

Send Inquiry

Product Description

Material	Cold-rolled steel housing and front door, mounting plate made of galvanized steel plate
Mounting plate	Galvanized sheet or painted bottom plate
Surface treatment	Thermosetting powder coating, corrugated finish
Standard configuration	Housing, door, mounting plate, lock, seal strip, grounding set
Protection	IP54, IP55, IP65
Against mechanical impacts	IK10
Color	RAL7032 or optional

Key Features

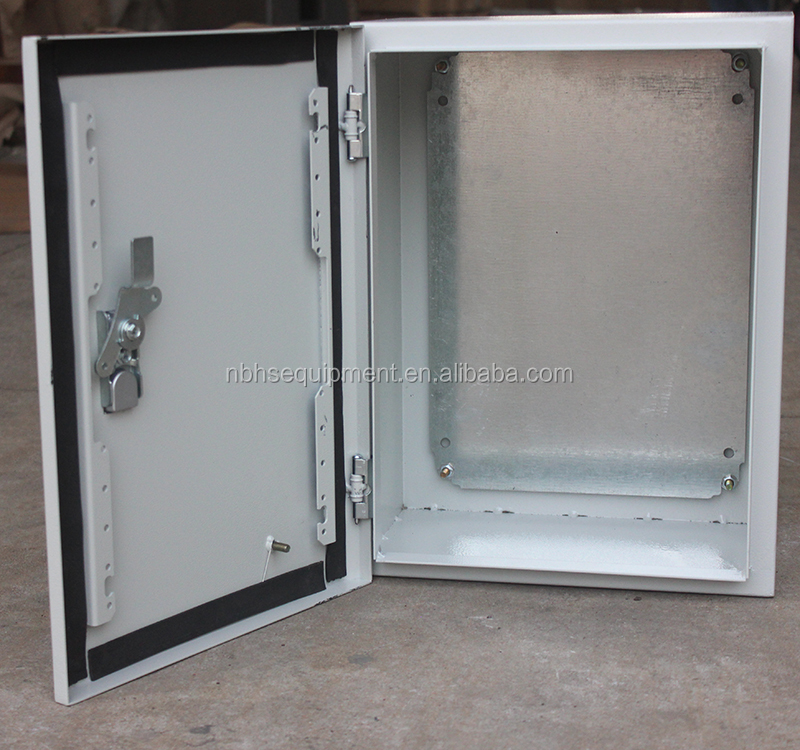

The rubber sealing strip ensures that the box has good water and dust resistance.
Powder coated mounting plate can also be used for wiring outside the box.
The multi-layer protective groove at the mouth of the box not only plays a strengthening role but also prevents dirt and water from entering the box when the door panel is opened.

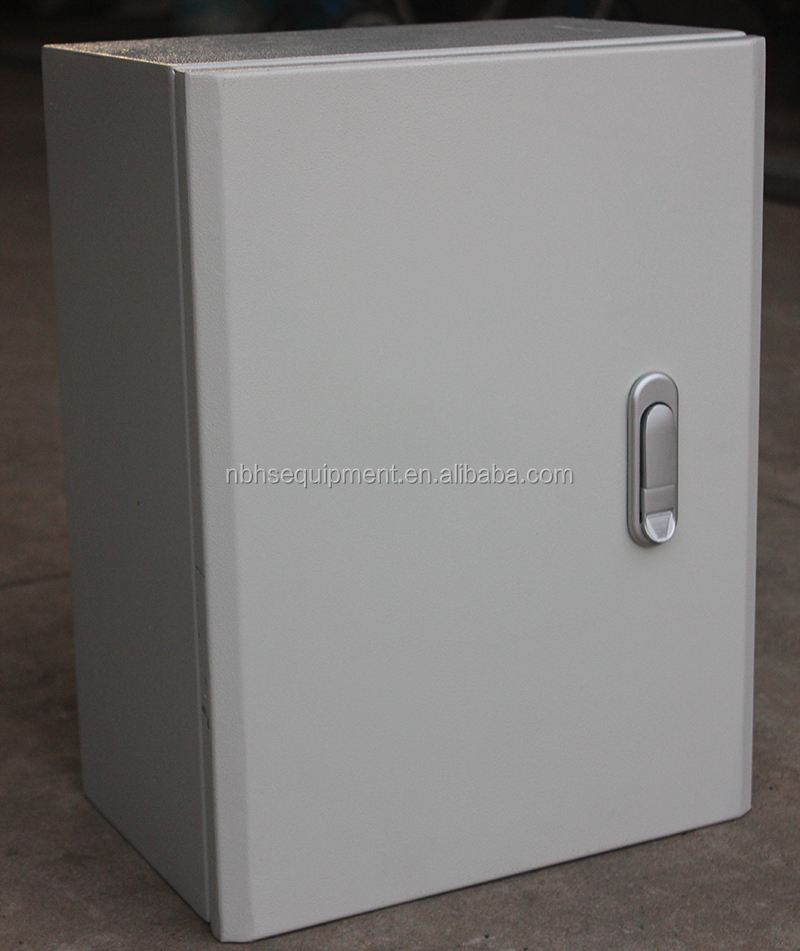

High quality lock convenient for opening and closing.

Model Specifications

No	Type No	Height	Width	Depth	Enclosure&Door (mm)	Mounting Plate (mm)
1	HSM020201	200	200	100	1.2	1.5
2	HSM0252015	250	200	150	1.2	1.5
3	HSM0302015	300	200	150	1.2	1.5
4	HSM0302502	300	250	200	1.2	1.5
5	HSM040302	400	300	200	1.2	1.5
6	HSM050302	500	300	200	1.2	1.5
7	HSM050402	500	400	200	1.2	1.5
8	HSM0505025	500	500	250	1.2	1.5
9	HSM060402	600	400	200	1.2	1.5
10	HSM0604025	600	400	250	1.2	1.5
11	HSM060502	600	500	200	1.2	1.5
12	HSM0605025	600	500	250	1.2	1.5
13	HSM070502	700	500	200	1.5	2
14	HSM0705025	700	500	250	1.5	2
15	HSM0806022	800	600	220	1.5	2
16	HSM0806025	800	600	250	1.5	2
17	HSM0807025	800	700	250	1.5	2
18	HSM080603	800	600	300	1.5	2
19	HSM100603	1000	600	300	1.5	2
20	HSM100803	1000	800	300	1.5	2
21	HSM101002	1000	1000	200	1.5	2
22	HSM120802	1200	800	200	1.5	2
23	HSM121003	1200	1000	300	1.5	2
24	HSM121004	1200	1000	400	1.5	2
25	HSM121204	1200	1200	400	1.5	2

Remark: More dimensions can be customized.

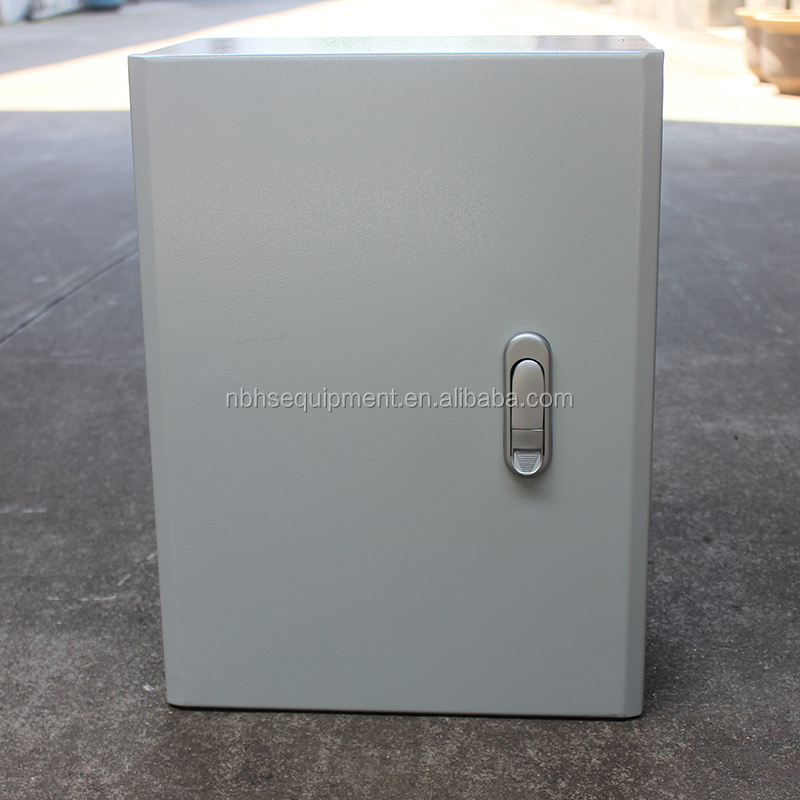

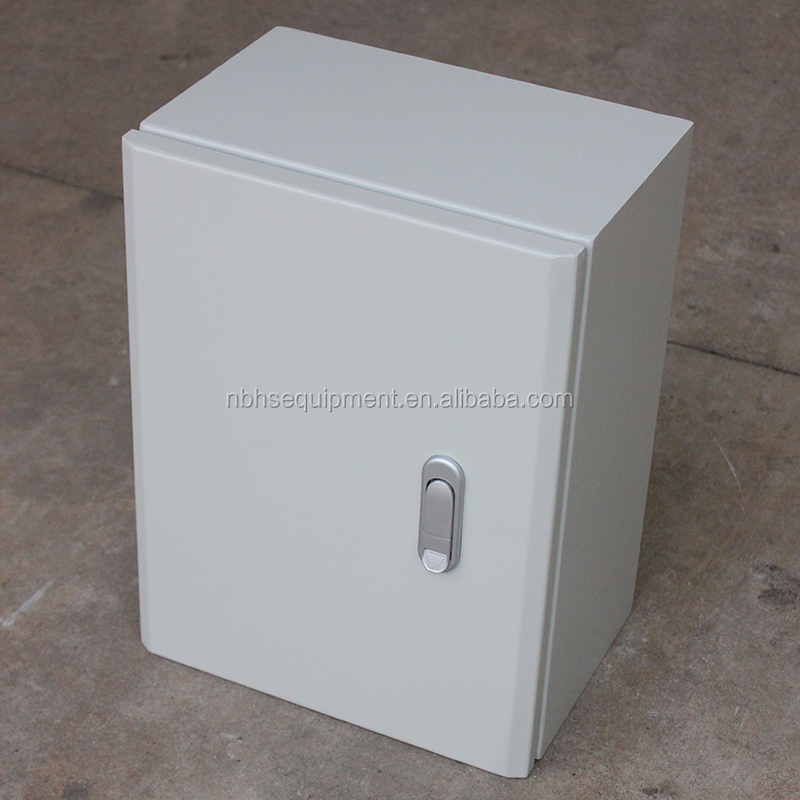

Detailed Images

Remark: Customized shape and color can be made as per drawings, photos or samples.

Shipping & Packing

Inquiry Support

Frequently Asked Questions

Are you a factory or trade corporation?

We are a direct factory with over 20 years of experience in the metal box enclosure field.

Can you make custom metal enclosures?

Yes, we can customize metal enclosures in accordance with your drawings, photos, or samples.

What types of drawing formats can you accept?

We accept various drawing formats, including PDF, CAD, and STP.

Do you have a Minimum Order Quantity (MOQ)?

No, we do not have a strict MOQ requirement for our standard products.

What is the warranty period for your products?

Our standard warranty period for metal enclosures is one year.

What is the typical protection rating for these enclosures?

Our enclosures typically offer IP54, IP55, or IP65 protection ratings, suitable for various environmental conditions.
