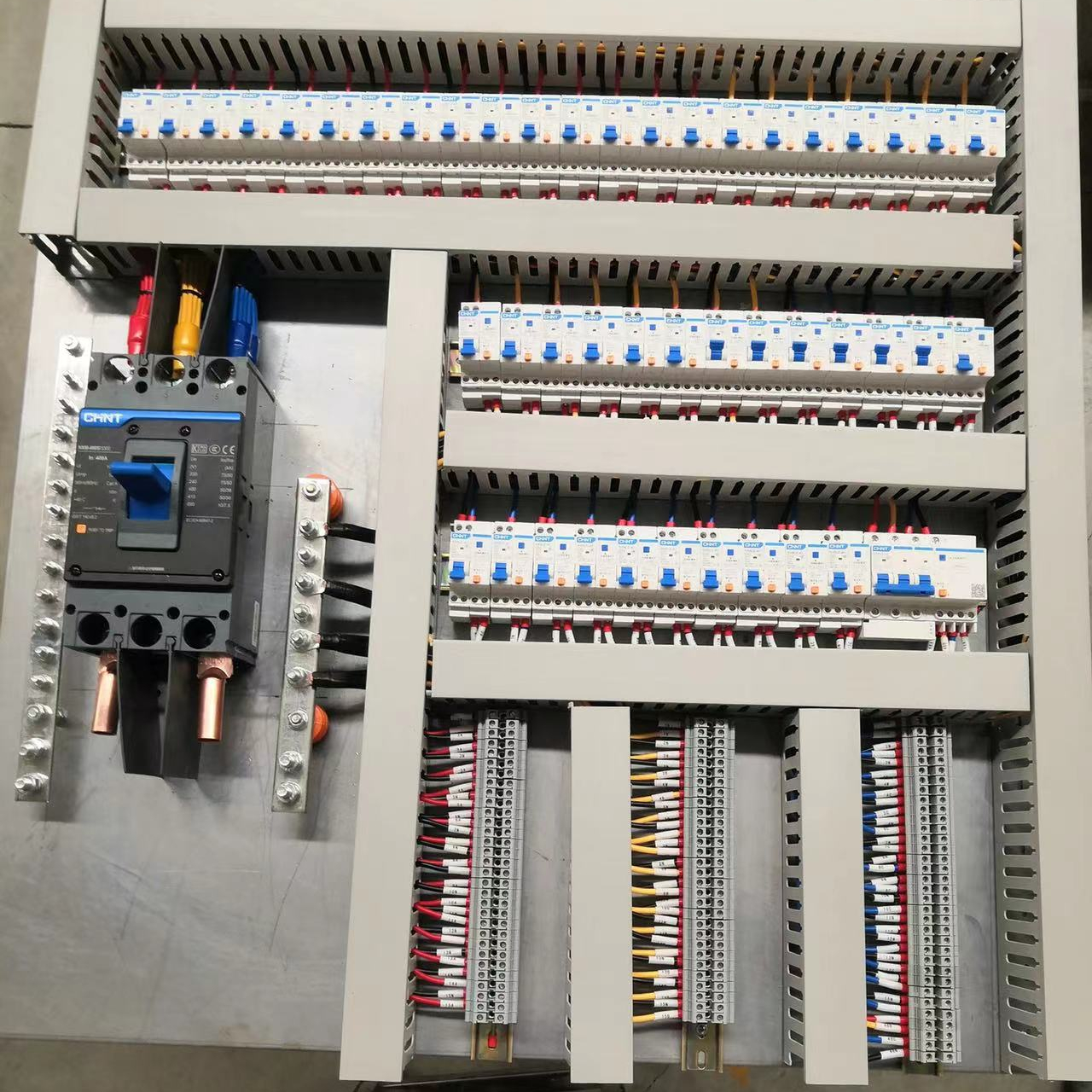

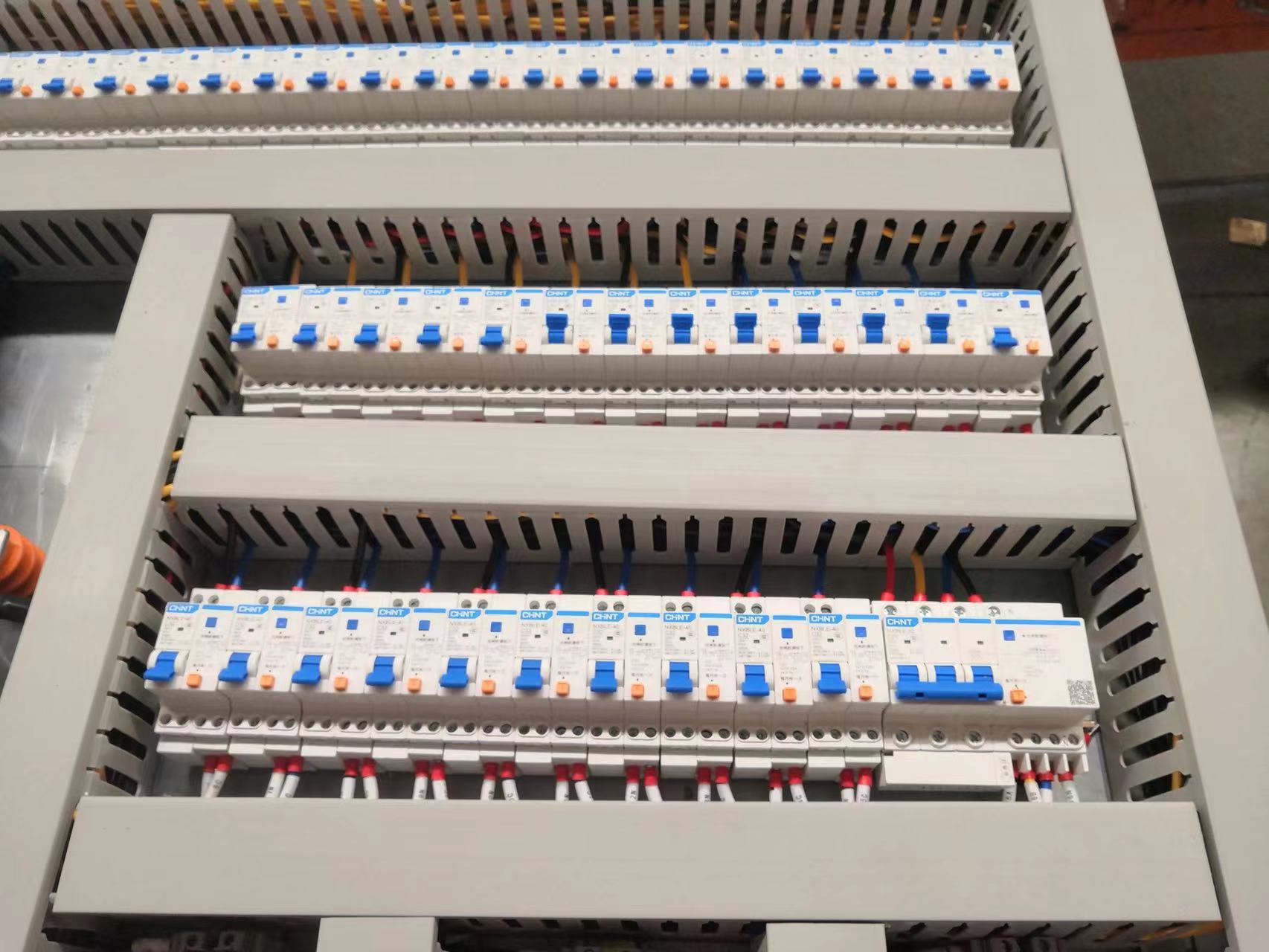

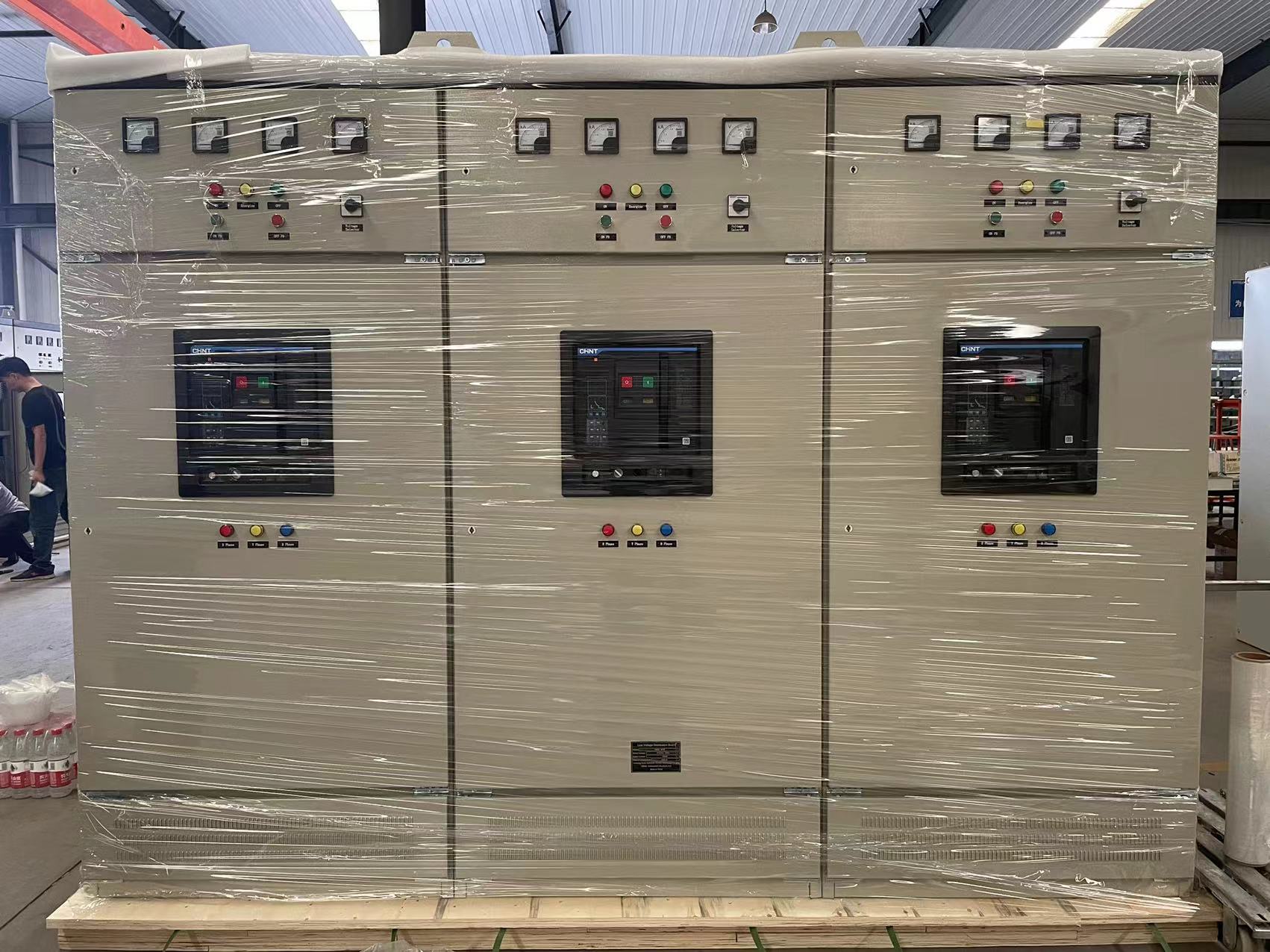

Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
1 / 5
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly

Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly

Send Inquiry

Product Description

Distribution Cabinet Overview
Product Display
Product Description
◆ LV low voltage distribution cabinet is suitable for three-phase AC 50HZ/60HZ, voltage 380V/440V, rated current up to 6300A power distribution systems.
◆ Widely used in power plants, substations, industrial and mining enterprises for power, lighting, and distribution equipment for electrical energy conversion and control.
◆ Standard protection grade is IP40, with options for IP20 to IP43 depending on service conditions.
◆ Features good appearance with easy assembly and disassembly.
Main Features & Working Conditions
✓ Ambient air temperature: -5°C to +40°C (Average < +35°C in 24h).
✓ Maximum installation altitude: 2000m above sea level.
✓ Relative humidity: ≤50% at +40°C; higher humidity (e.g., 90%) allowed at lower temperatures.
✓ Safety: No fire, explosion danger, serious pollution, chemical corrosion, or severe vibration.
✓ Installation: Gradient must not exceed 5°.

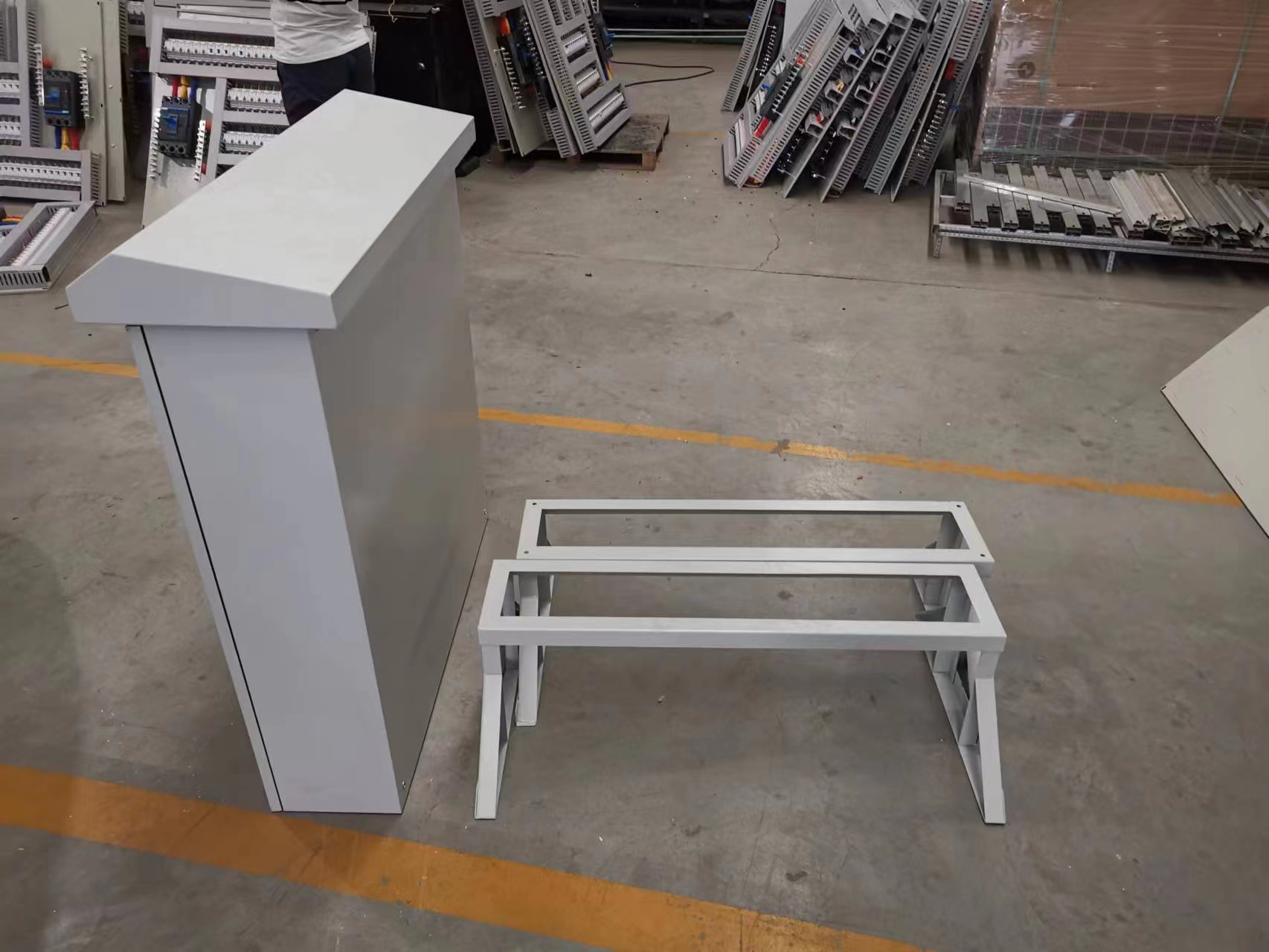

Product Gallery

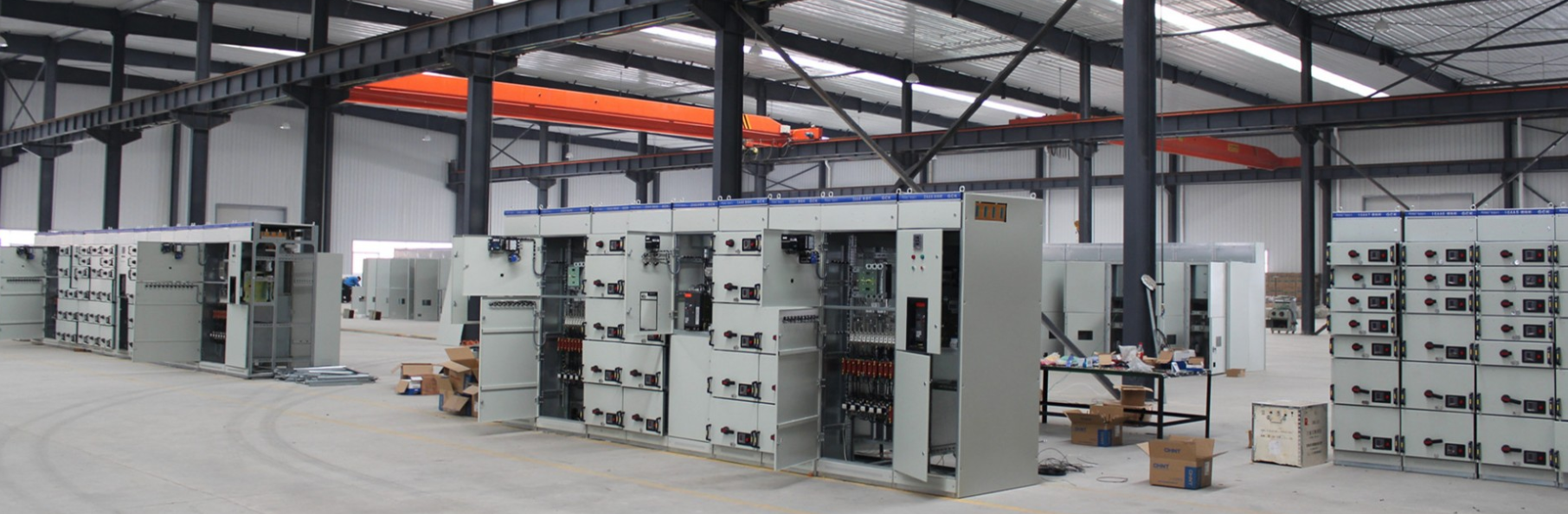

Technical Drawing

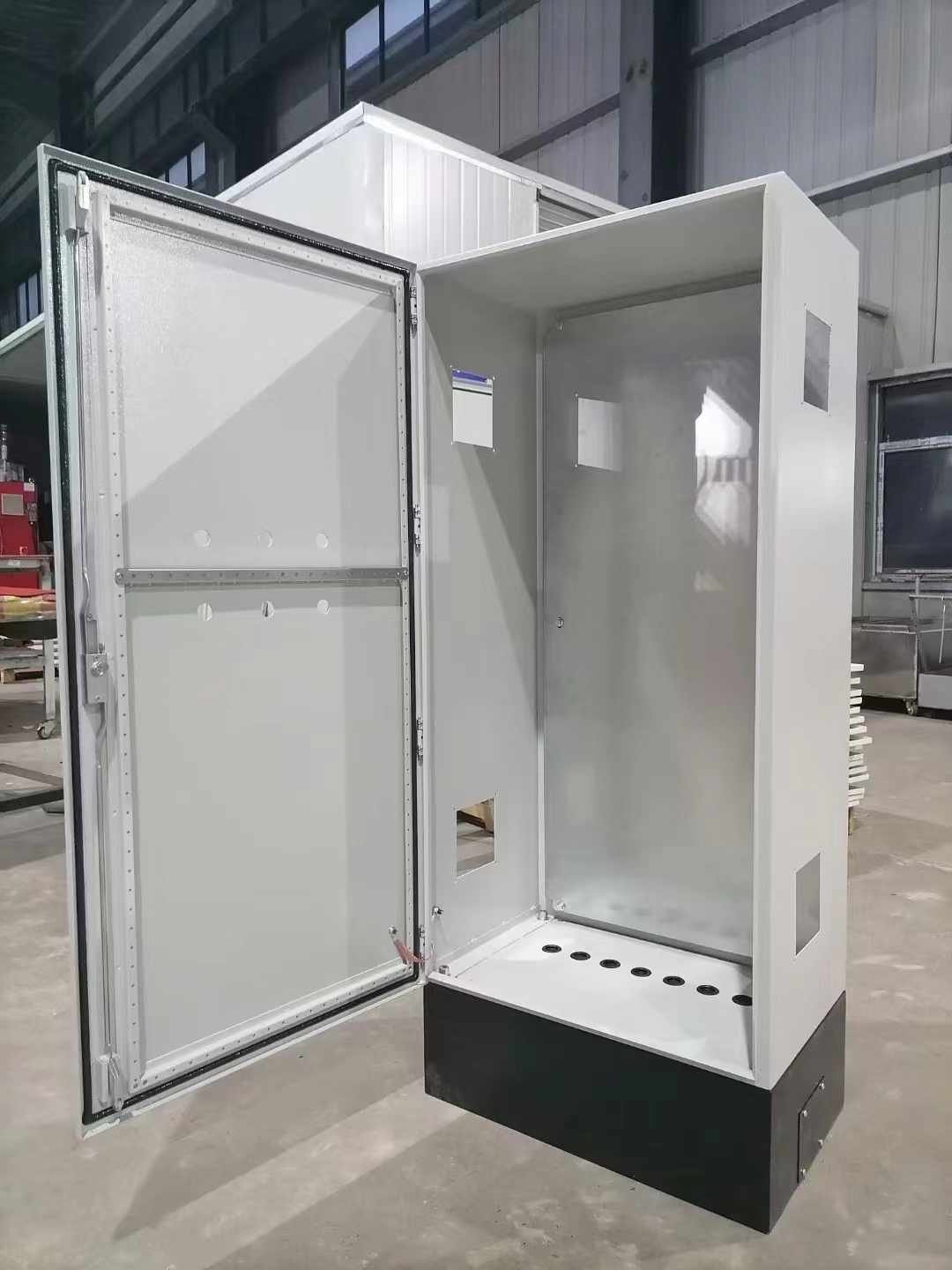

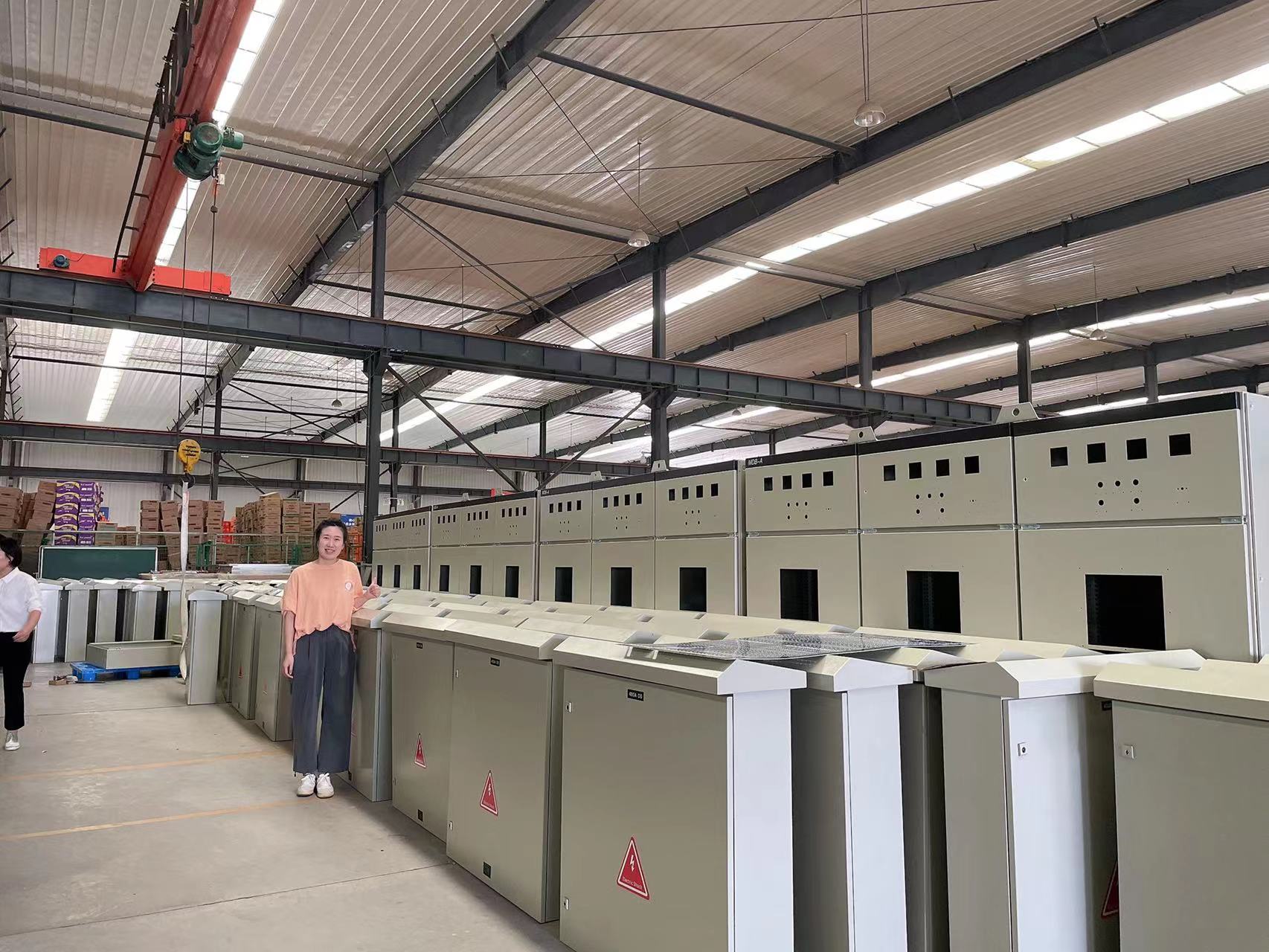

Cabinet View

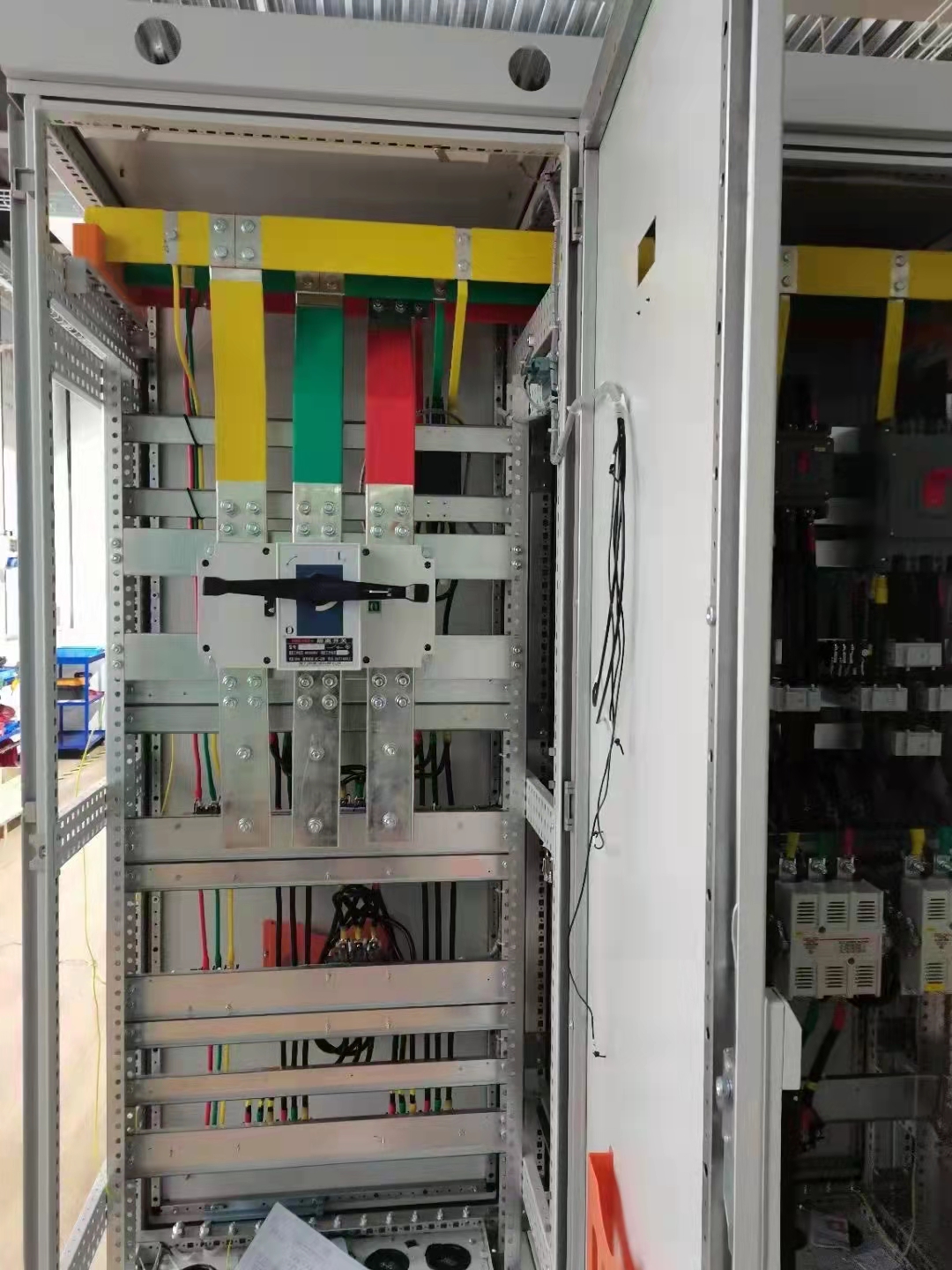

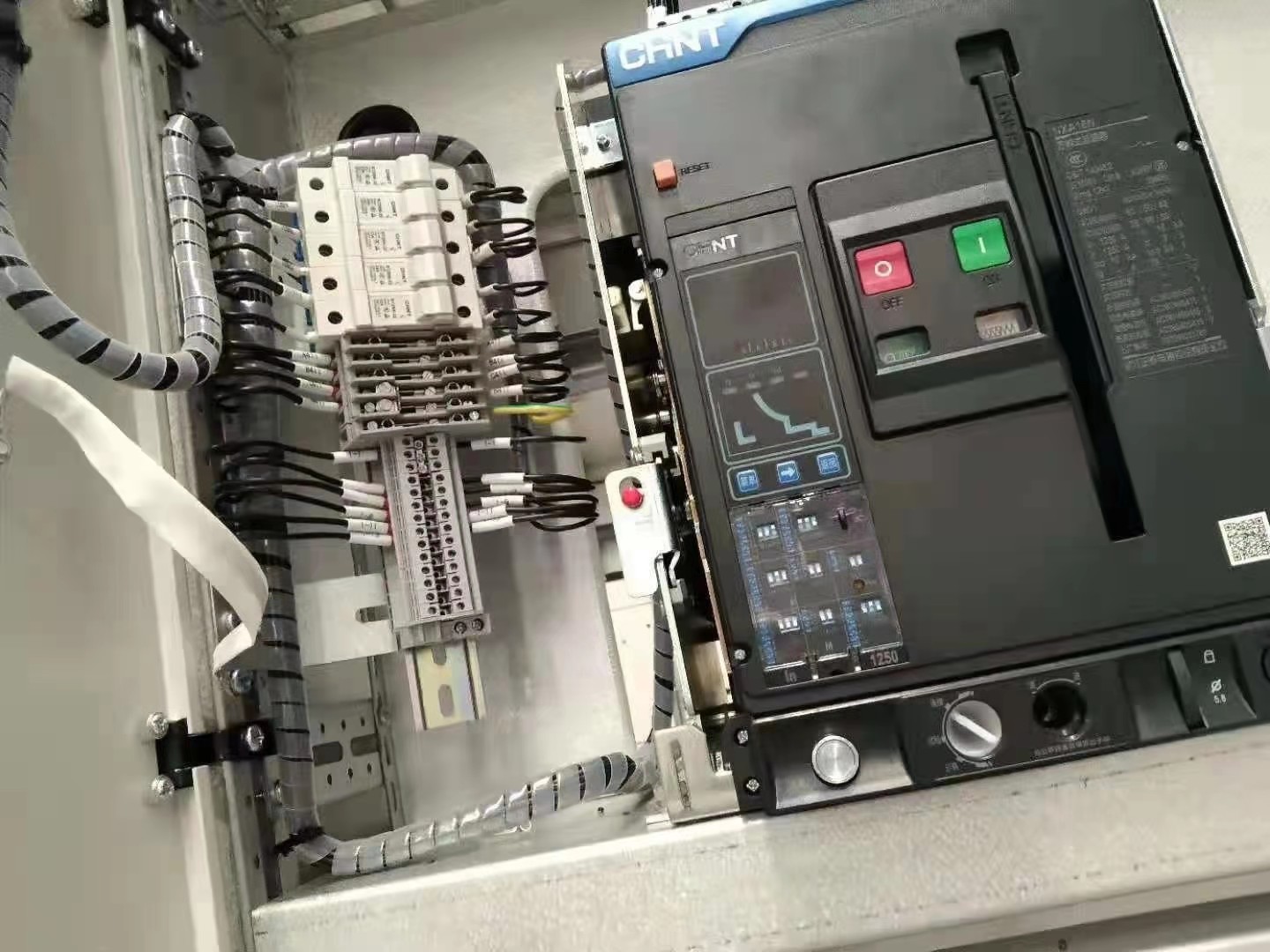

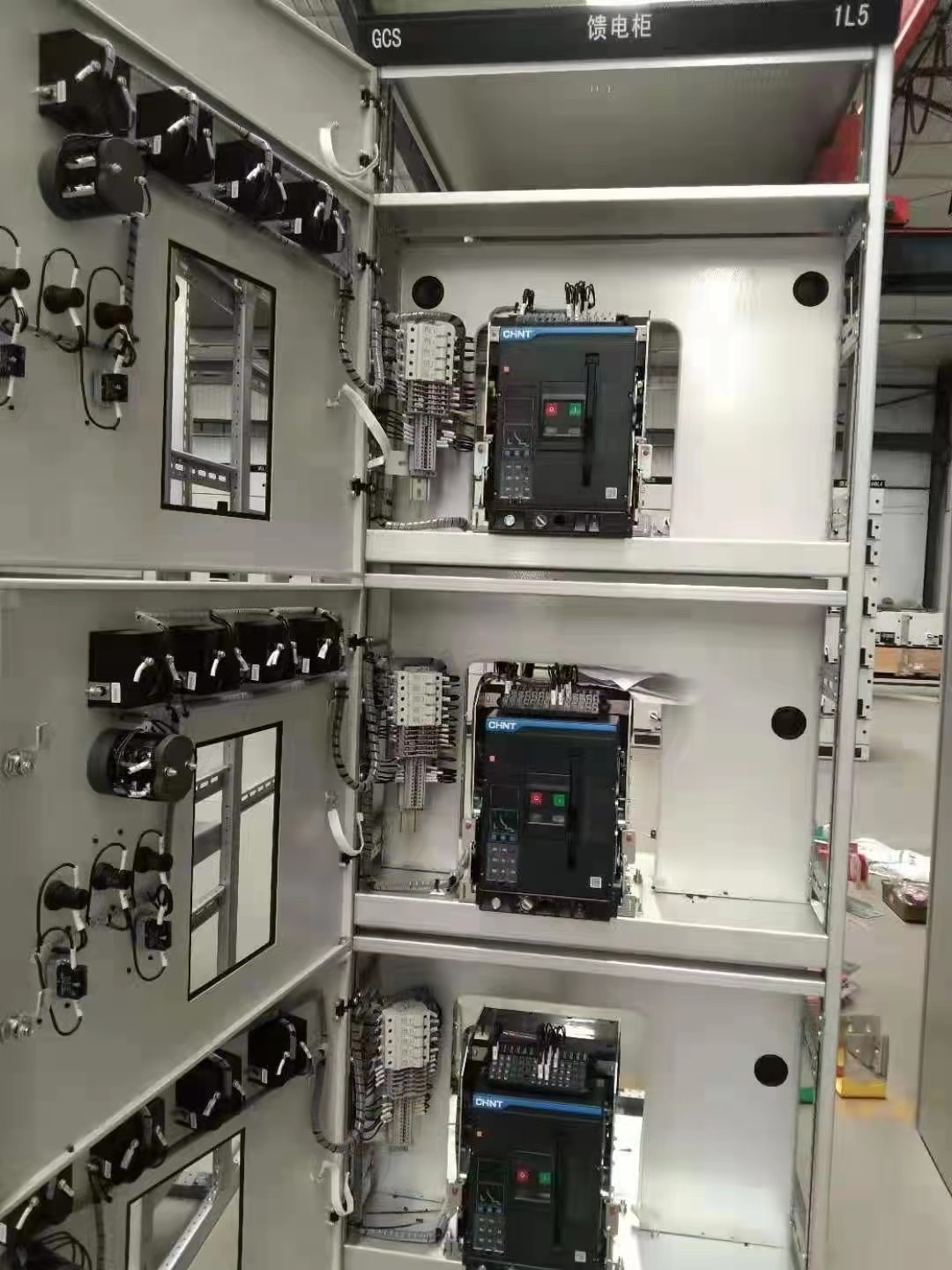

Detail Display
Specifications
No. Item Parameter
1Rated voltage380/440V
2Rated frequency50/60Hz
3Rated peak withstand current1pk can cause 375kA
4IP degreeIP30 / IP32 / IP40 / IP54
5Outline dimension (W*D*H)Customized
6PackageWooden case
Project Cases

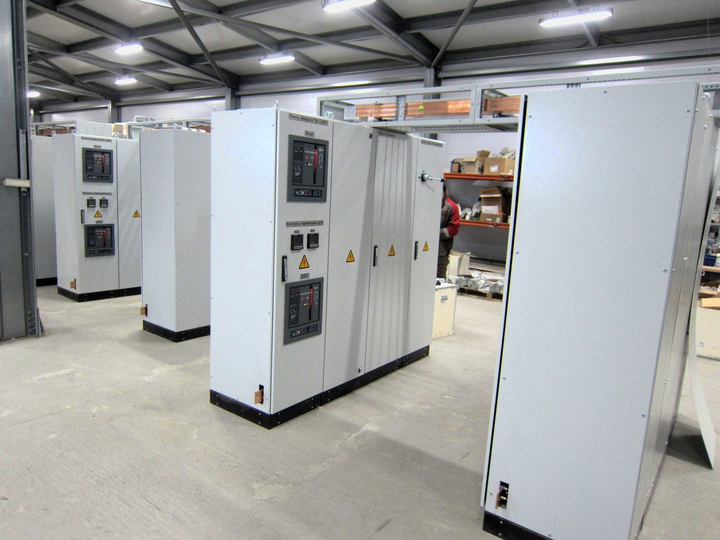

Main Distribution Box
Applied in painting and spray plant.

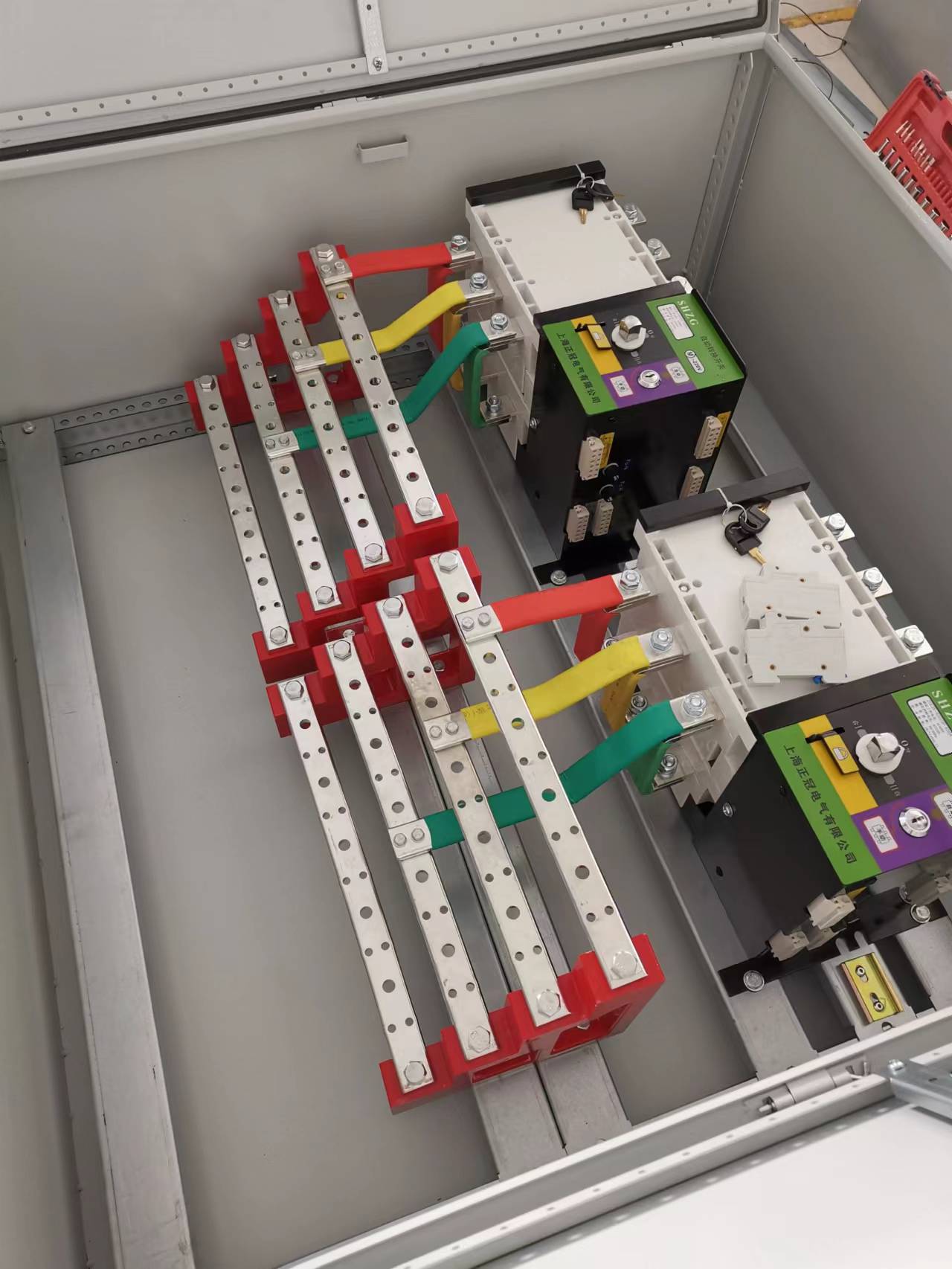

ATS Cabinet
Applied in food production line.

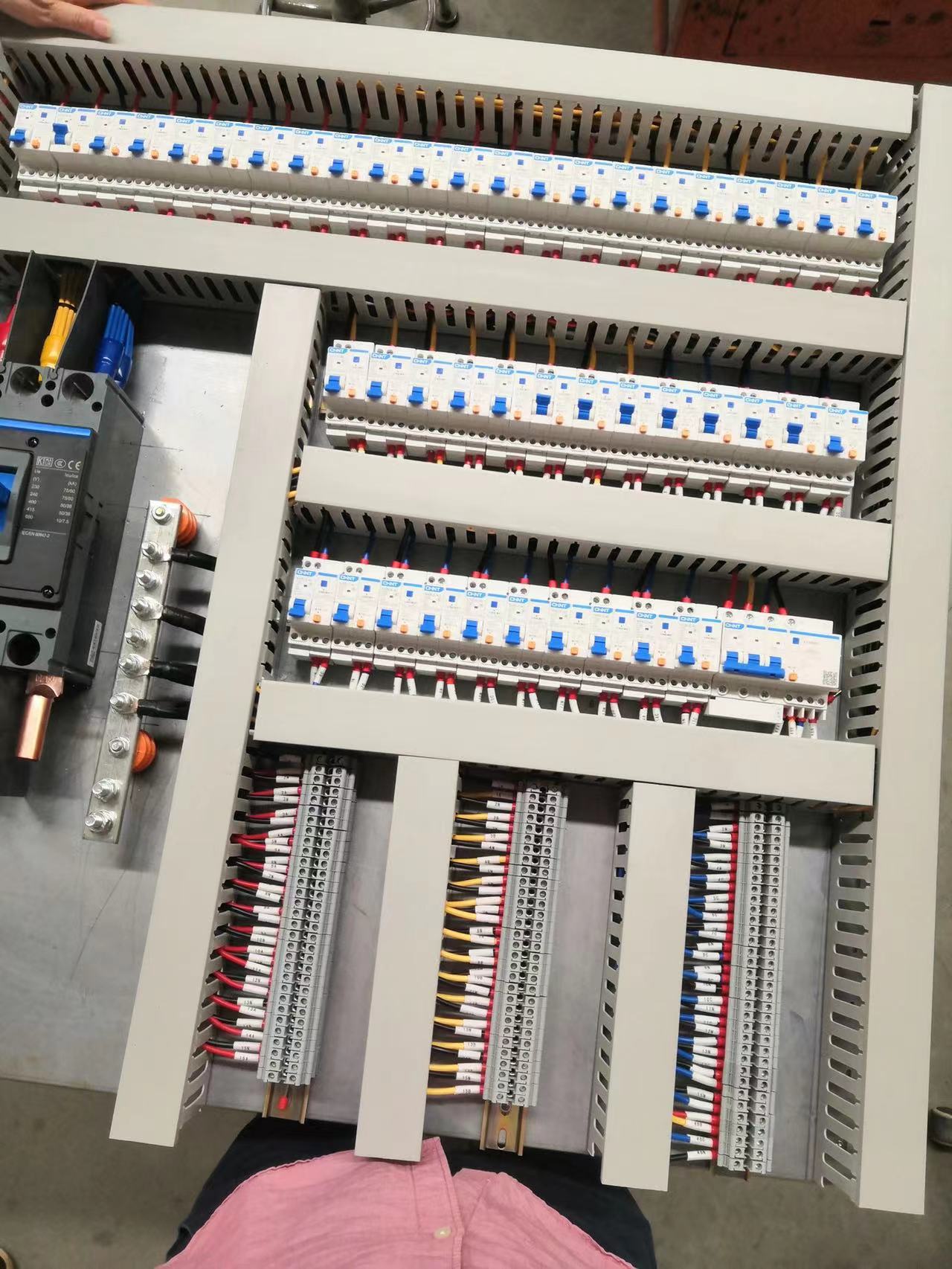

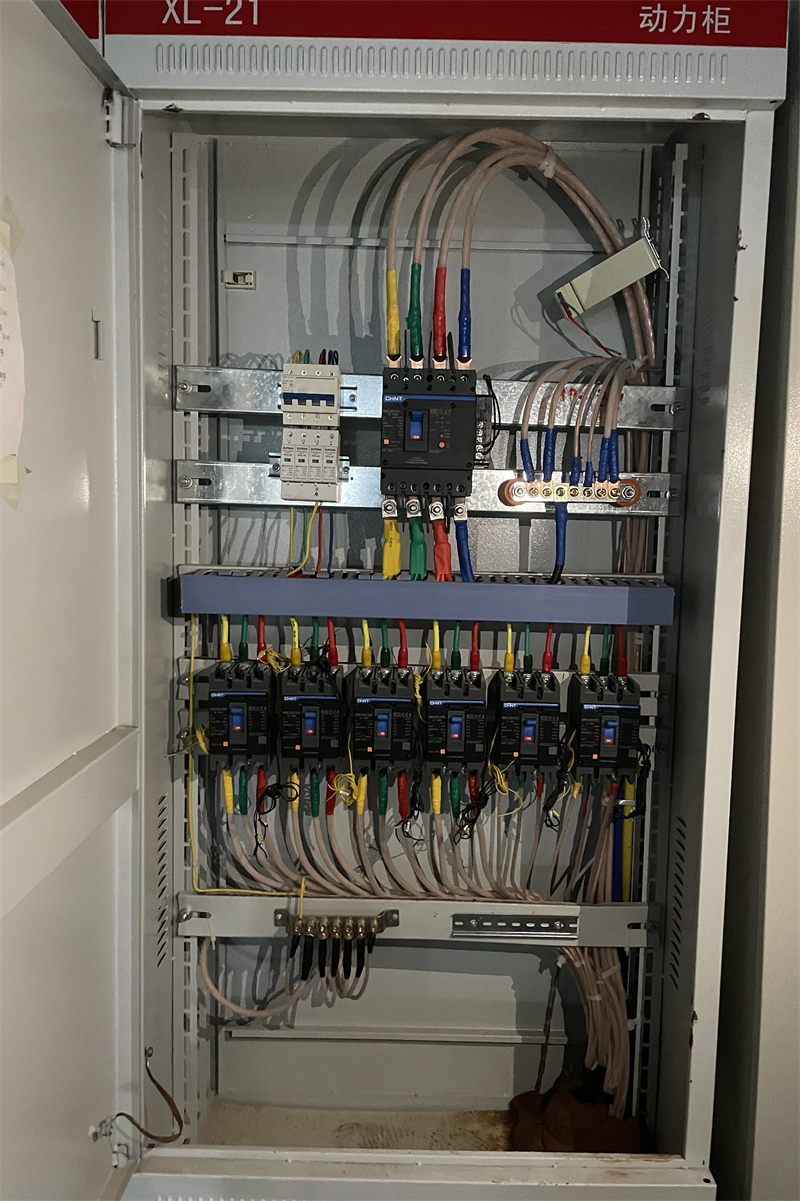

Power Distribution Panel
Applied in power plants and mining industry.

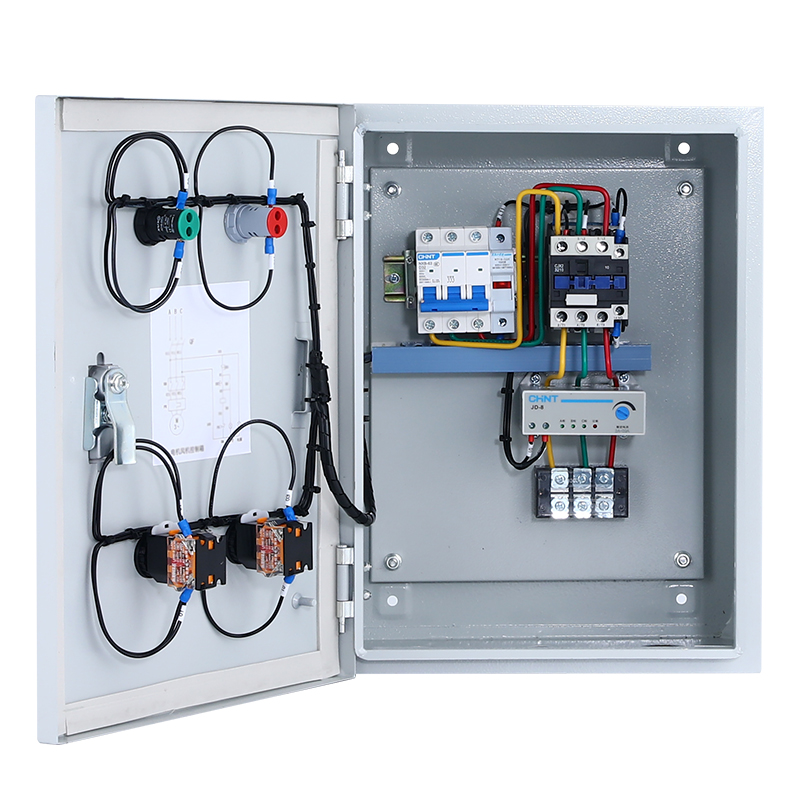

Motor Starting Panel
Used with concrete mixing machines in building industry.

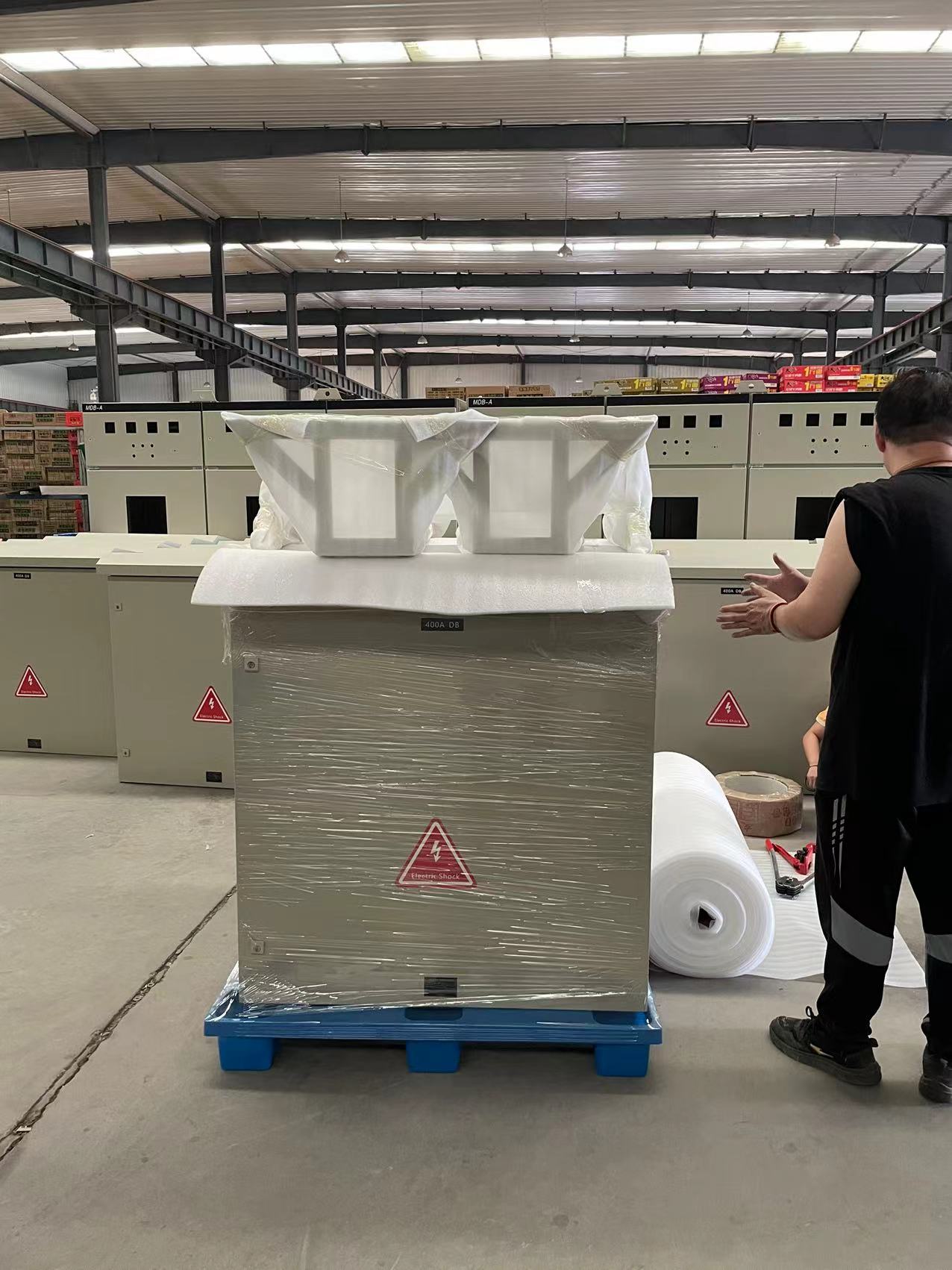

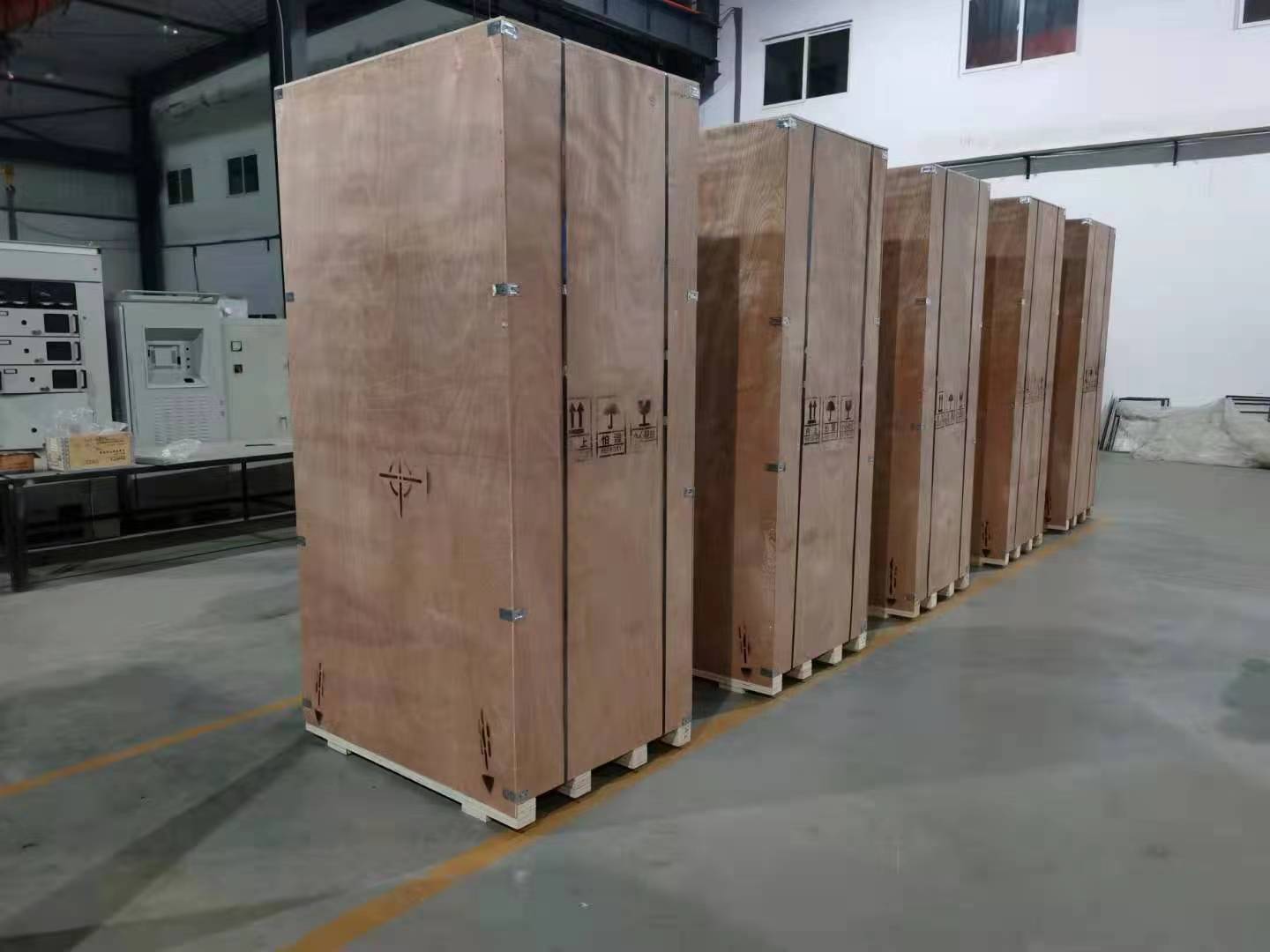

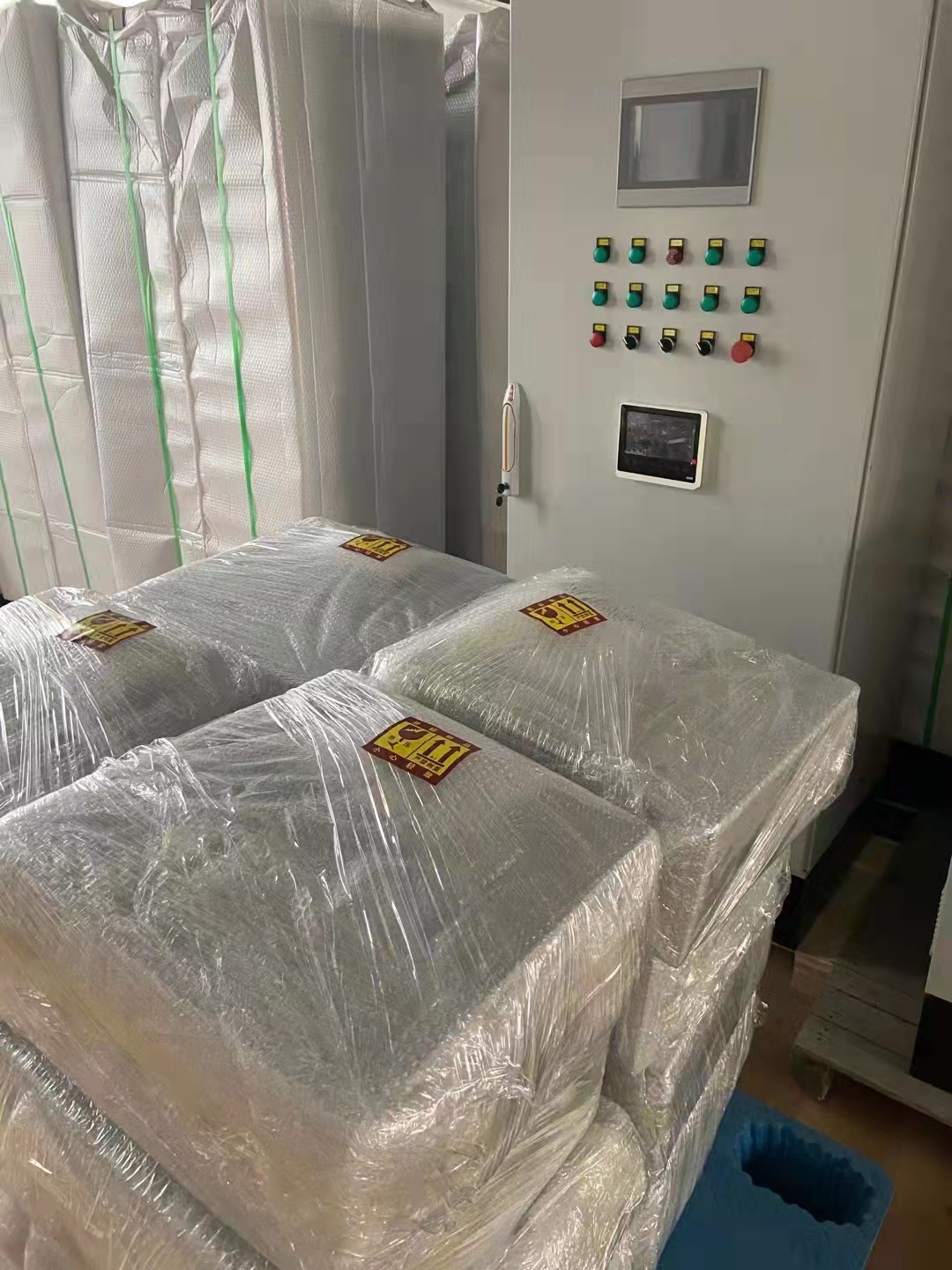

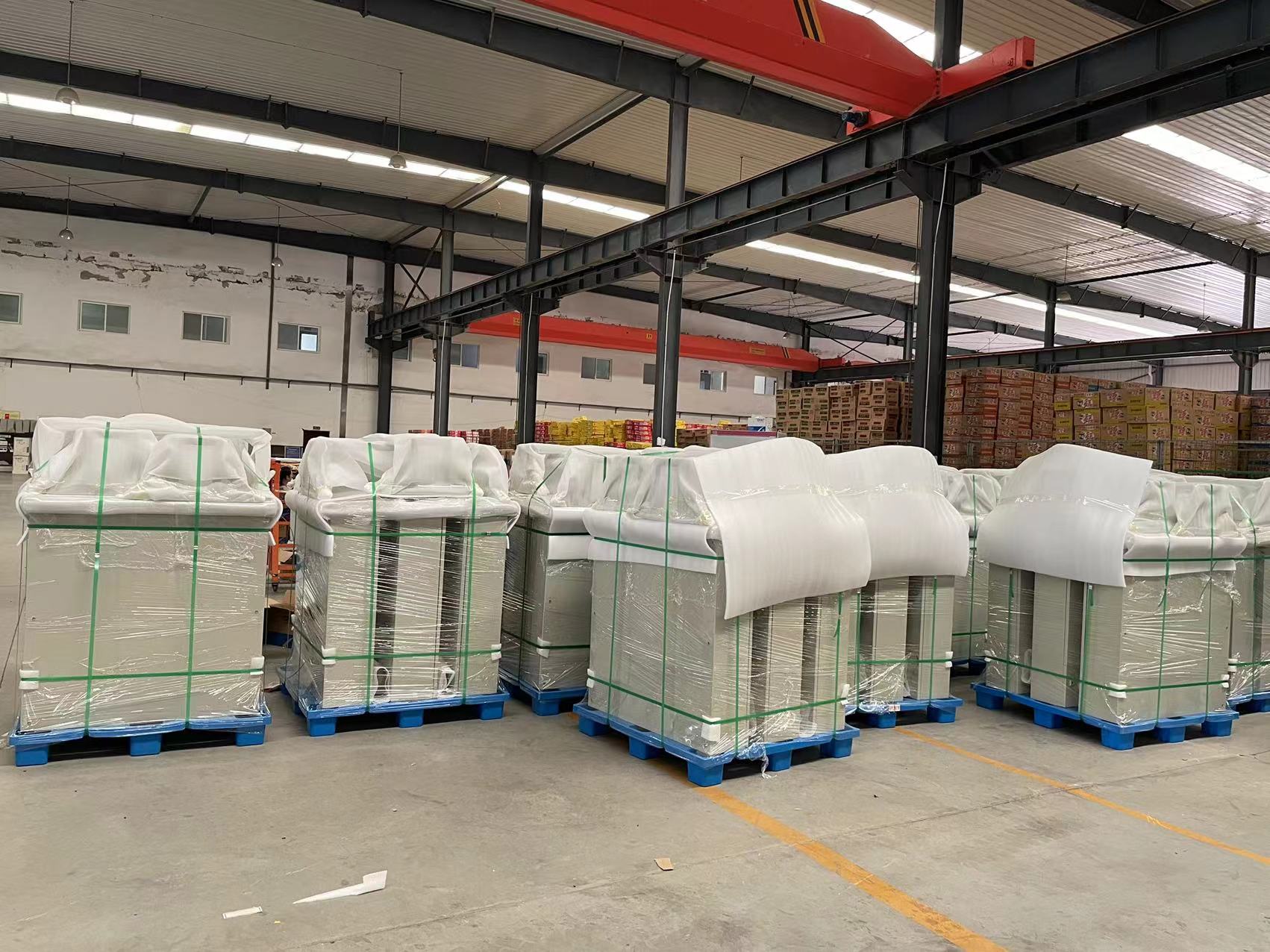

Packing & Shipping
Certificates
Frequently Asked Questions
What types of distribution boards do you provide?
We provide a wide range of MDBs including KYN28A-12(GZS1), KYN28-24, XGN2-12, XGN15-12, MNS, GCS, GCK, and GGD models.
How is the product quality guaranteed?
Quality is ensured through a pre-production sample before mass production and a final comprehensive inspection before every shipment.
What specific products can I purchase?
You can purchase all kinds of power distribution boards, switchgear, switchboards, and electrical control panels customized to your technical requirements.
Why should I choose your solution over other suppliers?
With eight years of professional experience in industrial automation, we offer one-stop services from component supply to custom assembly, including dedicated engineering technical support and OEM/ODM services.
What are the standard delivery and payment terms?
Accepted delivery terms include FOB. We primary accept USD via T/T payment methods. Technical communication is available in English and Chinese.
Are the cabinet dimensions customizable?
Yes, the outline dimensions (Width, Depth, Height) of our distribution cabinets are custom-made to fit your specific installation site requirements.
