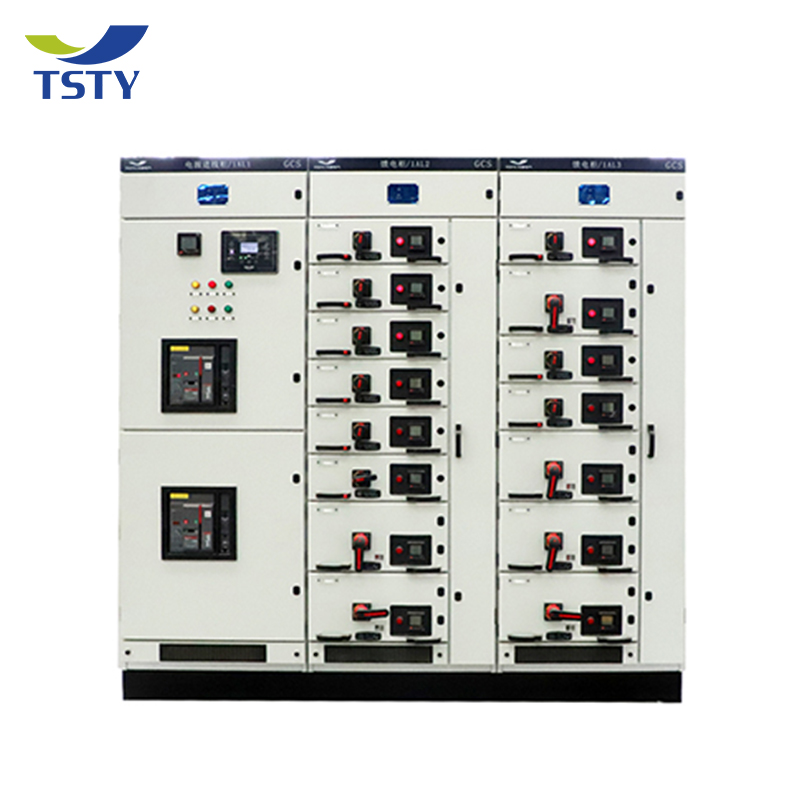

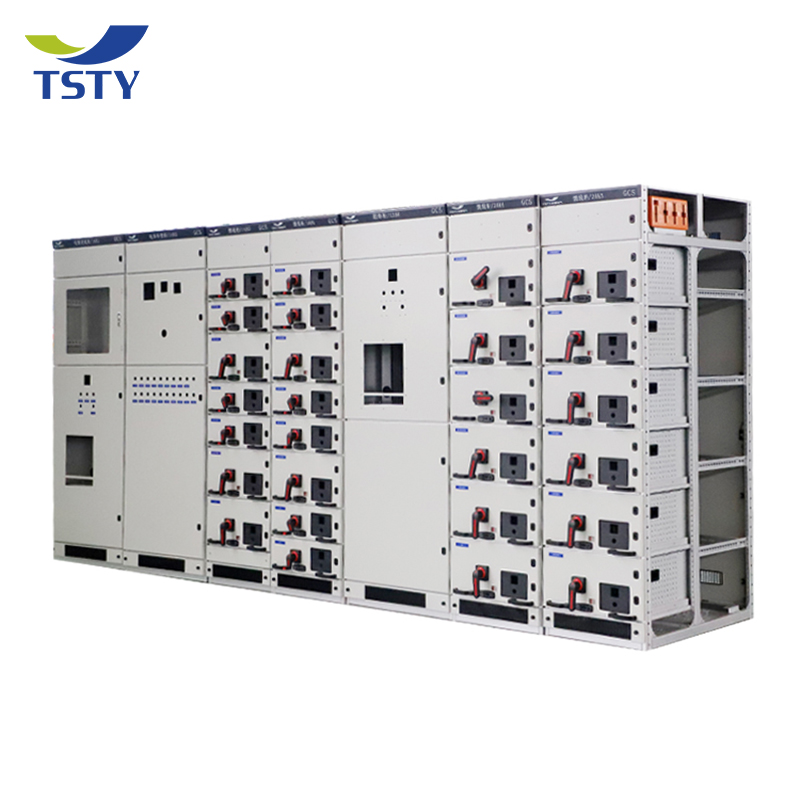

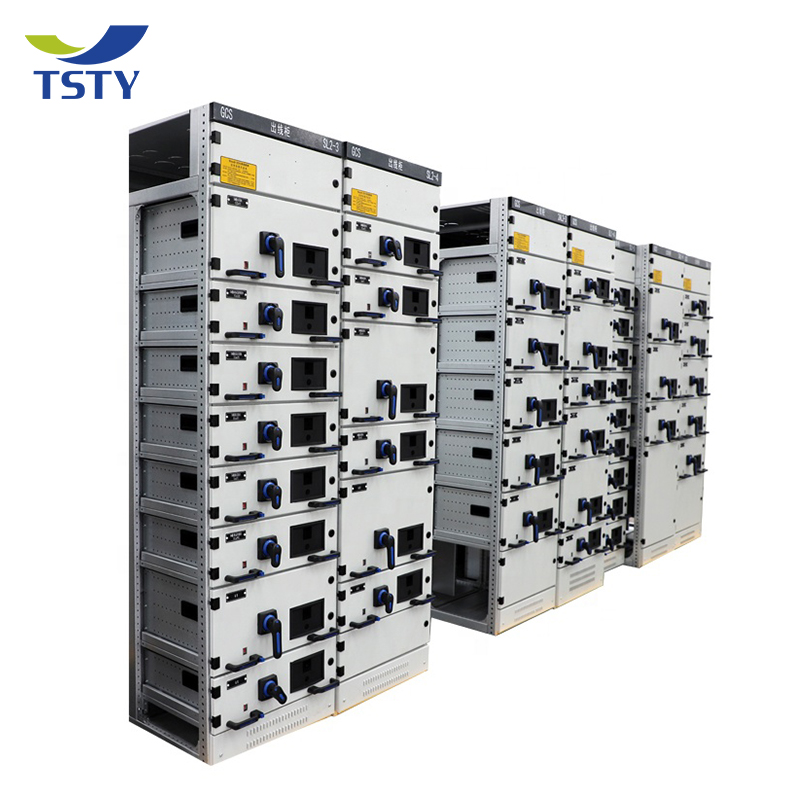

GCS low-voltage switchgear is a drawer-type low-voltage distribution cabinet widely used in industry, commerce and power systems.
The core advantages of GCS low-voltage cabinets are modularity, easy maintenance and high scalability. They are especially suitable for scenarios with high requirements for power distribution continuity, flexibility and intelligence. Its cost-effectiveness is between the economical GGD cabinet and the high-end MNS cabinet, and it is one of the mainstream choices in industrial power distribution systems.
| Cabinet Dimension | |
|---|---|
| Height (mm) | 2000 |
| Width (mm) | 400, 600, 800, 1000 |
| Depth (mm) | 600, 800, 1000 |
| Parameter | Value |
|---|---|
| Rated Voltage of Main Circuit | AC 380/400/600V |
| Rated voltage of auxiliary circuit | AC 220, 380(400)V; DC 110, 220V |
| Rated phase | 50(60)Hz |
| Rated insulation voltage | 600(1000)V |
| Rated current (Horizontal bus) | ≤4000A |
| Rated current (Vertical bus MCC) | 1000A |
| Short-time withstand current | 50, 80 kA/1s |
| Peak withstand current | 105, 176 kA/0.1s |
| Protection level | IP30, IP40 |
Established in 1995, the facility covers a construction area of 250,000 square meters with over 500 employees and 158 invention patents. Power products include 6kv, 11kv, 22kv, 35kv power transformers, distribution transformers, substation transformers, high and low voltage switchgear, wind power, and photovoltaic power generation equipment.

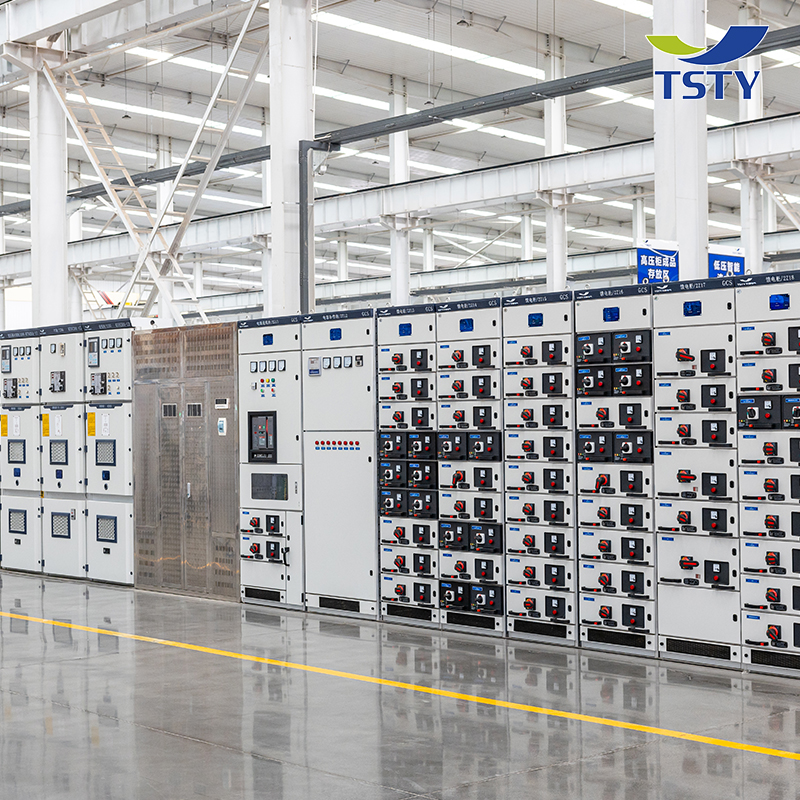

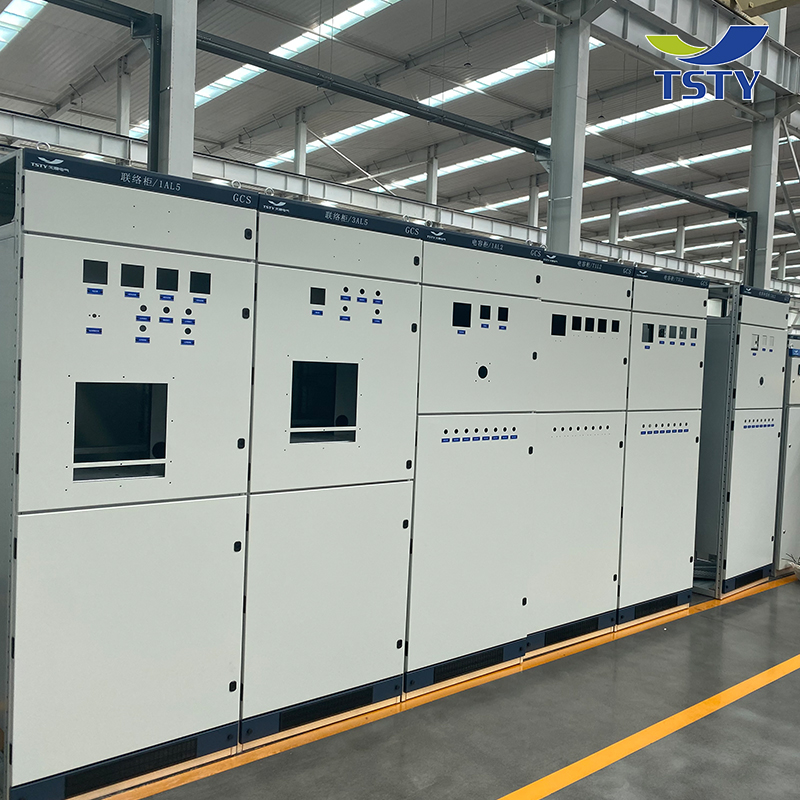

The workshop utilizes advanced automation and intelligent equipment, including Smart warehouse WMS, smart RGV/AGV trolleys, and MES production management systems integrated with 5G communication technology for real-time data control.
Certified by ISO9001, IEC, SGS, Intertek, CCC, CE, BV, GOST, and others. Products have been exported to more than 80 countries, including Indonesia, Chile, Netherlands, Hungary, England, Philippines, Pakistan, Bangladesh, South Africa, Zambia, Tanzania, Saudi Arabia, UAE, and Mexico.
