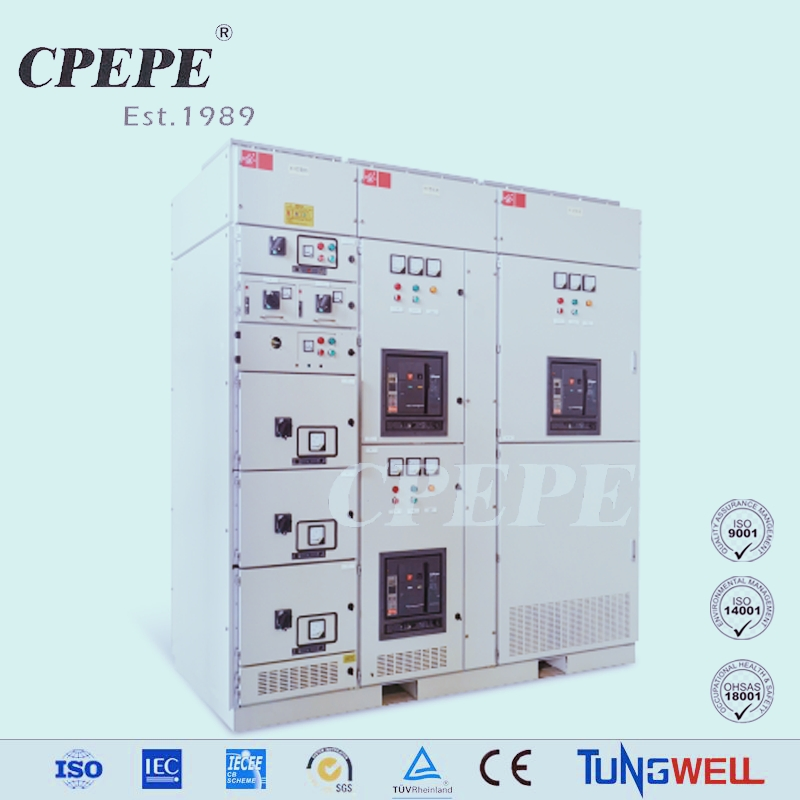

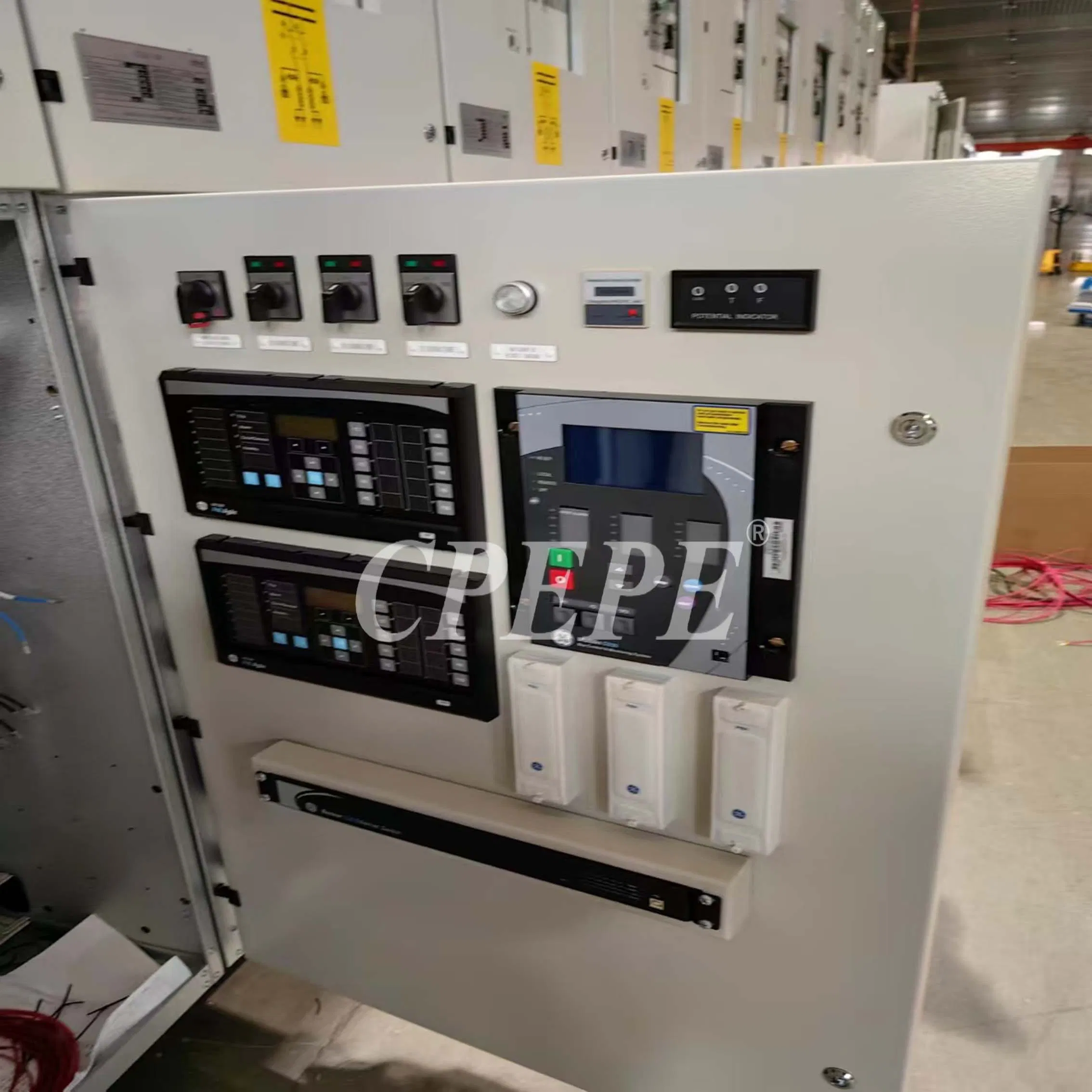

All operation labels are clearly marked on the interface. Operators can easily manage the switchgear following the direct instructions.
Constructed from high-density, anti-corrosive zincified steel plate. The panel features three independent compartments (busbar, function, and cable) to prevent fault extension.
The busbars are efficiently connected without the need for holes, ensuring structural integrity.
Smooth conversion between connecting, testing, and disconnecting positions via moving primary and secondary contactors. Designed with modularity based on capacity.
Includes a perfect mechanical interlock between the propelling mechanism and switch, along with switch-to-door interlocking to ensure maximum operator safety.
| Item | Unit | Data |
|---|---|---|
| Rated Operation Voltage | V | 380, 690 |
| Rated Insulation Voltage | V | 660, 1000 |
| Rated Frequency | Hz | 50 |
| Rated Power Frequency Withstand Voltage | V | 2500, 3500 |
| Rated Impulse Withstand Voltage | V | 6000, 8000, 12000* |
| Horizontal Busbar Rated Current | A | 800 - 4000 (Up to 6000*) |
| Rated Short-Time Withstand Current | KA | 50, 80, 100 |
| Degree Of Enclosure Protection | - | IP40, IP44 |
| Dimension (H×W×D) | mm | 2300×600×1000 (Customizable) |
Extensively used in metro projects across major cities including Shenzhen, Changsha, Nanning, Xi'an, Chengdu, Nanjing, and more.
Reliable power solutions for chemical fiber, synthetic materials, and major iron and steel groups like Baosteel and Nanjing Iron and Steel.

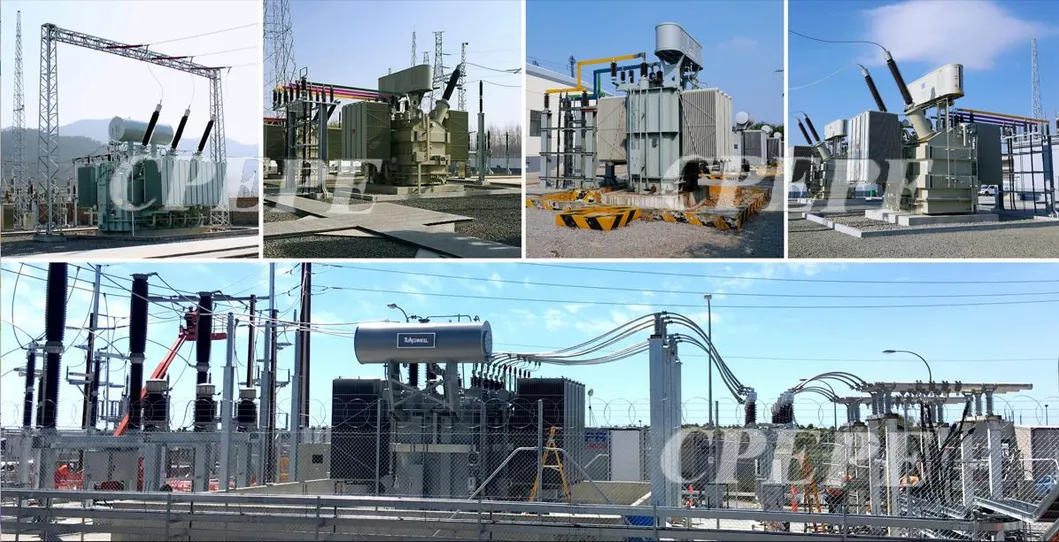

Supporting thermal power plants, high-altitude wind farms (Tibet), photovoltaic power generation, and 220kV substations.
