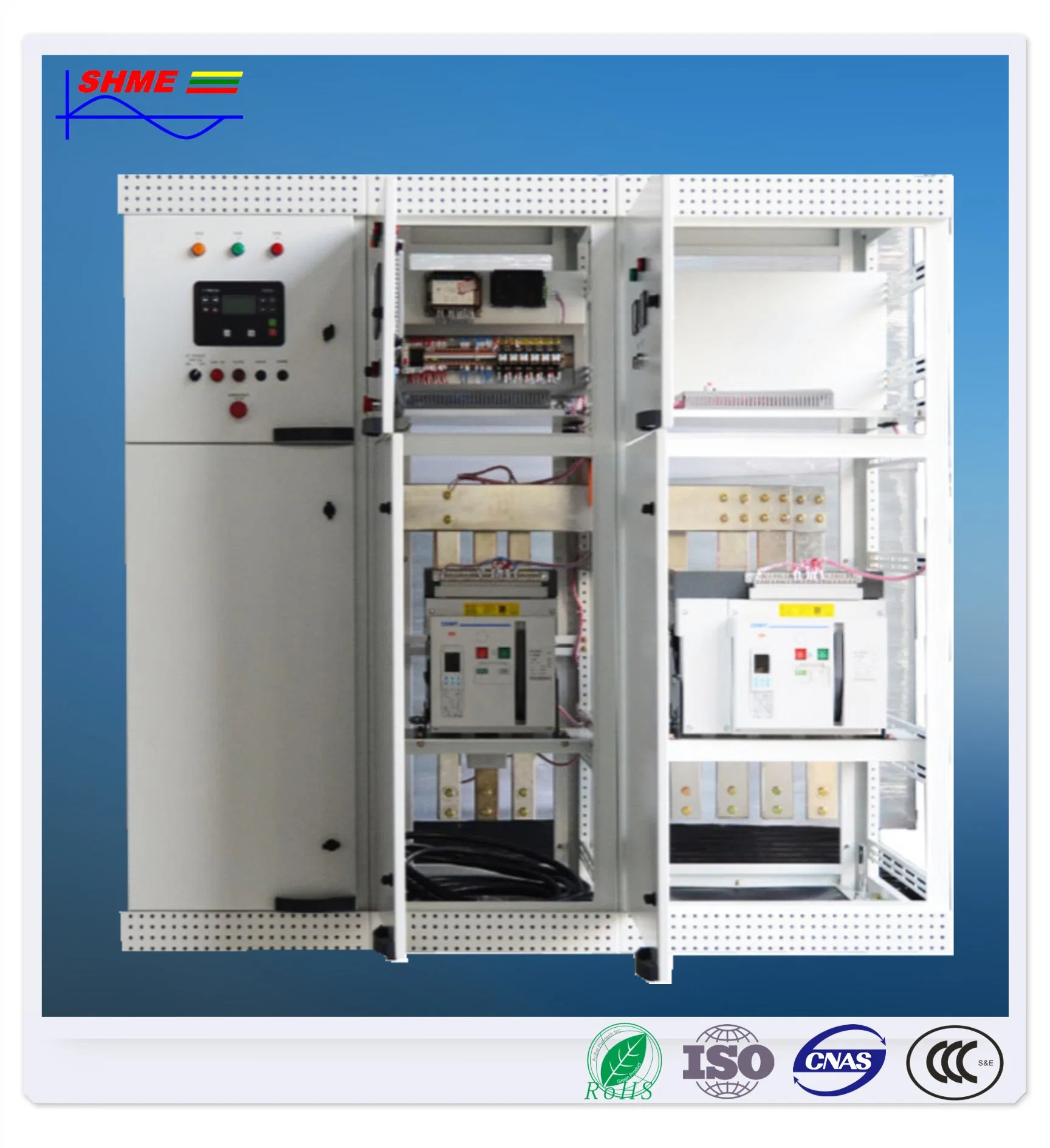

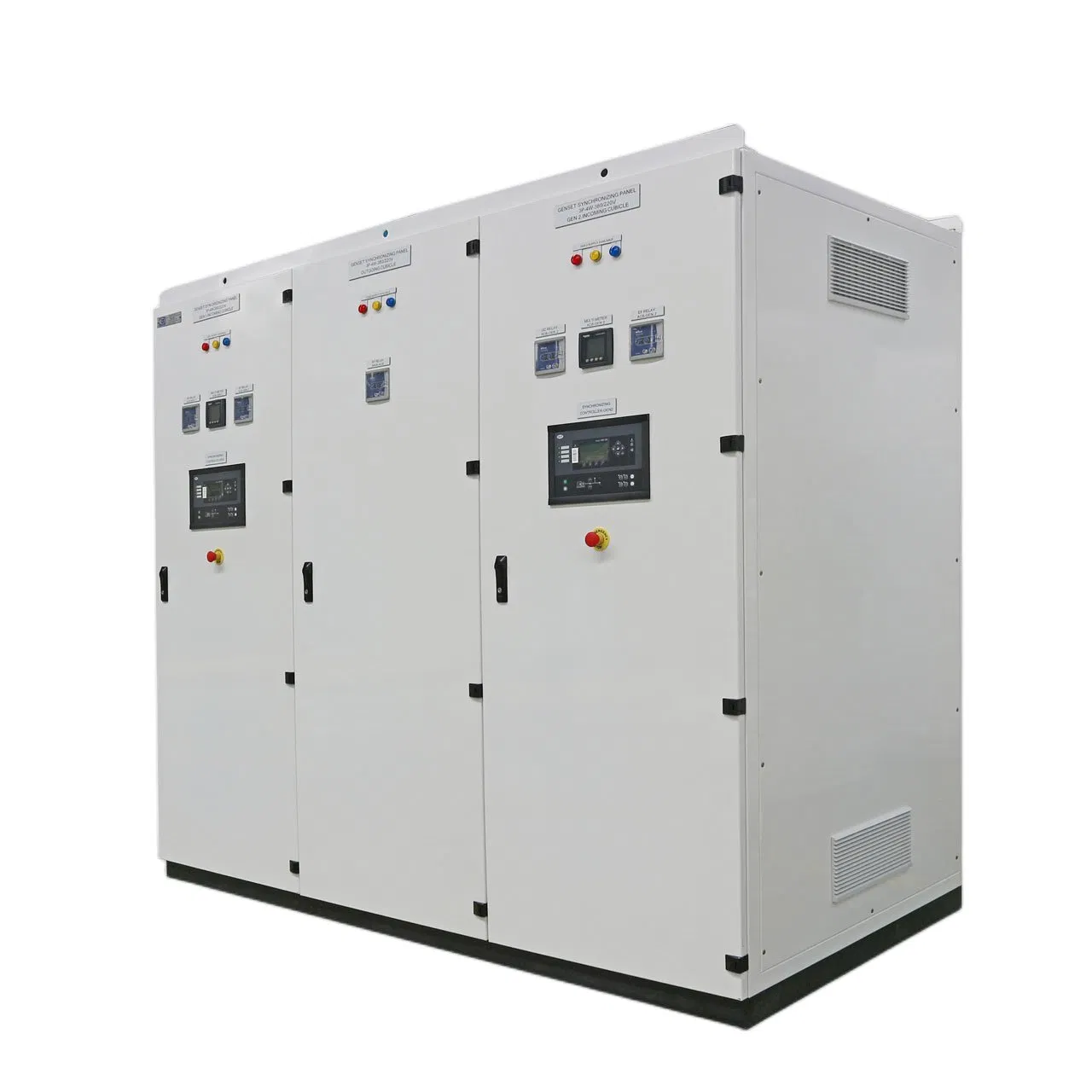

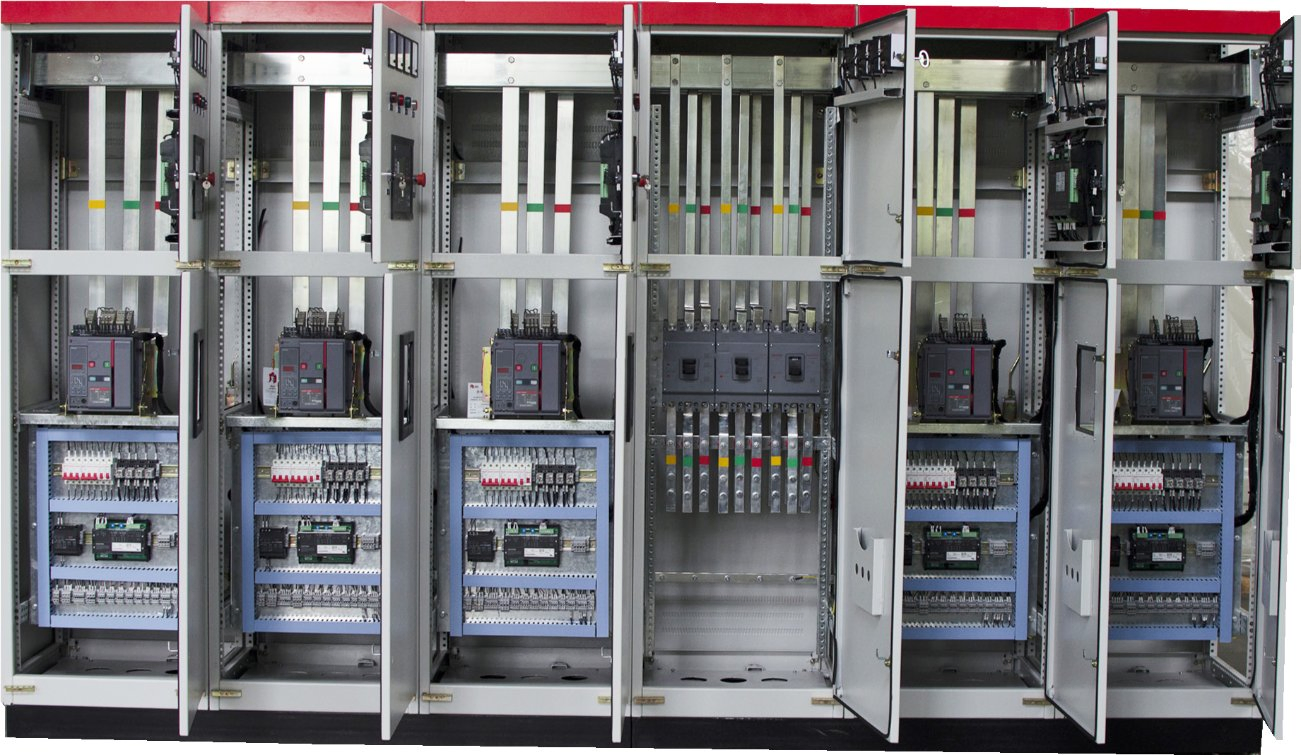

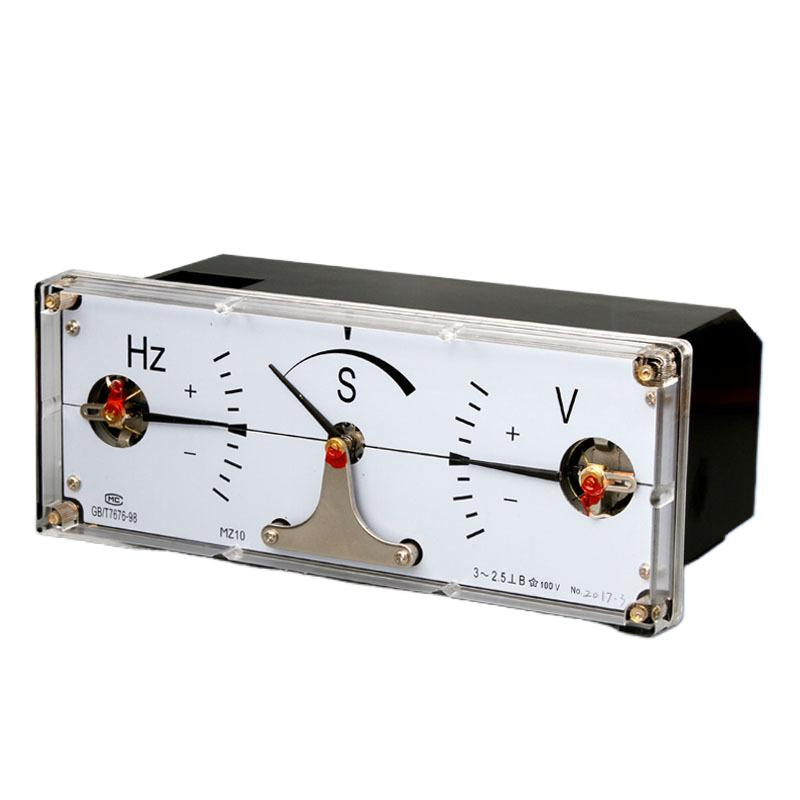

Electric Panel Diesel Generator Synchronizing Control up to 1000V AC/DC Synchronized Switch Board Electrical Panel Board

Customization: Available
Certification: ISO9001
Shell Material: Steel Plate

Product Description

⚙️ Basic Information
Voltage Level
Low Voltage
Installation
Fixed
Structure
Withdrawable
Current
AC
Transport Package
Plywood
Specification
2000*800*800
Origin
China
HS Code
8537109090
Production Capacity
1000set/Year
📝 Product Description

Generator Auto Synchronization Control Panel

Synchronization is an efficient power distribution unit to combine multiple gensets as one complete power source providing electricity for various loads. It can distribute loads reasonably, easy for expanding local power network and simplify electrical lines arrangement.

Multiple gensets are usually used in one factory. Old traditional way for power distribution is done by man, which will cause unreasonable loads distribution on branch lines. Some genset's load is too big and others are too small, not good for rational utilization of resources.

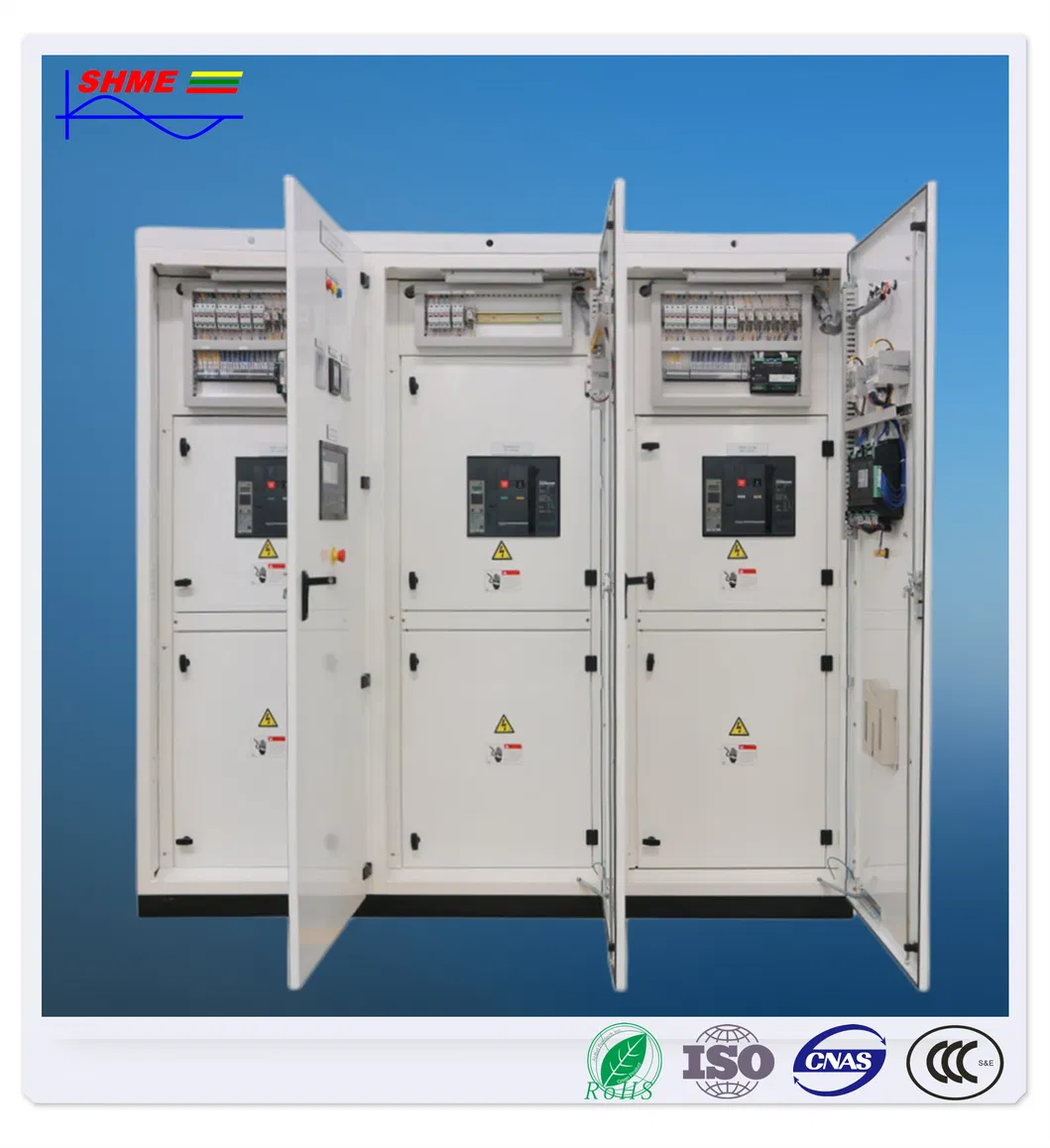

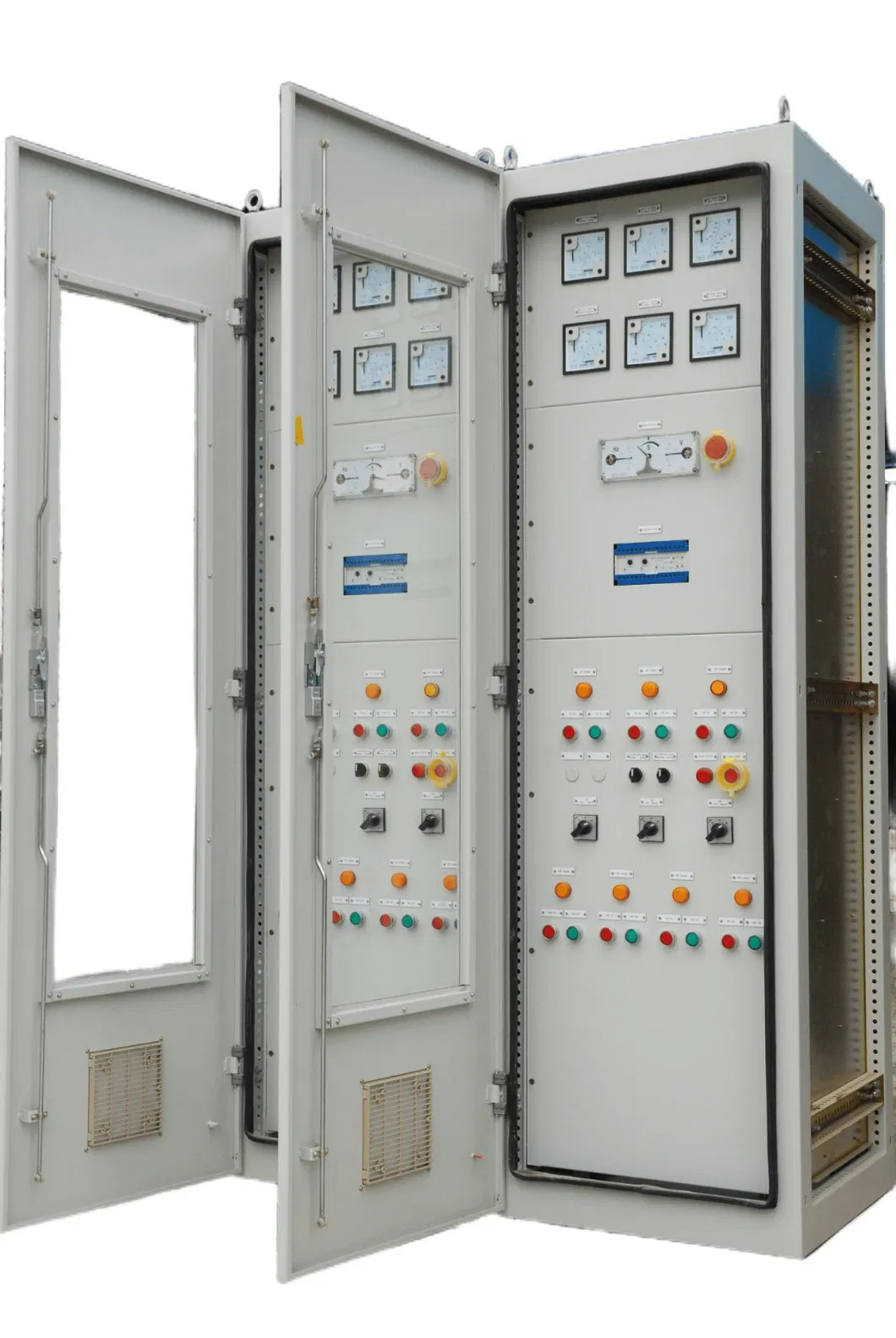

Generator Auto Synchronization control panel Synchronizing Control Board
💎 Product Advantages & Characteristics

Key Advantages

Reasonable loads sharing ensure gensets run under most economical conditions.
High sustainability for impact load and load shocking.
Excellent stabilization on output voltage and frequency.
No break between multiple gensets transfer.
Minimize cable consumption.
Extremely convenient for local power network capacity expanding.

Technical Characteristics

🔹Synchronization process is fully automatic with ratio-controlled load sharing.
🔹Equipped with Deepsea DSE7510 controller for reliable protection.
🔹Surprising flexibility for free combination with any engine or alternator.

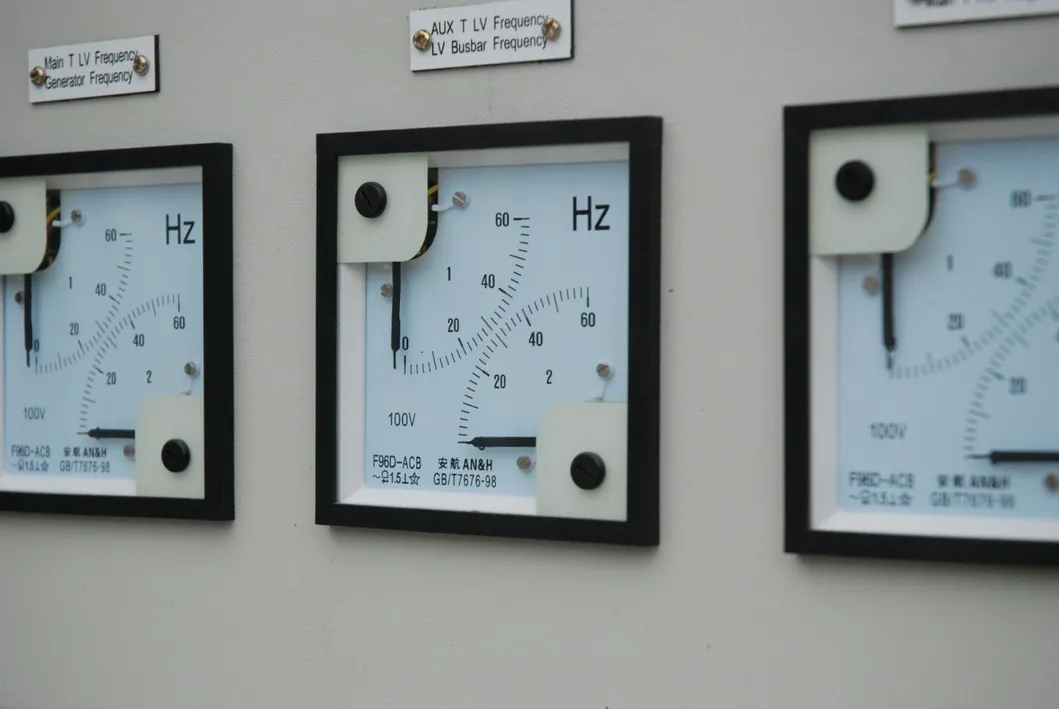

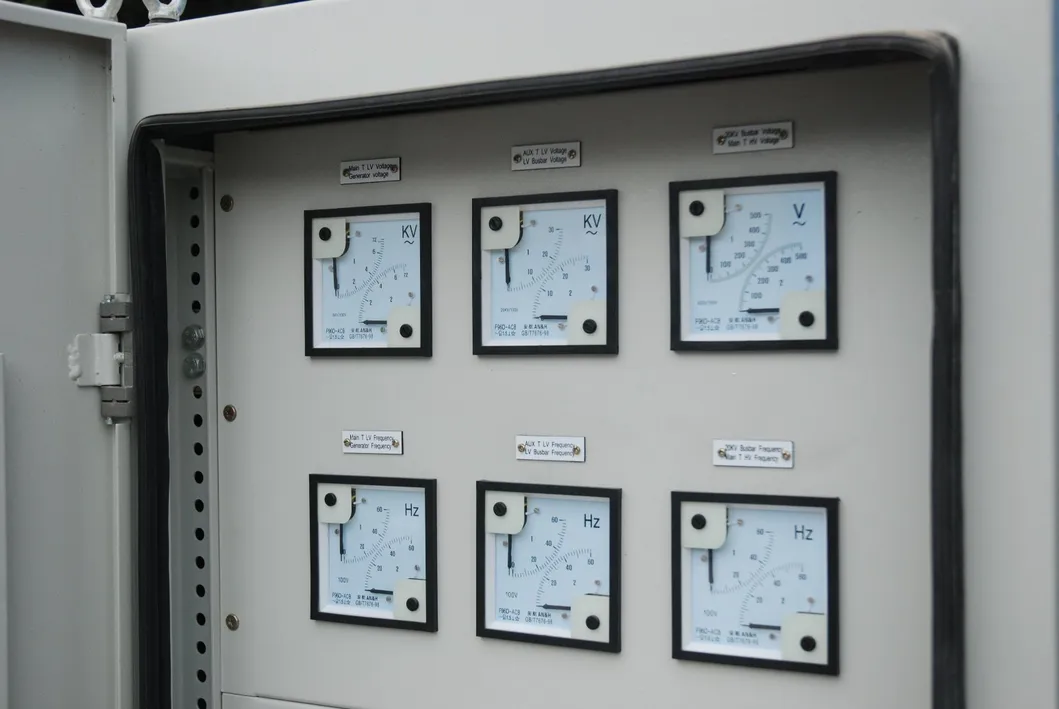

🔹Comprehensive meter displaying for Power output, current, voltage, and frequency.
🔹Enclosure cabinets painted by electrostatic polyester powder paint (Protection class IP23).

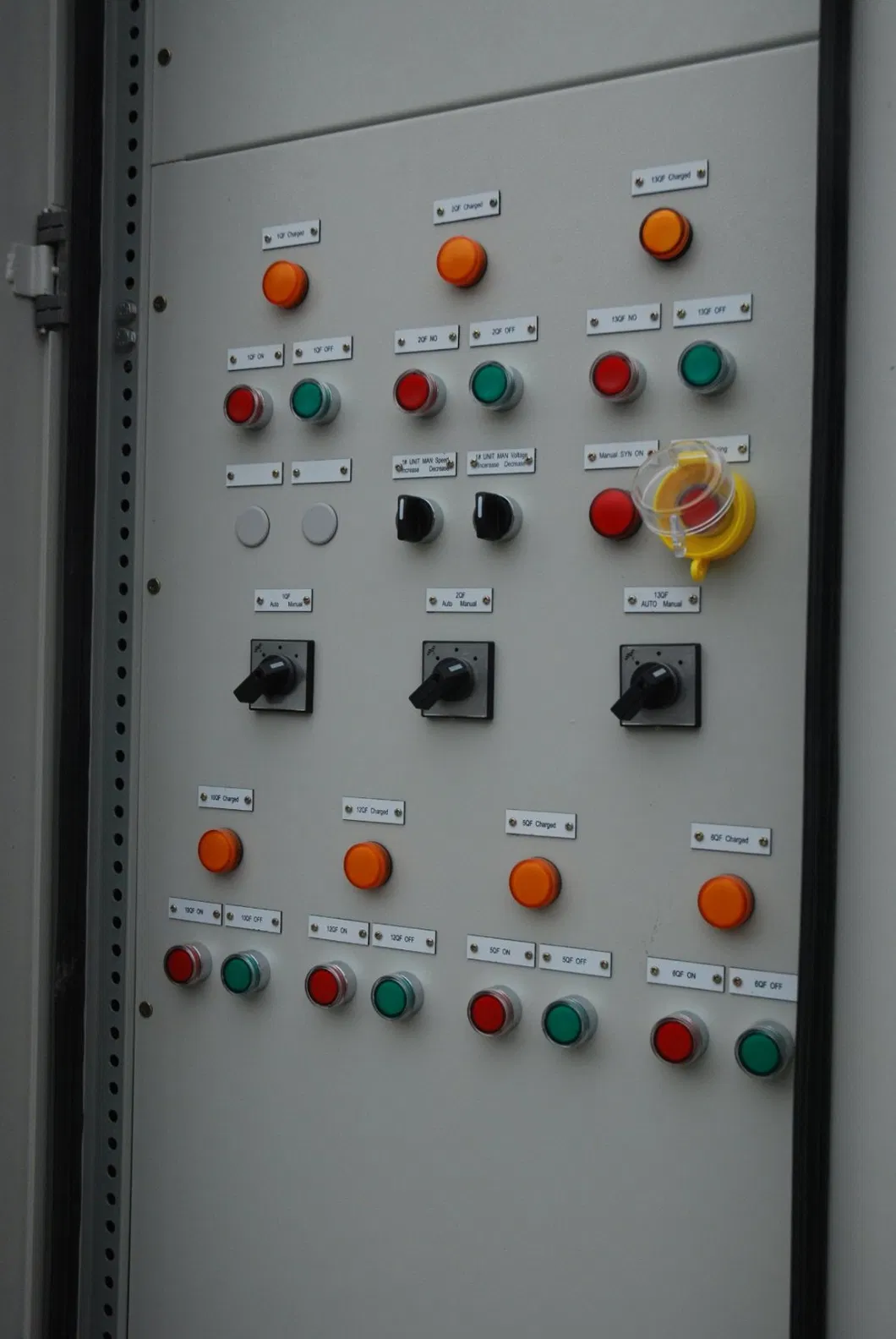

🔹Emergency stop button included for safety.

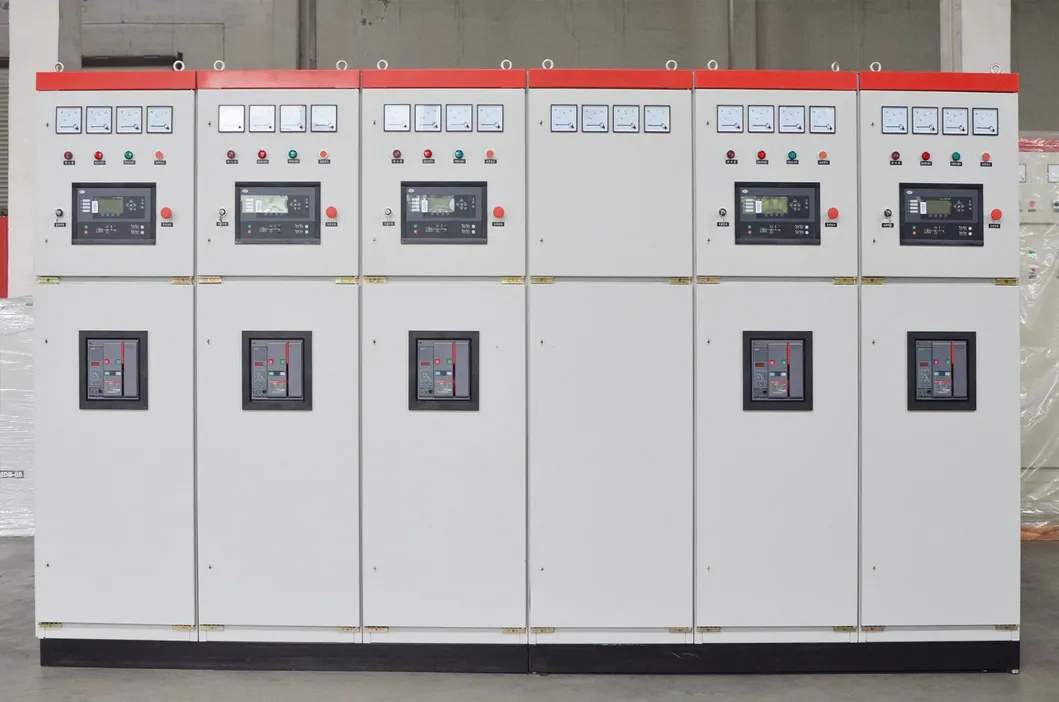

📸 Detailed Photos
🏗️ Project Pictures
PLN Rote 2×3MW Power Plant
Auto Synchronization control panel. As a long-term partner of PLN (Indonesian National Grid Corporation), we provide high and low voltage distribution switchgear and DCS control systems for multiple power stations.

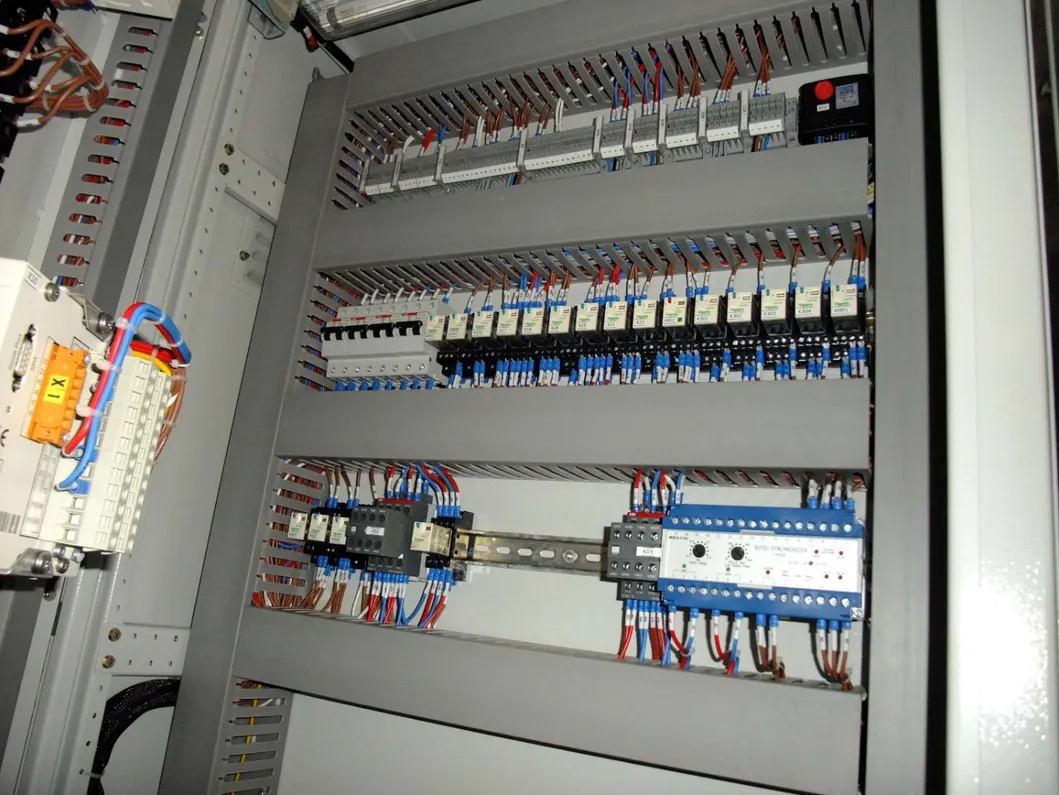

PLN Sanggau 2×7.5MW Power Plant DCS Control System

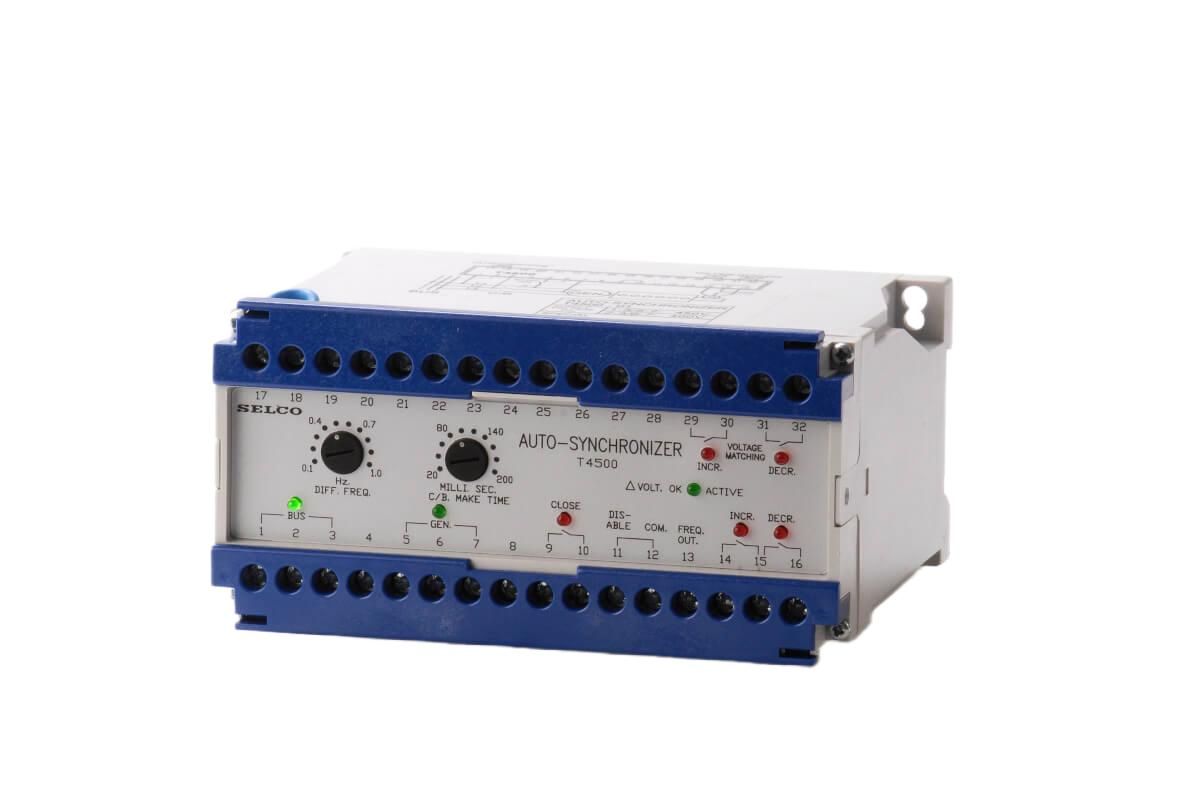

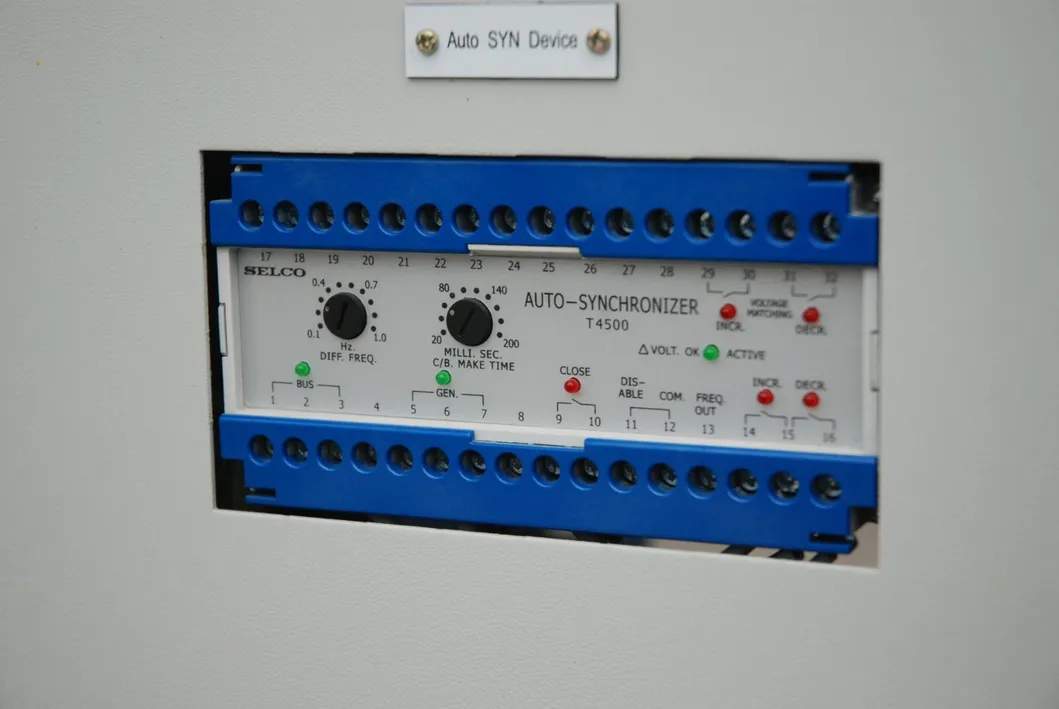

Utilizing SELCO T4500 Synchronization controller for grid construction and power station management.

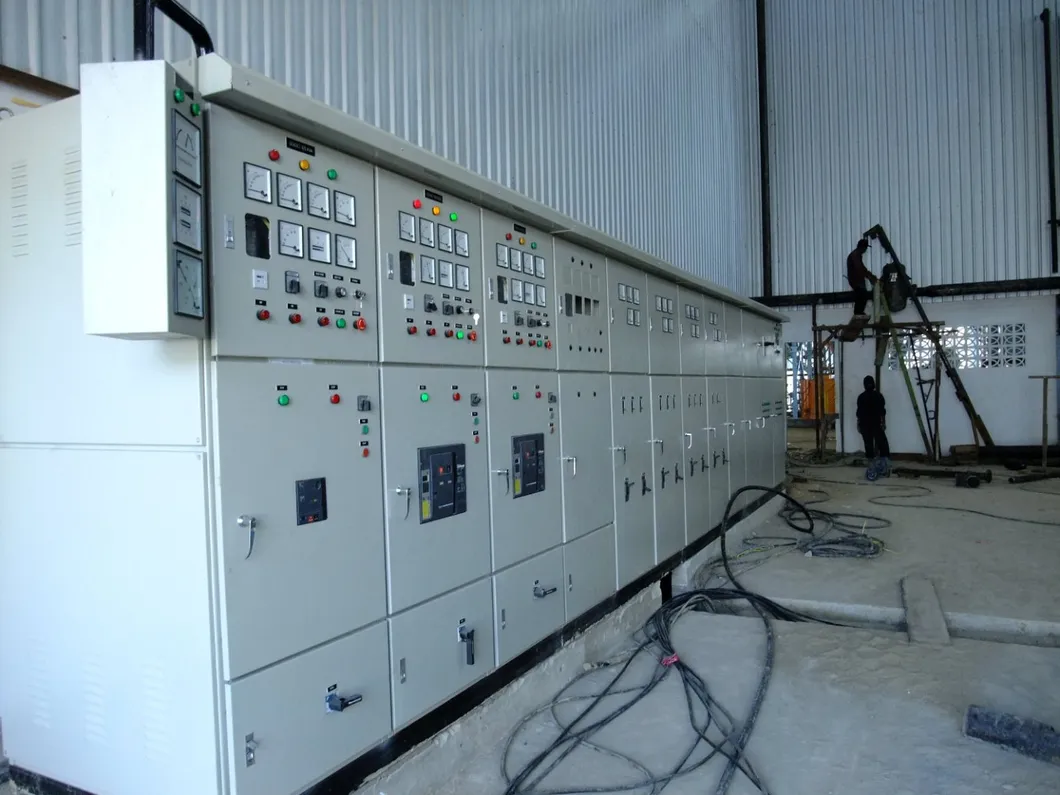

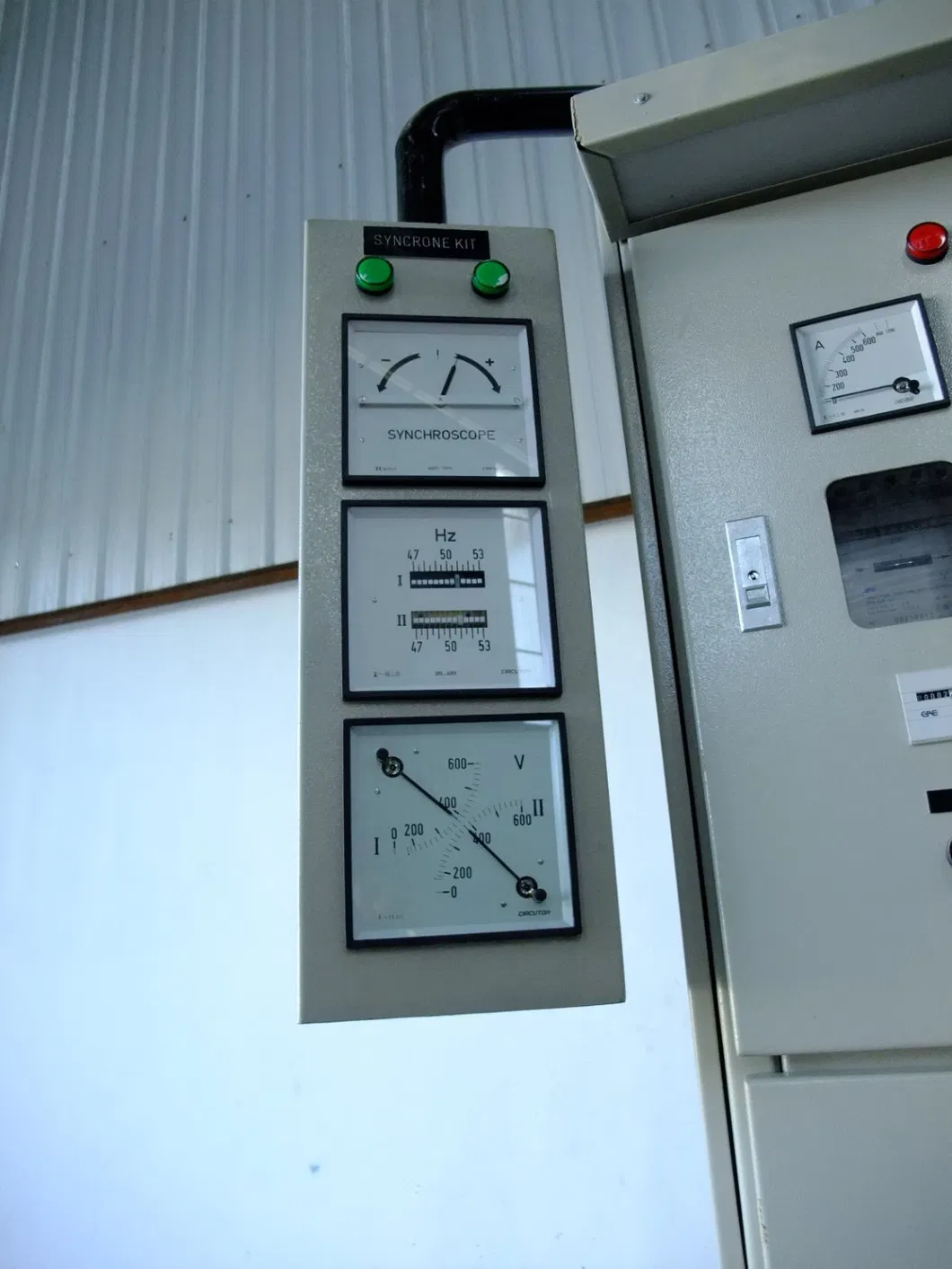

Indonesia Palm Oil Manufacture Power Plant
Auto Synchronization control panel application for industrial power plants.
❓ Frequently Asked Questions
1. What is the purpose of an Auto Synchronization Control Panel?
It combines multiple generator sets into a single power source, allowing for reasonable load distribution and easier expansion of the local power network.
2. Which controller is used in the synchronization panel?
The panels are typically equipped with high-performance controllers like the Deepsea DSE7510 or SELCO T4500, ensuring reliable protection and automatic operation.
3. Can I combine generators with different engine or alternator types?
Yes, our synchronization panels offer excellent flexibility and can be combined with any corresponding capacity genset regardless of the engine or alternator brand.
4. What are the key safety features?
The panels include an emergency stop button, comprehensive protection against reverse power, over current, and over load, as well as light and sound alarms for faults.
5. What is the protection rating of the enclosure?
The enclosure cabinets are treated with electrostatic polyester powder paint and have a protection class rating of IP23.
6. Does the system support automatic load sharing?
Yes, the synchronization process is fully automatic. After syncing, loads are shared and controlled based on a set ratio, with the ability to add or stop gensets online automatically.
