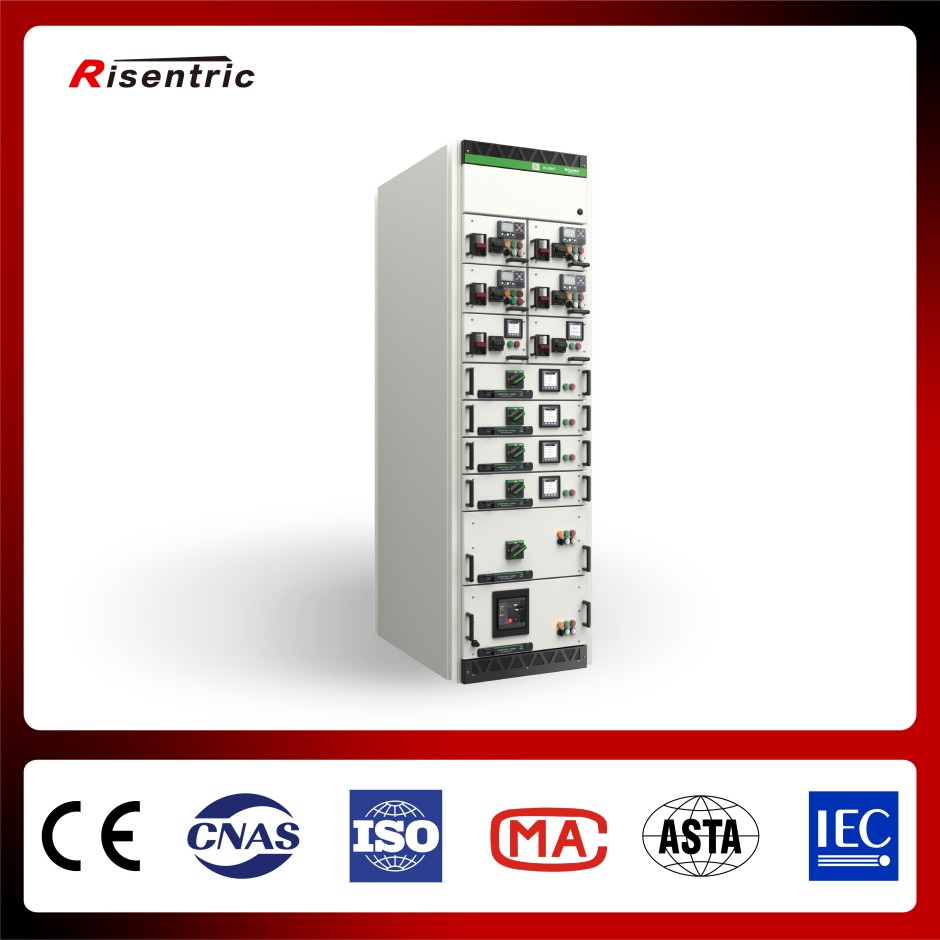

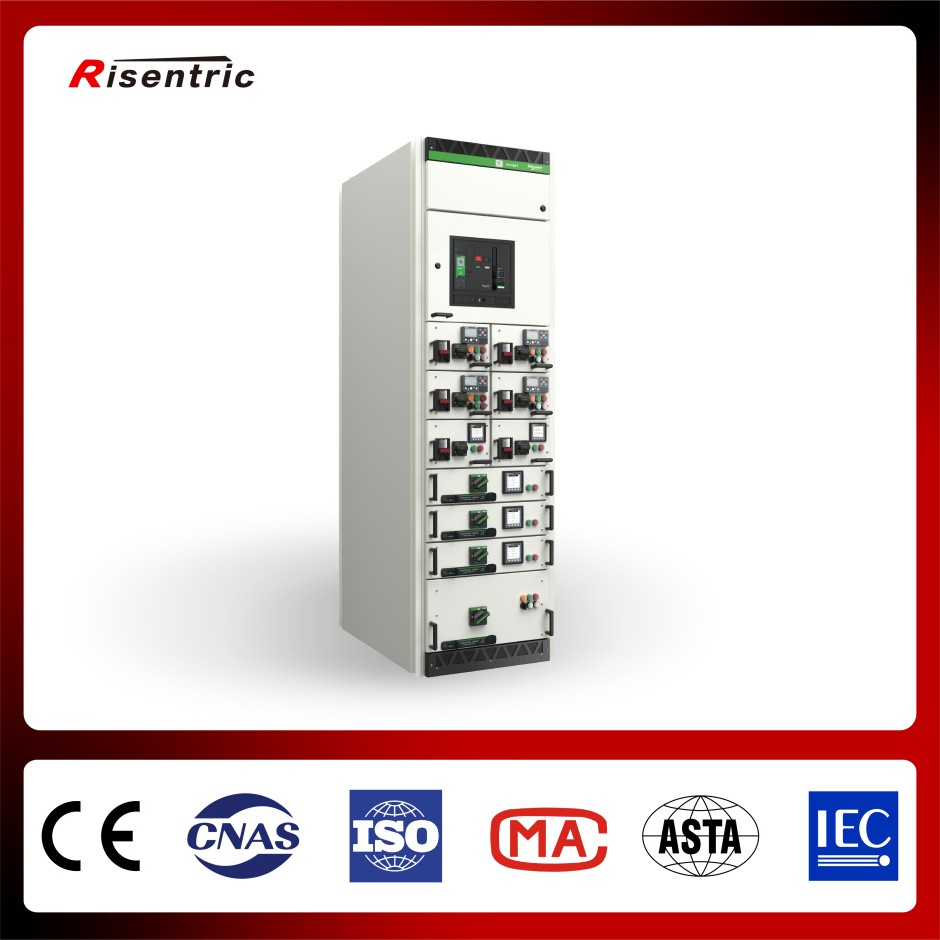

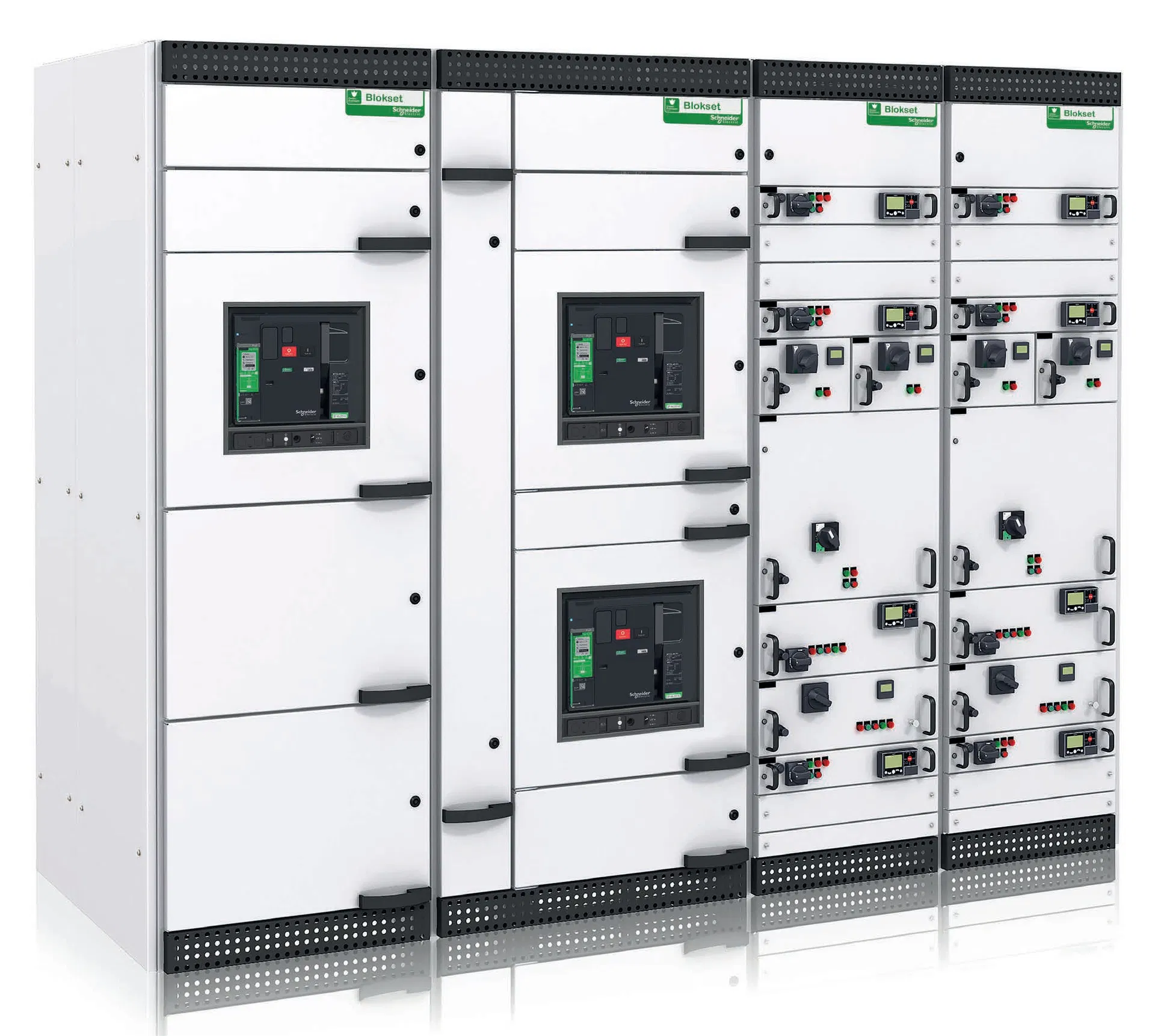

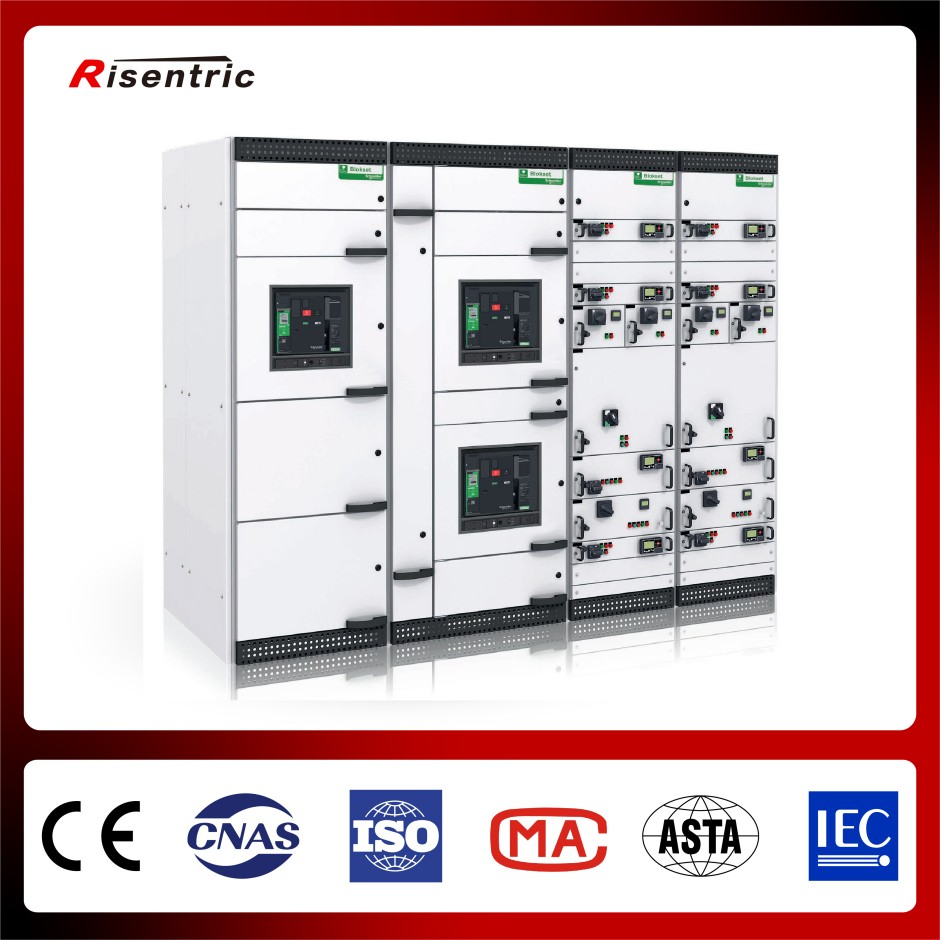

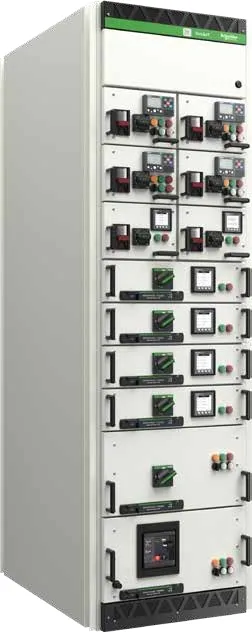

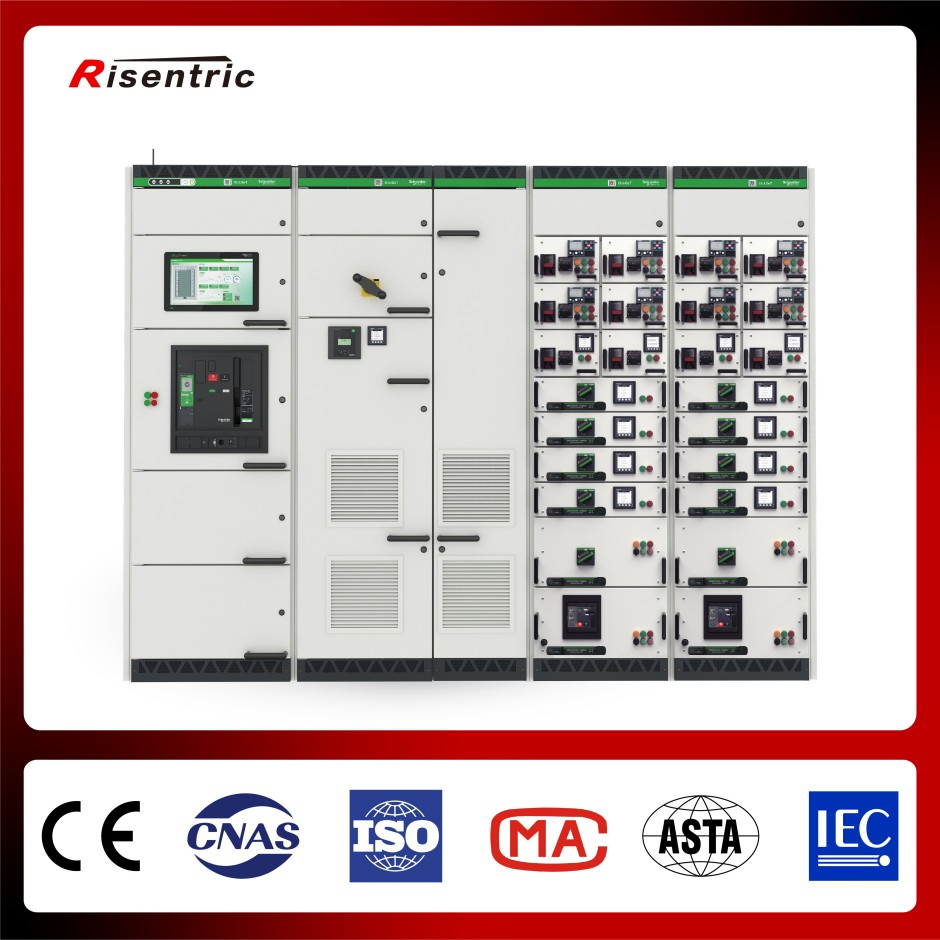

The Blokset series switchgear is specially designed for low voltage distribution products. It is suitable for power distribution systems with a frequency of 400Hz or less, a rated working voltage of 690V, a rated insulation voltage of 1000V, and a rated current of 6300A or less. It complies with relevant standards such as IEC60439-1, IEC60529, and IEC60947, and can be used as a power distribution center, motor control center, power factor compensation, and terminal distribution equipment for power control, conversion, and distribution.

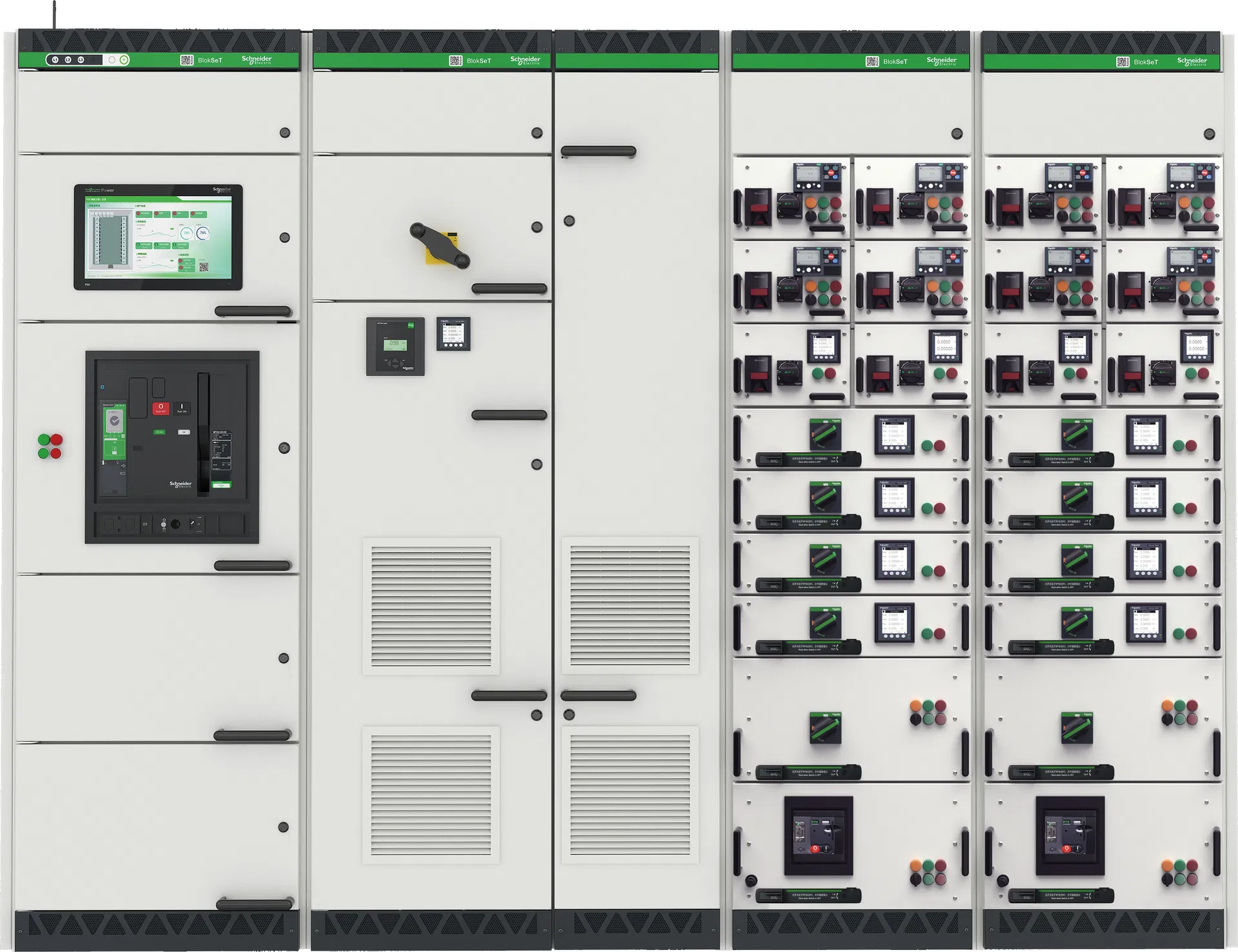

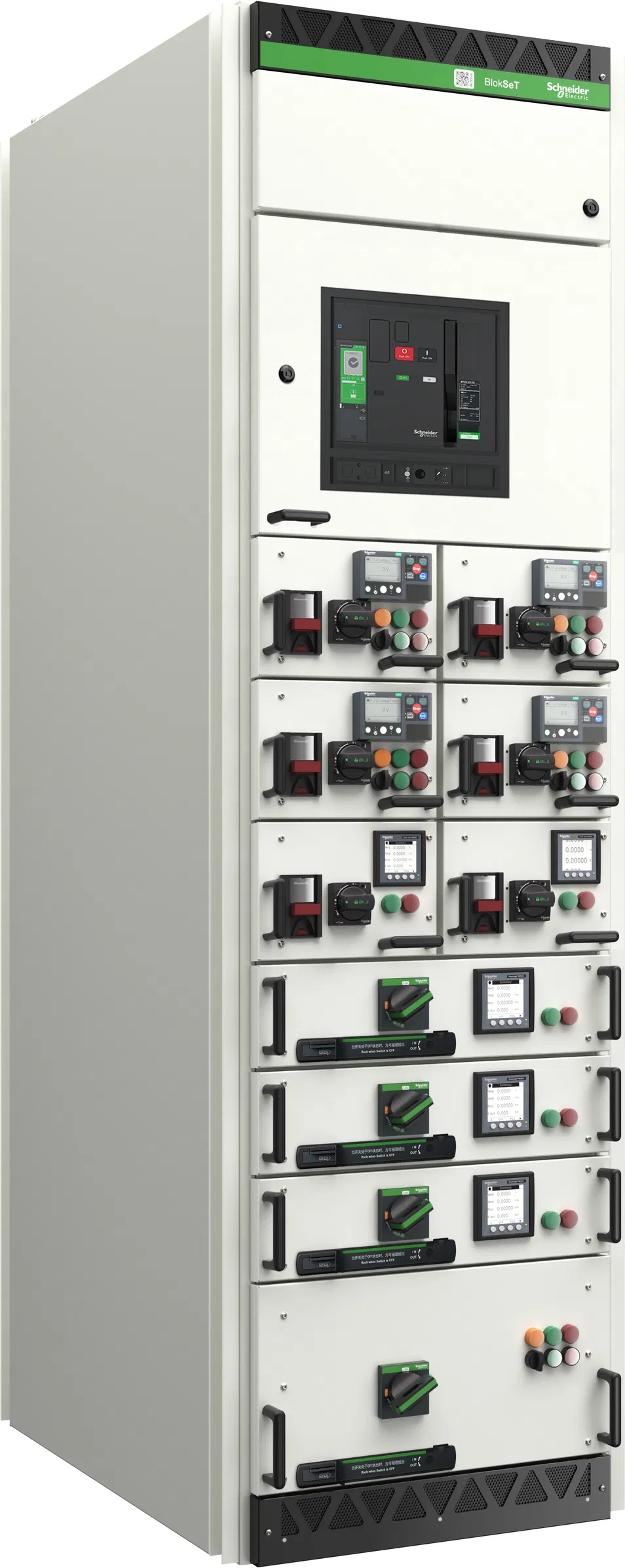

Blokset offers a variety of cabinet types to meet the needs of different applications. It is applied in all low-voltage systems that require high reliability, including industrial fields such as metallurgy, papermaking, manufacturing, and mining, as well as infrastructure fields such as water treatment, airports, and ports.
| Parameter | Specification | |
|---|---|---|
| Rated insulation voltage (Ui) | 1000V | |
| Rated operating voltage (Ue) | 400/690V AC | |
| Rated impulse voltage (Uimp) | 12 kV | |
| Horizontal busbar rating | Maximum up to 7000A | |
| Horizontal busbar | Short-time withstand (Icw/1s) | 30/50/65/80/100 kA |
| Peak withstand (lpk) | 63/105/143/176/220 kA | |
| Dimensions (Height) | 2200 mm | |
| Protection level | IP20~54 | |
Specializing in intelligent power transmission, distribution, and industrial electrical control. We hold ISO 9001, ISO 14001, and ISO 45001 certifications. Products are designed in strict accordance with IEC standards and national regulations, with CCC, CQC, and CE certifications ensuring safety and international applicability.
