High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution
High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution
High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution
High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution
High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution
1 / 5
High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution
High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution
High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution
High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution
High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution

High-Voltage Indoor Kyn61-40.5 Switchgear for Efficient Power Distribution

Customization: Available
Certification: ISO9001
Shell Material: Stainless Steel
Send Inquiry

Product Description

🔹 Basic Specifications
Model NO.
KYN61-40.5
Voltage Level
High Voltage
Installation
Fixed
Structure
Cabinet
Current
AC
Phase
Three
Rated Voltage
40.5kv
Rated Current
1250-3150A
Origin
China
Protection Level
Enclosure IP3X
📄 Product Introduction
KYN61-40.5 Switchgear

Overview: KN6l-40.5(Z) type alternating current metal-clad and metal-enclosed withdrawable switchgear is an indoor complete set of power distribution unit of three-phase AC 50Hz and rated voltage of 40.5kV. Used for receiving and distributing electrical energy in power plants, transformer substations, mining and industrial enterprises, etc. It controls, protects, and detects the circuits and is applicable to frequent operation locations. This switchgear complies with GB/T11022-1999, GB3906-1991, and DL404-1997 standards.

🌍 Normal Operating Environment
Switchgear Detail

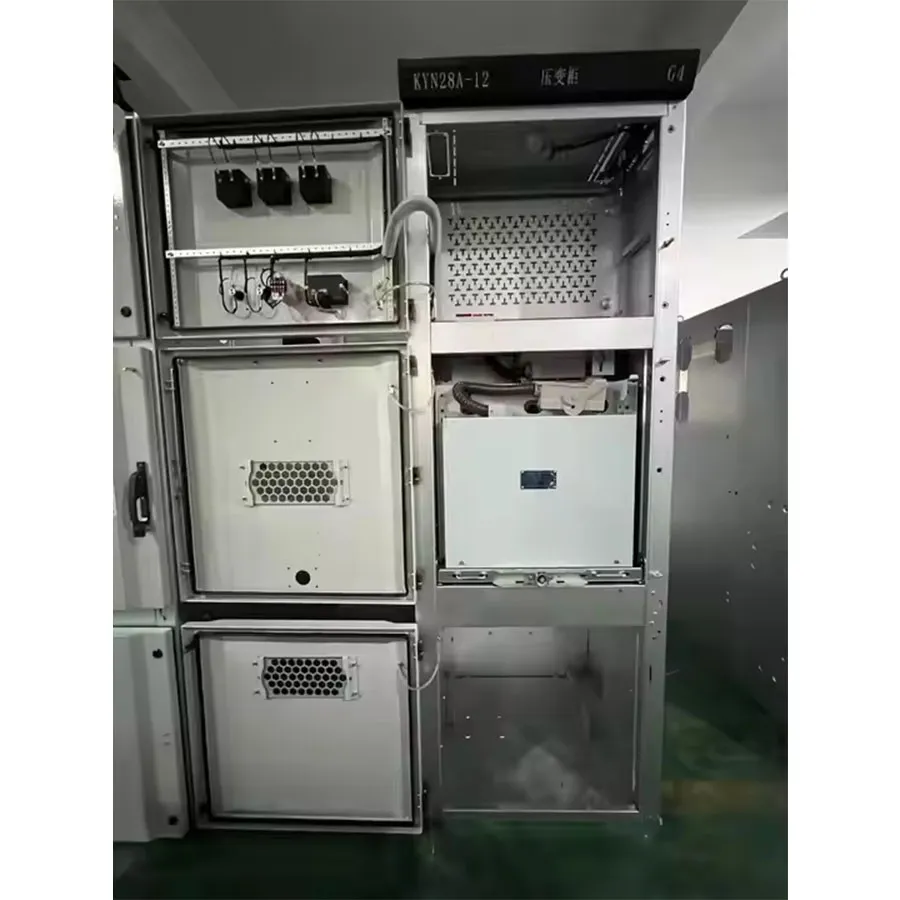

Operating Environment
  • ✅ Ambient temperature: -10°C ~ +40°C (24h average ≤ 35°C)
  • ✅ Altitude: ≤ 1000m
  • ✅ Relative humidity: Daily ≤ 95%, Monthly ≤ 90%
  • ✅ Ambient environment: Site should be free of fire, explosive danger, serious pollution, or chemical corrosion.
⭐ Main Features

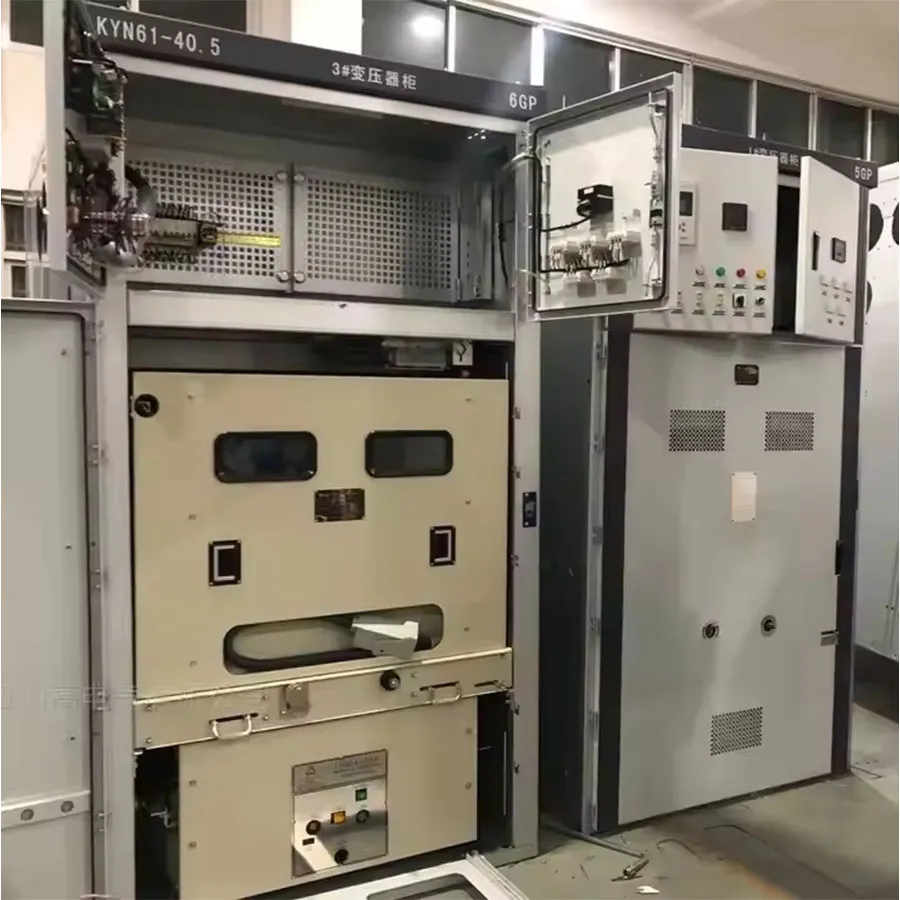

Structural Design

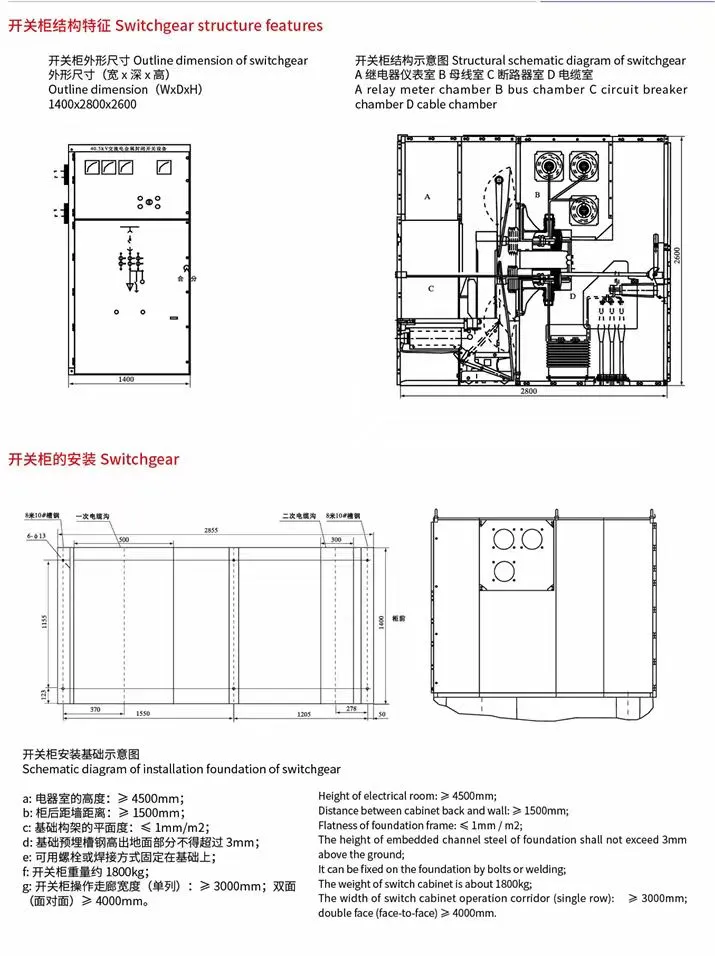

Product View
  • 🔹 Assembled cabinet structure with floor-type circuit breaker handcart.
  • 🔹 Equipped with new composite insulated vacuum circuit breakers for easy interchangeability.
  • 🔹 Lead screw nut propelling mechanism for smooth movement and misoperation prevention.
  • 🔹 Compulsory mechanical locking mode meeting "five preventions" functions.
  • 🔹 Large cable chamber suitable for multi-cable connections.
📊 Technical Parameters
Vacuum Breaker Switchgear Parameters
Name Unit Value
Rated VoltagekV40.5
Rated CurrentA1250 / 1600 / 2000
Rated FrequencyHz50
Rated Short-time Withstand CurrentkA20 / 25 / 31.5
Rated Peak Withstand CurrentkA50 / 63 / 80
Degree of Protection-IP3X
🏭 Product Application & Exhibition
Application 1
Application 2

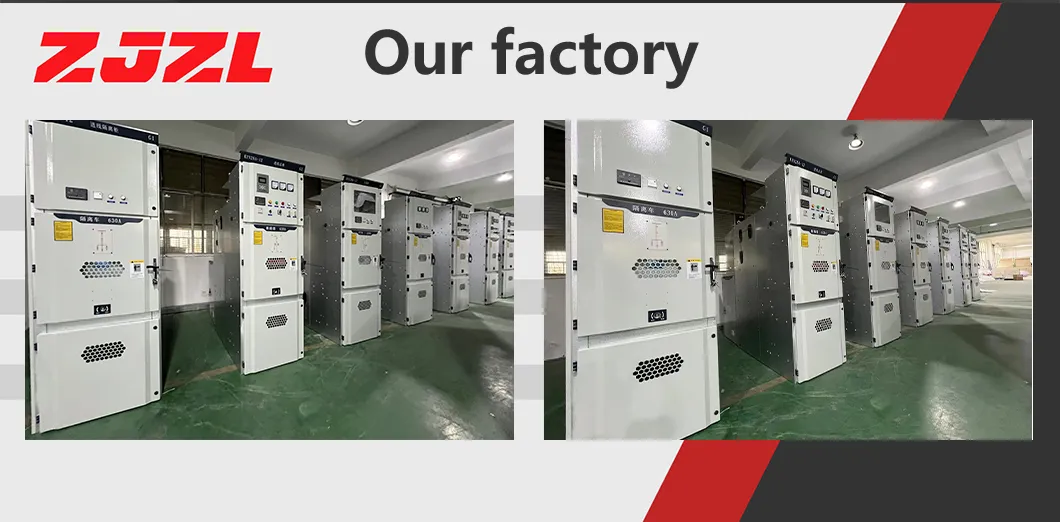

Application 3
Certificate
Exhibition
❓ Frequently Asked Questions
What are your main product categories?
Our portfolio includes Medium Voltage solutions (intelligent metal-enclosed switchgear, RMUs, compact substations), Low Voltage solutions (distribution boards, panelboards), and high-quality components like circuit breakers and transformers.
Which international standards do your products meet?
All products conform to IEC and ISO standards. Our manufacturing processes operate under an ISO 9001:2015 certified Quality Management System.
Can your equipment operate in extreme environments?
Yes. We have experience in high-altitude, coastal (salt-fog), desert (high-temperature), and cold climate conditions. We provide specially treated materials and anti-corrosion coatings for durability.
What is the typical lead time for orders?
For standard products, lead time is approximately 4-6 weeks. For customized projects, a detailed timeline is provided upon project review.
Do you offer OEM/ODM services?
Yes. We provide both OEM (your brand) and ODM (custom design) services with a flexible production system and experienced engineering team.
What kind of after-sales support is provided?
We offer installation guidance documents, online commissioning support, operator training videos, and 24/7 technical assistance via phone and email.
