Professional Complete Set of Power Distribution Cabinet Customization
We are deeply engaged in the industrial electrical field, focusing on the core business of customizing complete sets of power distribution cabinets. We provide new factory supporting services, old factory renovation and special scenario adaptation services.
Focusing on full-scenario needs, we offer three core services: new factory construction supporting, old factory power distribution renovation, and special scenario customization for industries like chemical and new energy.

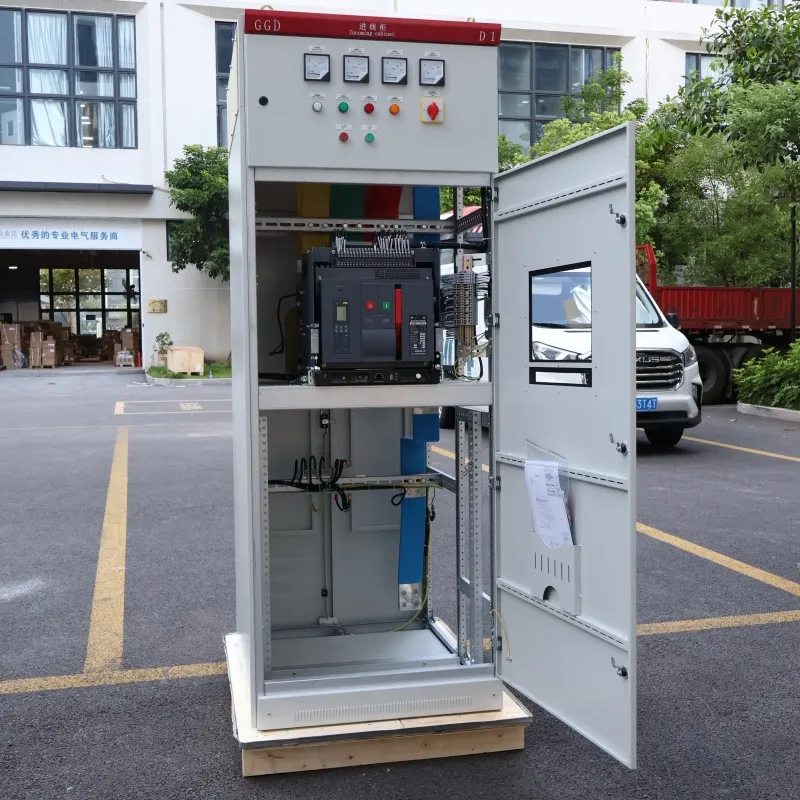

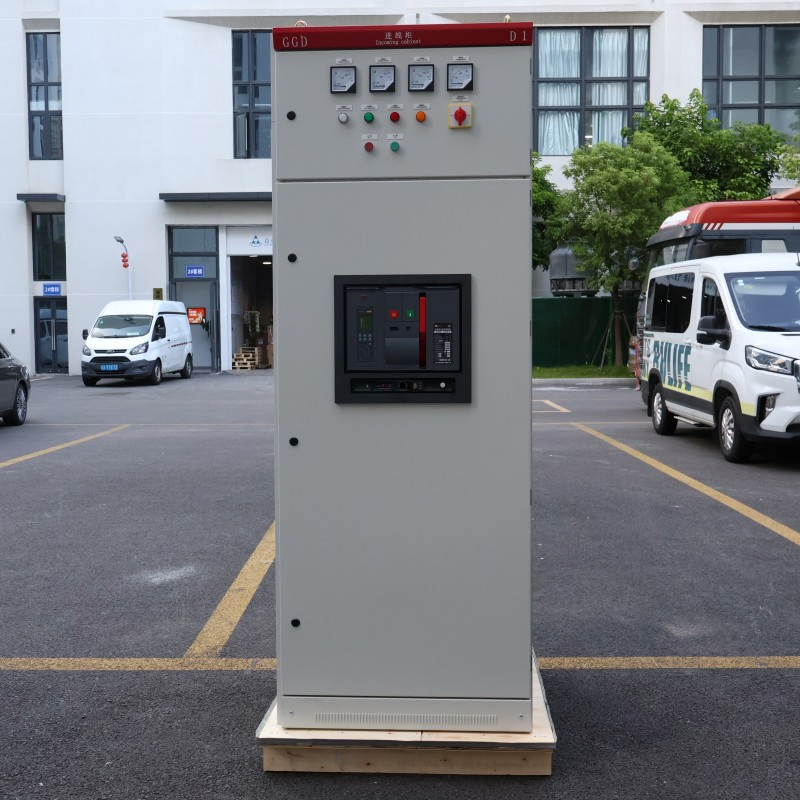

This GGD type AC low voltage distribution cabinet is suitable for AC 50Hz power frequency systems, with a rated working voltage of 380V and rated working current up to 3150A. It is mainly used in industrial enterprises, commercial complexes, and municipal buildings for power distribution, circuit control, and protection.

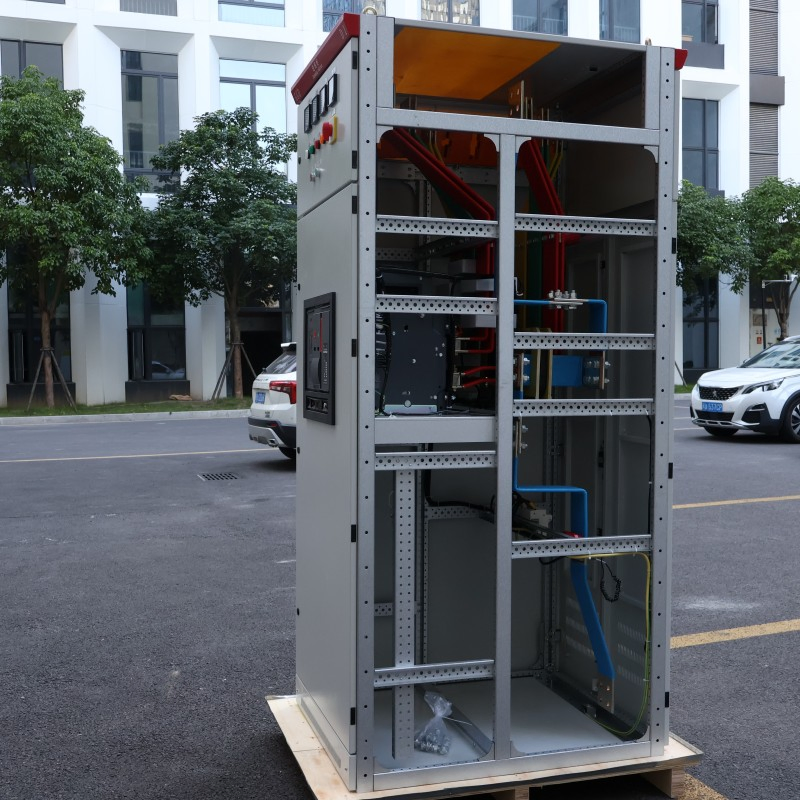

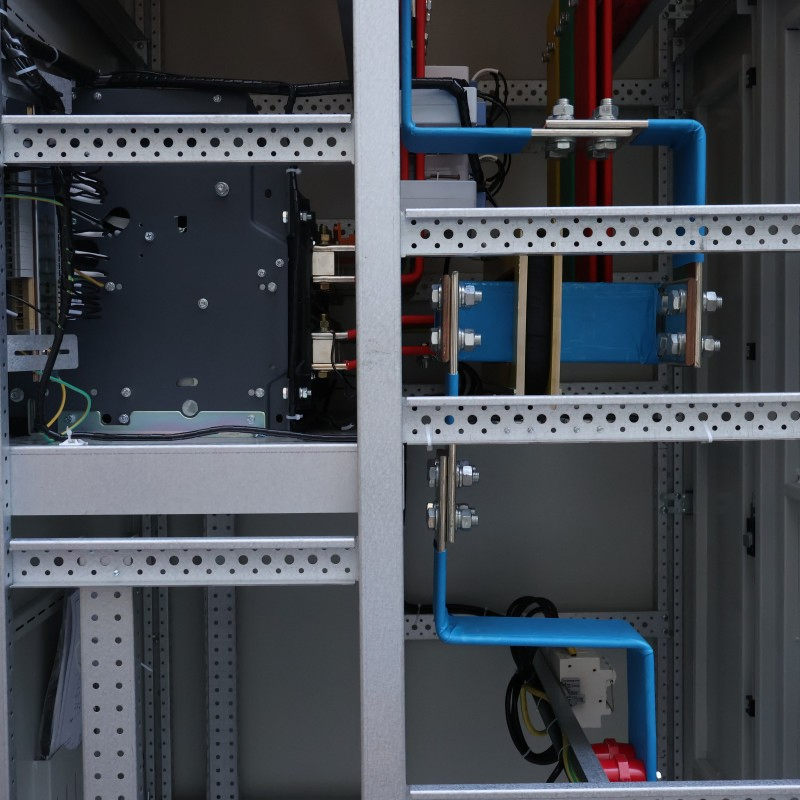

Adopts national standard fixed cabinet structure with thick sheet metal material. The interior features a partitioned modular layout, separating the main bus area, switch component area, and secondary control wiring area for maximum safety and ease of maintenance.
| Specific Parameters | Details Description |
|---|---|
| Protection level | IP30, IP40, IP54 |
| Cabinet material | High-quality cold-rolled steel (1.2-2.0mm) |
| External dimensions | Height 2200mm (Customizable) |
| Rated working voltage | 380V, 400V, 660V |
| Rated insulation voltage | 660V or 1000V |
| Rated frequency | 50Hz or 60Hz |
| Rated current of busbar | 630A to 5000A |
| Short circuit withstand | 25kA, 31.5kA, 40kA, 50kA |
| Mechanical lifespan | ≥ 2000 times |
| Electrical lifespan | ≥ 1000 times |
