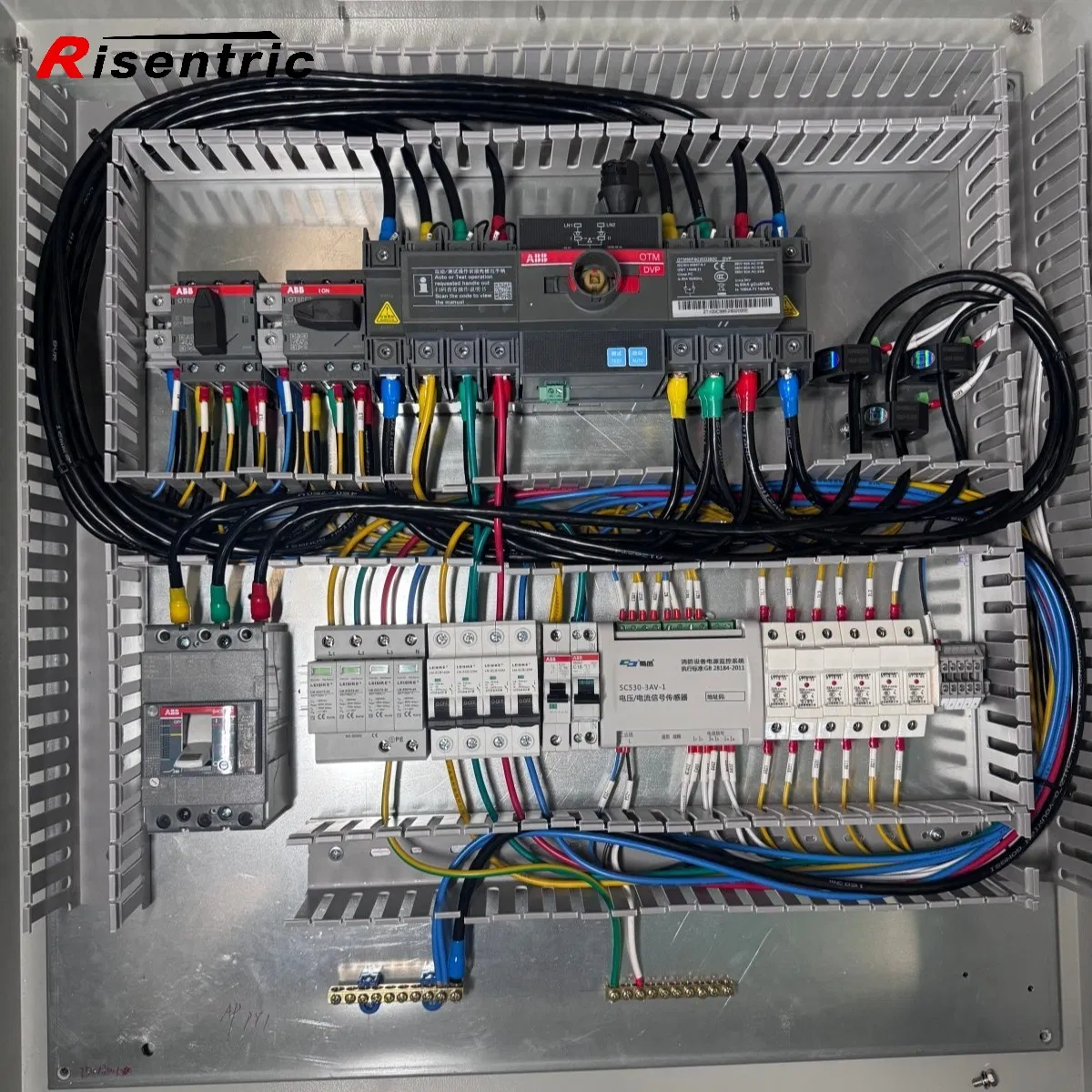

3 Phase 220V/380V Low Voltage Electrical Switchgear Mcc Control Panel for Commercial Use

Customization: Available
Task: Program
Structure: Combination

Product Description

📊 Basic Information
Model NO. MCC Panel
Function Automatic Control, Protection, Monitoring, Measurement
Certification RoHS, CCC, ISO: 9001, CE
Material Stainless Steel / Cold Rolled Steel
Operation Voltage Low Voltage
Rated Voltage 380V / 400V / 415V / 690V
Protection Grade IP56
Installation Type Floor Standing
Production Capacity 100 Pieces/Week
⚙️ Product Description
Low Voltage Electrical Switchgear Mcc Control Panel
💡 What Is an MCC Panel?

An MCC panel (Motor Control Center) is a low-voltage electrical assembly used to control, protect, isolate, and distribute power to multiple electric motors from a centralized system. It groups incoming and outgoing feeders, motor starters, and protection devices into one organized system, improving maintenance efficiency and operational clarity.

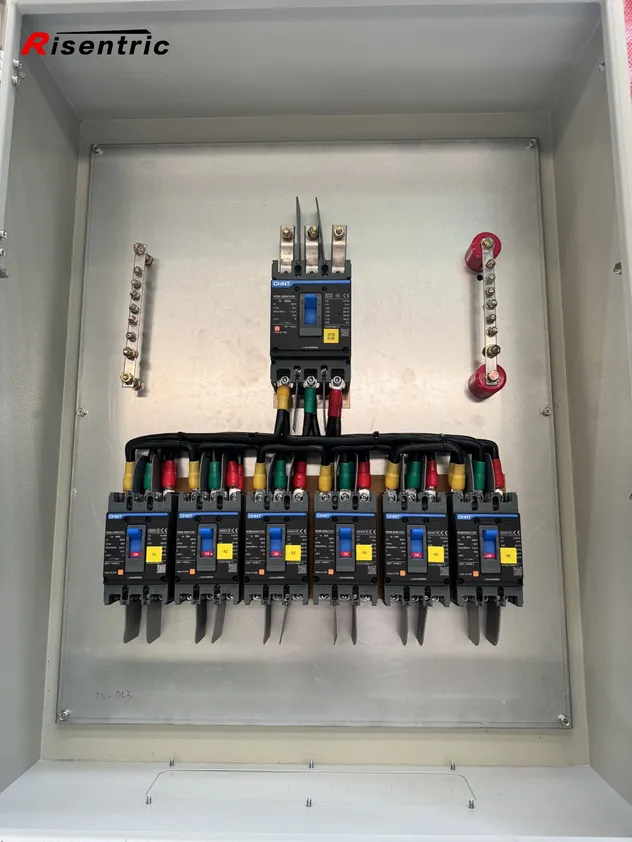

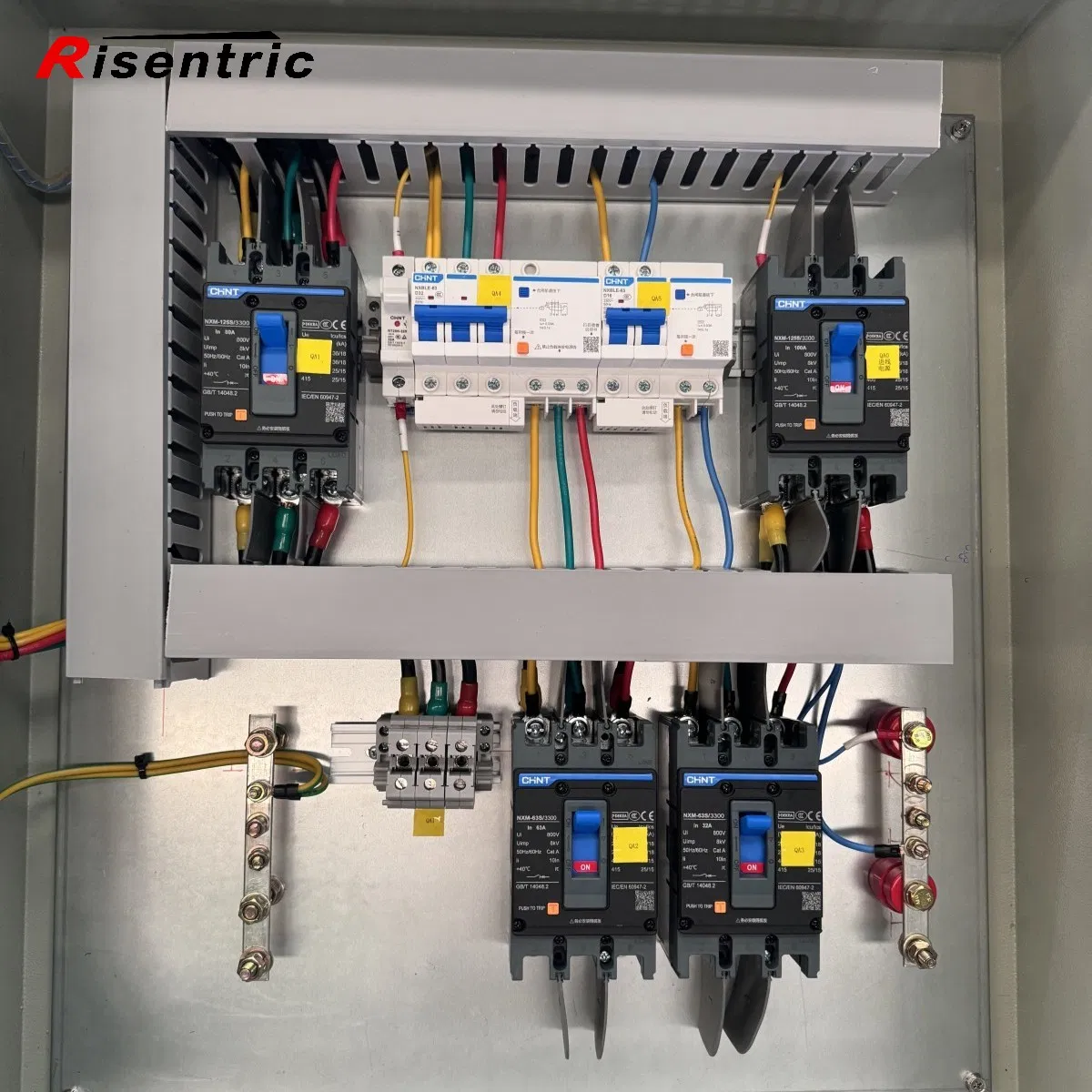

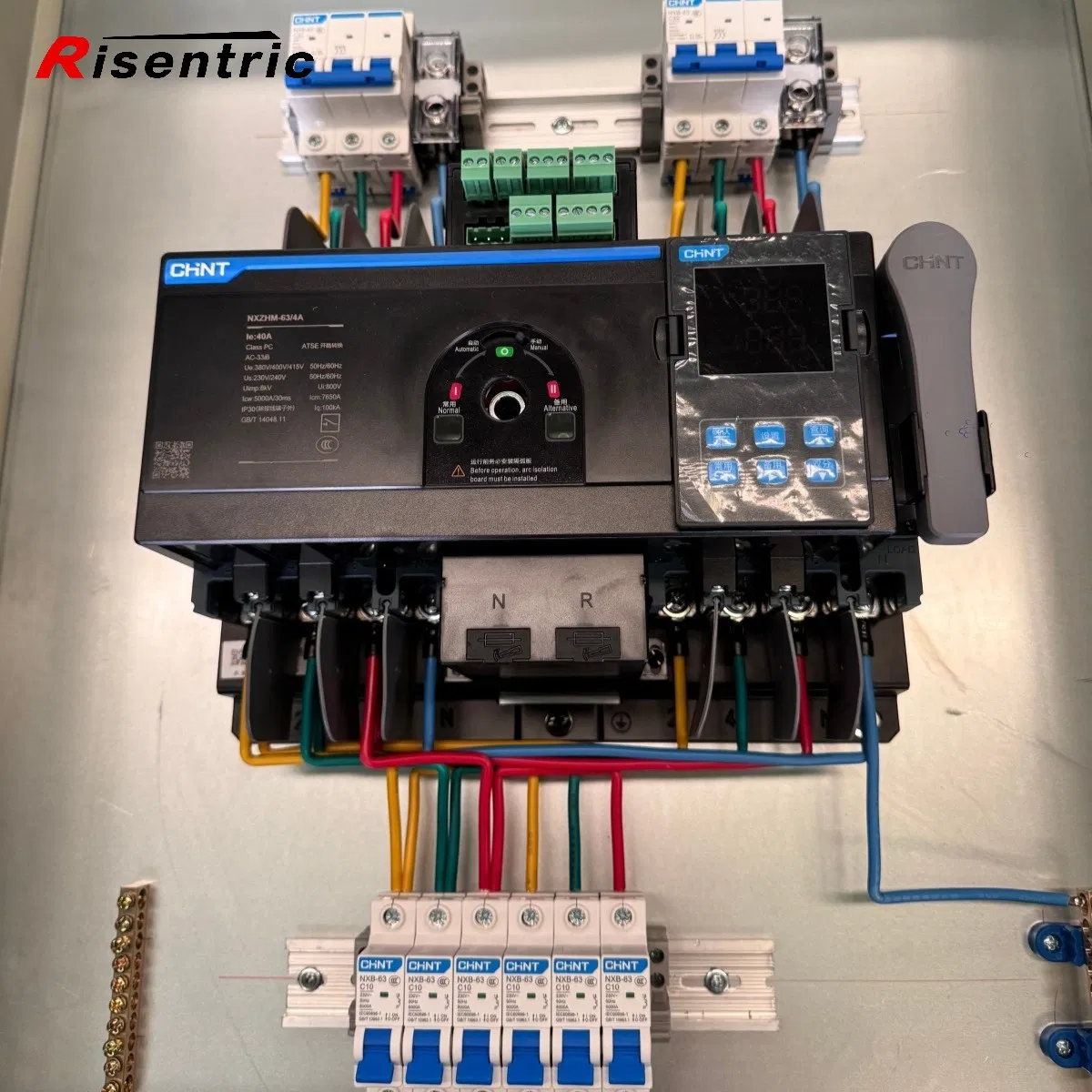

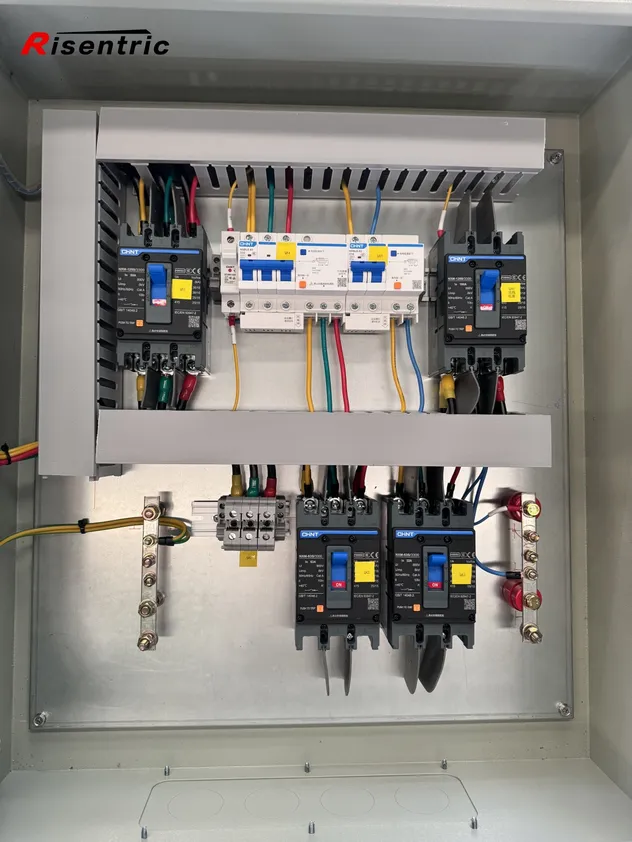

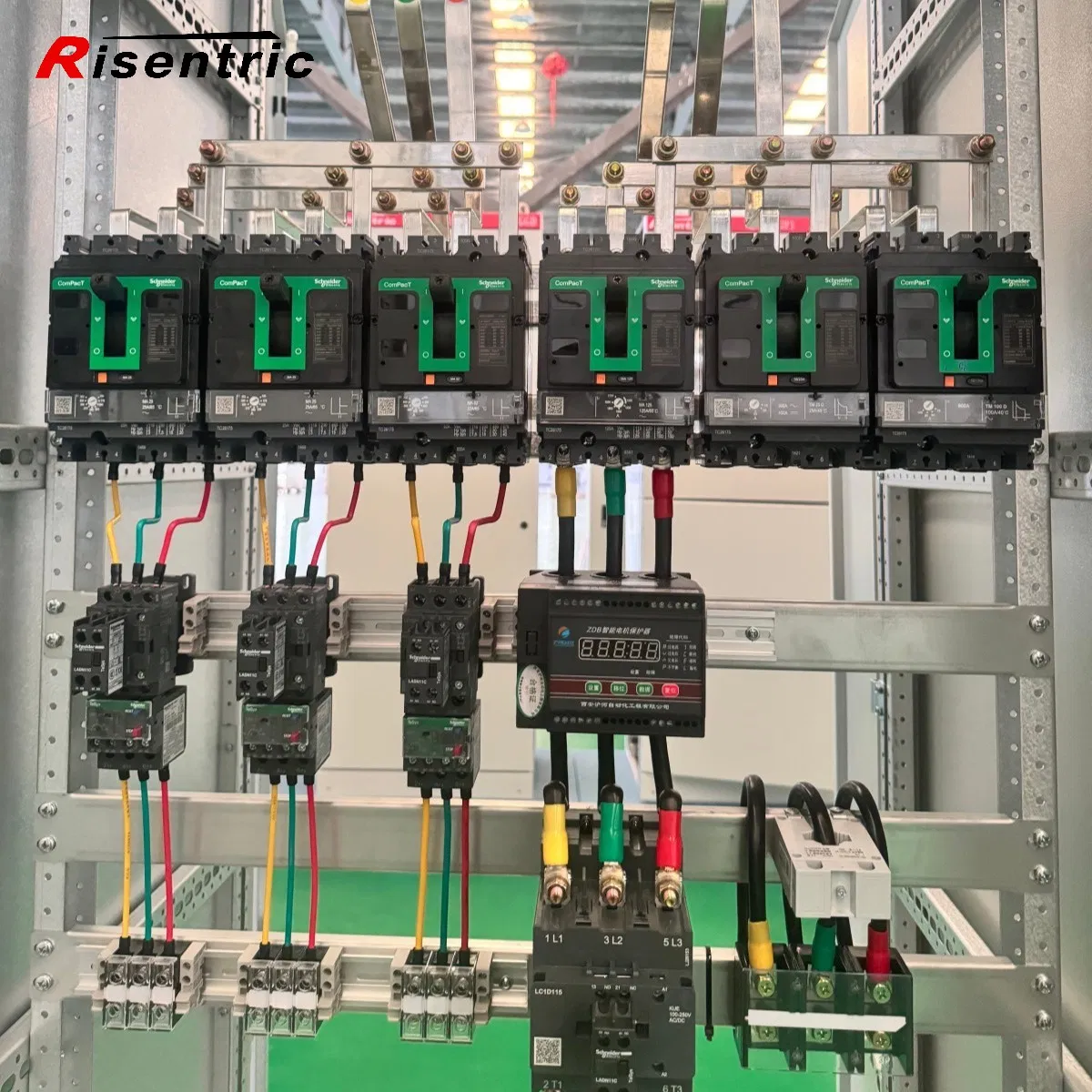

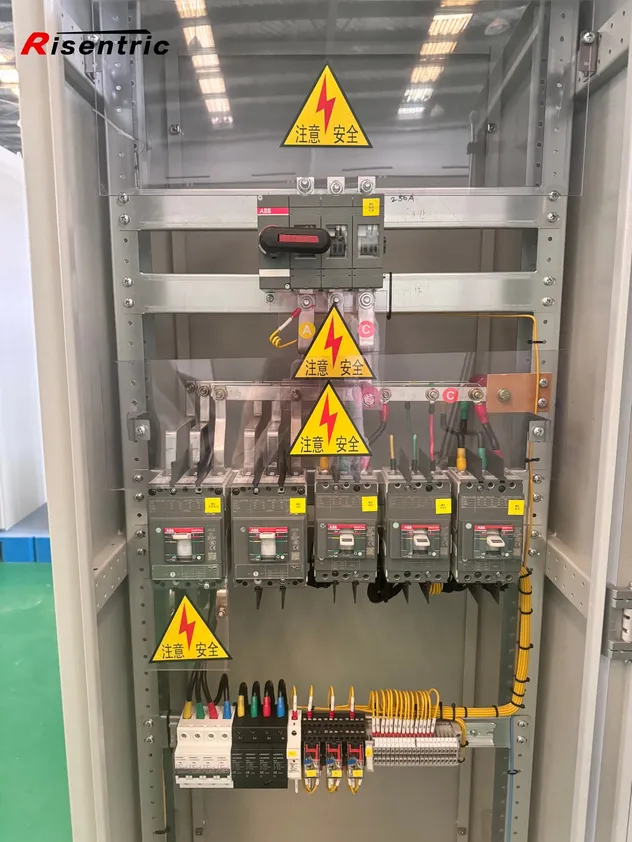

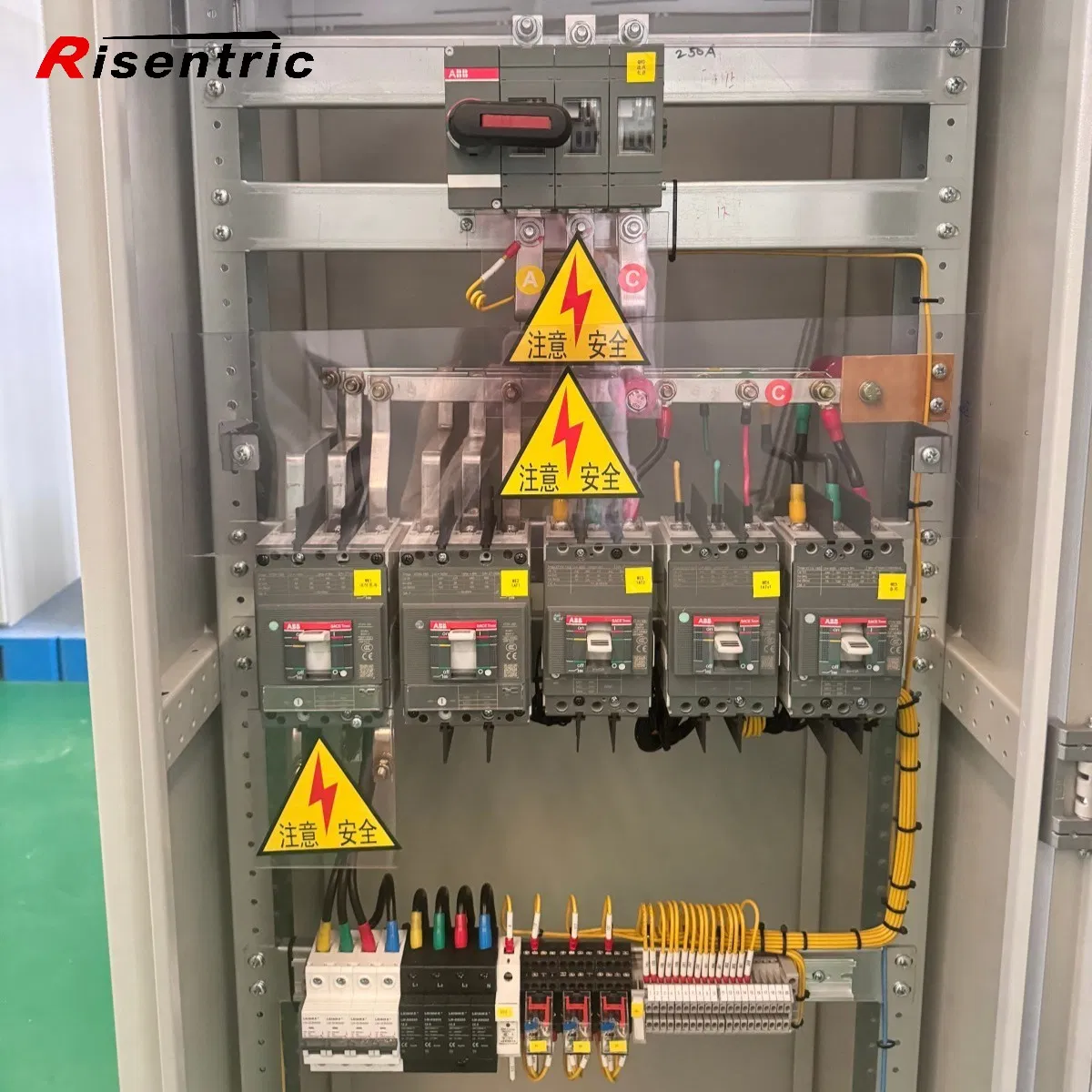

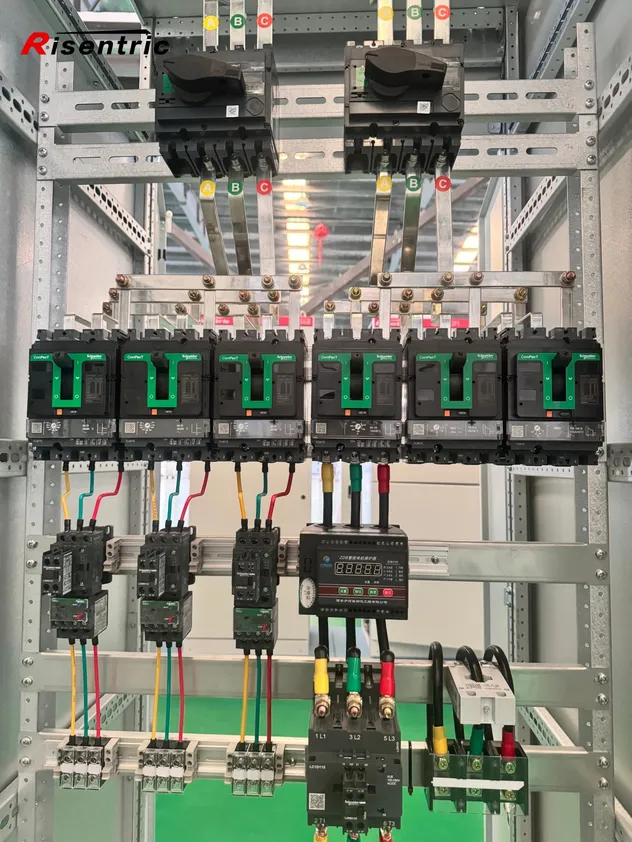

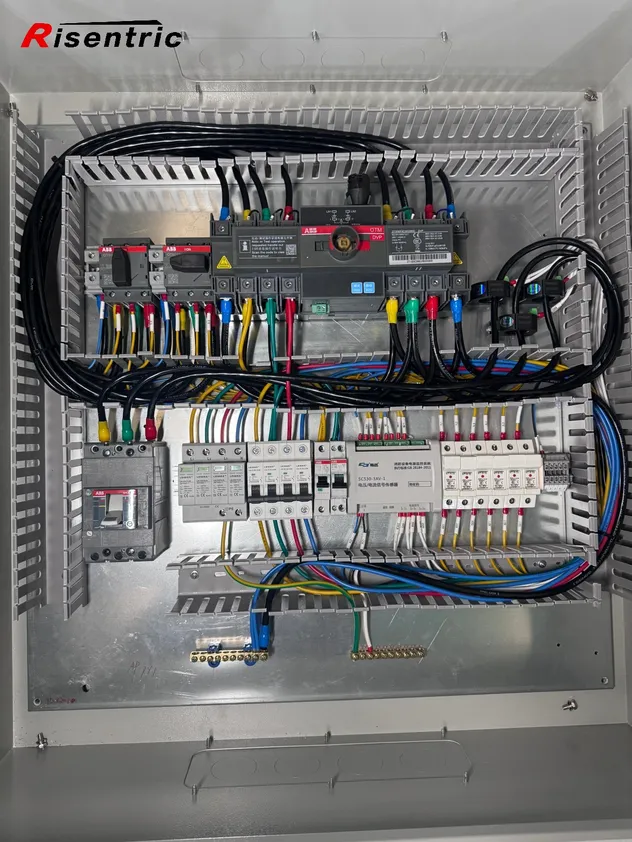

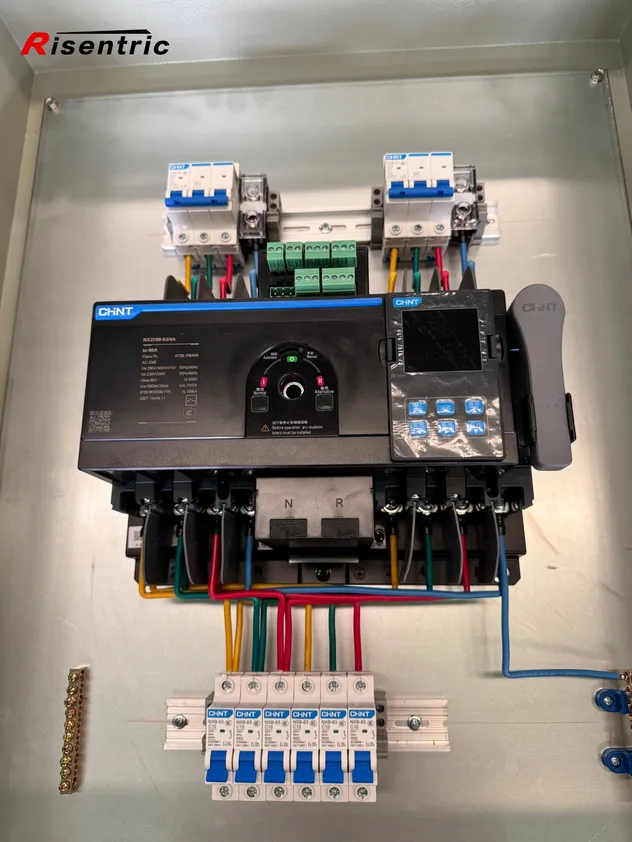

📸 Detailed Views
📋 Technical Specifications
Item Specification
Rated Voltage 380V / 400V / 415V / 690V
Rated Frequency 50Hz / 60Hz
Protection Degree IP31 / IP42 / IP54
Control Mode Manual / Automatic / Remote
Communication Protocol Modbus, Profibus, Ethernet/IP
🌟 Key Features
1. Centralized Motor Control Enables centralized operation of multiple motors, including start/stop control and fault monitoring.
2. High Reliability Built with high-quality components and standardized wiring for long-term stable operation.
3. Comprehensive Protection Safeguards against short circuits, overload, phase failure, and over-voltage.
4. Intelligent Monitoring Supports PLC, HMI, and SCADA integration for remote data acquisition and automation.
🛠️ Components & Applications
Main Components
Main Circuit Breaker
Magnetic Contactor
Thermal Overload Relay
Variable Frequency Drive (VFD)
Soft Starter
PLC Control System & HMI
Typical Applications
Manufacturing: Conveyors & Compressors
Water Treatment: Blower systems
Oil & Gas: Harsh environments
HVAC: Cooling towers & Air handling units
Energy: Power plants & Substations
🏭 Manufacturing Excellence
Manufacturing Facility

Our facility utilizes advanced flexible manufacturing lines, including CNC turret punching, laser cutting, and busbar processing centers. Products are designed and manufactured in strict accordance with IEC standards, ensuring high levels of safety and international applicability.

Manufacturing Advantage
📦 Packaging & Certifications
Product Certifications

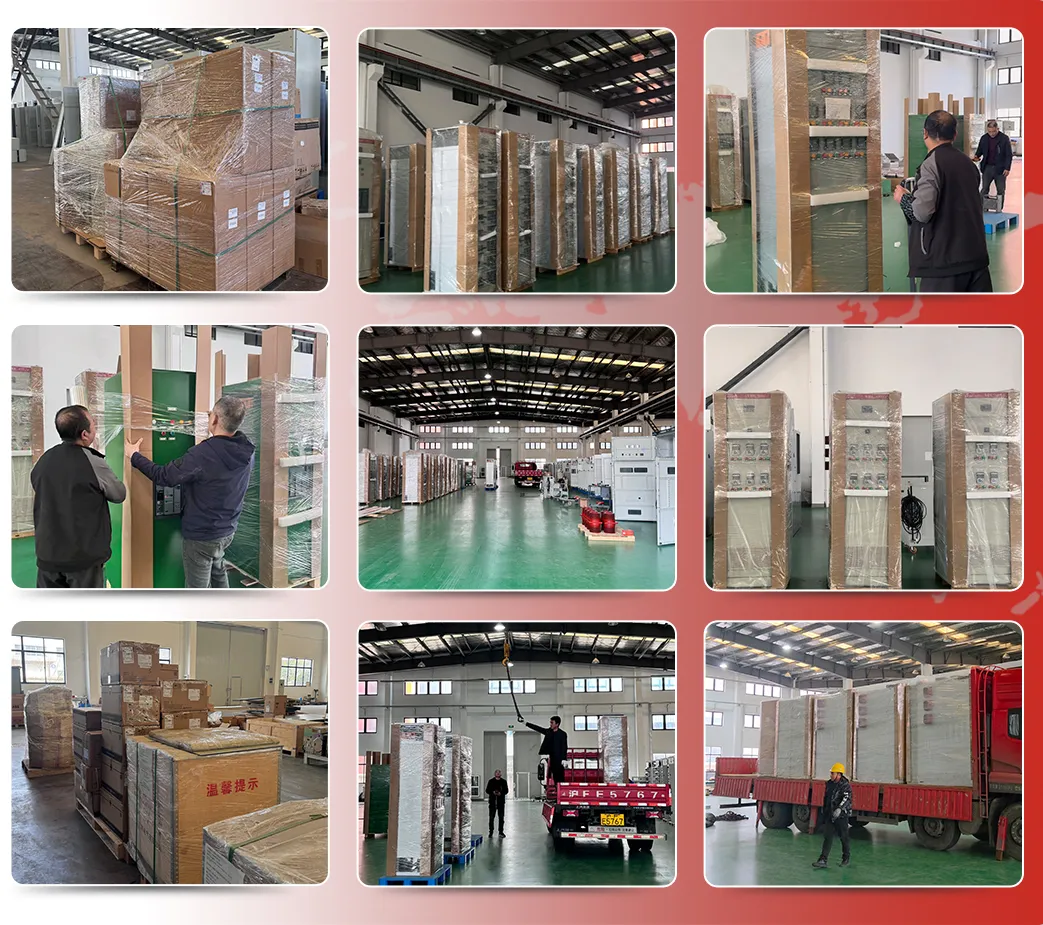

Packaging and Shipping
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A: We are a factory. We guarantee that our prices are first-hand, highly competitive, and cost-effective.
Q2: What are your payment terms?
A: We accept T/T. Generally, it is 100% TT. For large orders, we accept 30% in advance and 70% before shipment after confirmation.
Q3: How soon can I get a reply after sending an inquiry?
A: We value your inquiries and will provide a detailed response within 24 hours.
Q4: What is your standard delivery time?
A: Delivery typically takes about 15-20 days, depending on your specific order quantity.
Q5: What is the quality guarantee period?
A: Our standard quality guarantee period is 12 months. Our production strictly complies with international standards like IEC and ANSI.
Q6: Do you accept customized product requests?
A: Yes, we specialize in customization. Please provide your technical specifications or single line diagrams (SLD) for a detailed quotation.
