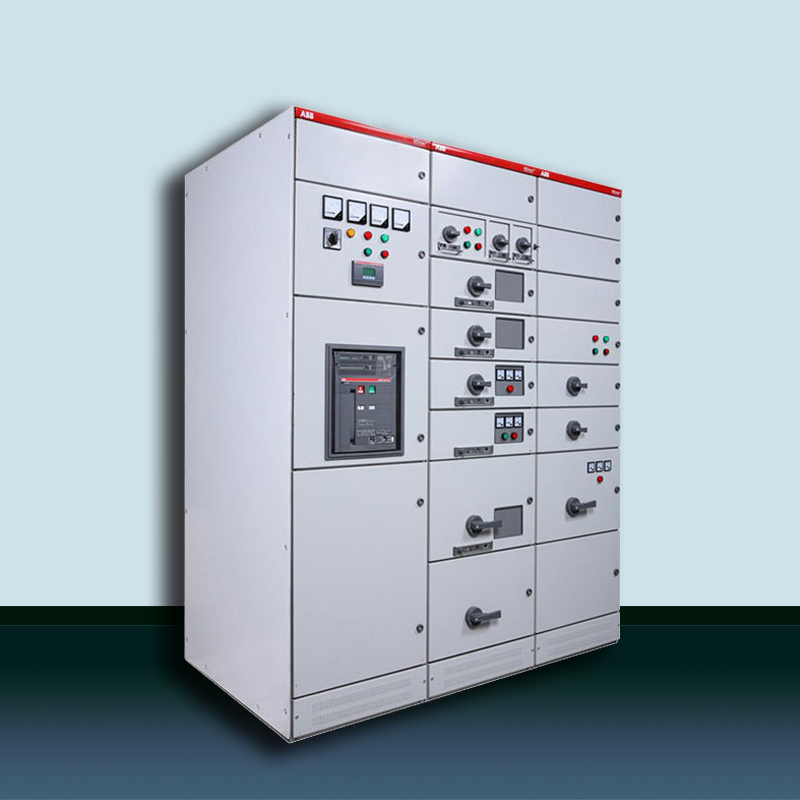

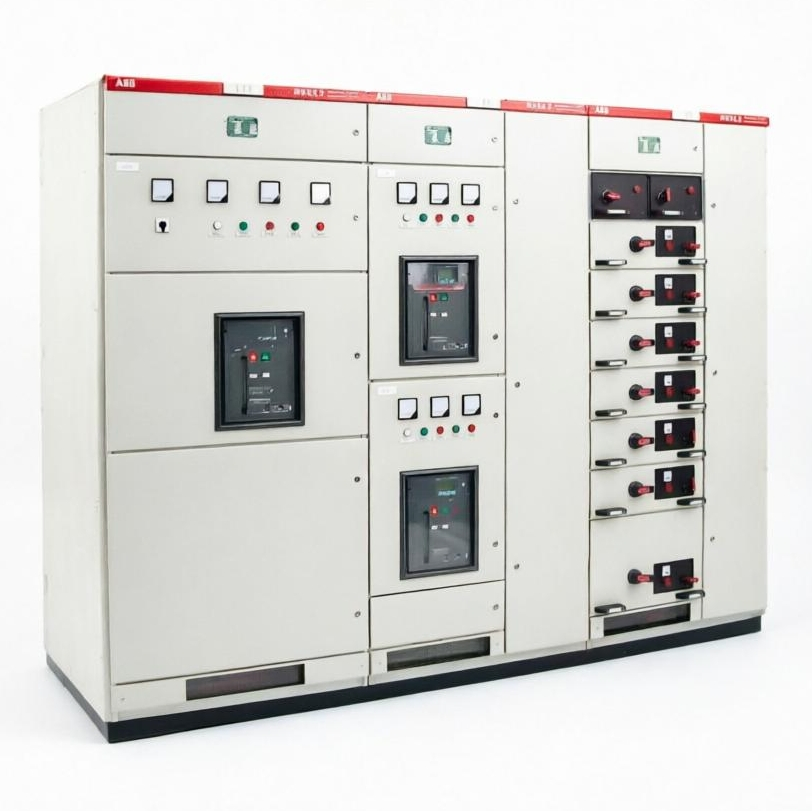

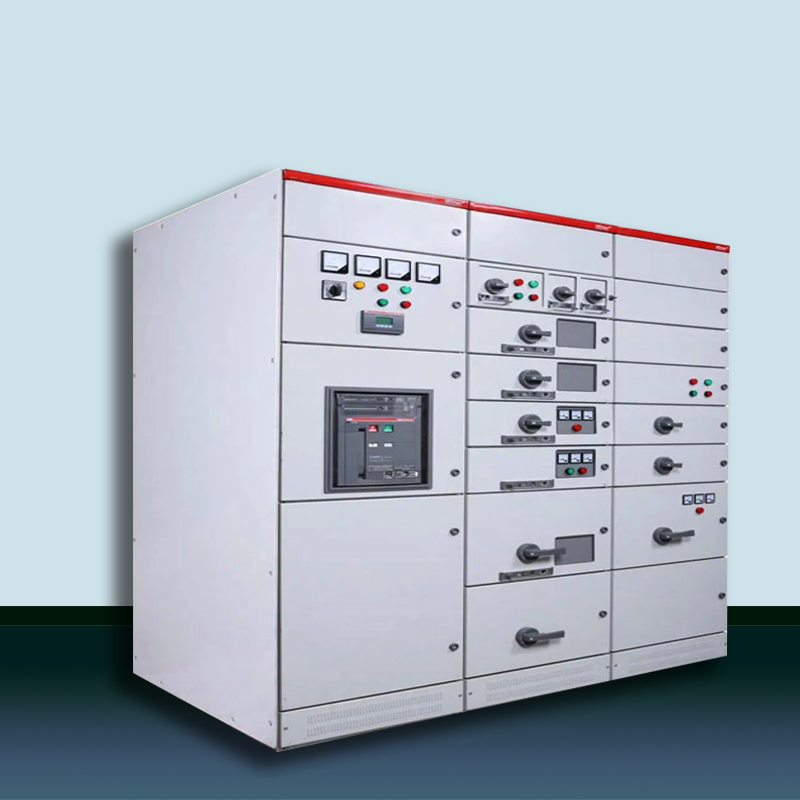

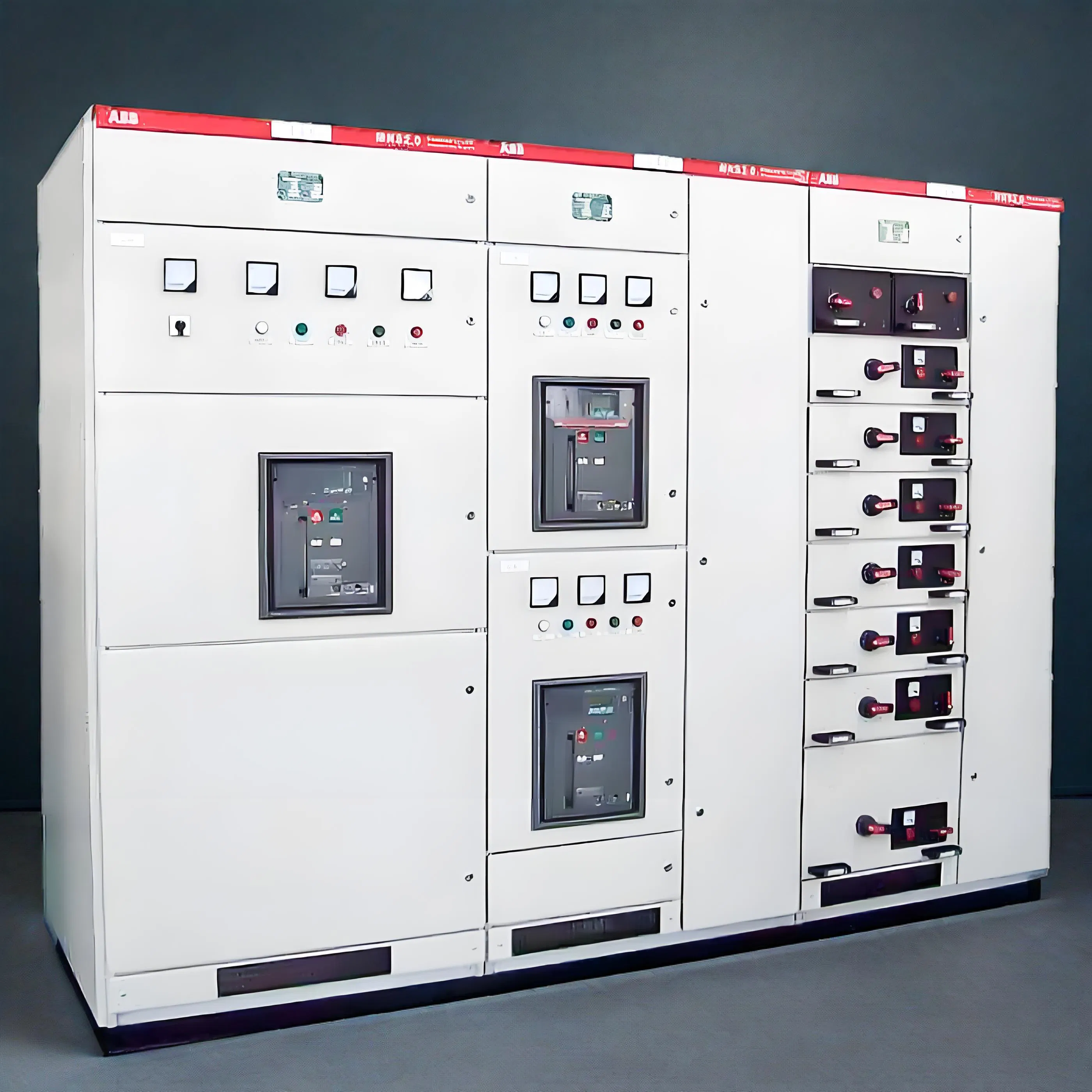

Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System
Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System
Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System
Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System
Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System
1 / 5
Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System
Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System
Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System
Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System
Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System

Low Voltage Switchgear Electrical Cabinet Mdmax Power Distribution System

Customization: Available
Type: Low Voltage Switchgear Cabinet
Structure: Fixed or Removable
Send Inquiry

Product Description

Basic Information
Model NO.
MDmax
Certification
ISO9001:2000, CCC
Operation Voltage
AC400 / AC660
Shell Material
Steel Plate
Protection Grade
IP4X
Brand
ABB
Installation
Removable / Floor-standing
HS Code
8537109090
Product Overview

The MDmax switchgear is a new generation of modular switchgear authorized by ABB. Designed for various power supply and distribution needs, the device (standard type) supports a maximum current of 4000A and fully complies with IEC61439 and GB7251 standards.

Low Voltage Switchgear Electrical Cabinet
Power Distribution System
MDmax Cabinet

Structural Advantages: Built on ABB's proven frame design, it features excellent part interchangeability and rapid assembly. It utilizes double T-shaped profiles and a multi-faceted channel busbar structure.

Key Technical Features
  • Rational Design: Functional units match ABB electrical components like Emax and Isomax S.
  • Universal Structure: Built with K-type profiles, suitable for various protection grades.
  • Safety Protection: Compartment isolation ensures incoming/outgoing lines are mutually isolated.
  • Space Saving: Standardized modules reduce storage and transportation space.
  • Easy Installation: No complex specialized tools are required for assembly.
  • Advanced Connection: Uses three-way connectors to avoid eddy currents with high precision.
Technical Parameters
Item Unit Parameter
Rated Working VoltageVAC400, AC660
Rated FrequencyHz50
Rated Current (Horizontal Busbar)A≤4000
Rated Current (Vertical Busbar)A400-1250
Rated Short-Time Withstand Current (1S)kA50-80
Rated Peak Withstand CurrentkA105-176
Rated Insulation VoltageVAC660, AC1000
Protection Class-IP4X
Facility & Production Display
Production Facility
Assembly Line

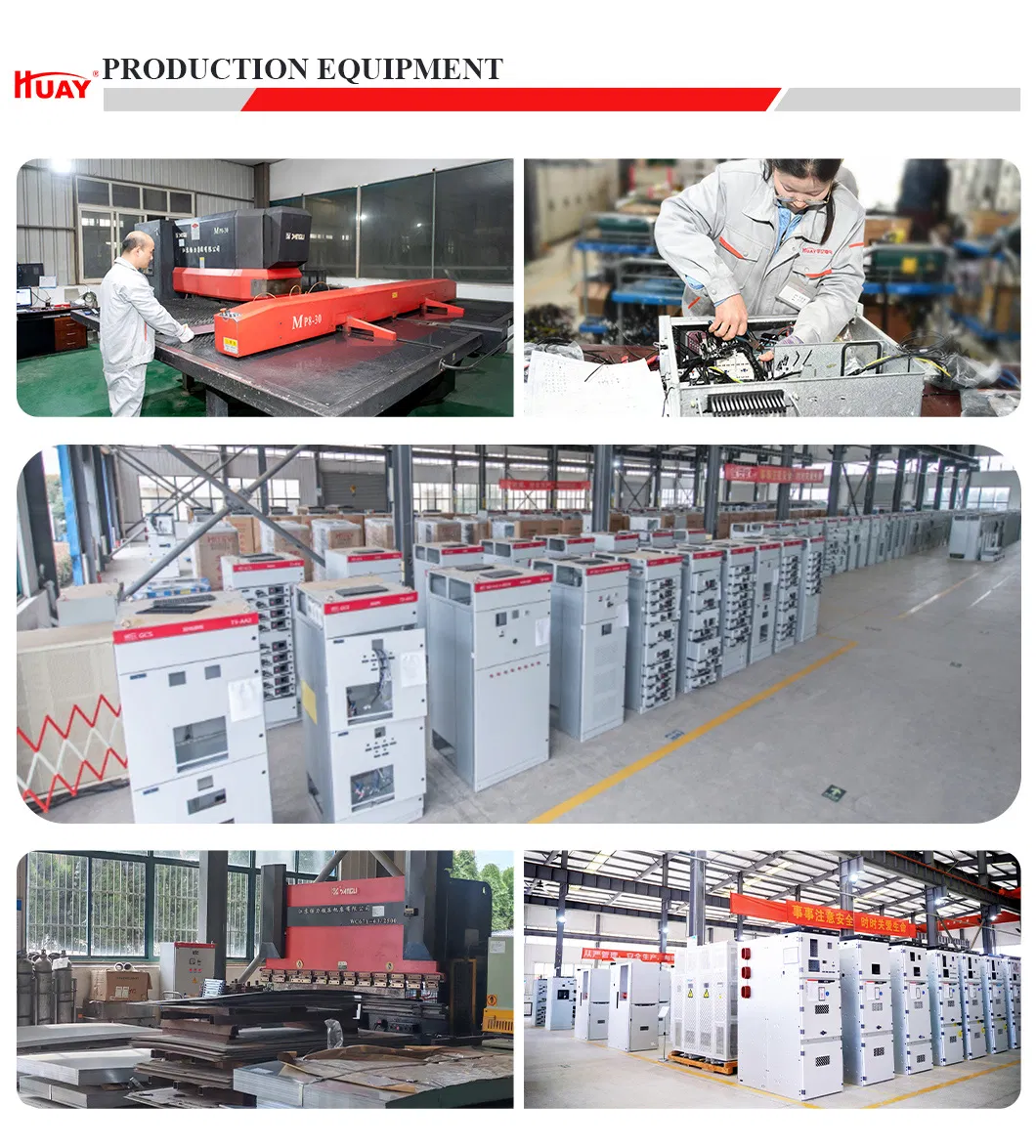

Quality Inspection
Exhibition
Certifications
Packaging
Frequently Asked Questions
Q1: Are you a professional manufacturer?
A1: Yes, we are a professional factory specializing in high and low voltage switchgear, substations, transformers, and electric vehicle charging stations.
Q2: What is the typical lead time for orders?
A2: Generally, it takes about 15 days for samples and approximately 26 days for mass production. The specific time depends on the order quantity and items.
Q3: How do you handle quality control and issues?
A3: We provide detailed analysis through our technical and quality testing departments. For any quality concerns, we offer solutions within 2 working days.
Q4: What is the warranty period for your products?
A4: Our products come with a warranty of 12 months from the date of the bill of lading.
Q5: Do you support product customization?
A5: Yes, we welcome customization. Please provide specific drawings or technical parameters for evaluation and quoting.
Q6: Do the products meet international standards?
A6: Yes, our products are sold worldwide and have passed relevant certifications recognized globally. We ensure compliance with standard clearance requirements.
