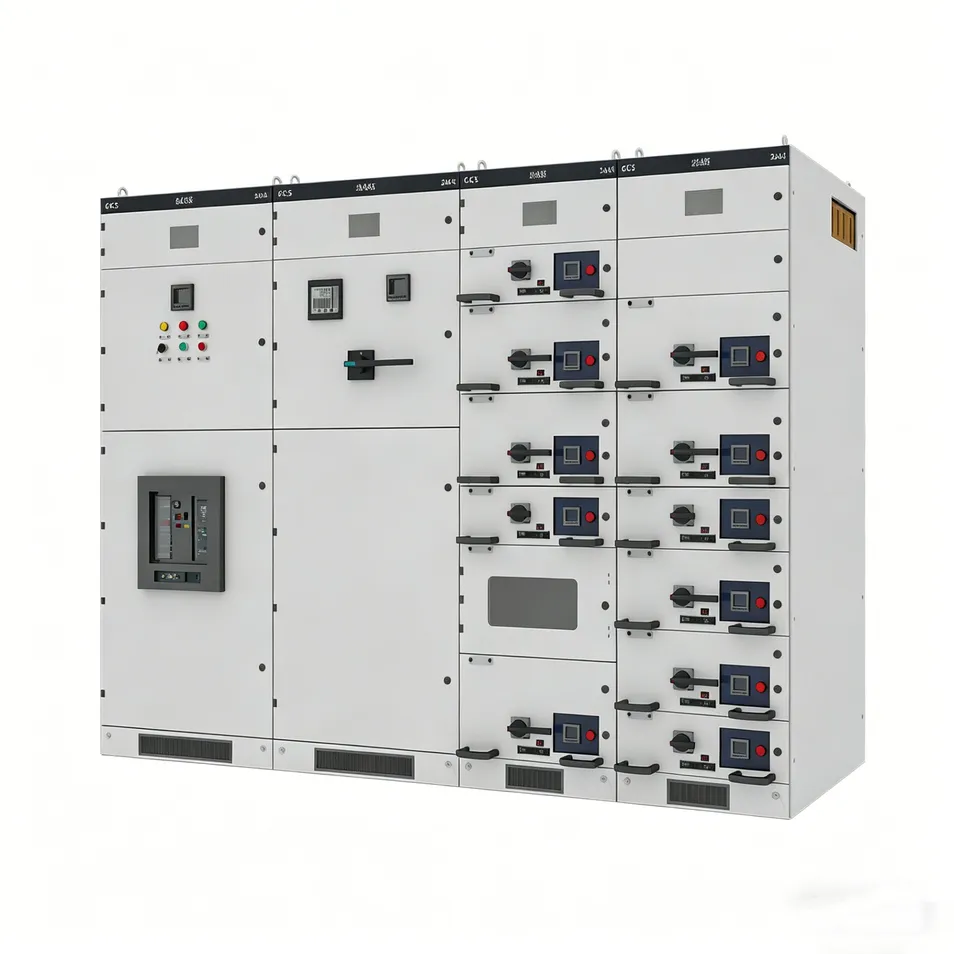

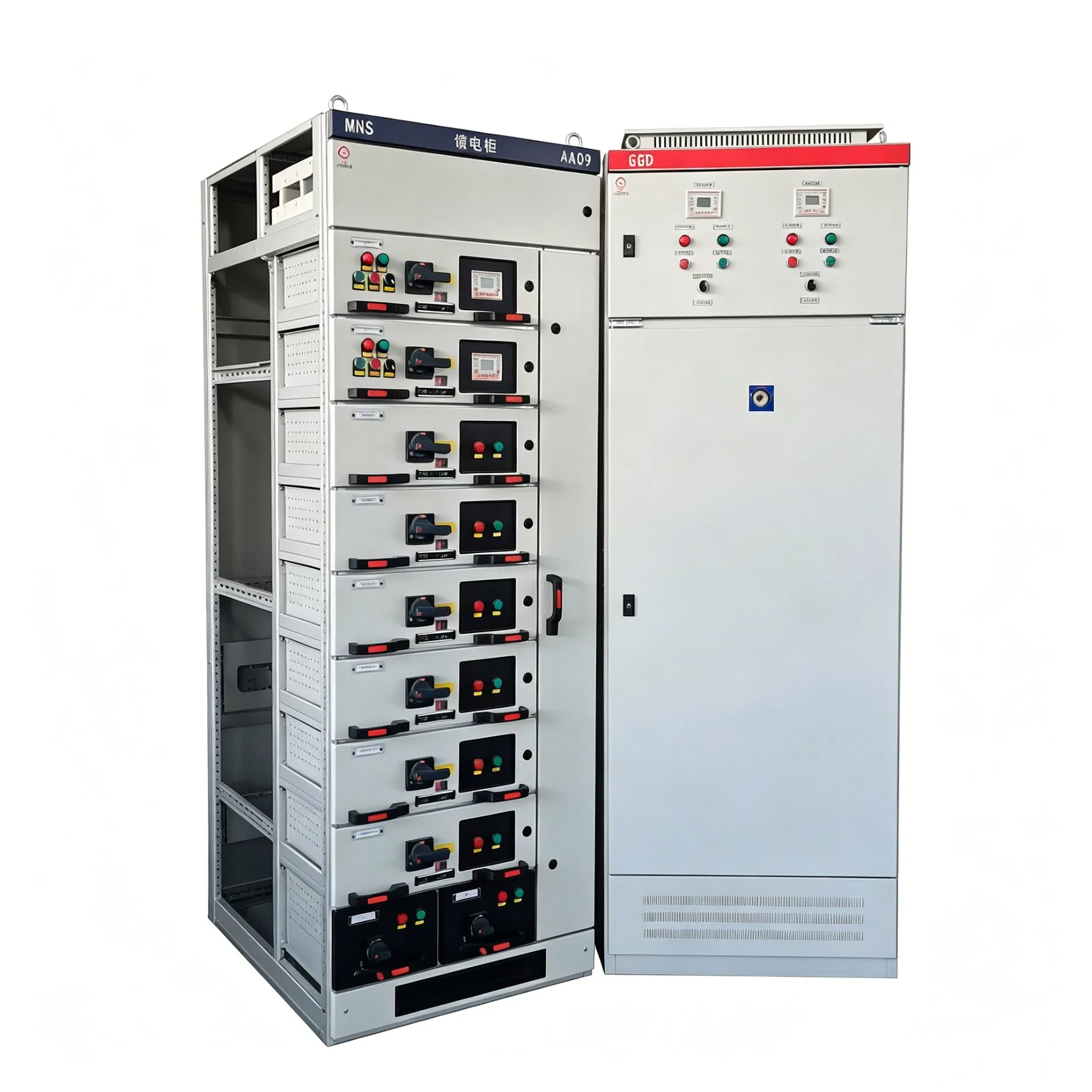

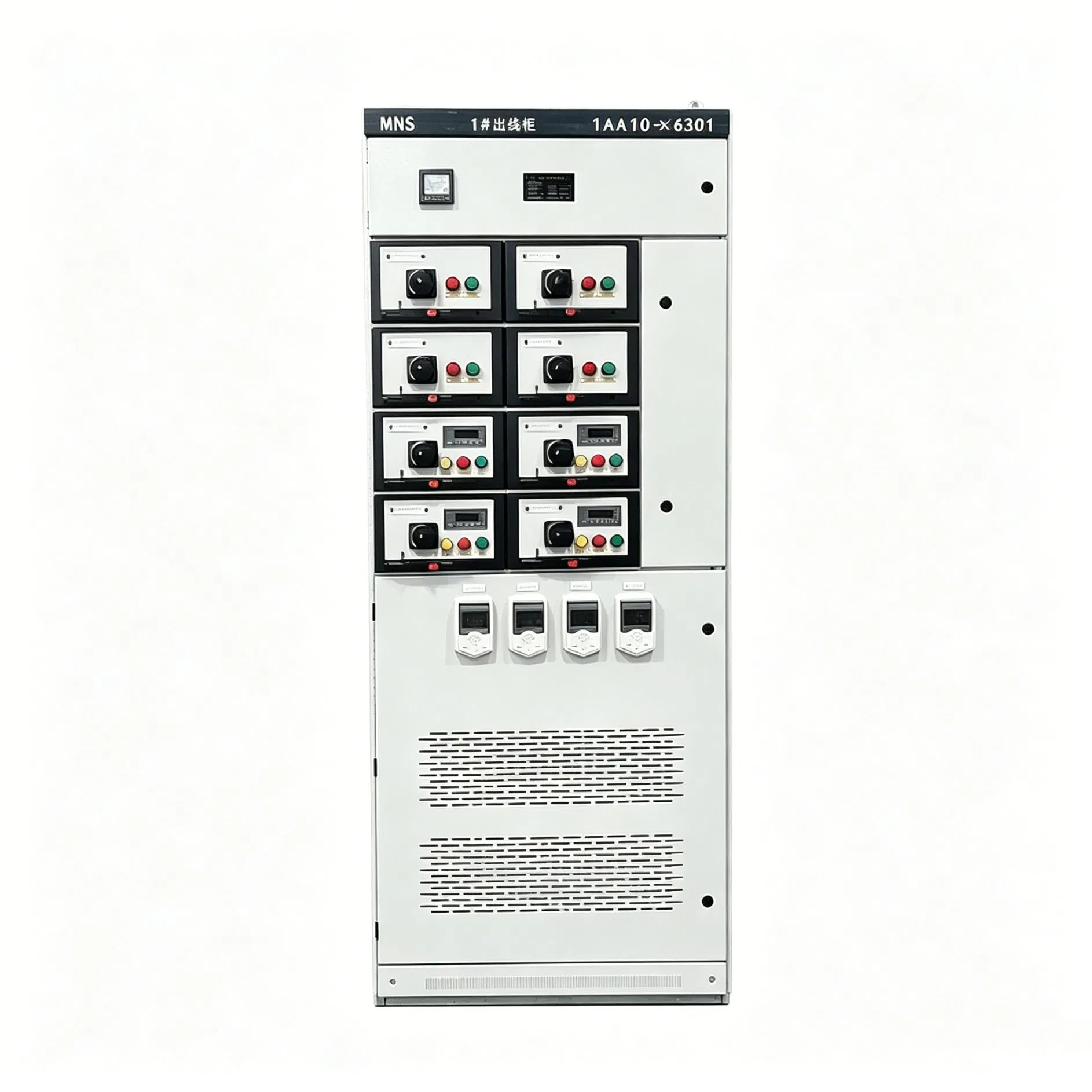

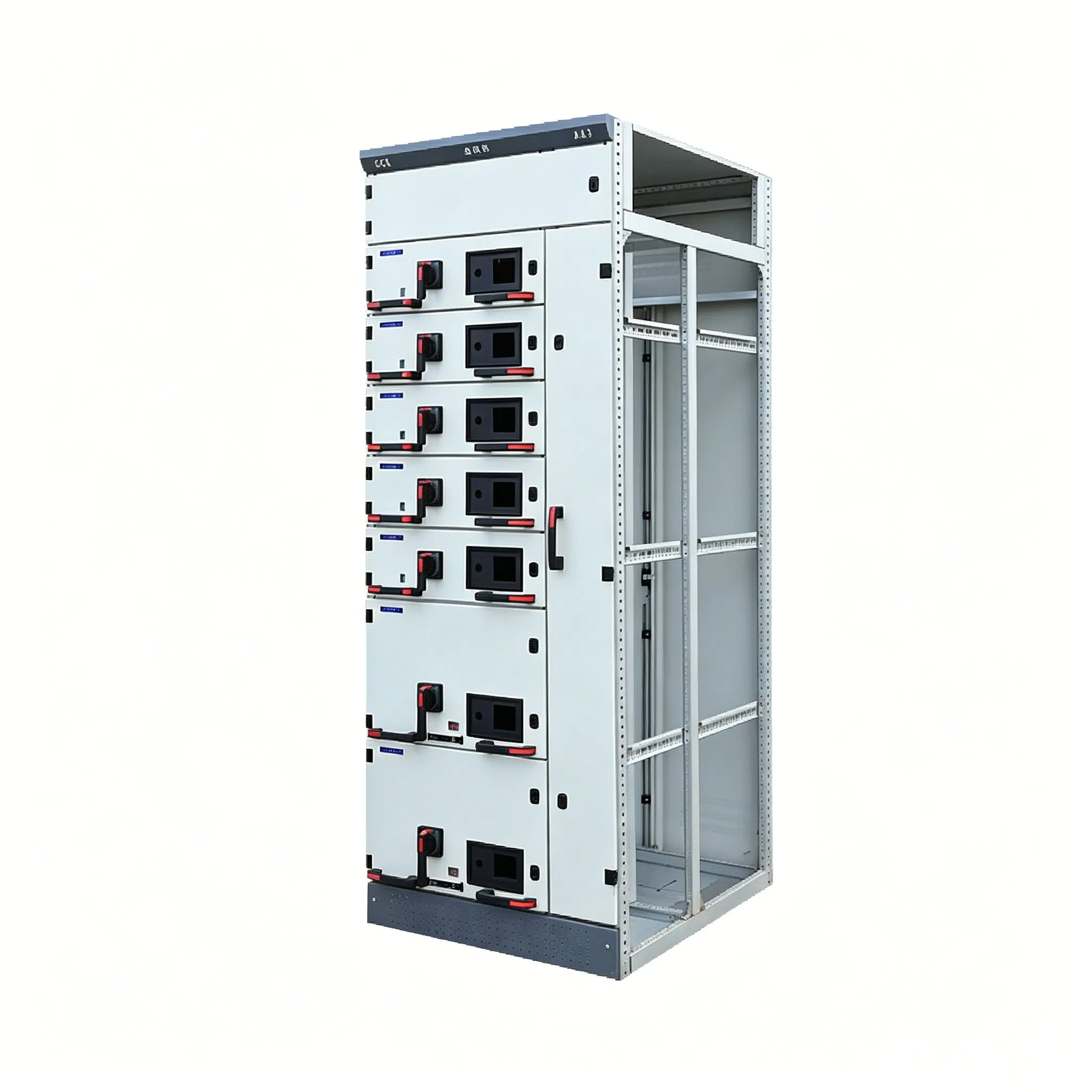

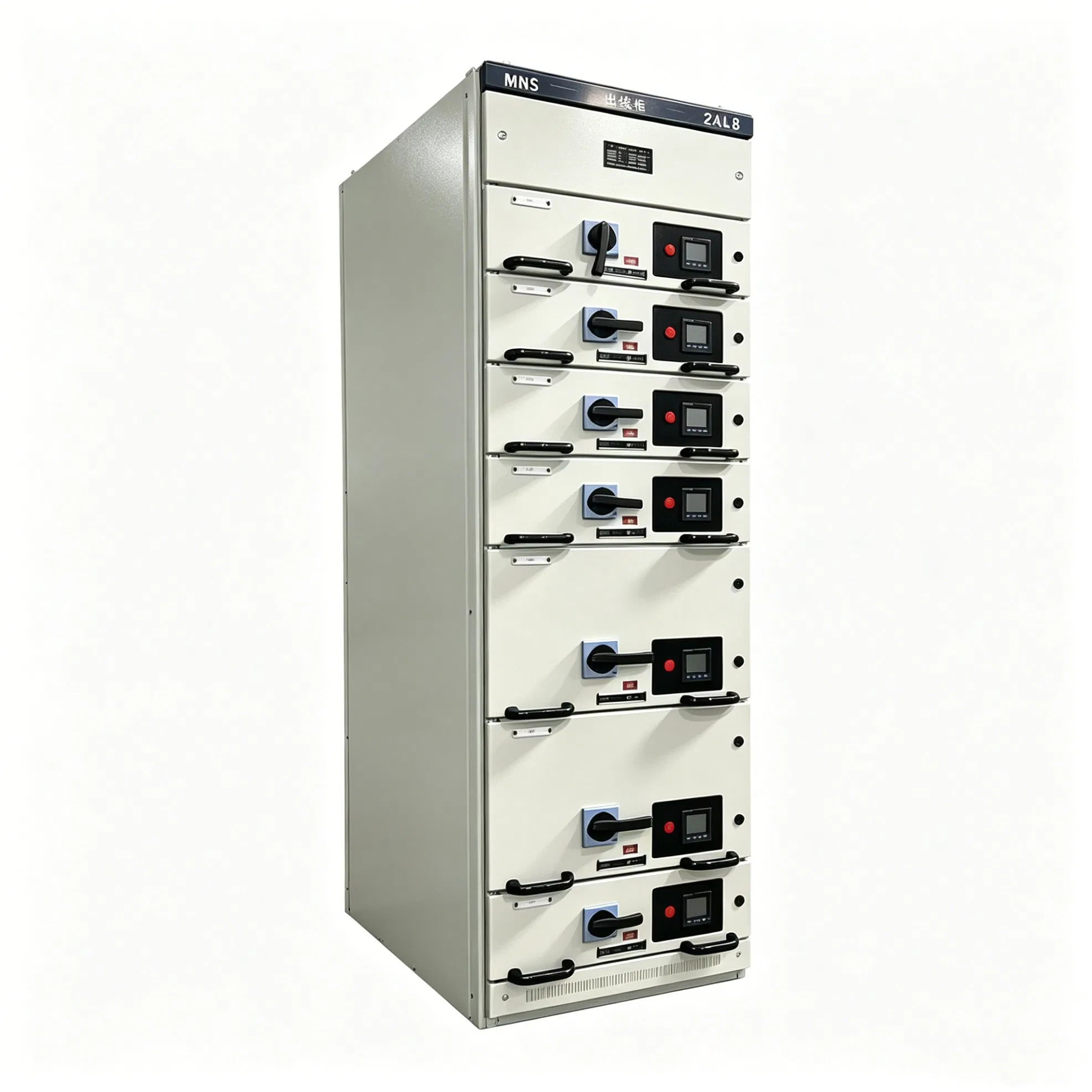

The MNS low-voltage withdrawable switchgear is a modular low-voltage power distribution solution, widely adopted across industrial, commercial, and infrastructure sectors.
Its primary functions include power distribution, motor control, and system protection, ensuring safe and reliable operation of electrical networks. Manufactured with advanced processes and premium electrical components, the MNS switchgear offers high flexibility and scalability, allowing it to be customized to meet diverse user requirements.
| No. | Content | Unit | Value |
|---|---|---|---|
| 1 | Rated Operating Voltage | V | 400 |
| 2 | Rated Insulation Voltage | V | 690 |
| 3 | Rated Frequency | Hz | 50/60 |
| 4 | Main Bus-Bar Rated Current | A | ≤6300 |
| 5 | Rated Short-time Withstand Current | kA | ≤100 |
| 6 | Rated Peak Withstand Current | kA | ≤220 |
| 7 | Rated Impulse Withstand Voltage | kV | 8 |
| 8 | Protection Degree | IP | IP40 |
| 9 | Electrical Clearance | mm | ≥10 |
| 10 | Creepage Distance | mm | ≥12.5 |
