| Model NO. | MNS |
| Voltage Level | Low Voltage |
| Installation | Removable |
| Structure | Withdrawable |
| Current | AC |
| Rated Operating Voltage | 400/660V |
| Rated Insulation Voltage | 660/1000V |
| Rated Frequency | 50-60Hz |
| Protection Rating | IP30 IP40 |
| Warranty | 12 Month |
| Package Size | 100.00cm * 80.00cm * 200.00cm |
| Gross Weight | 500.000kg |

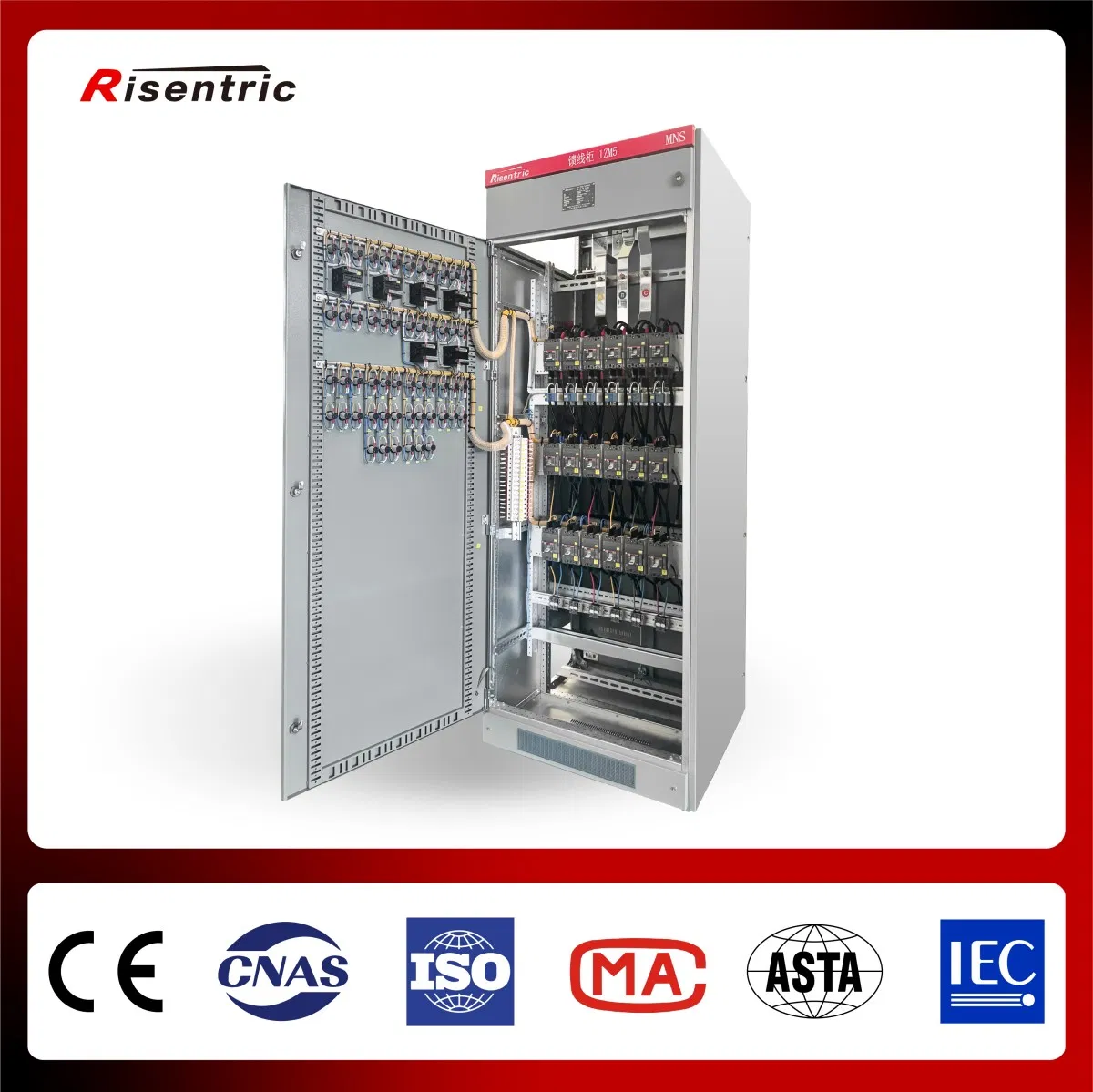

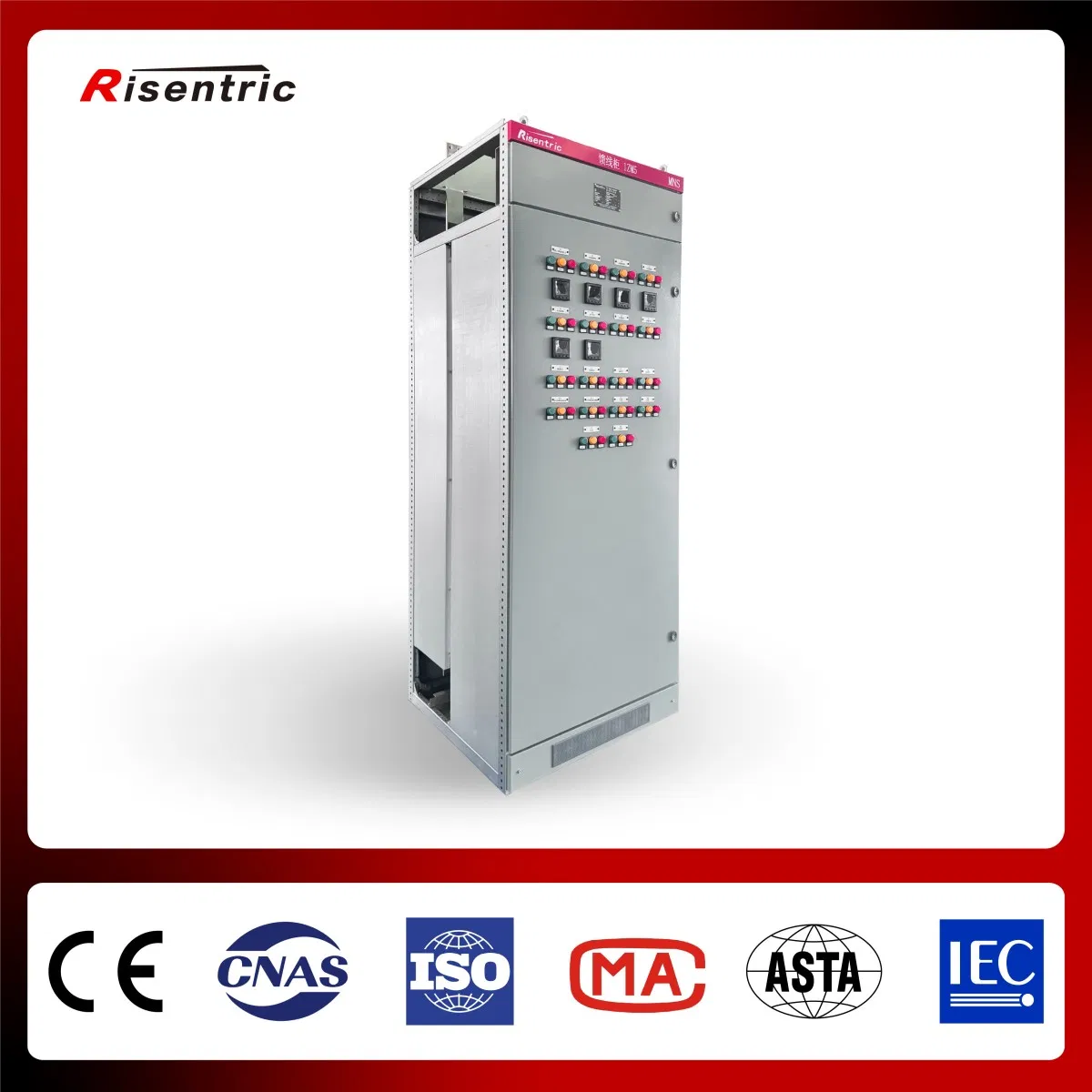

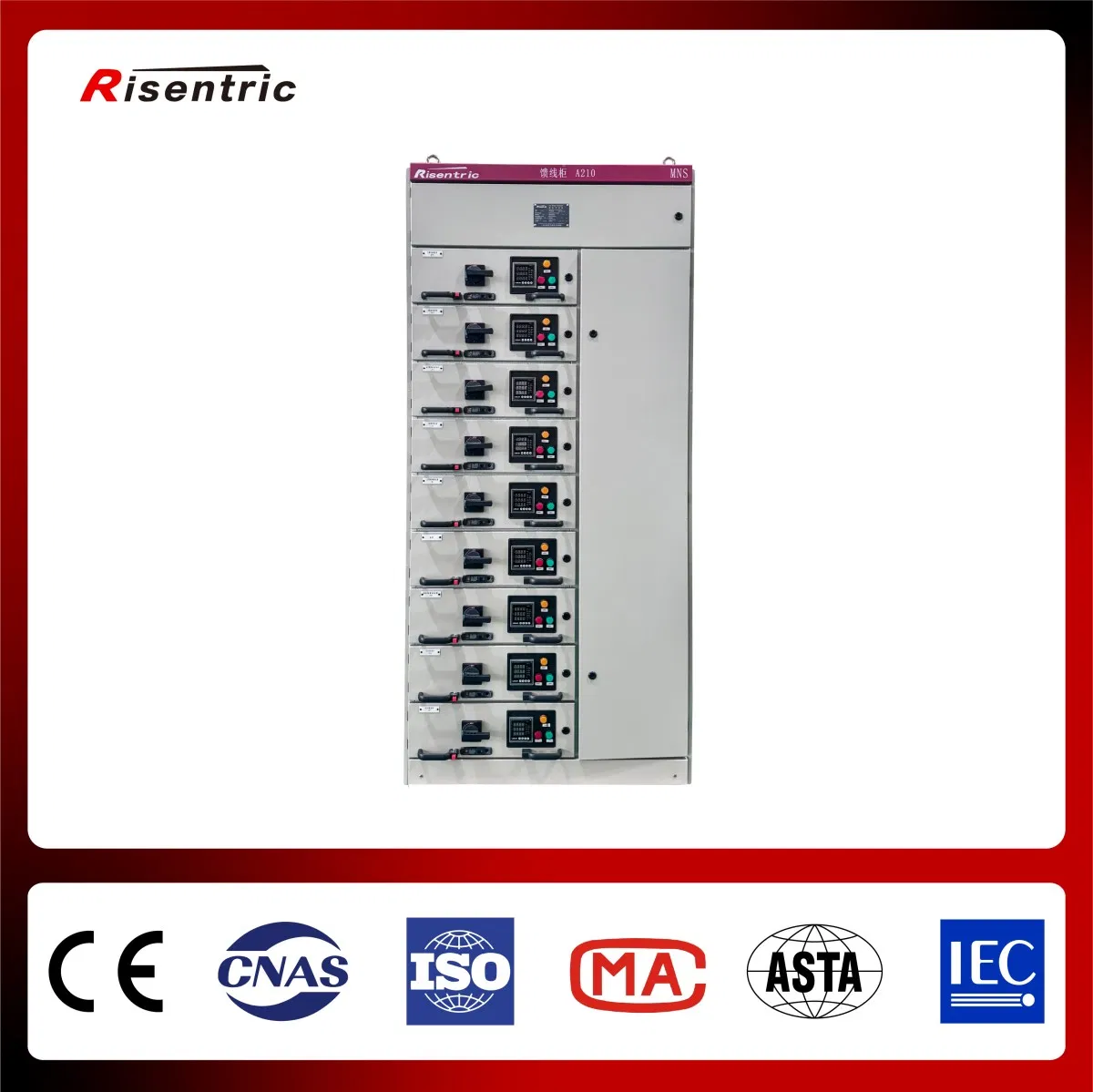

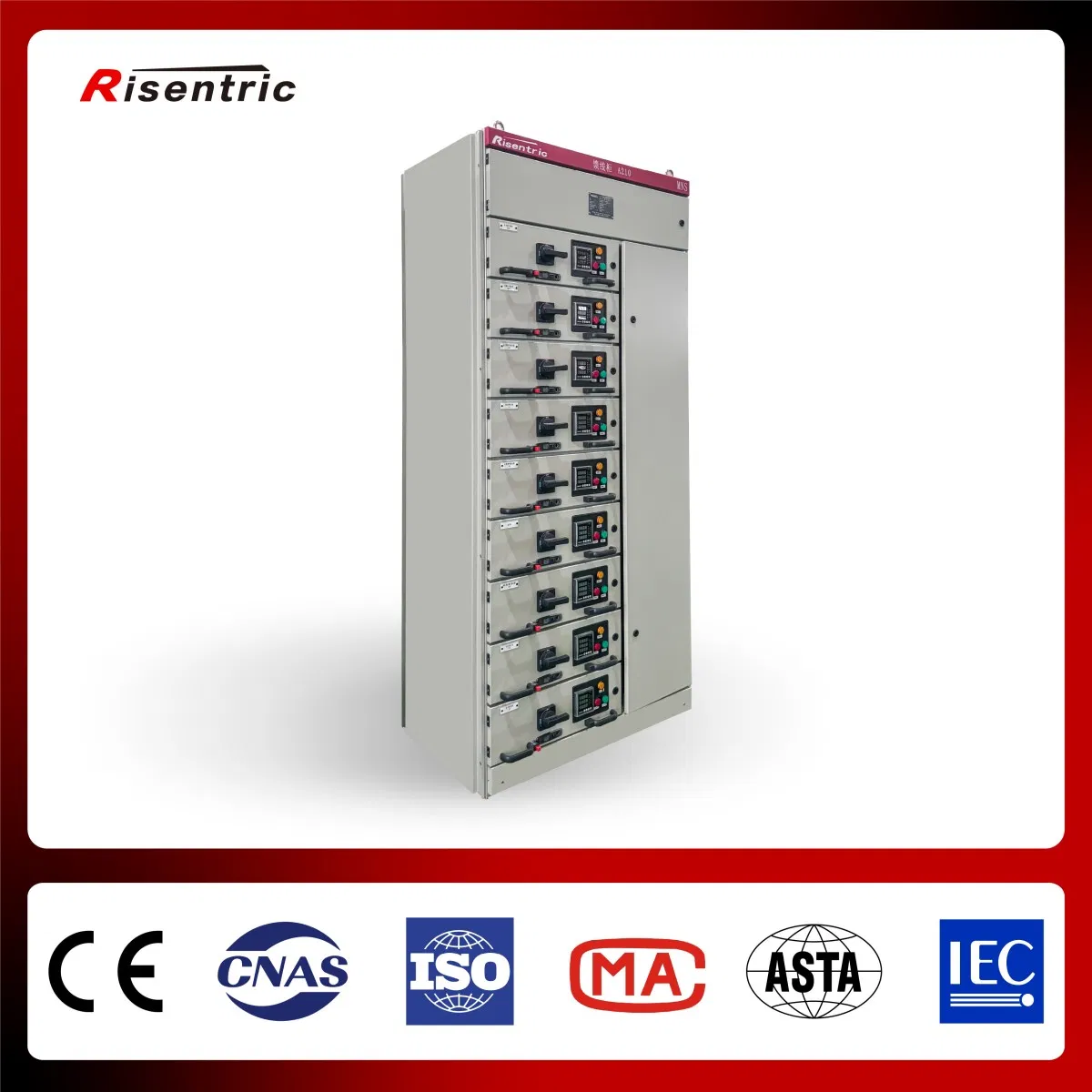

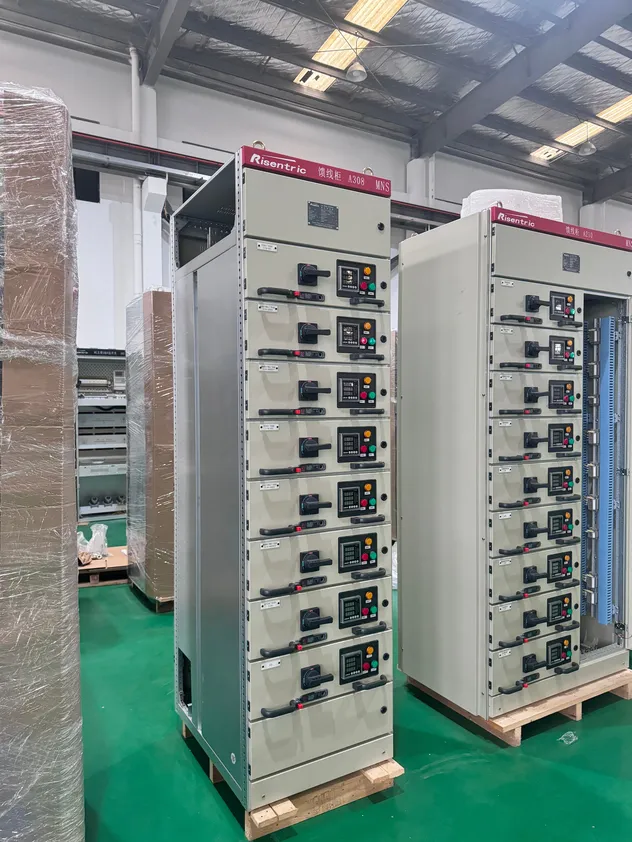

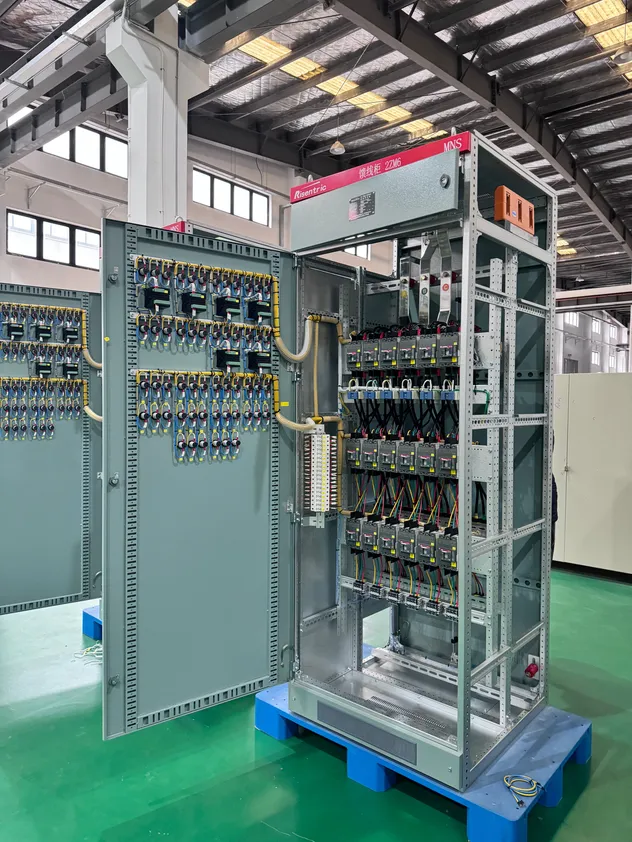

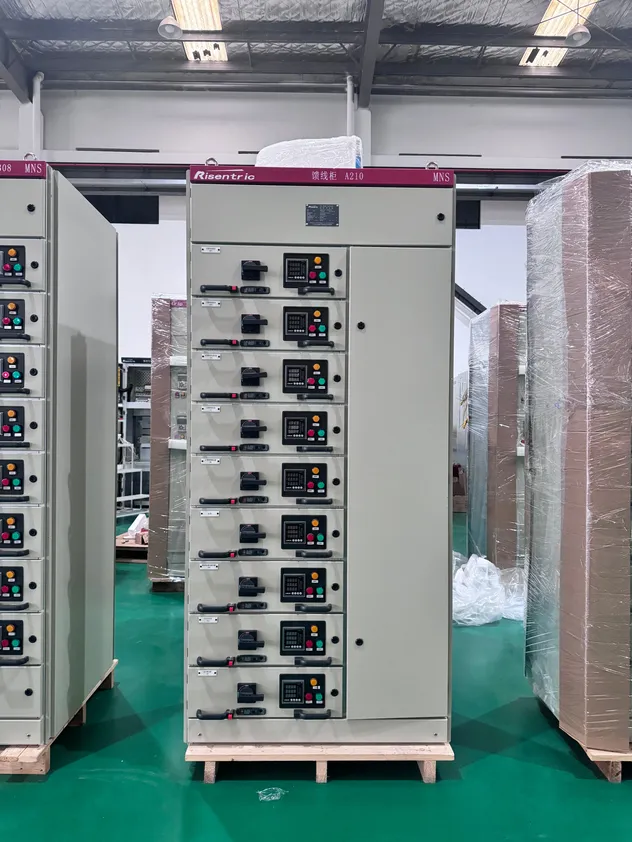

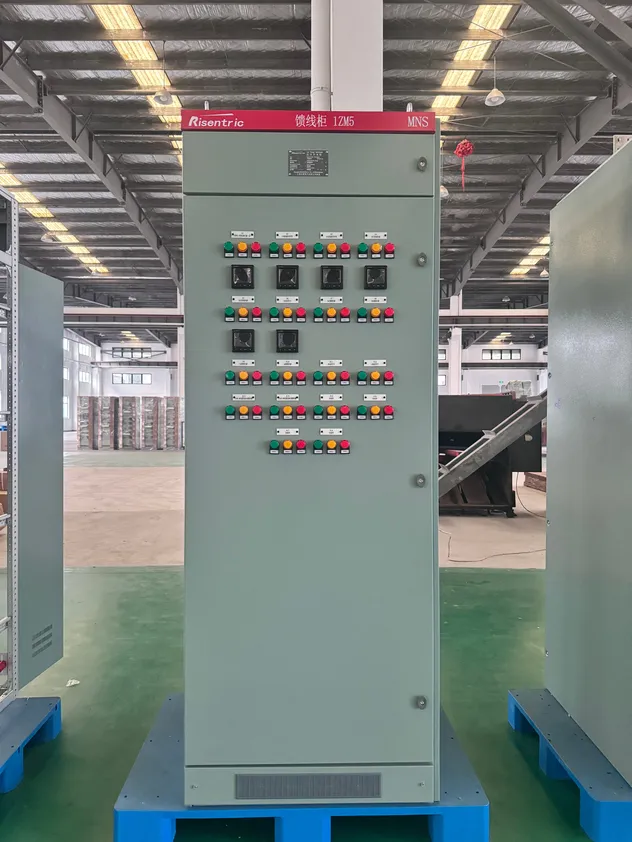

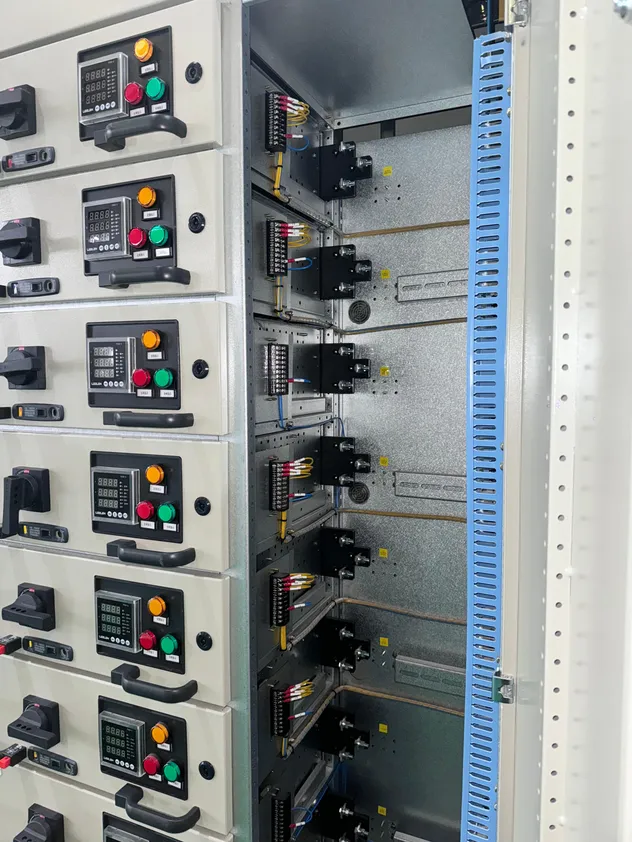

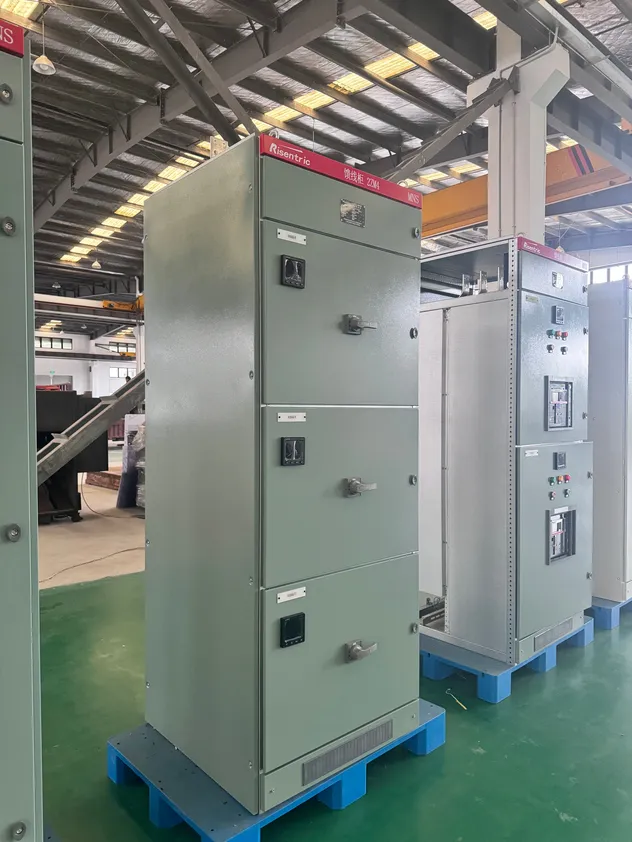

The MNS(GHD) type low-voltage combined switchgear is suitable for AC 50-60Hz systems with a rated operating voltage of 660V and below. It is designed for power generation, transmission, distribution, power conversion, and power consumption control. Beyond land-based applications, this device can be configured for offshore oil drilling platforms and nuclear power plants. It complies with IEC439, VDE0660 Part 5, and national standards for low-voltage withdrawable switchgear assemblies.
| Parameter Item | Standard Value (IEC 60439 / GB7251.1) |
|---|---|
| Overvoltage category | IV Ⅲ |
| Pollution level | 3 |
| Rated operating voltage (Ue) | 400/660V |
| Rated insulation voltage (Ui) | 660/1000V |
| Rated frequency | 50(60)Hz |
| Horizontal busbar Rated current | ≤5000A |
| Rated short-time withstand current (Icw) | 50,65,80(1s) |
| Rated peak withstand current (Ipk) | 105,140,176(0.1s) |
| Vertical busbar Max operating current | ≤1000A |
| Enclosure protection rating | IP30 IP40 |
Environmental Conditions:
• Ambient temperature: -5°C to +50°C (24h average ≤ +35°C).
• Humidity: Max 50% at +40°C; higher relative humidity (90%) allowed at lower temperatures.
• Altitude: Not exceeding 2000m.
• Storage: Suitable for -25°C to +55°C (up to 70°C for short periods).
Ordering Requirements:
Please provide the main circuit power distribution system diagram, floor plan, rated voltages/currents, and protection settings. Specify incoming/outgoing cable requirements, component quantities, and any special environmental conditions or surface colors.
