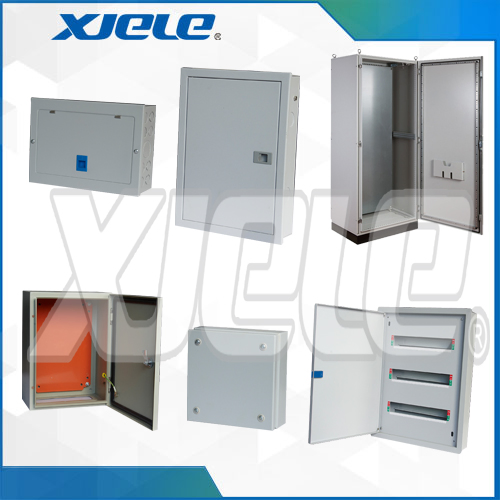

Power Distribution Board/Electrical Cabinet/Control Panels

1 / 5

Power Distribution Board/Electrical Cabinet/Control Panels

Send Inquiry

Product Description

Material Specifications

Body: 1.2mm sheet steel till size XJBS-A 8060/20, then 1.5mm
Mounting plate: 1.5mm sheet steel till size XJBS-A 8060/20, then 2.0mm
Door: 1.2mm sheet steel till size XJBS-A 8060/20, then 1.5mm

Surface Finish & Color

Body and door: Epoxy polyester powder coating textured finish
Mounting plate: Epoxy polyester powder coating flat finish
Standard Color: RAL7032 / RAL7035
Mounting Plate Color: RAL 2000 or galvanized steel

Protection Rating

Protection degree: IP 65
Against mechanical impacts: IK10

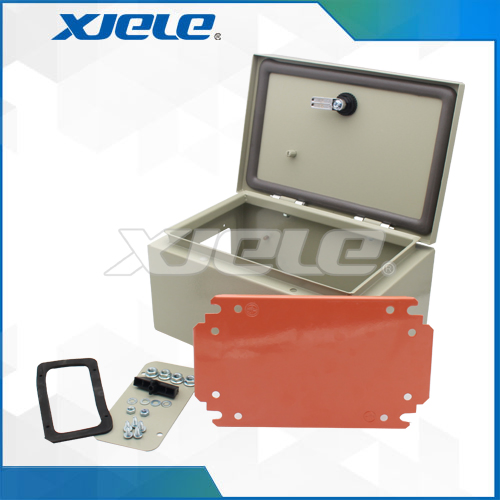

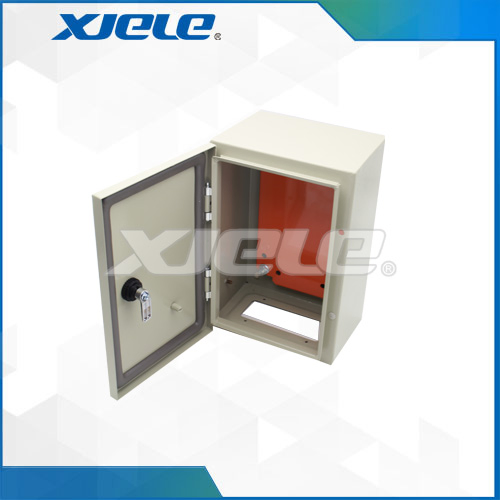

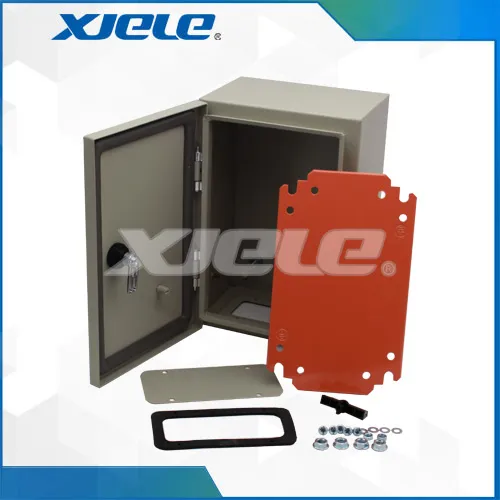

Supply Includes: Enclosure, door, Galvanized or orange painted mounting plate, locking system, gland plate, sealing gasket and fixing accessories.

Customized size, thickness, and process requirements are accepted.

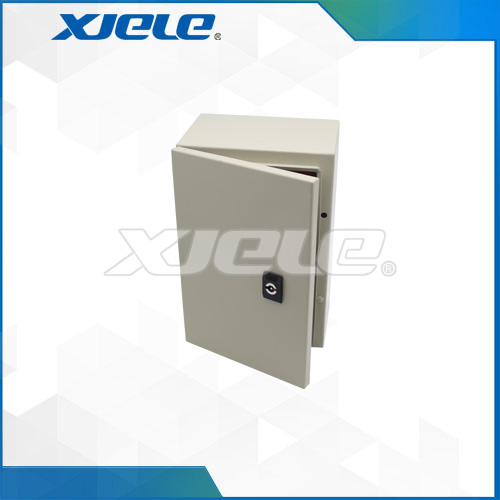

Waterproof outdoor electrical power wall mount enclosures

Dimension Reference Table

MODEL	H (MM)	W (MM)	D (MM)	MODEL	H (MM)	W (MM)	D (MM)
XJBS-A 2020/15	200	200	150	XJBS-A 6060/30	600	600	300
XJBS-A 2520/15	250	200	150	XJBS-A 7050/15	700	500	150
XJBS-A 3020/15	300	250	150	XJBS-A 7050/20	700	500	200
XJBS-A 3025/20	300	250	200	XJBS-A 7060/20	700	600	200
XJBS-A 3030/15	300	300	150	XJBS-A 7060/25	700	600	250
XJBS-A 3030/20	300	300	200	XJBS-A 7060/30	700	600	300
XJBS-A 3030/25	300	300	250	XJBS-A 8060/20	800	600	200
XJBS-A 4030/15	400	300	150	XJBS-A 8060/25	800	600	250
XJBS-A 4030/20	400	300	200	XJBS-A 8060/30	800	600	300
XJBS-A 4030/25	400	300	250	XJBS-A 8080/20	800	800	200
XJBS-A 4030/30	400	300	300	XJBS-A 8080/25	800	800	250
XJBS-A 4040/15	400	400	150	XJBS-A 8080/30	800	800	300
XJBS-A 4040/20	400	400	200	XJBS-A 10060/20	1000	600	200
XJBS-A 4040/25	400	400	250	XJBS-A 10060/25	1000	600	250
XJBS-A 4040/30	400	400	300	XJBS-A 10060/30	1000	600	300
XJBS-A 5030/15	500	300	150	XJBS-A 10070/20	1000	700	200
XJBS-A 5030/20	500	300	200	XJBS-A 10080/20	1000	800	200
XJBS-A 5030/25	500	300	250	XJBS-A 10080/25	1000	800	250
XJBS-A 5040/15	500	400	150	XJBS-A 10080/30	1000	800	300
XJBS-A 5040/20	500	400	200	XJBS-A 10080/40	1000	800	400
XJBS-A 5040/25	500	400	250	XJBS-A 100100/25	1000	1000	250
XJBS-A 5040/30	500	400	300	XJBS-A 100100/30	1000	1000	300
XJBS-A 5050/20	500	500	200	XJBS-A 12060/20	1000	600	200
XJBS-A 5050/25	500	500	250	XJBS-A 12060/25	1000	600	250
XJBS-A 5050/30	500	500	300	XJBS-A 12070/25	1000	700	250
XJBS-A 6040/15	600	400	150	XJBS-A 12080/20	1000	800	200
XJBS-A 6040/20	600	400	200	XJBS-A 12080/25	1000	800	250
XJBS-A 6040/25	600	400	250	XJBS-A 12080/30	1000	800	300
XJBS-A 6040/30	600	400	300	XJBS-A 12080/40	1000	800	400
XJBS-A 6050/15	600	500	150	XJBS-A 120100/25	1200	1000	250
XJBS-A 6050/20	600	500	200	XJBS-A 120100/30	1200	1000	300
XJBS-A 6050/25	600	500	250	XJBS-A 120100/40	1000	1000	400
XJBS-A 6050/30	600	500	300	XJBS-A 14060/40	1400	600	400
XJBS-A 6060/15	600	600	150	XJBS-A 14080/40	1400	800	400
XJBS-A 6060/20	600	600	200	XJBS-A 140100/40	1400	1000	400
XJBS-A 6060/25	600	600	250	XJBS-A 140100/40	1400	1000	400

Powder coating spray mild sheet steel metal outdoor waterproof distribution box. Ideal for electrical wall mounted control panels, switchboards, and industrial enclosures. Featuring IP66 waterproof rating, available in various sizes for power control, switching control, and small metal box applications.

Frequently Asked Questions

Q1: What is the protection rating of these enclosures? Our enclosures are rated at IP65/IP66 for superior dust and water resistance, and IK10 for high mechanical impact protection, making them ideal for outdoor and industrial use.

Q2: Can I request customized sizes or thickness? Yes, we accept customized requirements for size, sheet metal thickness, and specific processing needs to meet your project specifications.

Q3: What materials are used for the body and mounting plate? The body and door are made from high-quality sheet steel (1.2mm to 1.5mm), while mounting plates are made from 1.5mm to 2.0mm sheet steel, available in galvanized or painted finishes.

Q4: What surface treatment is applied to the boxes? The units undergo an epoxy polyester powder coating process. The body and door feature a textured finish, while the mounting plate has a flat finish for durability.

Q5: What are the standard colors available? The standard colors for the body and door are RAL7032 and RAL7035. Mounting plates are typically RAL 2000 orange or finished in galvanized steel.

Q6: Does the supply include all necessary accessories? Yes, the supply includes the enclosure, door, mounting plate (galvanized or orange), locking system, gland plate, sealing gasket, and all standard fixing accessories.
