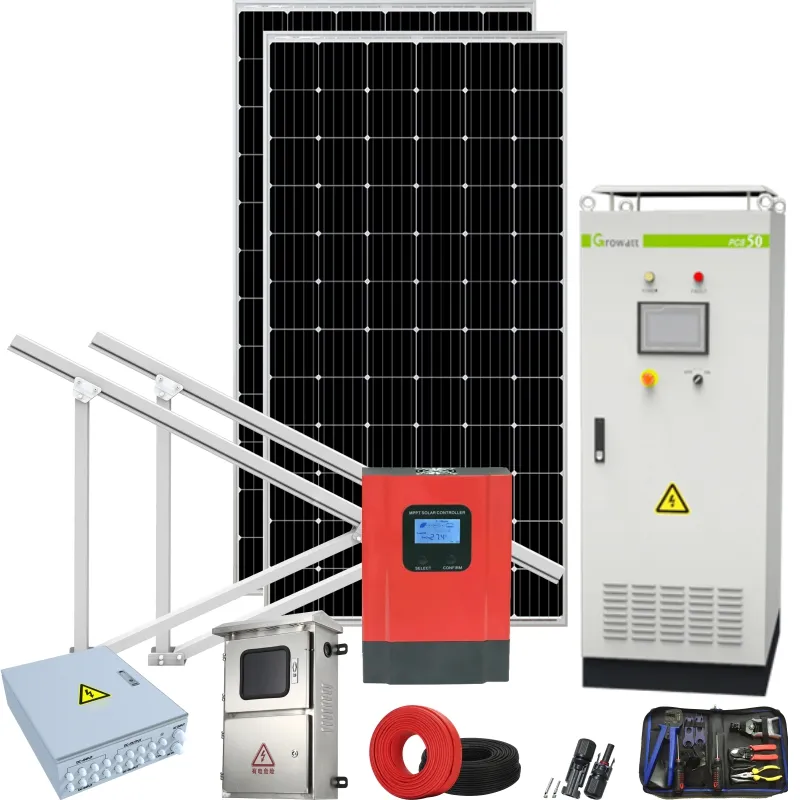

Product Overview
Connecting Diagram

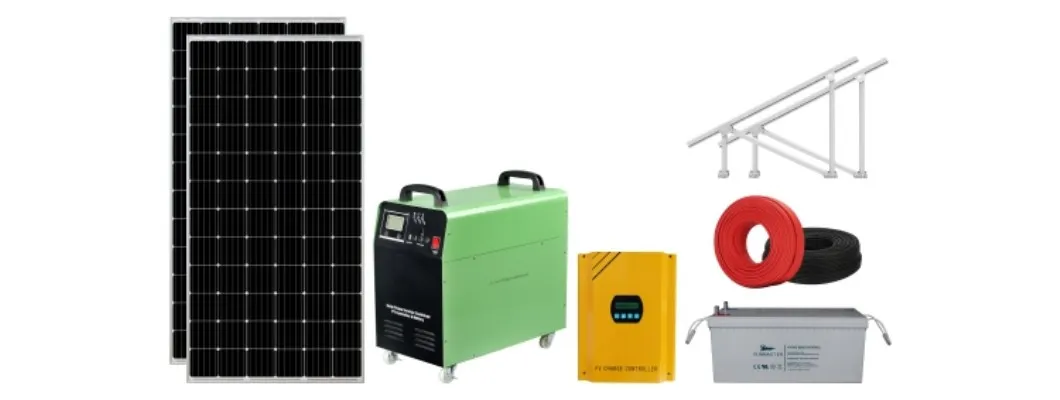

Configuration List
| Item |
Certification |
Description |
Q'ty |
Warranty |
| Solar panel | TUV / IEC / EC | Mono or Poly | 2 pcs | 20 years |
| Inverter | CGC / CQC / VDE | One (MPPT) tracking/ 50/60Hz; 230Vac 1500W | 1 set | 5 years |
| Distribution box | CE | Lighting Protection. Air switch, Fusegar, Knifeswitch | 1 set | 5 years |
| Mounting system | CE | Slant roof/Cement Ground/Soil ground bracket | 1set | 10 years |

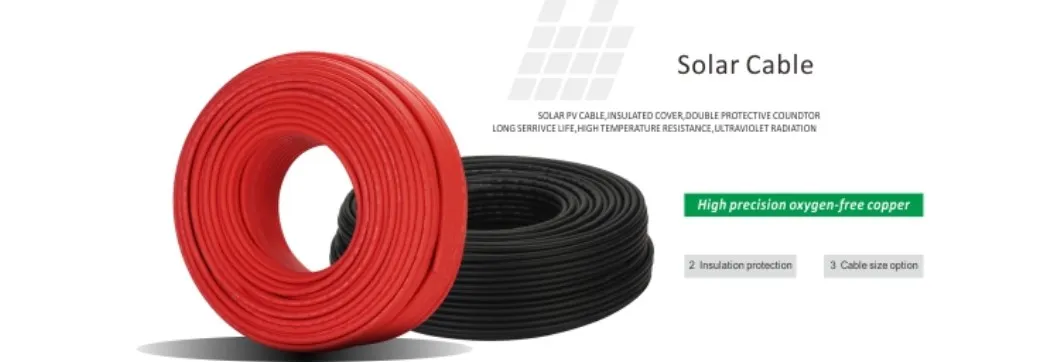

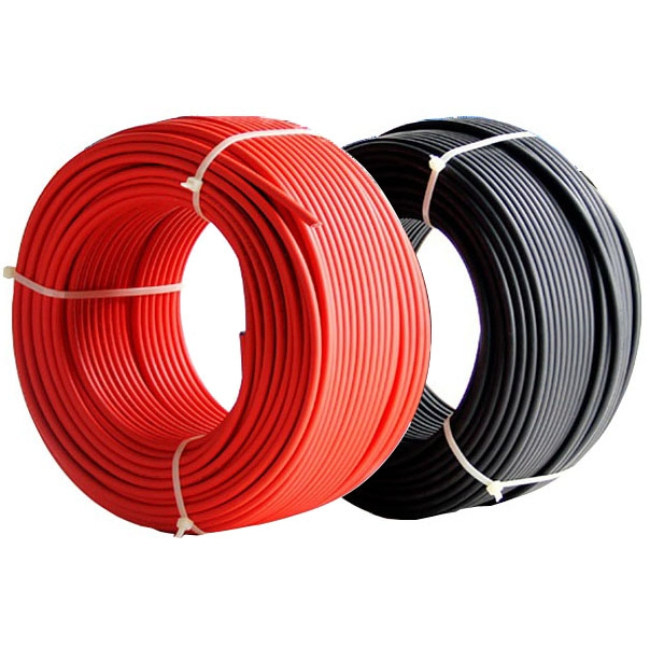

| PV cable | TUV/ UL | DC 1*4mm² (20m) / AC 3*6mm² (10m) | - | 10 years |

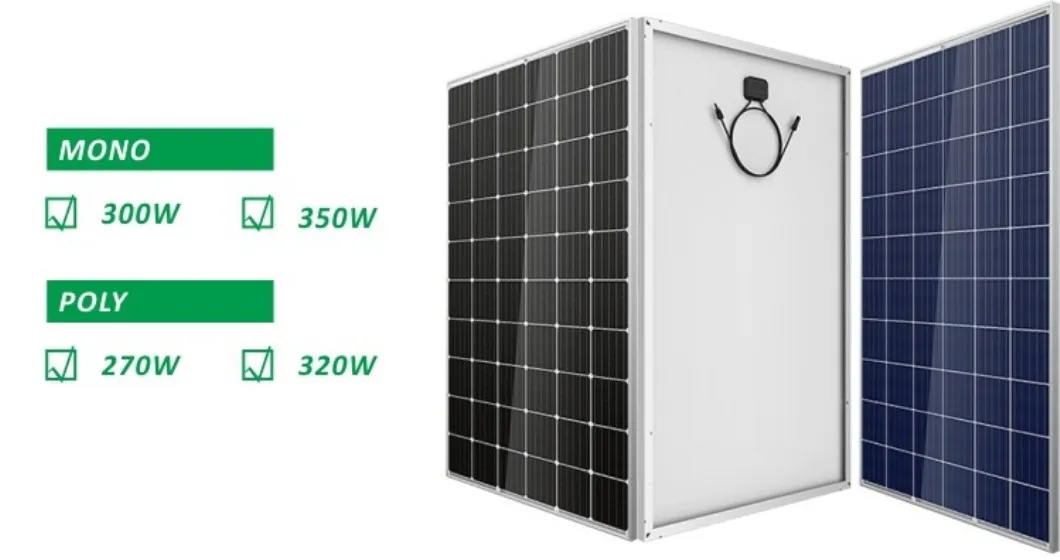

Solar Panel Technical Data
| Type |
MONO |
POLY |
| Power class | 280W | 335W | 270W | 320W |
| Max power Voltage (Vmp) | 36V | 36V | 36V | 36.5V |
| Efficiency | ≥17.1% | ≥17.2% | ≥16.5% | ≥16.4% |
| Dimension (mm) | 1650x991x35 | 1960x991x35 | 1650x991x35 | 1960x991x35 |

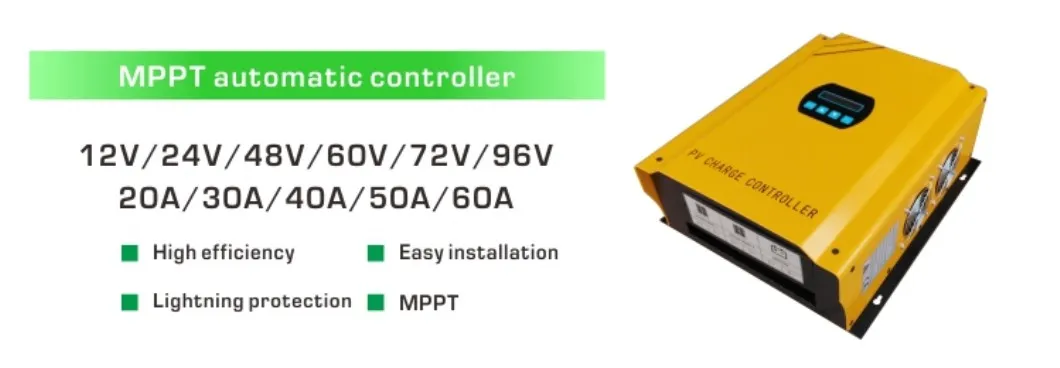

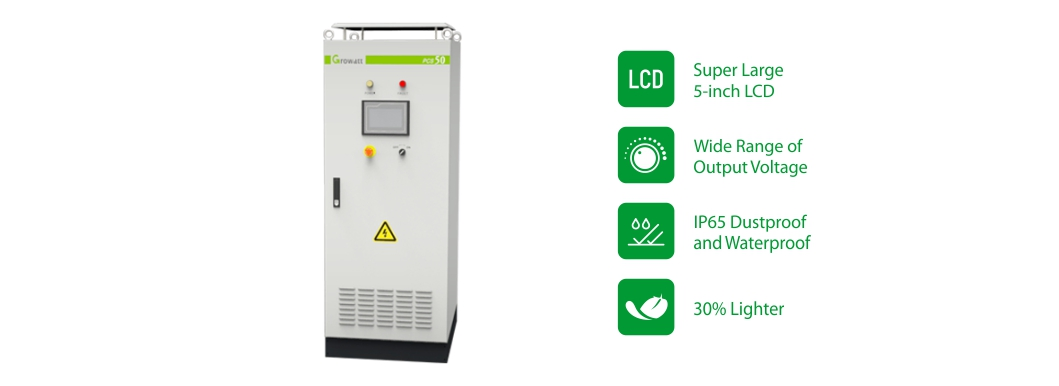

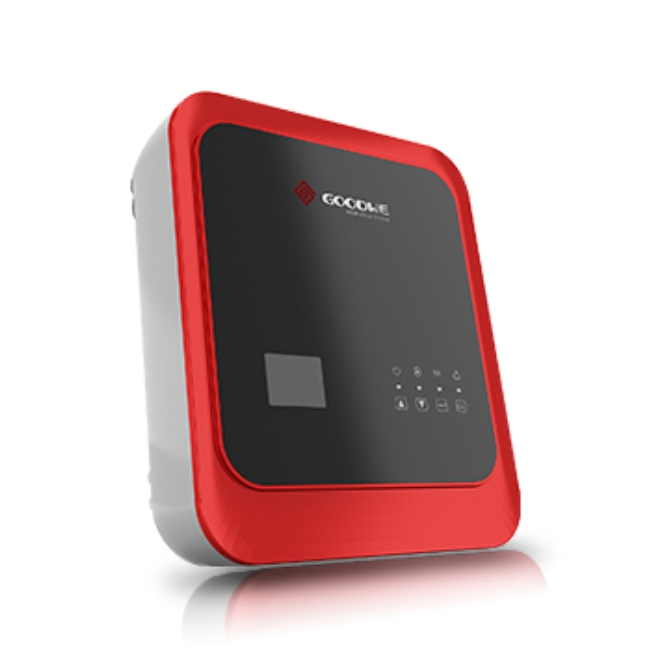

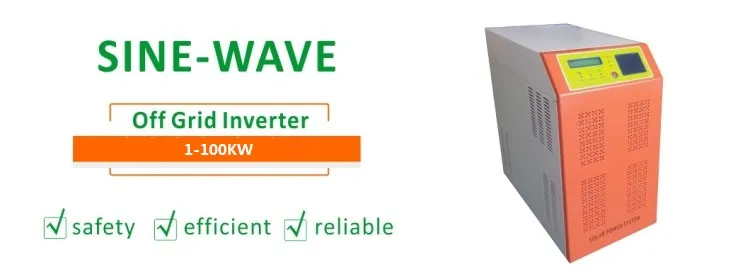

Solar Inverter & Controller
| Protection Degree | IP65 |
| Cooling Method | Natural convection |
| Rated Charge Current | 40A |
| DC Voltage | 24/48V Auto identification |

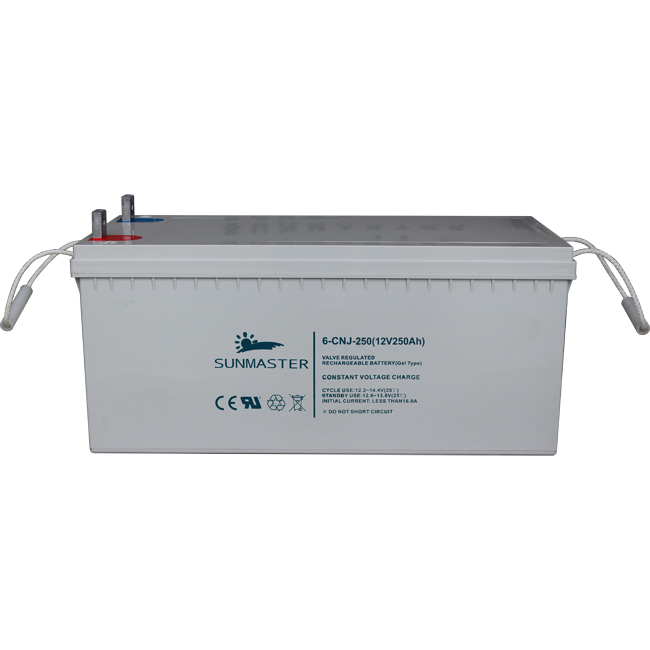

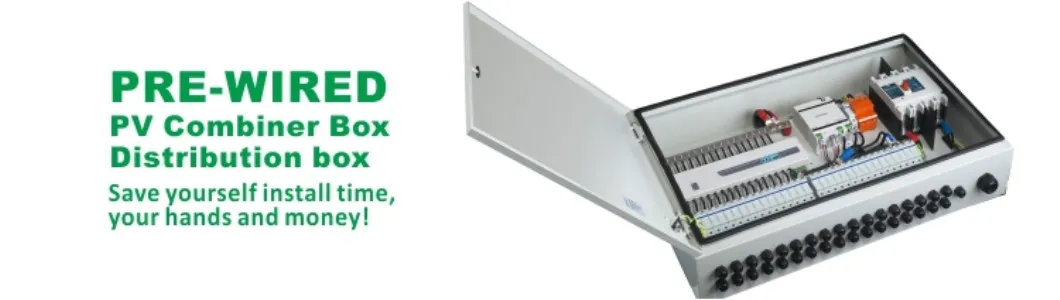

Solar Battery & PV Box

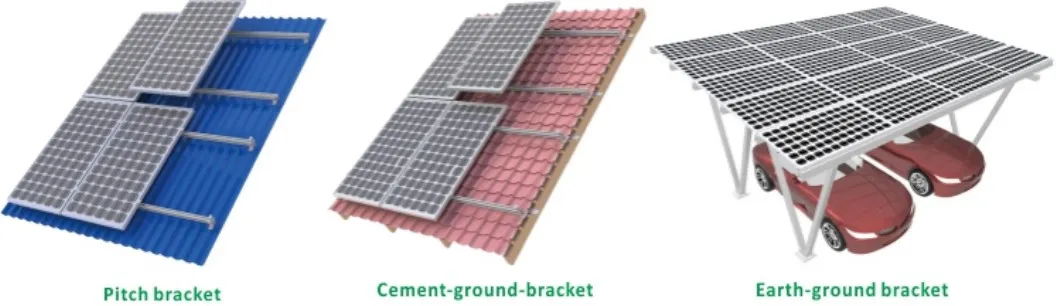

Mounting System
The wind capacity of such mounting system can reach 40m/s (32.5kg/sqm, level 13), and snow load capacity can reach 70kg/sqm. The whole system has strong safety performance and can be customized based on the actual situation (slope roof, flat ground, or soil ground).
Frequently Asked Questions
What is included in the 1.5kw solar power system?
The system includes high-efficiency solar panels, a pure sine wave inverter, an intelligent controller, lead-acid AGM batteries, a PV combiner box, mounting brackets, and all necessary cables.
Can this system be used for home applications?
Yes, this 1.5kw off-grid system is specifically designed for home use, providing reliable power for lights, fans, and other household electronics.
What is the expected lifespan of the solar panels?
The solar panels are designed for a long service life of up to 25 years, with a product warranty covering the first 20 years.
Is the system compatible with different roof types?
Absolutely. The mounting system can be customized for slant roofs, flat cement grounds, or soil grounds to suit your specific location.
Does the system include protection against lightning?
Yes, the included PV combiner box features a surge protective device (SPD) and lighting protection to ensure the safety of the entire circuit.
What type of battery is used in this setup?
The system uses high-quality 12V 100Ah Lead-Acid AGM batteries, known for their stability and safety in home solar storage applications.
