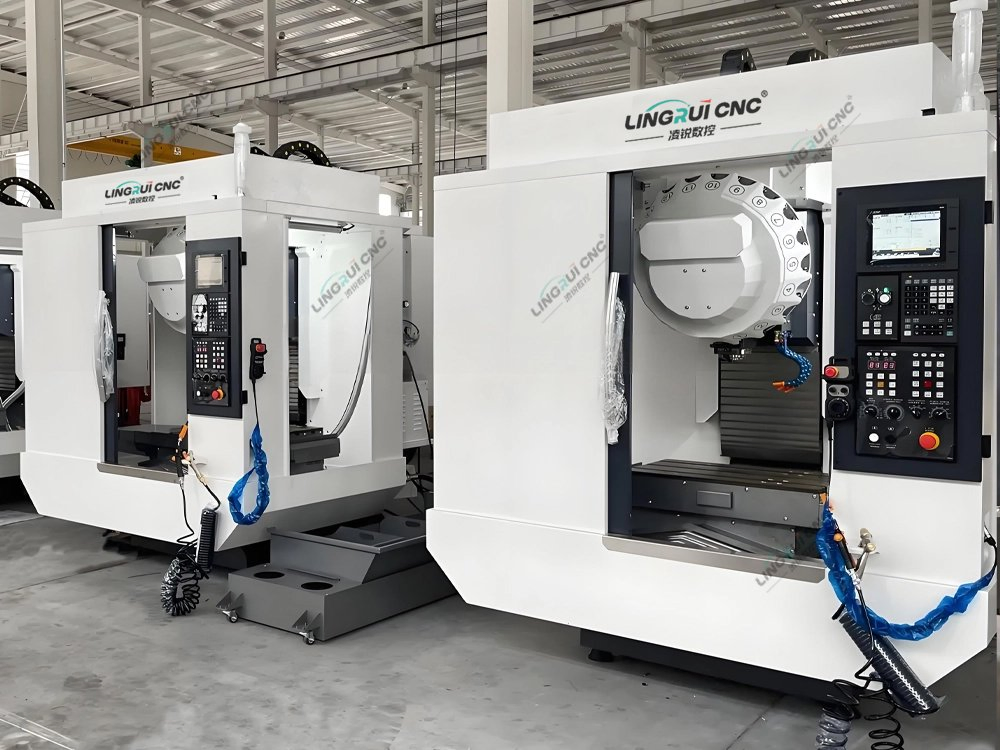

3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center
3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center
3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center
3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center
3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center
1 / 5
3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center
3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center
3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center
3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center
3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center

3-Axis Multi-Function Metal Drilling and Milling Vertical Machining Center

Customization: Available
After-sales Service: Three-Year Free Warranty
Warranty: Three-Year Free Warranty
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.LR-4060-T6
ApplicationMetal
Process UsageMetal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement MethodLinear Control
Control MethodClosed-Loop Control
Numerical ControlCNC/MNC
Processing Precision0.01~0.02(mm)
CertificationGS, CE, RoHS, ISO 9001
Product NameMetal Drilling and Milling Vertical Machining Center
Spindle Power5.5kw-7.5 Automatic Tool Change Spindle
Spindle Speed12000/20000rpm
Positioning Accuracy0.008mm
OriginChina
📷 Machine Showcase

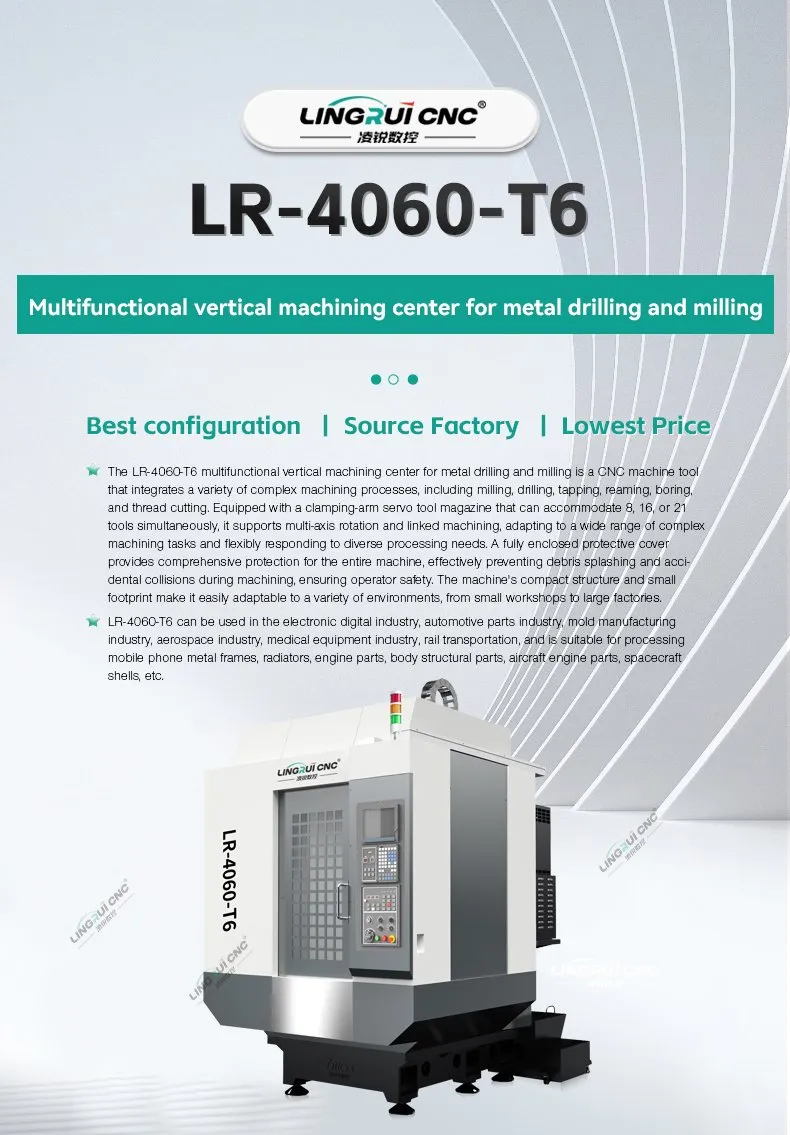

Machine Overview

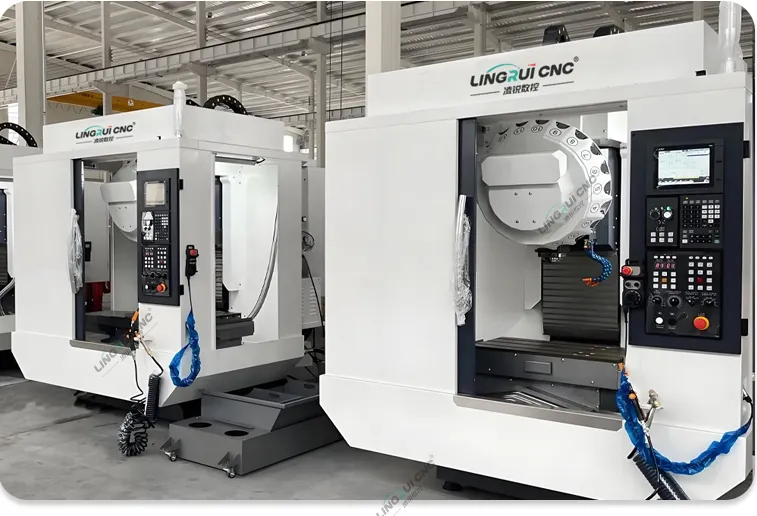

Machine Photo 1

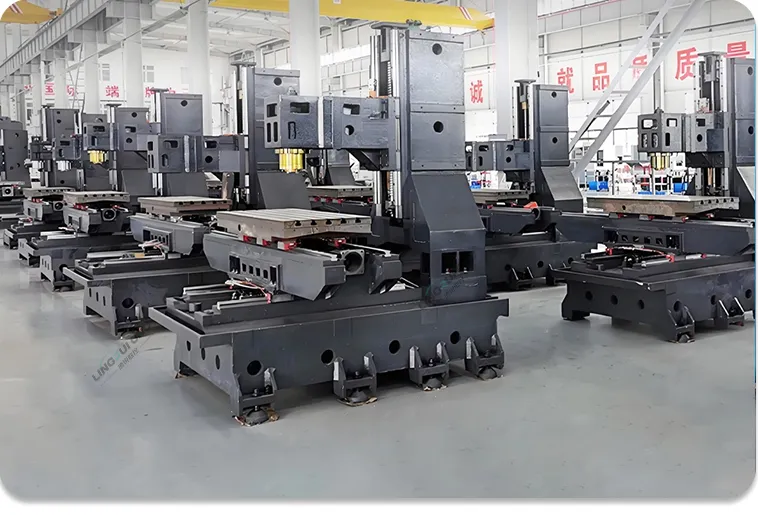

Machine Photo 2
Machine Photo 3
📊 Technical Parameters
Parameters Chart
X/Y/Z Axis Travel600/400/330mm
Workbench Size700*420mm
Max Load of Workbench250kg
Spindle TaperBT30
Spindle Motor5.5-7.5kw
Rapid Feed (X/Y/Z)48/48/48m/min
Repeat Positioning Accuracy±0.006mm
Number of Tools16T-21T
Tool Change Time1.4sec(60Hz)
Machine Weight3100kg
🔍 Detailed Features

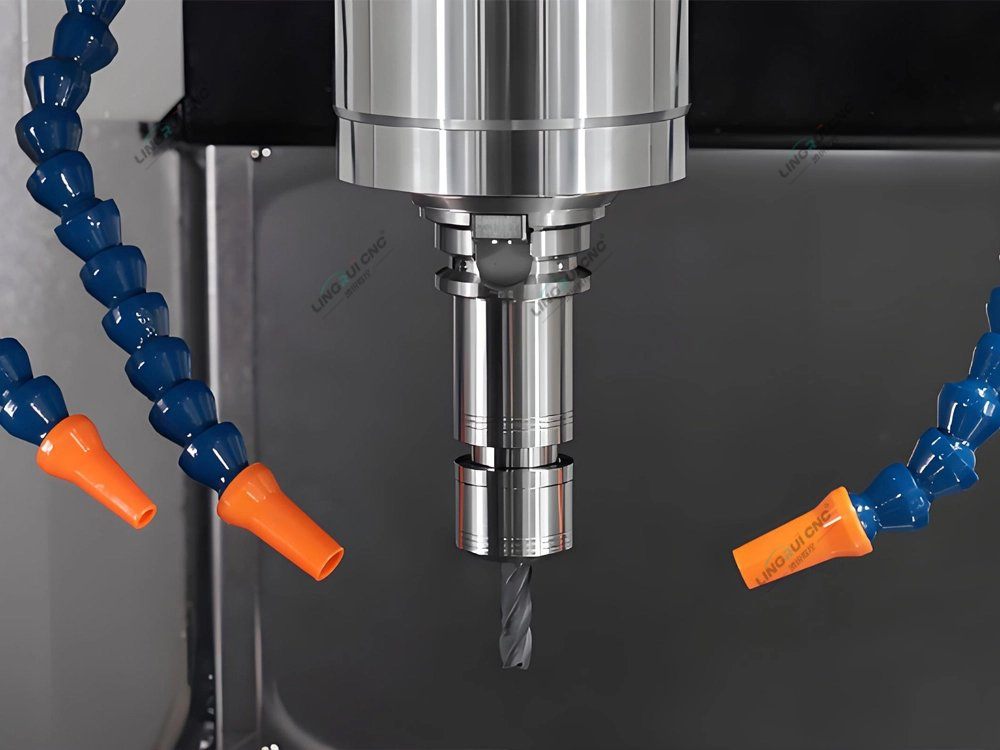

Spindle

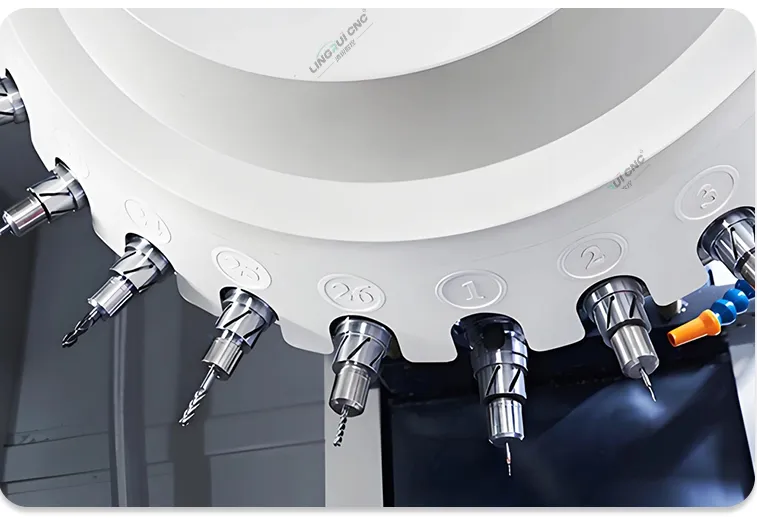

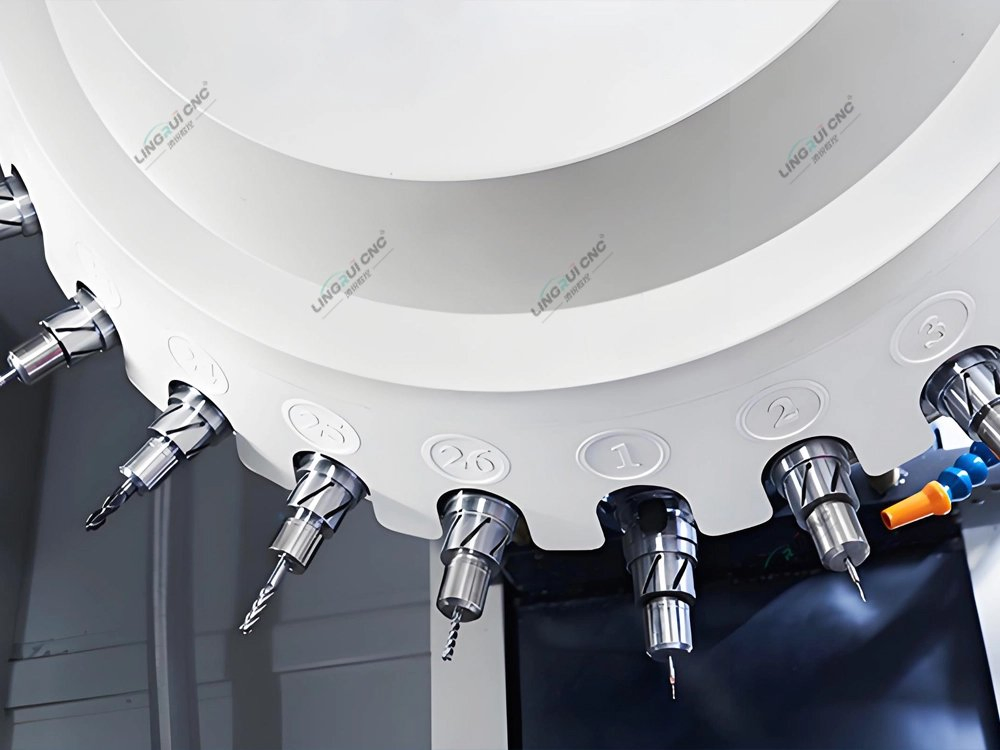

Tool Magazine
High-Performance Spindle: 5.5-7.5W high-torque water-cooled automatic tool-changing spindle (12,000-20,000 rpm) with cutting fluid cooling system.
Servo Tool Magazine: Clamp-arm tool changer ensures high-speed (1.4s) and quiet tool changes.

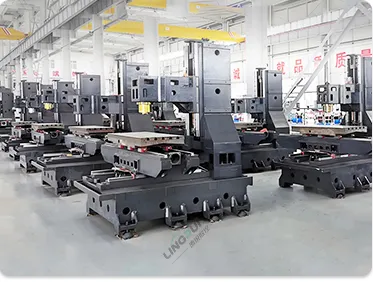

Casting Body
Tool Setter
Stable Casting Body: Improved casting provides greater stability and reduces vibration.
Automatic Tool Setter: Calibrates tools at different heights automatically, saving time.

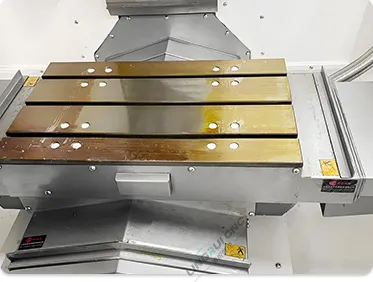

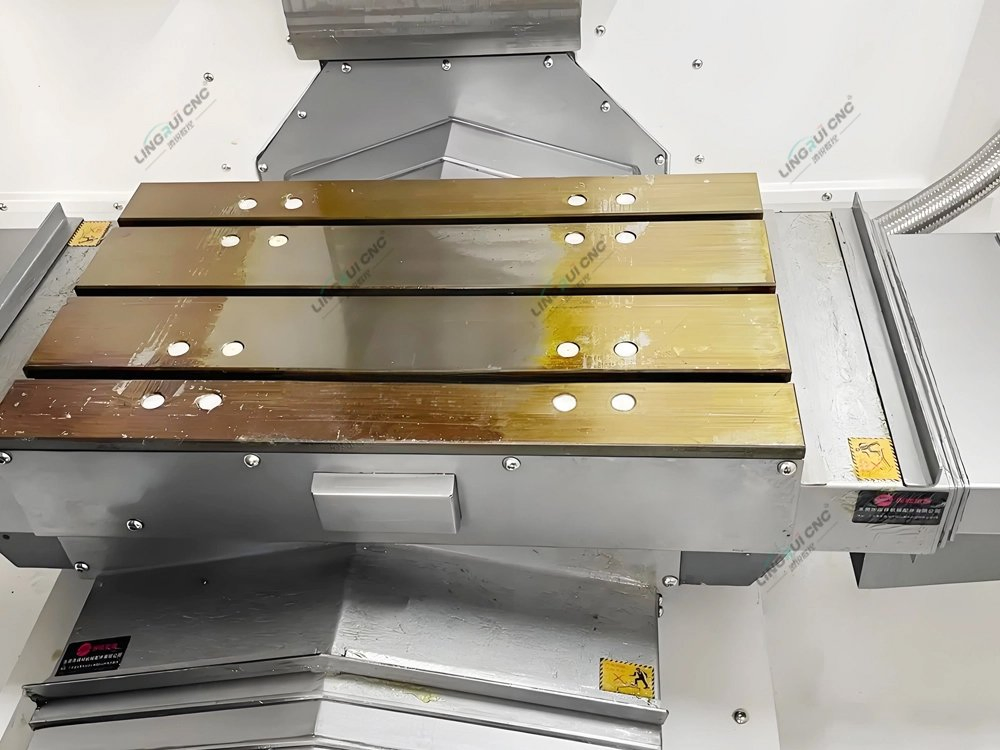

Worktable

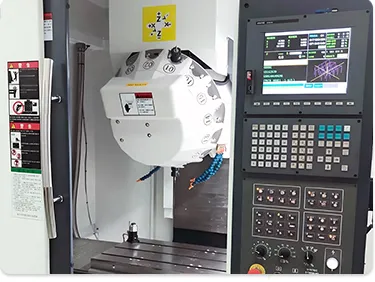

CNC System
Movable Worktable: T-slot table allows flexible clamping of various workpieces.
Advanced Control System: CNC system features a full English interface, compatible with CAD/CAM software.

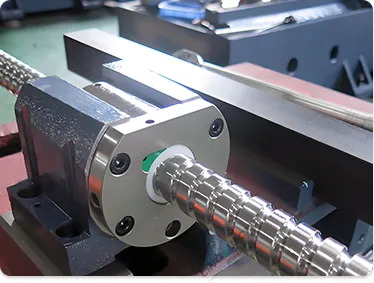

Transmission System

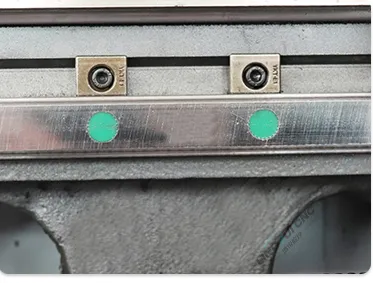

Guide Rails
Precision Transmission: Ground ball screws and high-precision sliders improve machining accuracy.
Linear Bearings: High-precision guide rails provide repeatability up to 0.008mm.
Indexing Chuck

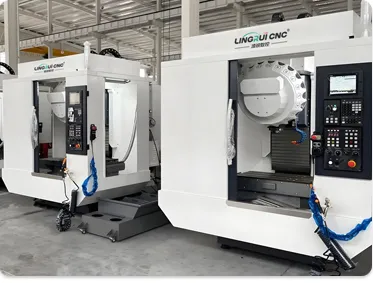

Protective Cover
Indexing Chuck: Optional for multi-face or rotating surface machining.
Safety Protection: Fully enclosed cover prevents fluid and residue escape.

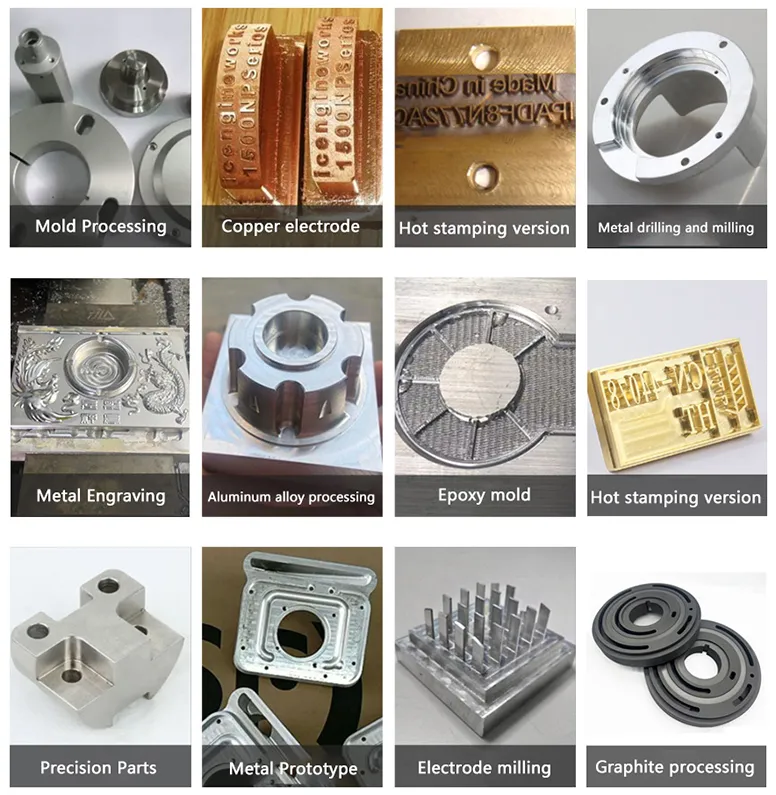

💎 Sample Display

Applied Materials: Copper, aluminum, steel, stainless steel, alloy, wood, PVC, acrylic, engineering plastics, graphite, stone, and more.

Industries: Industrial molds (injection, shoe, stamping), precision parts (watch, auto, hardware, PCB), decorations (jewelry, medals, EDC toys), and 3D carvings.

Samples
🏢 Company Profile & Customers
Company Profile
Customer Photos
📜 Certifications
Certification
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a certified factory with professional export licenses and manufacturing capabilities.
Do you offer OEM services?
Yes, we have 19 years of OEM experience collaborating with global trading partners.
What about after-sales service?
We provide a 3-year full machine warranty, 12-hour guaranteed response time, and 24/7 technical support.
How to choose the right machine?
Provide your material specifications and product dimensions, and we will recommend optimal solutions based on 19+ years of expertise.
Do you provide installation services?
Machines are pre-tested and ready-to-use. We include manuals, video guides, and offer onsite commissioning globally if needed.
Can machines be customized?
Customization is fully supported by our engineering team to meet your specific priority requirements.
