| Model NO. | HMDB |
| Application | Metal Processing |
| Process Usage | Metal-Cutting CNC Machine Tools |
| Movement Method | Linear Control |
| Processing Precision | 0.01~0.02(mm) |
| Certification | GS, CE, RoHS, ISO 9001 |

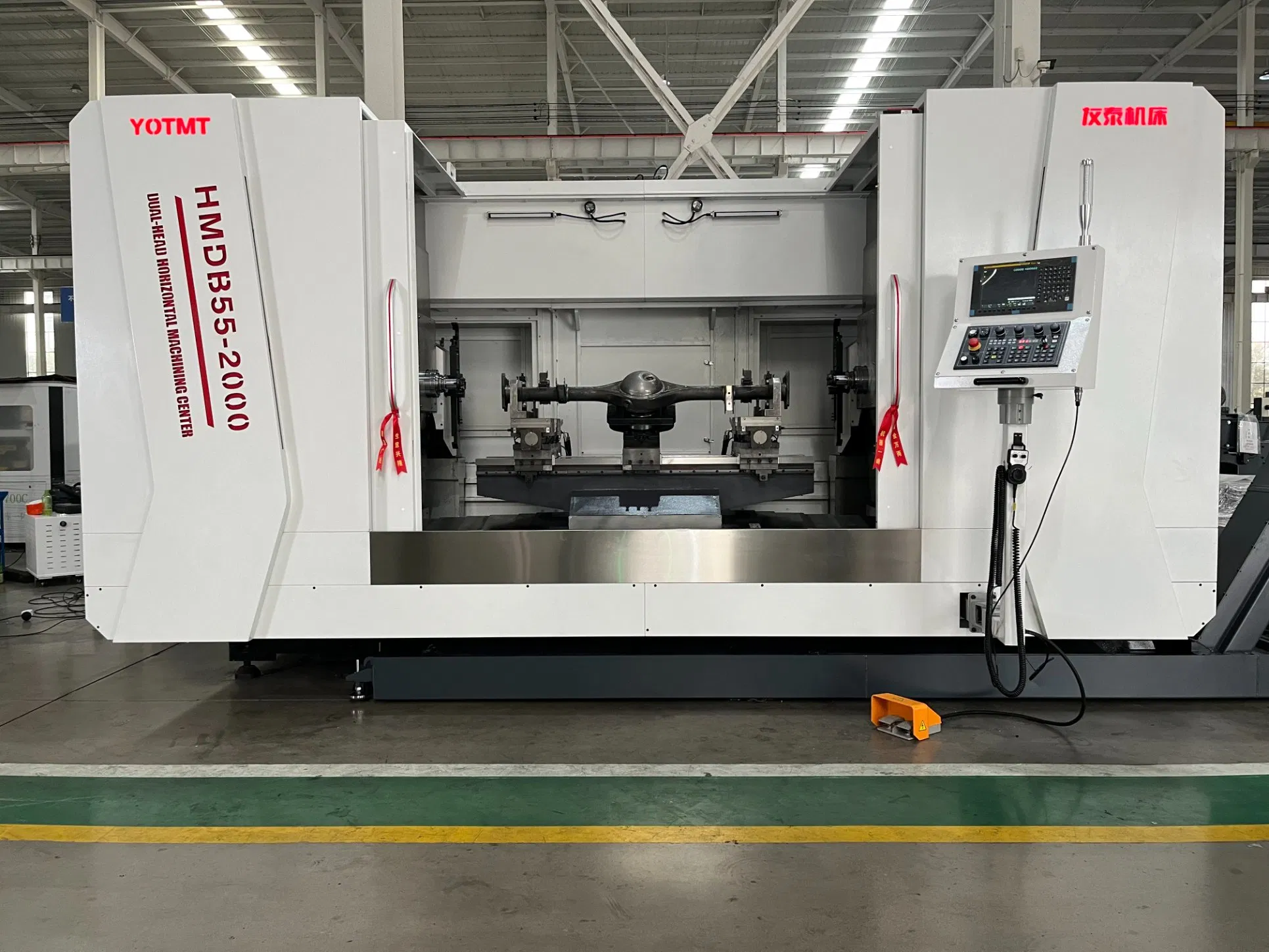

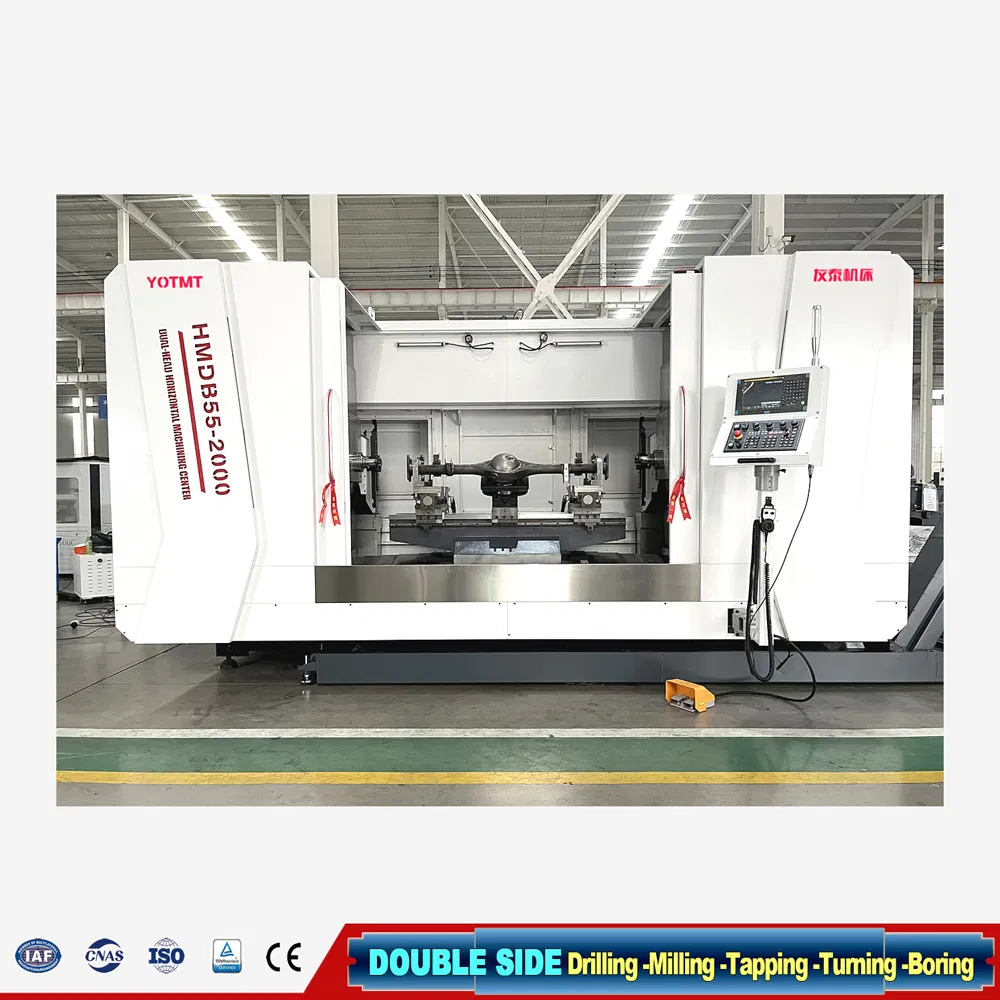

| Structure | Horizontal CNC Machining Center with Atc |
| Function | Double Ends Hole Drilling, Tapping, Face Milling |
| Usage | Railway Axle Rod End Processing, Truck Axle, Shaft, Piston Rod |
| Automation | Support |
| Core Advantage | Double Side Spindle Drilling Milling with Atc |
| Project | Unit | Parameter |
|---|---|---|
| Workpiece Diameter | mm | 50~200 |
| Workpiece Length | mm | 500~1000/1500/2000/2500/3000/4000 |
| Process Details | - | Heavy milling, edge hole drilling, tapping, boring, turning |
| Axis each side | Qty | 3 |
| Tool Magazine | P | 16~32 |
| CNC Controller | - | Double channel (KND/GSK/FANUC/SIEMENS Optional) |
| Machine Weight | kg | Approx. 15000 |
| Total Power | kw | 60 |

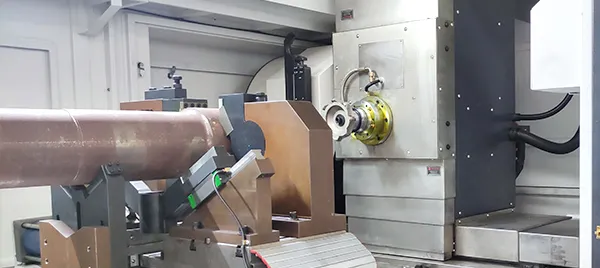

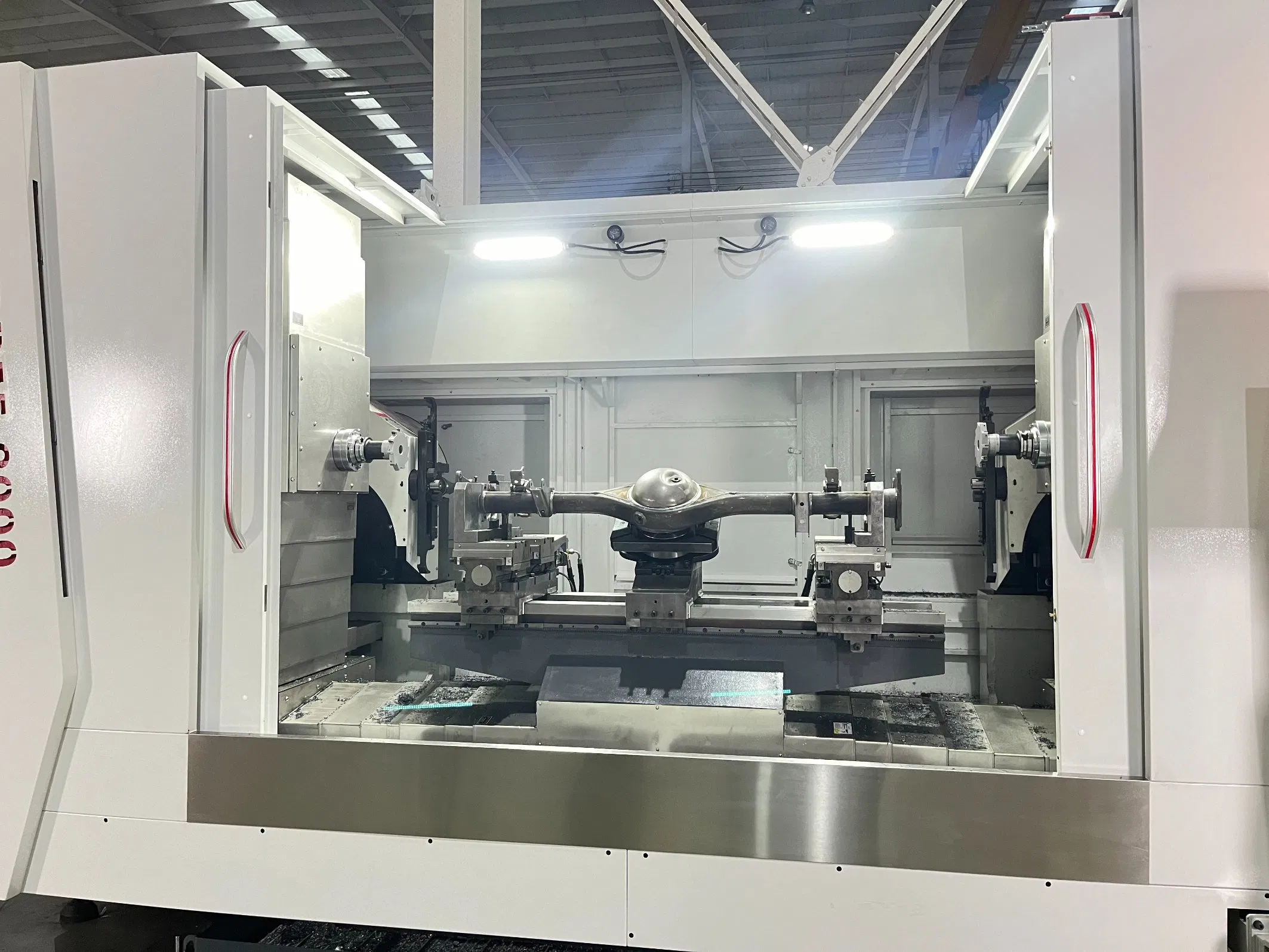

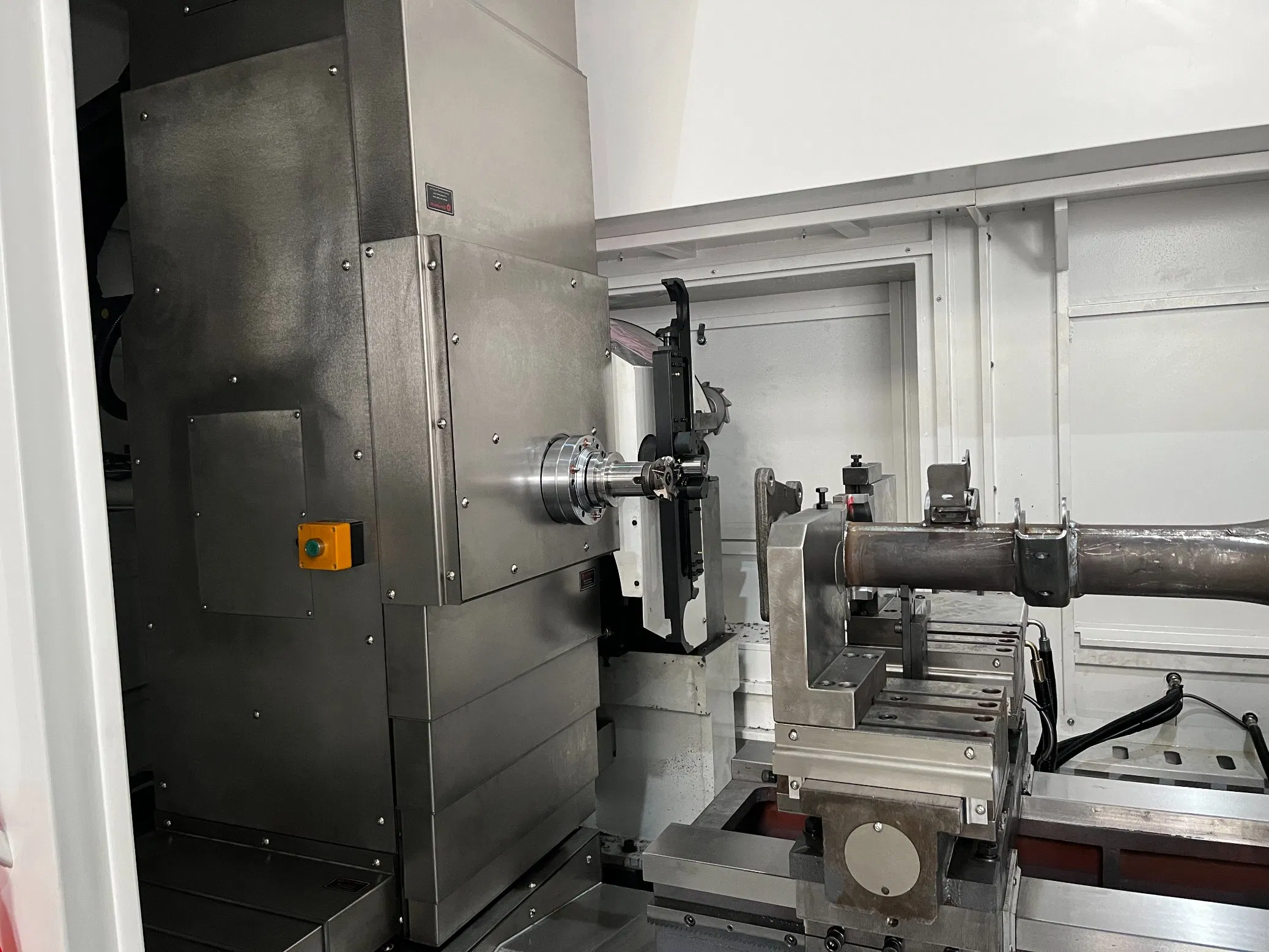

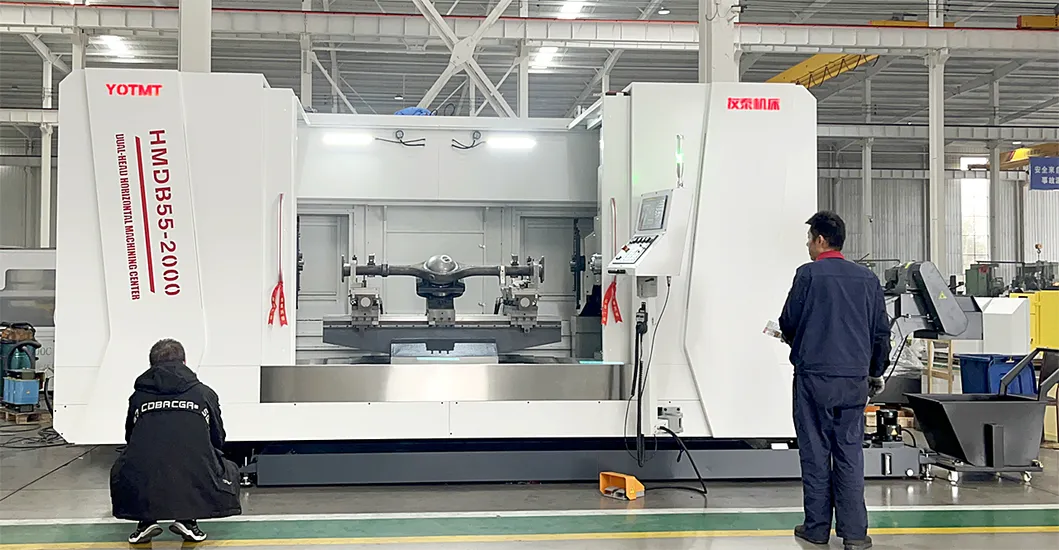

Featuring an innovative double-ended spindle design, our machine integrates a horizontal spindle box layout with three dynamic moving axes on each side, enabling the simultaneous execution of milling, drilling, and tapping on two sections of the workpiece.
Experience precision with our dual-end face processing, as each side is equipped with a sophisticated automatic tool change magazine, accommodating various drilling and tapping needs with ease and flexibility.

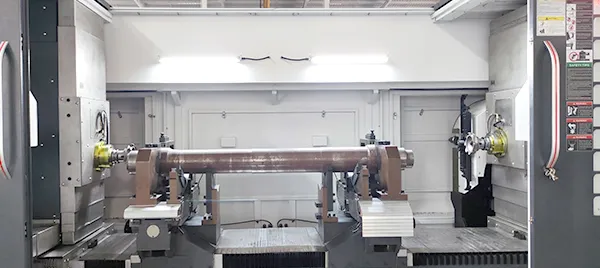

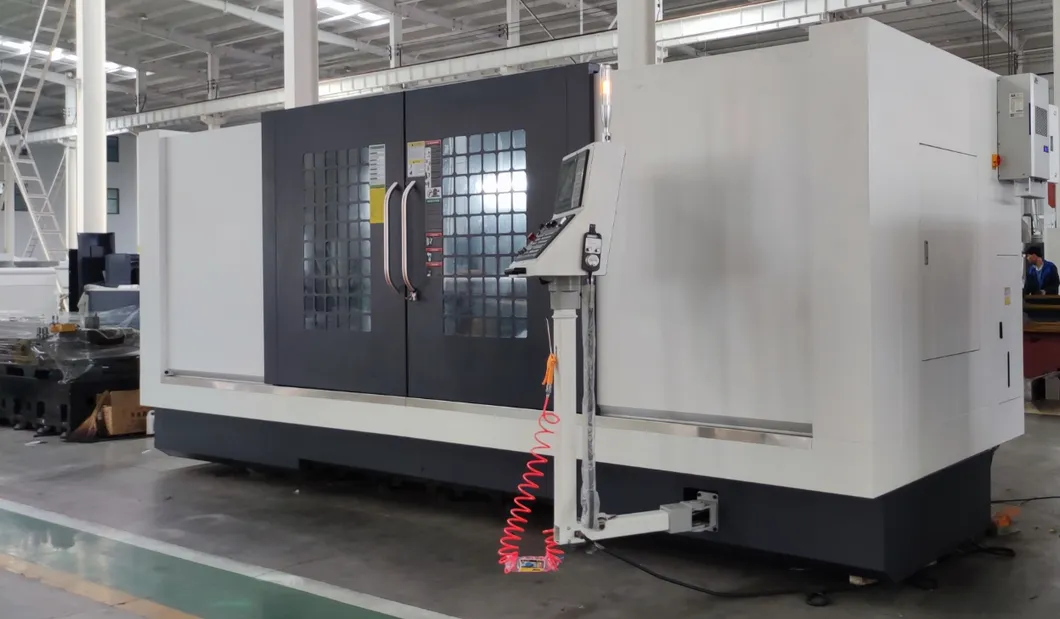

The machine boasts an integrated casting base and spindle box, complemented by an enclosed double-layer protective design, featuring first-class quality accessories to ensure durability and reliability. Customizable options for global brand accessories are available.

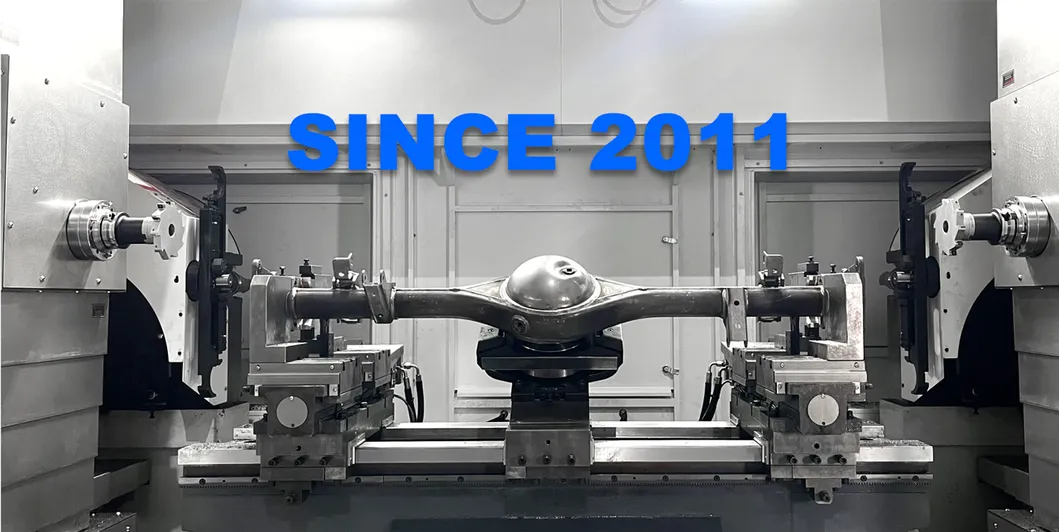

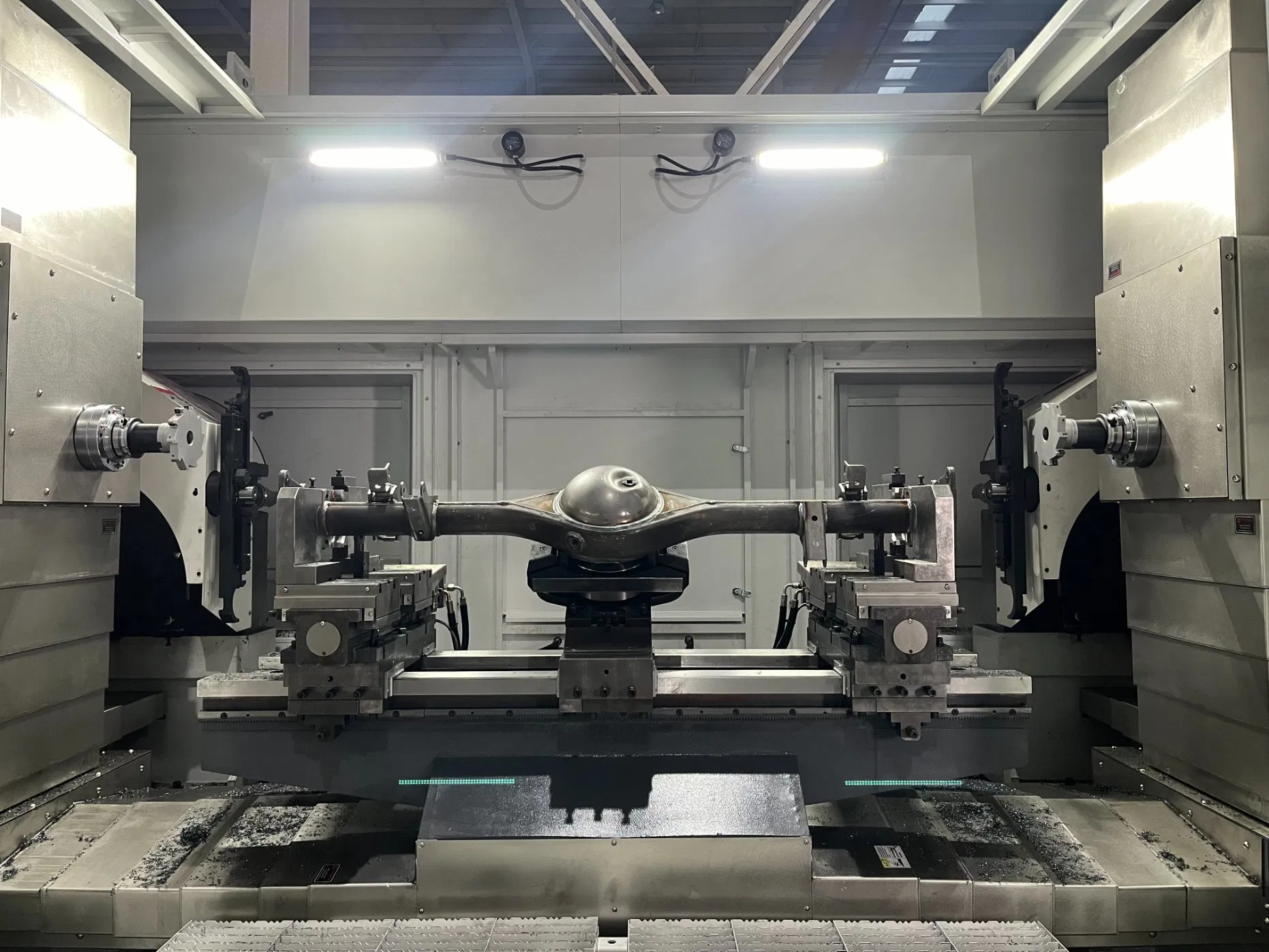

Utilize the convenient foot switch and manual trimmer, along with robust BT50 spindles and a dual-channel CNC system. Coupled with an adjustable self-centering hydraulic clamp and high-pressure coolant for optimal chip flushing and cooling performance.
Recognized as a foremost leader in the manufacturing of CNC machine tools for double-sided processing. Distinguished by an array of hundreds of technical patents, specializing in advanced drilling, milling, and turning of shaft parts.

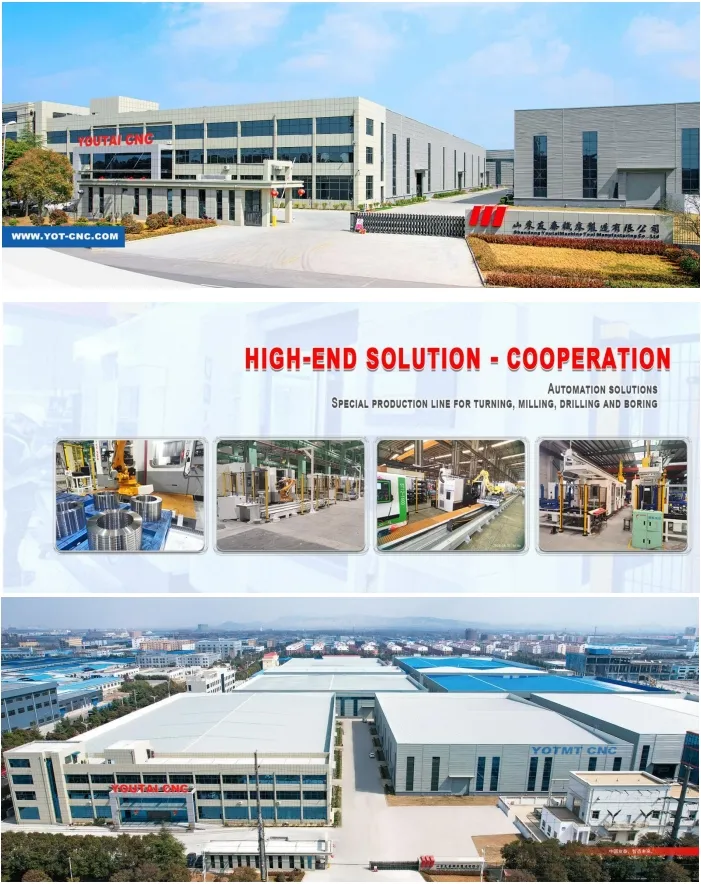

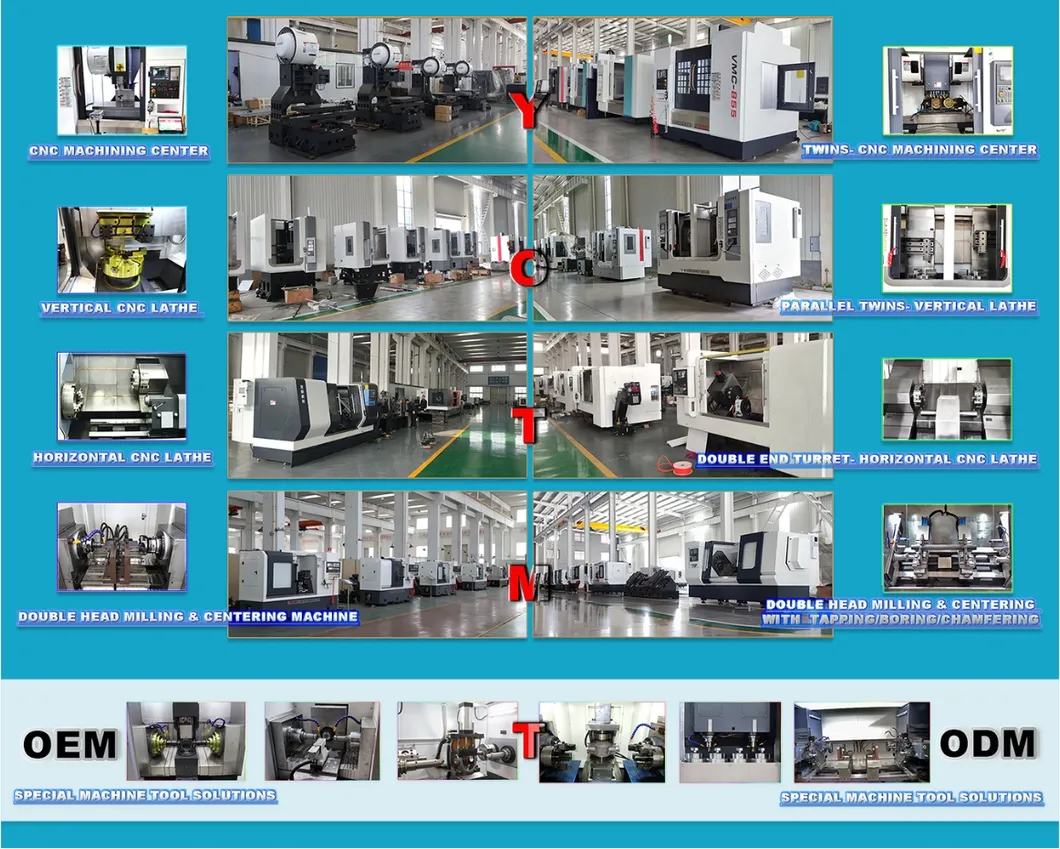

Our facility is a modern hub for superior metalworking craftsmanship, founded in 2011 with a dedication to high-efficiency machining equipment tailored for shaft parts. The site covers over 50 acres, featuring over 30,000 square meters of state-of-the-art workshops and administrative offices.
With a suite of sophisticated precision machines, including advanced gantry machining centers and CNC guide rail grinders, we ensure our products meet the highest quality standards. Our extensive portfolio encompasses more than twenty series and over fifty unique products exported to prominent markets across Europe and Asia.

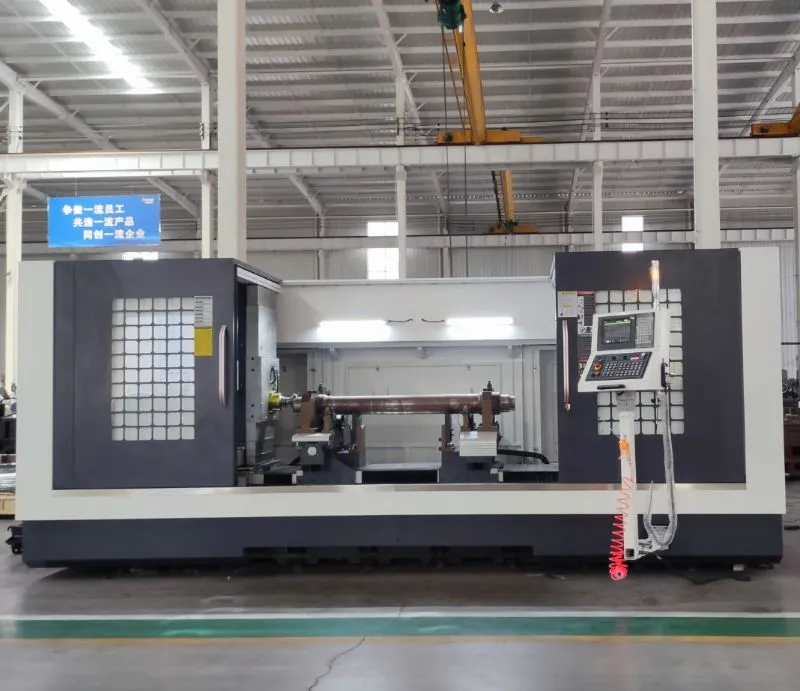

Double-Sided Machining Center

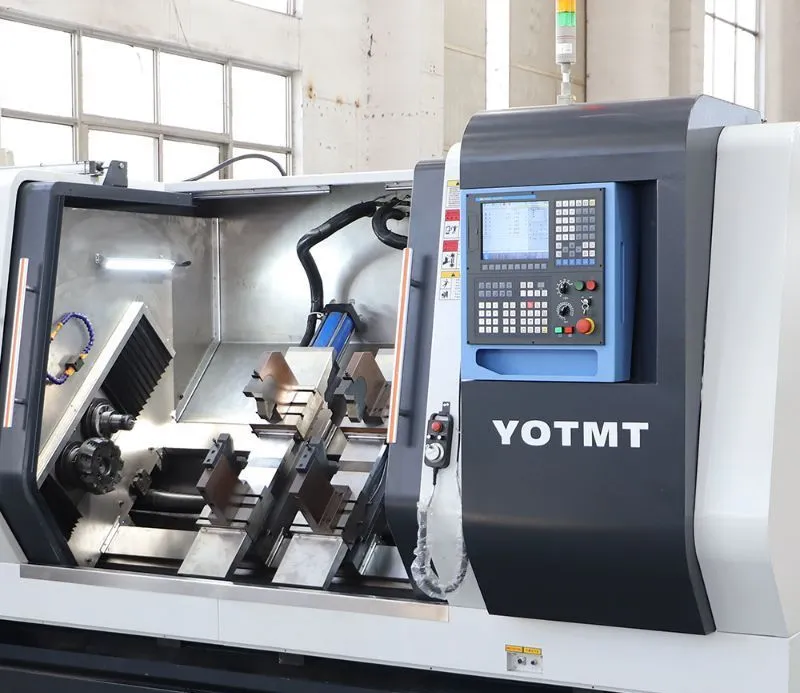

Precision Facing and Centering Machine

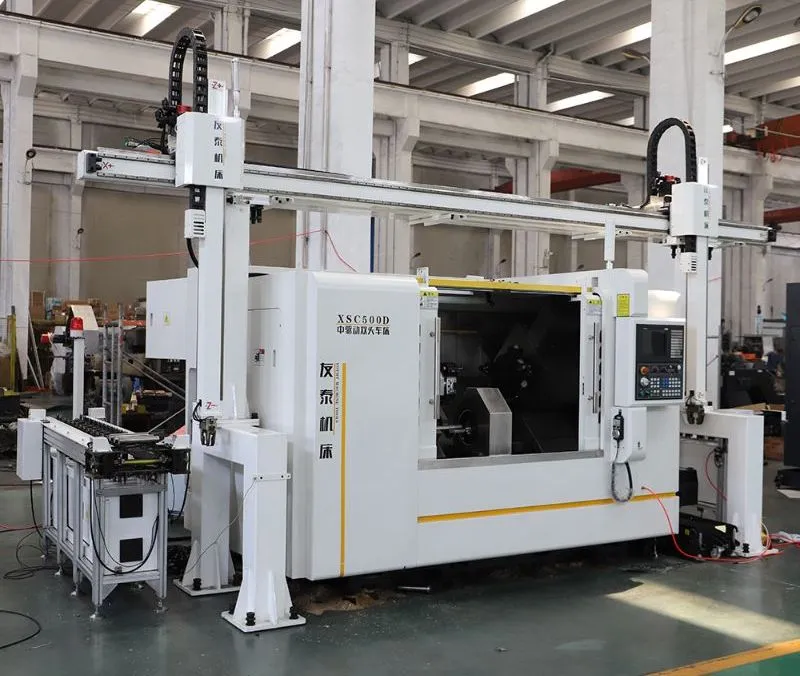

Advanced Double-Side Turning CNC Lathe
