📋 Basic Specifications
Use for
Power Distribution
Another Name
Motor Control Center/MCC
Specification
2000*800*800
⚡ Product Overview

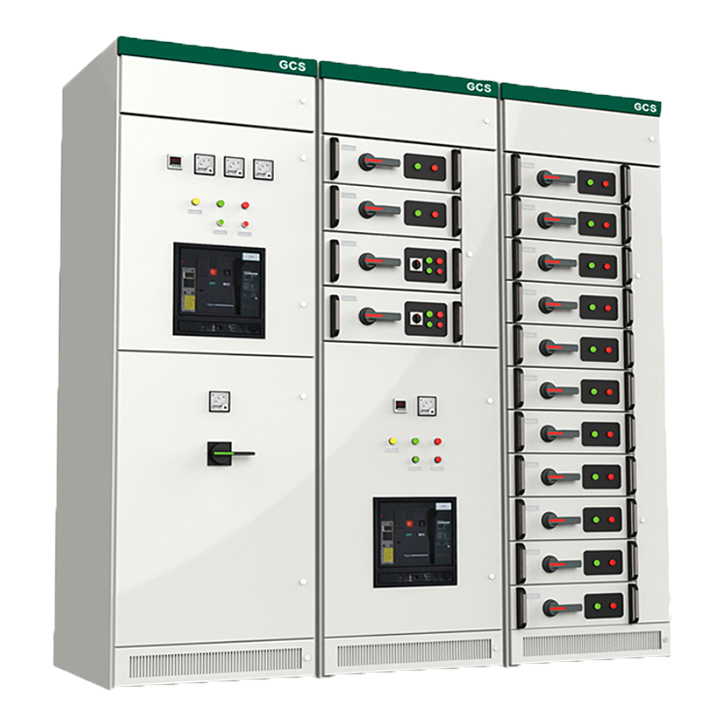

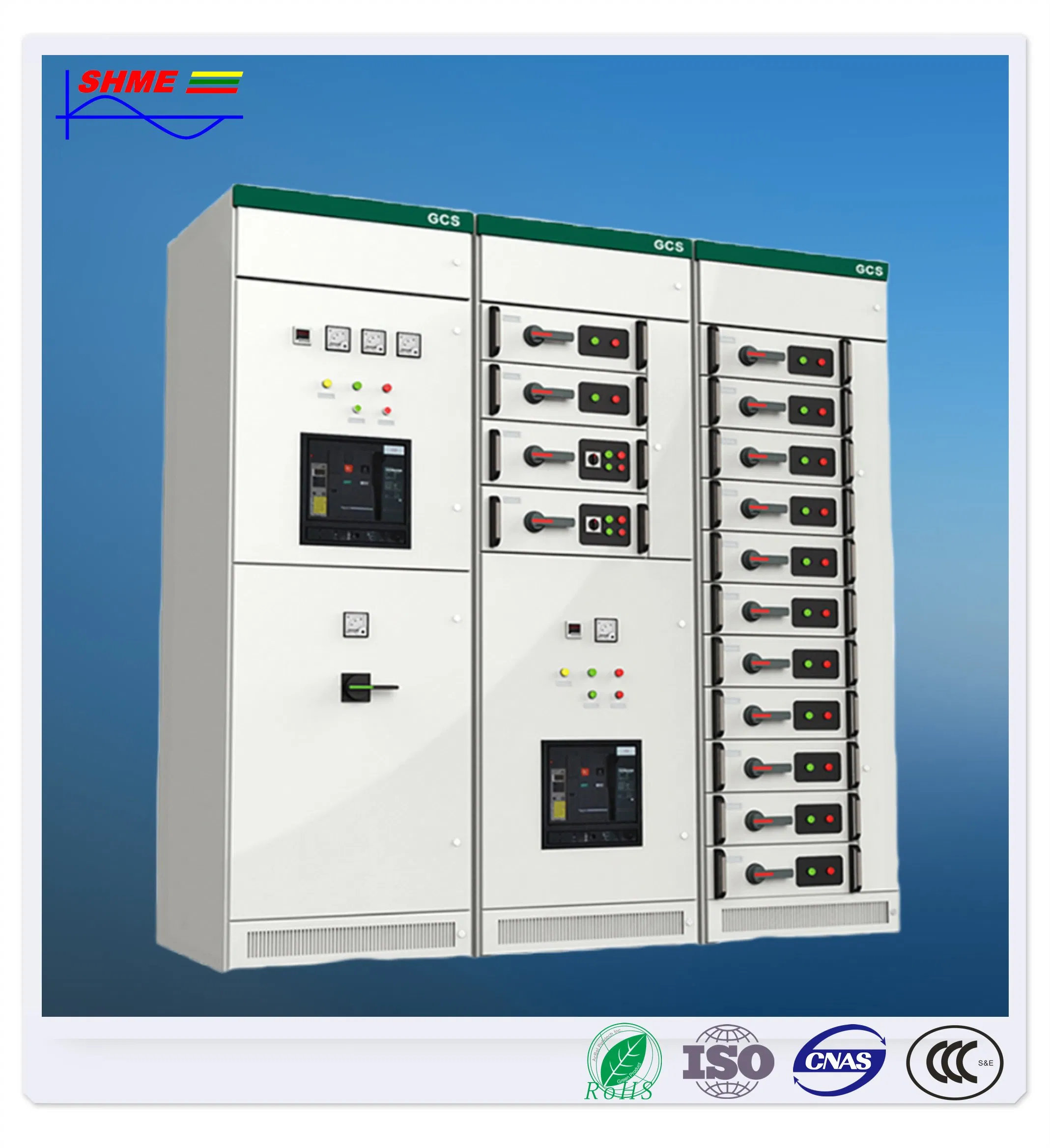

GCS low voltage withdrawable switchgear is designed according to the requirements of the industry department, electricity users, and design companies. It features high technical performance indicators and adapts to the development needs of the electricity market. This switchgear is widely used in power distribution systems across various industries including power plants, petroleum, chemical engineering, metallurgy, textile, and high-rise buildings.
Core Applications:
Specifically used as a complete low voltage power distribution device for power generation and supply systems of three-phase AC, 50 Hz/60 Hz, with rated voltages of 380V/400V/660V and a rated current up to 4000A. It is ideal for highly automated environments requiring computer interfaces.
🛠 Working Conditions
- Temperature Range: -5 °C to +40 °C (24h average ≤ +35 °C).
- Altitude: ≤ 2000 m, suitable for indoor application.
- Humidity: ≤ 50% at +40 °C (up to 90% at +20 °C). Consideration for condensation due to temperature changes is required.
- Installation: Vertical installation with a gradient ≤ 5°.
- Environment: Workplaces must be free of fire, explosion, severe vibration, and chemical corrosion.

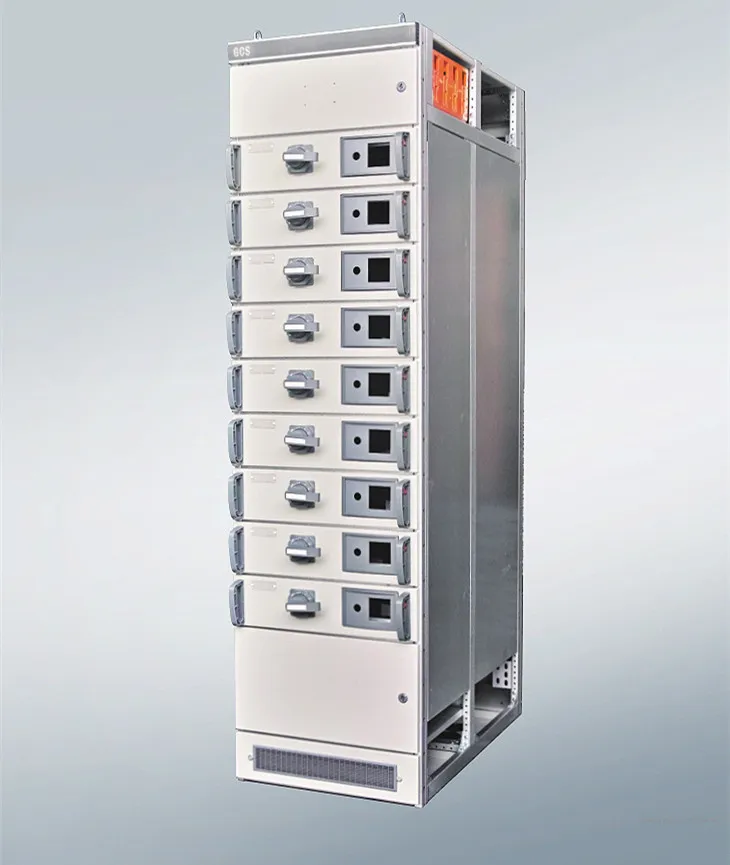

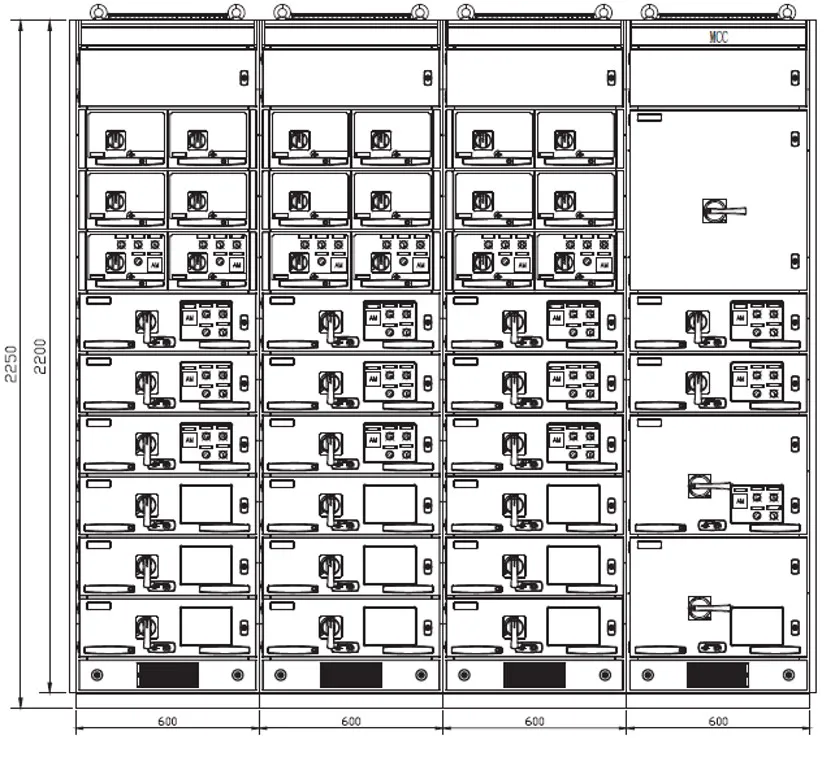

⚙️ Structural Features

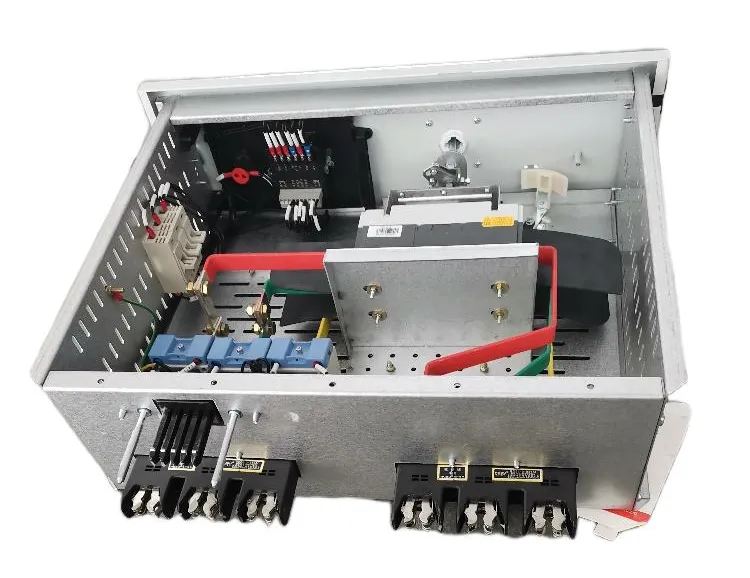

The main frame of the switchgear adopts 8MF type steel. The frame is either assembled or partially welded. All main frames are installed with modular holes (E=20 mm). Functional rooms are strictly separated, including unit rooms, bus-bar rooms, and cable rooms, ensuring independent operation for each unit.
📊 Technical Parameters

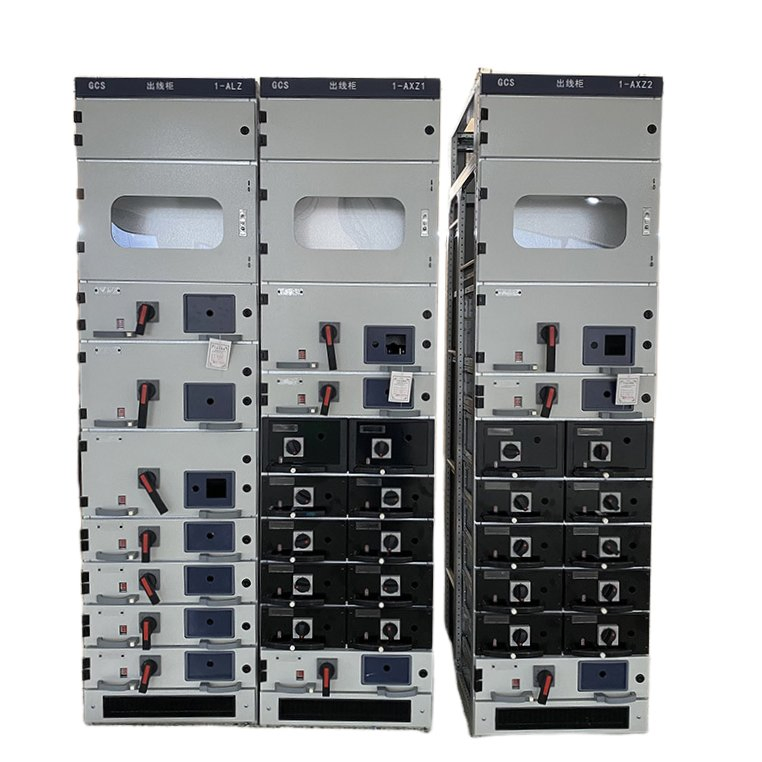

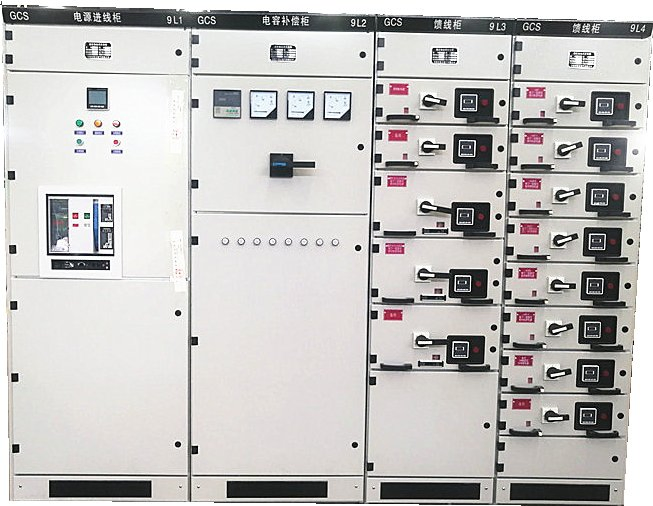

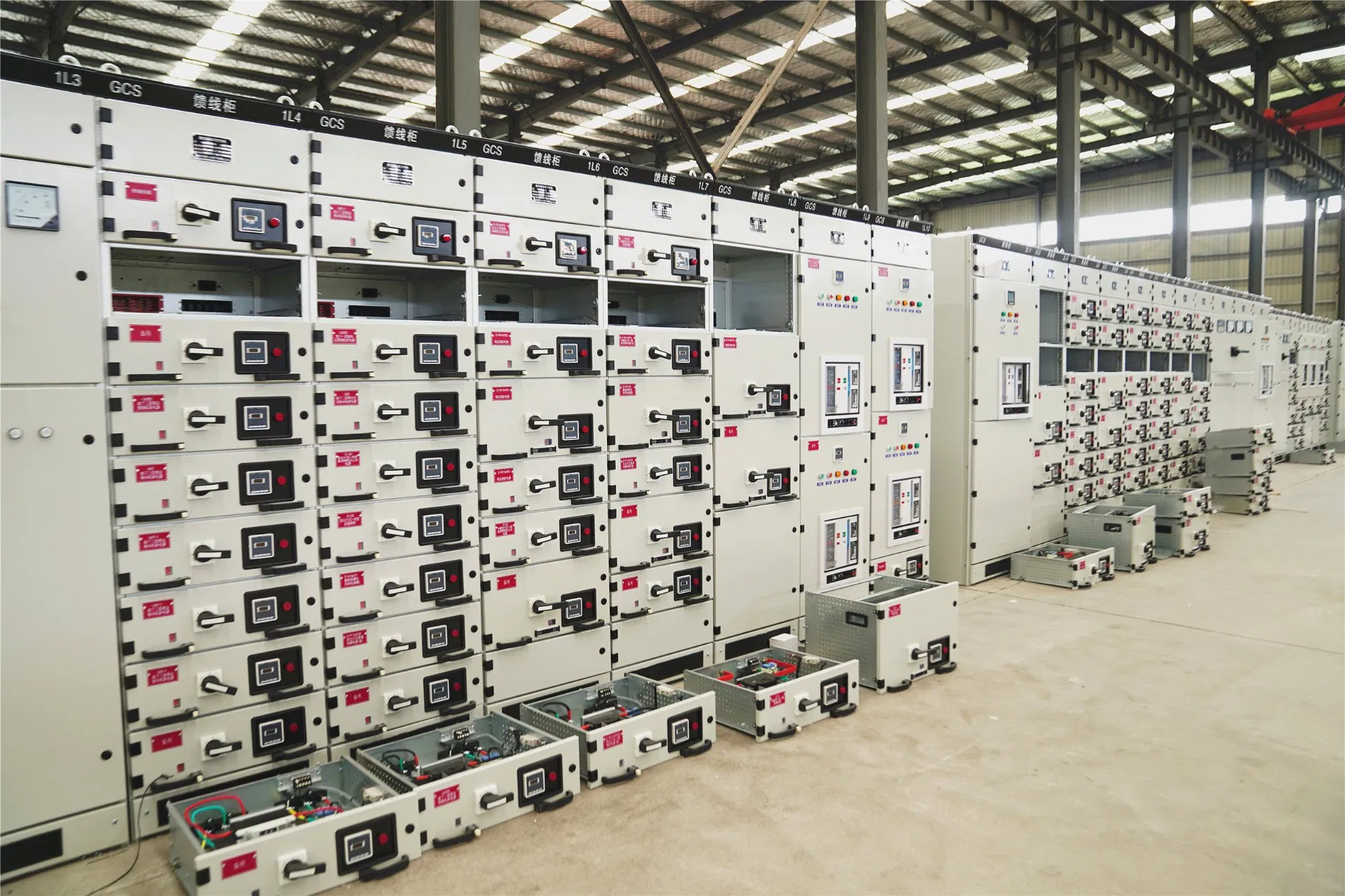

🖼 Gallery
❓ Frequently Asked Questions
Q1: What is the primary use of the GCS switchgear?
The GCS switchgear is used as a complete low voltage power distribution device for power plants, petroleum, chemical engineering, and high-rise buildings, handling power generation and supply systems.
Q2: Can the GCS switchgear be integrated with automated systems?
Yes, it is specifically designed for places where automation is high and connection with computer interfaces is required.
Q3: What are the environmental limits for this equipment?
It operates within -5°C to +40°C, at altitudes below 2000m, and should be installed in environments free of fire, explosion, or severe vibration.
Q4: How is the internal structure of the cabinet organized?
The cabinet is divided into strictly separated compartments: functional unit rooms, bus-bar rooms, and cable rooms to ensure independent unit operation.
Q5: What type of frame is used in the GCS series?
It utilizes an 8MF type steel frame which is assembled or partially welded with modular holes at E=20mm intervals.
Q6: What are the electrical ratings for this model?
It supports a rated current up to 4000A, with rated voltages ranging from 380V to 660V at a frequency of 50Hz/60Hz.
