Technical Overview
⚙️
High Performance

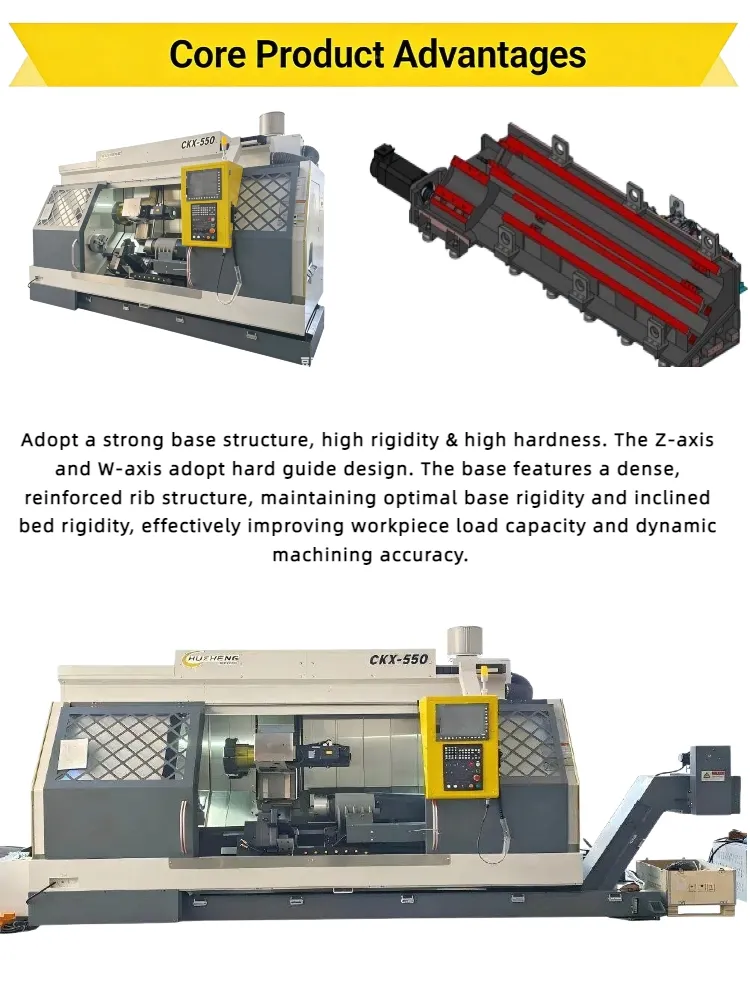

Heavy-duty structure for vibration-free machining.
🎯
Extreme Precision
Processing precision up to ±0.004mm.
⚡
Powerful Spindle
18.5 Kw main spindle power for heavy cutting.

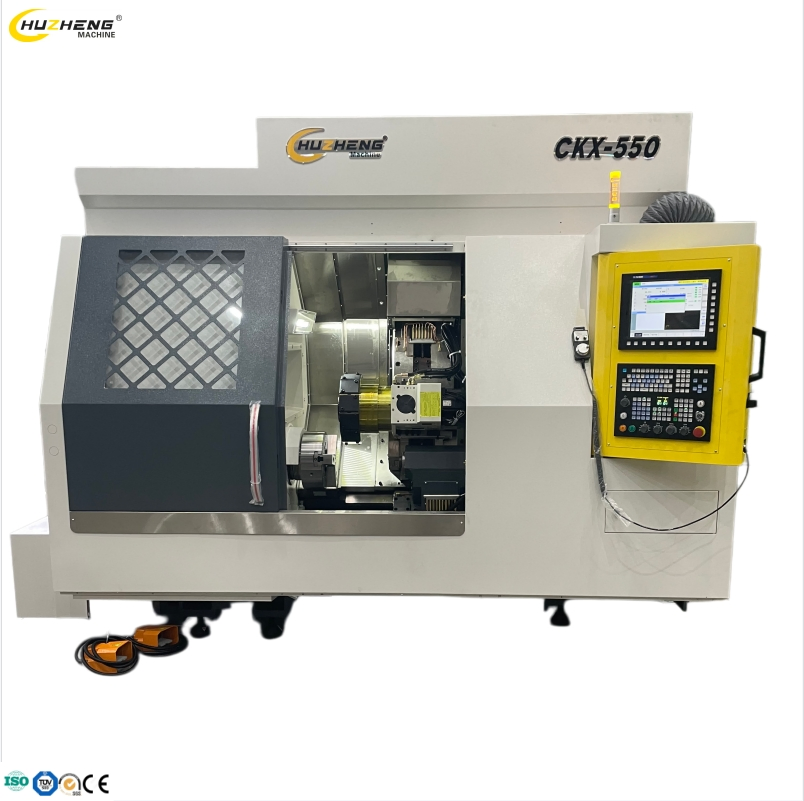

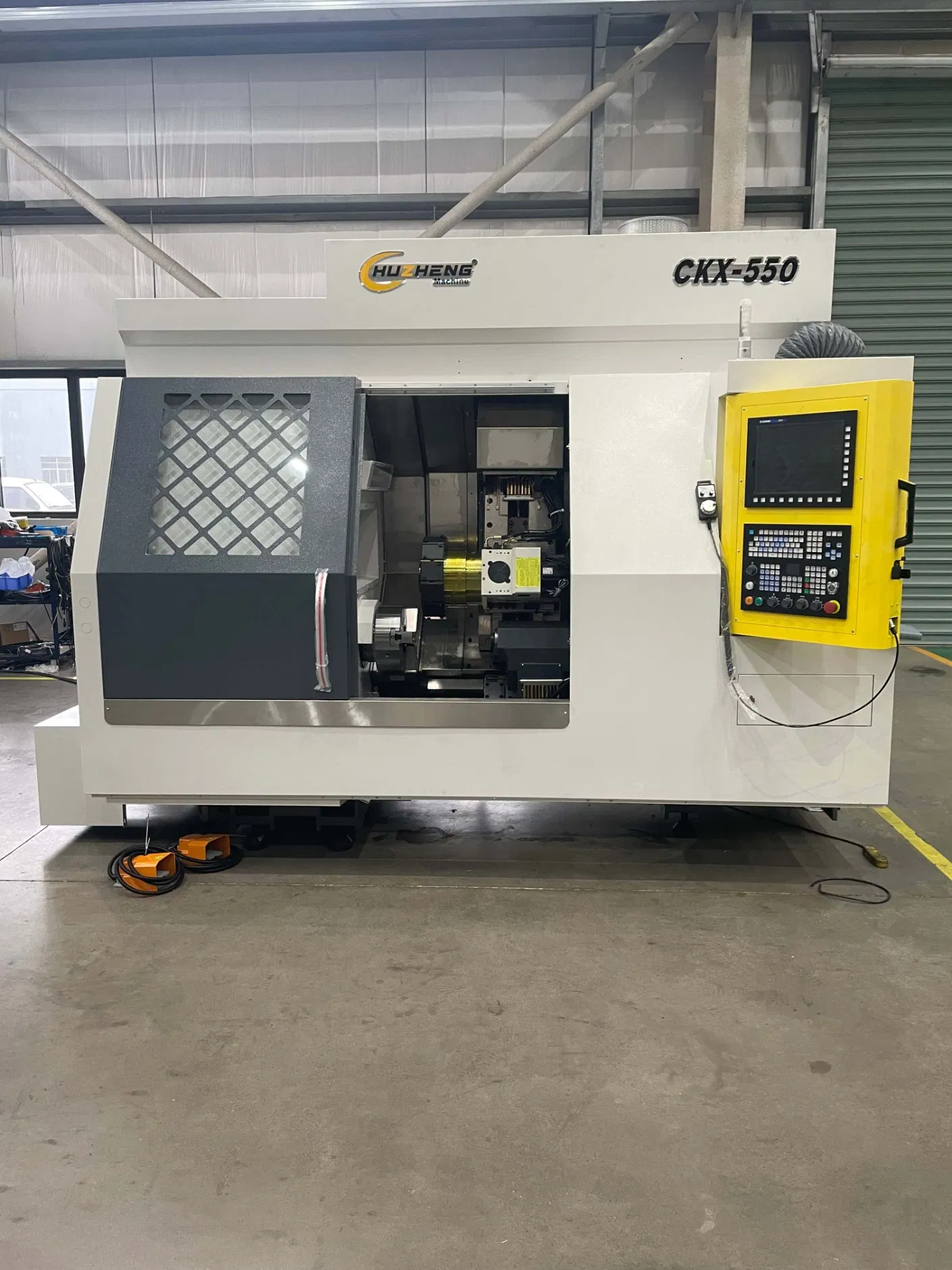

ModelCKD550-750
Control MethodCNC (Fanuc 25ti)
Max. Turning Diameter630 mm
Max. Machining Length600 mm
Spindle Speed Range0-2000 Rpm

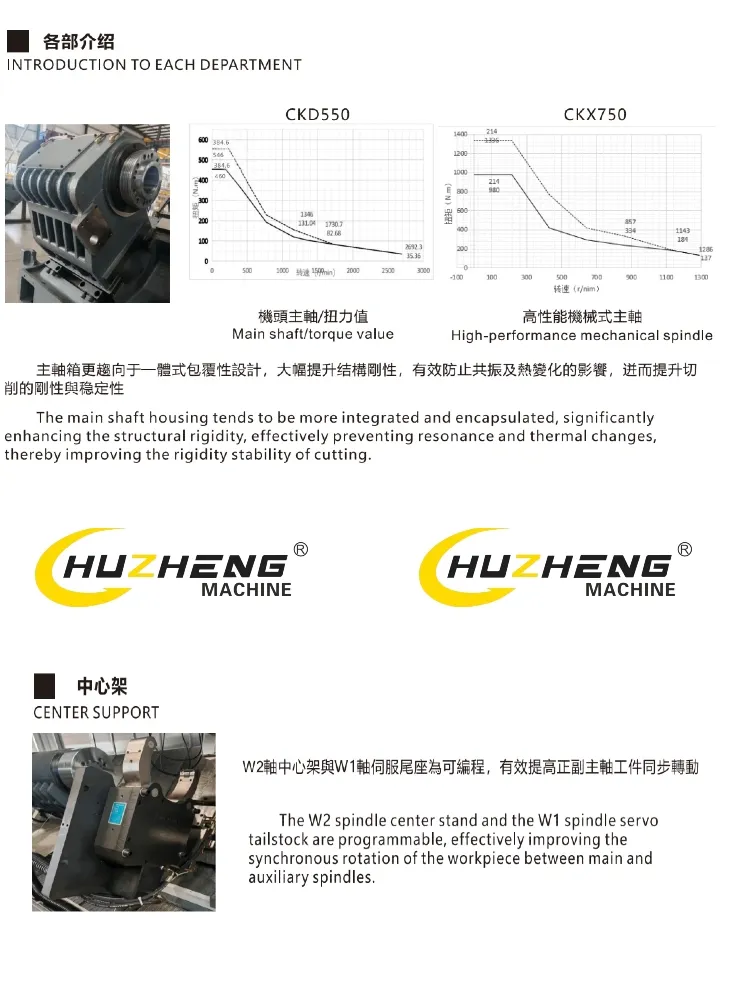

Max. Spindle Torque460 Nm
Tool Turret12 T (BMT 55)
Machine Weight6 Tons
Bar Through Hole75 mm
Z-Axis Travel750 mm
Frequently Asked Questions
What is the maximum turning diameter of the CKD550?
The maximum swing over bed for this model is 630 mm, making it suitable for heavy-duty and large-diameter workpieces.

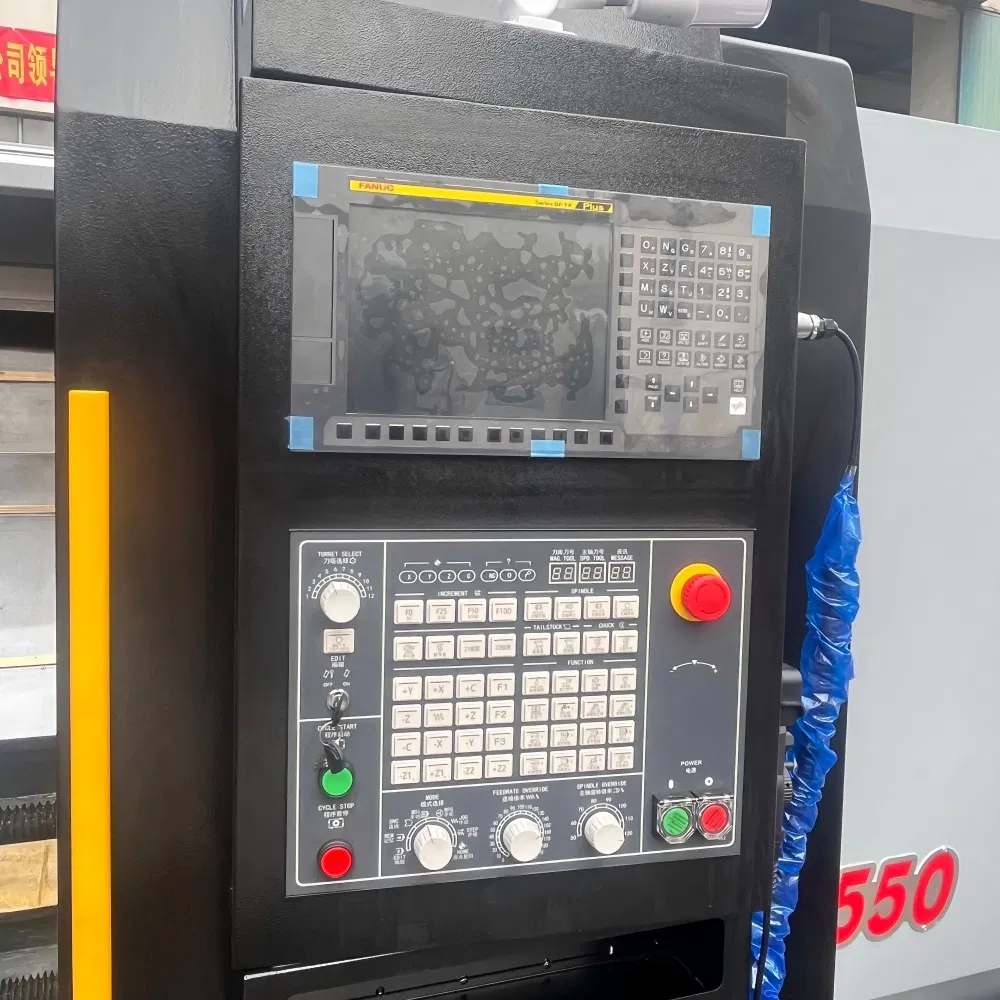

What kind of control system does the machine use?
It is equipped with the industry-leading Fanuc 25i-T CNC system, ensuring high precision and reliability for complex turning and milling operations.
Can it handle turn-mill composite operations?

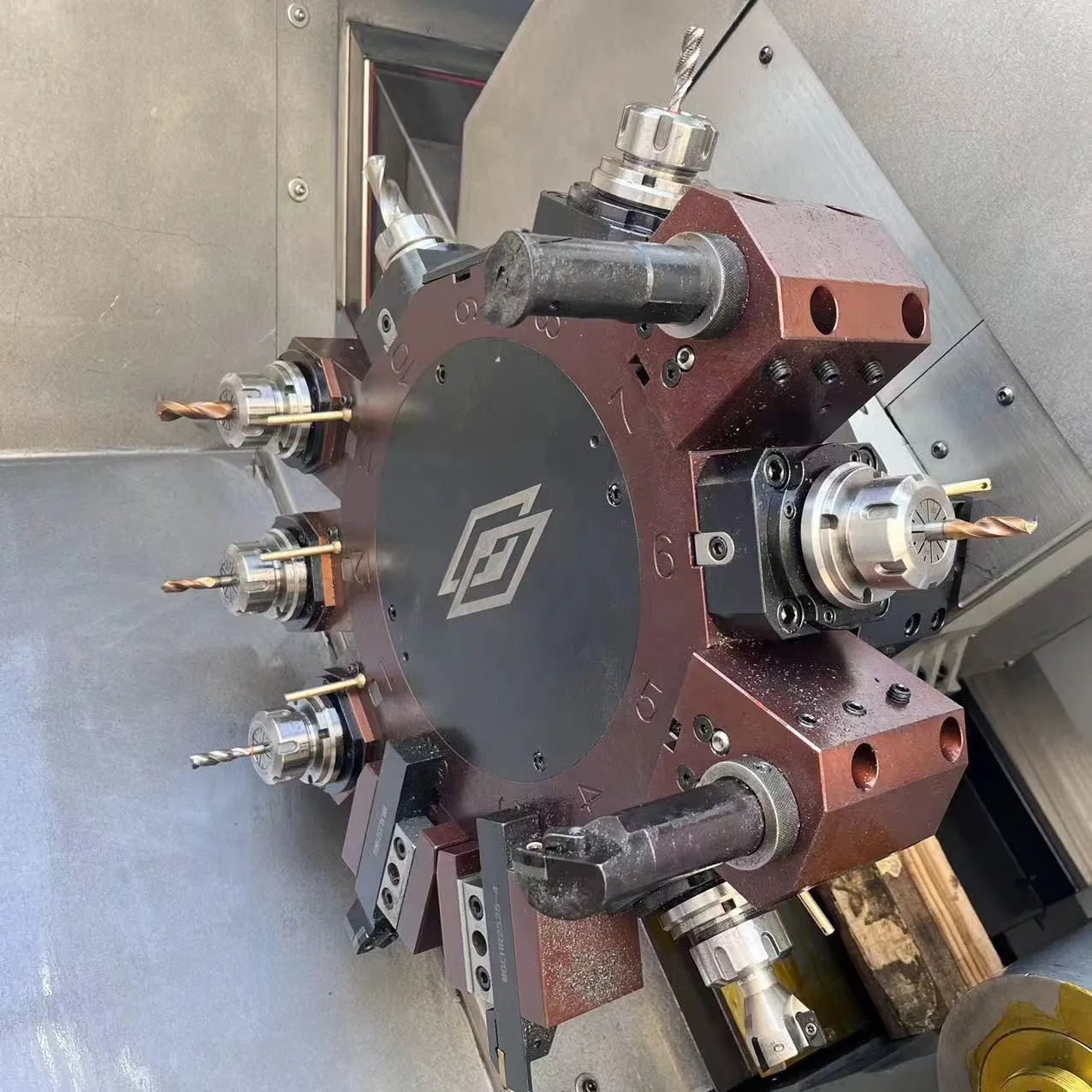

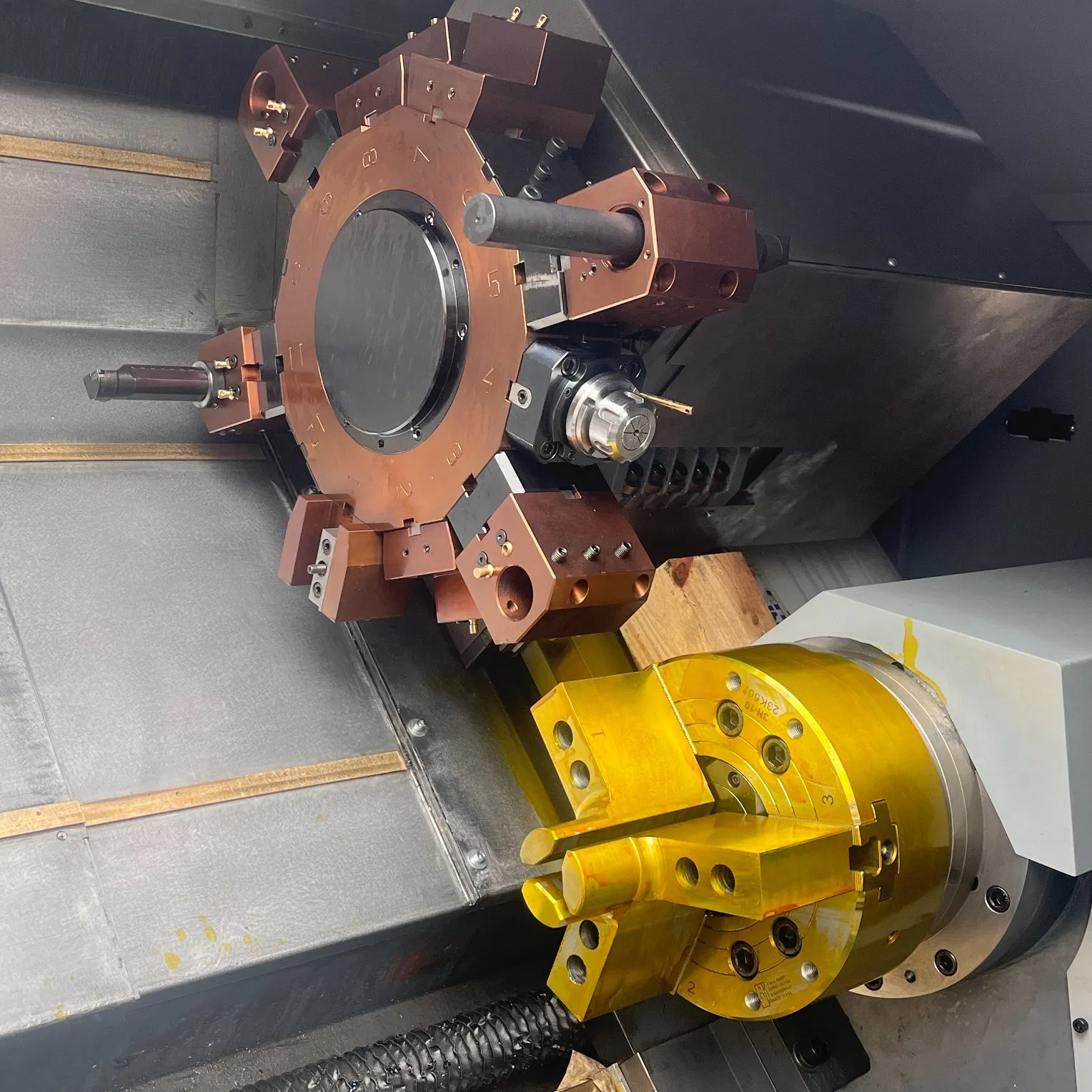

Yes, the machine features a BMT-55 turret with 12 tool positions specifically designed for one-time turn-mill composite operations, which improves efficiency and reduces setup errors.
What is the machining accuracy of this CNC machine?
The machine offers exceptional processing precision of ±0.004mm and a Z-axis repeat positioning accuracy of ±0.005mm.
What is the bar capacity for continuous feeding?
The machine has a 75 mm bar stock through-hole diameter, allowing for efficient continuous feeding of thick bar stocks.
How stable is the machine during heavy cutting?
With a machine weight of 6 tons and a heavy-duty frame, the CKD550 provides excellent rigidity and vibration-free operation even during high-torque machining.
