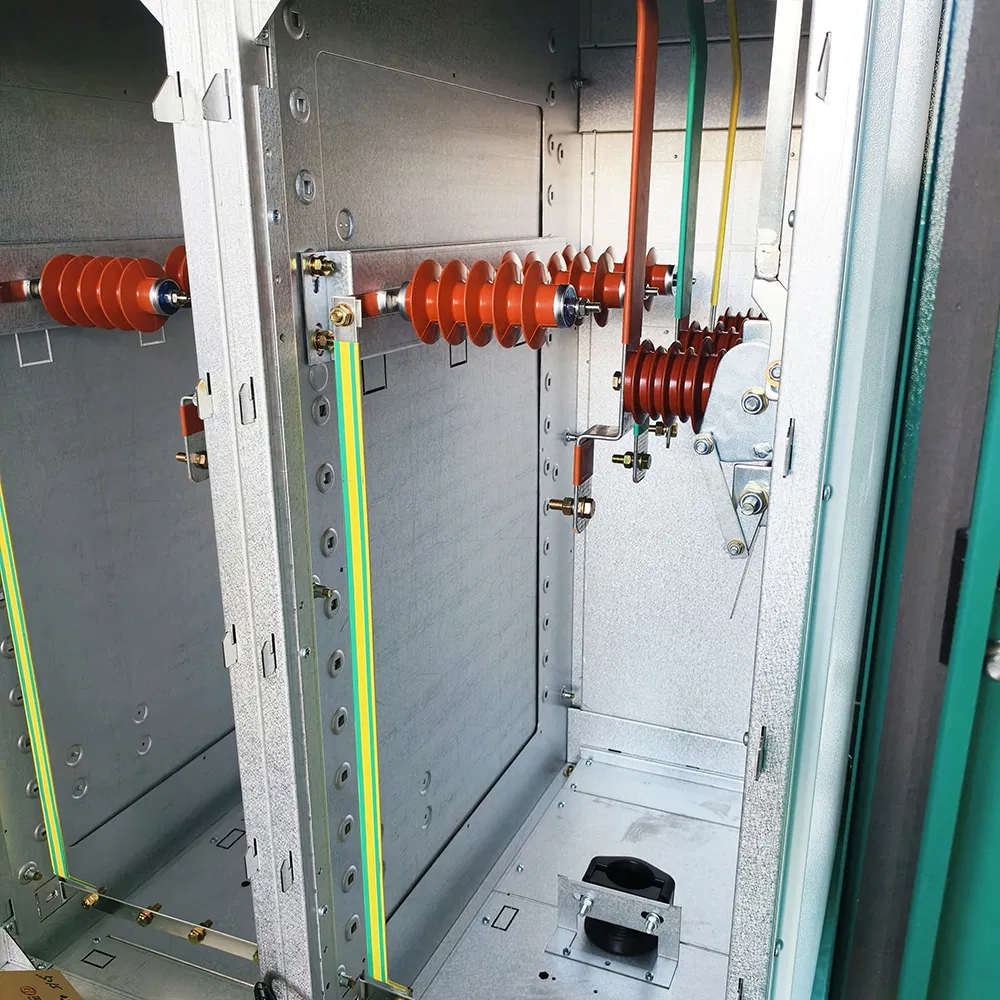

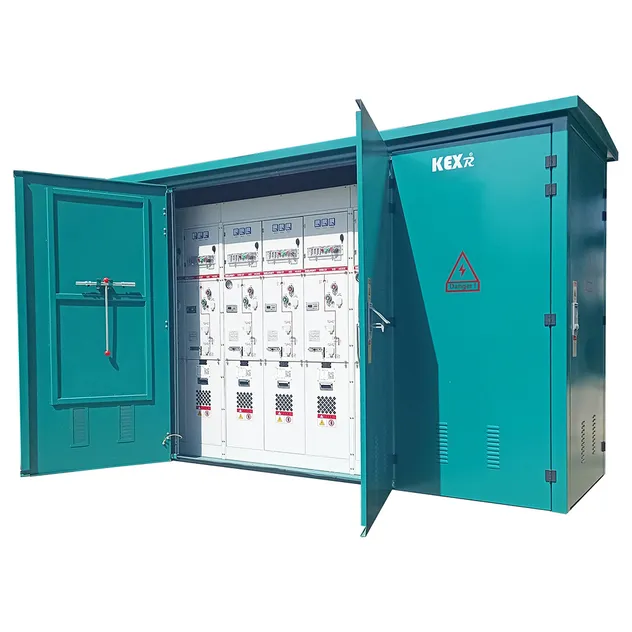

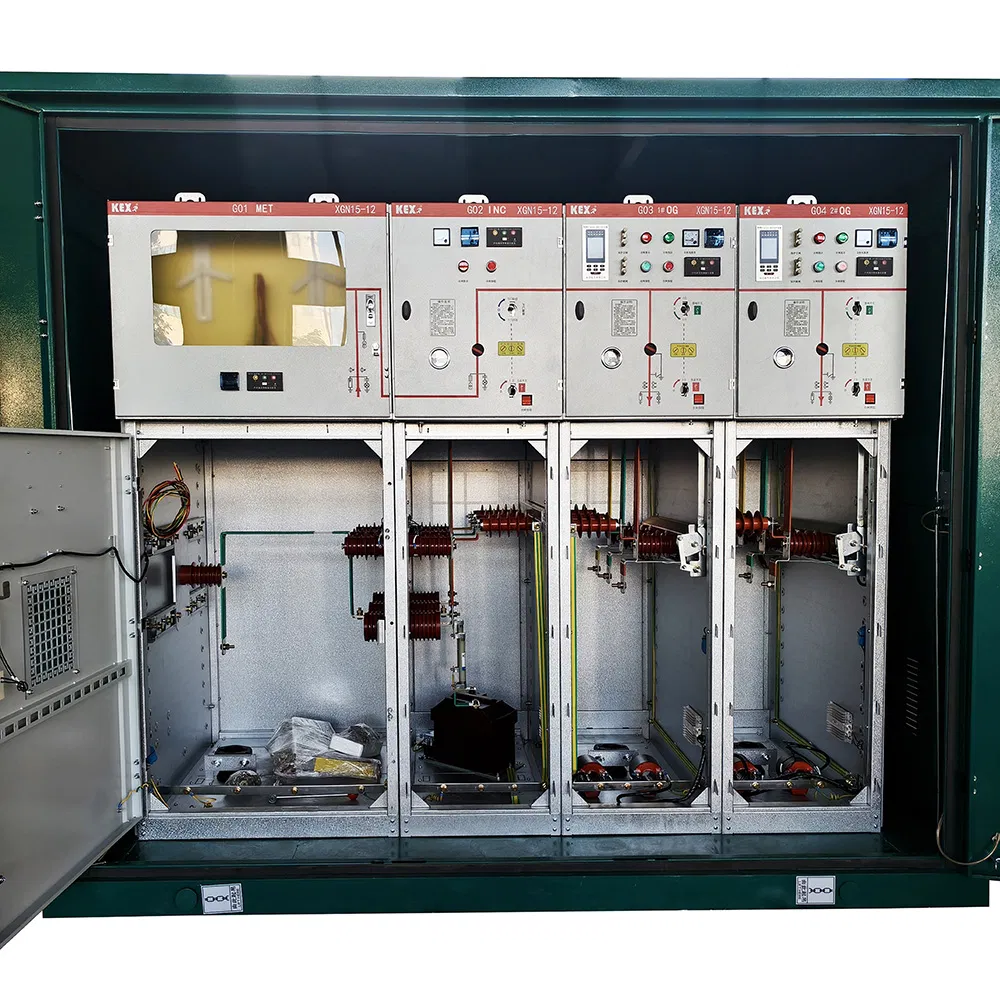

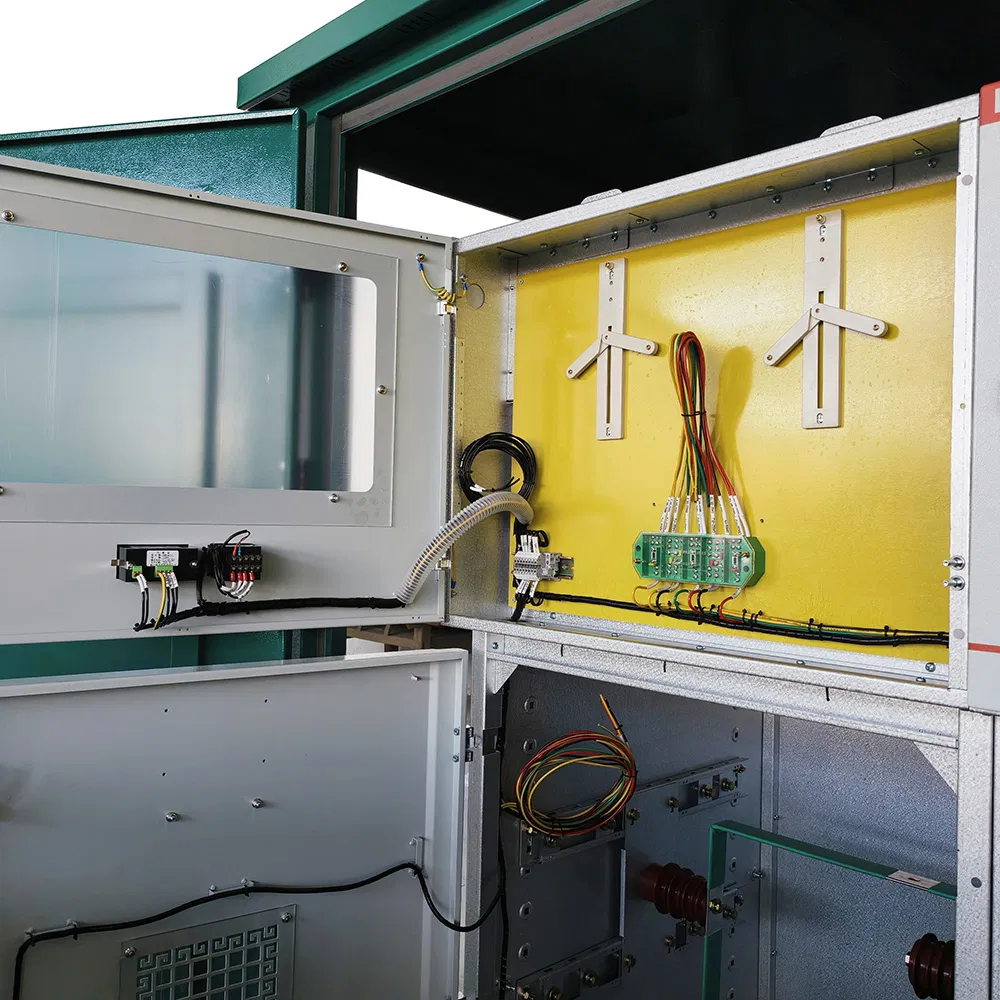

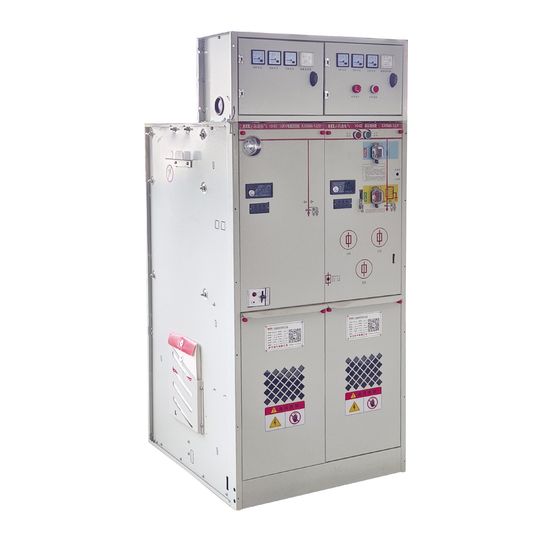

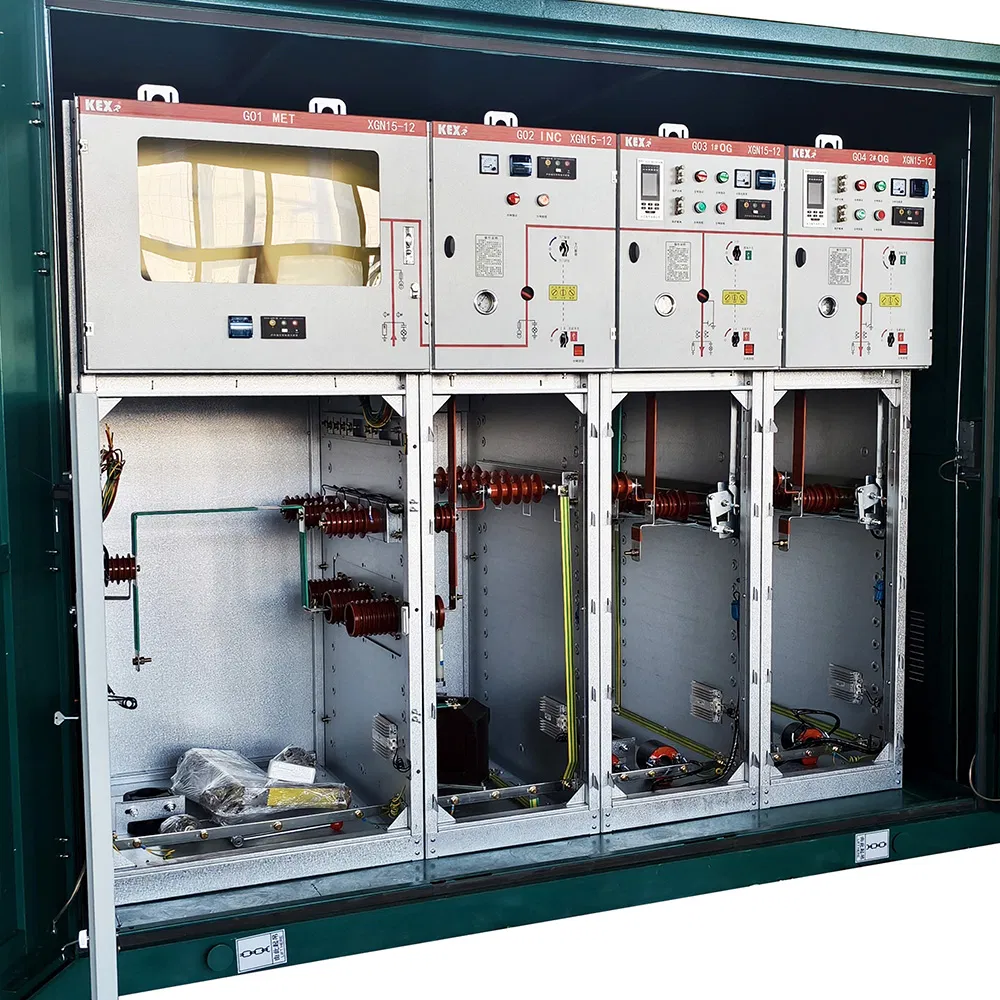

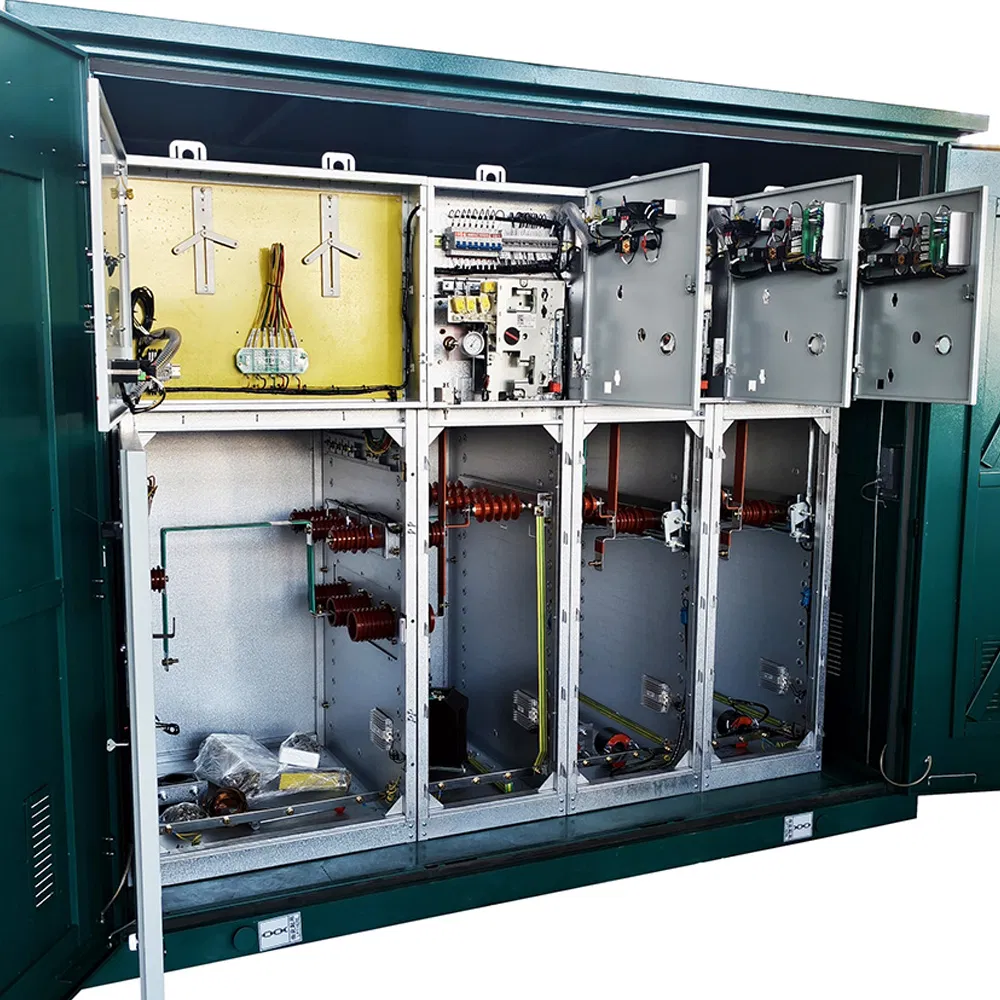

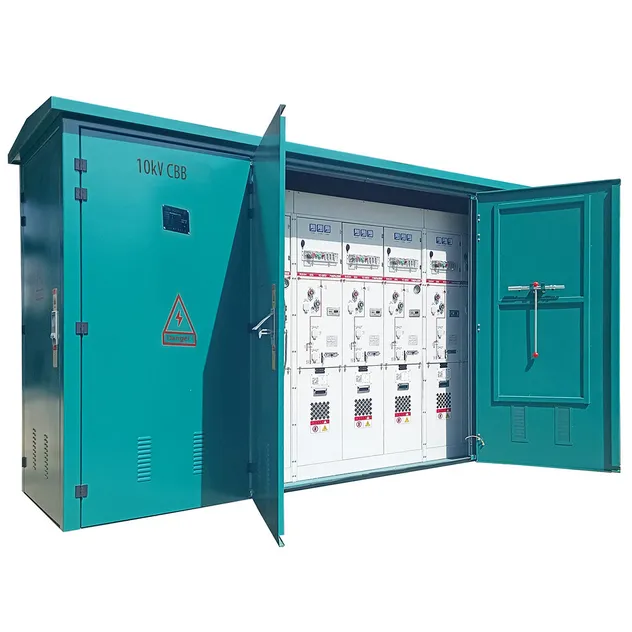

XGN15-12 type SF6 Ring Main Unit Cabinet
This durable equipment excels in construction, mining, and earthmoving applications. Advanced technology ensures superior operation and efficiency. Ideal for heavy-duty tasks, it performs exceptionally across diverse terrains.
The XGN15-12 SF6 Ring Main Unit Cabinet is a compact, expandable switchgear featuring a reliable structure and safety interlocking. Its sensing and protective relays are engineered to meet modern market demands. Equipped with FLN36 and FLN48 SF6 load switches, it can be customized with circuit breakers like VD4/S, HD4/S, and VS1 based on user requirements.
| Item | Sub-Category | Unit | Data |
|---|---|---|---|
| Rated Voltage | - | KV | 12 |
| Rated Lightning Impulse Withstand Voltage | Alternate and Ground | KV | 75 |
| Break | KV | 85 | |
| 1min Power Withstand Voltage | Alternate and Ground | KV | 42 |
| Break | KV | 48 | |
| Rated Frequency | Main Bus | Hz | 50/60 |
| Rated Current | Main Circuit | A | 630 |
| Short-term Withstand Current | - | KA | 20/3s |
| IP Degree | - | - | IP2X |
| Mechanical Life | Load Switch | Times | 2000 |
Standard Warranty:
• Spare parts (e.g., buttons, switches): 1 year
• Key structural components: 2 years
