Intelligent Gas Distribution AIS Switchgear Solutions for Advanced Safety in Electrical Systems

Customization:	Available
Type:	Power
Structure:	Protection

Basic Information

Model NO.

KXHXGN-12

Certification

ISO9001:2000, CCC, ISO15001

Form

All-packaged Type

Operation Voltage

High Voltage

Size

3 Unit

Application Range

Power Plants

Shell Material

Stainless Steel

Shell Protection Grade

IP56

Warranty Period

12~24 months

Customized

Yes

Delivery

3~4 Weeks

MOQ

1 Set

Transport Package

Wooden Box

Specification

256*86*226

Origin

China

HS Code

85371090

Production Capacity

500 sets/Per Year

Packaging & Delivery

Package Size

268.00cm * 95.00cm * 235.00cm

Package Gross Weight

278.000kg

Product Description

Intelligent Gas Distribution AIS Switchgear

The KXHXGN-12 type AIS Switchgear represents a pinnacle of innovation in electrical engineering. This 12kV gas-insulated ring network cabinet (C-GIS) employs eco-friendly gases such as dry air, nitrogen, or a sophisticated blend designed for insulation, aligning seamlessly with environmentally conscious standards. Its versatile application spans ring network power supply, terminal power supply, and even the compact yet powerful opening and closing stations of distribution networks.

Main Features of AIS Switchgear

(1) Environmental protection advantages:
Free of SF gas: The AIS Switchgear champions the use of dry air, nitrogen, or innovative eco-friendly gases like G and AirPlus®, aligning harmoniously with EU F-Gas regulations and "double carbon" strategy. Low carbon emission: Global Warming Potential (GWP) is brought close to zero.

(2) Structural design:
Modular elegance: Effortless expansion of incoming line units, outgoing lines, metering, and PT. Enclosed excellence: Superior protection rating achieving IP67, ensuring robust defense against dust, moisture, and condensation.

(3) Intelligent options:
Embrace cutting-edge intelligence with smart monitoring systems (DTU, online temperature measurement, partial discharge monitoring, etc.), facilitating seamless IoT connectivity for remote operations.

Technical Parameters

Circuit Breaker Cabinet

Item	Unit	Data
Rated Voltage	KV	12
Rated Frequency	HZ	50
Rated Insulate Level (1Min Power Frequency)	KV	42 / 48 (Break)
Lighting Impulse Withstand Voltage (Peak)	KV	75 / 85 (Break)
Rated Current	A	630
Rated Short-term Withstand Current	kA	25/4s
Rated Peak Withstand Current	kA	63
Mechanical Life (Breaker/Disconnector)	Time	10000/3000
IP Degree (Sealed box/Shell)	-	IP67 / IP4X

Load Switch Cabinet

Item	Unit	Data
Rated Voltage	KV	12
Rated Current	A	630
Rated Short-term Withstand Current	KA	25/4s
Rated Active Load Interrupting Current	A	630
Rated Active Load Break Times	Time	100
IP Degree	-	IP67
Annual Leakage Rate	%/Year	≤0.05

Environmental Standards

Maximum temperature: +45 degrees Celsius; Minimum temperature: -25 degrees Celsius.

Maximum 24-hour average temperature: +35 degrees Celsius.

Maximum average relative humidity (24 hours): ≤ 95%.

Altitudes up to 1500 meters; Seismic resilience up to 8 degrees.

Protection level: IP67 for charged bodies and IP4x for switch cabinet enclosures.

Surrounding air must be free from significant pollution by corrosive or combustible gases.

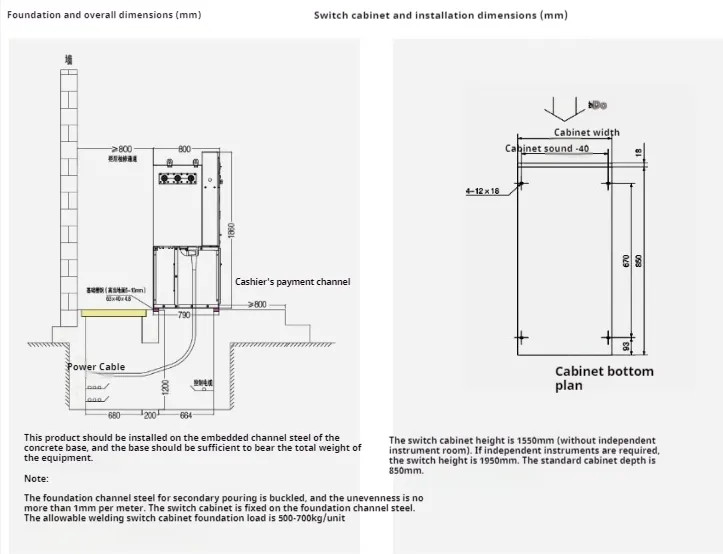

Installation Instructions

Frequently Asked Questions

What makes the KXHXGN-12 AIS Switchgear eco-friendly? It uses SF6-free insulating gases like dry air or nitrogen, significantly reducing global warming potential to nearly zero.

What is the protection rating for this switchgear? The sealed charged bodies achieve an IP67 rating, while the external enclosure is rated at IP4X, providing robust protection against harsh environments.

Can this equipment be used in high-altitude areas? Yes, the AIS switchgear is designed to accommodate altitudes up to 1500 meters under standard operating conditions.

Are intelligent monitoring features optional? Yes, customers can opt for smart systems including DTU, online temperature measurement, and partial discharge monitoring for IoT connectivity.

What is the mechanical life of the circuit breaker? The circuit breaker is rated for a mechanical life of 10,000 operations, ensuring long-term reliability.

What is the typical lead time for delivery? The standard delivery time is approximately 3 to 4 weeks depending on the order size and customization requirements.
