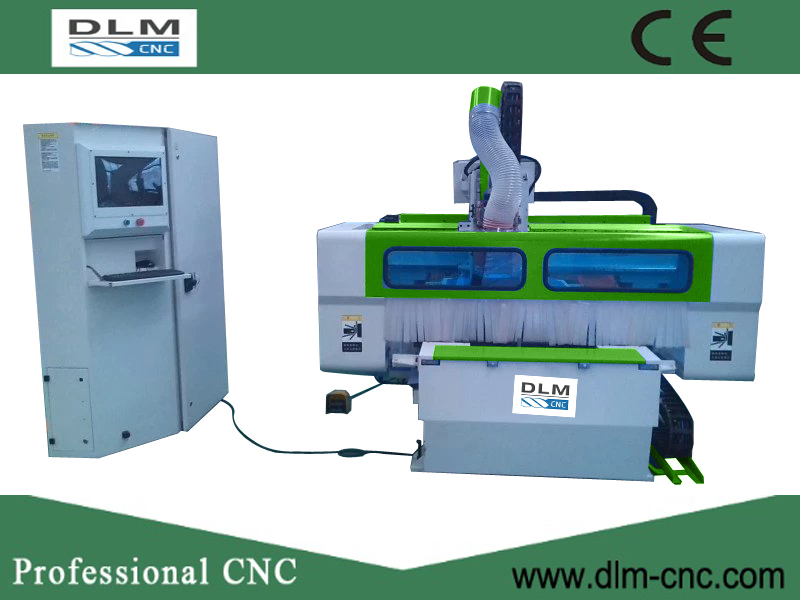

Ca-481 High Precision Woodworking CNC Machining Center
Ca-481 High Precision Woodworking CNC Machining Center
Ca-481 High Precision Woodworking CNC Machining Center
Ca-481 High Precision Woodworking CNC Machining Center
Ca-481 High Precision Woodworking CNC Machining Center
1 / 5
Ca-481 High Precision Woodworking CNC Machining Center
Ca-481 High Precision Woodworking CNC Machining Center
Ca-481 High Precision Woodworking CNC Machining Center
Ca-481 High Precision Woodworking CNC Machining Center
Ca-481 High Precision Woodworking CNC Machining Center

Ca-481 High Precision Woodworking CNC Machining Center

Customization: Available
After-sales Service: 24 Hours Online
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
CA-48
Application
Wood
Process Usage
CNC Machine Tools
Control Method
Closed-Loop Control
Processing Precision
0.09~0.1(mm)
Certification
CE, ISO 9001
Working Area
1220mm*2440mm
Motor
Servo Motor
Controller
Taiwan Syntec / Osai
Table Design
Vacuum Table with Double Layer PVC
Production Capacity
500 Sets/ Year
Condition
New
⚙️ Product Description
CNC Machining Center CA-48

CNC Machining Center Model CA-48

ModelCNC Machining Center CA-48
Working Area1220mm*2440mm
Traveling Area1320mm*2540mm
Spindle9KW / Italy
ATCCarousel type / 8-12 positions
MotorServo Motor
ControllerTaiwan Syntec Control System
RailTaiwan PMI Rail
Table DesignDouble Layer PVC Table
Pump5.5KW Chinese Becker Pump
SoftwareType 3 / ArtCAM
✔️
Suitable for producing patterns of various types; economy and heavy-duty machining equipment.
✔️
Design of four spindles moving together with adjustable spacing for simultaneous processing.
✔️
Positioning block for quick material feed paired with adjustable vacuum pads.
✔️
Ideal for speakers panels, insulation parts, PE parts, yacht cabinets, and wood wardrobes.
🔍 Key Technical Features
  • ● Centralized automatic lubrication system
  • ● Centralized dust collection control
  • ● Tool automatic compensation system
  • ● Heat exchanger cooling electric control box
  • ● High rigidity machine design
  • ● Taiwan PMI ball screw and rail guide
  • ● Italy HSD auto tool changing spindle
  • ● Japan YASKAWA servo motor and driver
  • ● Taiwan LIMING planetary type reducer
  • ● Taiwan SYNTEC-PC control system

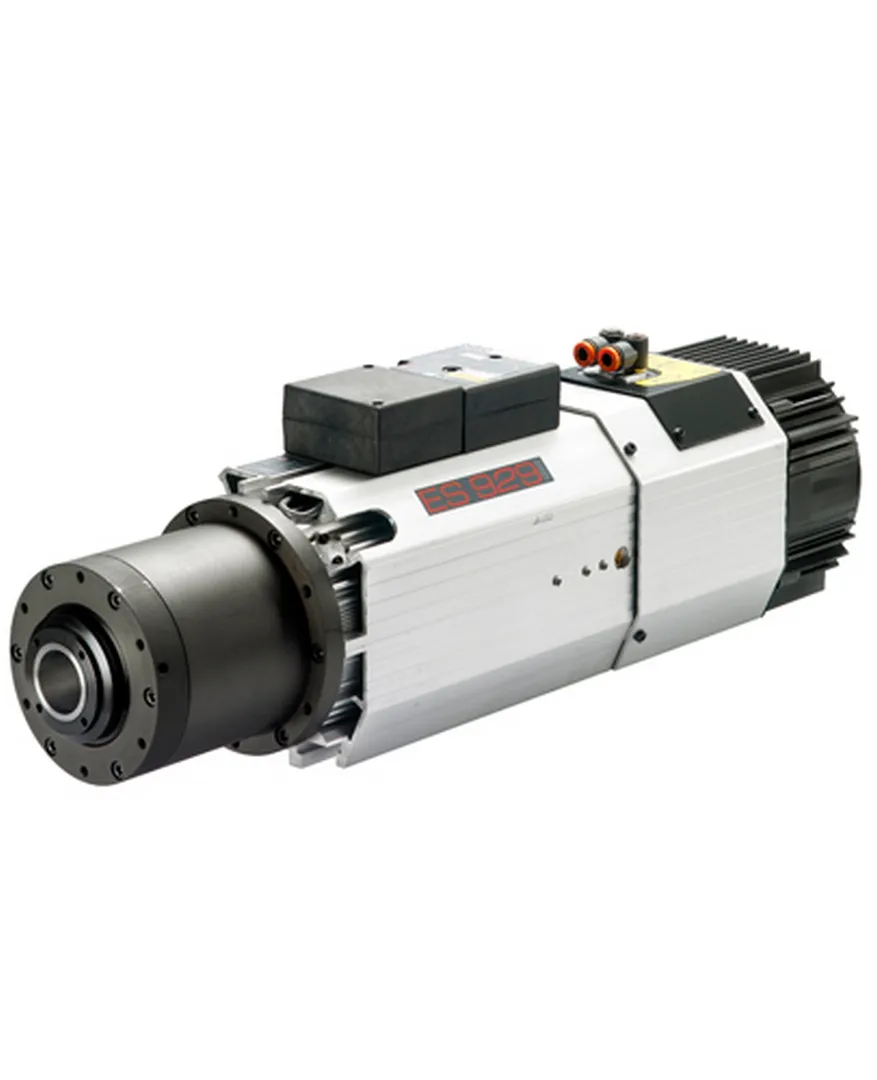

CNC Detail 1
CNC Detail 2

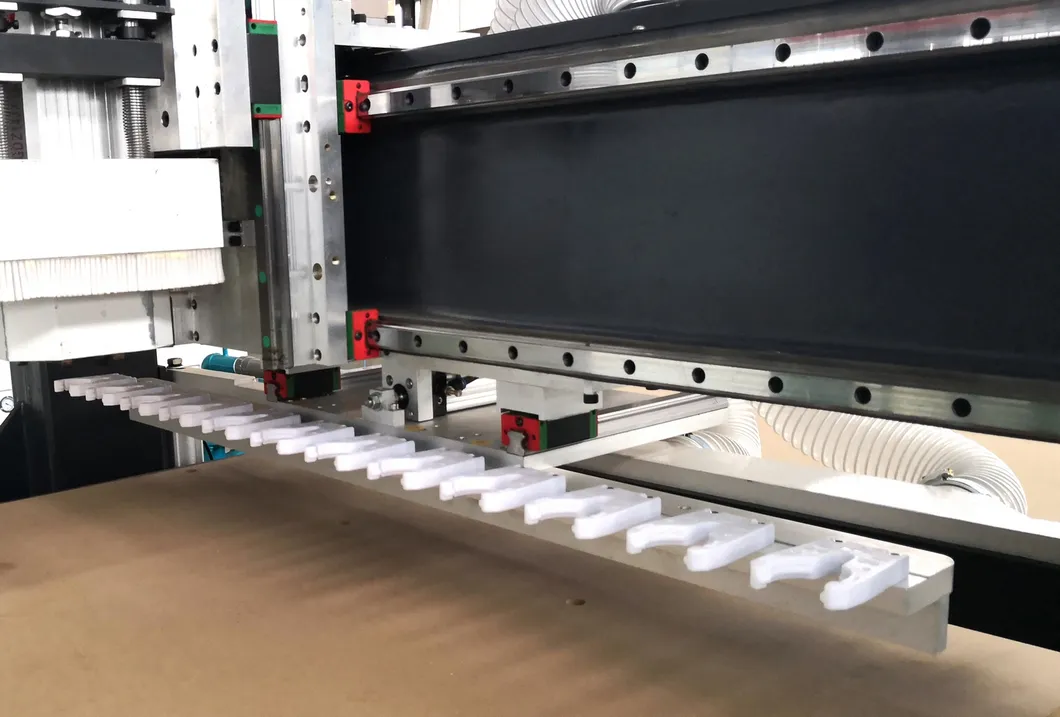

CNC Detail 3
CNC Detail 4

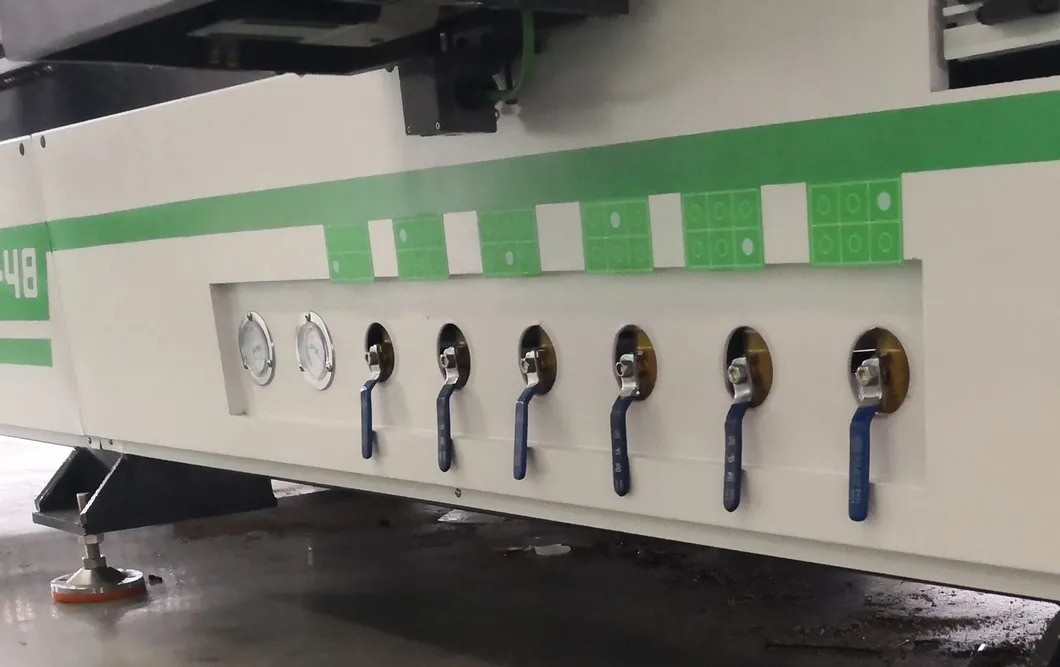

CNC Detail 5

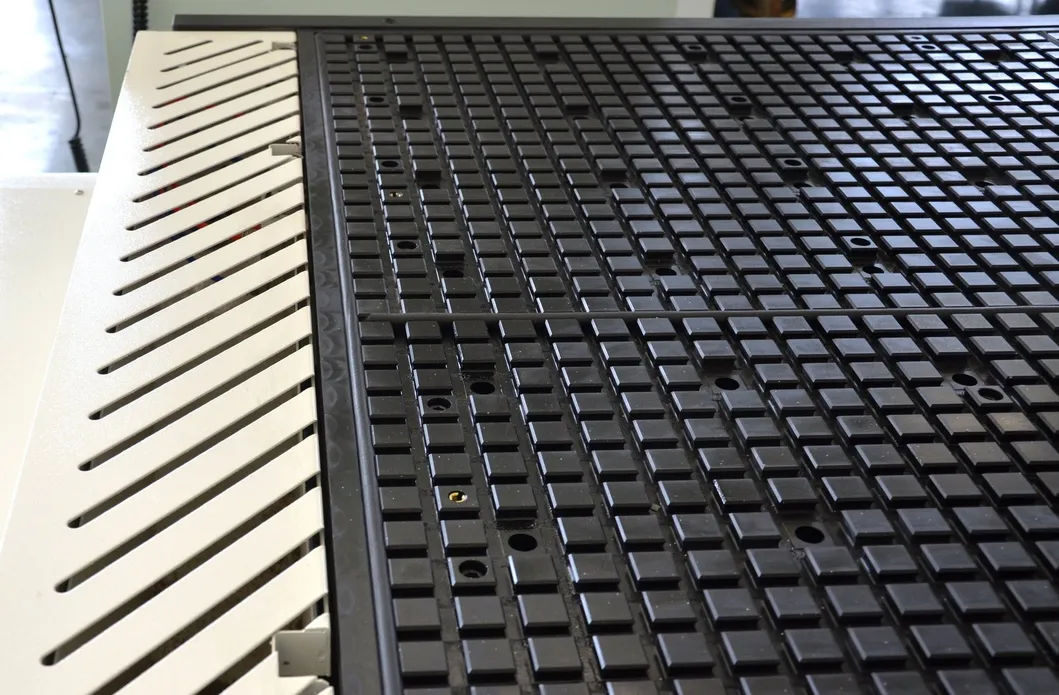

CNC Detail 6
❓ Frequently Asked Questions
1. What is the effective working area of the CA-48 CNC machine?
The standard working area for this model is 1220mm x 2440mm, providing ample space for standard wood panel processing.
2. Which control systems are compatible with this machining center?
The CA-48 typically uses the Taiwan Syntec control system, with the Italy OSAI-PC controller system available as a high-end option.
3. What materials can be processed using the CA-48?
It is designed for wood, speaker panels, generator insulation parts, mechanical PE parts, and various yacht or wardrobe cabinetry panels.
4. Does the machine support automatic tool changes (ATC)?
Yes, it features a carousel-type ATC with options for 8, 10, or 12 positions to suit different production requirements.
5. What kind of table design does it use for material holding?
It utilizes a high-efficiency vacuum table with double-layer PVC and movable, adjustable vacuum pads for secure work-piece adsorption.
6. Is the machine certified for international standards?
Yes, the machine holds both CE and ISO 9001 certifications, ensuring compliance with international quality and safety standards.
