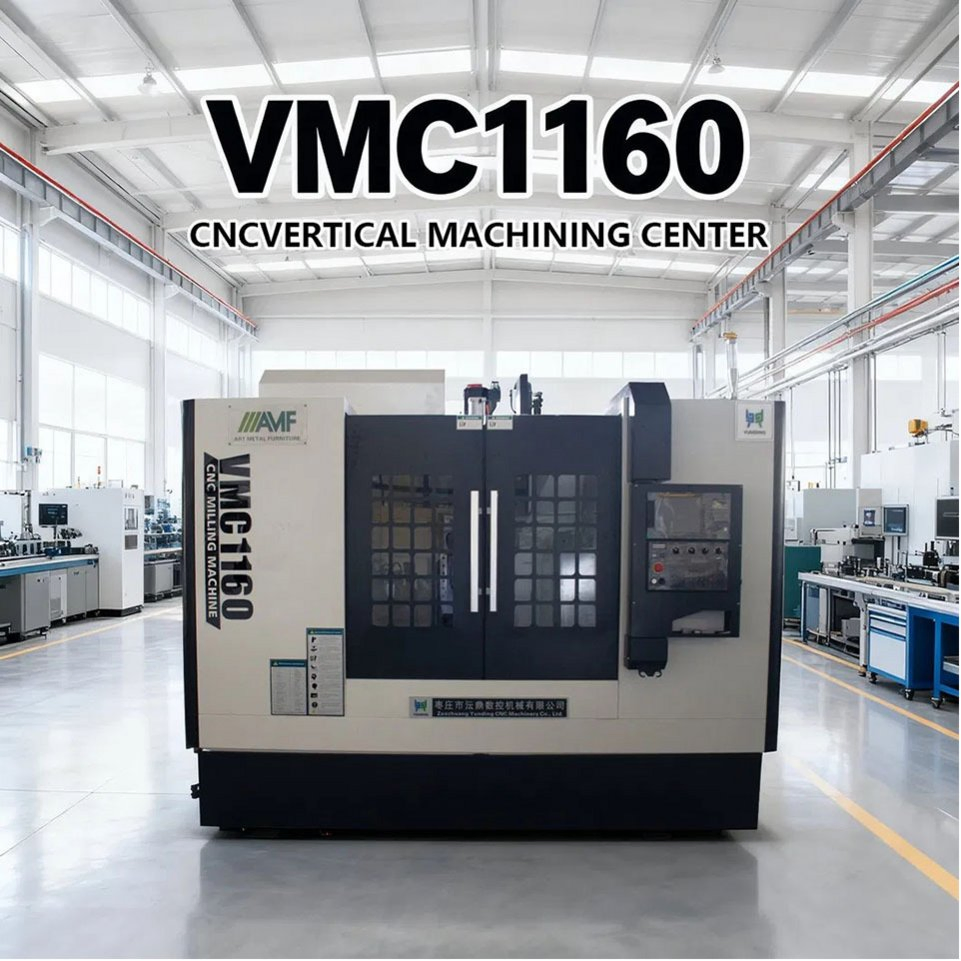

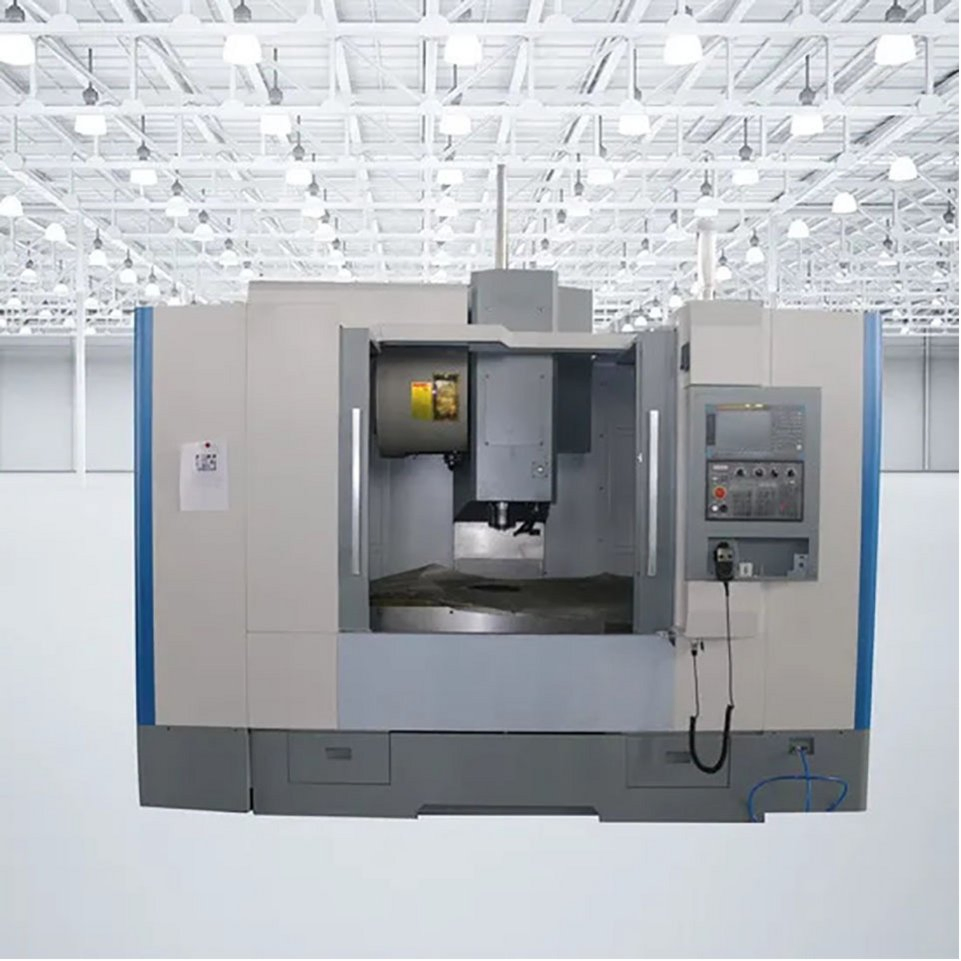

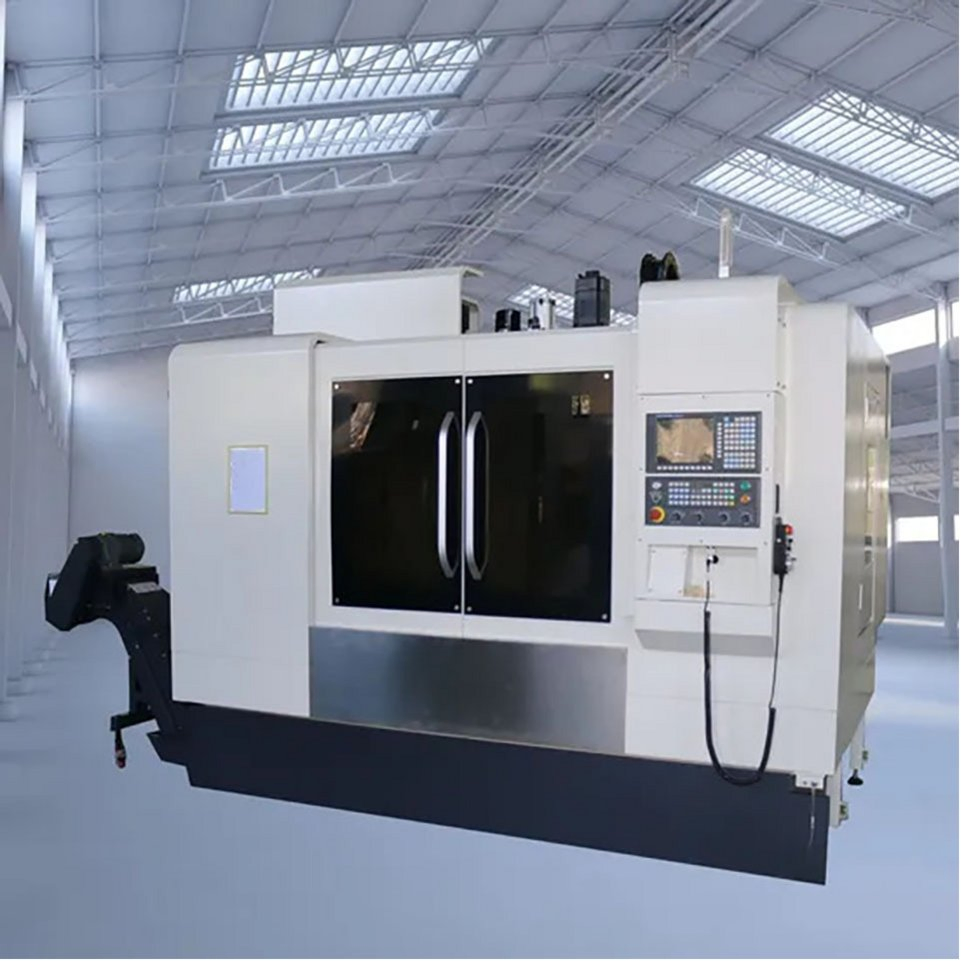

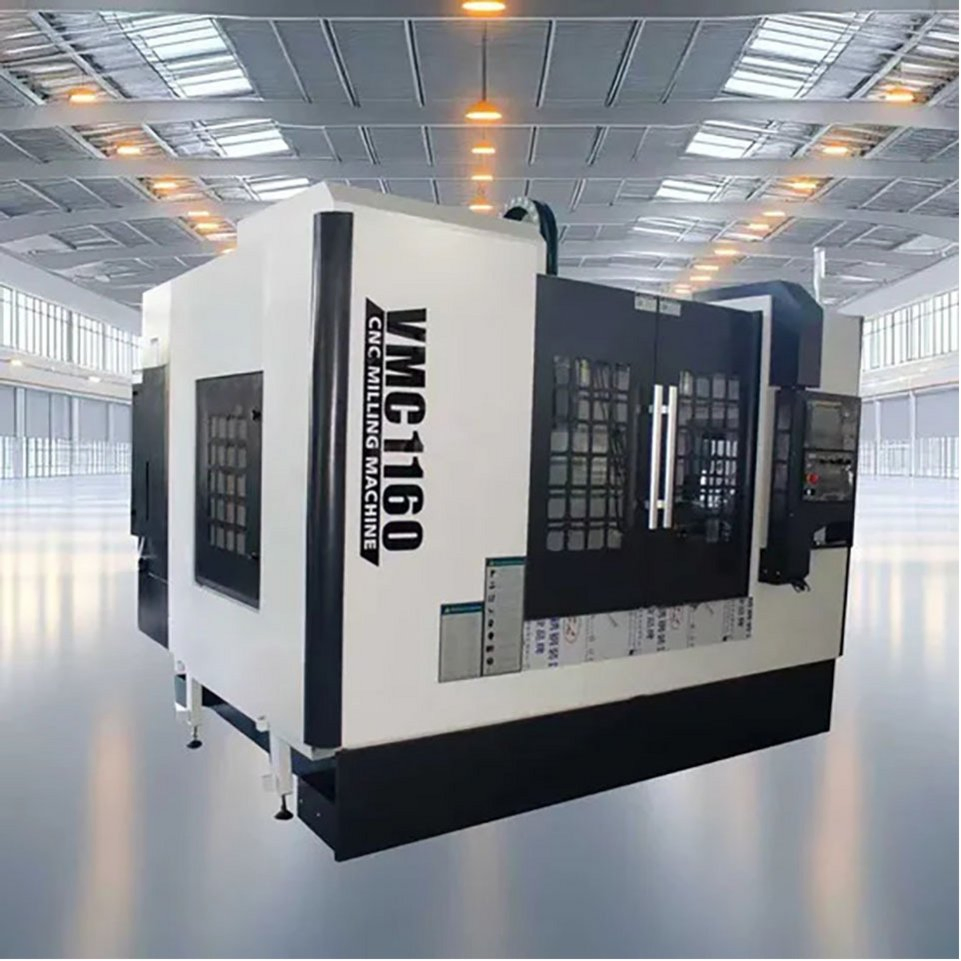

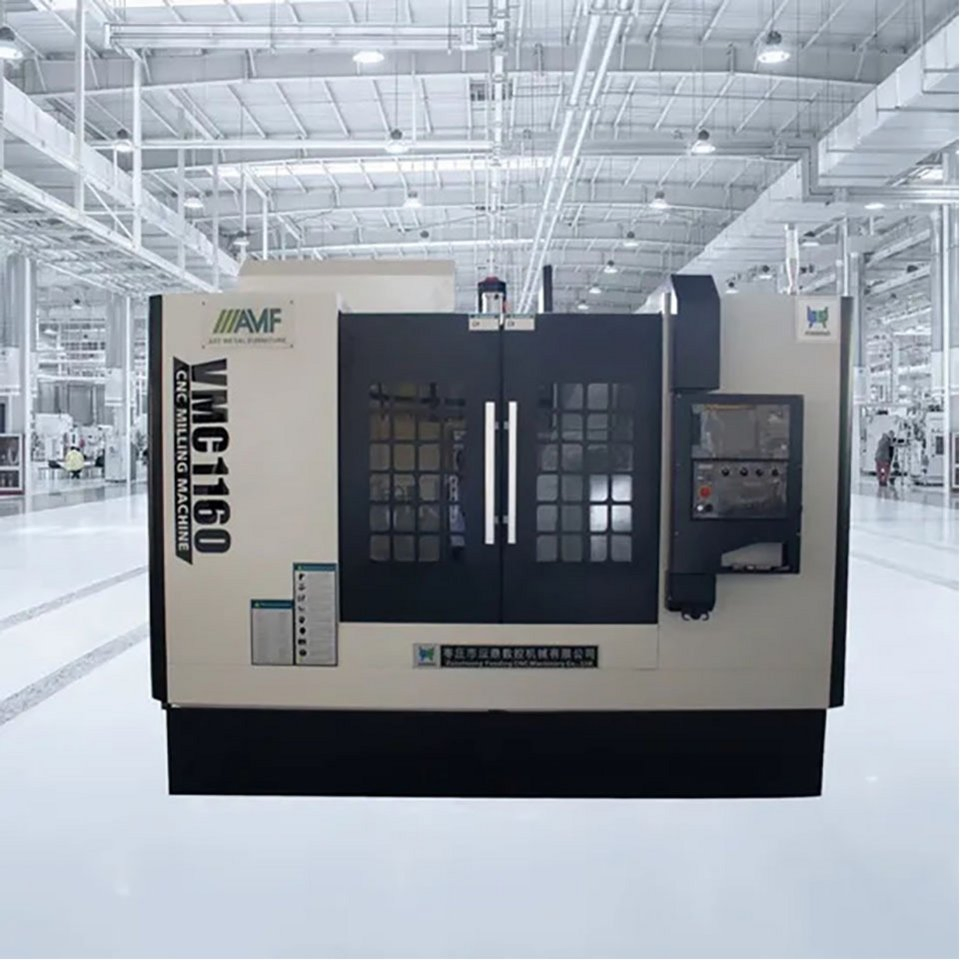

Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New
Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New
Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New
Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New
Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New
1 / 5
Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New
Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New
Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New
Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New
Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New

Classic 3.4-Axis Vmc1160 CNC Vertical Machining Center High-Accuracy GSK Control System Single Spindle Bt40 Motor Condition New

Customization: Available
After-sales Service: Online After-Sales Service
Warranty: 1 Year
Send Inquiry

Product Description

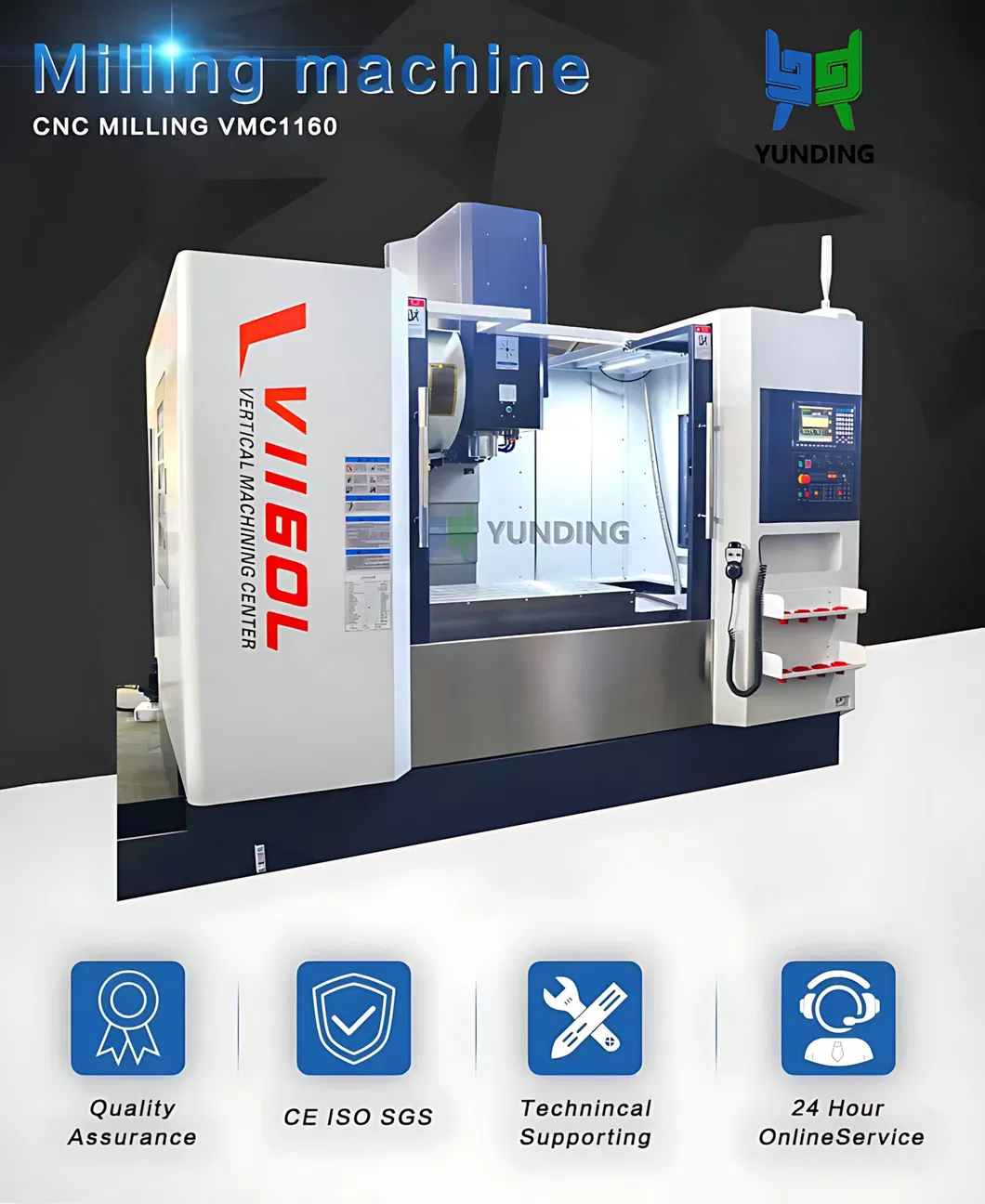

CNC Vertical Machining Center
VMC1160 Detail
◈ Basic Information
Model NO.VMC1160 ApplicationMetal Processing
Control MethodClosed-Loop Control Numerical ControlCNC/MNC
X/Y/Z Travel1100 / 600 / 600 mm Table Size1200 x 600 mm
Max Spindle Speed8000 rpm Spindle TaperBT40
Main Motor11 kw Precision0.01~0.02 mm
◈ Product Description
Vertical Machining Center VMC1160

This VMC is engineered for high-precision mechanical processing and complex mold making. It seamlessly transitions from rough machining to fine finishing, handling milling, drilling, tapping, and boring with ease.

  • Robust Construction: The machine body utilizes alloy cast iron with secondary tempering for maximum stability and anti-deformation properties.
  • High-Speed Guidance: X/Y/Z axes feature heavy-duty roller linear guide rails for superior speed and precision.
  • Versatile Spindle: High-performance spindle unit supporting 8000-12000rpm.
  • Advanced Tooling: Equipped with reliable ATC (Automatic Tool Changer) systems.
  • Control Compatibility: Supports Fanuc, Siemens, Mitsubishi, and GSK systems.
◈ Technical Specifications
Specifications Units Data (VMC1160)
Table Sizemm1200×600
Max. Worktable Loadkg1000
T Slot (Number-Width-Pitch)-5-18x100
X/Y/Z Rapid Traverse Speedm/min24/24/24
Cutting Feed Speedmm/min1-10000
Positioning Accuracymm0.0075
Repeated Positioning Accuracymm0.005
Tool Magazine Capacity-24 Tools (Arm Type)
Machine Weightkg7300
Overall Dimensionsmm2550*3200*2650

Standard Configuration

  • High quality resin sand casting
  • Automatic lubrication system
  • 3-axis linear rails
  • 16 Armless Tool Magazine

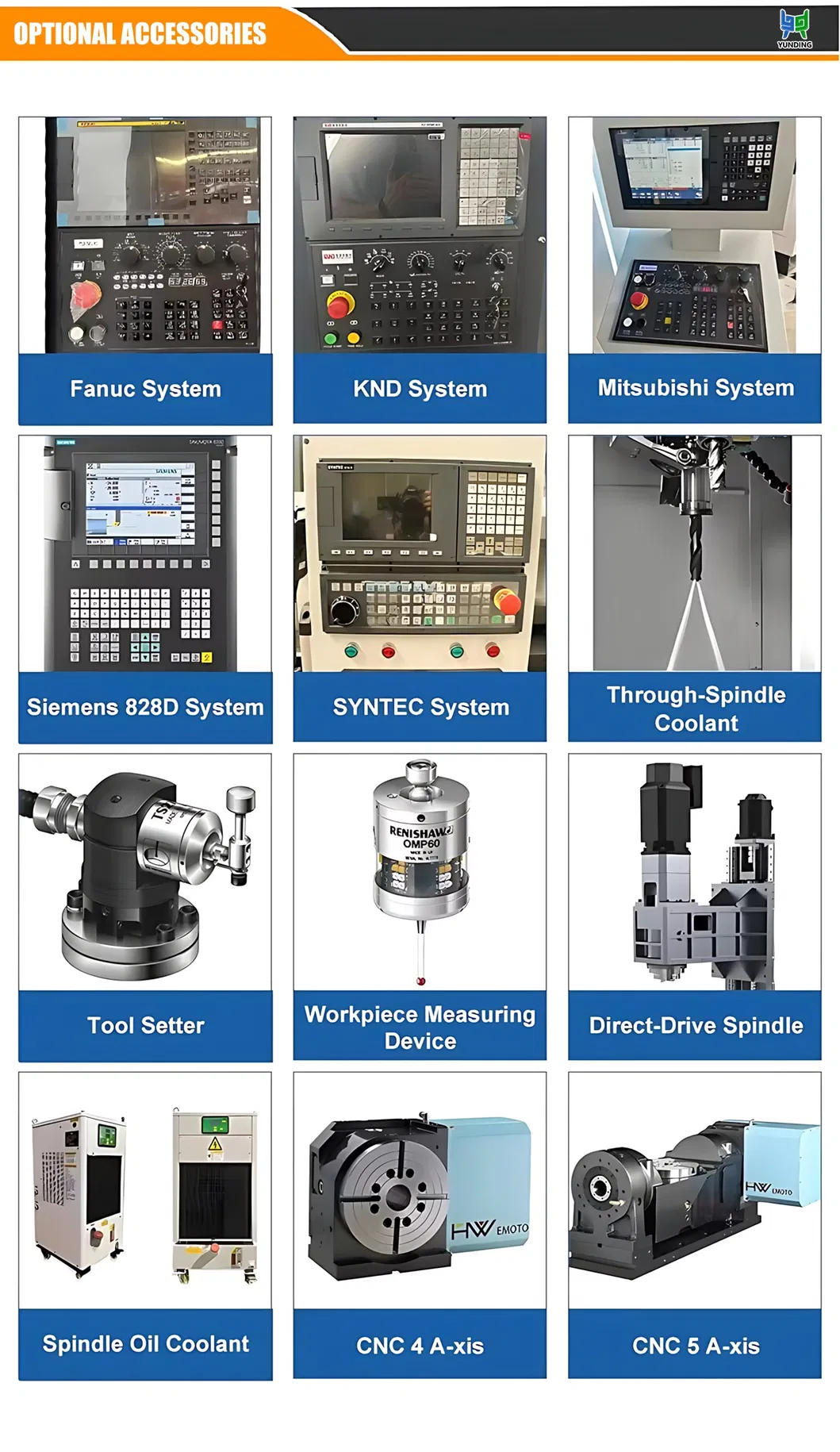

Optional Configuration

  • 4th Axis Rotary Table
  • 24 Arm Tool Magazine
  • 12000rpm Spindle Unit
  • Chip Conveyor & Oil-Water Separator

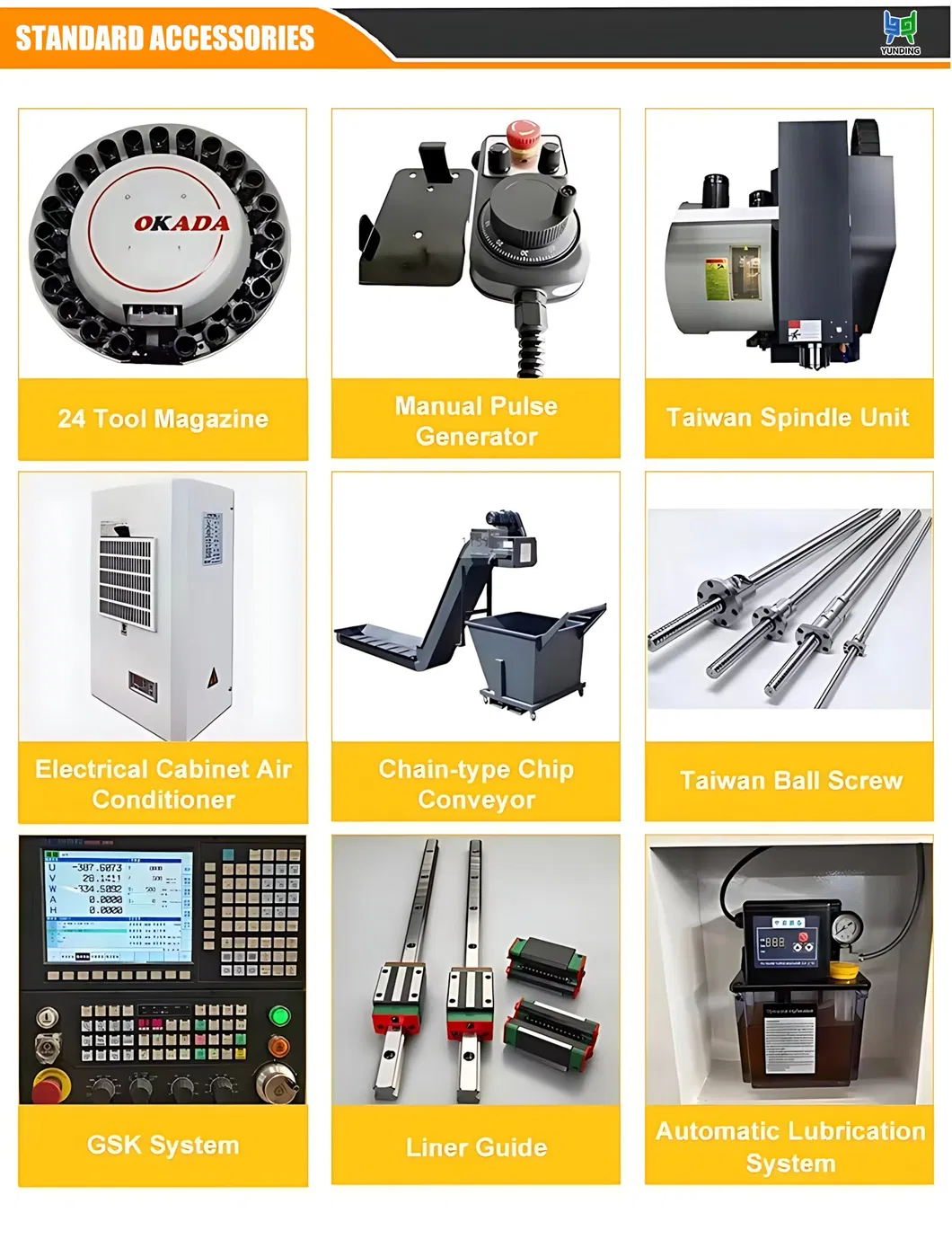

Internal components
Machine structure

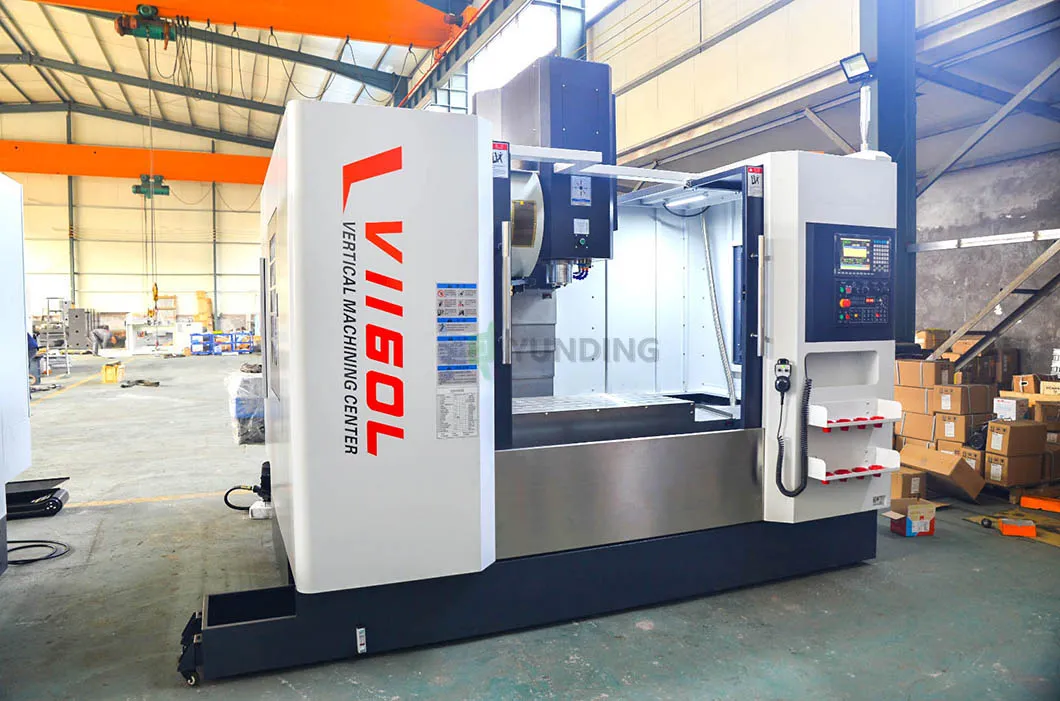

Machining Sample 1

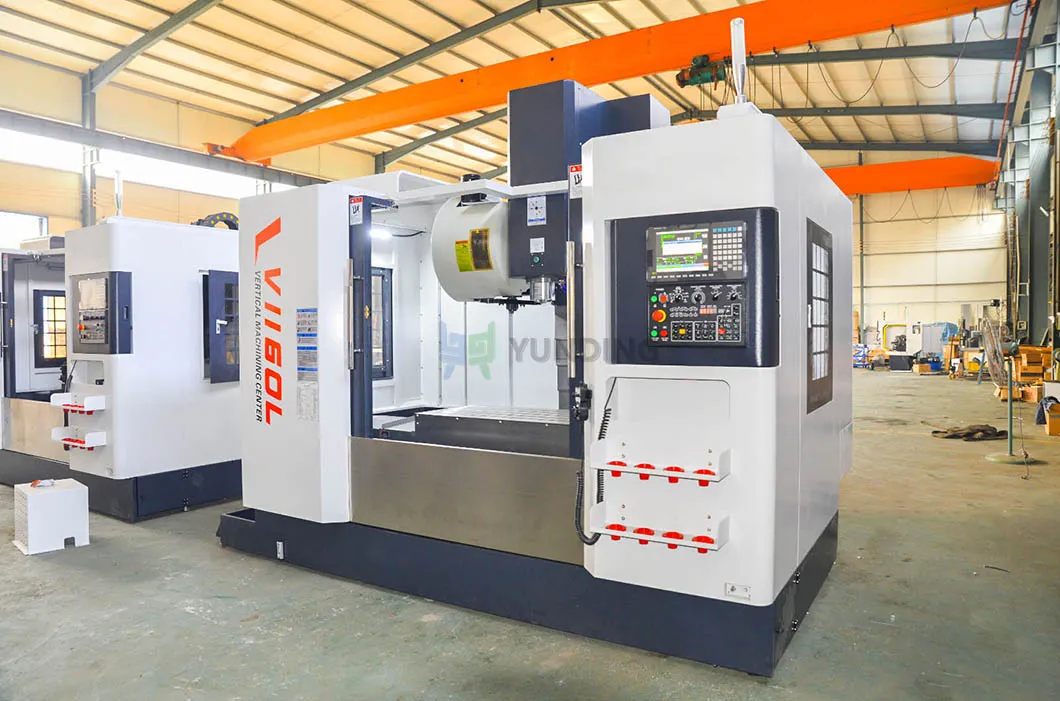

Machining Sample 2

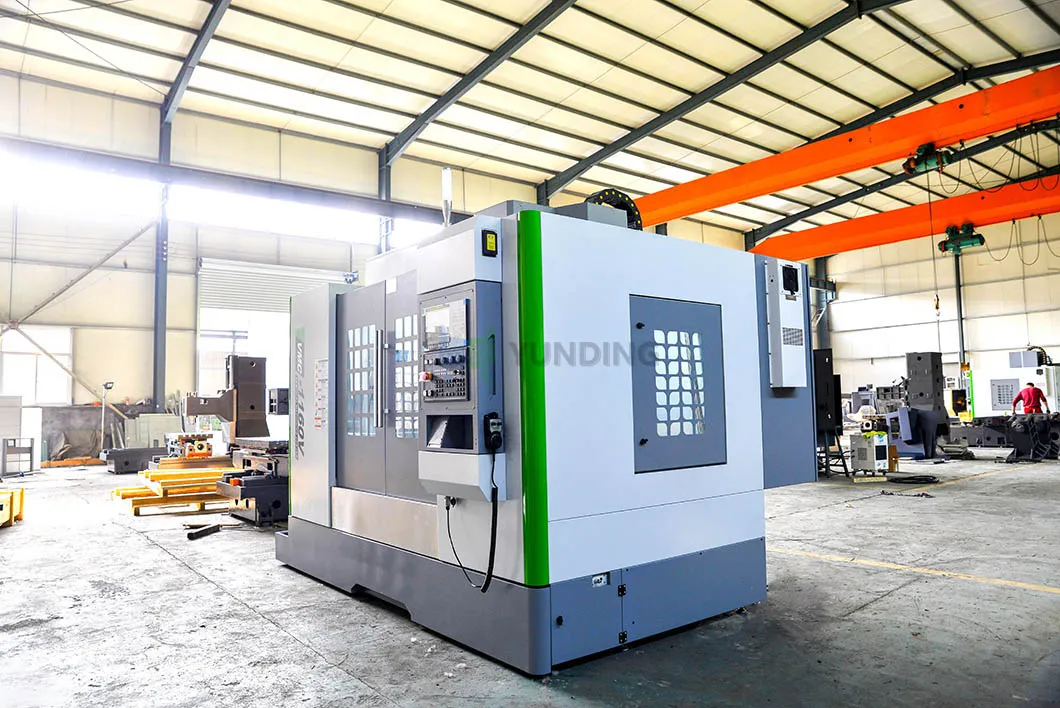

Machining Sample 3
❓ Frequently Asked Questions
How can I choose the most suitable machine for my needs?
Please provide your workpiece specifications or drawings. Our engineers will evaluate your requirements and recommend the best model based on material, size, and complexity.
What are the primary products available?
We specialize in a full range of CNC equipment, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Radial Drilling Machines, and Sawing Machines.
What are the accepted trade terms?
We support standard international trade terms including FOB, CFR, and CIF to accommodate different shipping preferences.
What are the standard payment terms?
Typically, we require a 30% initial payment upon ordering, with the remaining 70% balance due before shipment. Irrevocable LC at sight is also acceptable.
What is the Minimum Order Quantity (MOQ)?
The MOQ for most of our machining centers is 1 set. For certain low-cost accessory machines, the MOQ might differ.
What information is needed for a CIF quote?
To provide an accurate CIF price, please specify your destination port and your industrial voltage requirements (e.g., 380V/50Hz/3Phase).
