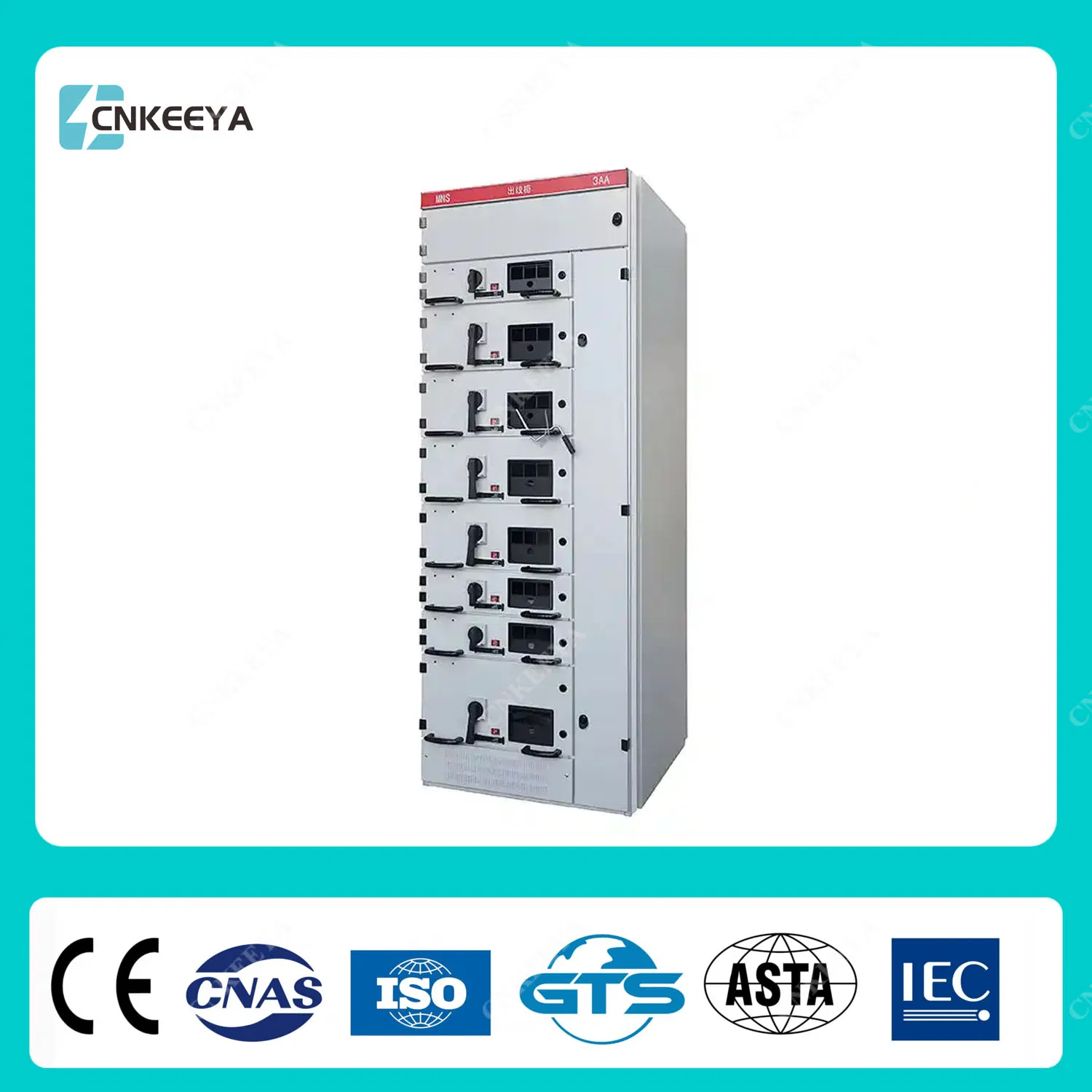

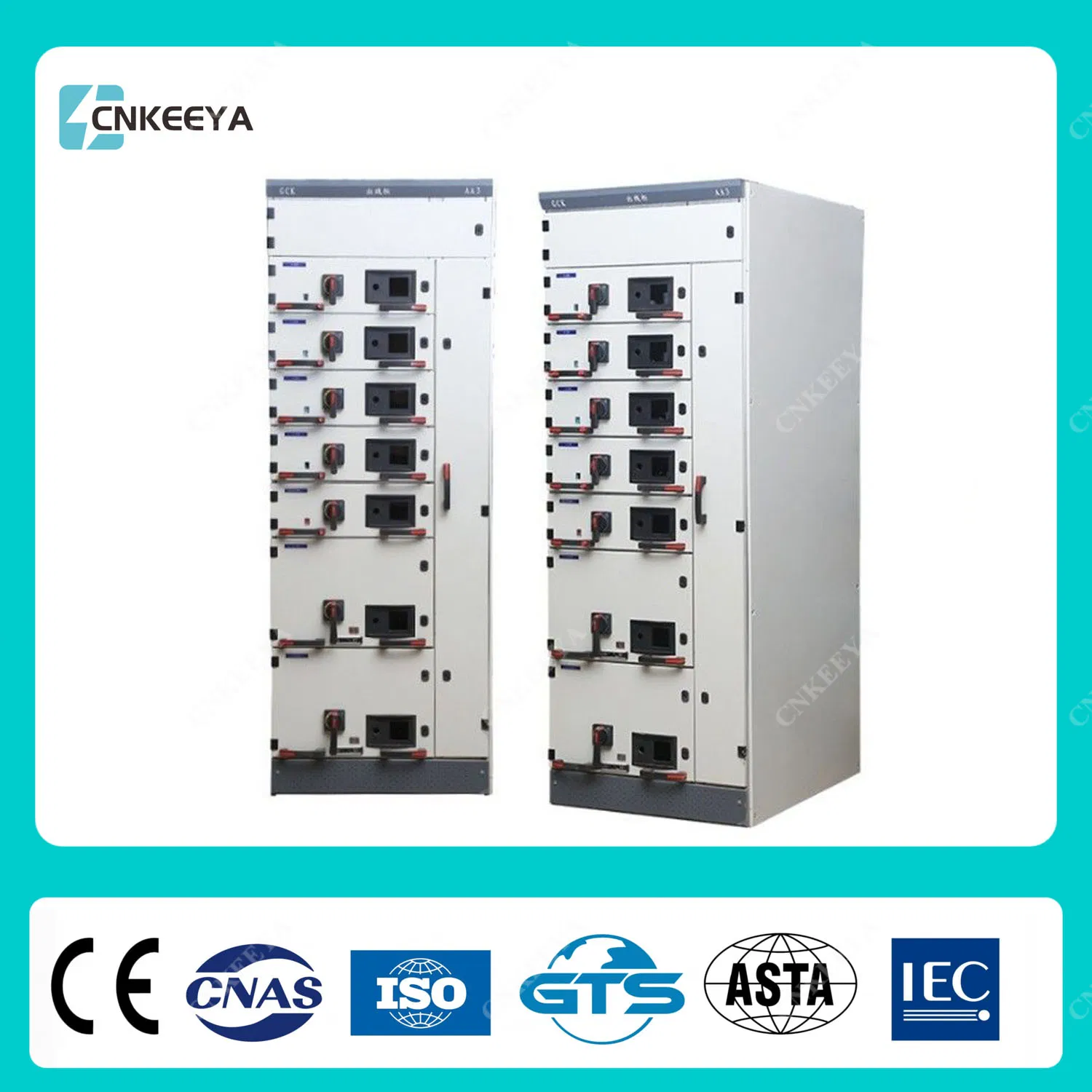

Cnkeeya 1100*860*2180mm Low Wooden Case China Medium Voltage Switchgear Gdf

1 / 5

Cnkeeya 11008602180mm Low Wooden Case China Medium Voltage Switchgear Gdf

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.:GDF

Voltage Level:Low Voltage

Installation:Fixed

Structure:Cabinet

Current:AC

Protection Grade:IP55

Frequency:50Hz

Transport Package:Wooden Case

Specification:1100*860*2180mm

Origin:China

HS Code:8535210000

Capacity:10000 Set/Sets Per Month

Product Description

This switchgear is suitable for three-phase five-wire power supply system with AC 50(60) Hz, rated working voltage 400V, 660V, rated current 5000A and below. It is widely applied in power plants, substations, industrial and mining enterprises, high-rise hotels, airports, terminals, and communication centers.

It serves as the control for power generation, transmission and distribution, power conversion and power consumption equipment. Reactive power compensation is performed on its main busbar through the capacitor compensation cabinet. The equipment is manufactured in line with national and international standards: GB7251.1 "Low-voltage switchgear" and IEC60439 "Low-voltage switchgear and control equipment".

Specification	Details	Specification	Details
Model NO.	GDF	Operation Voltage	Low Voltage
Shell Material	Customization	Application Range	High-rise Buildings
Protection Level	IP20/IP30/IP40	Rated Frequency	50Hz/60Hz
Rated Current	400~3200A	Nominal Voltage	380V
Auxiliary Circuit	220V	Function	Waterproof Dustproof

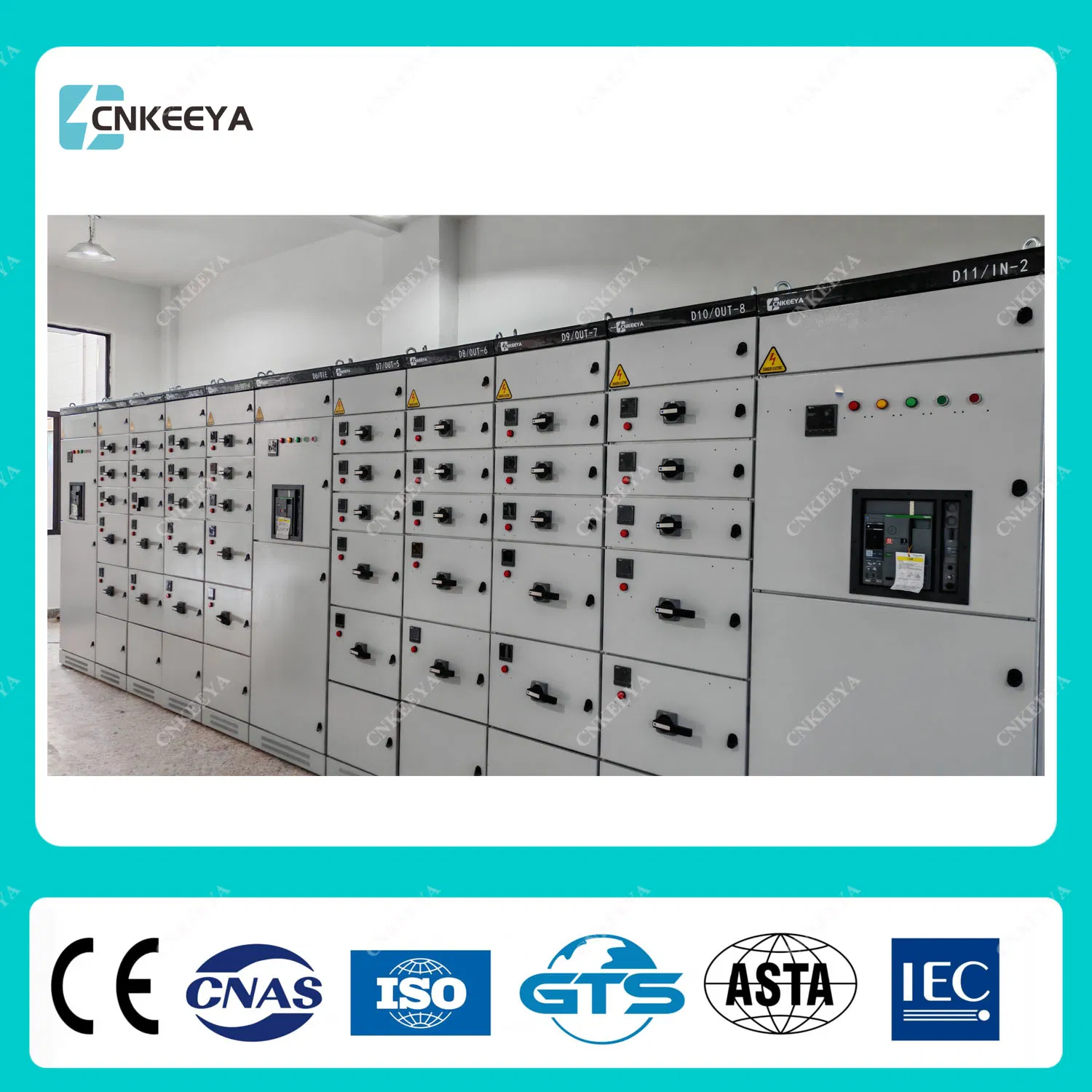

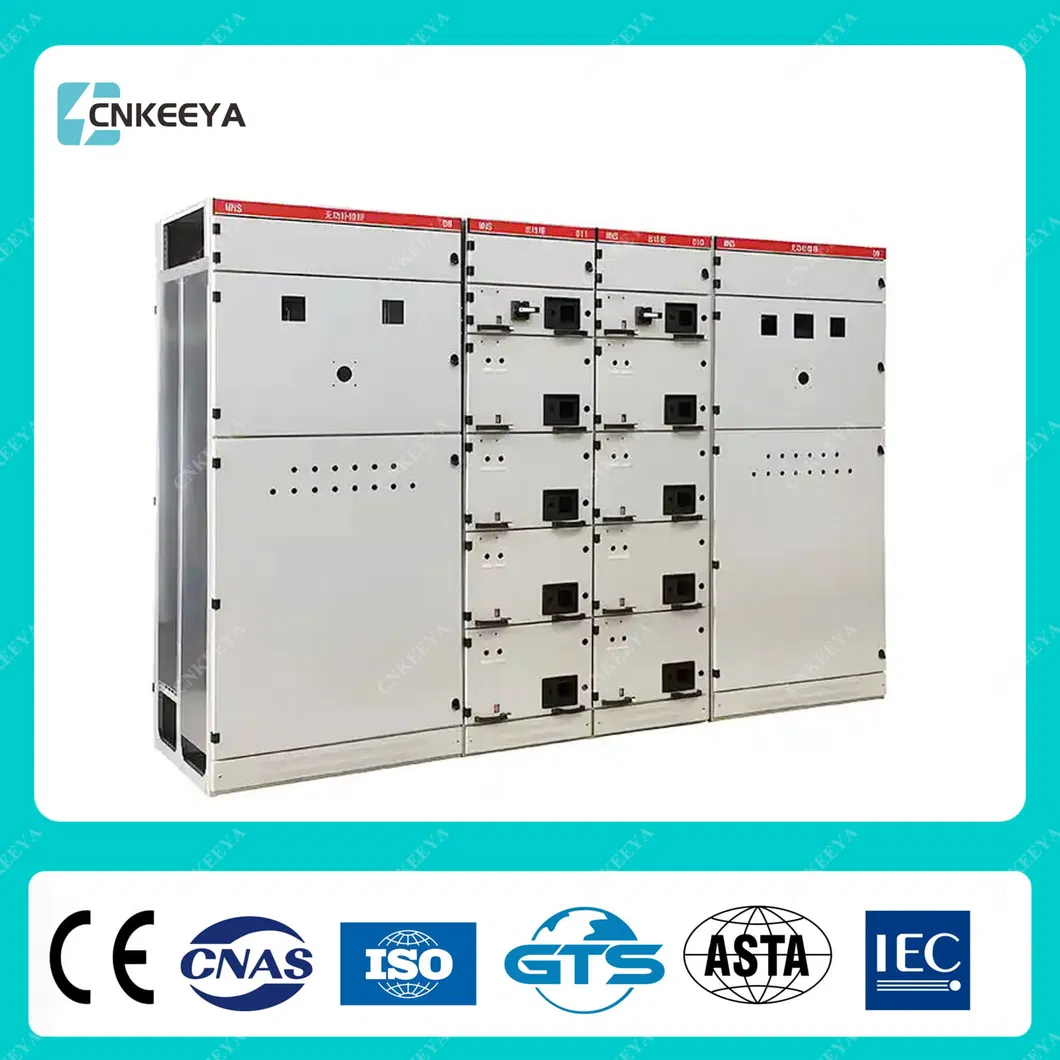

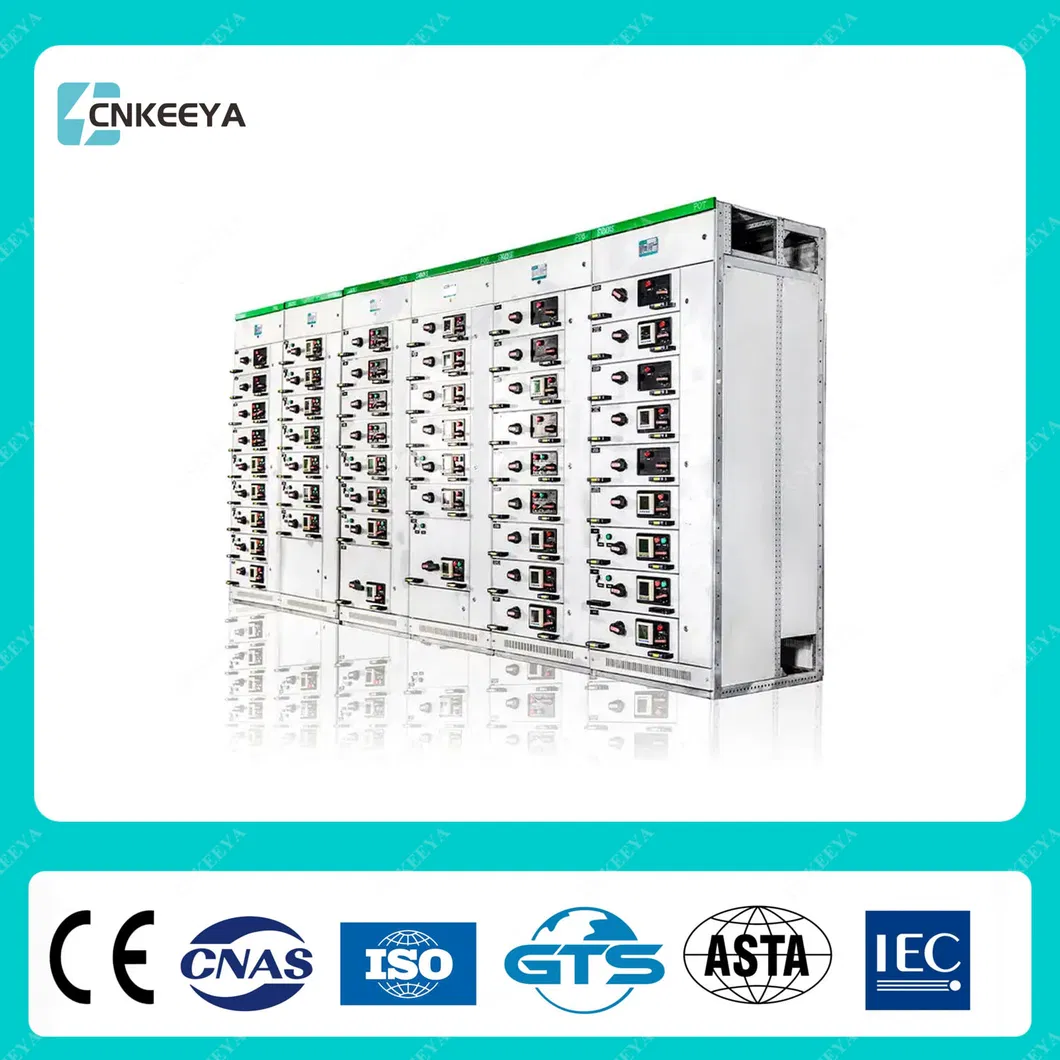

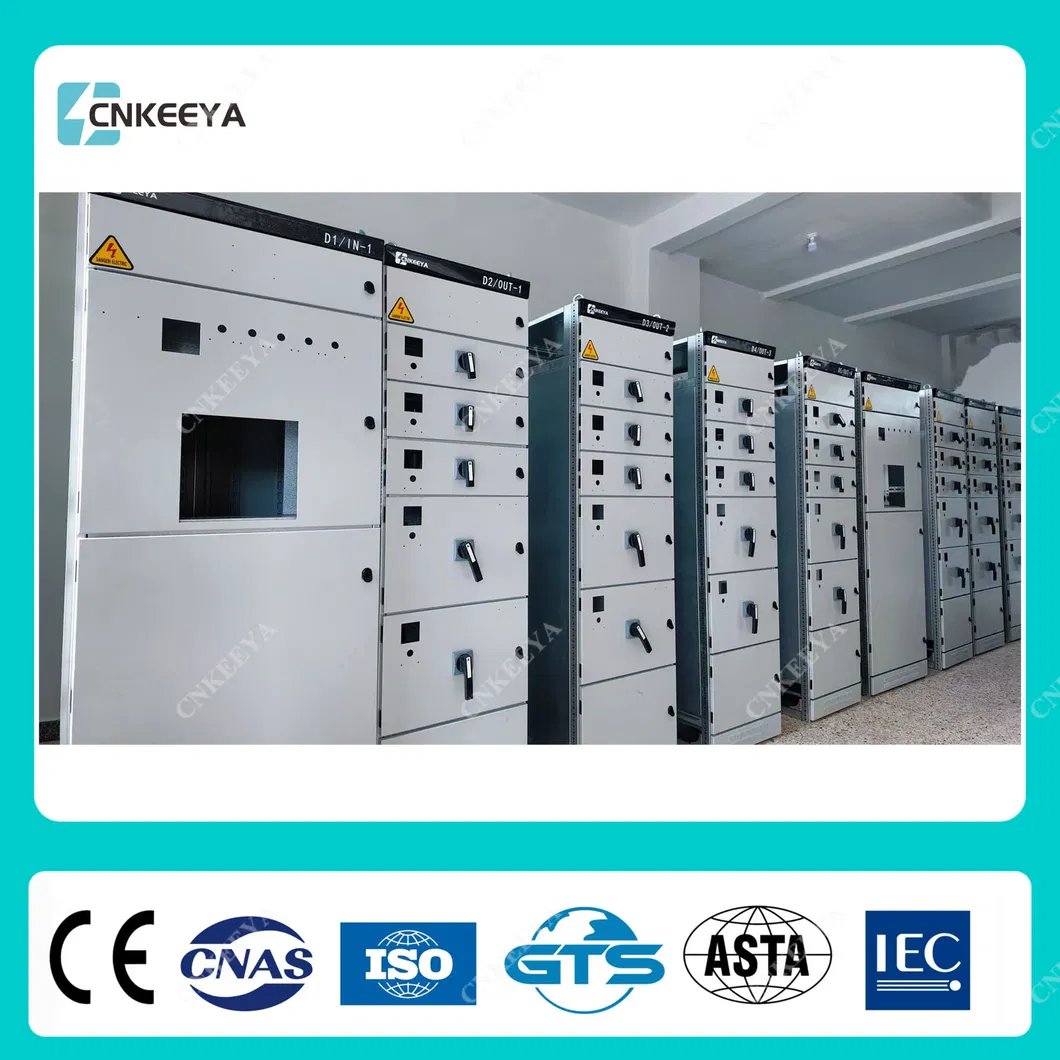

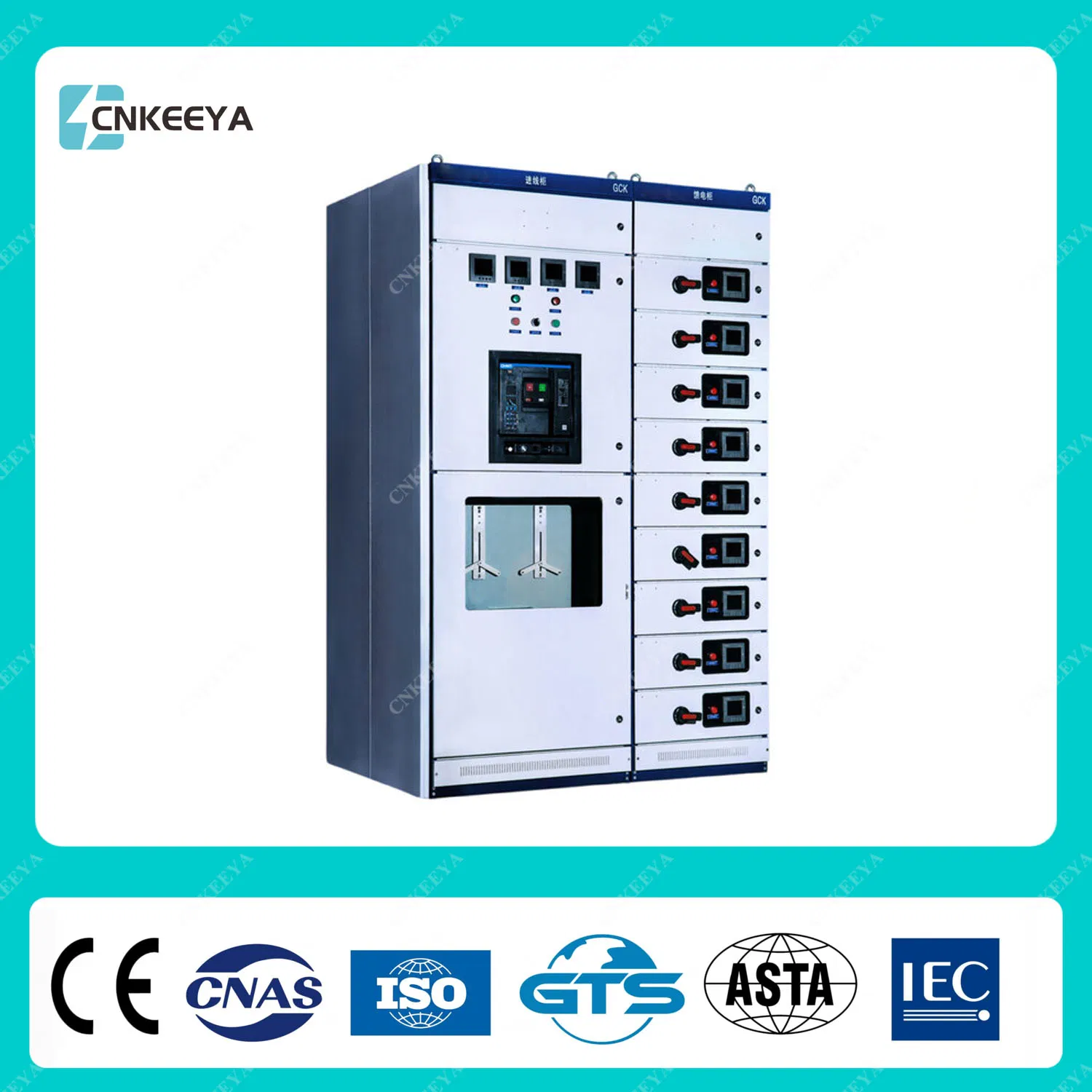

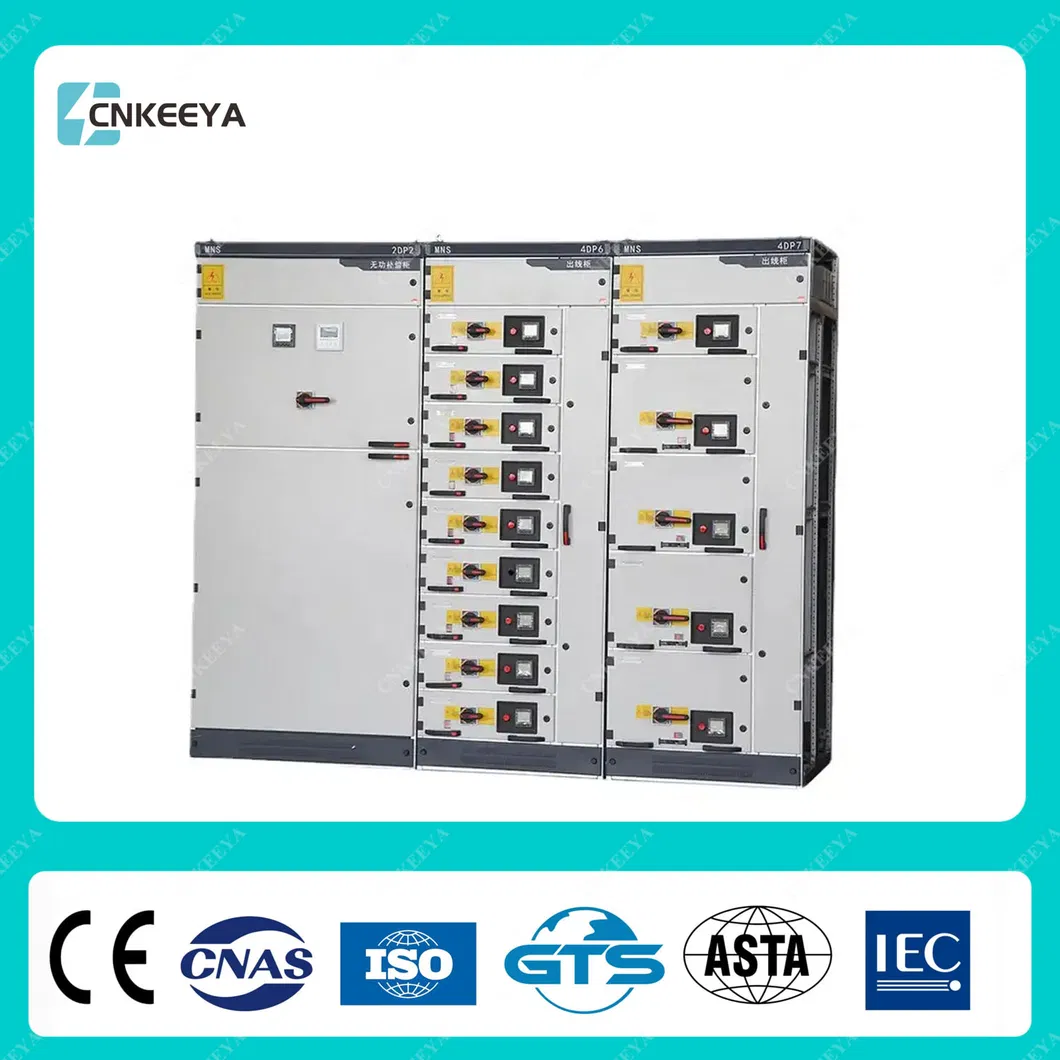

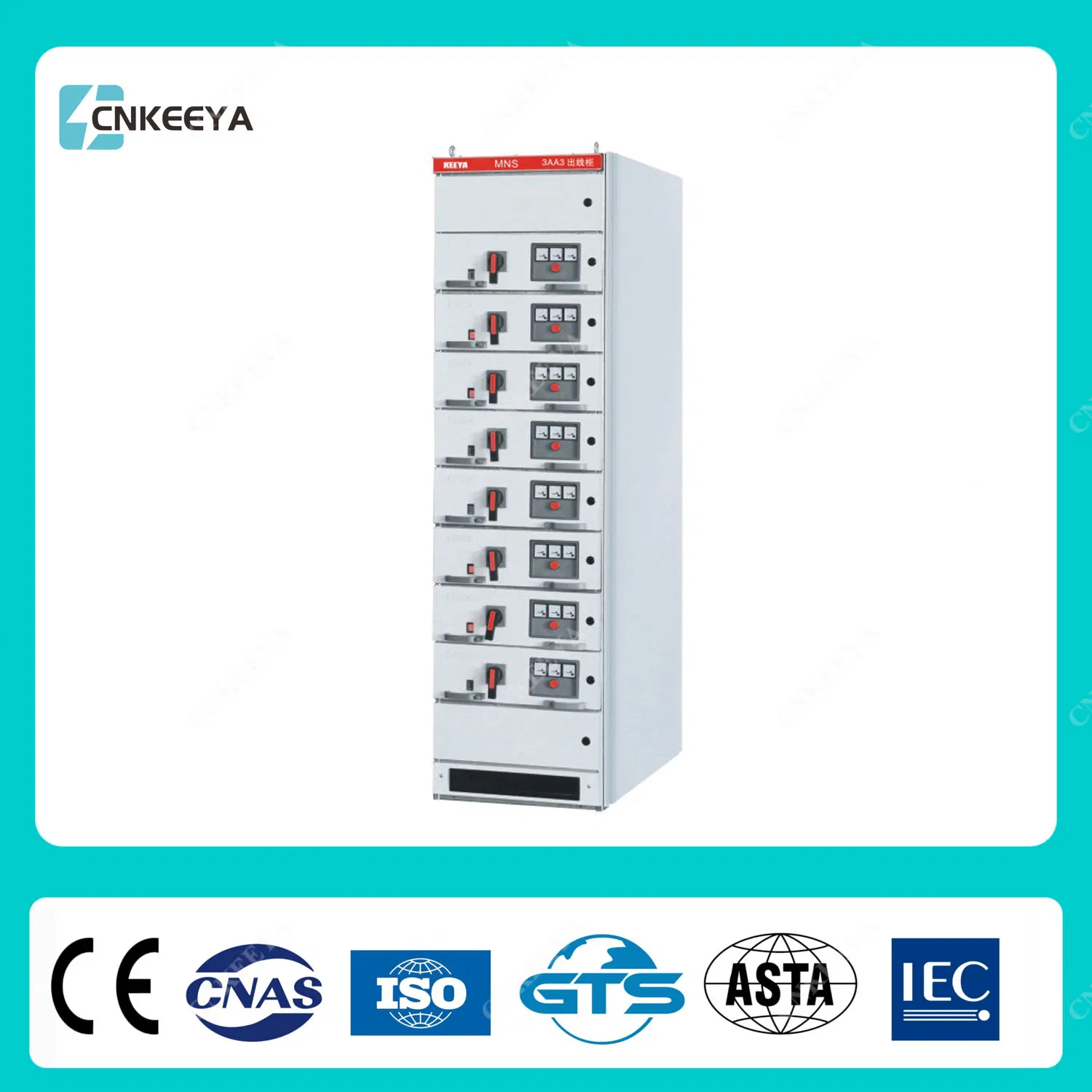

Detailed Photos

Product Parameters

Project	Unit	Value
Overvoltage category	-	IV, III
Pollution level	-	3
Rated working voltage (Ue)	V	400/660
Rated insulation voltage (Ui)	V	660/1000
Rated frequency	Hz	50(60)
Protection class	-	IP30/IP40 (Special instructions)

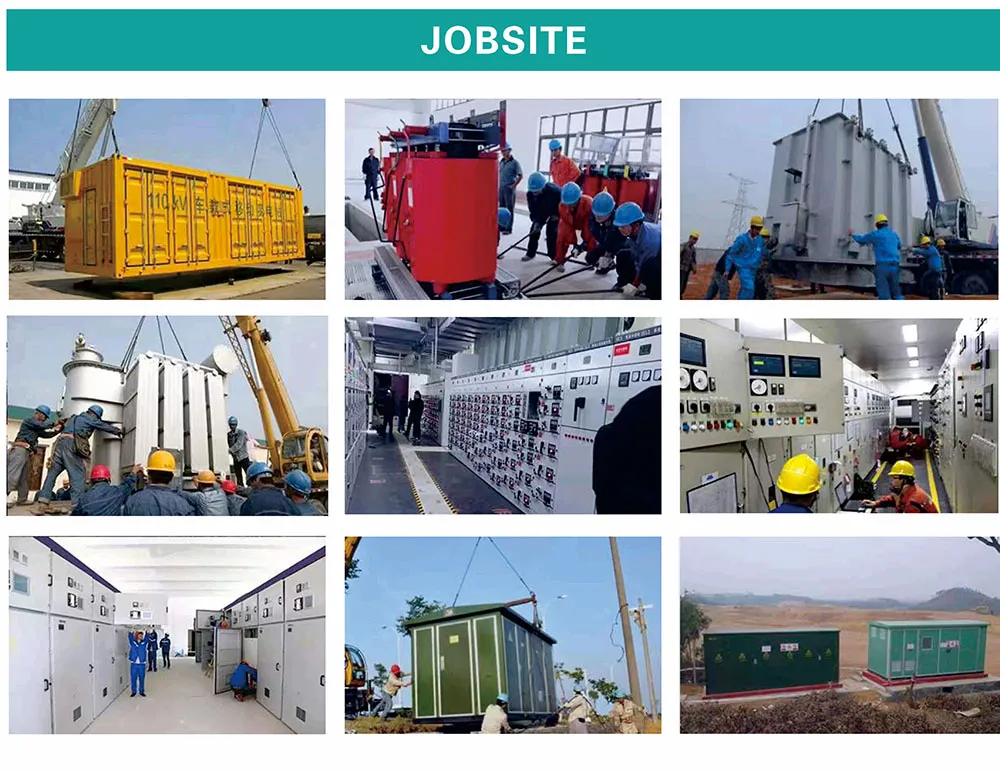

Production Showcase

Frequently Asked Questions

What is the main application of the GDF switchgear?

It is designed for three-phase five-wire power supply systems in power plants, substations, industrial sites, and high-rise buildings for power control and conversion.

What are the rated voltage and current specifications?

The rated working voltage is 400V or 660V, and it can handle a rated current of up to 5000A.

Does this equipment meet international safety standards?

Yes, it complies with the GB7251.1 national standard and the IEC60439 international standard for low-voltage switchgear and control equipment.

What protection grades are available for the enclosure?

The standard protection grades range from IP20, IP30, and IP40 to a higher IP55 rating, depending on the specific customization requirements.

Can this switchgear handle both 50Hz and 60Hz frequencies?

Yes, the system is designed to operate efficiently at both 50Hz and 60Hz rated frequencies.

How is the product packaged for international transport?

The switchgear is securely packed in a robust wooden case to ensure safety and prevent damage during sea or land transportation.
