Product Overview

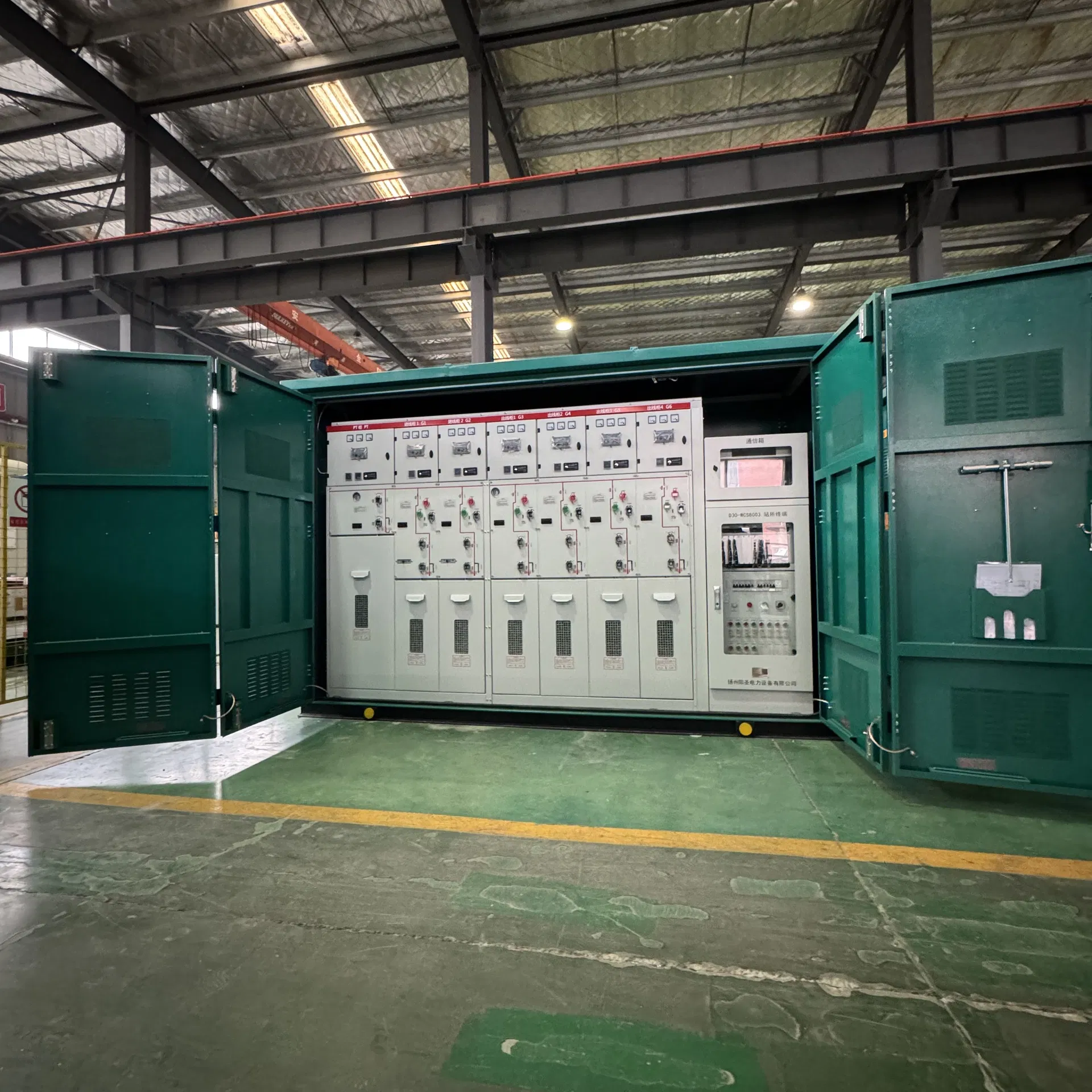

The 12/24kV outdoor ring main unit is a complete set of switchgear specially designed for outdoor medium-voltage power distribution. It is adapted to all 12-24kV outdoor power distribution scenarios such as urban power grid transformation, residential quarters, industrial parks, municipal roads and new energy supporting facilities. Integrating power distribution, control and protection in one, it is a cost-effective optimal solution for outdoor power distribution.
1
Outdoor-specific Design with Excellent Weather Resistance

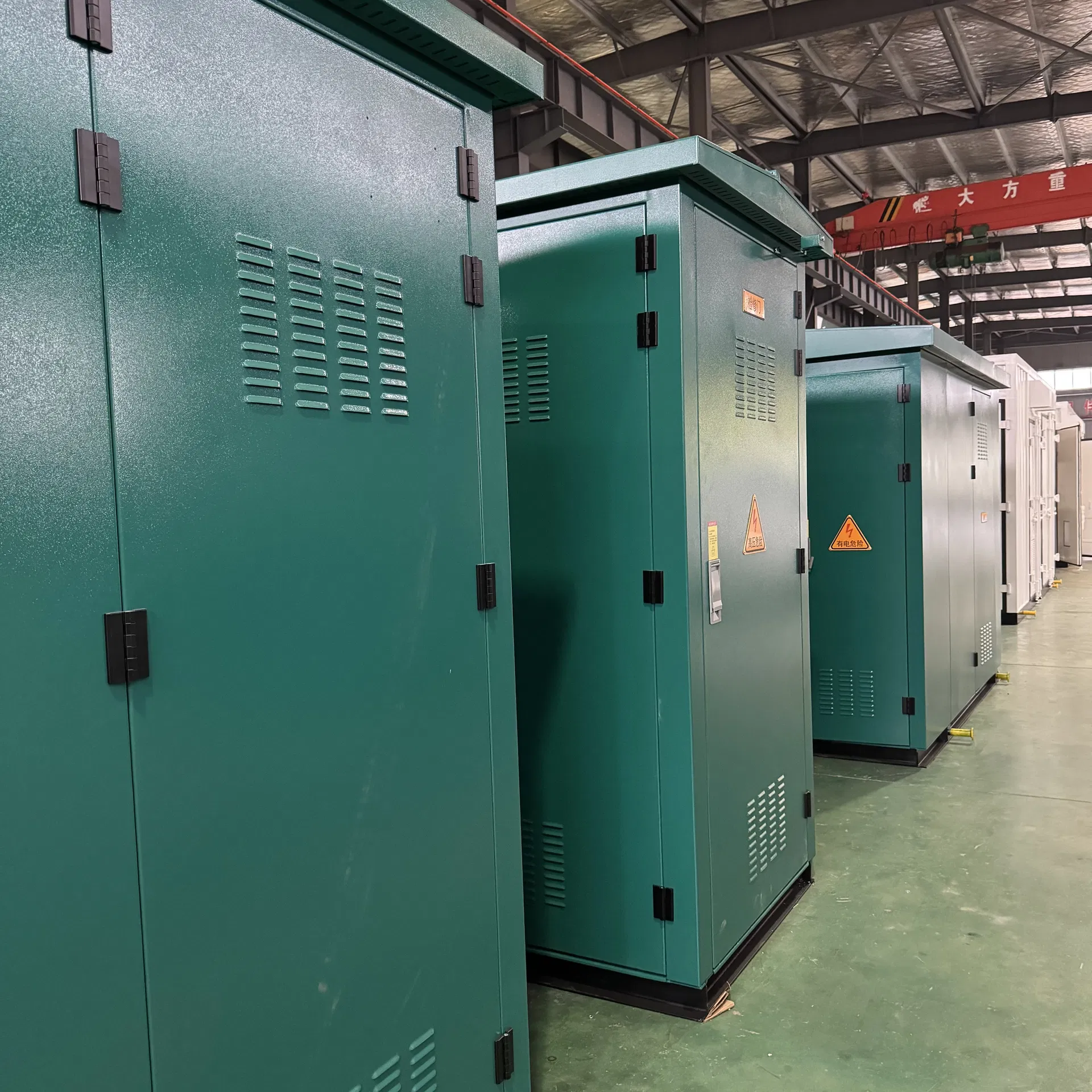

The cabinet body is available in cold-rolled steel plate with plastic spraying/stainless steel material, reaching IP54 protection class. It is resistant to wind and rain, salt spray, high and low temperatures, and can operate stably in extreme outdoor environments from -30℃ to +60℃.
2
Modular Configuration for Flexible Adaptation

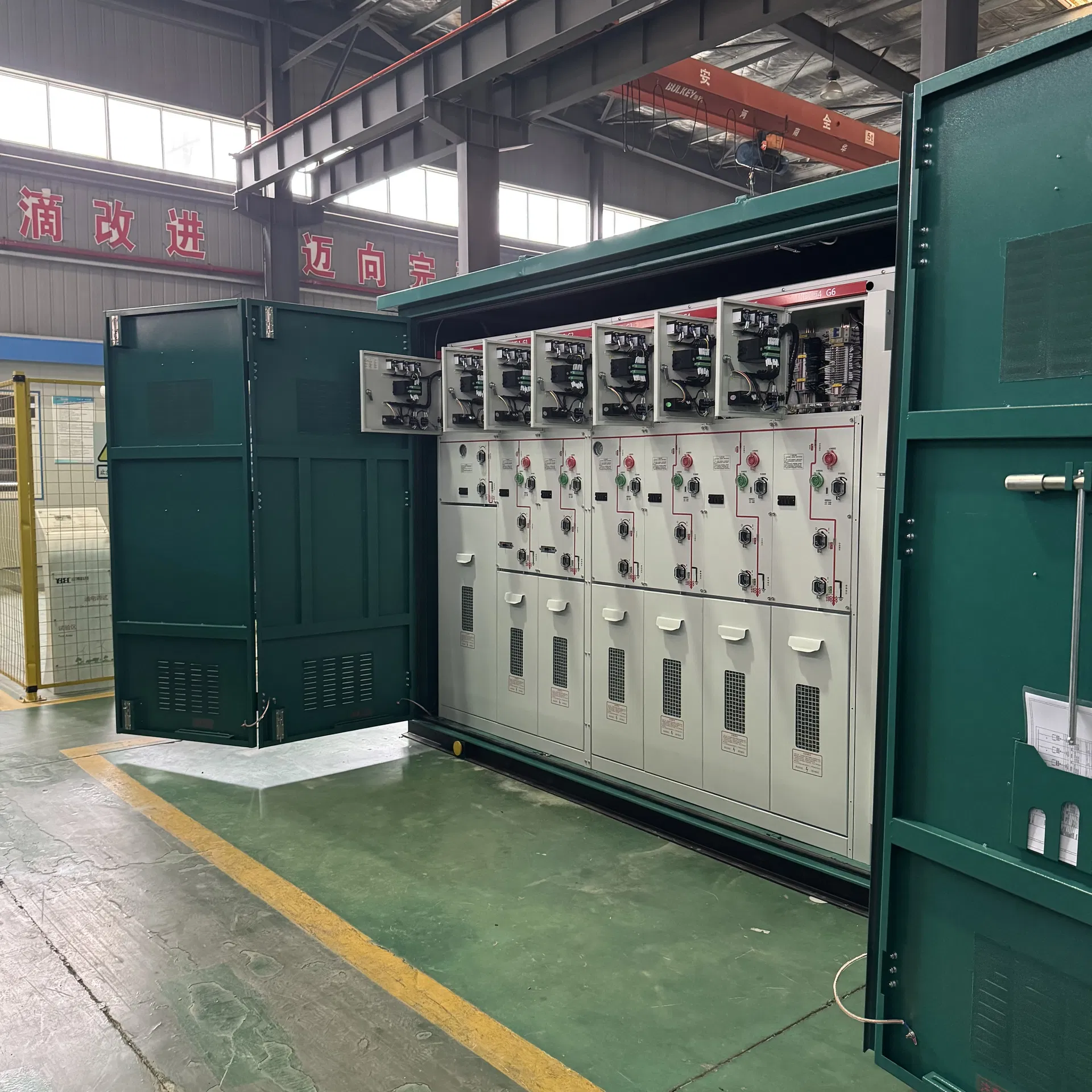

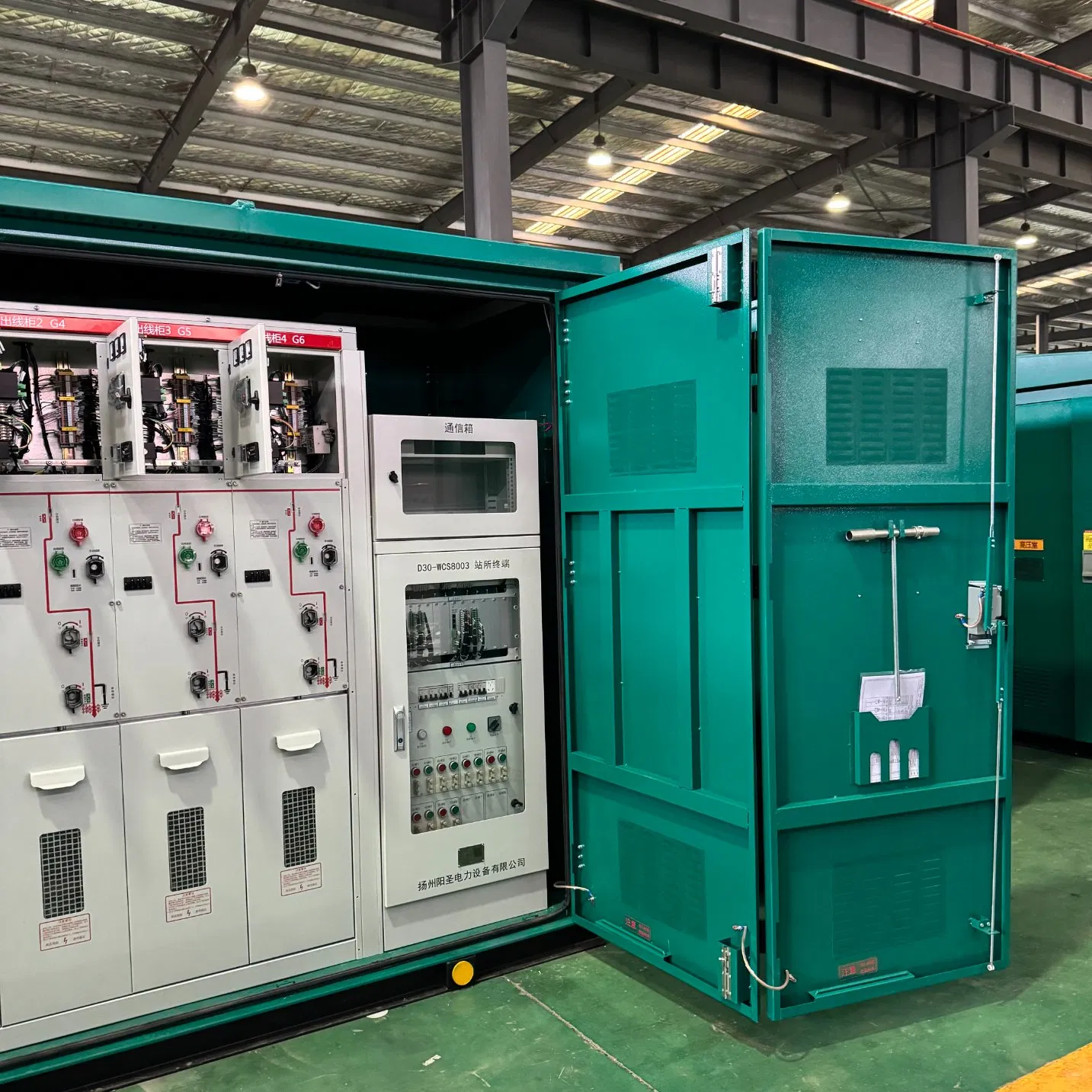

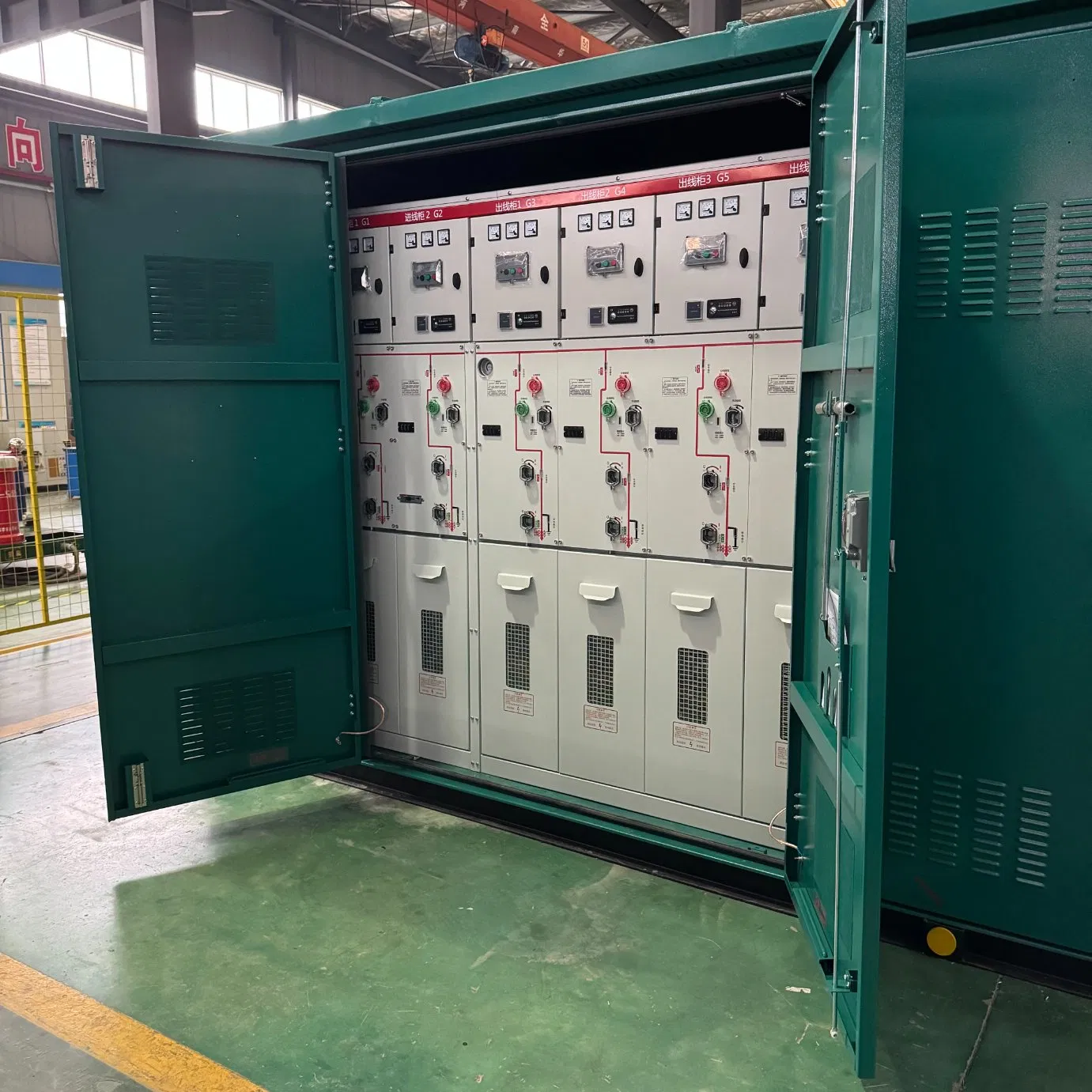

The interior can be flexibly configured with core units such as SF6 ring main units and semi-insulated ring main units, supporting the combination of multiple modules for incoming line, outgoing line, metering and protection.
3
Safe and Reliable Dual Protection
Equipped with a complete mechanical five-prevention interlock device to fundamentally eliminate misoperation; features short-circuit, overload and ground protection functions with an anti-condensation device.
4
Easy Installation and Low Maintenance
Adopting an integral prefabricated design, assembly and commissioning are completed in the factory. The front-of-cabinet design allows for full operation and inspection without professional climbing equipment.
5
Compact Footprint with Flexible Layout
Small area coverage allows for direct installation on roadsides or residential quarters without occupying large spaces. Customizable appearance integrates perfectly with the surrounding environment.
Frequently Asked Questions
Q1: What is the maximum voltage rating for this outdoor ring main unit?
A1: This unit is specifically designed for 12kV and 24kV medium-voltage power distribution systems.
Q2: Can the unit withstand extreme weather conditions?
A2: Yes, with an IP54 protection class and stainless steel housing, it operates stably in environments from -30℃ up to +60℃ and is resistant to salt spray and high humidity.
Q3: Is the configuration of the ring main unit customizable?
A3: Absolutely. The modular design supports flexible configurations for incoming lines, outgoing lines, metering, and protection modules to meet specific project needs.
Q4: What safety features are included to prevent operator error?
A4: The equipment is fitted with a complete mechanical "five-prevention" interlock device to fundamentally eliminate misoperation and ensure personnel safety.
Q5: What are the installation requirements for the XGW-12kV model?
A5: It features a prefabricated design. It only requires foundation fixing and site wiring, significantly reducing the civil engineering and installation time.
Q6: Are the colors of the cabinet customizable?
A6: Yes, while the standard color is State Grid Green, we can customize the exterior color to match your environment or corporate requirements.
