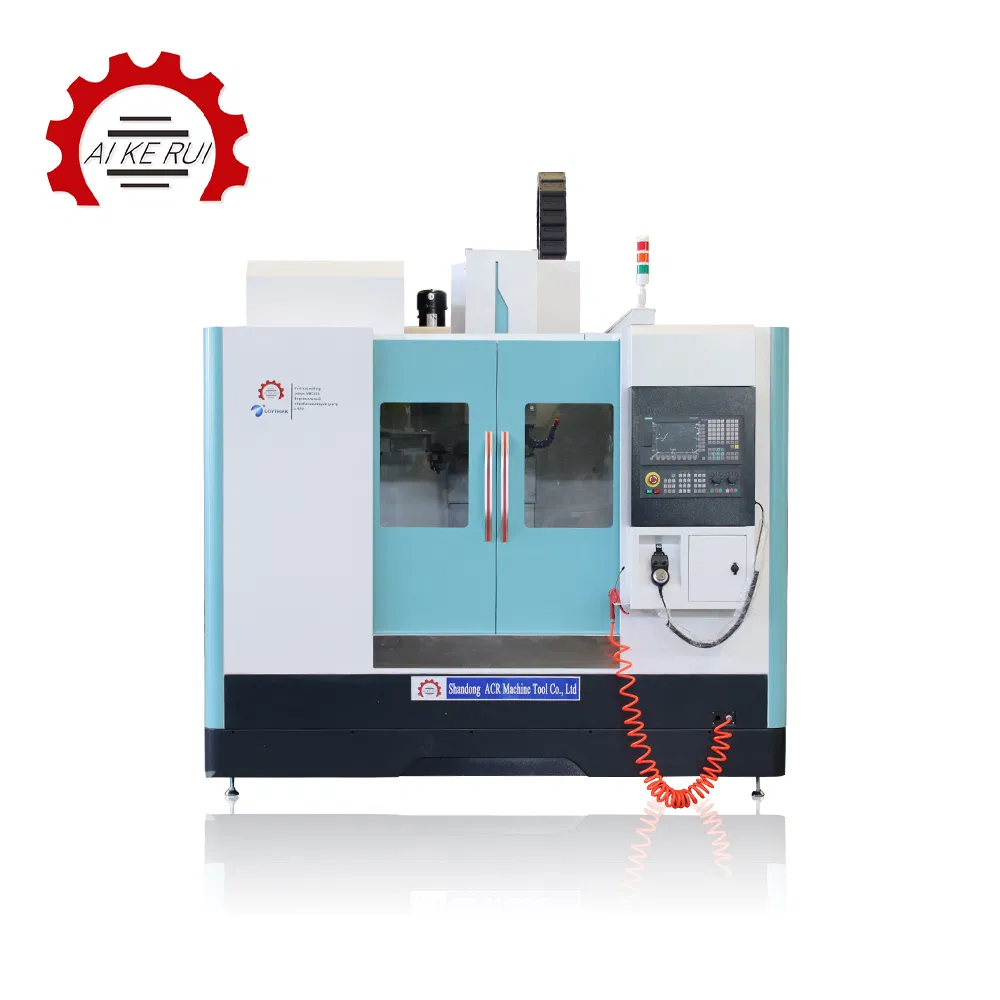

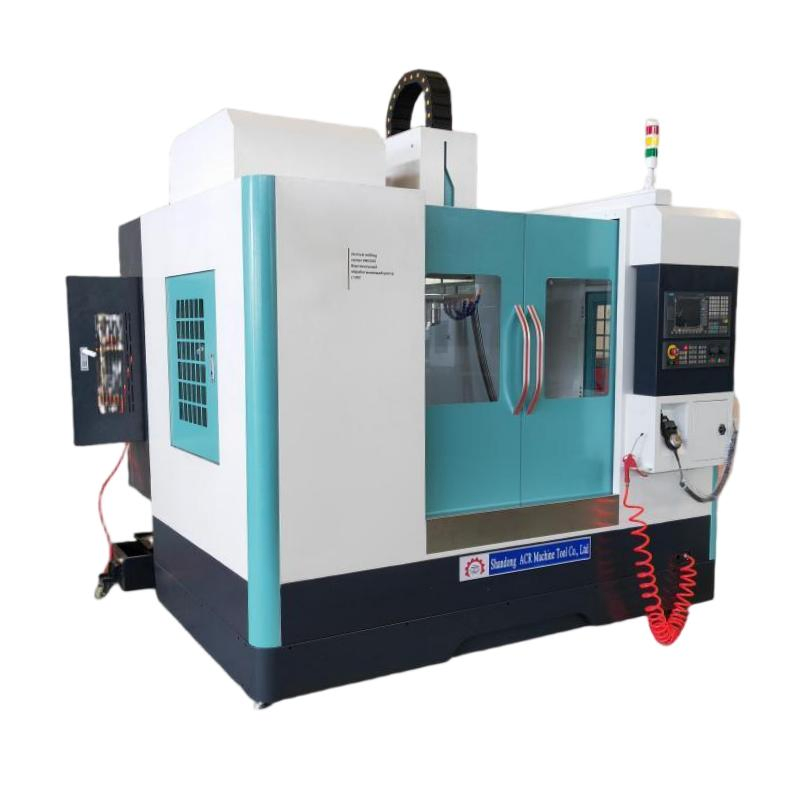

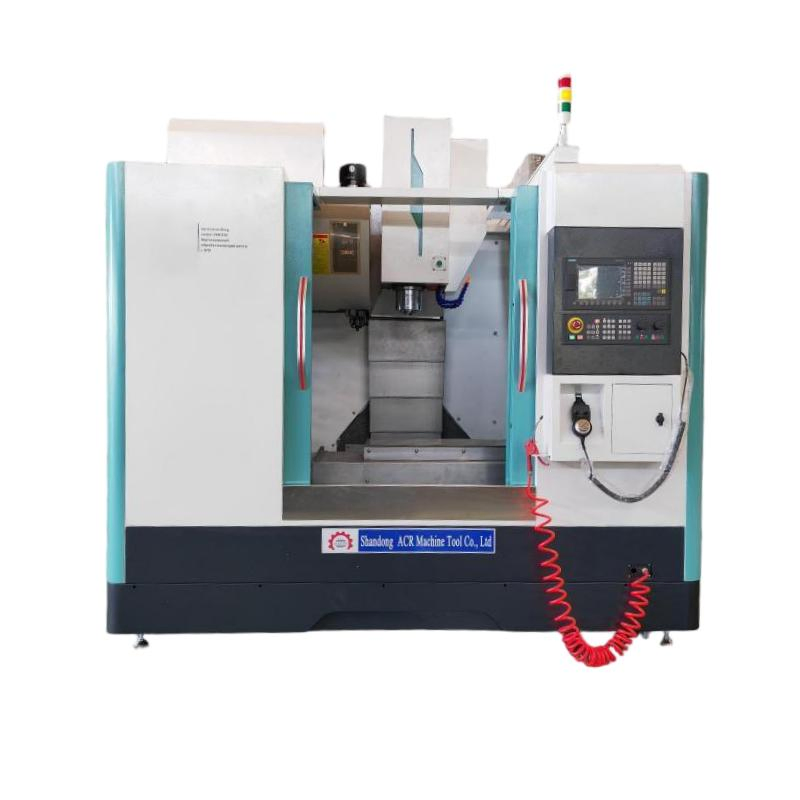

Cost-Effective Automatic Machining Center with Bt40 Motor for Precision Parts

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Year

■

Basic Info.

Model NO.

VMC650

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Contour Control

Control Method

Semi-Closed Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.04~0.05(mm)

Certification

GS, ISO 9001

X Axis Travel

650

Table Size

500*800

Spindle Speed

8000

Machine Weight

4500kg

■

Packaging & Delivery

Package Size

250.00cm * 220.00cm * 250.00cm

Gross Weight

4600.000kg

Lead Time

15 days (1 Set)

■

Product Description

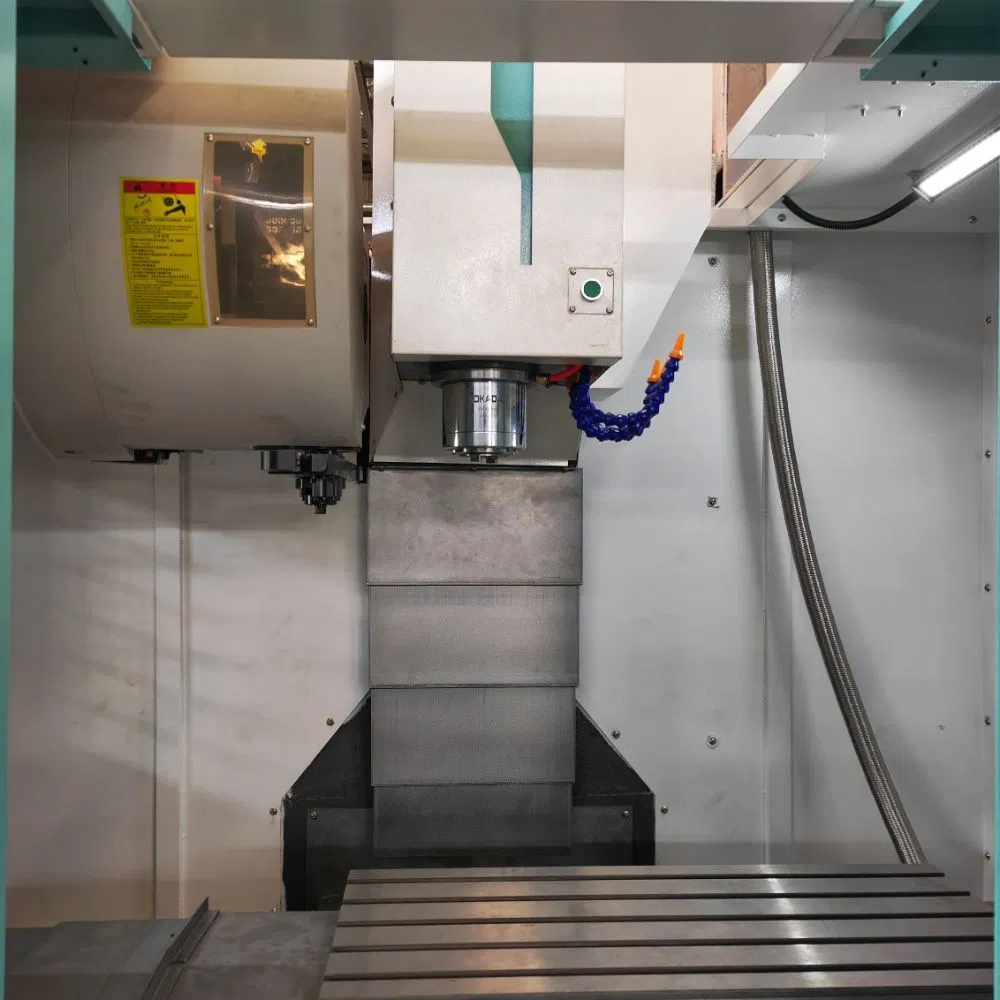

Extra-large column stability, "herringbone" column structure, high-speed displacement without vibration, no deformation. Rapid traverse speed up to 48m/min. Z-axis is driven by a braked servo motor, with no counterweight design to enhance drive performance. All three axes adopt roller linear guides with high rigidity, low noise, and low friction. The ball screw adopts pre-tensioned structure at both ends, and the servo motor and ball screw are directly connected for high positioning accuracy.

■

Technical Parameters

SPECIFICATIONS	Units	VMC650	VMC850	VMC855	VMC1160
Table size	mm	500*800	500*1000	550*1000	600*1200
X axis travel	mm	650	800	800	1100
Y axis travel	mm	500	500	550	600
Z axis travel	mm	500	500	550	600
Max. worktable load	kg	400	500	600	800
Max. spindle speed	rpm	8000	8000	8000	8000
Main motor power	kw	5.5	7.2	11	11
Tool change time	s	2.1	2.1	2	2
Positioning accuracy	mm	0.005/300	0.005/300	0.005/300	0.005/300
Machine weight	kg	4500	5200	5800	6800

■

Standard Configuration

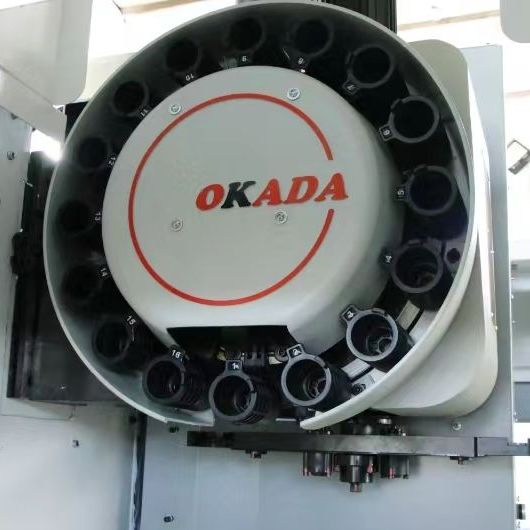

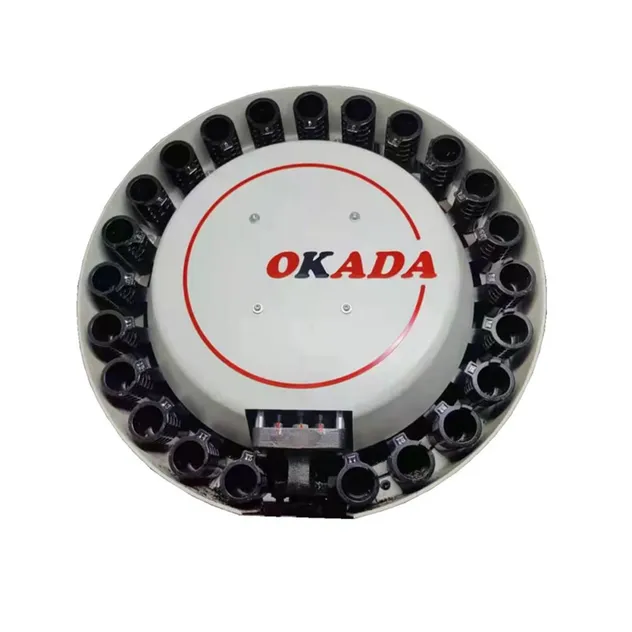

24 Tool Magazine

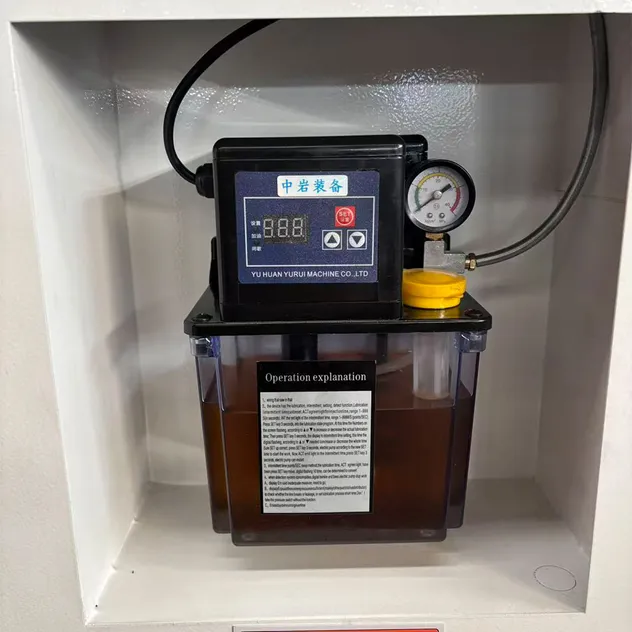

Lubrication System

Chip Conveyor

Cabinet Air Conditioner

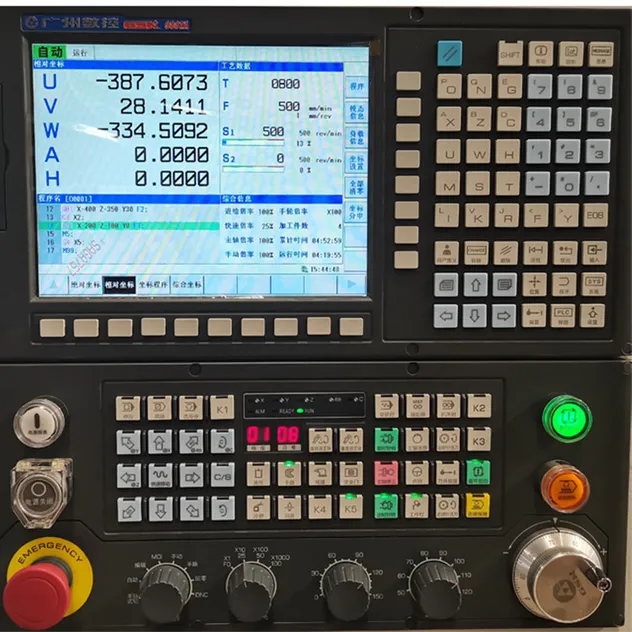

GSK System

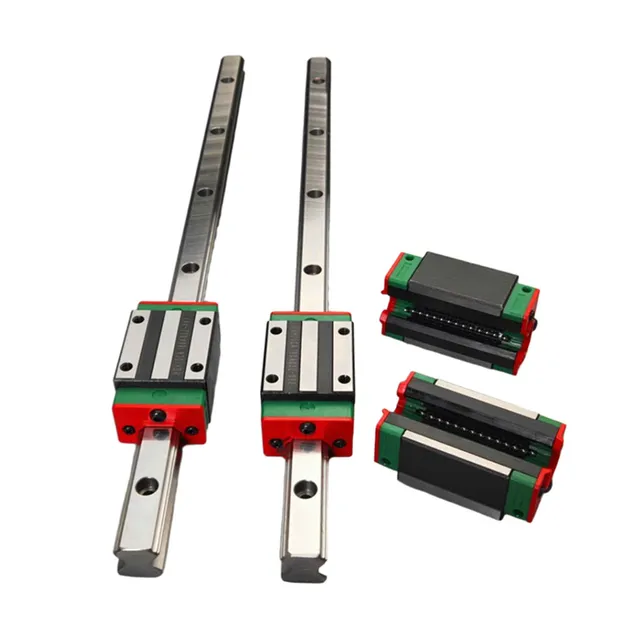

Linear Guide

■

Optional Configuration

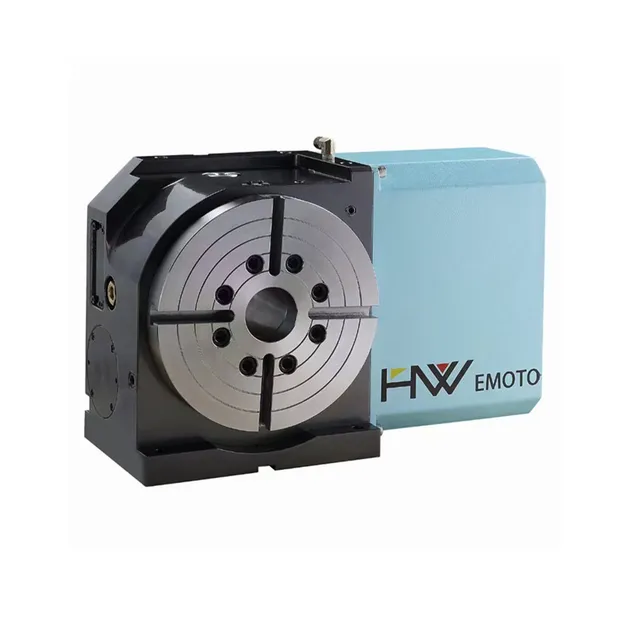

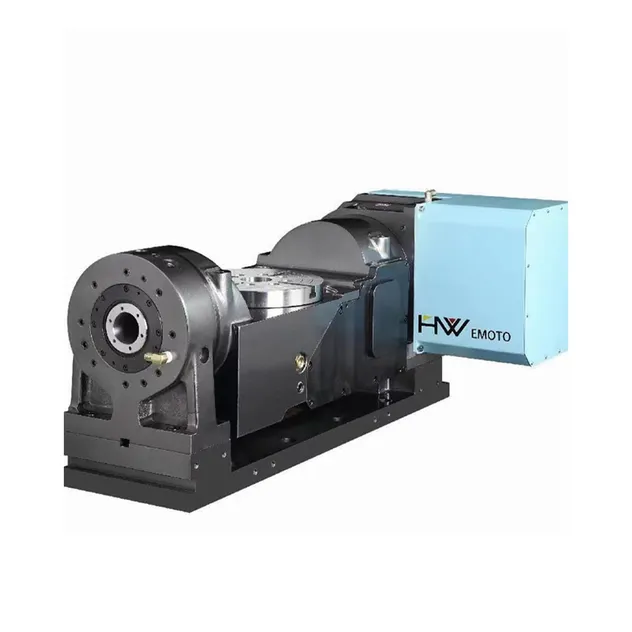

CNC 4th Axis

Direct-Drive Spindle

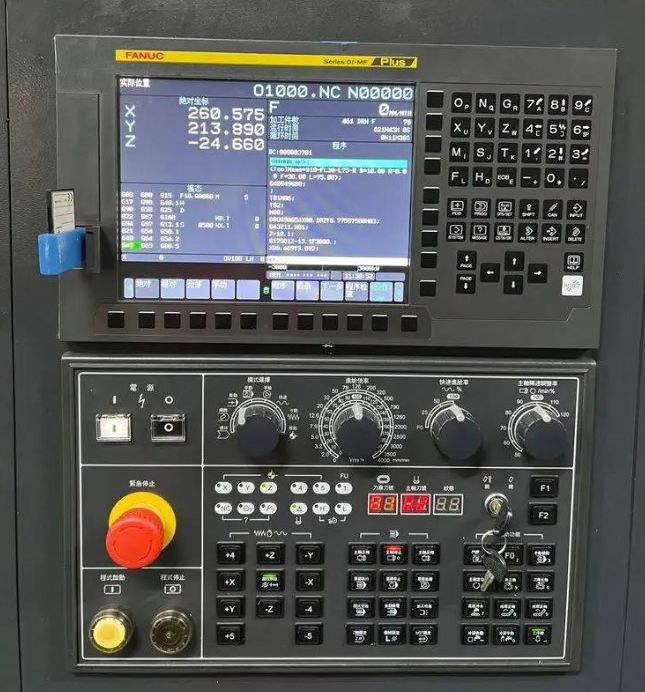

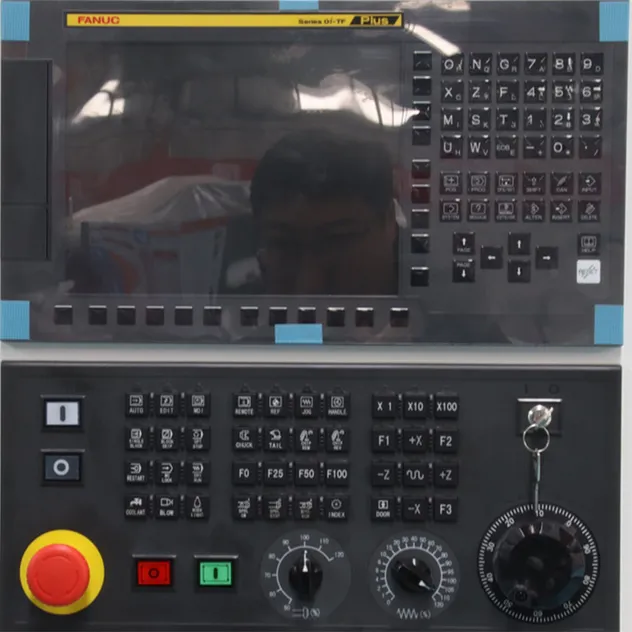

Fanuc System

■

Production Excellence

Our enterprise integrates product design, research, development, manufacturing, and sales. We specialize in CNC lathes, CNC milling machines, vertical and horizontal machining centers, and gantry machining centers. Our products are exported to North Korea, Angola, Kenya, South America, Southeast Asia, Russia, and the Middle East, receiving high praise from global customers.

■

Frequently Asked Questions

How can I choose the most suitable machine?

Please provide your technical specifications or product drawings. Our engineering team will analyze your requirements and recommend the most suitable model for your production needs.

What are your main product categories?

We specialize in a wide range of industrial equipment, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.

What are your standard trade terms?

We accept standard international trade terms including FOB (Free on Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight).

What are the available payment methods?

Typical terms include a 30% initial deposit via T/T at the time of order, with the remaining 70% balance due before shipment. We also accept Irrevocable LC at sight.

What is the Minimum Order Quantity (MOQ)?

The MOQ is generally 1 set. For certain low-cost auxiliary machines, the MOQ may vary. We also offer customization for specialized requirements.

Can machines be customized for specific parts?

Yes, if our standard products do not meet your exact requirements, we offer custom engineering services to modify configurations or designs according to your specific workpiece needs.
