Customizable Electrical High Voltage Compact Substation Switchgear

Send Inquiry

Product Description

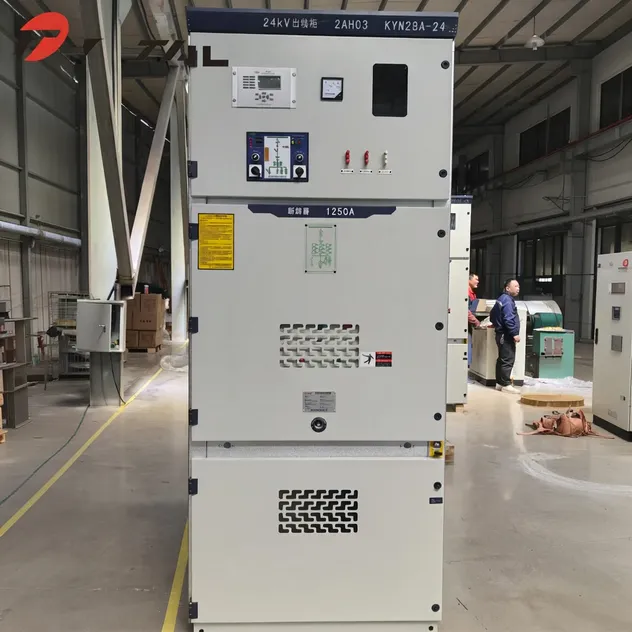

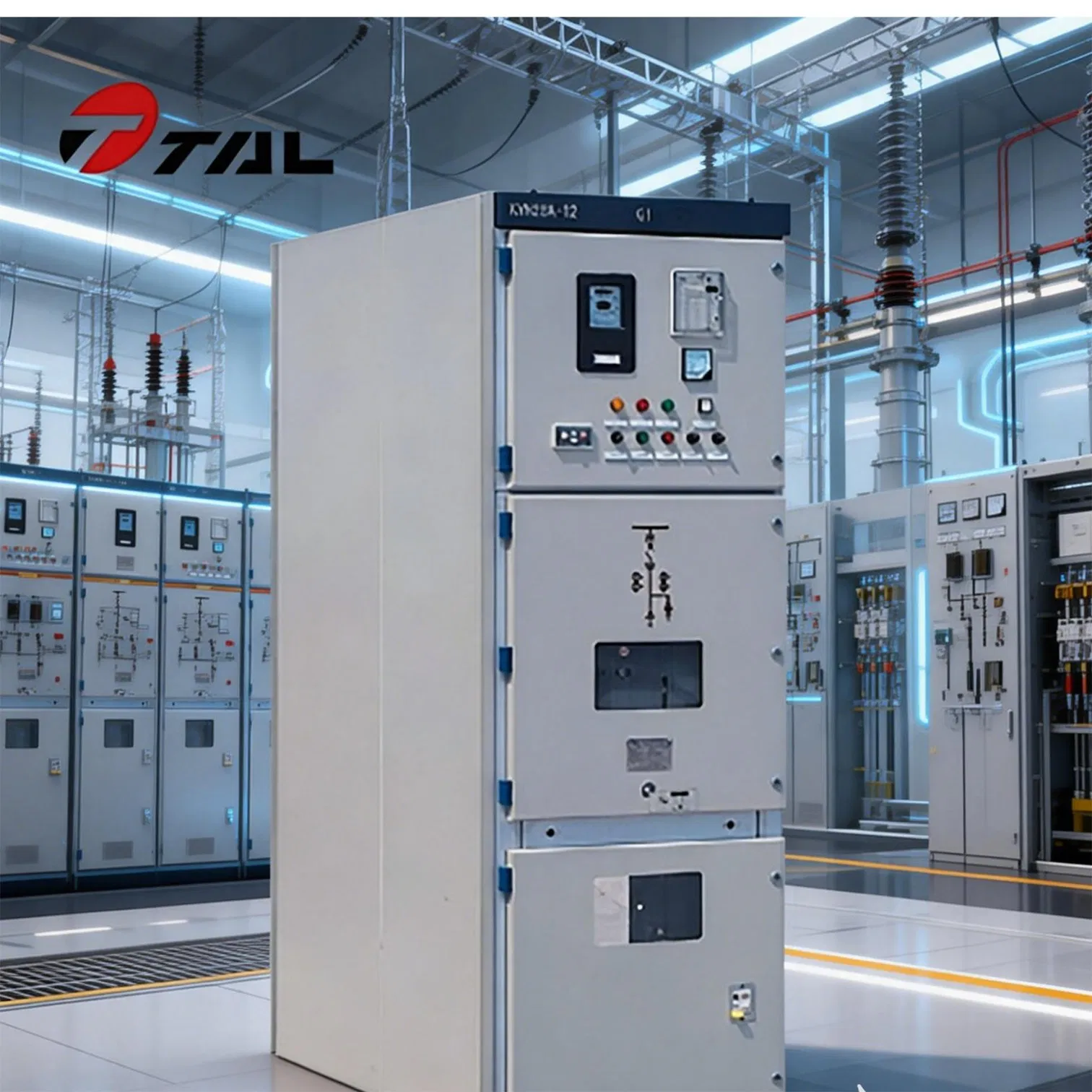

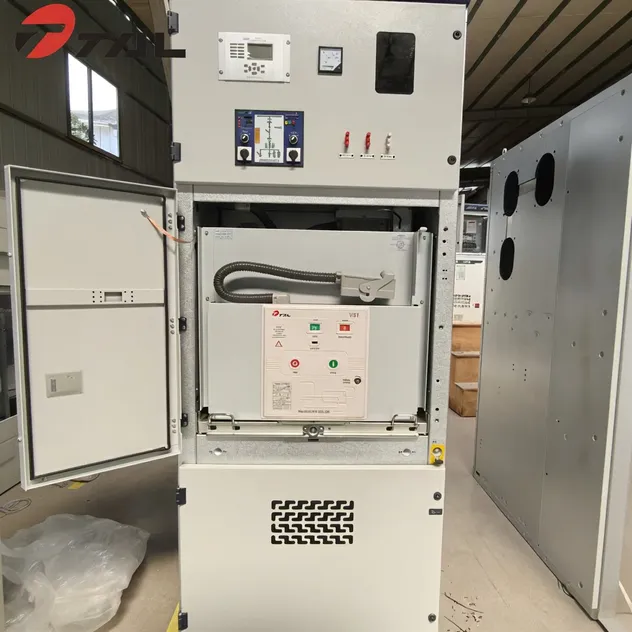

Armored Removable AC Metal-enclosed Switchgear

The KYN series air-insulated metal-enclosed withdrawable switchgear is a modular power distribution unit designed for medium/high-voltage electrical systems with withdrawable panels. The withdrawable unit can be fitted with a vacuum circuit breaker, isolation truck, PT truck, fuse truck, and other optional modules. Its core features include a fully enclosed metal-clad structure and removable functional modules.

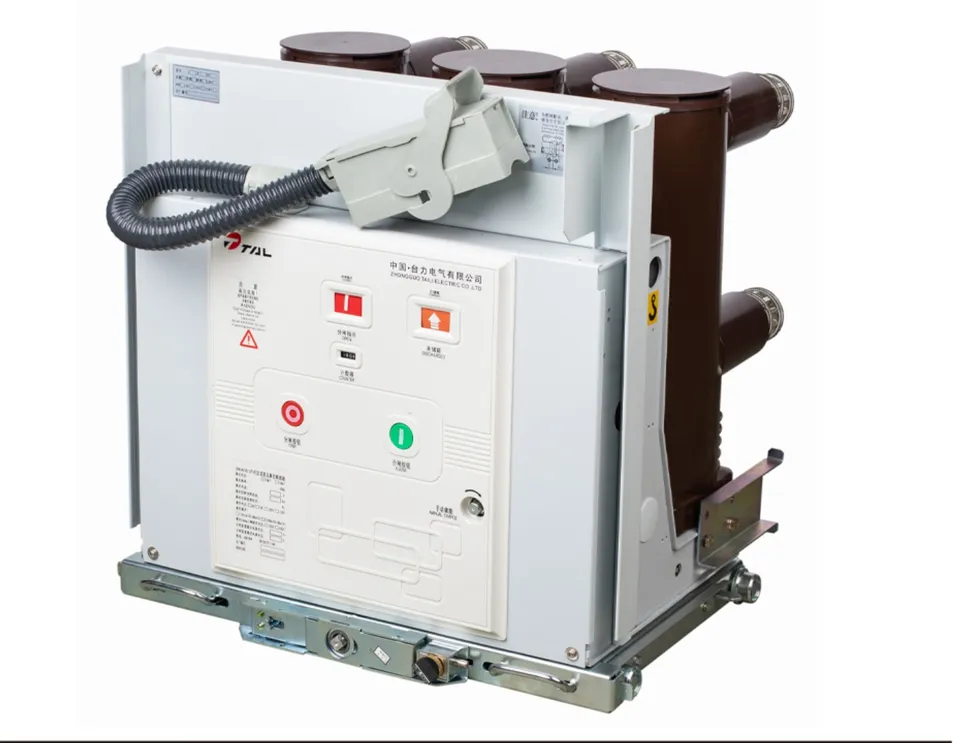

Indoor High-Voltage Vacuum Circuit Breaker

It can quickly cut off fault currents to protect the power system, offering high breaking capacity and long service life.

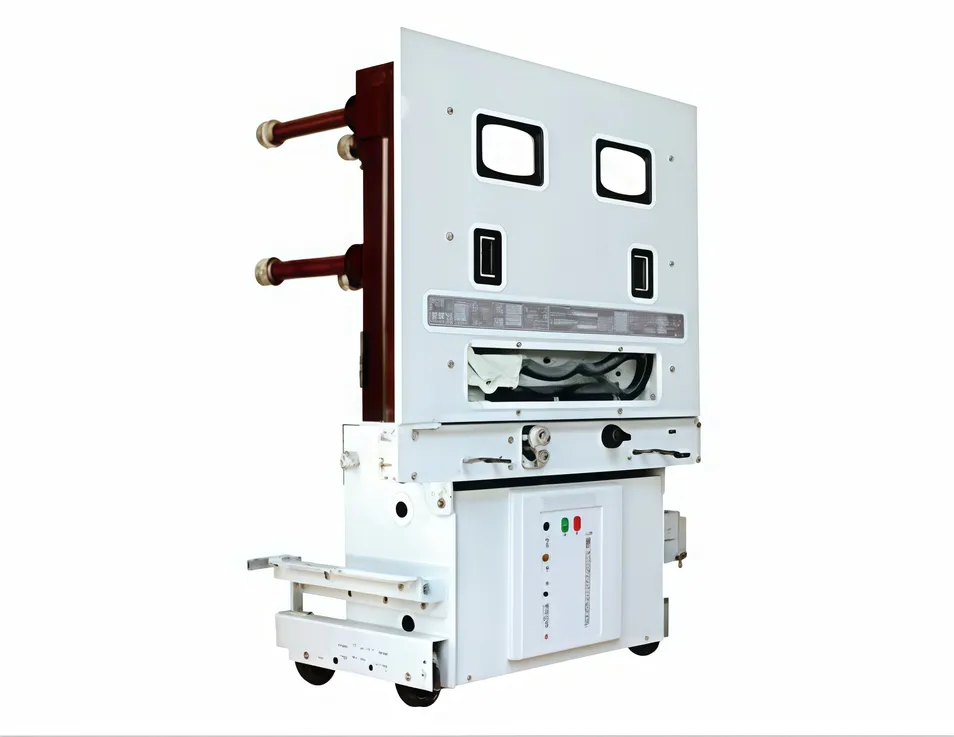

Vacuum Circuit Breaker Handcart

Controls power flow and protects systems by interrupting short-circuit currents with high reliability and ease of maintenance.

Technical Specifications

Items	Unit	Data
Rated voltage	kv	3.6/7.2/12
Rated frequency	Hz	50
VCB Rated current	A	630/1250/1600/2000/2500/3150
Switchgear current	A	630/1250/1600/2000/2500/3150
Rated short withstand current(4s)	kA	16/20/25/31.5/40/50
Rated peak withstand current	kA	40/50/63/80/100/125
Rated short breaking current	kA	16/20/25/31.5/40/50
Rated insulation level (1 min)	kv	24/32/42
Lighting impulse withstand voltage	kv	40/60/75
Protection class	-	IP4X

Customization Service

Need specific voltage, capacity, protection class, or environmental requirements? Our team conducts technical surveys to identify your application scenario (power/railway/mining) and environmental conditions to deliver a tailored solution that meets your budget.

Certifications

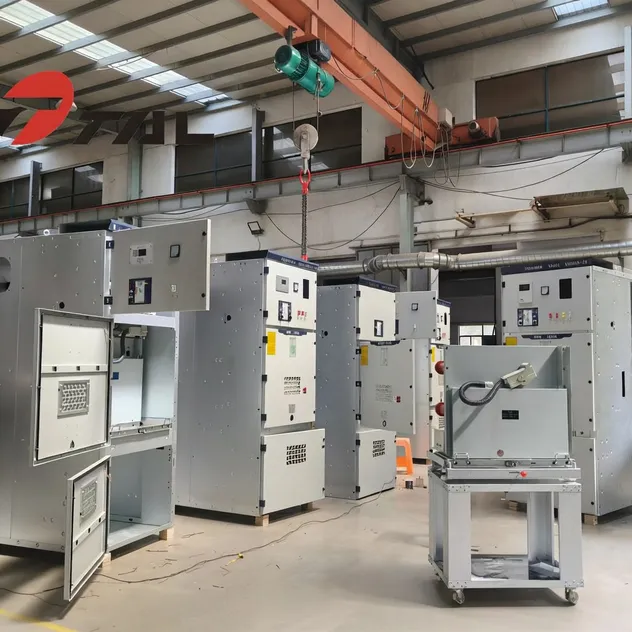

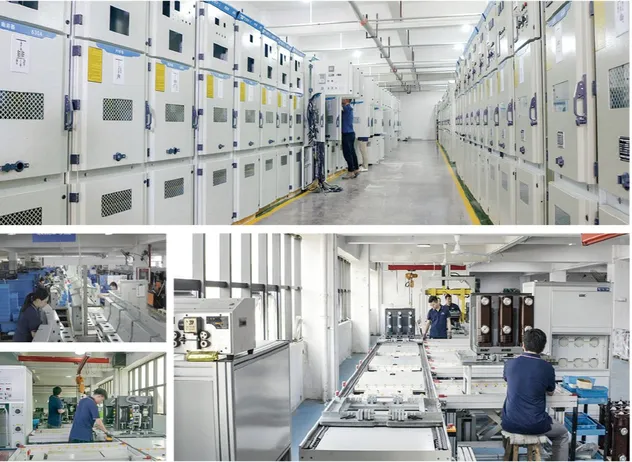

Professional Manufacturing

▶

Over 35 Years of Expertise

Dry type & Oil-immersed transformers
Compact substations
Advanced Switchgears
High-performance Vacuum circuit breakers

Applications: Power grids, railways, mining, factories, and commercial buildings.

After-Sales Service

Professional Technical Support
7×24-hour consulting and remote guidance for installation and operation.

Comprehensive Guarantee
Standardized warranty service with free repair or replacement for non-human damage.

Maintenance & Training
Customized training courses and regular equipment inspection services.

Packaging & Shipping

Trade Terms

Item	Details
Payment Term	T/T, 30% deposit + 70% balance against BL copy
Delivery Time	15–20 working days
Packaging	Strong seaworthy plywood case
Warranty	24 months from BL date
Material Option	Copper or aluminum (Copper recommended)
OEM Service	Available for custom branding and design

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a dedicated manufacturer. We design customized products according to international standards and produce high-quality transformers, switchgears, and power substations.

How do you ensure product quality?

All products undergo 100% inspection and testing before delivery. We provide test reports and videos, and customers can conduct online video inspections.

How long does it take to get a quote?

For standard products, we quote within 1 hour. For customized solutions requiring engineering design, we provide a detailed quote within 24 hours.

What is your standard product warranty?

We provide a 24-month quality warranty for all products under normal operating conditions. Extended warranty options are also available.

Can you handle international shipping under DDP terms?

Yes, we work with professional logistics partners to offer competitive DDP and DAP shipping solutions, ensuring punctual delivery to your destination.

What certifications do your products carry?

Our products are certified with CE, CCC, and CQC. We can also arrange other certifications like ISO or SGS upon client request.
