Basic Specifications
Certification
ISO9001:2000, VDE, CCC, CE
Operation Voltage
Low Voltage
Application Range
Industry, Factories, Buildings, New Energy, etc
Protection Grade
IP30-IP66
Rated Voltage
AC 380V/220V, 50Hz
Rated Current
100A - 2000A
Short-Time Current
16ka, 25ka, 31.5ka, 50ka
Installation Method
Floor-Mounted, Wall-Mounted
Professional Power Distribution Solutions
We are deeply engaged in the industrial electrical field, focusing on the core business of customizing complete sets of power distribution cabinets. We provide new factory supporting services, old factory renovation and special scenario adaptation services. With precise customization, efficient delivery and reliable quality, we empower customers to achieve safe commissioning and cost reduction & efficiency improvement.
Core Business & Services
1
New Factory Supporting: Power planning adaptation, project node coordination, and assisting in early commissioning for architectural and new energy needs.
2
Power Distribution Renovation: Old cabinet replacement and energy efficiency optimization designed with minimum downtime.
3
Special Scenario Customization: High and low temperature resistance, corrosion resistance, and dust-free performance for chemical and new energy industries.

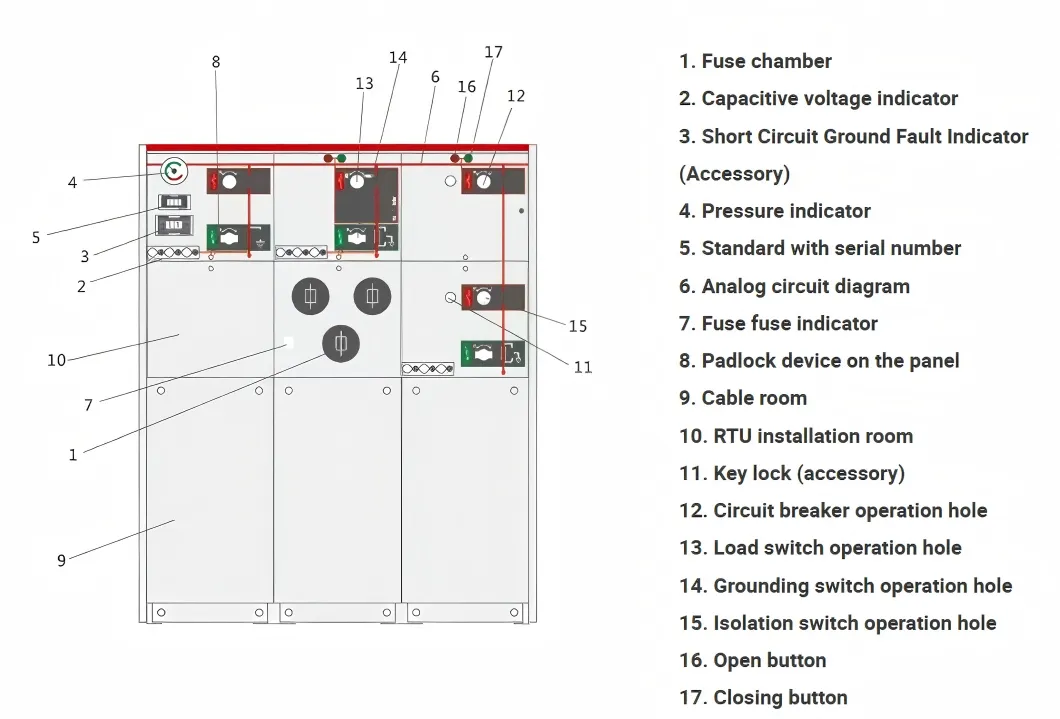

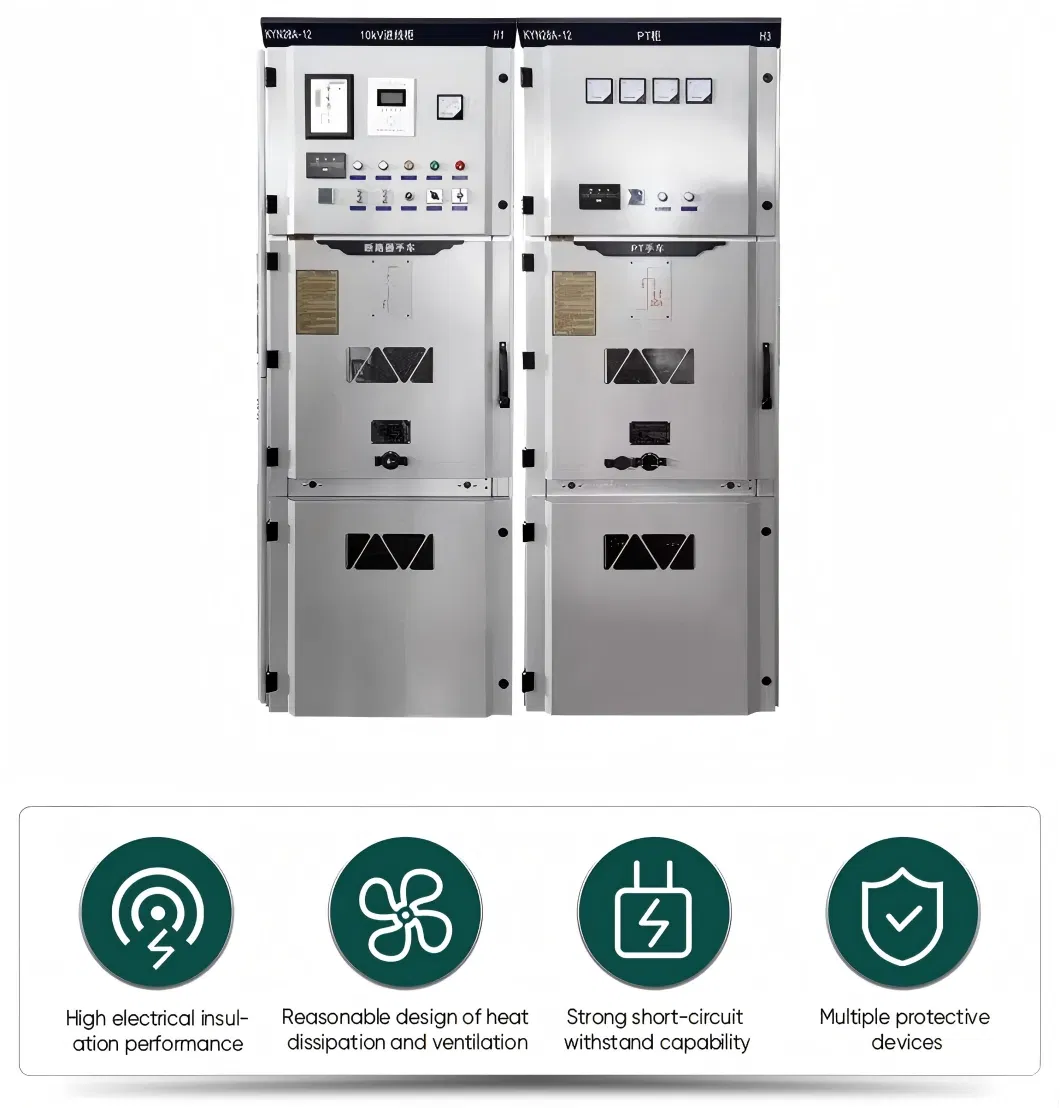

Internal Structure & Selling Points

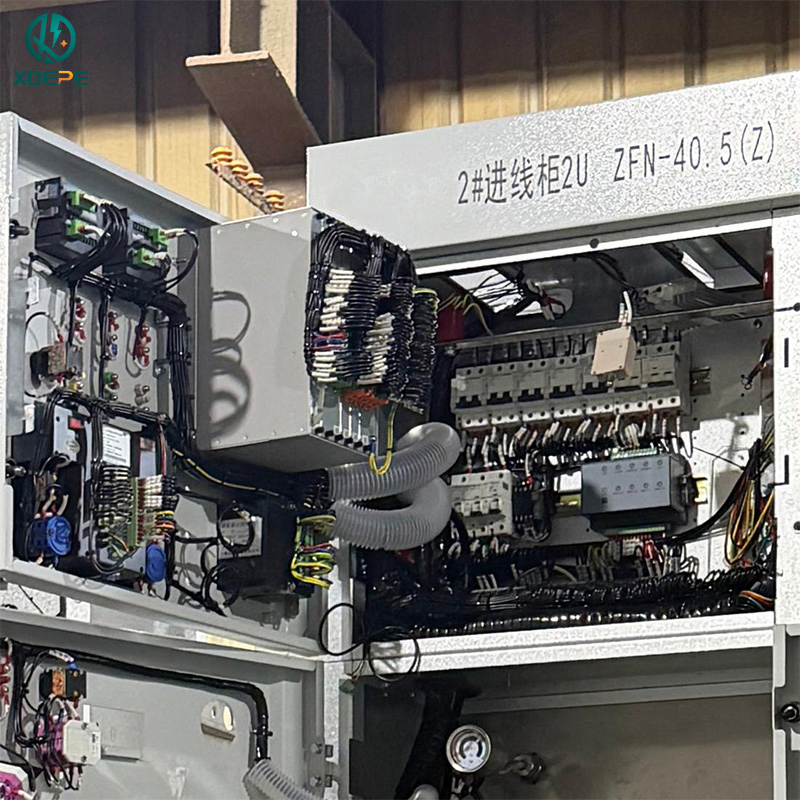

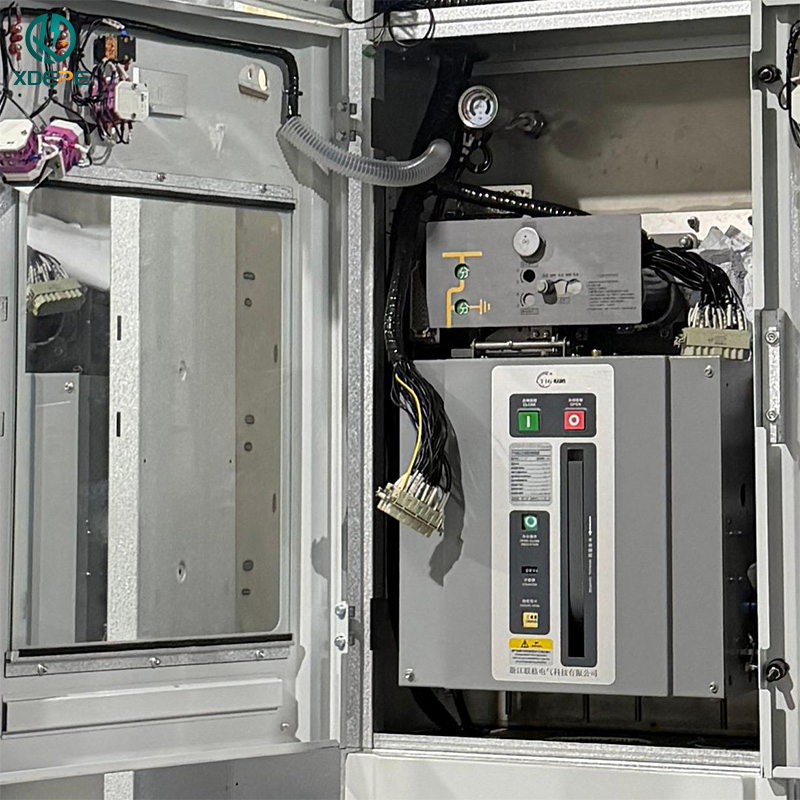

The core components of the high-voltage switchgear adopt first-line brand configurations to ensure long-term stable operation. The main circuit breaker unit is a medium-voltage vacuum circuit breaker equipped with high-precision voltage and current transformers, intelligent integrated protection devices and secondary control loop modules.
Key Features:
- All-metal armored enclosed structure with "five-prevention" mechanical interlocking.

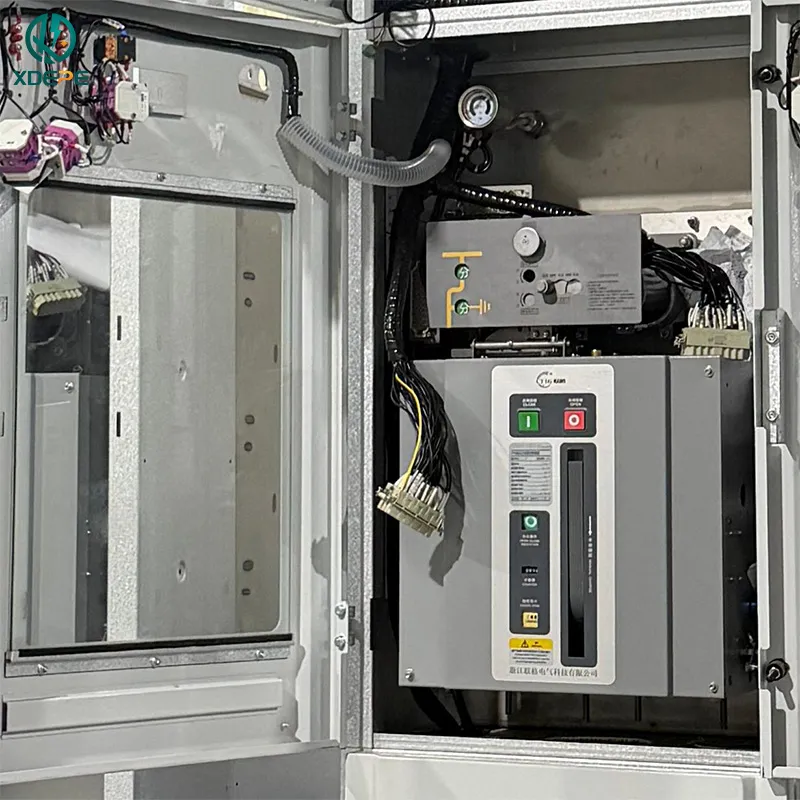

- Maintenance-free vacuum circuit breaker with long mechanical life.
- Modular splicing structure for flexible configuration (incoming, outgoing, PT, metering).
- Protection level meeting indoor IP4X standards.
Technical Parameters
| Rated Voltage | 3.6kV, 7.2kV, 12kV, 24kV, 40.5kV |
| Rated Current | 630A to 5000A |
| Rated Frequency | 50Hz / 60Hz |
| Short-circuit Breaking | 25kA, 31.5kA, 40kA, 50kA |
| Mechanical Lifespan | Vacuum circuit breaker ≥ 20000 times |
| Protection Level | Shell IP4X, Compartment IP2X |
Frequently Asked Questions
1. Are you a professional manufacturer?
Yes, we are a professional manufacturer specializing in electrical distribution equipment with years of experience in the industrial automation industry.
2. What types of products can I purchase?
We provide complete sets of low voltage distribution cabinets, drawer cabinets, distribution boxes, ATS cabinets, generator synchronization panels, and medium/high voltage switch cabinets.
3. How can I request a customized quotation?
Please provide detailed technical specifications, a Single Line Diagram (SLD), or related engineering drawings. Our team will review the requirements and provide a quote within 2 days.
4. What is the typical lead time for orders?
Generally, it takes about 15 days for samples and 25-30 days for mass production, depending on the specific items and order quantity.
5. What are your standard payment terms?
We accept various methods including T/T and L/C. Typically, a 30% deposit is required, with the remaining 70% balance paid after the goods are ready for shipment.
6. How is the final price of a distribution cabinet calculated?
Pricing is determined comprehensively based on the technical specifications, component configuration, total quantity, and customization requirements.
