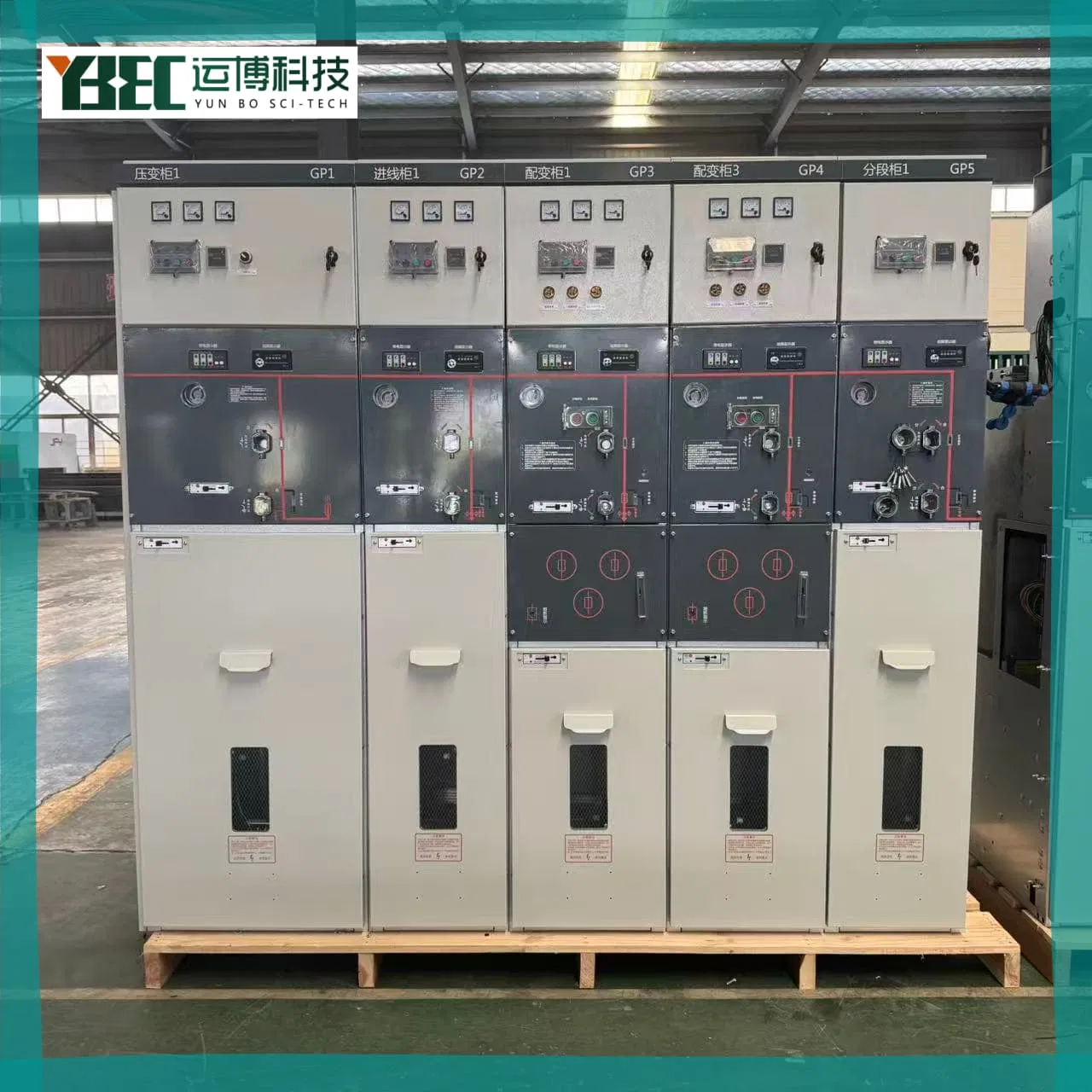

Premium Gas Insulated Rmu for High Voltage Power Distribution

1 / 5

Premium Gas Insulated Rmu for High Voltage Power Distribution

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SBRT16

Voltage Level

Medium Voltage

Installation

Removable

Structure

Cabinet

Current

630A/1250A

OEM Service

Available

Rated Voltage

12kv/24kv/35kv

Protection Degree

IP65

Frequency

50Hz (60Hz Optional)

HS Code

8537209000

Production Capacity

500/Months

Origin

China

📦 Packaging & Delivery

Package Size

800.00cm * 1500.00cm * 2000.00cm

Gross Weight

500.000kg

Transport Package

Export Standard Wooden Case

⚡ Product Description

Dual Configurations

SF6 type: Superior insulation/arc-extinguishing for harsh industrial environments.

Eco-friendly type: Dry air/N2 alternative (GWP=0, zero emissions) to meet "Dual Carbon" goals.

All-Condition Reliability

304 stainless steel gas tank (IP67) resists salt spray, dust, and moisture; stable at high altitudes.

Annual leakage: ≤0.01% (SF6) / ≤0.025% (eco).

Low Operating Cost

SF6 model: 30-year maintenance-free; Eco model: >10-year service interval.

Load switch (5,000 cycles) / vacuum breaker (10,000 cycles).

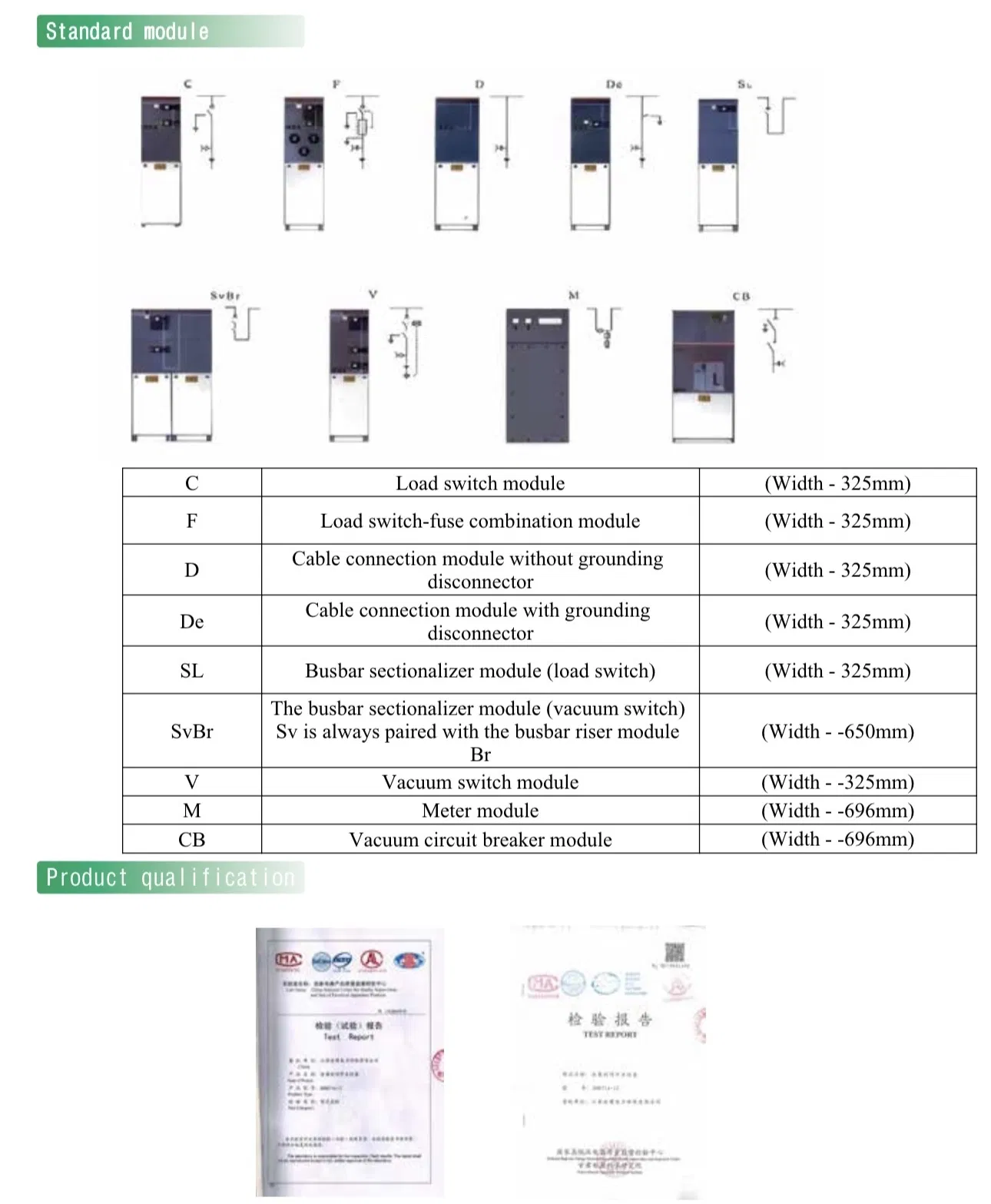

Compact & Flexible

325mm minimum width for tight spaces; modular design for easy expansion.

Factory pre-assembly cuts on-site installation work by 80%.

Item	Details	Item	Details
Product Model	SBRT16	Structure	Fully Insulated & Sealed Split/Common-Box
Installation	Indoor/Outdoor Floor-Mounted	Color	Customizable (RAL 7035)
Insulation	SF6 / Eco-Friendly Gas (N2, Dry Air)	Protection Class	IP65
Frequency	50Hz (60Hz optional)	Standards	GB3906, IEC62271-200
Material	Galvalume Sheet + Stainless Steel	Rated Voltage	12kV

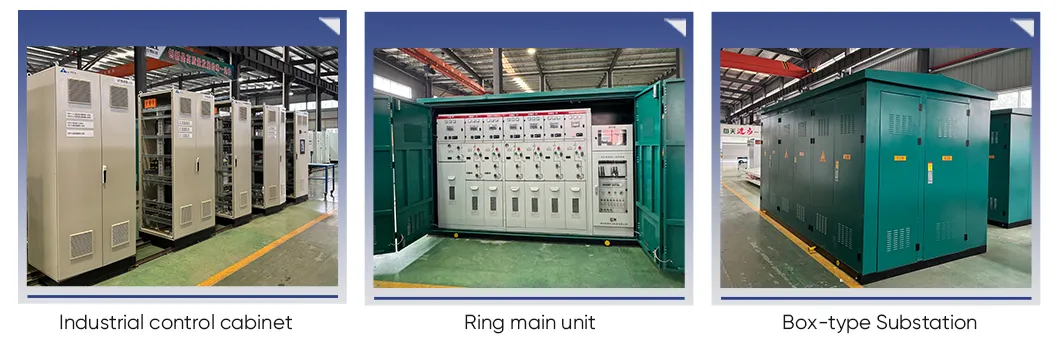

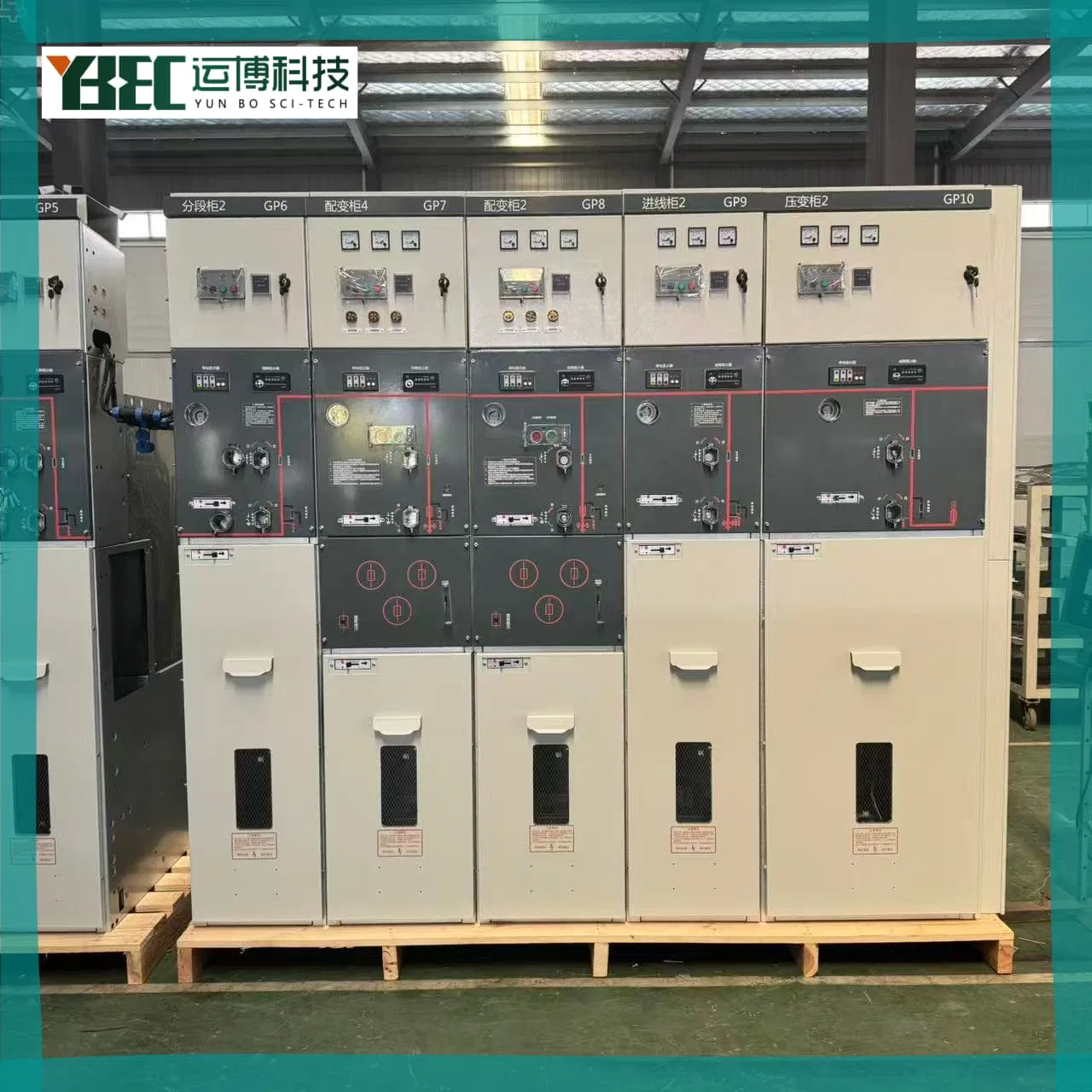

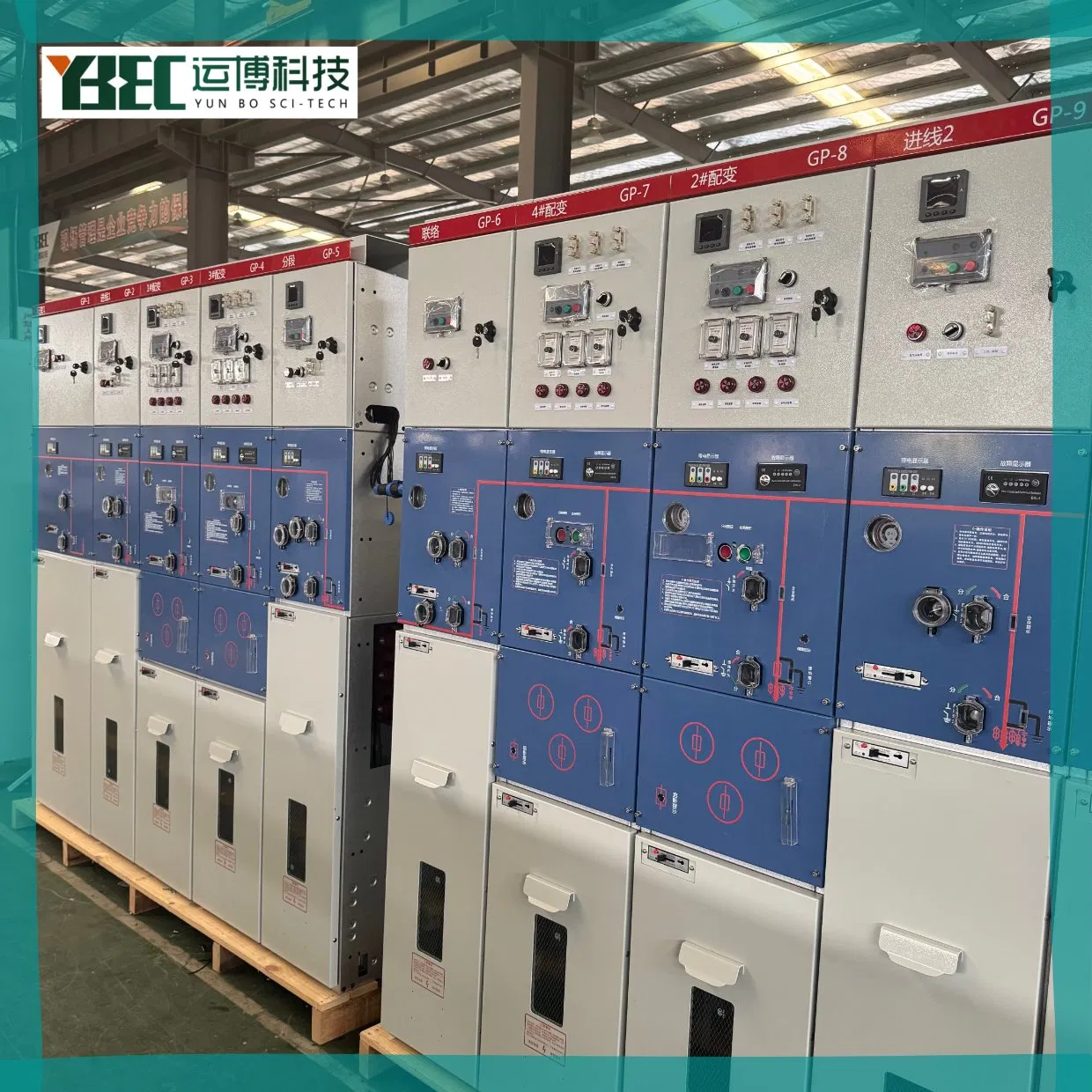

🚀 Main Product Display

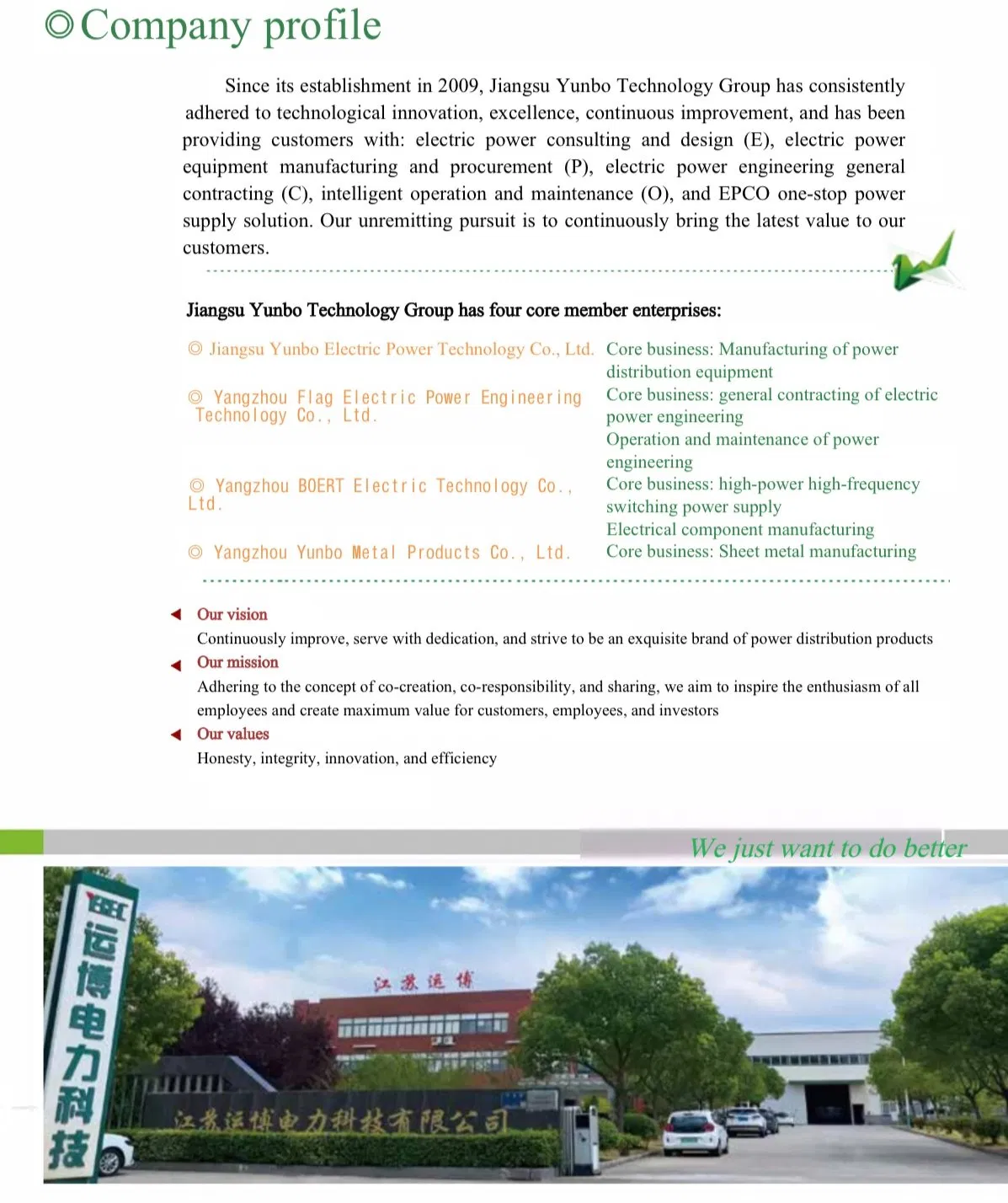

🏢 Company Overview

⭐ Company Advantages

📜 Certifications

🌍 Exhibition

🚢 Packaging & Shipping

❓ Frequently Asked Questions

What are the available insulation options for the SBRT16 RMU?

We offer two configurations: the SF6 type for superior insulation in harsh environments, and the Eco-friendly type which uses Dry Air or N2 (GWP=0) to meet green energy requirements.

What is the expected service life and maintenance requirement?

The SF6 model is designed to be maintenance-free for 30 years. The eco-friendly model has a service interval of over 10 years, with a corrosion-resistant cabinet designed for a 20+ year lifespan.

Is the unit suitable for coastal or high-altitude areas?

Yes. The 304 stainless steel gas tank is rated IP67 and is specifically designed to resist salt spray, dust, and moisture, ensuring stable operation in coastal and high-altitude locations.

Does this RMU support smart grid automation?

Absolutely. It supports online temperature and pressure monitoring and is compatible with the IEC 61850 protocol for remote and unattended operation.

What are the installation benefits of the modular design?

The modular design and compact 325mm minimum width allow for installation in tight spaces. Factory pre-assembly reduces on-site installation and commissioning work by up to 80%.

What protection standards does the equipment meet?

The equipment is built to IP65/IP67 protection degrees and complies with international standards including GB3906 and IEC62271-200.
