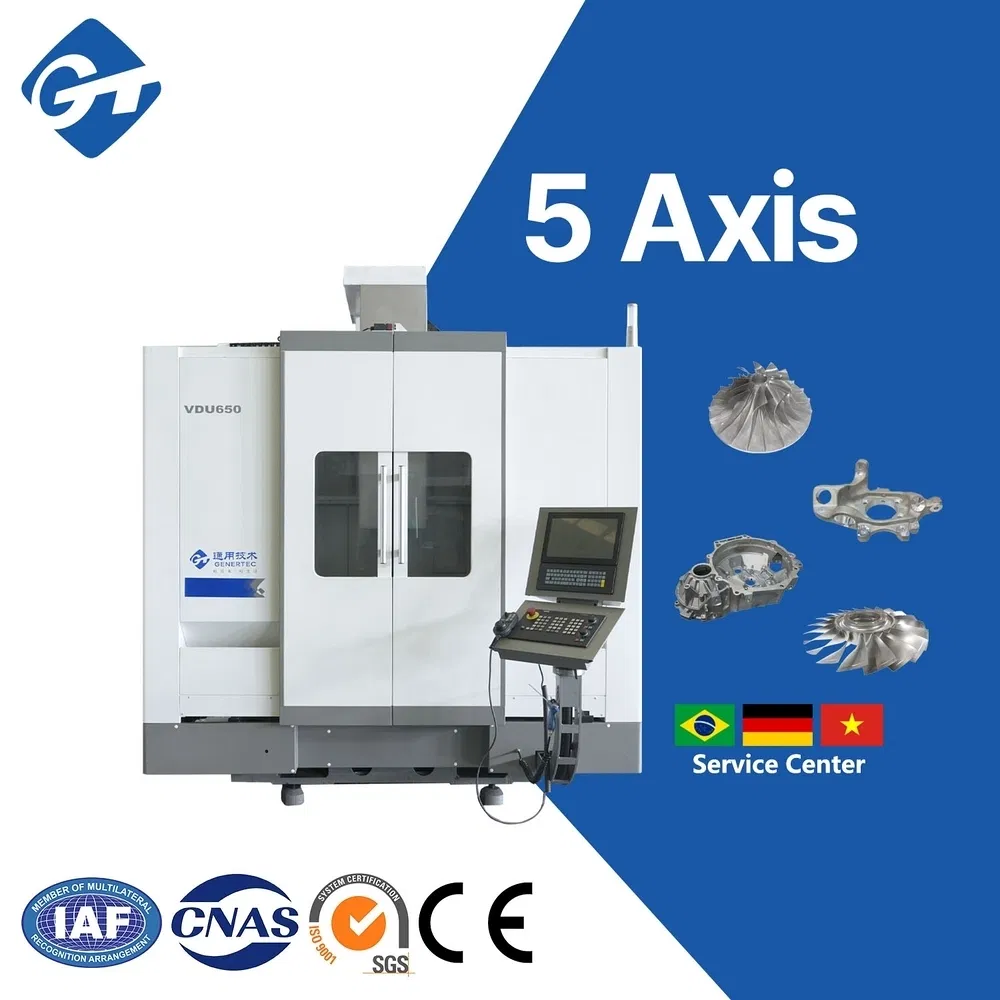

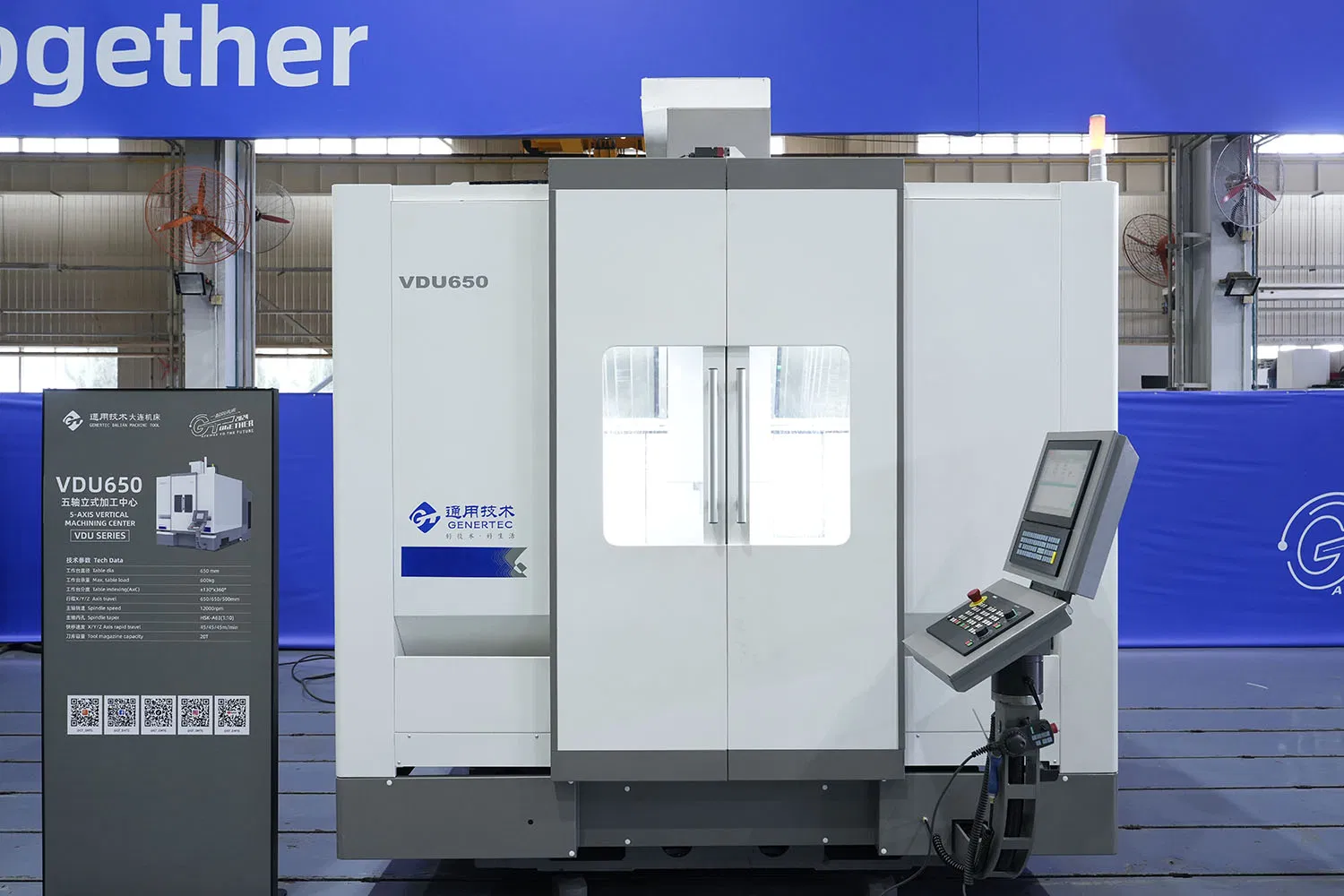

The VDU650 five-axis vertical machining center represents the next generation of high-performance CNC technology. Featuring a robust gantry structure, this machine is specifically engineered for complex processing of multi-plane and spatial curved surface parts.
Ideal for manufacturing critical components such as impellers, turbine blades, marine propellers, and heavy-duty engine crankshafts. With a single clamping setup, the machine seamlessly executes milling, boring, drilling, reaming, and tapping processes.
| VDU650 TECHNICAL SPECIFICATIONS | |
|---|---|
| Table Indexing (A Axis x C Axis) | ±130° x 360° |
| X/Y/Z Axis Rapid Traverse | 45/45/45 (Optional 60/60/60) m/min |
| Spindle Motor Power | 8 kW |
| Max. Spindle Speed | 12,000 (Optional 15,000) rpm |
| Tool Magazine Capacity | 20T (Optional up to 60T) |
| Tool Shank Type | HSK-A63 |
| X/Y/Z Positioning Accuracy | 0.008 mm |
| CNC Controller | SIEMENS ONE |
| Machine Weight | 15,000 kg |
