Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection
Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection
Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection
Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection
Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection
1 / 5
Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection
Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection
Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection
Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection
Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection

Fixed Drone Detection and Gnss Spoofing System for Power Plant Protection

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model:Fanshine Guardian Series ST
Spoofing Range:500m-1000m (Adjustable)
Protection Rating:IP66
Origin:China
Production Capacity:50/Month
Product Gallery

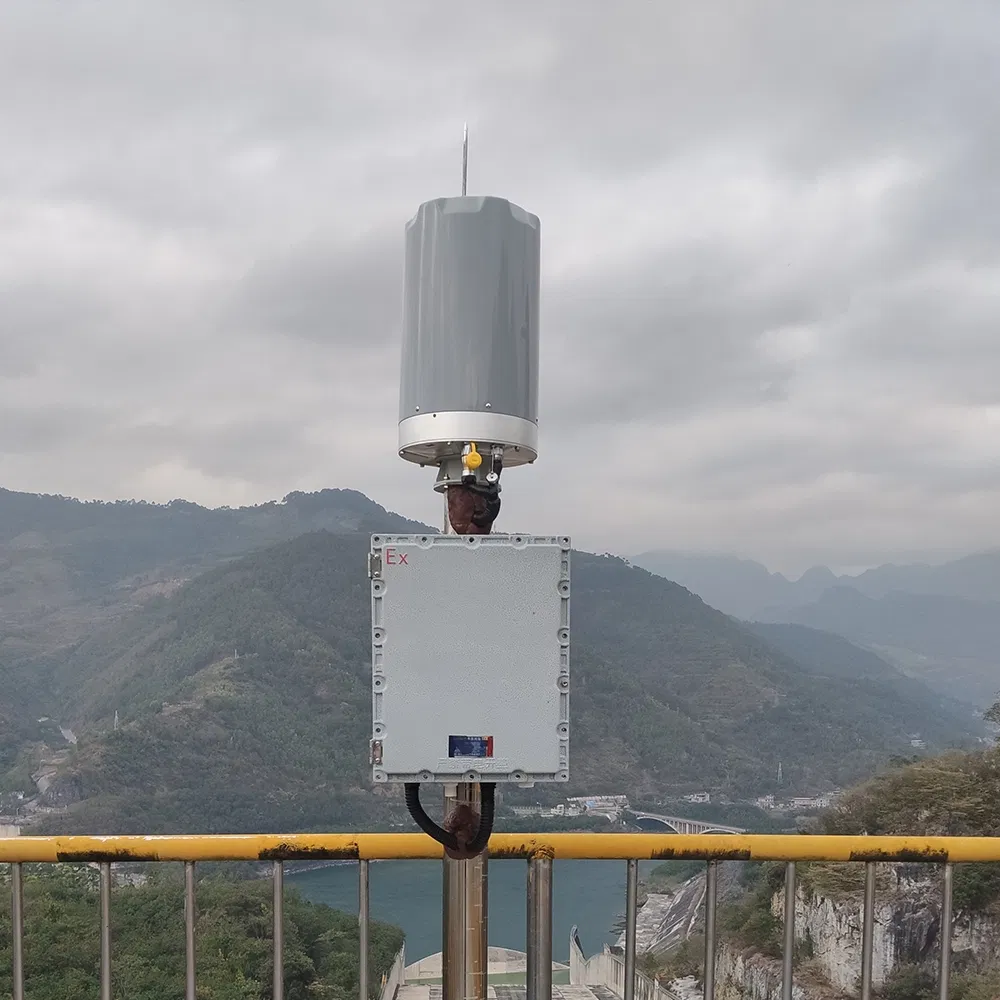

Guardian ST Drone Detection 1

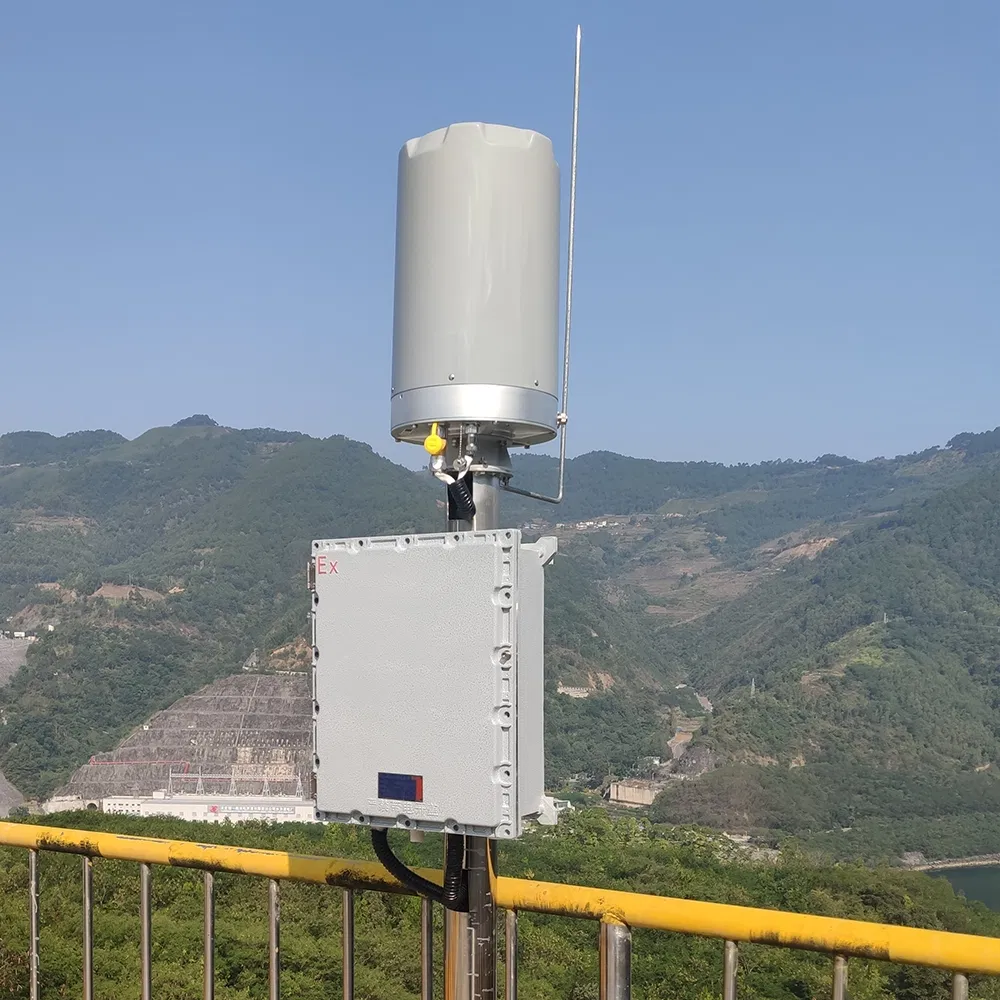

Guardian ST Drone Detection 2

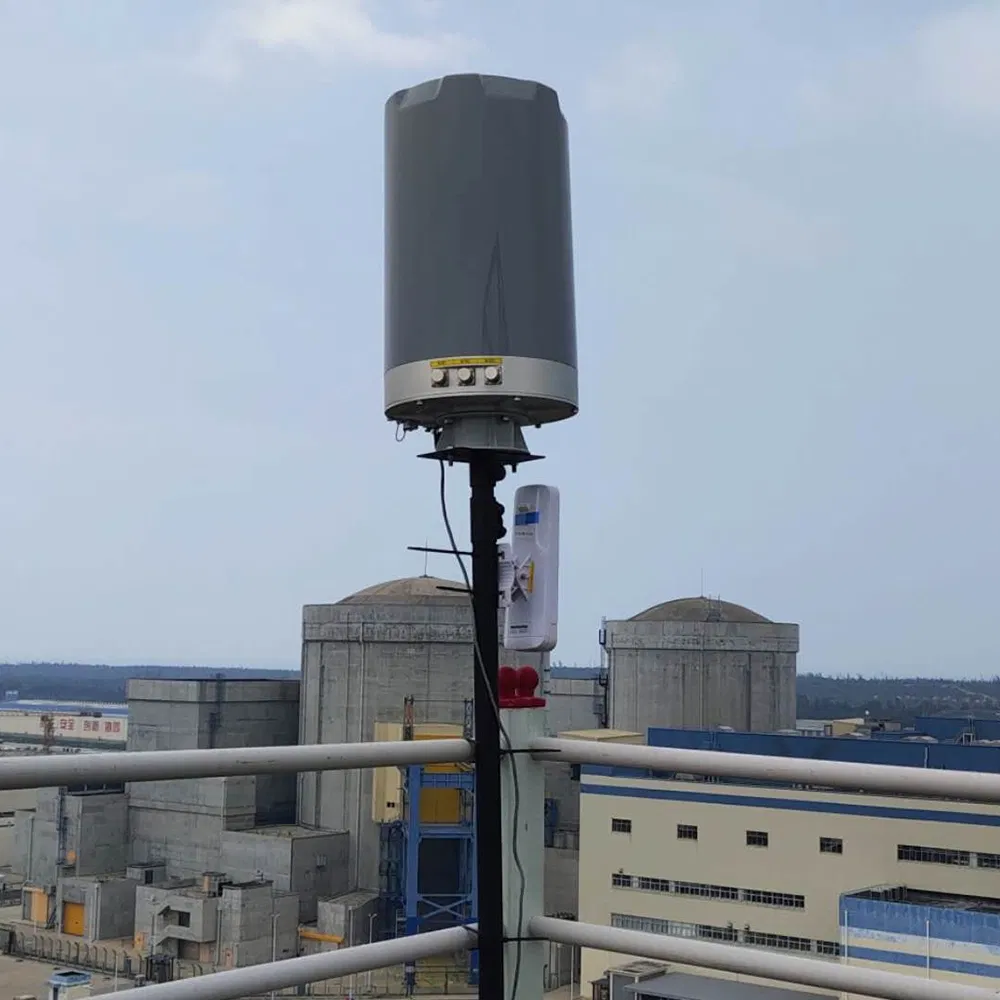

Guardian ST Drone Detection 3

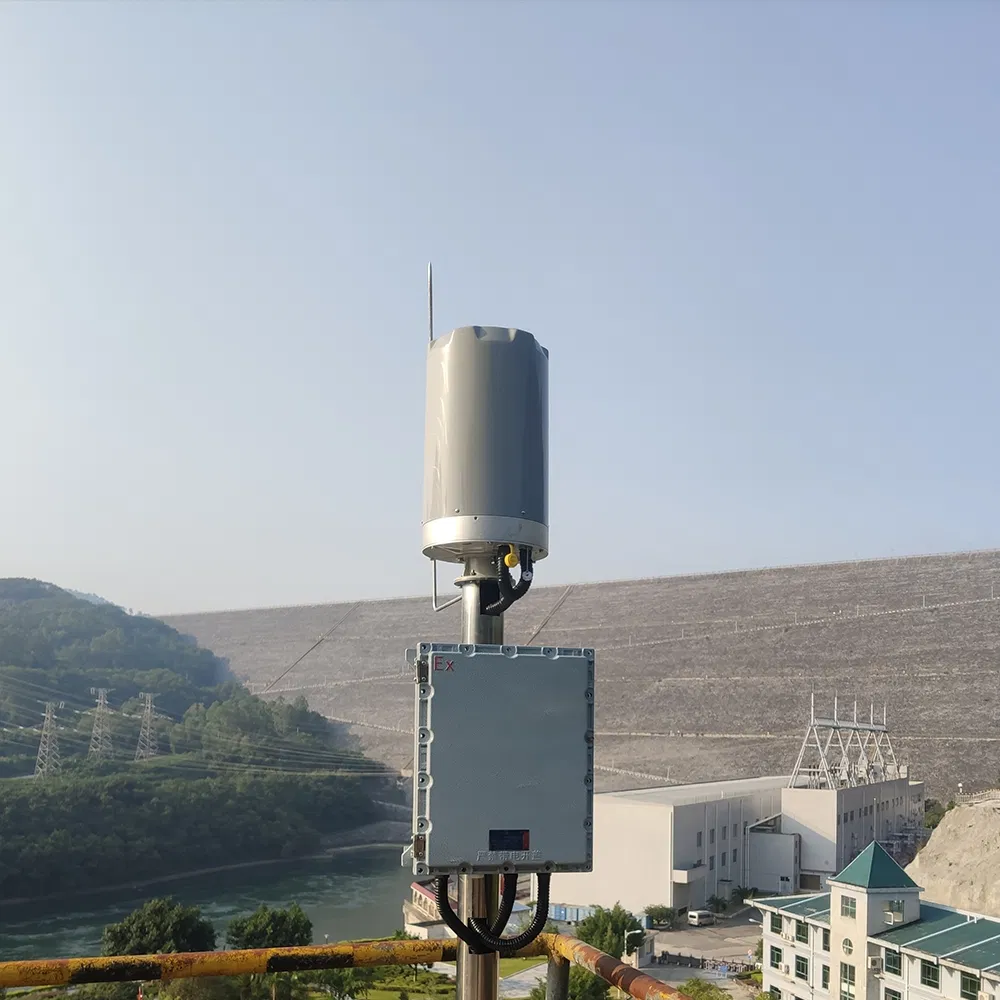

Guardian ST Drone Detection 4

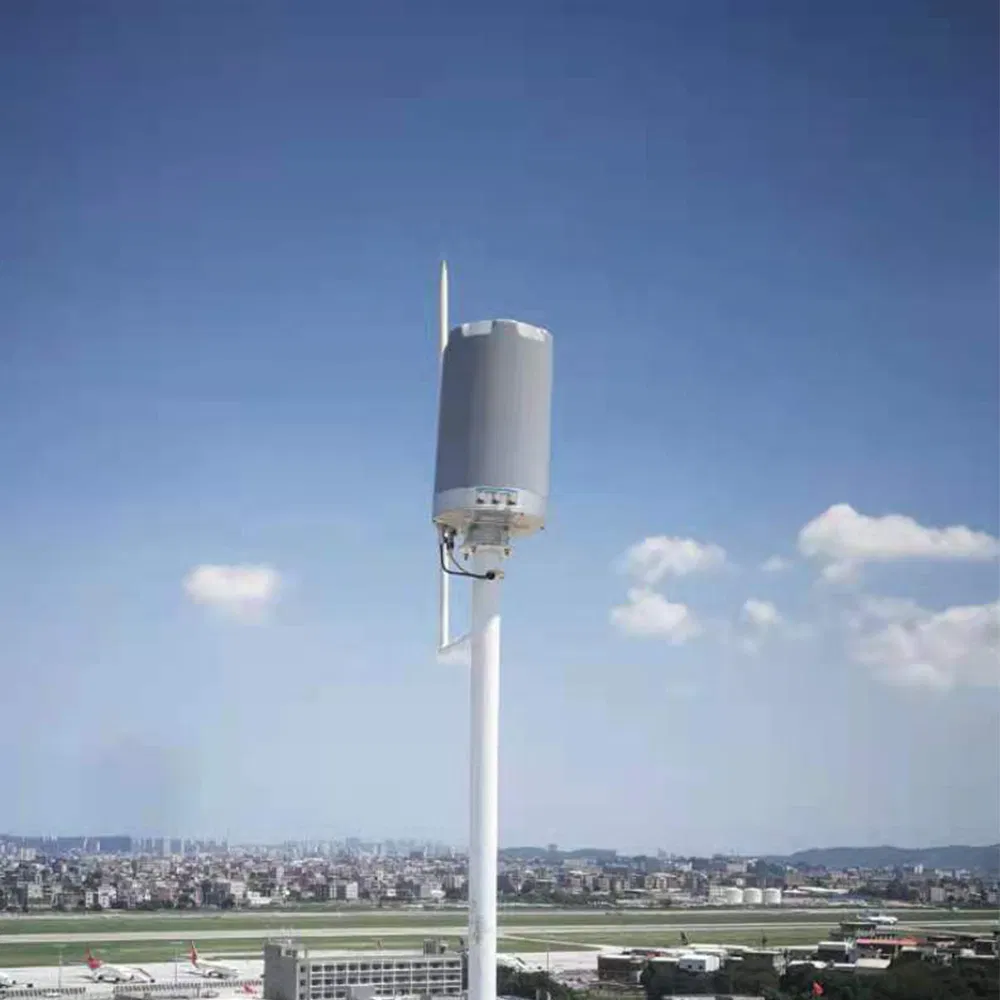

Guardian ST Drone Detection 5

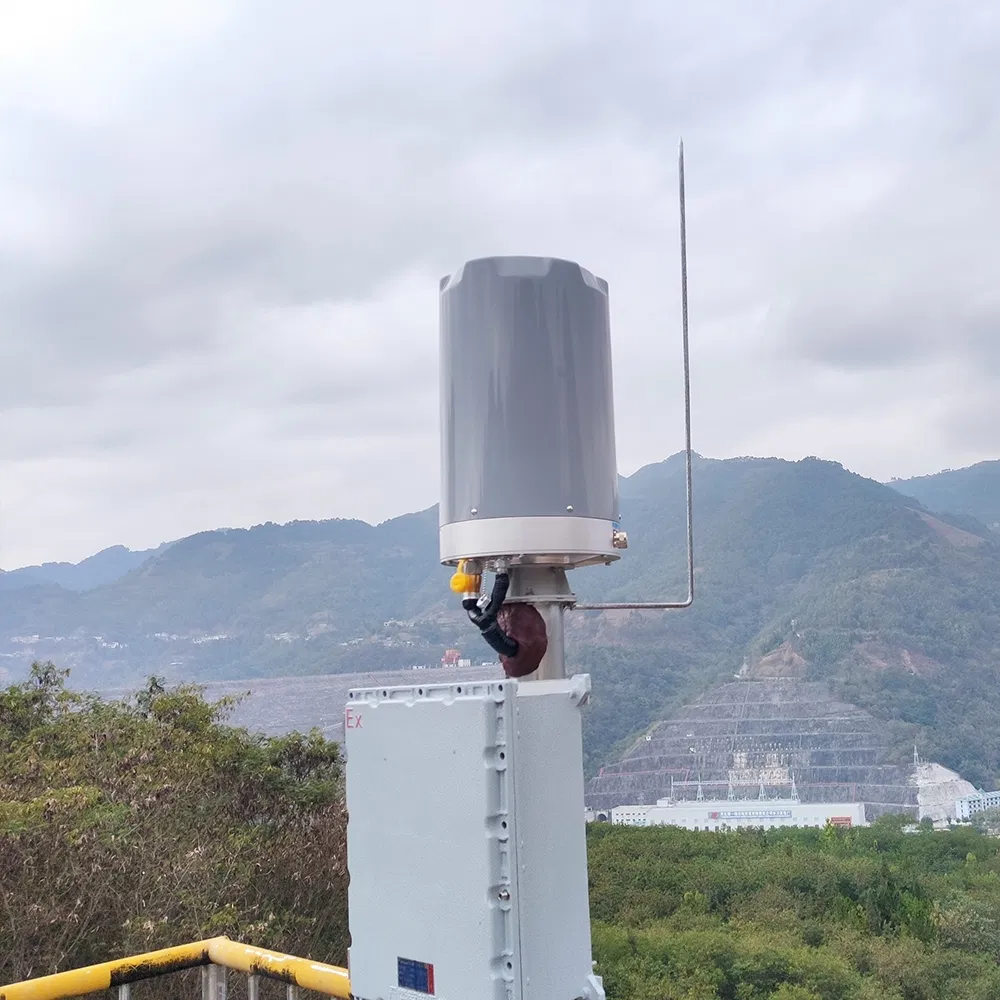

Guardian ST Drone Detection 6
Product Overview

Power plants and substations require stable and non-disruptive protection against unauthorized UAV activity. The Guardian ST system combines passive RF detection and low-power GNSS spoofing to provide continuous and reliable airspace protection.

Its non-interference design ensures safe operation without affecting surrounding electronic systems, making it ideal for sensitive power environments.

System Diagram
Key Features
Integrated detection and GNSS spoofing capabilities
Passive RF detection with no external interference
Low-power spoofing for controlled UAV redirection
360° full coverage monitoring
Multi-target detection and identification
Networked deployment and TDOA positioning support
Software-defined system for flexible upgrades
24/7 unattended operation capability
IP66 protection for harsh environments
Main Specifications
Detection & Spoofing Parameters
Frequency Range20 MHz – 6 GHz
Detection Range≥ 7 km
Sensitivity≤ –110 dBm
Coverage360°
Identification DataUAV model, SN, position, pilot location
Supported GNSSGPS (L1), GLONASS (L1), optional BDS (B1), Galileo (E1)
Power Output< 10 dBm
Control Radius≥ 500 m
Protection LevelIP66
Operating Temp–40°C to +70°C
Typical Applications
⚡ Power Plants
🔌 Substations
🏗️ Transmission Facilities
🔋 Energy Infrastructure
Solution & Service
  • Custom deployment design for different environments
  • Integration with centralized monitoring platforms
  • Networked multi-device configuration
  • Software upgrade for spectrum and protocol libraries
  • Professional technical support and training

Please share your application scenario and operational requirements for a tailored counter-UAV solution.

Frequently Asked Questions
Q1: What is the maximum detection range of the Guardian ST system? A: The system provides a passive RF detection range of ≥ 7 km, allowing for early warning and identification of incoming UAVs.
Q2: Does the GNSS spoofing interfere with other communication systems? A: No, the system uses low-power spoofing (< 10 dBm) designed specifically for controlled UAV redirection without disrupting surrounding electronic infrastructure.
Q3: Is the system suitable for extreme weather conditions? A: Yes, with an IP66 ingress protection rating and an operating temperature range from -40°C to +70°C, it is built for harsh outdoor environments.
Q4: Can the system identify the location of the drone pilot? A: Yes, the detection capability includes identifying the UAV model, its serial number (SN), its real-time position, and the pilot's location.
Q5: Can multiple units be networked together? A: Absolutely. The Guardian ST supports networked deployment and TDOA (Time Difference of Arrival) positioning for large-scale infrastructure protection.
Q6: What GNSS systems does the spoofing module support? A: It supports GPS (L1) and GLONASS (L1) by default, with optional support for BDS (B1) and Galileo (E1).
