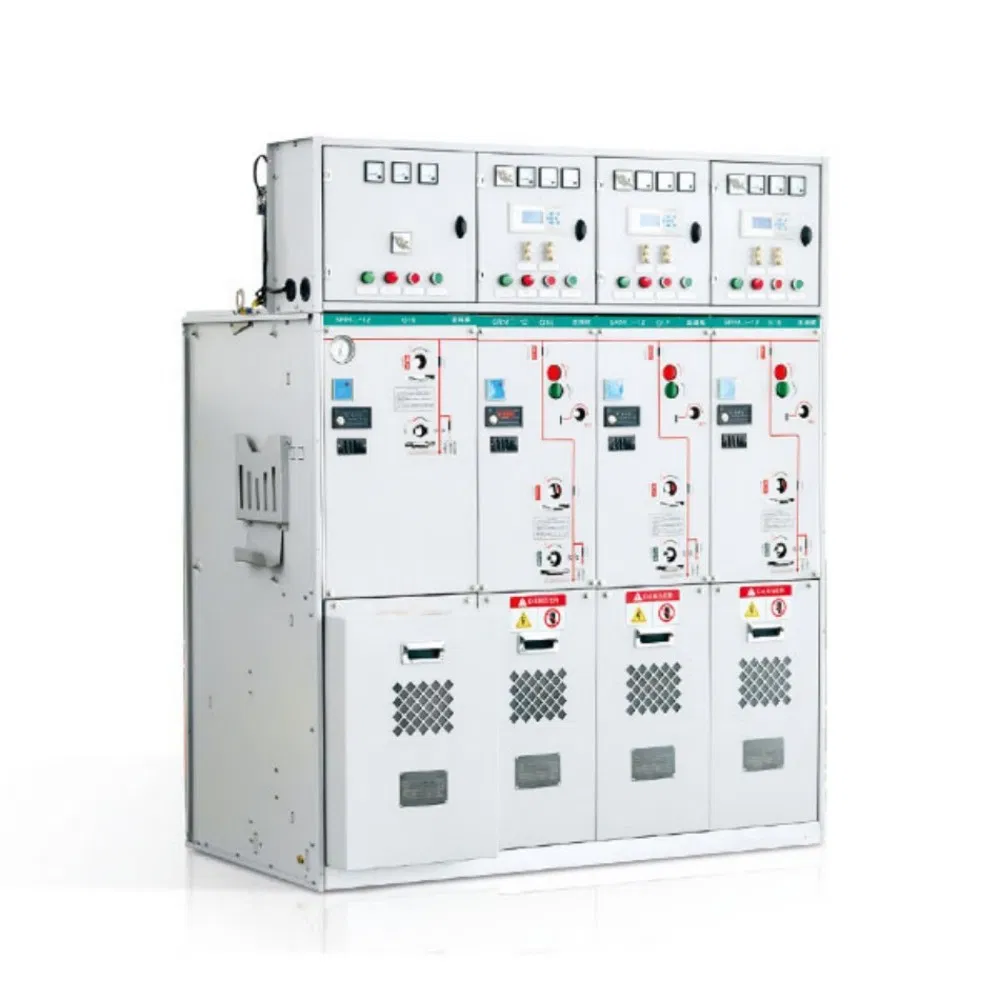

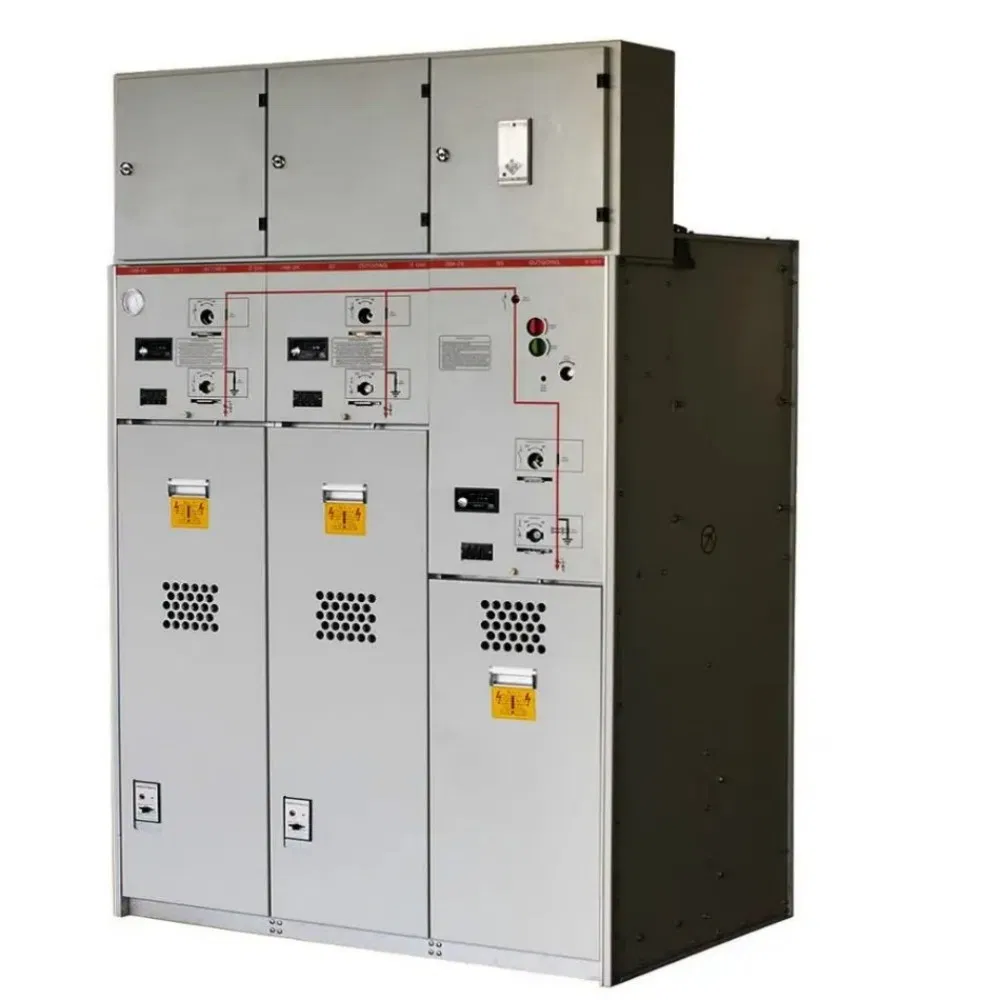

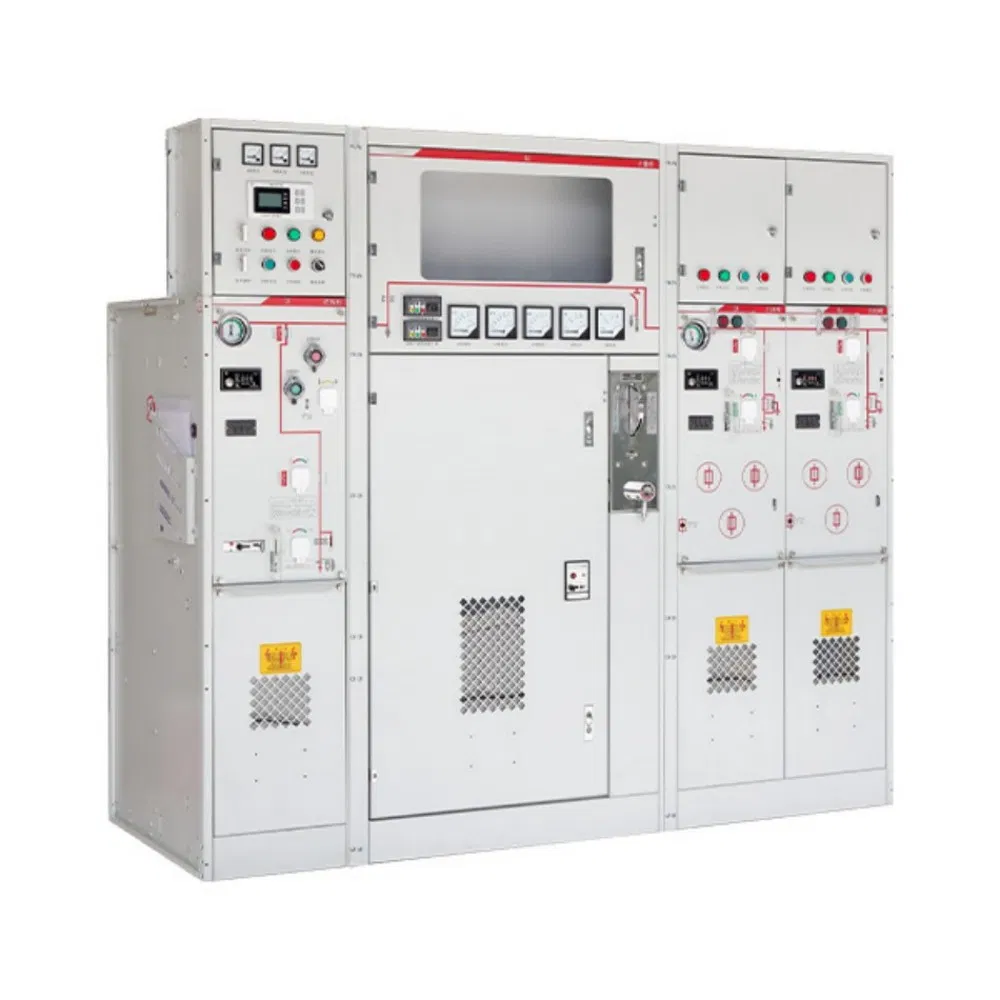

HBRM6-12/24 fully insulated aerated cabinet has obtained the type test report in the National High Voltage Electrical Appliances Test Center and has been listed as a high-tech product. Widely used in 10kV / 20kV power distribution systems, urban and rural users of all types of power distribution system preferred switch products.
The switchgear is modular unit mode, which can be combined according to different purposes; It is divided into two categories: fixed unit combination and expandable unit, which can meet the needs of various substations for flexible use of compact switchgear.

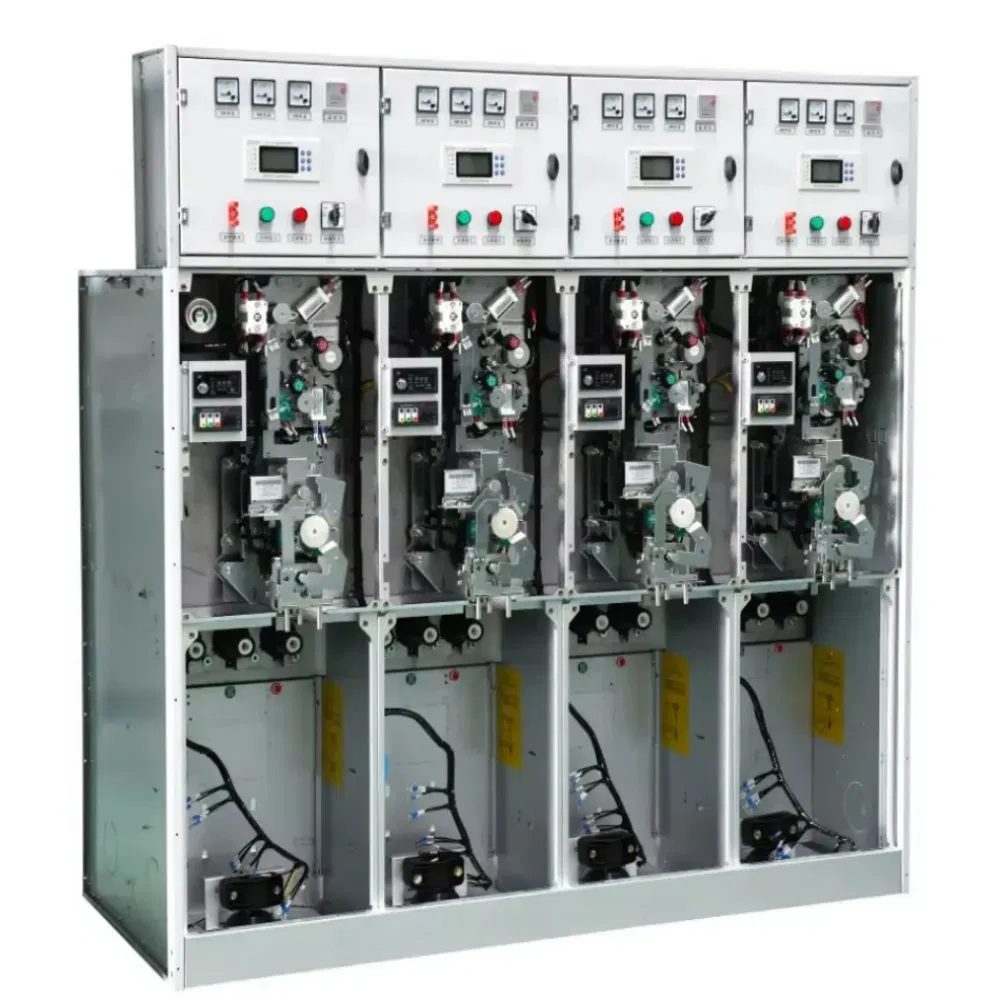

The HBRM6-12/24 fully insulated inflatable cabinet is a fully sealed system with all live parts and switches enclosed in a stainless steel housing. The whole switchgear is not affected by external environmental conditions, thus ensuring operational reliability and personal safety, and achieving maintenance-free. By choosing extensible busbars, any combination can be realized to achieve full modularity. Extended bus safety insulation and shielding, to ensure high reliability and safety. The pneumatic switchgear can also provide a TV-like automation solution, forming the concept of an intelligent switch and minimizing on-site installation and commissioning work.
HBRM6-12/24 fully insulated inflatable cabinet is divided into non-extensible standard configuration and extensible standard configuration. Because of the combination of full module and half module as well as its own expansibility, it has very special flexibility. In addition, it is in compliance with GB standards. The design life is more than 30 years for indoor (40 °C) and outdoor (-50 °C) operation.

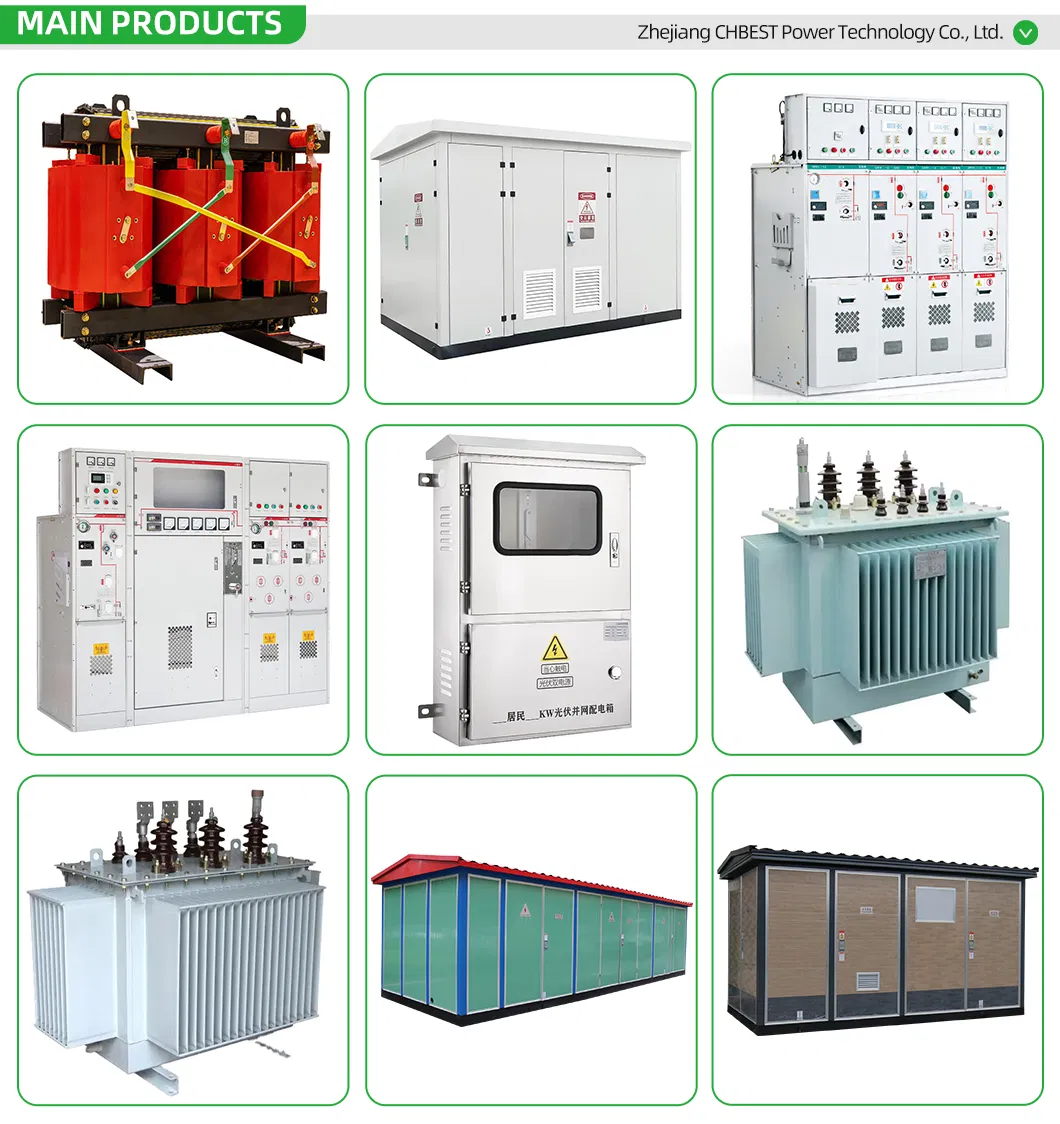

Main Products
Project
Units
C Module
F Module
V Module
CB Module
Load Switch
Combination Device
Vacuum Switch
Isolation/Grounding
Vacuum Circuit Breaker
Isolation/Grounding
Rated Voltage
KV
12
12
12
12
12
12
Rated Frequency
HZ
50
50
50
50
50
50
Power Frequency Withstand Voltage (phase/fracture)
KV
42/48
42/48
42/48
42/48
42/48
42/48
Lightning Shock Withstand Voltage
KV
75/85
75/85
75/85
75/85
75/85
75/85
Rated Current
A
630
infuse
630
-
1250/630
-
Rated Closed Loop Breaking Current
A
630
-
-
-
-
-
Rated Cable Charging Break Current
A
10
-
-
-
-
-
Rated Short Circuit Closing Current (peak)
A
50
80
-
-
-
-
Rated Peak Tolerable Current
kA
50
-
-
-
-
-
Rated Short-time Tolerable Current
kA/3s
20
-
-
-
-
-
Rated Short Circuit Breaking Current
kA
-
31.5
20
-
25
-
Rated Transfer Current
A
-
1700
-
-
-
-
Use Maximum Current of Fuse
A
-
125
-
-
-
-
Loop Resistance
μΩ
≤300
≤600
-
-
-
-
Mechanical Life
Times
5000
3000
5000
2000
5000
2000
Note: Depends on current rating of the fuse.

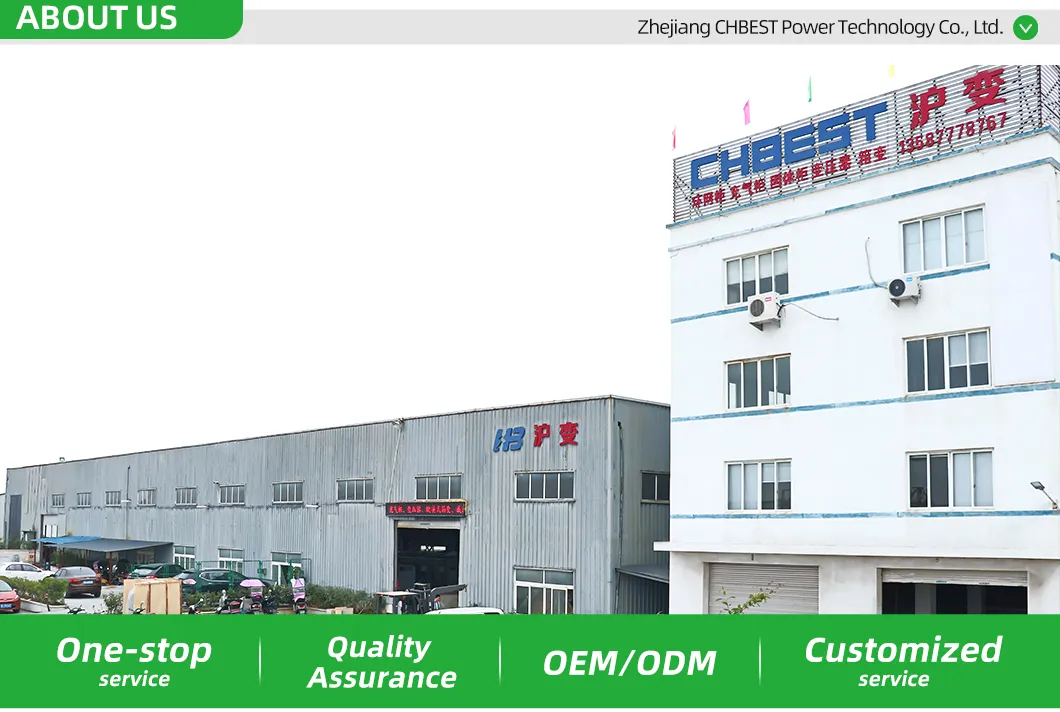

Profile Overview
We are an enterprise that produces sulfur hexafluoride ring main units, environmental protection gas insulated ring network switchgear, solid insulated ring main units, opening and closing stations, cable distribution boxes, and high and low voltage complete sets of equipment.
With a registered capital of 50 million yuan and nearly 200 employees, the company has strong technical force, bringing together a group of power engineering design, development, and manufacturing experts in power automation technology. The company has developed new products in environmental protection, miniaturization, intelligence, and maintenance-free design to achieve a number of technological breakthroughs. We have always kept customer satisfaction in mind, establishing a professional customer service network equipped with a hardworking, technical customer service team so that we can respond efficiently to clients' needs.
Certifications
Packaging & Shipping
Frequently Asked Questions
Are you a manufacturer or a trading company?
We have our own manufacturing factory, specializing in high-quality sulfur hexafluoride ring main units and high/low voltage complete sets of equipment.
What are your standard warranty terms?
We provide a comprehensive 12-month warranty to ensure the reliable operation and support of our switchgear units.
What is the average production lead time?
Generally, the production process takes 4 to 6 weeks, which varies based on specific styles and configuration requirements.
What payment methods do you accept?
We primarily accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) payment methods for our international orders.
How is quality control managed in your facility?
We conduct 100% quality control inspection to guarantee that every product is fully qualified. Over 10 individual quality control checkpoints are placed throughout production from raw materials to final packaging. Our units have 3C certificates, and we can assist you with other required certification applications.
Do you keep standard products in stock?
Usually, we do not keep stock because all electric distribution cabinets and RMUs are produced according to customized specifications and order quantity.
