📦 Product Description

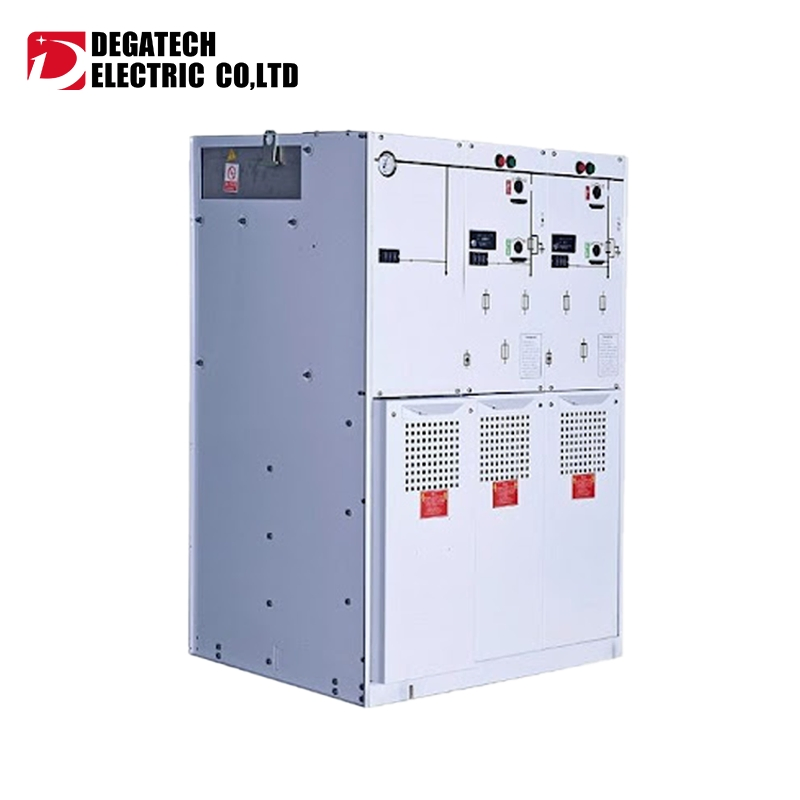

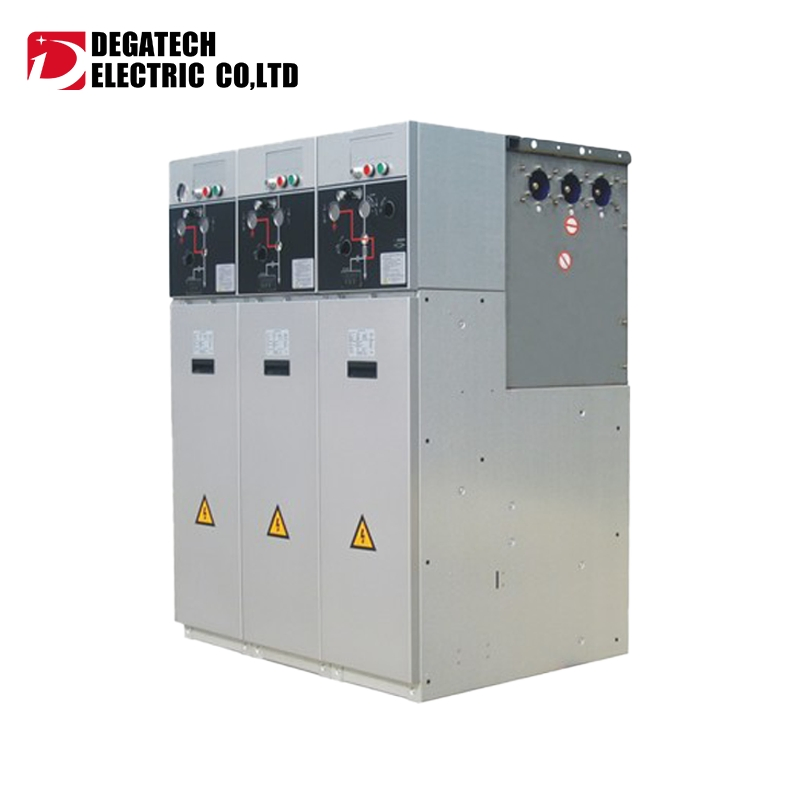

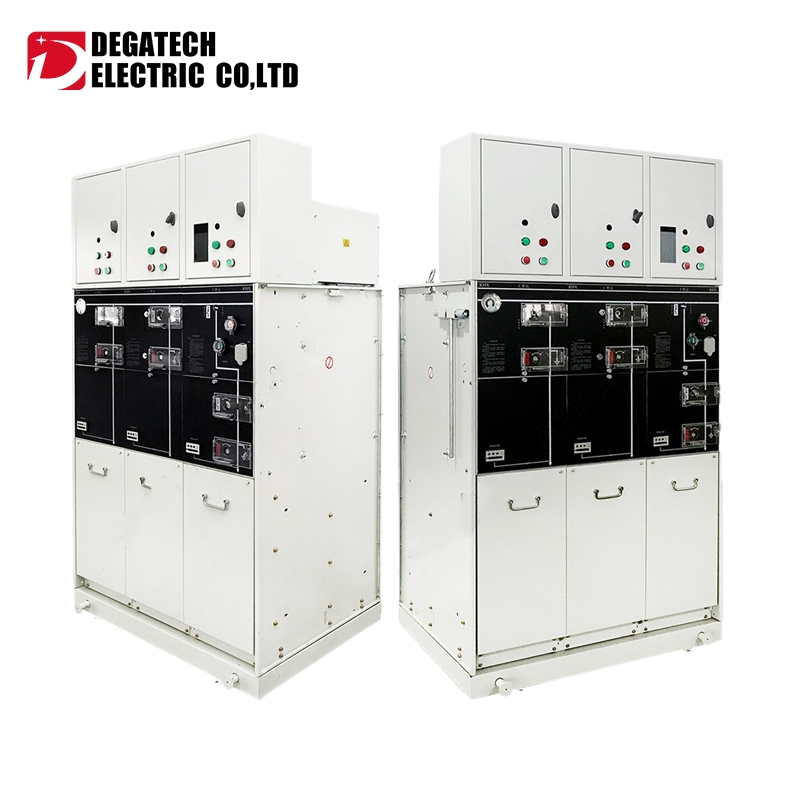

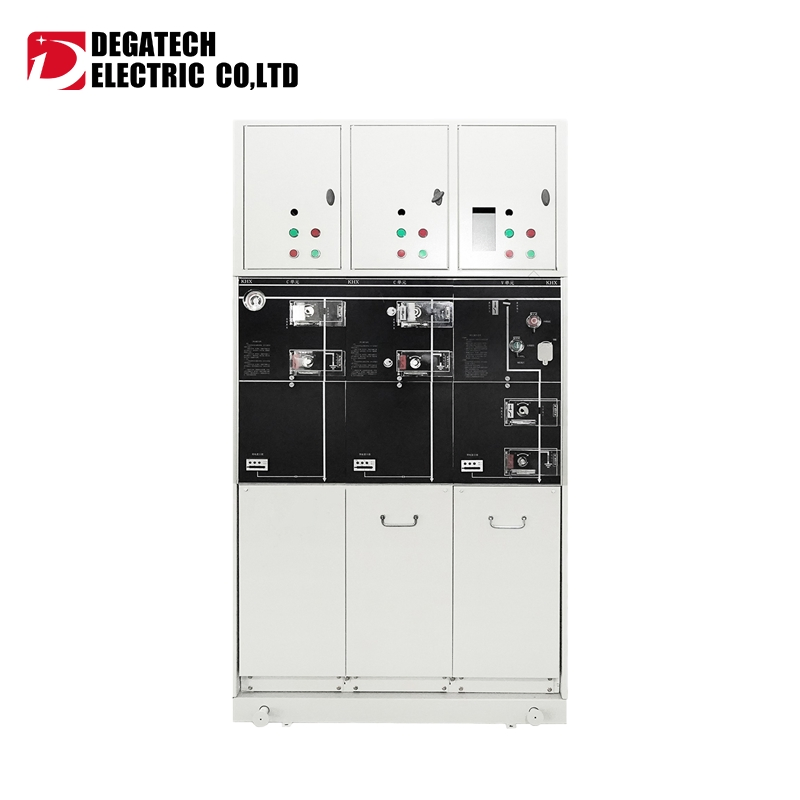

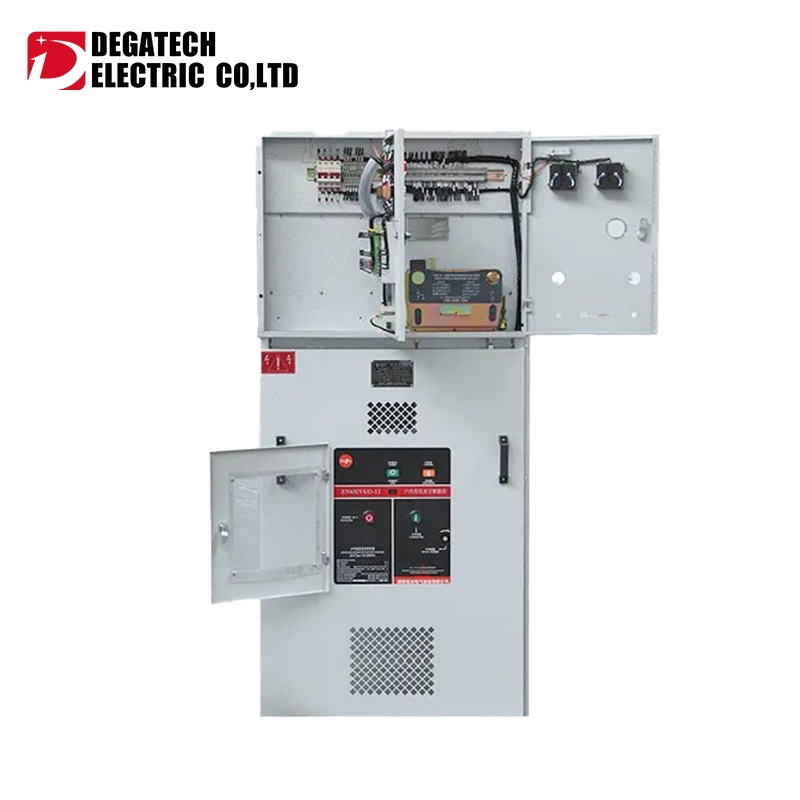

The fully enclosed, fully insulated, hermetically sealed distribution switchgear IE-RM6-12/24 with SF6 gas insulation is a modular metal-enclosed switchgear. This equipment can include modules such as a load switch, combined fuse unit, vacuum circuit breaker, and busbar input module. Using advanced technologies and materials, it offers excellent electrical and mechanical properties, is minimally affected by environmental and climatic conditions, has a compact size, is easy to install, convenient to operate, maintenance-free, and provides flexible configuration options.
With a clear and intuitive design, simple and direct operation, and high throughput, it is well-suited for various connection systems. All busbars of the IE-RM6-12/24 can be configured to support side wiring and side expansion, or top wiring and top expansion based on user requirements, maximizing flexibility to meet the needs of the power supply system.
| Parameters |
C module (Load switch) |
F module (Load switch fuse) |
V module (Vacuum circuit breaker/Isolating switch) |
| Rated voltage (KV) |
12 |
12 |
12 |
12 |
| Power frequency withstand voltage (kV) |
42/48 |
42/48 |
42/48 |
42/48 |
| Lightning impulse withstand voltage (kV) |
125/145 |
125/145 |
125/145 |
125/145 |
| Rated current (A) |
630 |
125 |
630/1250 |
630/1250 |
| Rated cable charging breaking current (A) |
25 |
25 |
25 |
25 |
| Rated short-circuit making peak (kA) |
-- |
-- |
50/63 |
50/63 |
| Mechanical life (cycles) |
5000 |
5000 |
10000 |
3000 |
A diverse and comprehensive enterprise specializing in the research and development, production, sales, and service of transmission and distribution equipment up to 35kV. Main products include solid insulated ring main unit switchgear, gas insulated switchgear, and eco-friendly switchgear. We continuously introduce modern production equipment and manufacturing processes, invest in product research and development, and cultivate scientific and technological talent. Committed to the goals of high quality and precision, we consistently provide customers with high-quality and high-performance products. We strive for excellence, producing top-notch products, and establishing comprehensive technical support and robust after-sales service.
❓ Frequently Asked Questions
Q1: What is the RM6-12 SF6 Gas-Insulated Switchgear?
It is a fully enclosed, modular metal-enclosed switchgear designed for distribution systems, utilizing SF6 gas for insulation to ensure high safety and compact size.
Q2: What modules can be included in this equipment?

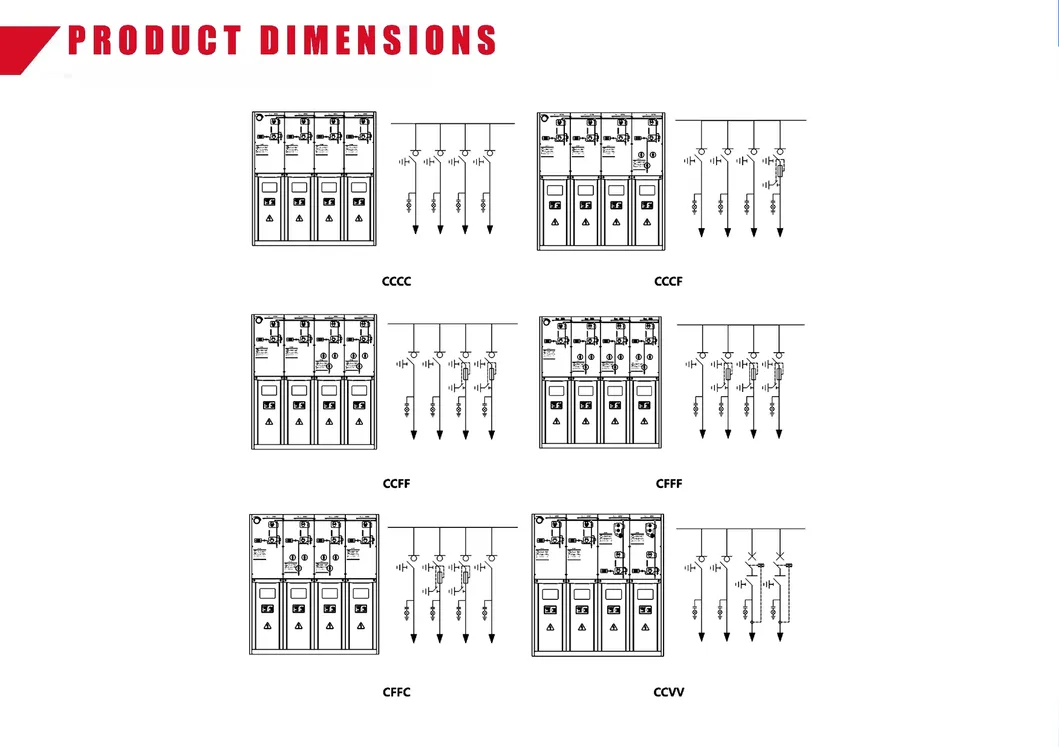

The system can include load switches (C module), combined fuse units (F module), vacuum circuit breakers (V module), and busbar input modules.
Q3: Is the RM6 switchgear suitable for harsh environments?

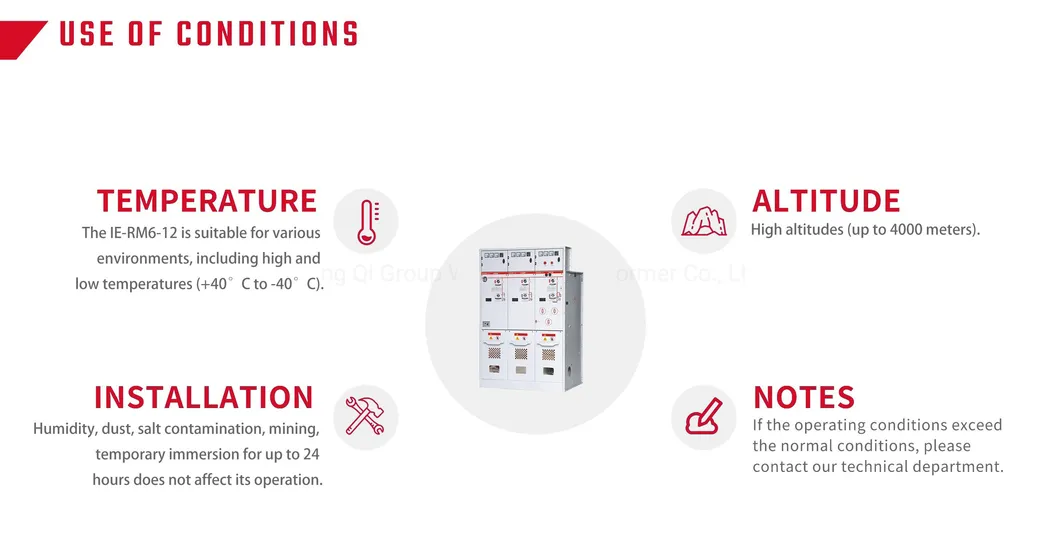

Yes, because it is fully enclosed and hermetically sealed, it is minimally affected by environmental and climatic conditions, making it highly reliable.
Q4: What are the installation requirements for the busbars?
All busbars can be configured for side wiring and expansion or top wiring and expansion, providing maximum flexibility for power supply systems.
Q5: Does this switchgear require regular maintenance?
The unit is designed to be maintenance-free due to its advanced sealed technology and high-quality stainless steel gas tank.
Q6: What is the mechanical life of the RM6-12?
The mechanical life is rated up to 50,000 times, ensuring long-term operational durability.
