High Voltage Switchgear Solutions for 220kv Power Transmission Systems

1 / 5

High Voltage Switchgear Solutions for 220kv Power Transmission Systems

Customization:	Available
Certification:	ISO9001, KEMA
Shell Material:	Cast Aluminum

Send Inquiry

Product Description

📍 Basic Information

Model NO.

GIS

Voltage Level

High Voltage

Installation

Fixed

Structure

Floorstanding

Current

AC & DC

HS Code

8537201000

Package Size

220.00cm * 490.00cm * 500.00cm

Gross Weight

35000.000kg

⭐ Product Introduction

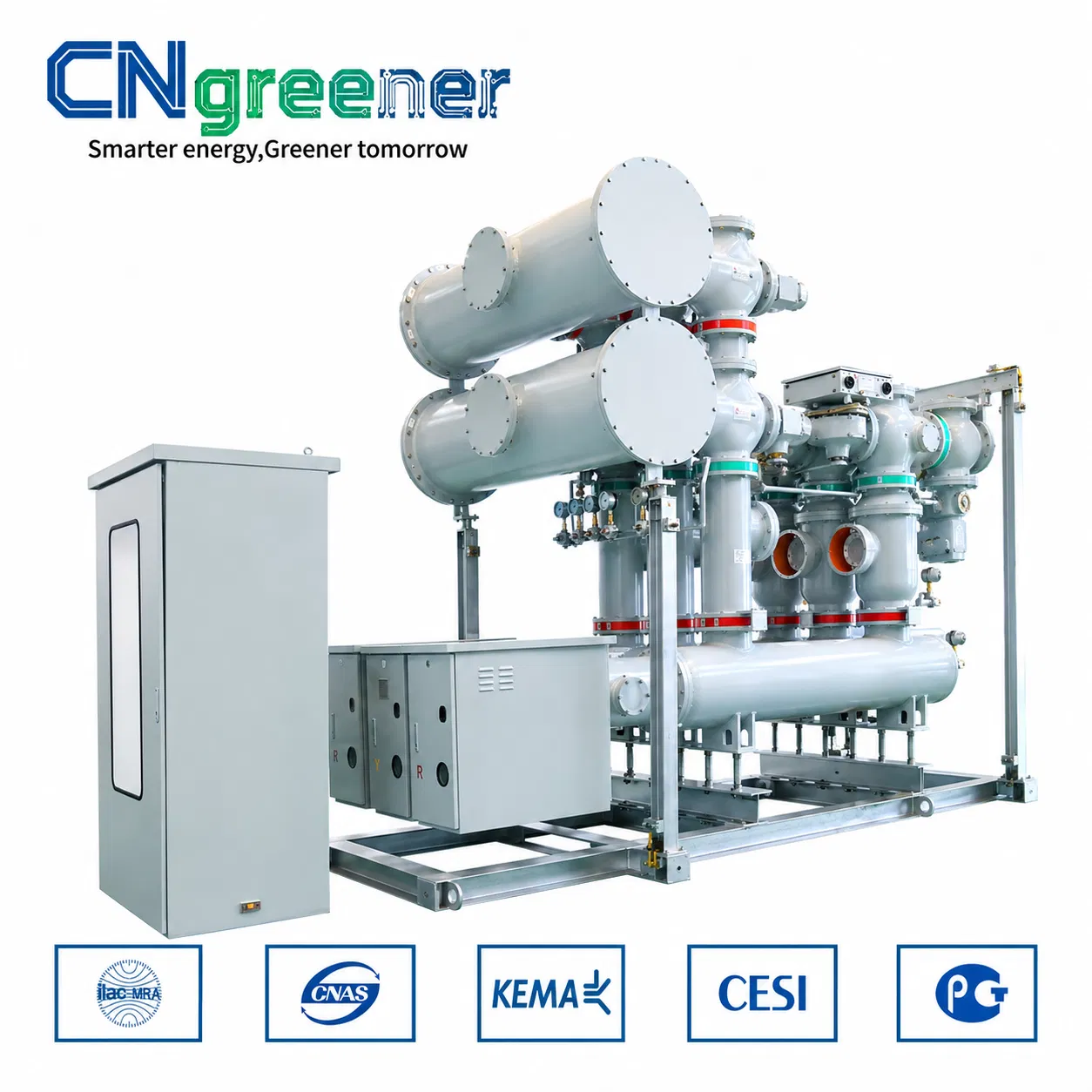

High Voltage GIS Gas Insulated Switchgear

(72.5kV / 110kV / 145kV / 220kV / 252kV GIS Substation)

Our GIS Gas Insulated Switchgear is a compact, fully enclosed high-voltage switchgear system using SF6 gas as the insulating and arc-quenching medium. It is designed for reliable operation in urban substations, industrial plants, power utilities, renewable energy projects, and harsh environments where space saving and high safety are required.

The system integrates circuit breaker, disconnector, earthing switch, busbar, and instrument transformers into a sealed metal enclosure, ensuring high reliability, long service life, and minimal maintenance.

🚀 Key Features

Compact design, saving up to 70% substation space
Fully sealed structure, dust-proof, moisture-proof, corrosion-resistant
High operational safety and long maintenance intervals
Modular design, flexible for extension and customization
Stable performance in high altitude, coastal, and polluted environments
Suitable for EPC projects and turnkey substations

📊 Technical Specification

Item	Specification
Rated Voltage	72.5kV / 110kV / 145kV / 220kV / 252kV
Rated Current	1250A / 2000A / 2500A / 3150A
Short Circuit Current	31.5kA / 40kA / 50kA
Insulation Medium	SF6 Gas
Installation	Indoor / Outdoor
Cooling Method	Natural Air / Forced Air
Standards	IEC 62271 / GB / ANSI (optional)

🛡️ Typical Applications & Components

Applications:

Power Transmission & Distribution Substations
Urban & Underground Substations
Industrial Power Systems
Renewable Energy (Wind / Solar / Hydro)
Mining, Petrochemical, and Data Centers

Main Components:

SF6 Circuit Breaker
Disconnector & Earthing Switch
Gas Insulated Busbar
Current & Voltage Transformers

🏆 Why Choose Our Solutions

Over 20 years experience in high voltage power equipment
Strong engineering support for EPC & turnkey projects
Custom design based on single-line diagram (SLD)
Complete solutions: GIS + Transformer + Protection systems
Professional overseas service and technical support

✅ Quality Control & After-Sales

Rigorous Testing:

Routine Test, Type Test, Partial Discharge Test, Gas Leakage Test, and Factory Acceptance Test (FAT).

Packing & Delivery:

Export standard seaworthy packaging with flexible delivery schedules and on-site guidance.

Service Support:

Supervision, commissioning, operator training, and long-term spare parts supply.

❓ Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturing factory for power transmission and distribution equipment.

How long does it take for delivery and shipment?

Delivery time depends on the specific project requirements and order quantity. Usually, it ranges from 15 to 20 days, while complex GIS systems may take 8–16 weeks.

What shipping methods do you offer?

We offer various shipping methods including express, sea, air, and land transportation to meet global project requirements.

How can I confirm payment terms?

We accept wire transfers and other secure payment methods. Generally, a 30% deposit is required, with the remaining balance paid before shipment.

Do you provide support for missing items or installation?

Yes, our support team will verify order contents and compensate for any discrepancies. We also provide on-site installation guidance and commissioning support.

What information is needed for a quick quotation?

Please provide your project details, voltage levels, and a single-line diagram (SLD) for an accurate and fast technical proposal.
