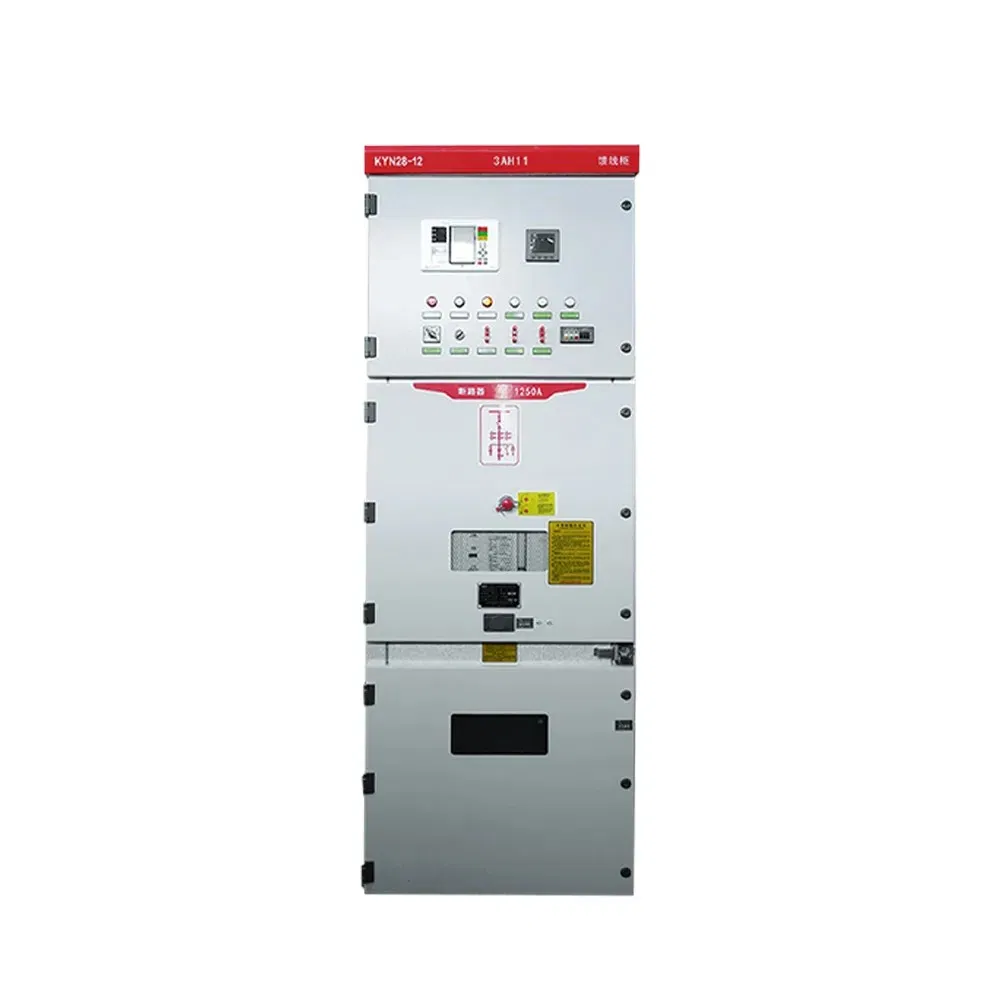

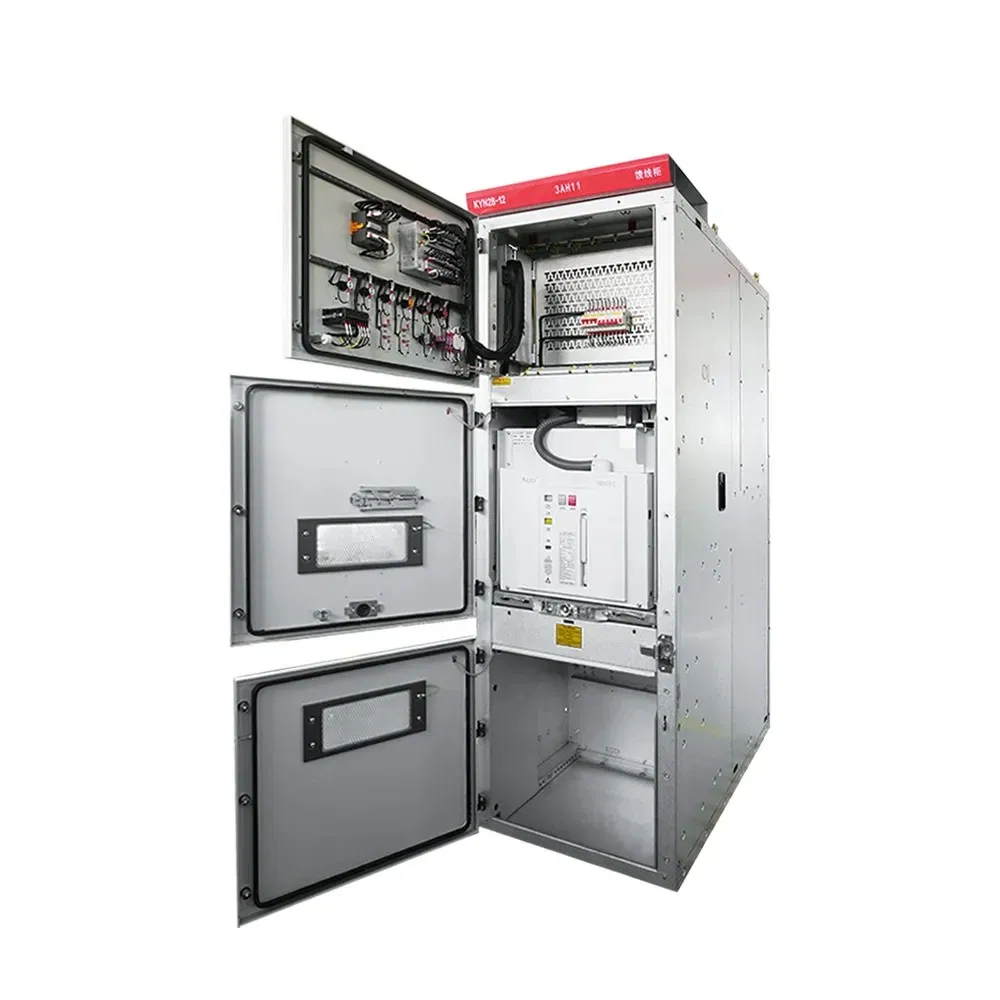

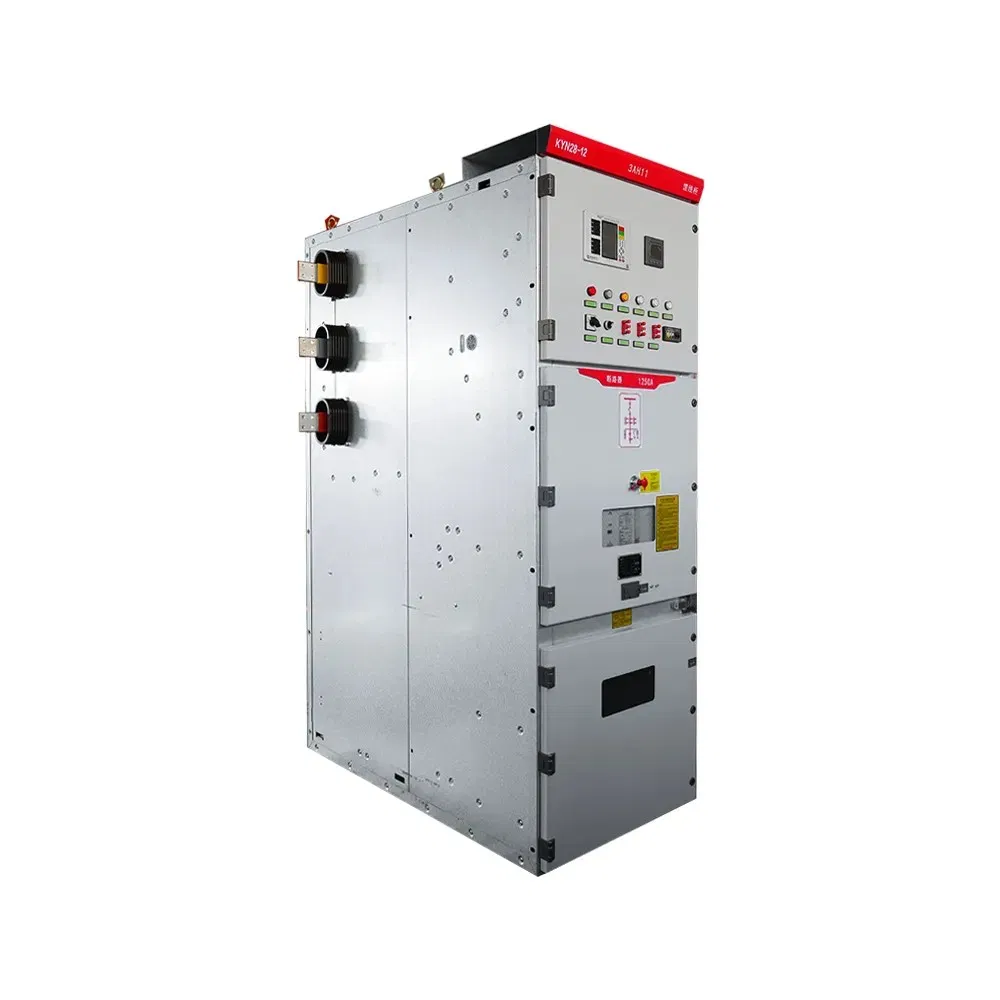

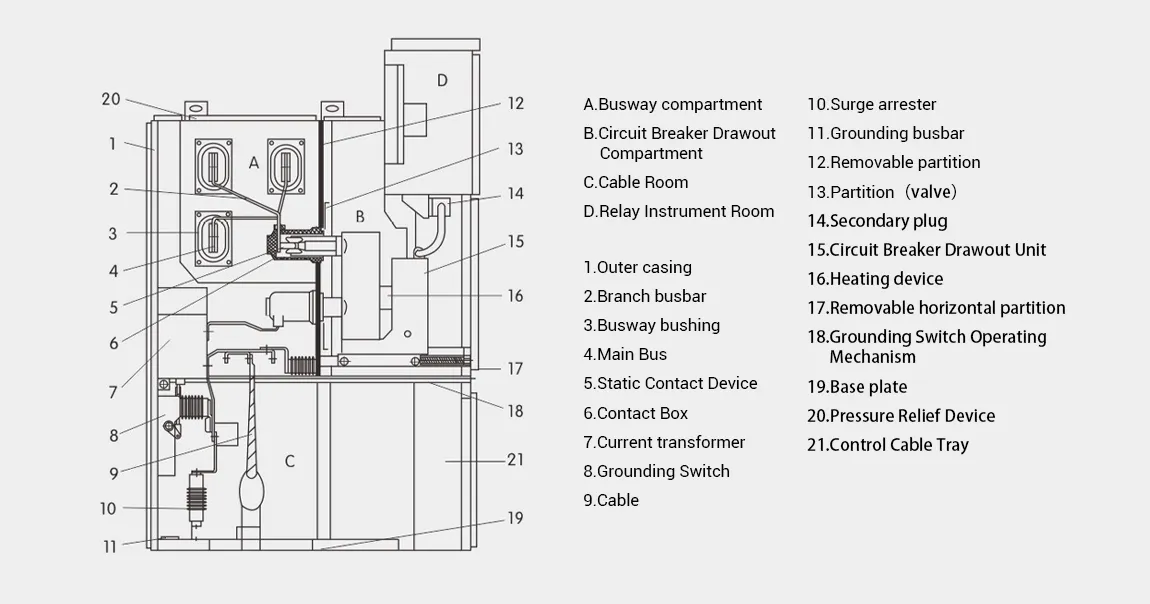

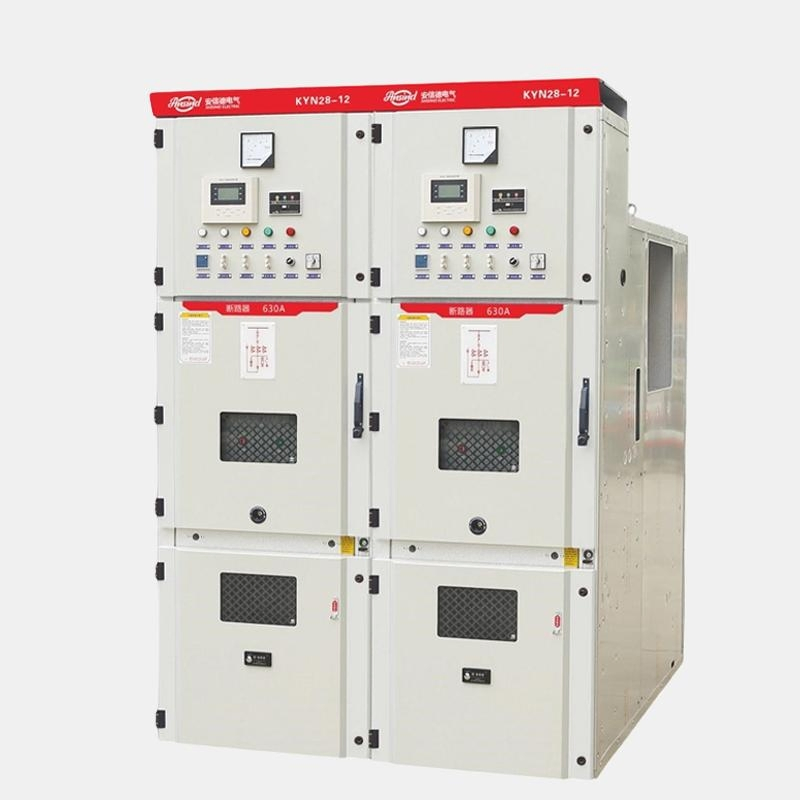

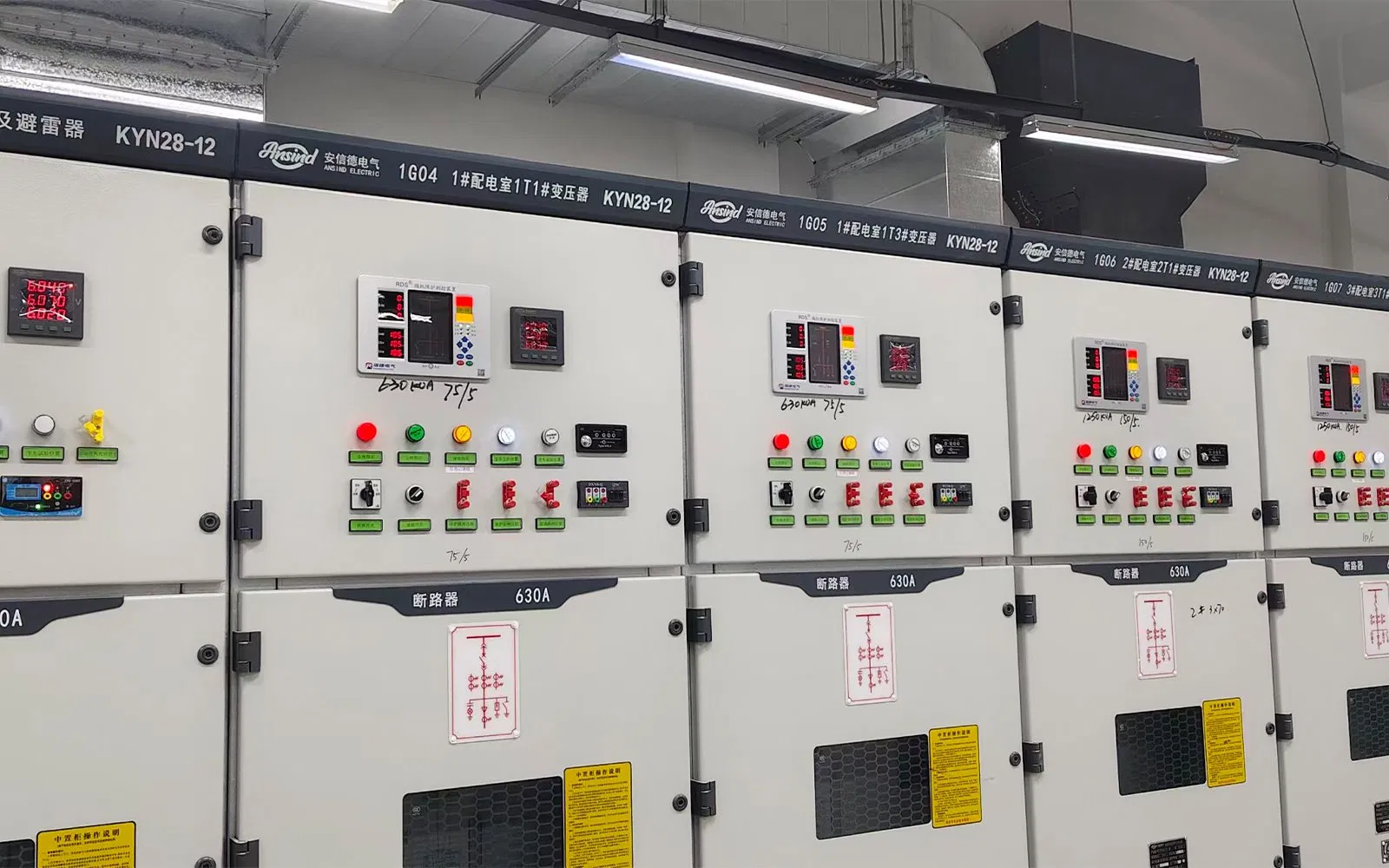

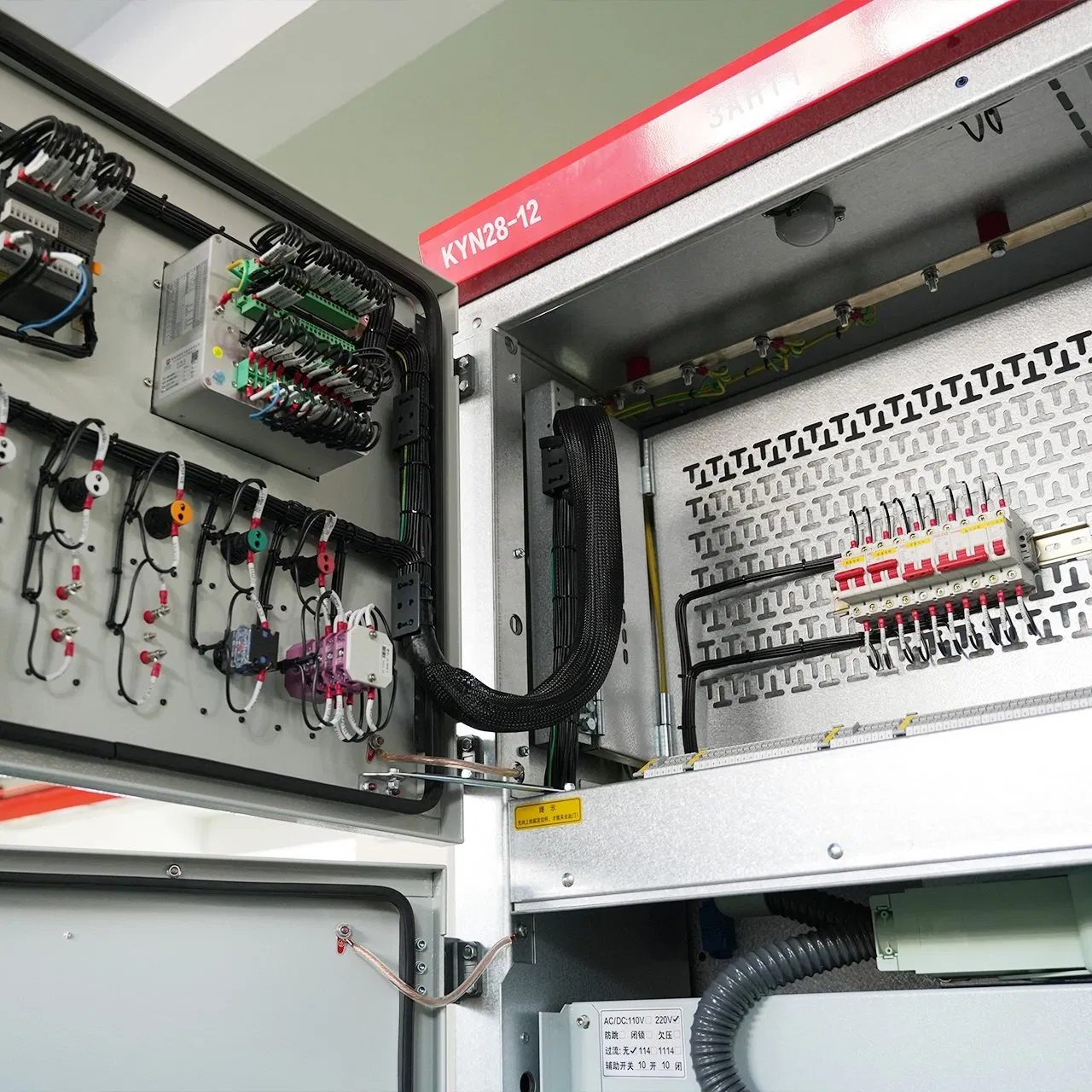

KYN28-12 armored withdrawable AC metal-enclosed switchgear is designed for three-phase AC 50Hz systems with rated voltages of 3.6–12kV. It is used for power distribution, control, protection, and monitoring in medium-voltage networks. Featuring a metal-clad compartmentalized structure and a withdrawable vacuum circuit breaker, it complies with IEC 62271 standards and is widely applied in substations, power plants, and industrial power systems.

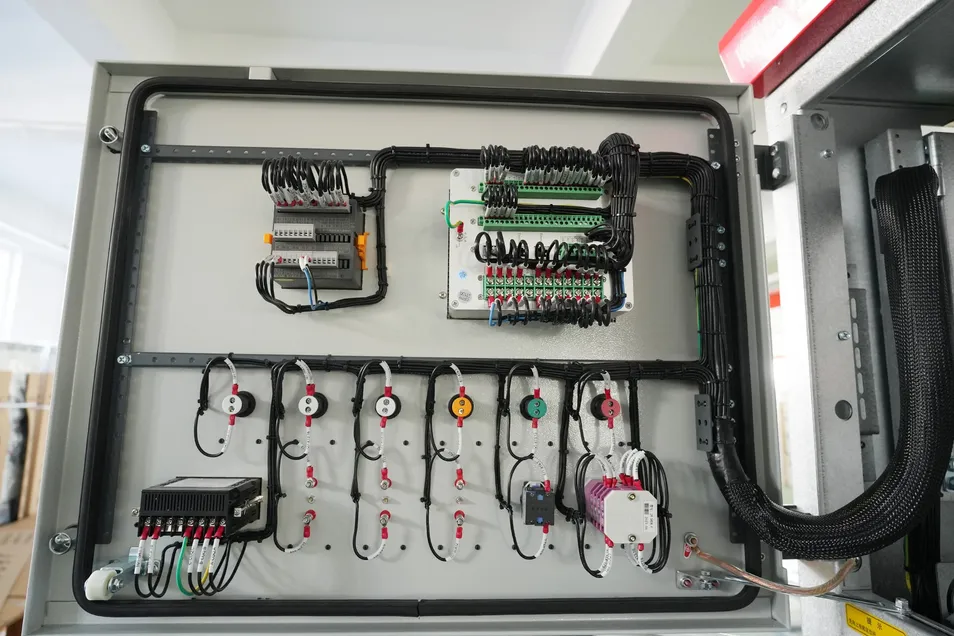

The enclosure is made of aluminized zinc-coated steel sheets, processed with precision machinery and multi-fold bending, providing high mechanical strength. The cabinet door is spray-coated, offering strong impact and corrosion resistance (IP4X rating).

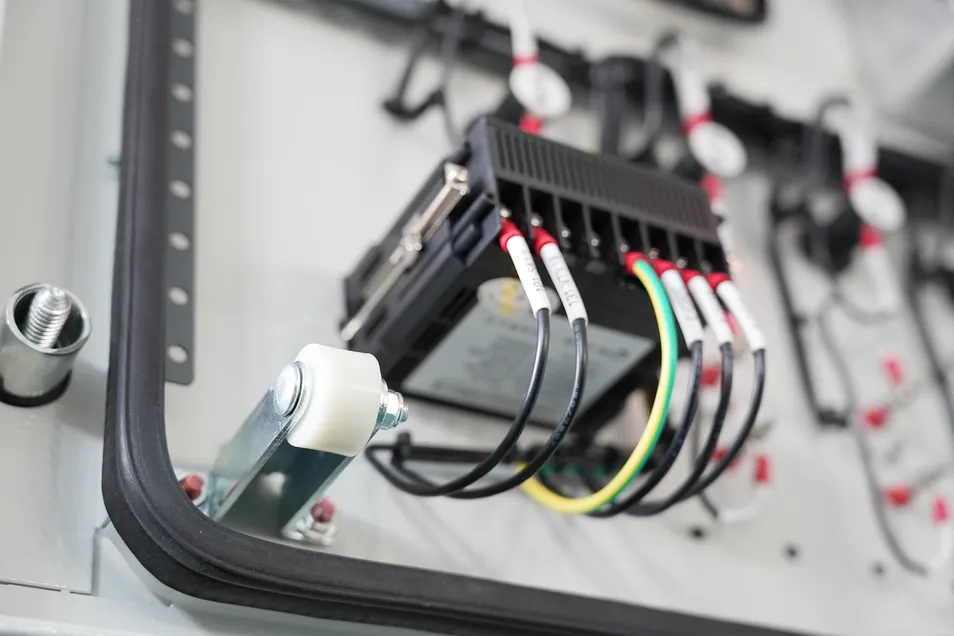

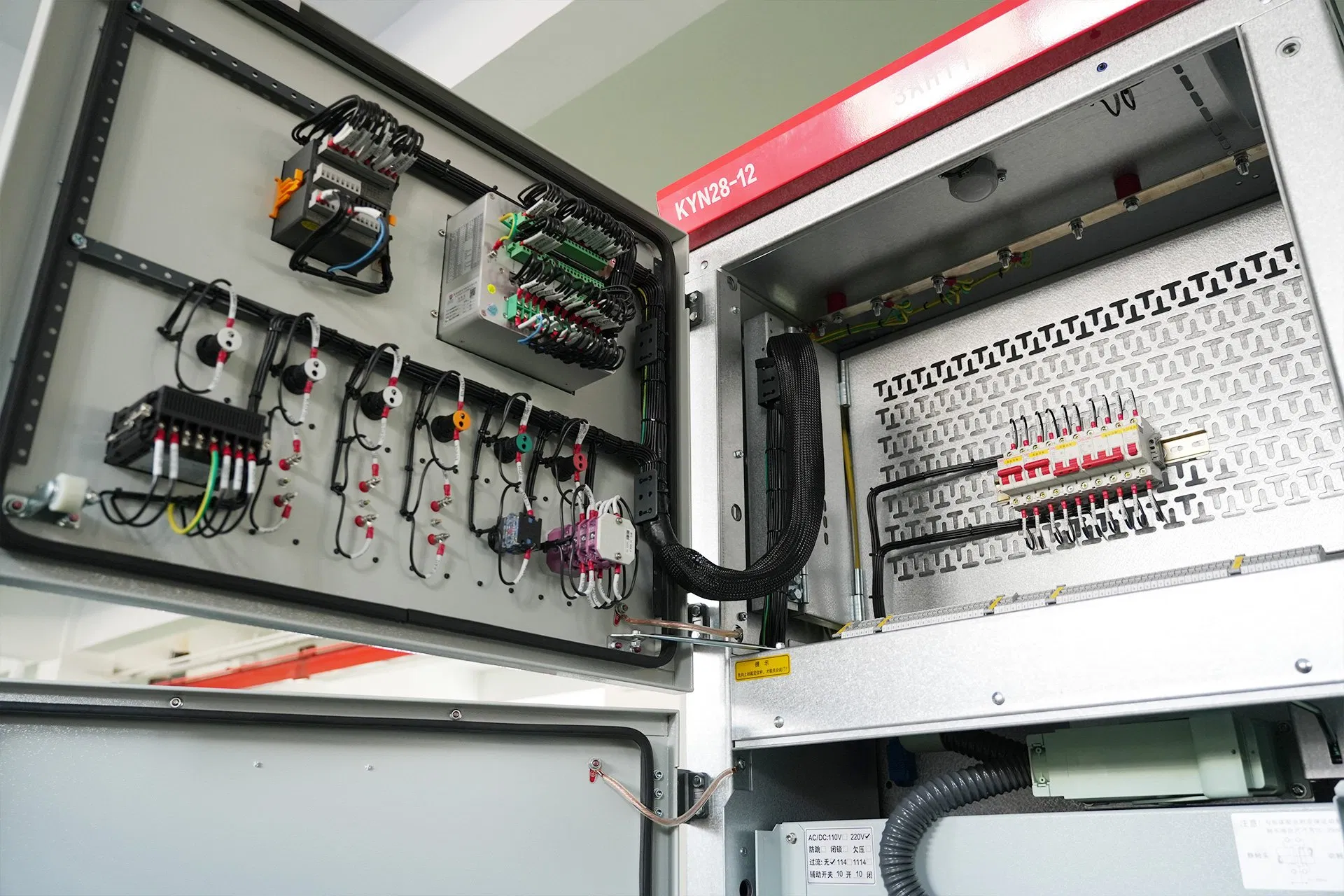

Main switch options include high-quality vacuum circuit breakers such as ABB VD4, Siemens 3AE, and Schneider AVX. Conductors maintain an air insulation distance > 125mm and composite insulation > 60mm. Reliable mechanical and electrical interlocks fully meet "five-prevention" requirements.
| Parameter | Unit | Value |
|---|---|---|
| Rated voltage | kV | 3.6, 7.2, 12 |
| Rated frequency | Hz | 50 |
| Circuit breaker rated current | A | 630 - 4000 |
| Rated short-time withstand current (4s) | kA | 16, 20, 25, 31.5, 40, 50 |
| Rated peak withstand current | kA | 40, 50, 63, 80, 100, 125 |
| Rated insulation level (Power frequency) | kV | 24, 32, 42 |
| Lightning impulse withstand voltage | kV | 40, 60, 75 |
| Protection level | - | Enclosure IP4X |

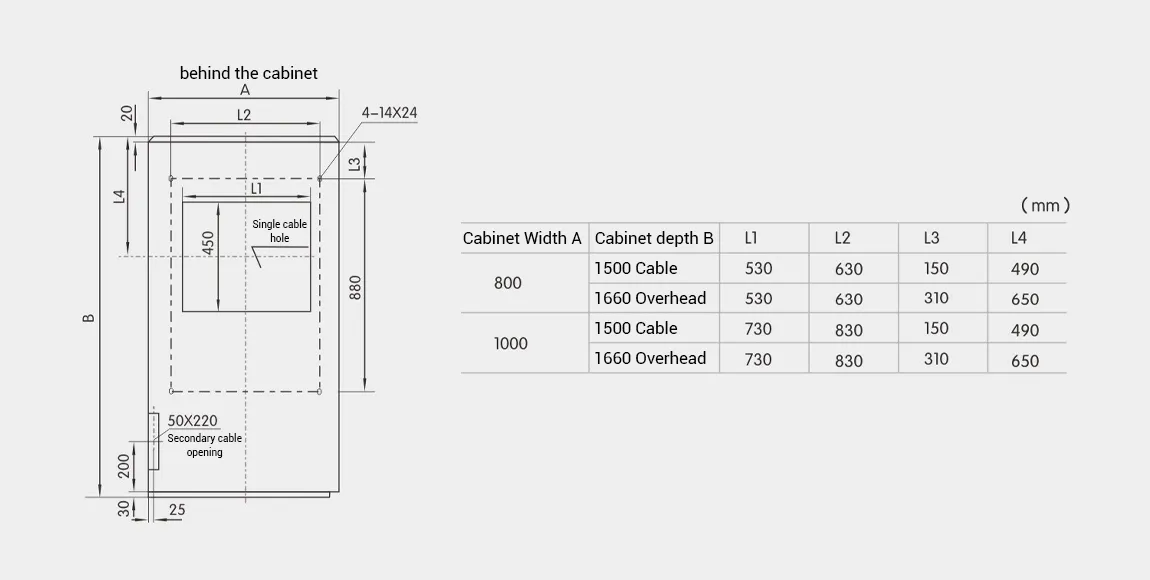

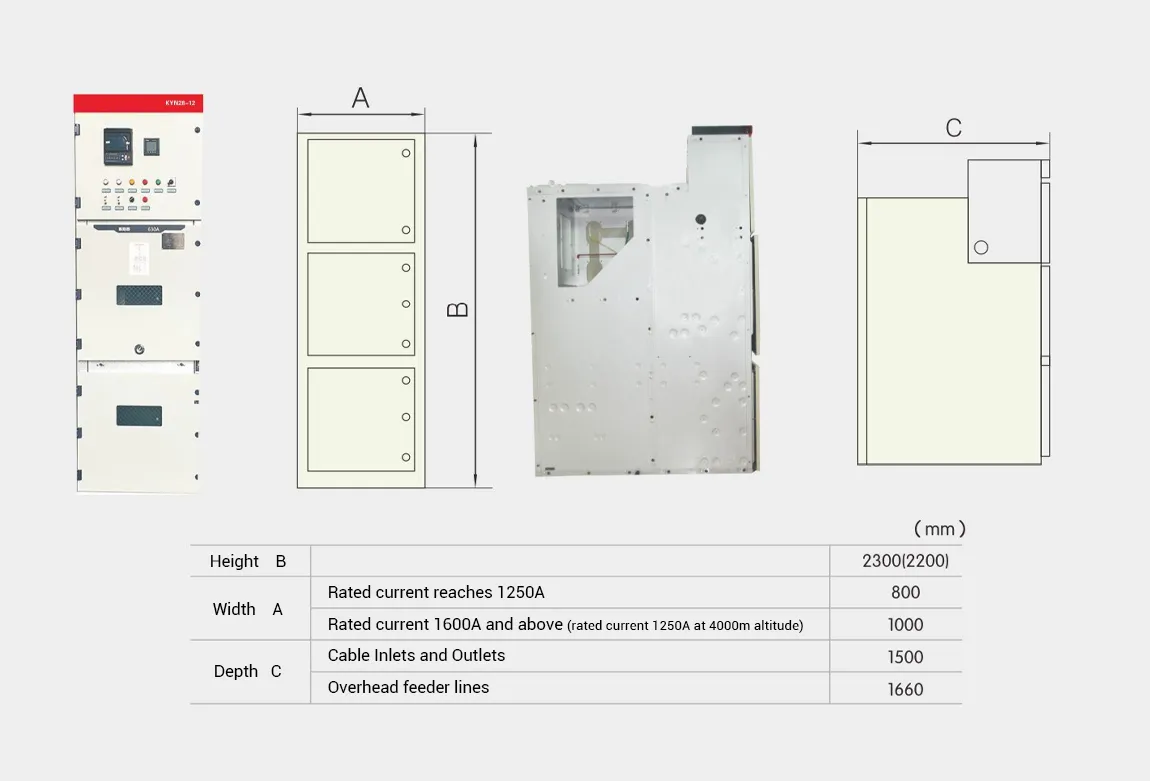

Modular structure using imported aluminized zinc-coated steel sheets. Handcarts of the same specification are fully interchangeable. The cable compartment is spacious for multi-core cables.
Complete packaging and logistics solutions: All products are packed with export-standard wooden cases or protective materials. Safe and efficient delivery worldwide via Qingdao Port.
