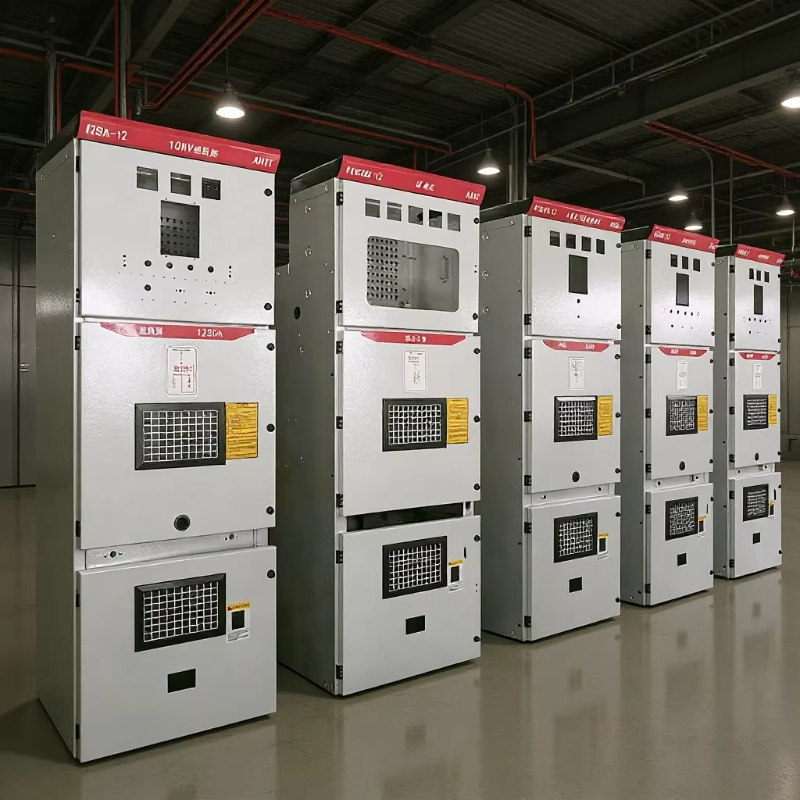

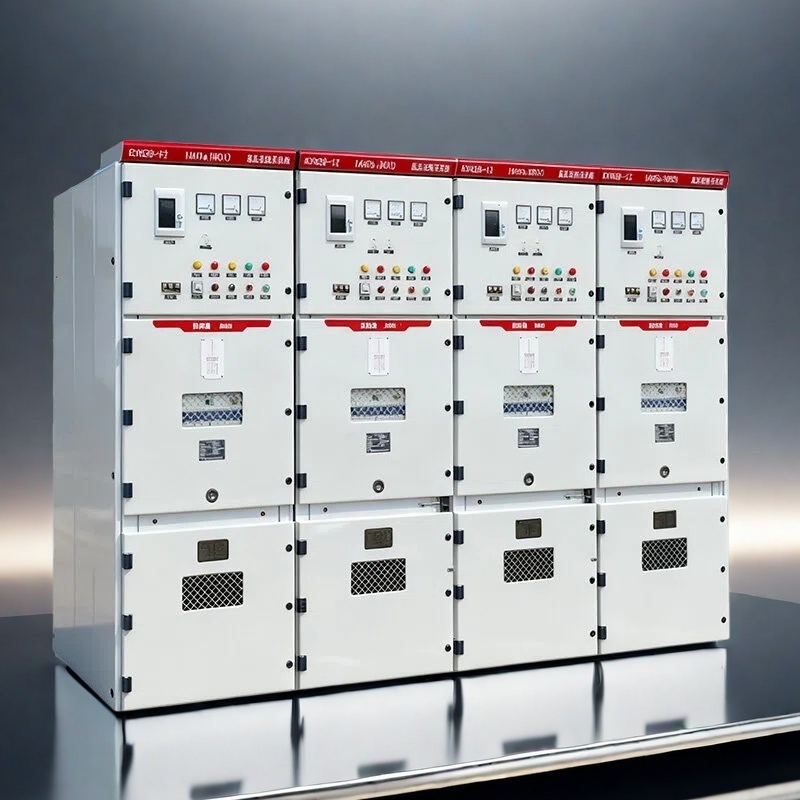

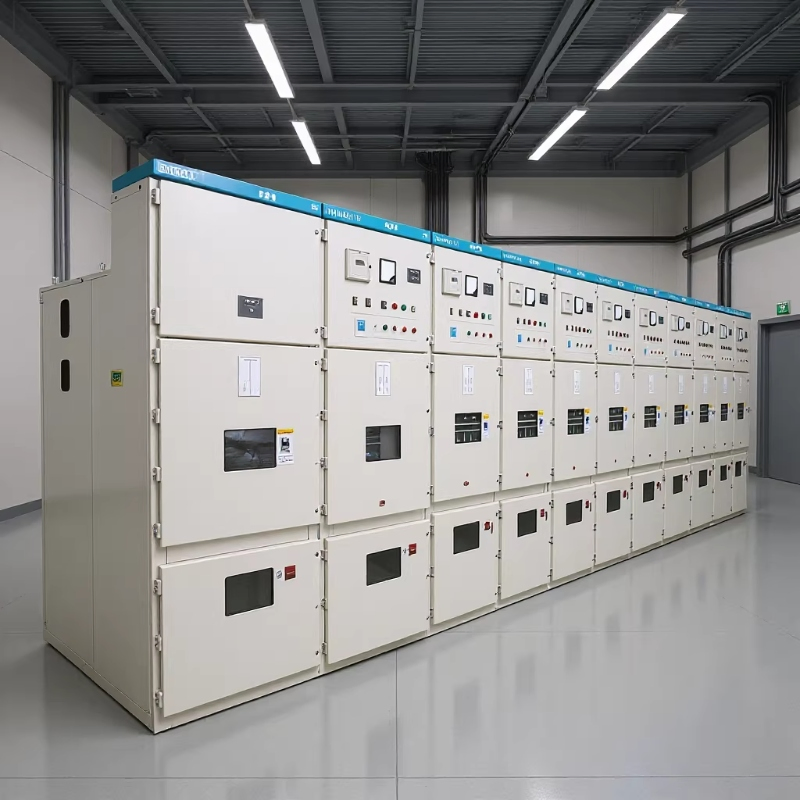

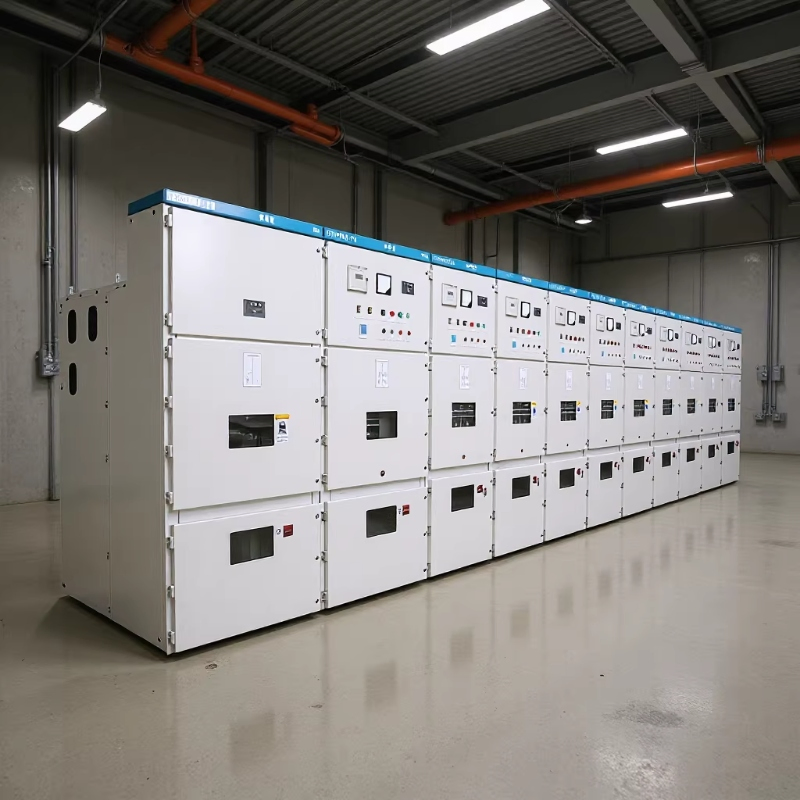

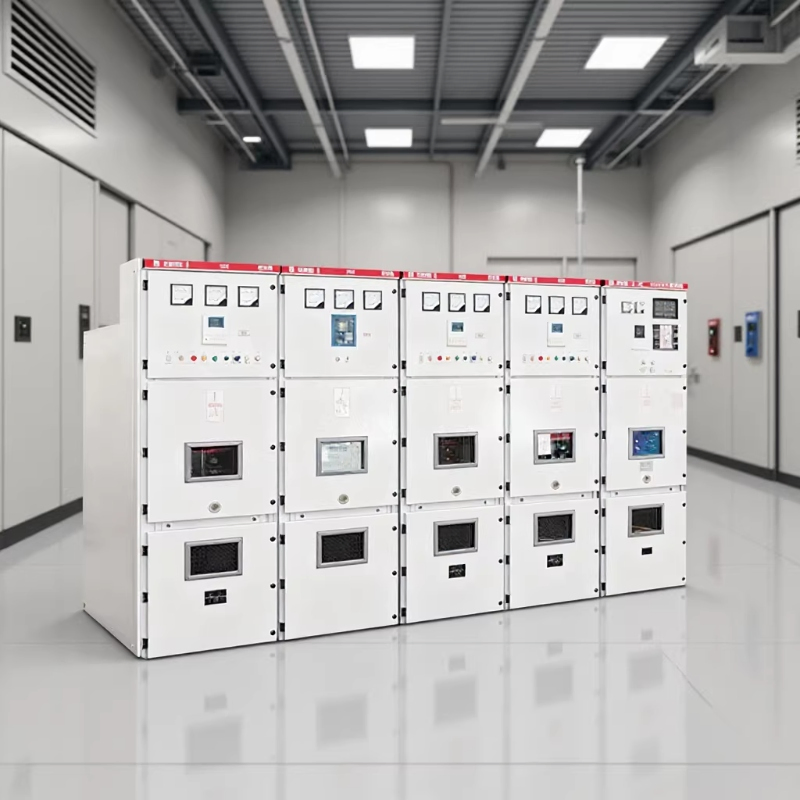

Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
1 / 5
Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard

Kyn28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.:KYN28A(GZS1-12)-12
Installation:Fixed
Structure:Cabinet
Current:AC
Ingress Protection:IP4X Enclosure
Altitude:1000m
Rated Frequency:50Hz
Rated Voltage:3.6kv/7.2kv/12kv
Origin:China
Product Description
Product Name KYN28A-12 Indoor Armored Withdrawable High Voltage Electrical Distribution Switchgear with IEC Standard
Rated Insulation 3.6KV/7.2KV/12KV (Rated Voltage)
Current Rating 630A/1250A/1600A/2000A/2500A/3150A
Short-time Current 20KA/25KA/31KA/31.5KA/40KA/50KA (4s)
Dimensions (mm) 2300 * 800 * 1500/1660

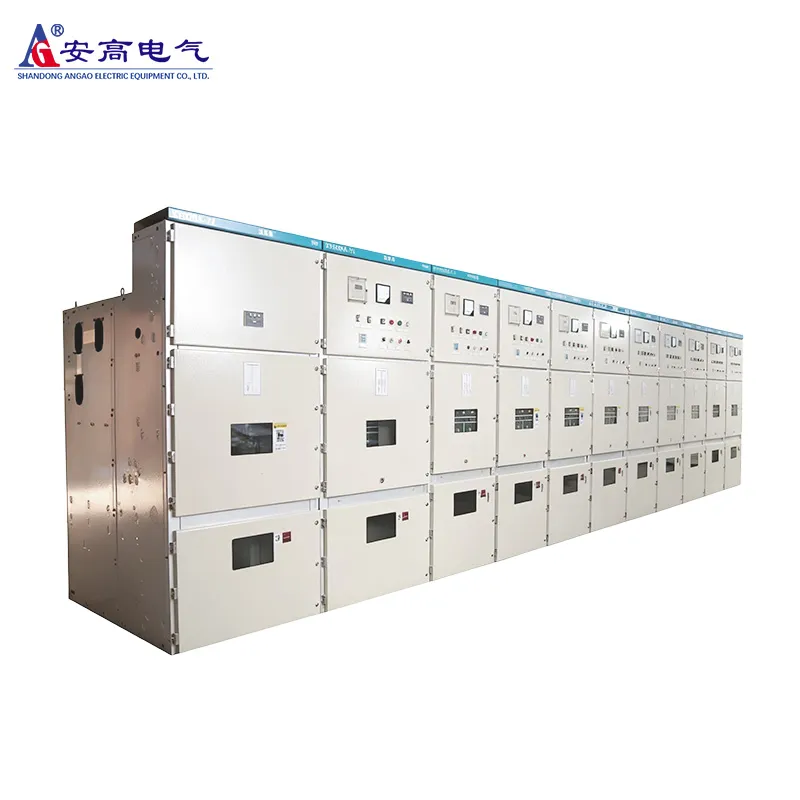

Switchgear View 1

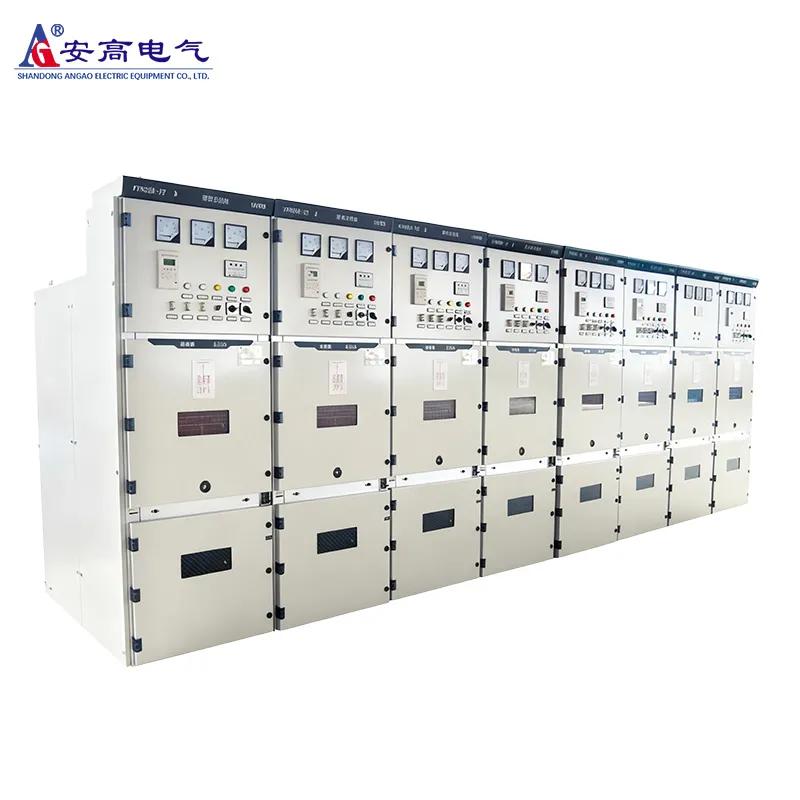

Switchgear View 2
Main Functions & Features

The field network is controlled via a CAN bus with a communication interface. It features comprehensive microcomputer relay protection devices on the panel for intelligent system control, including remote control, telemetry, signaling, and adjustment functions.

The cabinet can be equipped with various vacuum circuit breakers such as VS1 (ZN63), ZN12V, or imported V4 and HVX series. It is designed as a three-phase AC 50Hz indoor complete set of power distribution device for 3-12 kV network power.

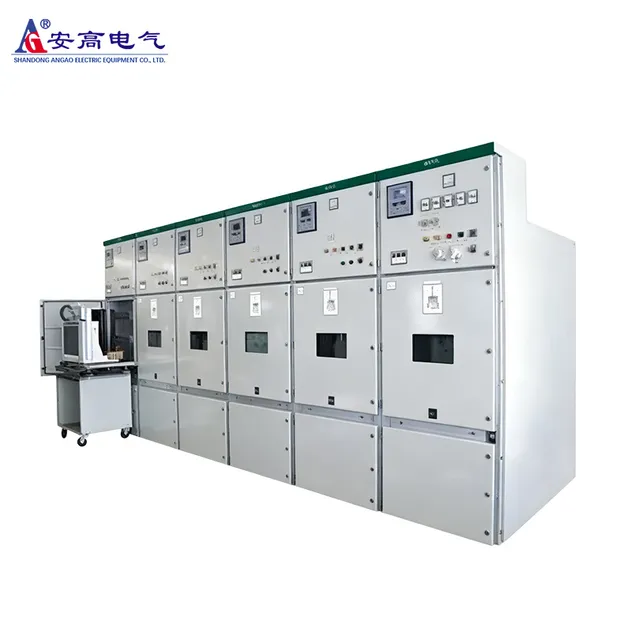

Internal Component 1

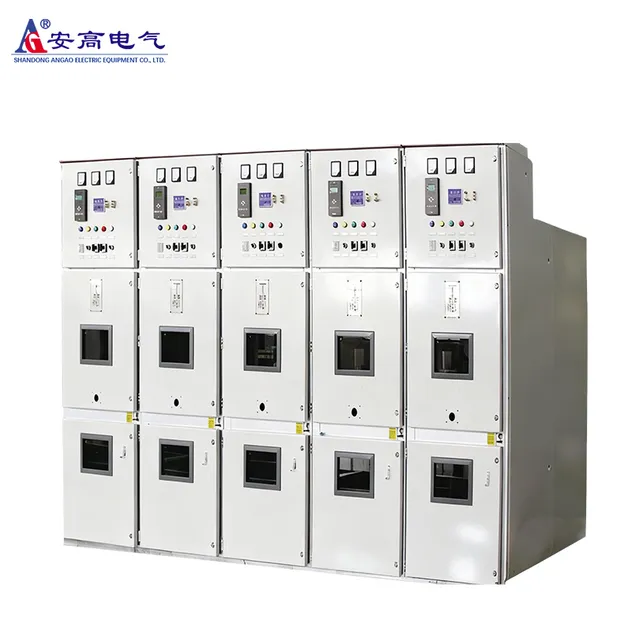

Internal Component 2

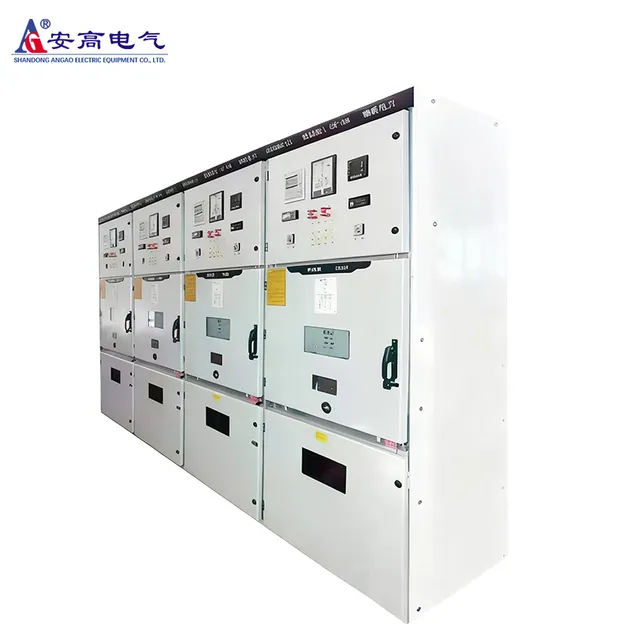

Internal Component 3
Technical Drawing
Product Structure
Manufacturing & Services
Dedicated to R&D and manufacturing in the power transmission and distribution field since 2007. The production line includes high and low voltage switchgear, AC/DC charging piles, and sheet metal housing processing.

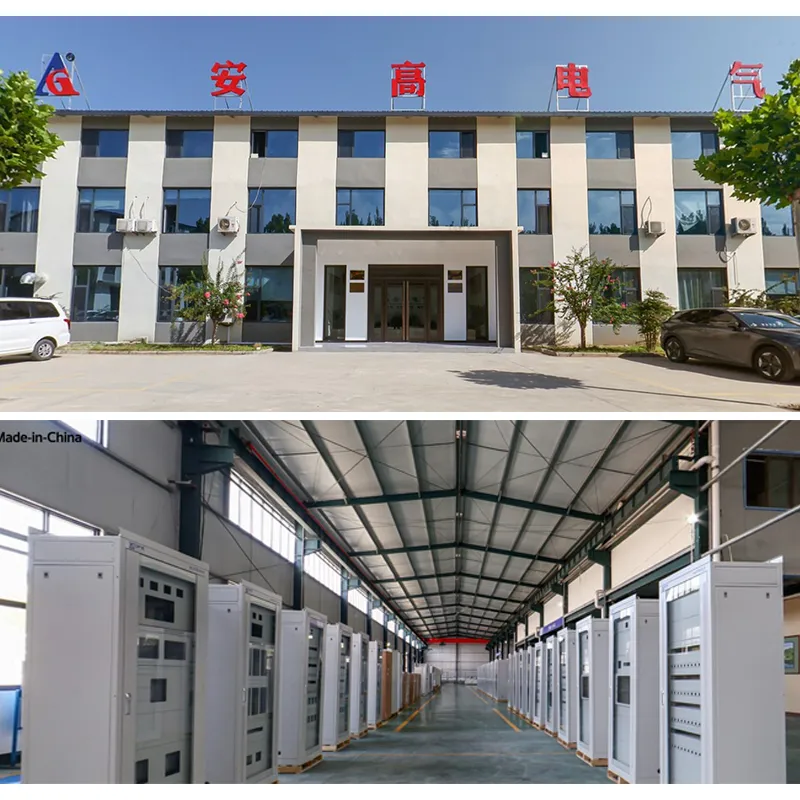

Production Workshop

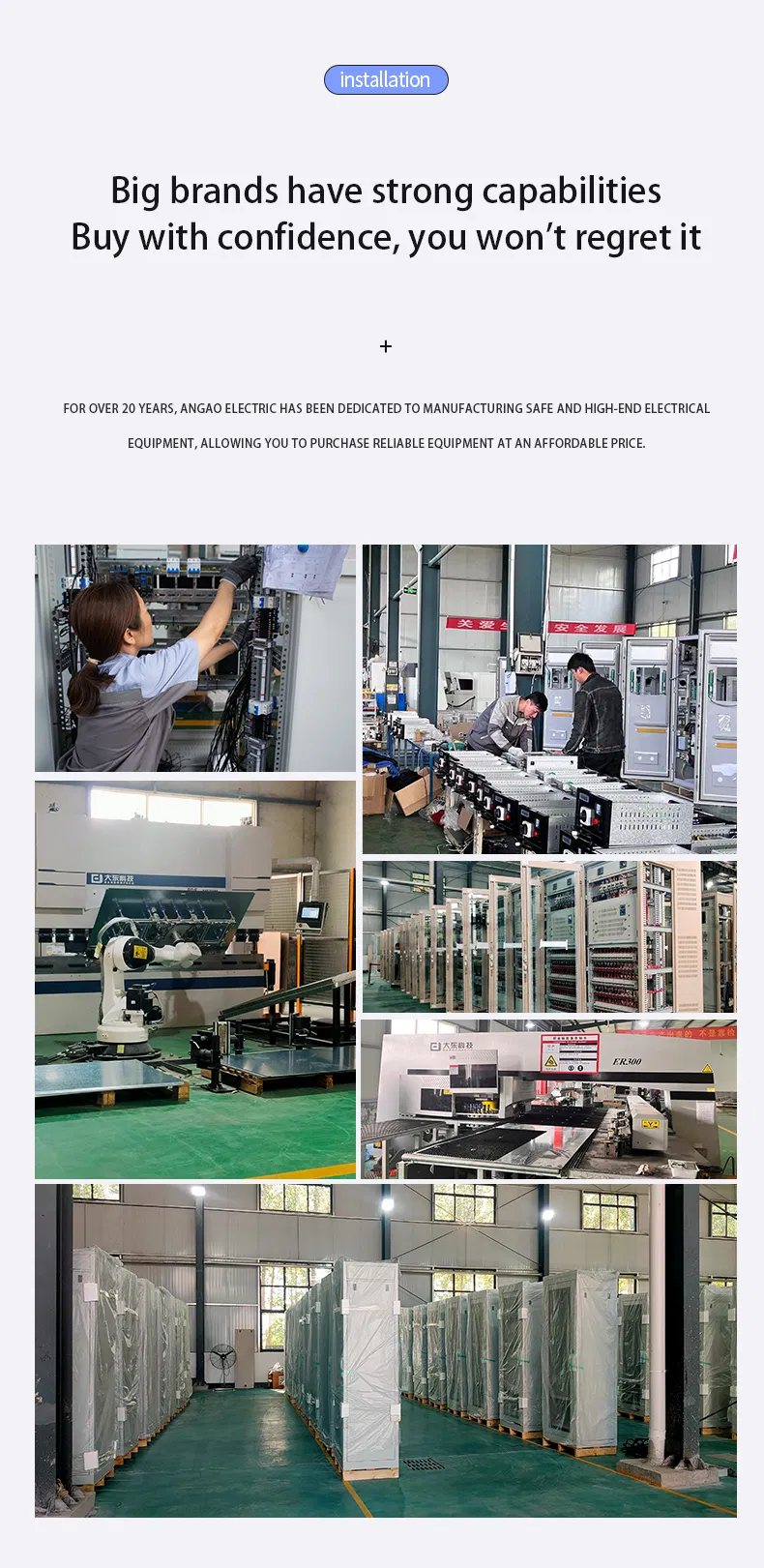

Facility Overview
Customized Service & Certifications
Customization Flow
Certificates
Packaging & Shipping
Shipping Details
Package Gross Weight:800.00kg
Transport Package:Wooden Case
Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a professional factory with 19 years of experience in the field of High and Low Voltage switchgear, substations, transformers, and electrical equipment.
What are your standard payment terms?
We typically require 30% T/T in advance and 70% before shipment. West Union and L/C are also acceptable.
What is the expected delivery time?
Usually, production and delivery take approximately 15-20 days.
How do you handle quality assurance?
If quality problems occur, please provide detailed photos. Our technical and quality testing departments will analyze the issue and provide a solution within 2 days.
What is the warranty period for your products?
The standard warranty is 12 months from the date of the bill of lading.
Can you accommodate product customization and branding?
Yes, we accept customization. Please provide specific drawings or parameters. We can also apply your logo to the products as per your design.
