Medium Voltage 24kv Gis Sf6 Gas Insulated Compact Switchgear

📋 Basic Information

Model NO.

TRM

Voltage Level

Medium Voltage

Installation

Removable

Structure

Cabinet

Current

AC

Gas Pressure

0.3 Bar

Rated Voltage

up to 36kv

Standard

IEC

Protection

IP67

Origin

China

Capacity

2000 sets Per Year

📘 Product Description

The TRM is a compact unit combining all MV functional units to enable connection, supply and protection of transformers on an open ring or radial network. It features a wide range of functional units, is easy to extend and upgrade, and up to five modules can be assembled in one common gas tank. No live parts are exposed, and the system is sealed for life.

Compliance Standards:

IEC 62271-1: Specifications High-voltage switchgear
IEC 62271-102: Alternating current disconnectors earthing switches
IEC 62271-103: High-voltage switches
IEC 62271-105: Switch-fuse co-operation
IEC 62271-200: Arc fault and switchgear
IEC 60529: Degrees of protection provided by enclosures

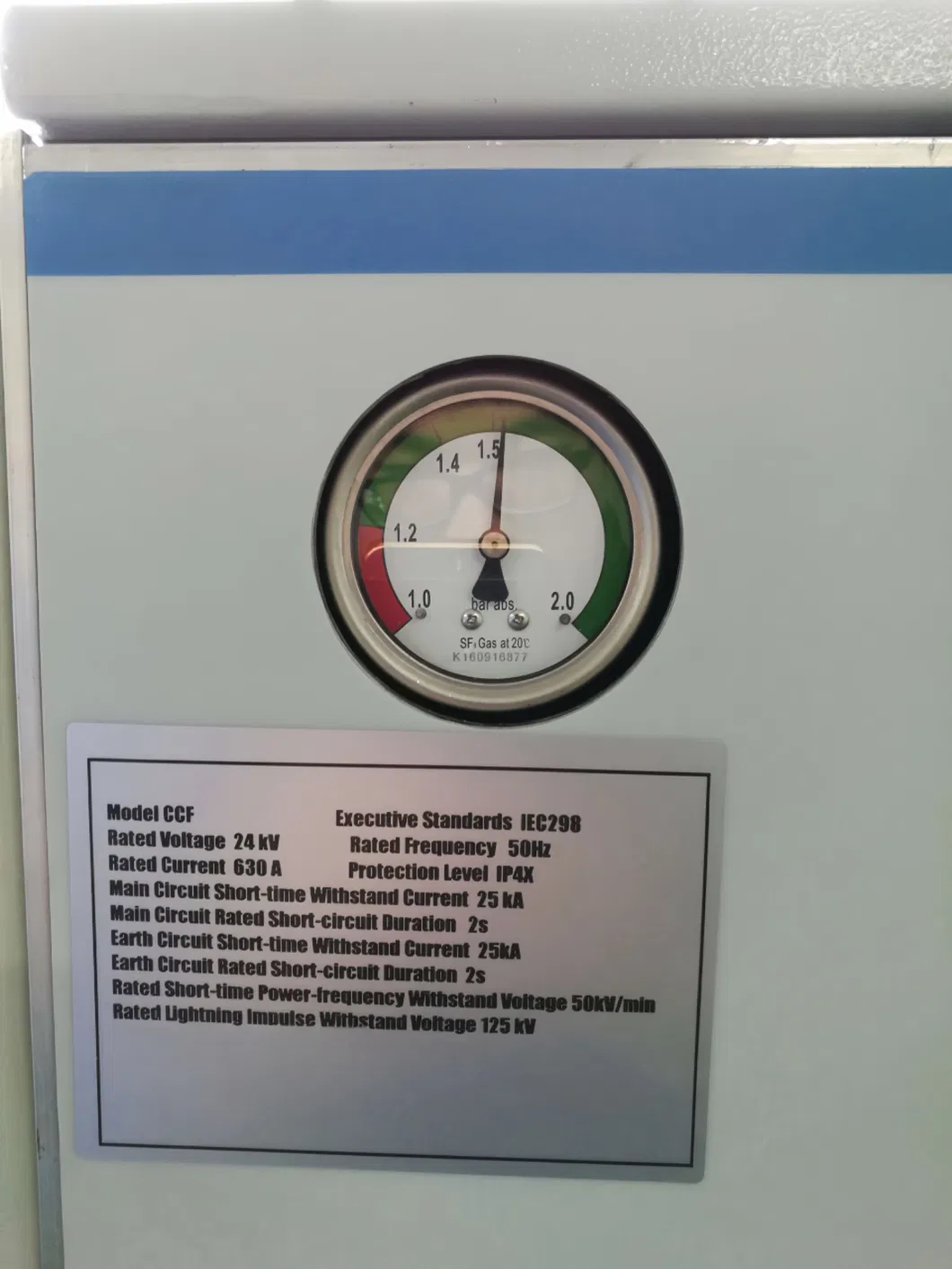

🖼️ Detailed Photos

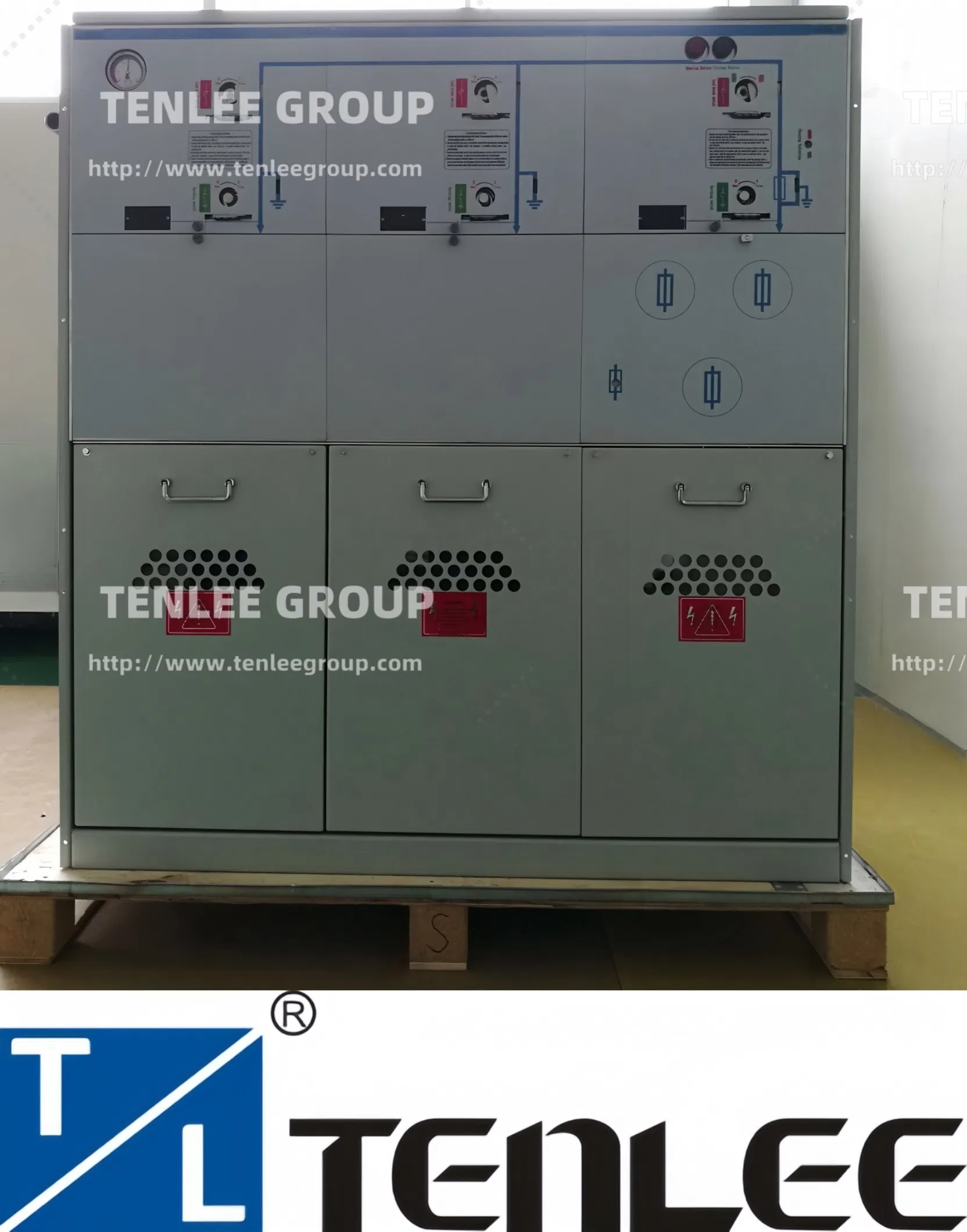

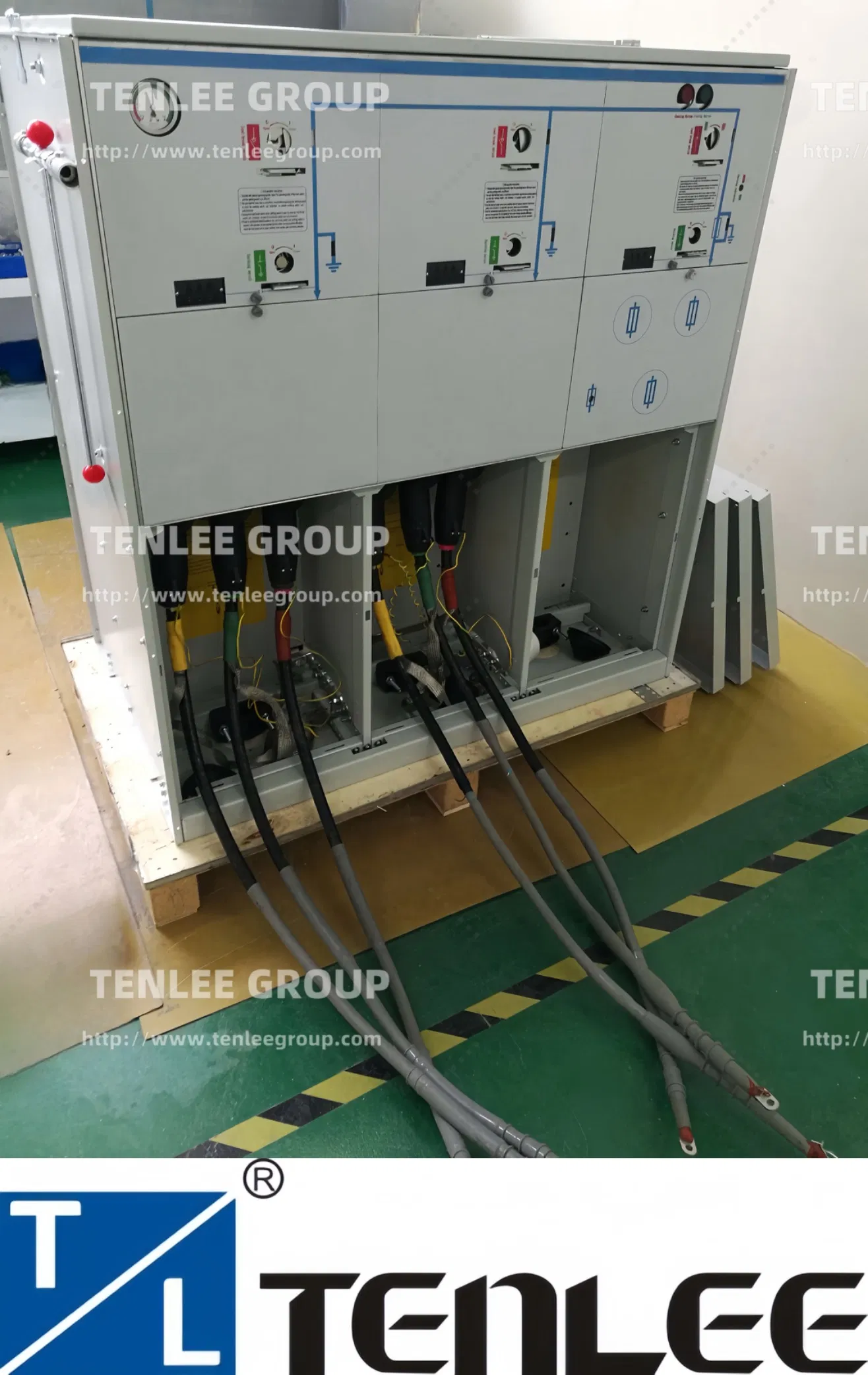

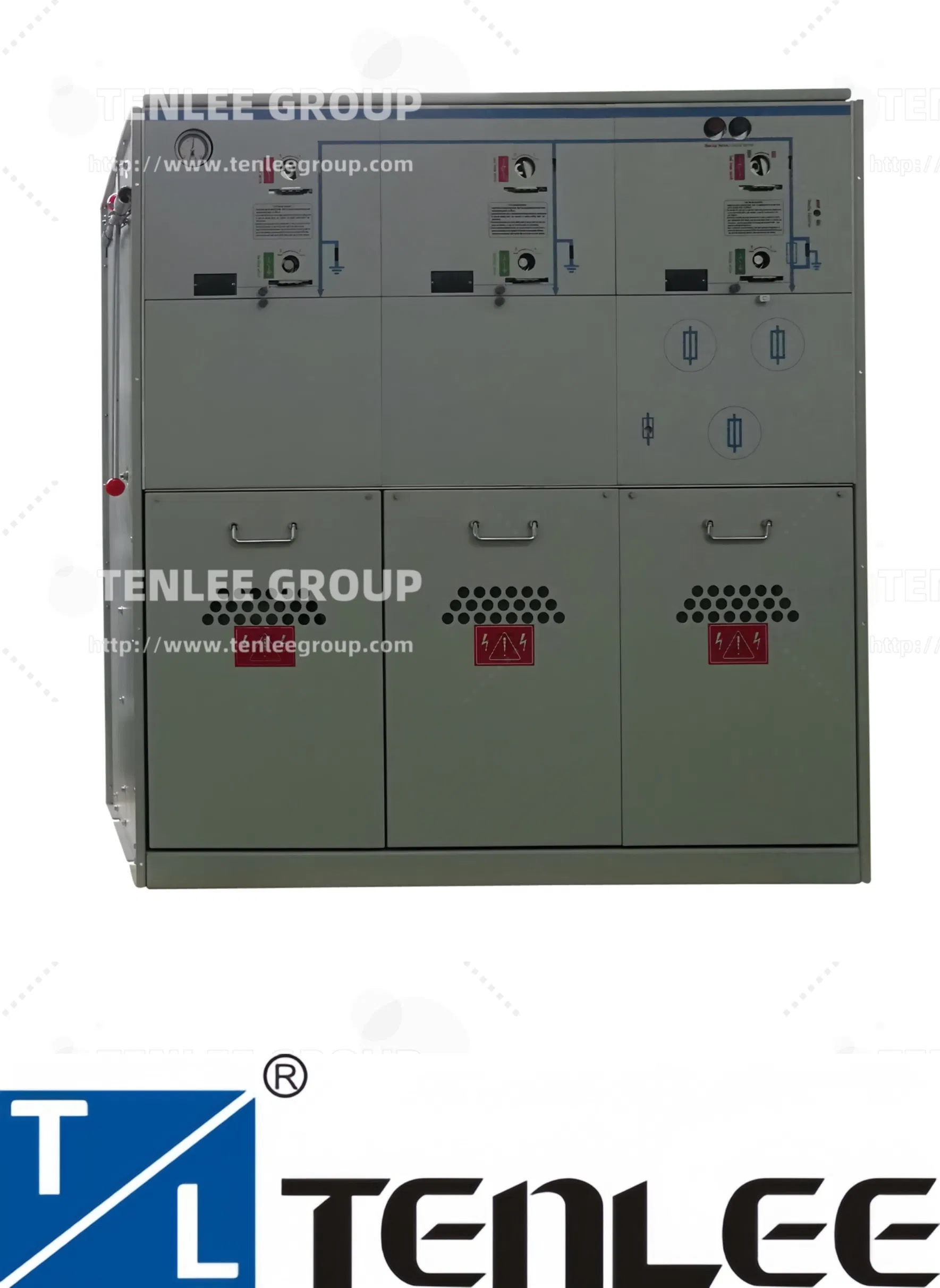

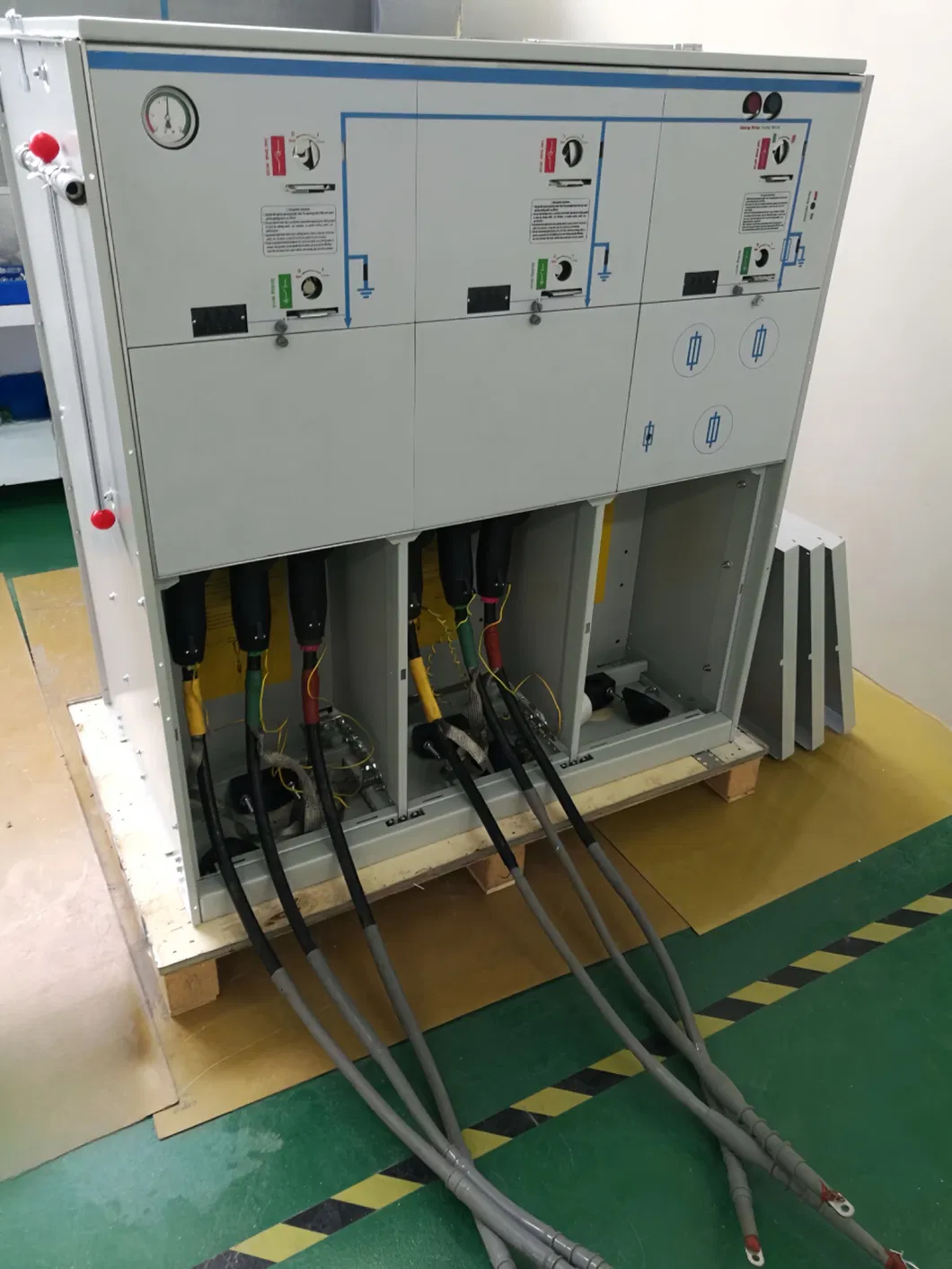

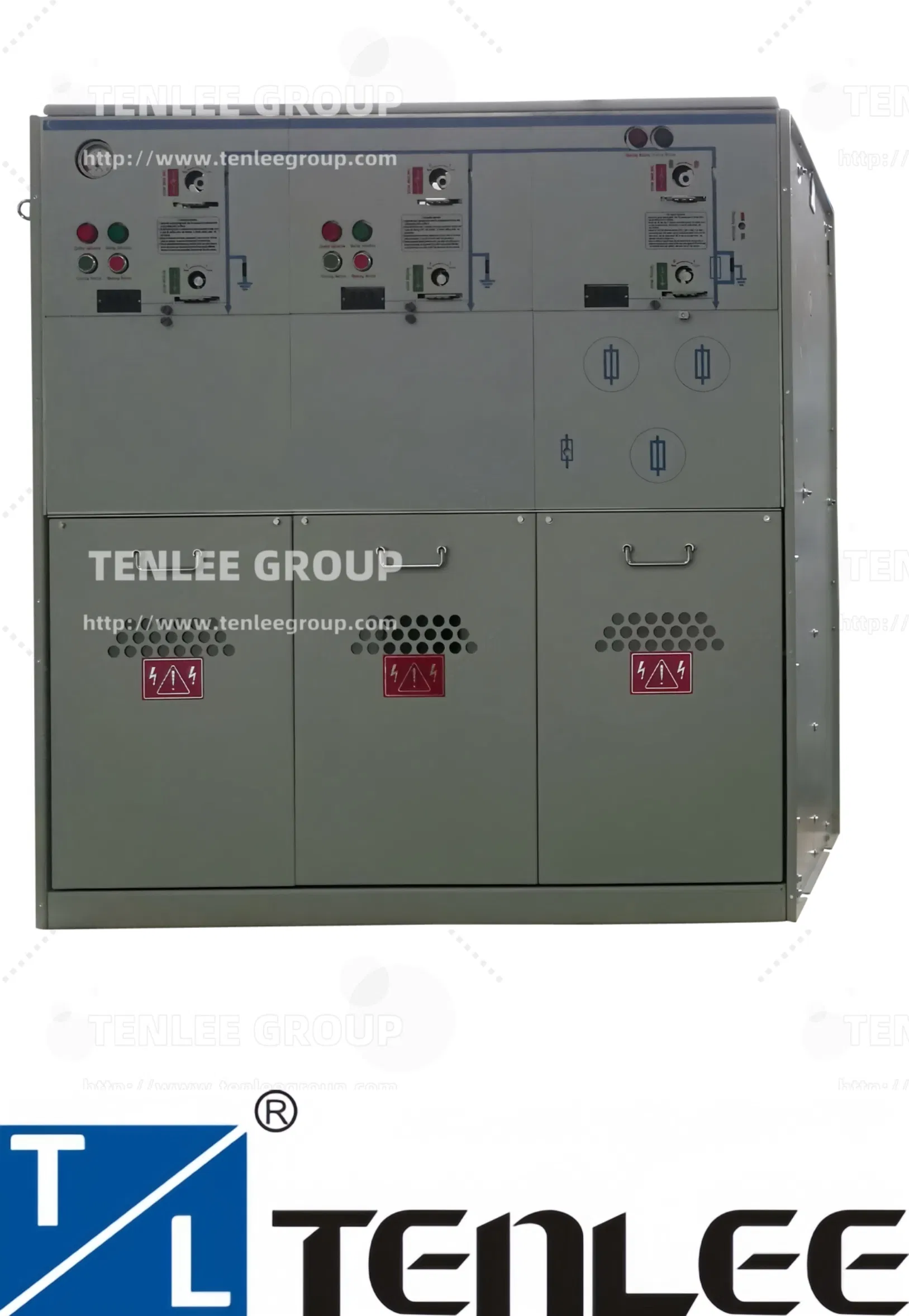

Medium Voltage 24kv Gis Sf6 Gas Insulated Compact Switchgear

📊 Product Parameters

Parameter Item	C module	F module	Vc module (Spring)		Vc module (Magnetic)
Unit Type	Switch disconnector	Switch-fuse disconnector	VCB	Earthing/Disc.	VCB	Earthing/Disc.
Rated Voltage (Kv)	12/24	12/24	12/24	12/24	12/24	12/24
Power Freq. Withstand (Kv)	42/50	42/50	42/50	42/50	42/50	42/50
Lightning Impulse (Kv)	92/125	92/125	75/125	75/125	75/125	75/125
Making Capacity (kA)	50/40	Limited by fuse	50/40	50/40	50/40	50/40

🏭 Manufacturing Solutions

Specialized in manufacturing a comprehensive range of solutions from 12kv to 40.5kv for indoor/outdoor systems including:

Gas insulated switchgears / Ring main unit
SF6 free switchgears
Vacuum circuit breakers / SF6 circuit breakers
Reclosers / Load break switches / Disconnectors
Distribution & Power transformers / Substations

📦 Packaging & Shipping

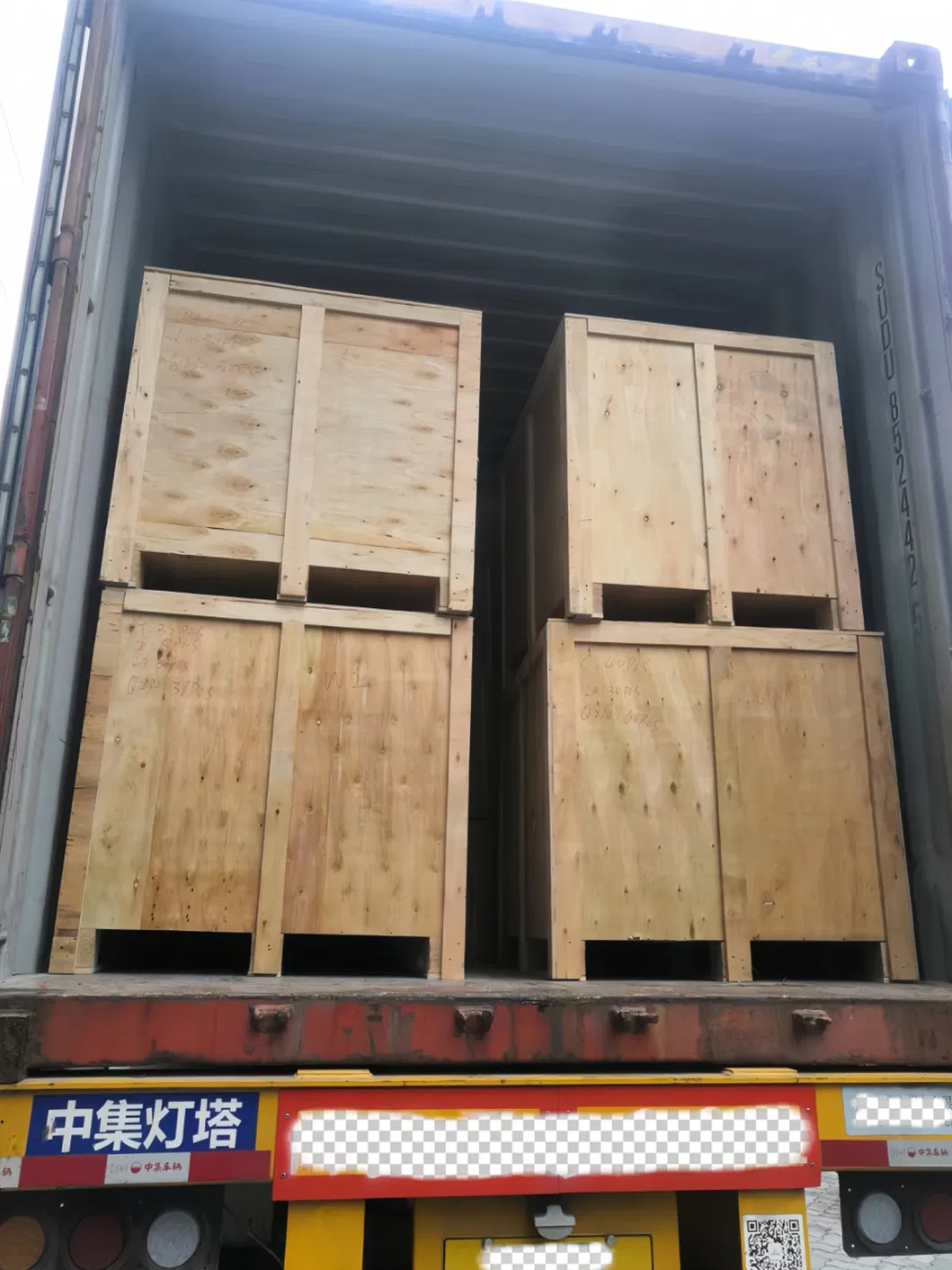

Standard Package: Professional wooden or carton packaging ensures safe transport.
Delivery Time: Usually within 30 days for a full container.

❓ FAQ

What are the payment terms for orders?

We accept TT, PayPal, Western Union, and other standard payment methods.

What is the standard guarantee period?

Typically, the guarantee period is 18 months following delivery.

Have your products passed type tests?

Yes, our equipment has successfully passed type tests in Europe to ensure quality and safety.

What is the rated voltage range for this switchgear?

The TRM series supports rated voltages up to 36kv, with common configurations at 12kv and 24kv.

Is the switchgear suitable for harsh environments?

Yes, with an IP67 protection rating and a sealed-for-life gas tank, it is designed for high reliability in various conditions.

How many modules can be combined in one unit?

Up to five modules can be assembled in one common gas tank for compact and efficient distribution.
