Reliable Six-Phase Relay Tester for Power System Protection

1 / 5

Reliable Six-Phase Relay Tester for Power System Protection

Customization:	Available
After-sales Service:	on-Line Techinical Support
Warranty:	3 Years

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

Relaystar-1600E

Type

Electric Power Tester

Accuracy Grade

0.1%

Control

Computer Control

Output

Max 120V/30A Per Phase

Power Source

AC220V

Frequency

DC--3000Hz

Digital Input

10 *10-250VDC

📦

Product Description

Six-Phase Relay Tester for Relay Testing in 35kV Substations

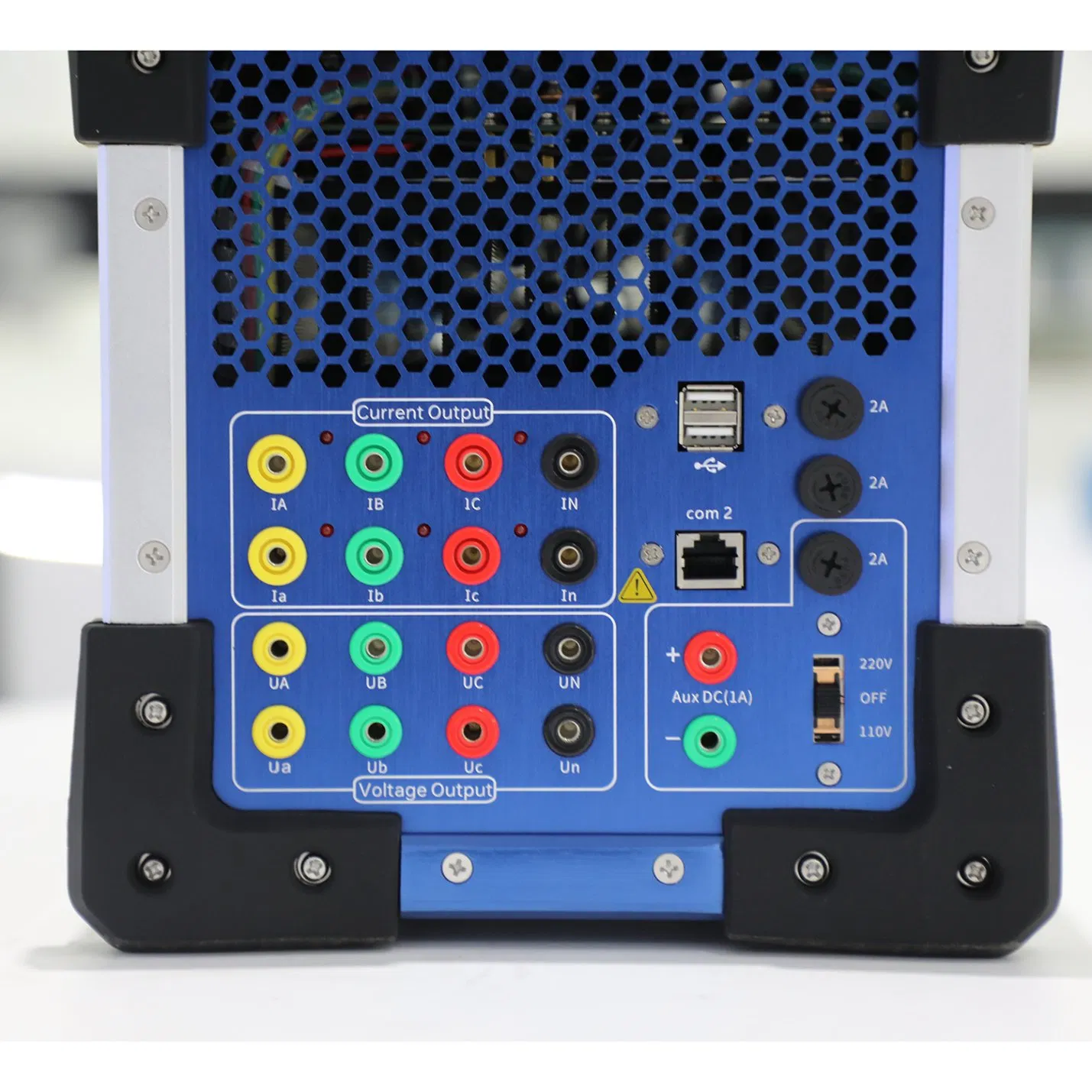

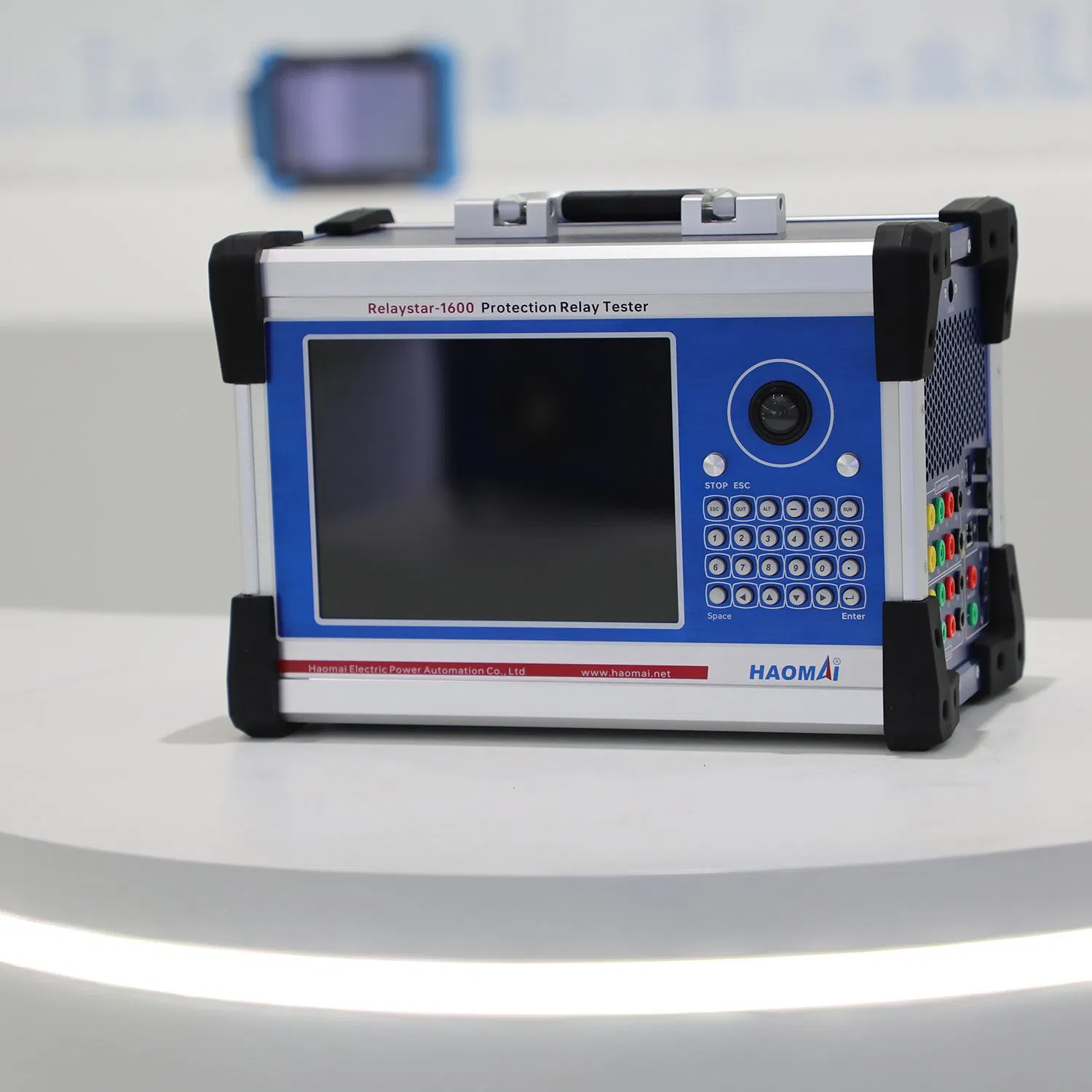

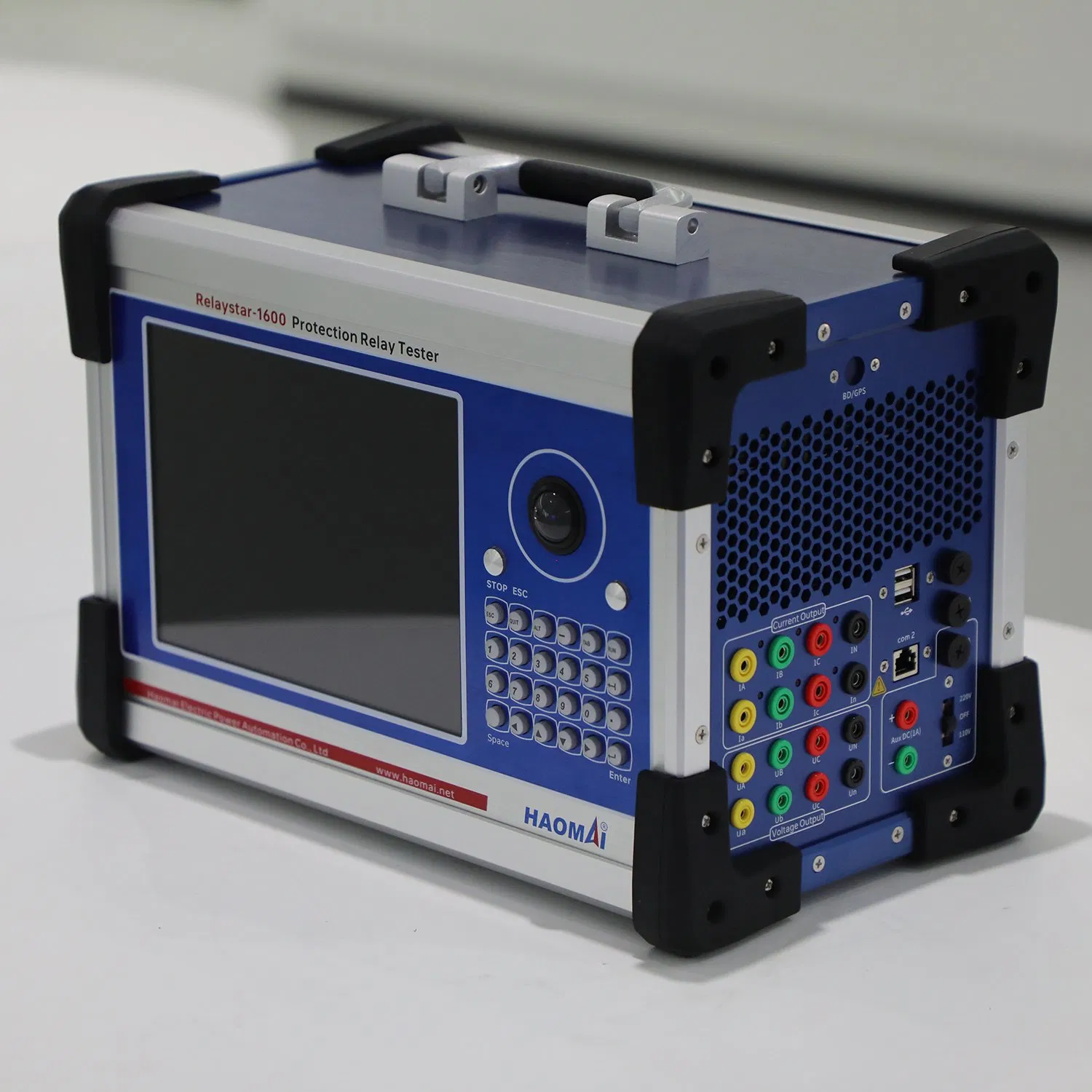

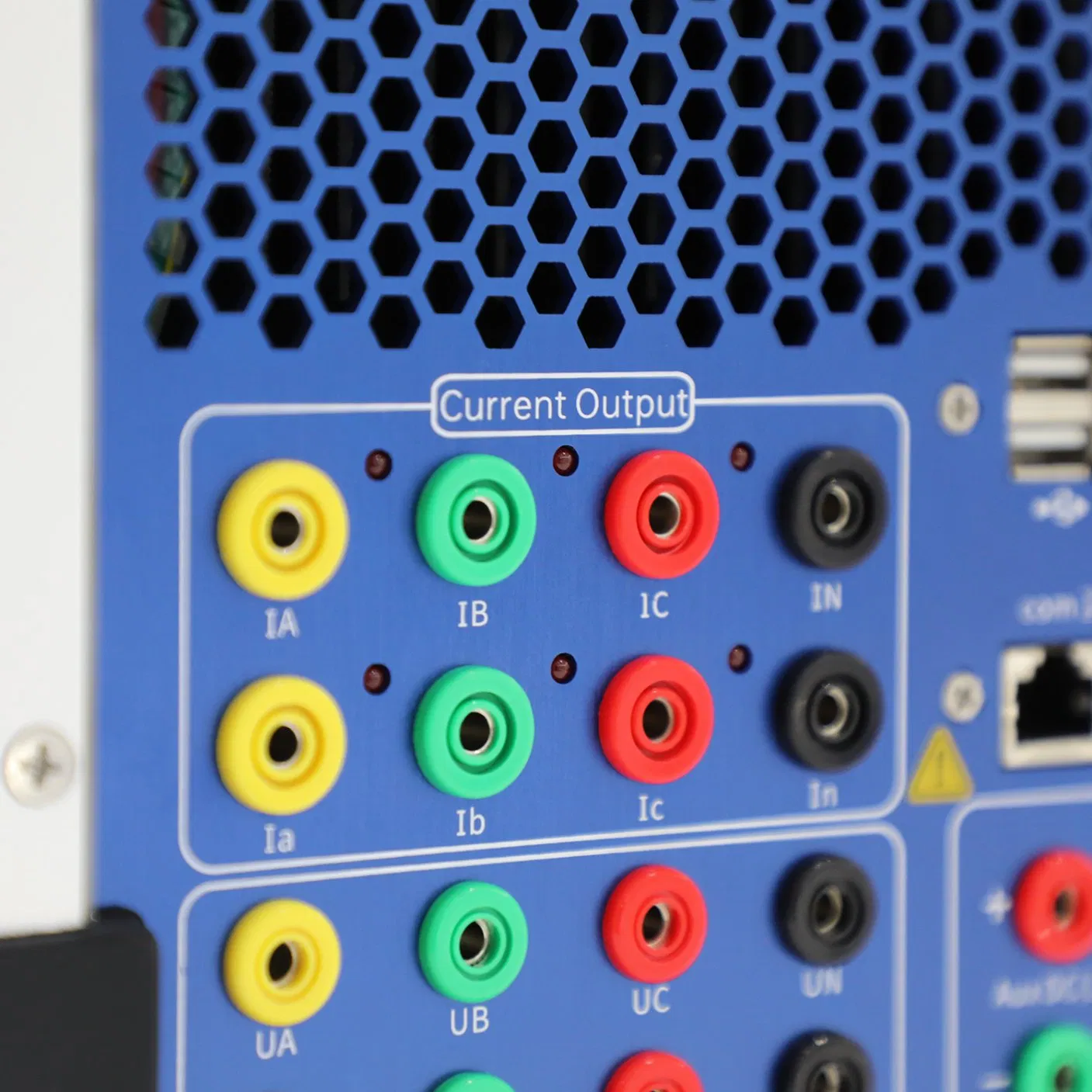

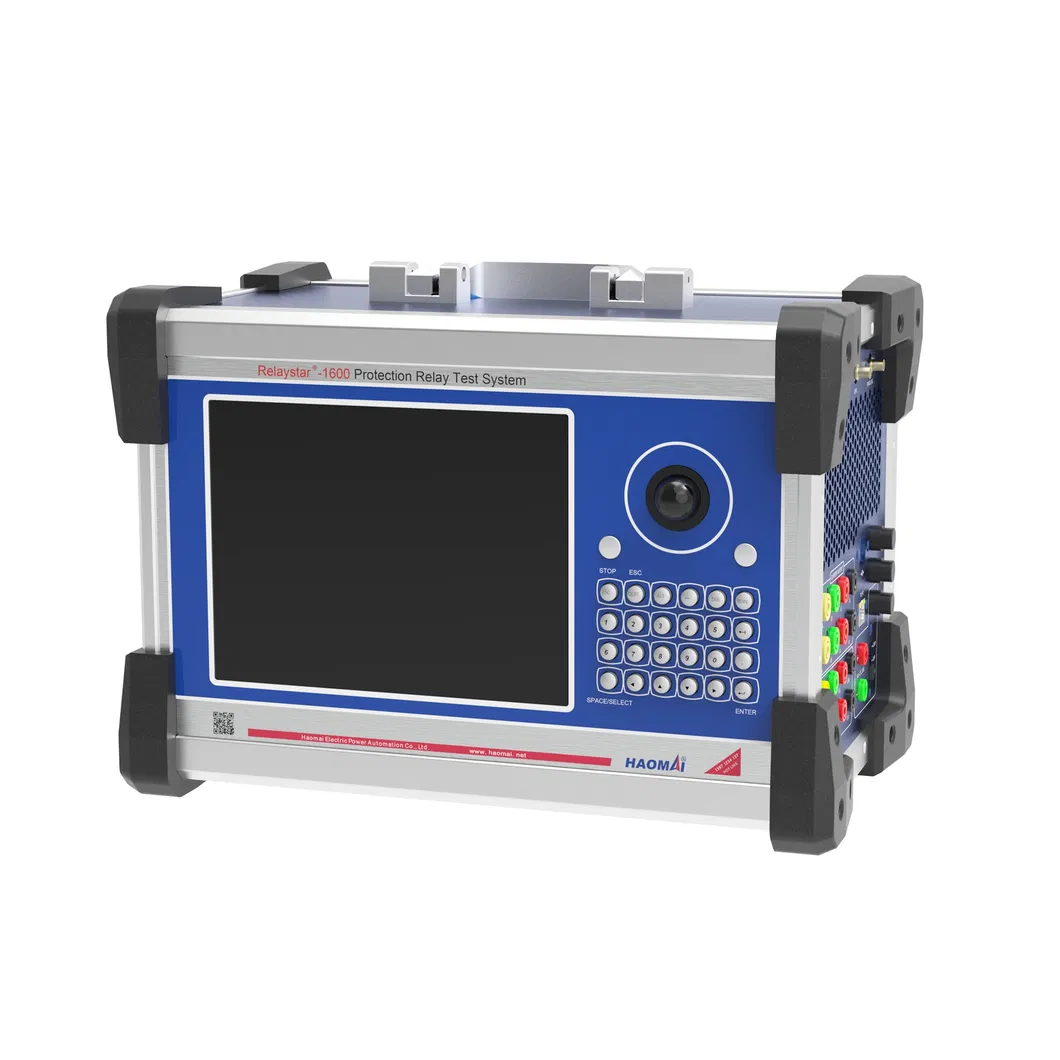

The Relaystar-1600E (Six-Phase Protection Relay Test System) is a universal solution for testing all generations and types of protection relays. It features a deep-developed amplifier outputting 6-phase current (6x0...40A) and 6-phase voltage (6x0...150V) for current injection tests as well as most substation secondary test commissions.

The system is an excellent choice for higher current and power output requirements (up to 1x1000VA at 240A) for testing high-burden electromechanical relays. It can be operated without a PC via its embedded industrial computer, 10.4" full color TFT LCD screen, and built-in mouse and keyboard.

Main Features

6-phase current(6×40A) + 6-phase voltage(6×150V) output
Embedded industrial PC with 10.4" LCD screen
Standalone operation or PC-controlled operation
High performance amplifiers with superior power output
In-built GPS for end-to-end synchronized testing
Professional software for local and remote testing

📊

Technical Parameters

Current Generator

Parameter	Range	Power/Accuracy
6-Phase AC(L-N)	6x0…40A	6x300VA At 40A
1-Phase AC	1x0…240A	1x1000VA At 240A
DC(L-N)	6x0…±20 A	Accuracy: ≤0.2%

Voltage Generator

Parameter	Range	Power/Accuracy
6-Phase AC(L-N)	6x0…150V	6x80VA At 150V
DC(L-N)	6x0…±175V	Accuracy: ≤0.2%
Resolution	1mV	-

📷

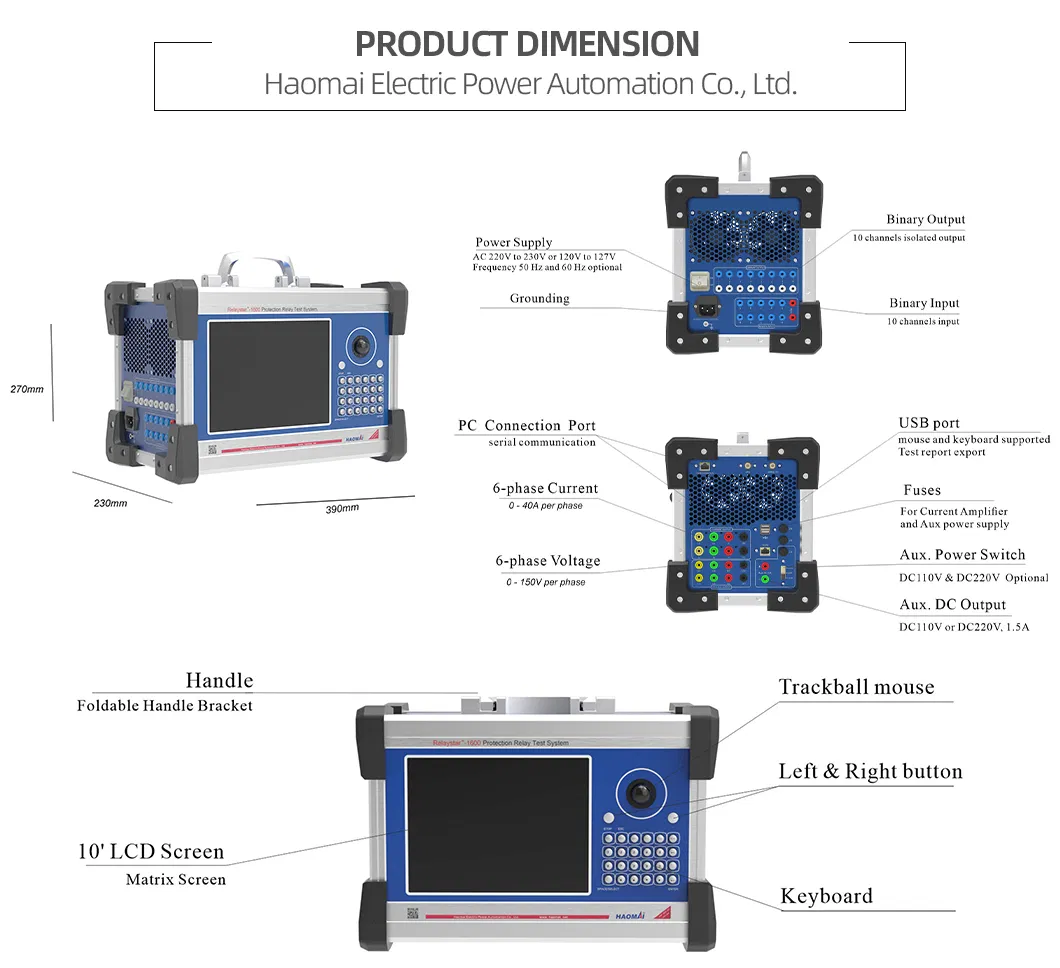

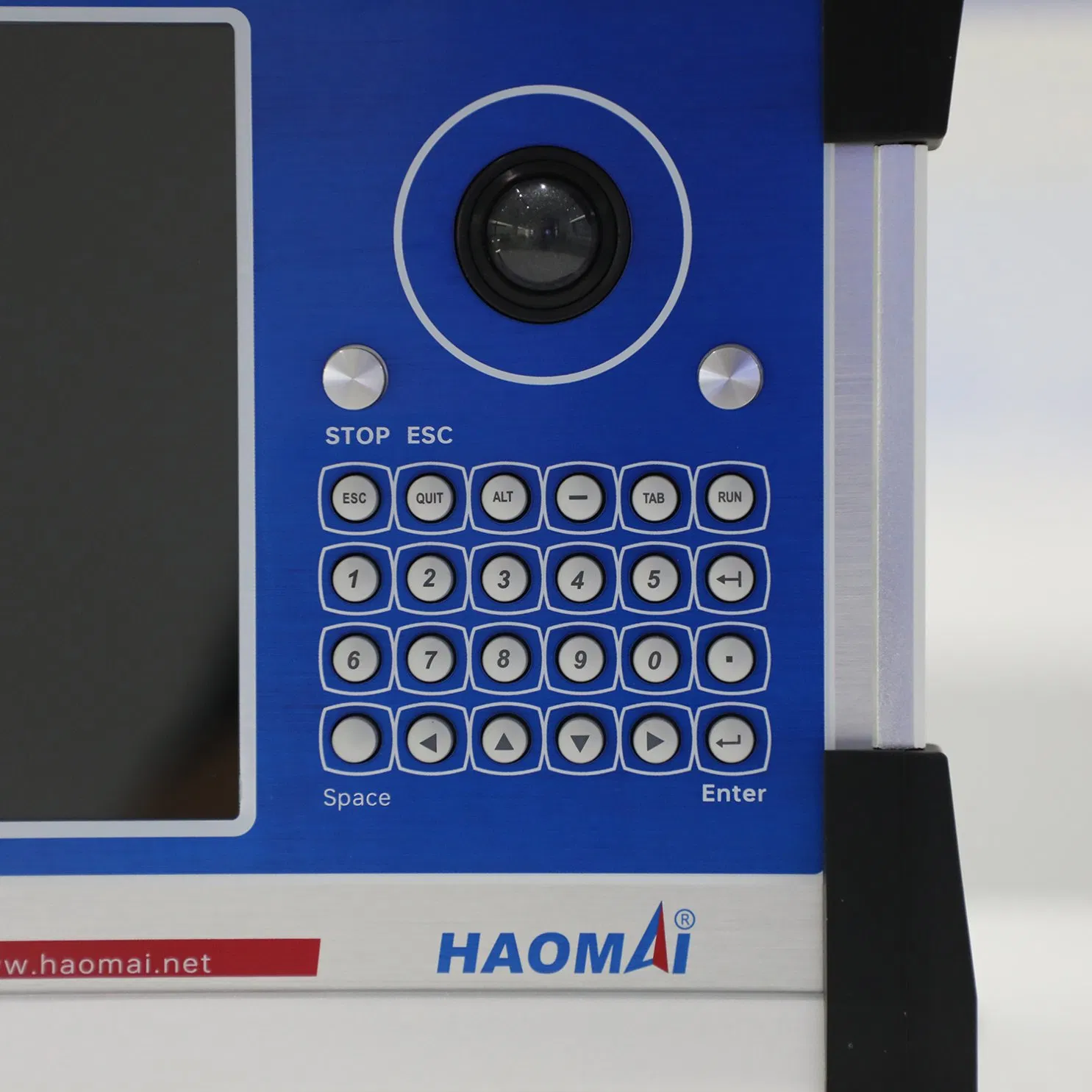

Detailed Photos

⭐

Our Advantages & Cooperation

Equipped with state-of-the-art production equipment and precise testing instruments, including High-precision Meters, EMH Standard Meters, and Oscilloscopes, we ensure the highest standards of quality and performance. Our products have reached over 34 countries worldwide, supported by extensive research and market-driven innovation.

📜

Quality Certifications

Adhering to comprehensive quality standards, our manufacturing processes are certified under ISO 9001:2015 for quality management, ISO 14001:2015 for environmental management, and OHSAS 18001:2007 for health and safety.

❓

Frequently Asked Questions

What are the main output capabilities of the Relaystar-1600E?

It provides a 6-phase current output (up to 40A per phase) and a 6-phase voltage output (up to 150V per phase). For single-phase requirements, it can reach up to 240A.

Does this tester require a PC for operation?

No, it can be operated standalone using the embedded industrial PC, 10.4" LCD screen, and built-in keyboard/mouse, or it can be controlled via an external PC.

Can it perform end-to-end synchronized testing?

Yes, the system features an in-built GPS that allows for synchronized end-to-end testing between sets located in different substations.

What is the accuracy of the measurements?

The system maintains a high accuracy grade of 0.1% for AC current and voltage generators.

Is the unit portable for field use?

Yes, despite its high power output, the unit weighs 18kg and has dimensions of 420x360x210mm, making it suitable for field testing.

What kind of protection relays can this system test?

It is a universal solution capable of testing all generations and types of protection relays, including high-burden electromechanical relays.
