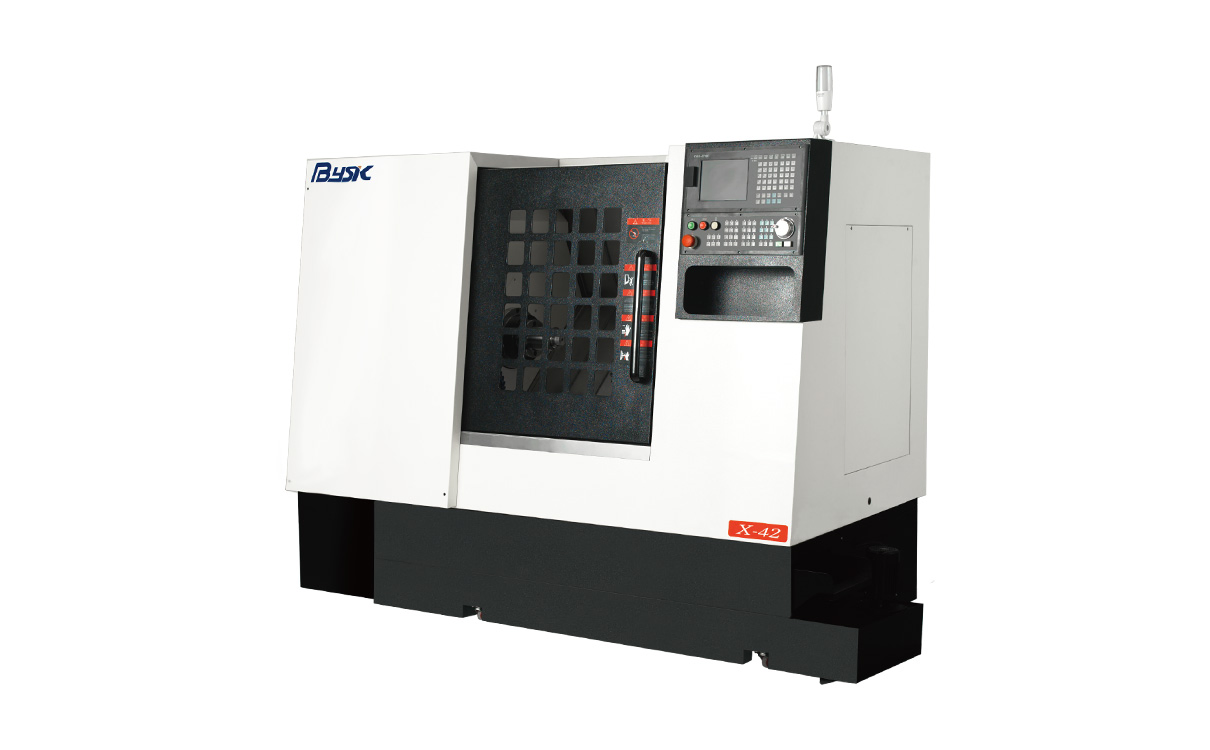

Introducing the Slant Bed X42 CNC Turning Center Lathe Machine - a sophisticated solution for Auto Parts and Shafts Processing
The X42 model shines with its seamless chip removal capabilities, a suite of comprehensive functions, and an unmatched performance level. Its high rigidity contributes to its astounding efficiency and precision. Primarily engineered for excellence in the auto parts and plumbing sectors, as well as in manufacturing valves, molds, and other demanding industries.

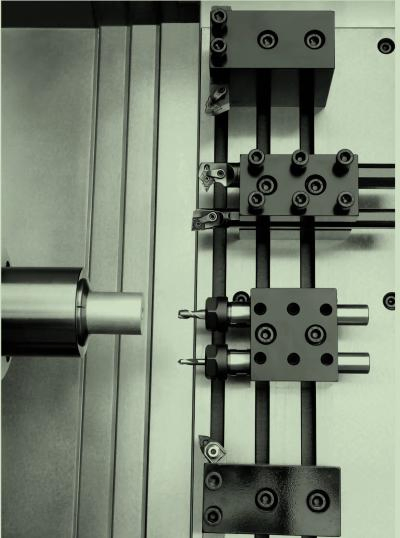

Skillfully designed to handle automatic chip processing of rotating workpieces, this machine effortlessly manages tasks involving inner and outer circles, grooves, conical and spherical surfaces, as well as a wide array of metric and imperial threads. Each casting is constructed with resin sand to ensure superior stability and exceptional strength.
| Category | Parameter | Specification |
|---|---|---|
| Power | Rated Voltage | Three-phase AC 380V |
| Rated Frequency | 50HZ | |
| Total Input Power | 9kW | |
| CNC System | Control System | YZ180 |
| Minimum Set Unit | 0.001mm | |
| Cutting Speed | 1--4000mm/min | |
| X Axis Rapid Feed | 25000mm/min | |
| Z Axis Rapid Feed | 25000mm/min | |
| Main Spindle | Max Bar Diameter | Φ42mm |
| Max Rotating Diameter | Φ400mm | |
| Spindle Speed | 0-3000r/min | |
| Motor Power | 5.5kW |

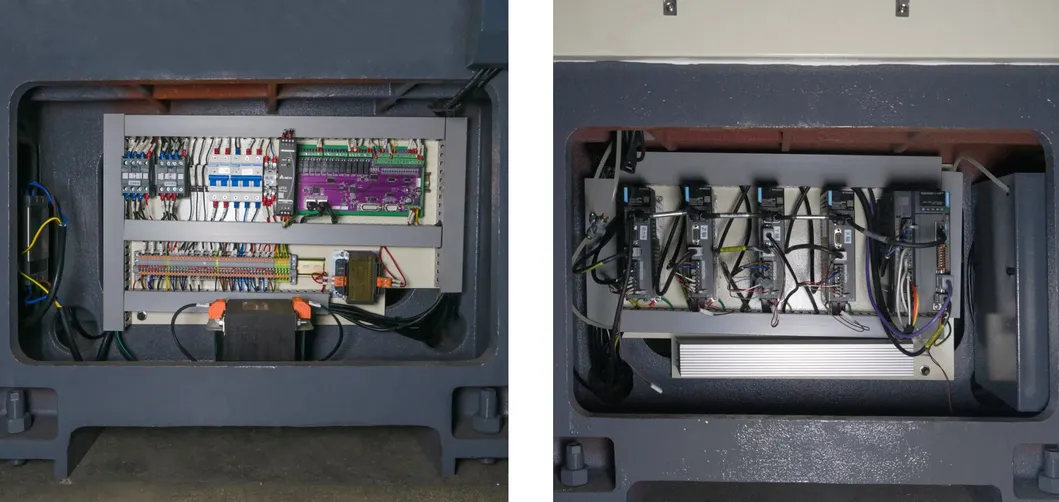

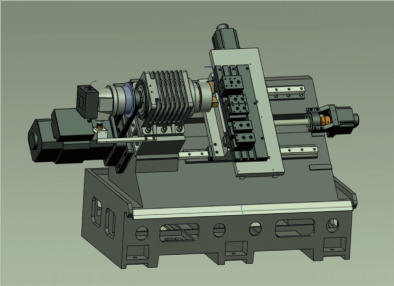

Inner Structure Features:

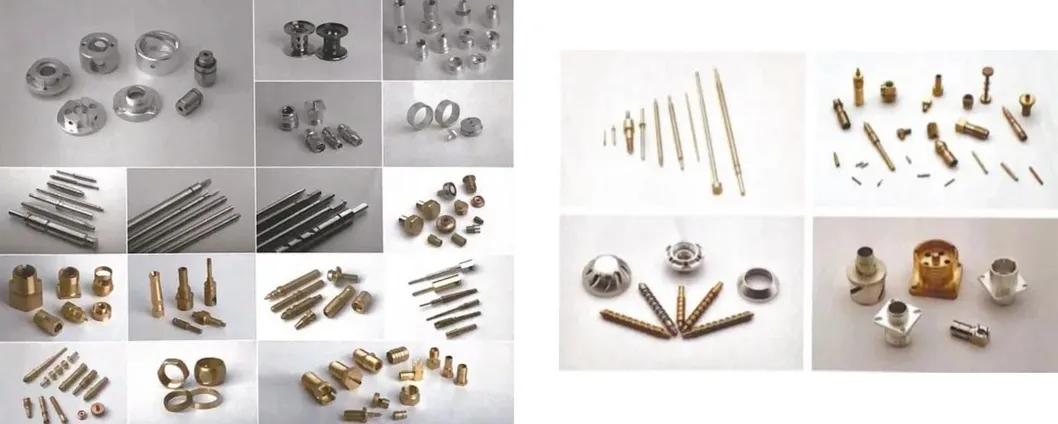

Our machinery is expertly crafted for processing shaft and disc parts that demand high precision and accommodate a multitude of complex dimensions. From electronic connectors and automotive components to aerospace and medical instruments, we deliver unmatched precision.
As a pioneering high-tech enterprise, we are at the forefront of innovation in the CNC industry. We specialize in the meticulous research, development, production, and servicing of advanced CNC systems. Our premier offerings include precision CNC machine tools, automated production lines, industrial robots, and IoT solutions.

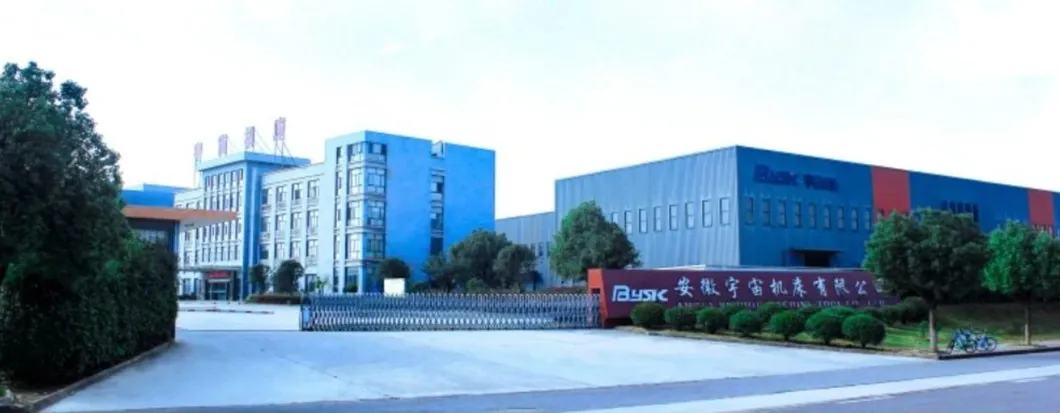

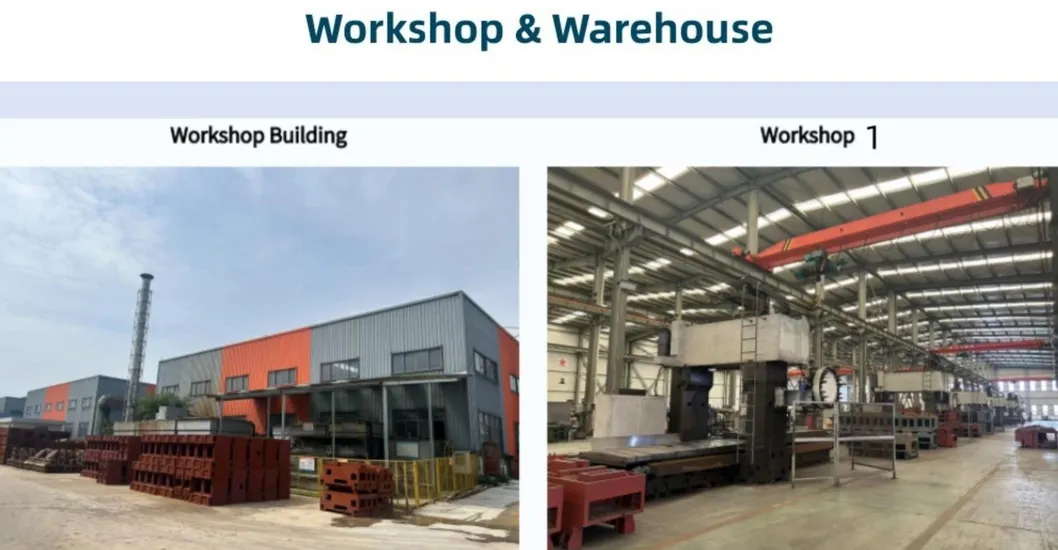

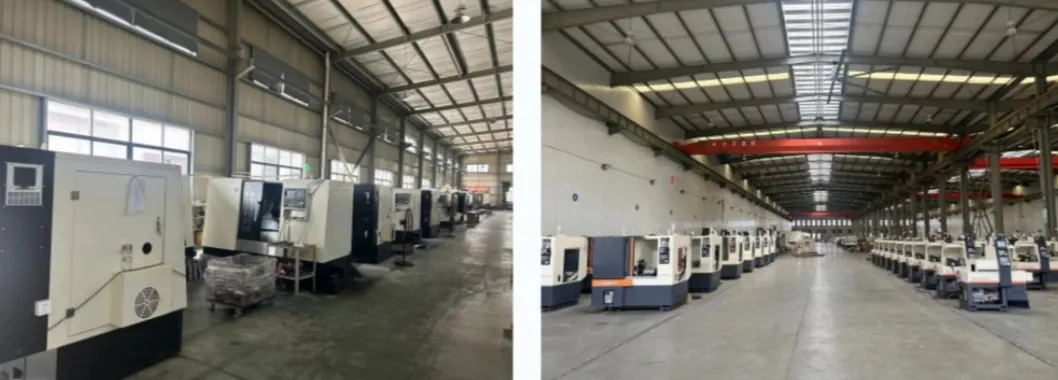

Our production complex encompasses over 100,000 square meters, featuring state-of-the-art facilities. We hold over 10 groundbreaking invention patents and numerous utility models. Our products are acclaimed across industries including 5G technology, aerospace, medical instruments, and automotive sectors.
