Customization: Available
After-sales Service: Online After-Sales Service
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
VMC1160
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Control Method
Closed-Loop Control
Processing Precision
0.01~0.02(mm)
Product Name
CNC Vertical Machining Center
Table Size
1200X600mm
X/Y/Z Axis Travel
1100/600/600mm
Max Spindle Speed
8000rpm
Main Motor Power
11kw
Condition
New
Production Capacity
2000

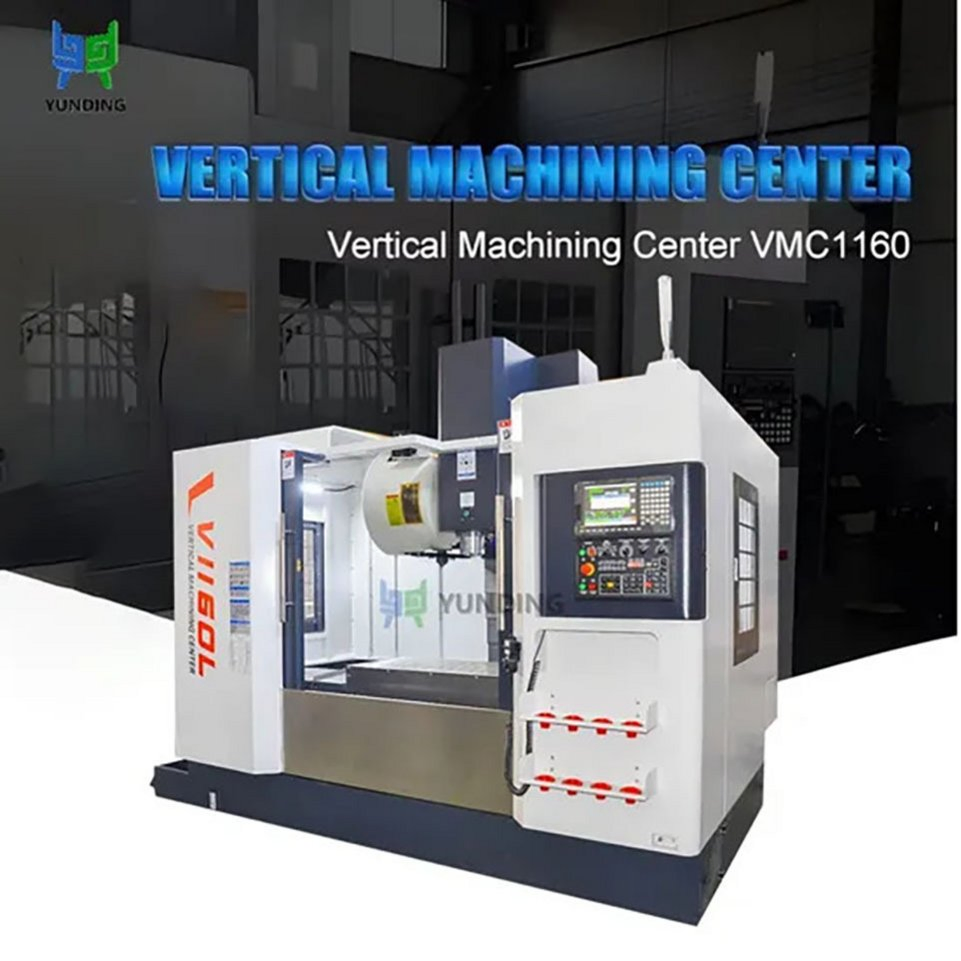

Vertical Machining Center VMC1160

Professional High-Precision CNC Vertical Milling Machine

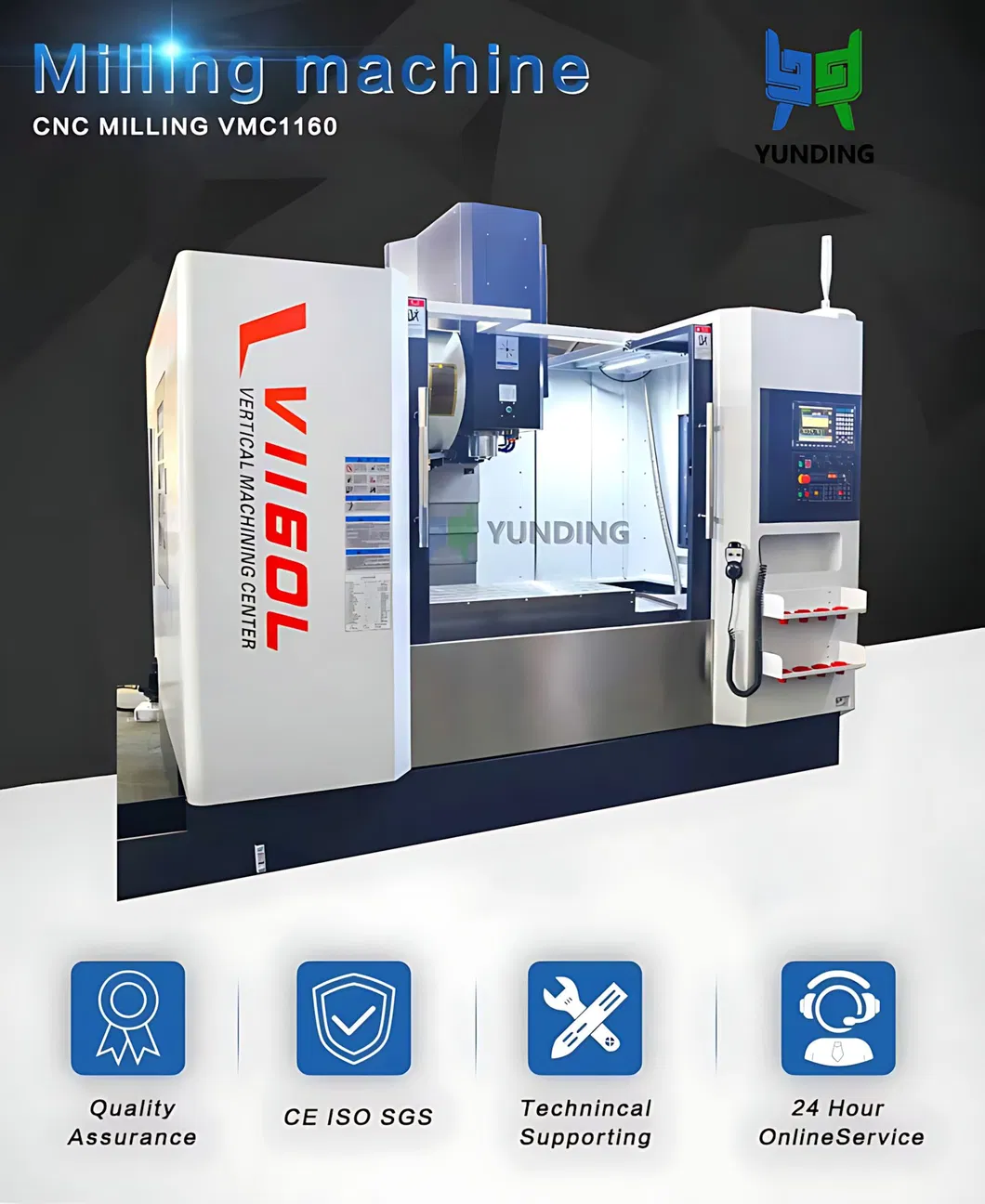

VMC1160 Vertical Machining Center

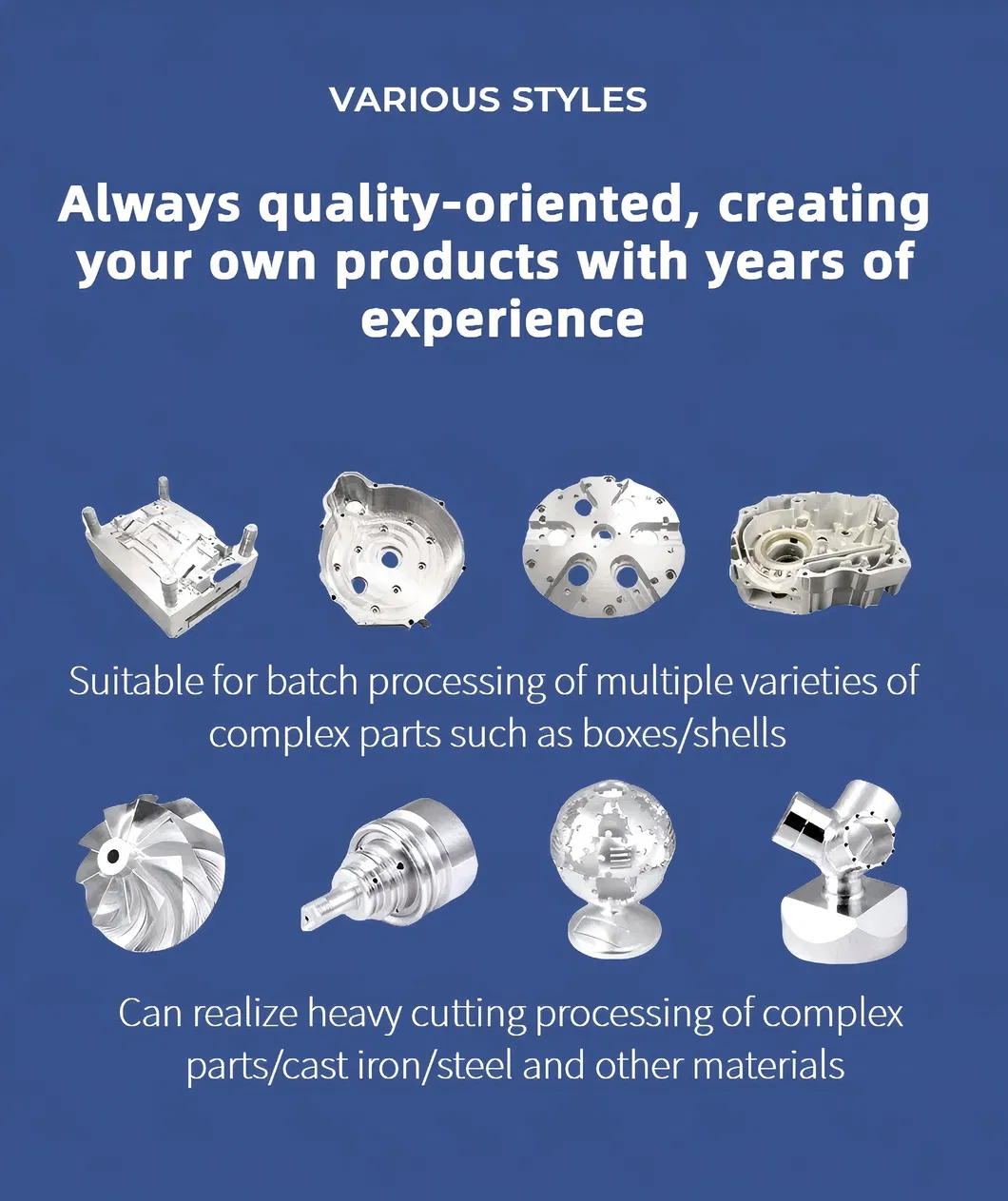

CNC Control System
⚙️ Product Parameters & Usage

Vertical Machining Center Use:

Suitable for mechanical processing and mold making. Adapts to requirements from rough machining to finish machining, including milling, drilling, tapping, and boring. Widely used for auto spare parts, medical instruments, and various injection, blowing, and die-casting moulds.

High Stability: Alloy cast iron body with secondary tempering to prevent deformation.
Linear Guide Rail: Original Taiwan HIWIN heavy-duty roller linear guides for X/Y/Z axes.
Spindle Unit: Taiwan-made spindle, 8000-12000rpm available.
ATC System: Taiwan OKADA 24 ATC for efficient tool changes.
🛠️ Configuration Details

Standard Configuration

  • System: KND-1000M
  • 16 Armless Tool Magazine
  • 3 Axis Linear Rail
  • Automatic Lubrication System
  • High Quality Resin Sand Casting

Optional Configuration

  • System: SYNTEC, SIEMENS, FANUC
  • 24 Arm Tool Magazine
  • The 4th Axis Integration
  • Spindle Oil Cooling & Chip Conveyor
  • 12000rpm Spindle Unit
📋 Technical Specifications
Specifications Units VMC1160
Table sizemm1200×600
X axis travelmm1100
Y axis travelmm600
Z axis travelmm600
Max. worktable loadkg1000
Max. spindle speedrpm8000
Spindle taper-BT40
Main motor powerkw11
X/Y/Z rapid traversem/min24/24/24
Positioning accuracymm0.0075
Machine weightkg7300
Overall dimensionmm2550*3200*2650

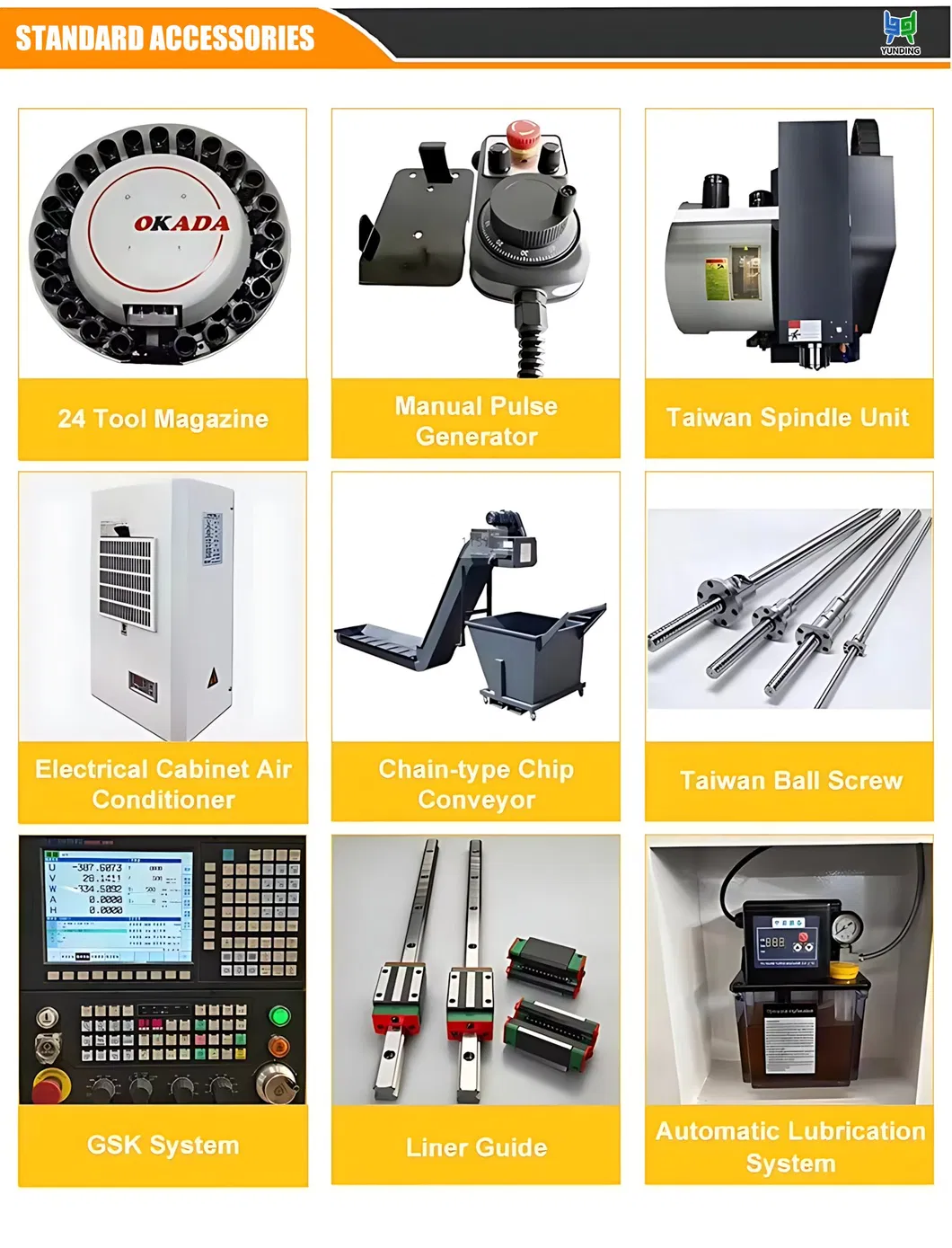

Detail View 1

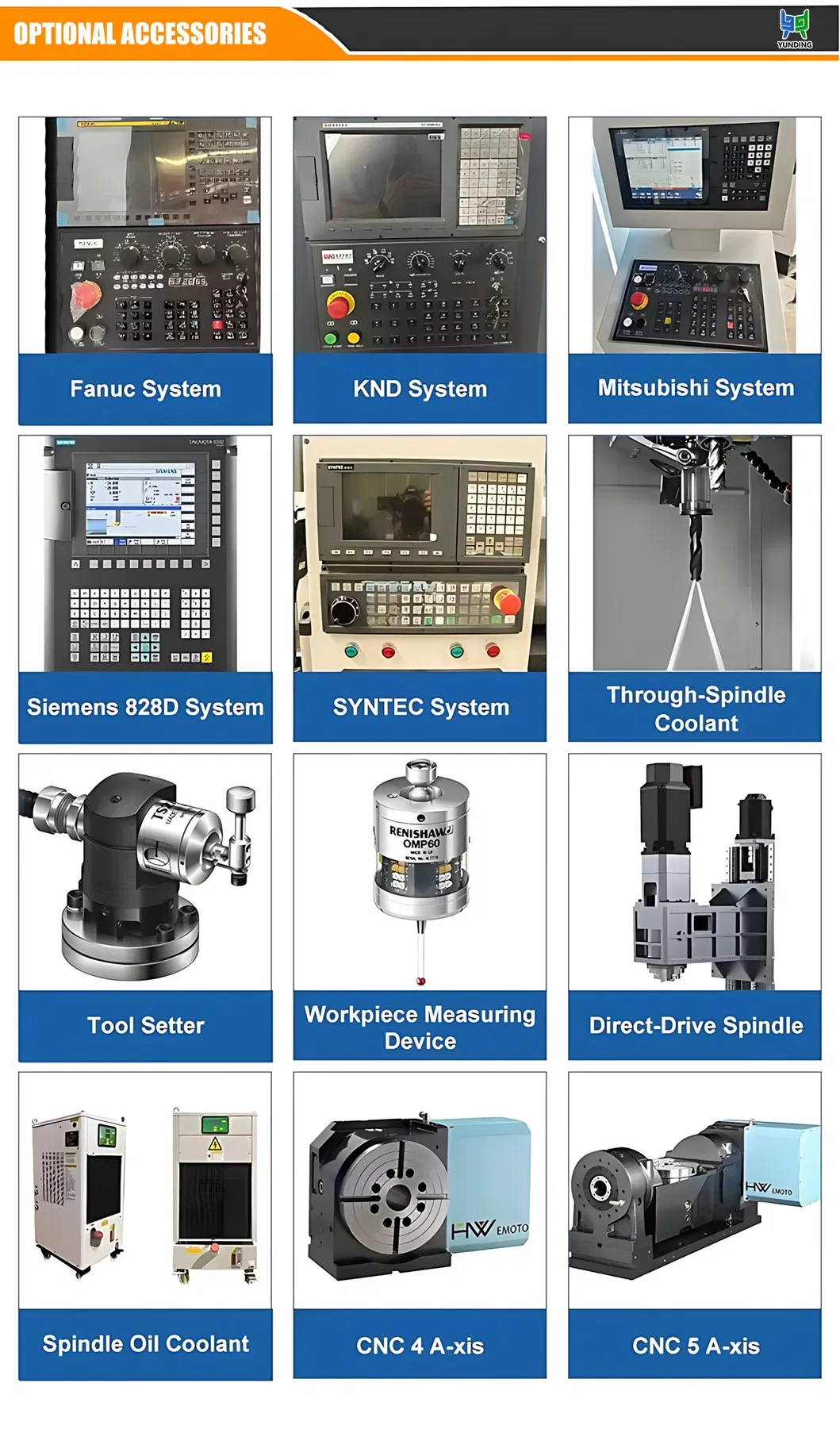

Detail View 2

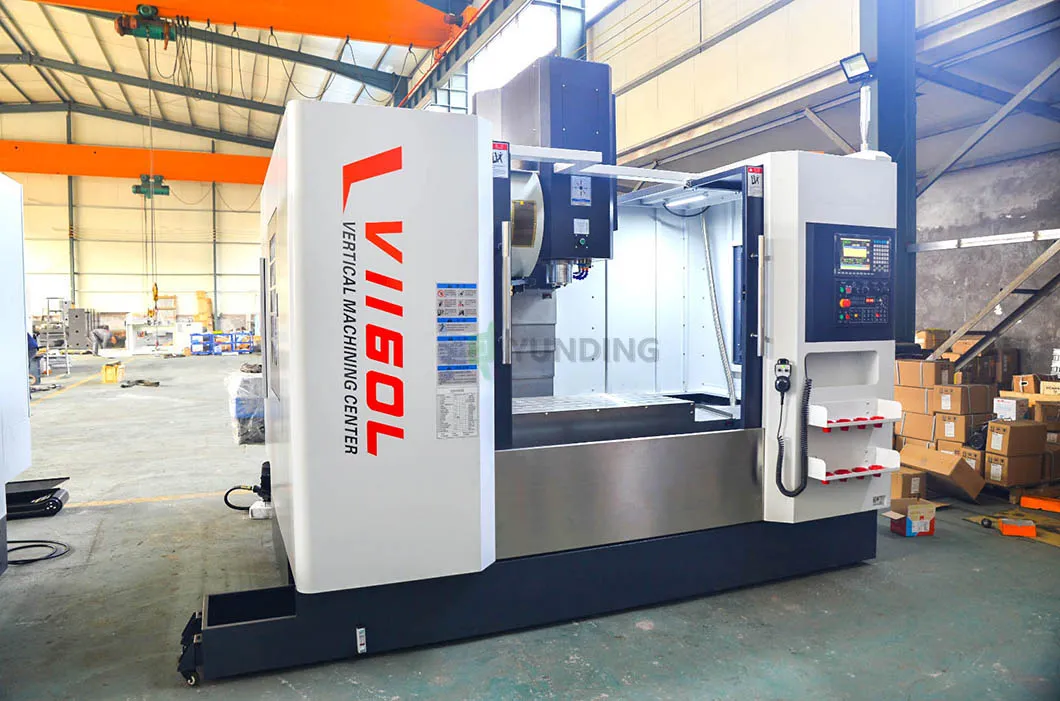

Worktable View

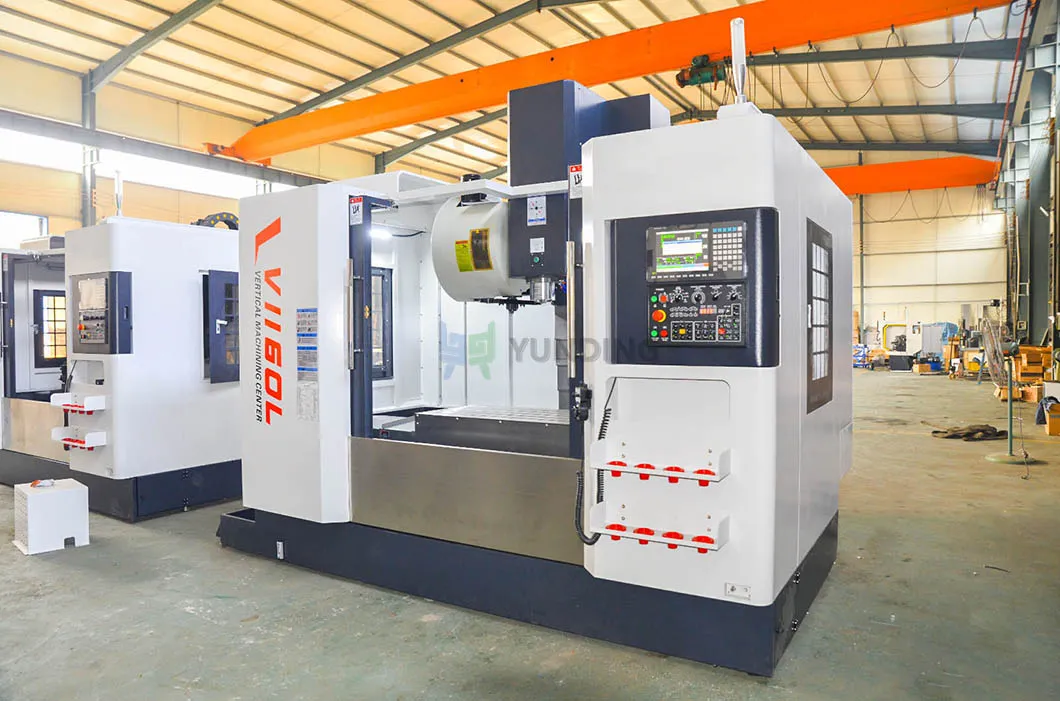

Components

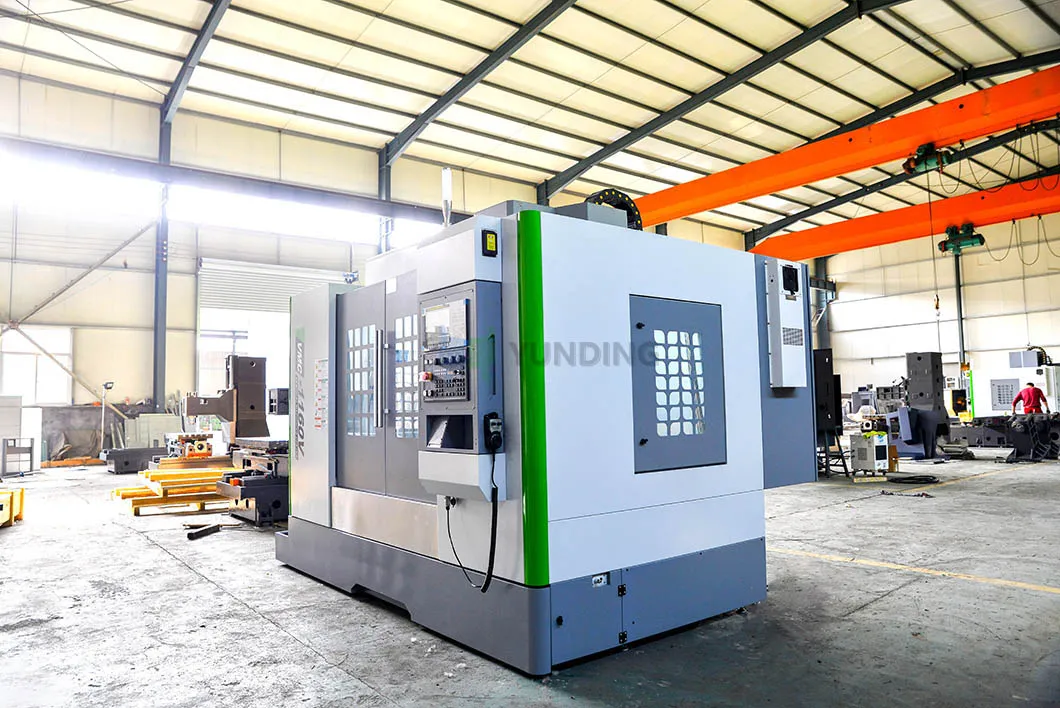

Processing View

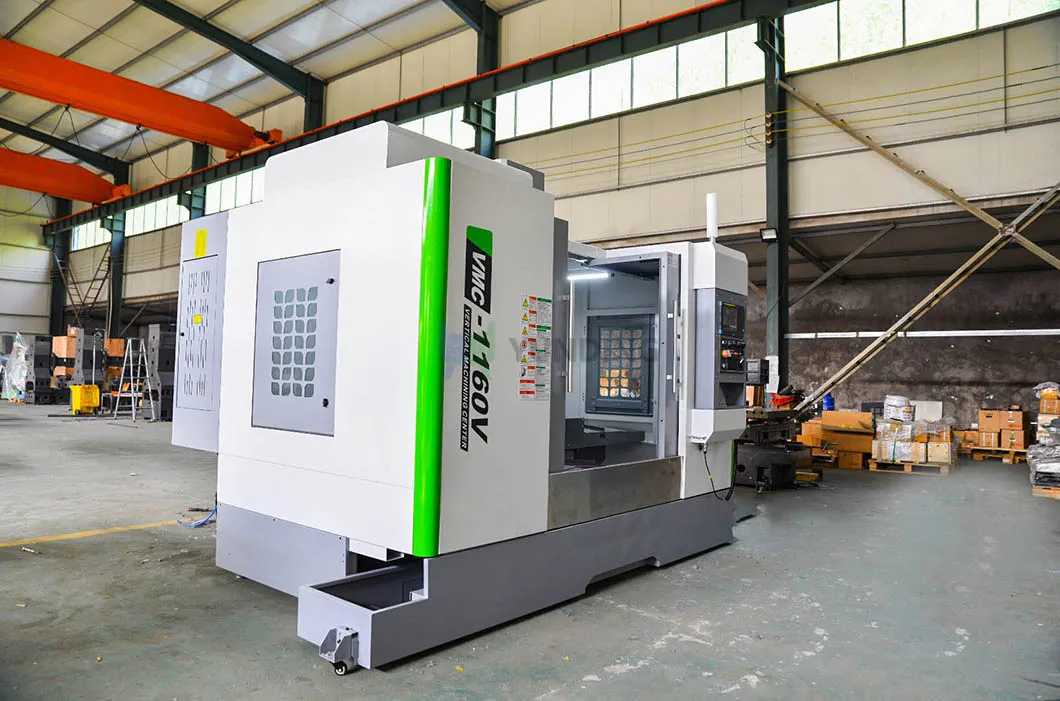

Control Board
❓ Frequently Asked Questions
1. How can I choose the most suitable machine?
Please provide your required specifications or product drawings. We can evaluate your needs and recommend the most suitable model for your specific processing requirements.
2. What are the main products available?
We specialize in various industrial machines, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.
3. What are the acceptable trade terms?
We accept standard international trade terms including FOB, CFR, and CIF.
4. What are the payment terms?
Common terms include T/T (30% initial payment, 70% balance before shipment) or Irrevocable LC at sight.
5. What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most machining centers. Some low-cost accessory machines might require more.
6. What information is needed for an evaluation?
To provide the best recommendation, please share your industrial voltage, workpiece size, material, and destination port if a CIF price is required.
