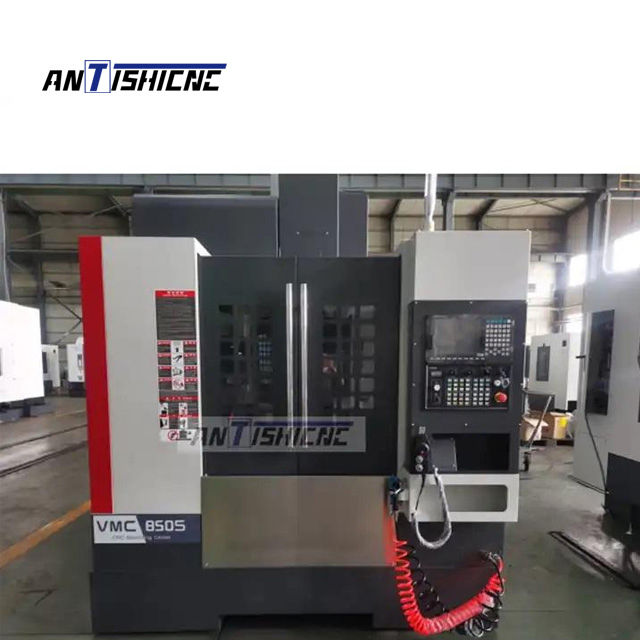

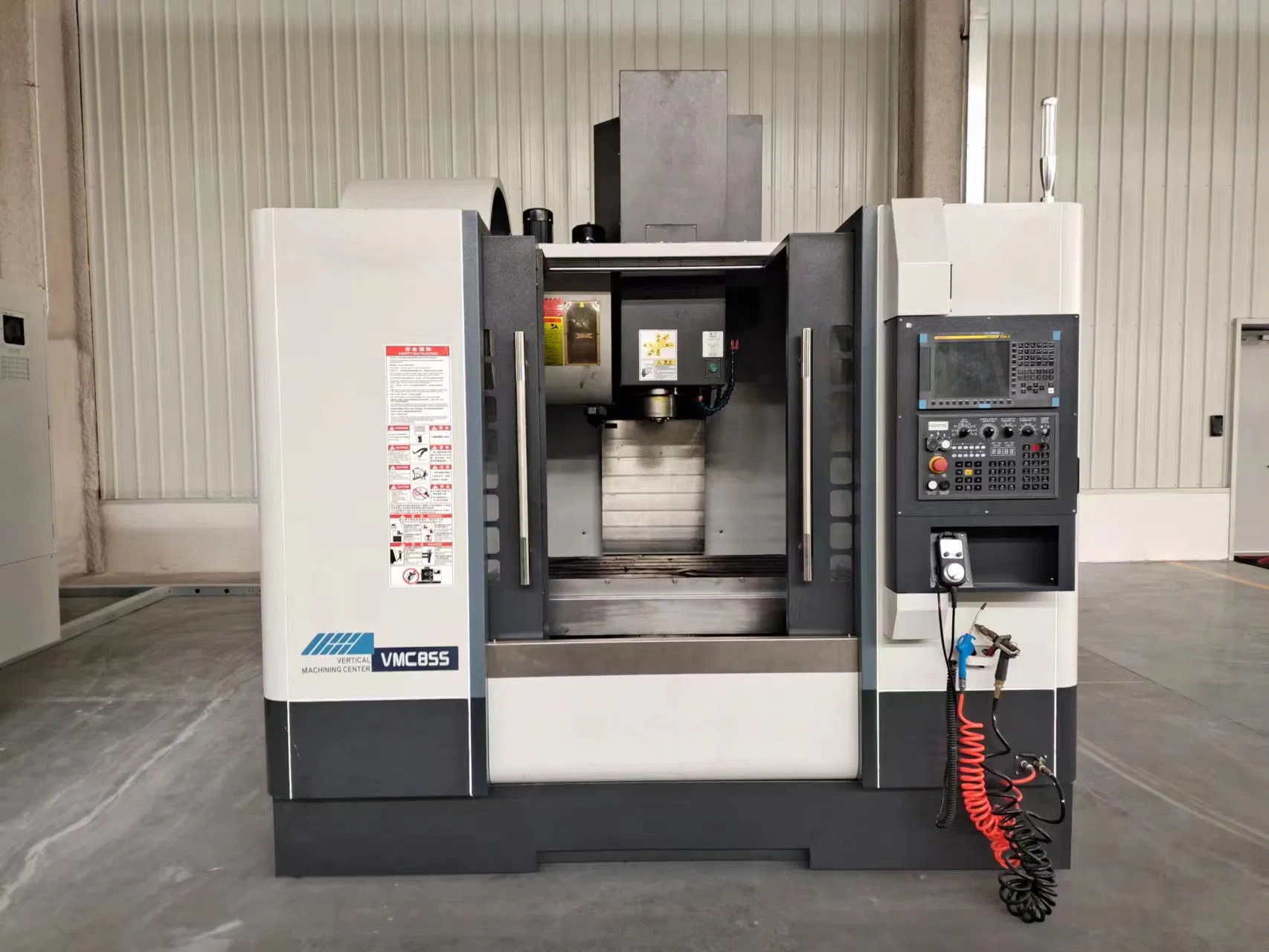

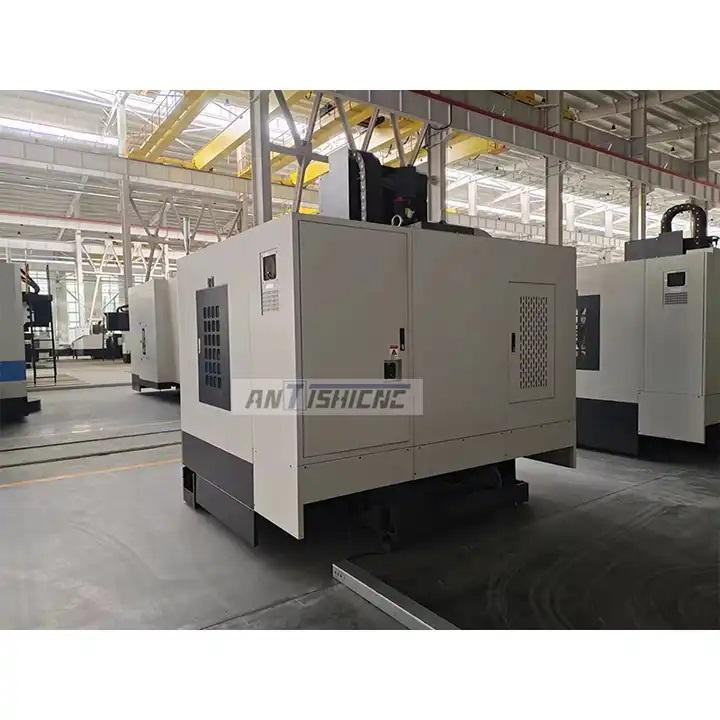

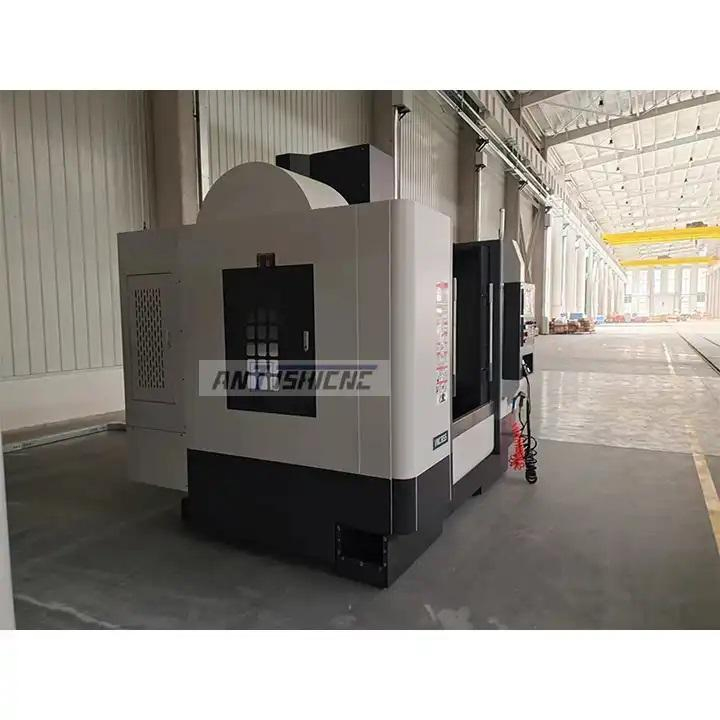

Vmc855 CNC Machining Center
Vmc855 CNC Machining Center
Vmc855 CNC Machining Center
Vmc855 CNC Machining Center
Vmc855 CNC Machining Center
1 / 5
Vmc855 CNC Machining Center
Vmc855 CNC Machining Center
Vmc855 CNC Machining Center
Vmc855 CNC Machining Center
Vmc855 CNC Machining Center

Vmc855 CNC Machining Center

Customization: Available
After-sales Service: One Year
Warranty: 1 Year
Send Inquiry

Product Description

⚙️

Basic Info.

Model NO.
VMC855
Application
Industrial Metal Cutting
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Condition
New
Weight (Kg)
5800
Dimension(L*W*H)
2700X2500X2650
Machining Capacity
Heavy Duty
Spindle Taper
Bt40
Repeatability (X/Y/Z)
0.003 mm
Max. Table Load
500 Kg
Spindle Motor Power
11 Kw
Spindle Speed Range
9999 - 10000 r.p.m
Table Travel (X/Y/Z)
800/550/550 mm
Automatic High Speed VMC Vertical CNC Machine Center
VMC Vertical CNC Machine Header

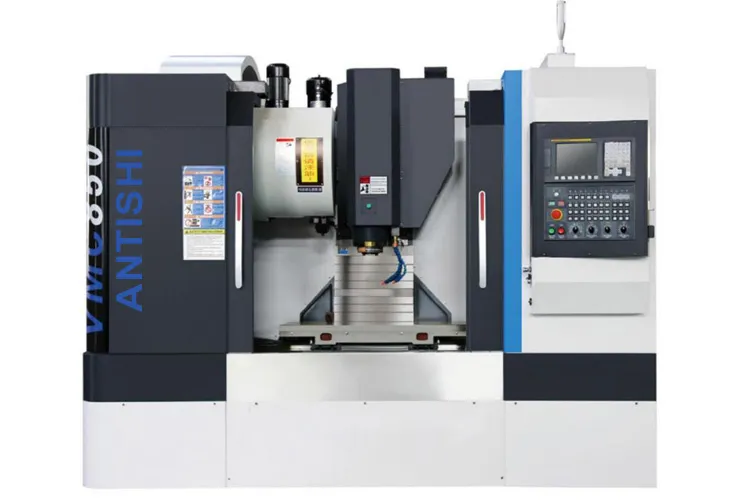

VMC855 Overview VMC855 Details
📊

Technical Specifications

Technical SPEC| Model Unit VMC855
Table Size (length*width) mm 1000×550
Max Loading Weight kg 500
X/Y/Z Travel mm 800/550/550
Max. Distance Spindle Nose to Table mm 120-670
Spindle Motor Power kW 7.5/11
Max. Spindle Speed rpm 8000 / 10000
Spindle Taper - BT40
3 Axis Rapid Speed m/min 48/48/36
ATC Capacity - BT40-24T
Positioning Accuracy mm 0.004
Repeatability Accuracy mm 0.003
CNC System - FANUC/SIEMENS/MITSUBISHI

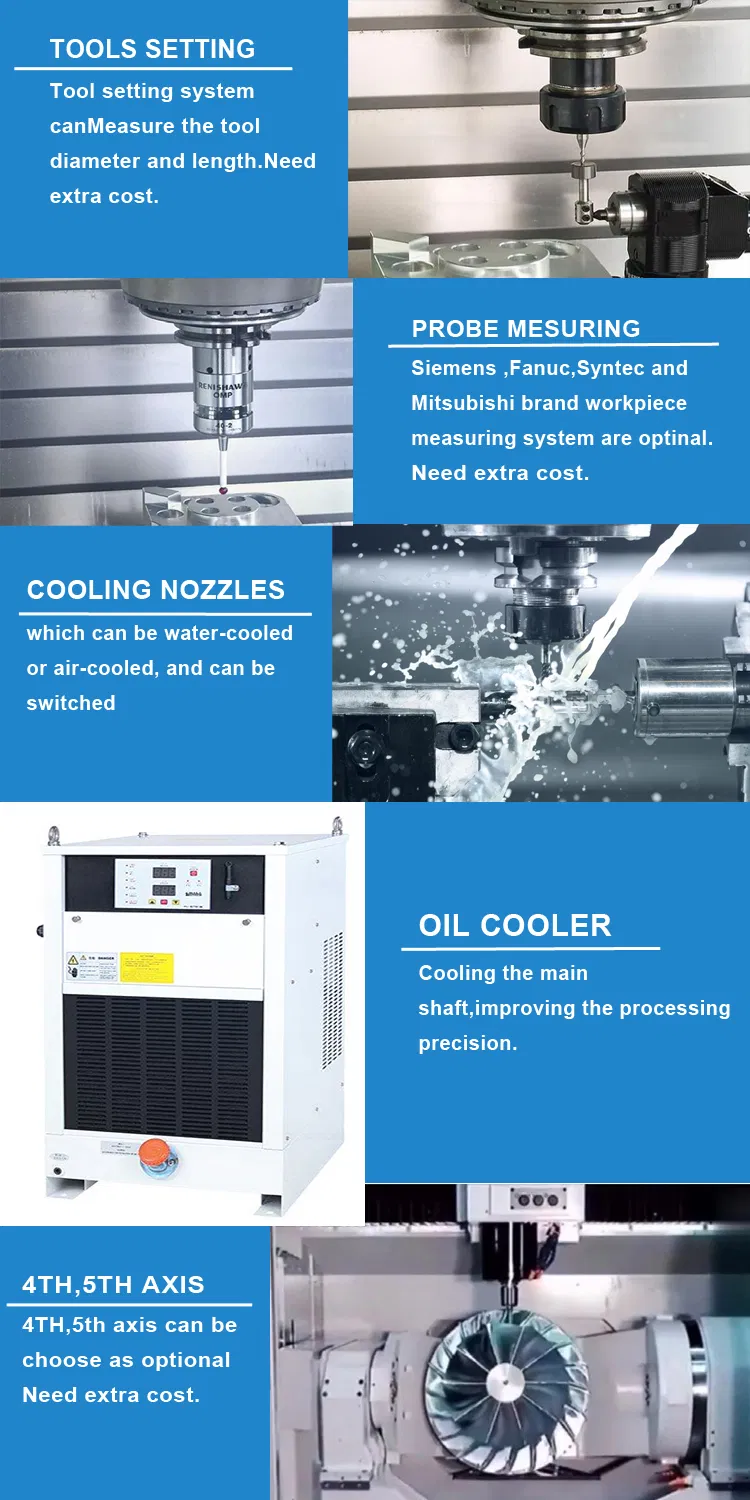

VMC855 Internal Structure

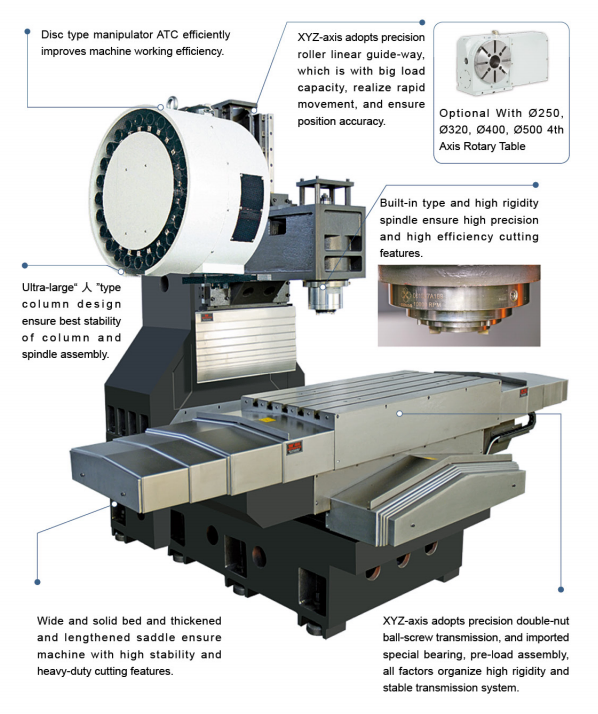

Machine Component Analysis

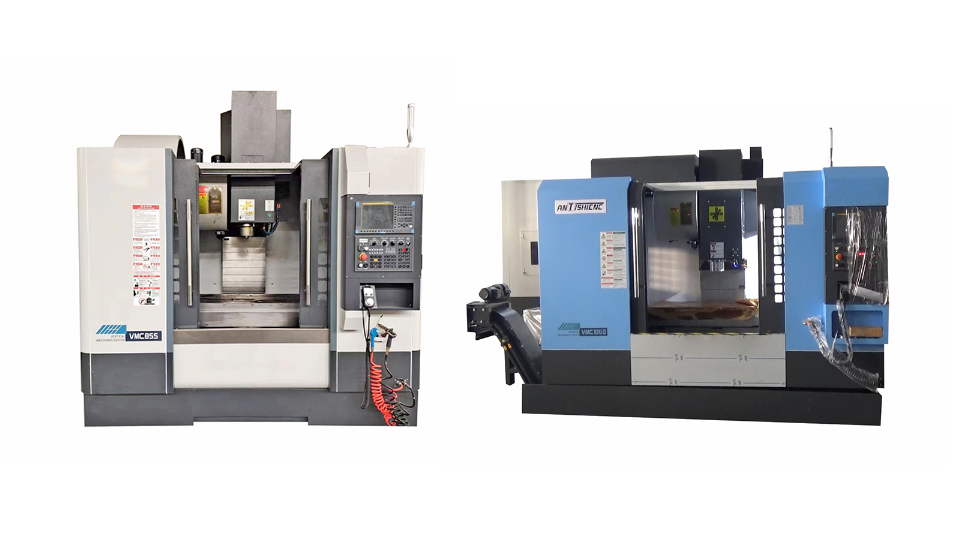

Machining Sample 1 Machining Sample 2 Gantry Type Overview
📦

Packaging & Delivery

Package Size
270.00cm * 250.00cm * 265.00cm
Gross Weight
5800.000kg
Package Material
Wooden Case
❓

Frequently Asked Questions

What is the machining travel range of the VMC855?
The VMC855 features an X/Y/Z axis travel of 800mm, 550mm, and 550mm respectively.
Which CNC control systems are supported?
The machine is compatible with world-class CNC systems including FANUC, SIEMENS, and MITSUBISHI.
What is the maximum load capacity for the worktable?
The worktable is designed for heavy-duty applications with a maximum loading capacity of 500 kg.
What is the accuracy level of this machining center?
It provides high precision with a positioning accuracy of 0.004mm and a repeatability accuracy of 0.003mm.
What type of spindle and tool changer does it use?
It uses a BT40 spindle taper and comes equipped with an ATC (Automatic Tool Changer) with a 24-tool capacity.
What is the rapid traverse speed for the axes?
The 3-axis rapid speed is 48m/min for X and Y axes, and 36m/min for the Z axis.
