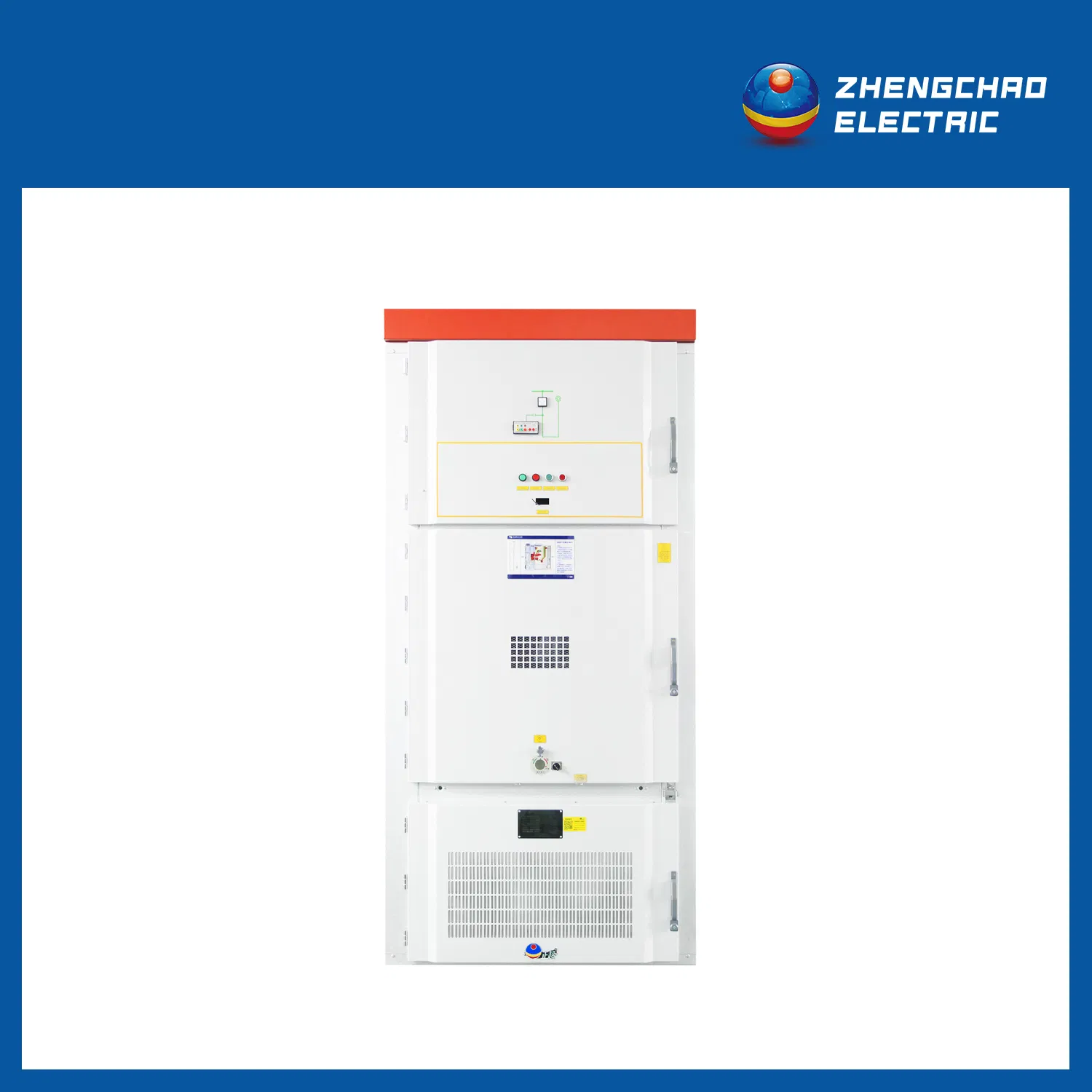

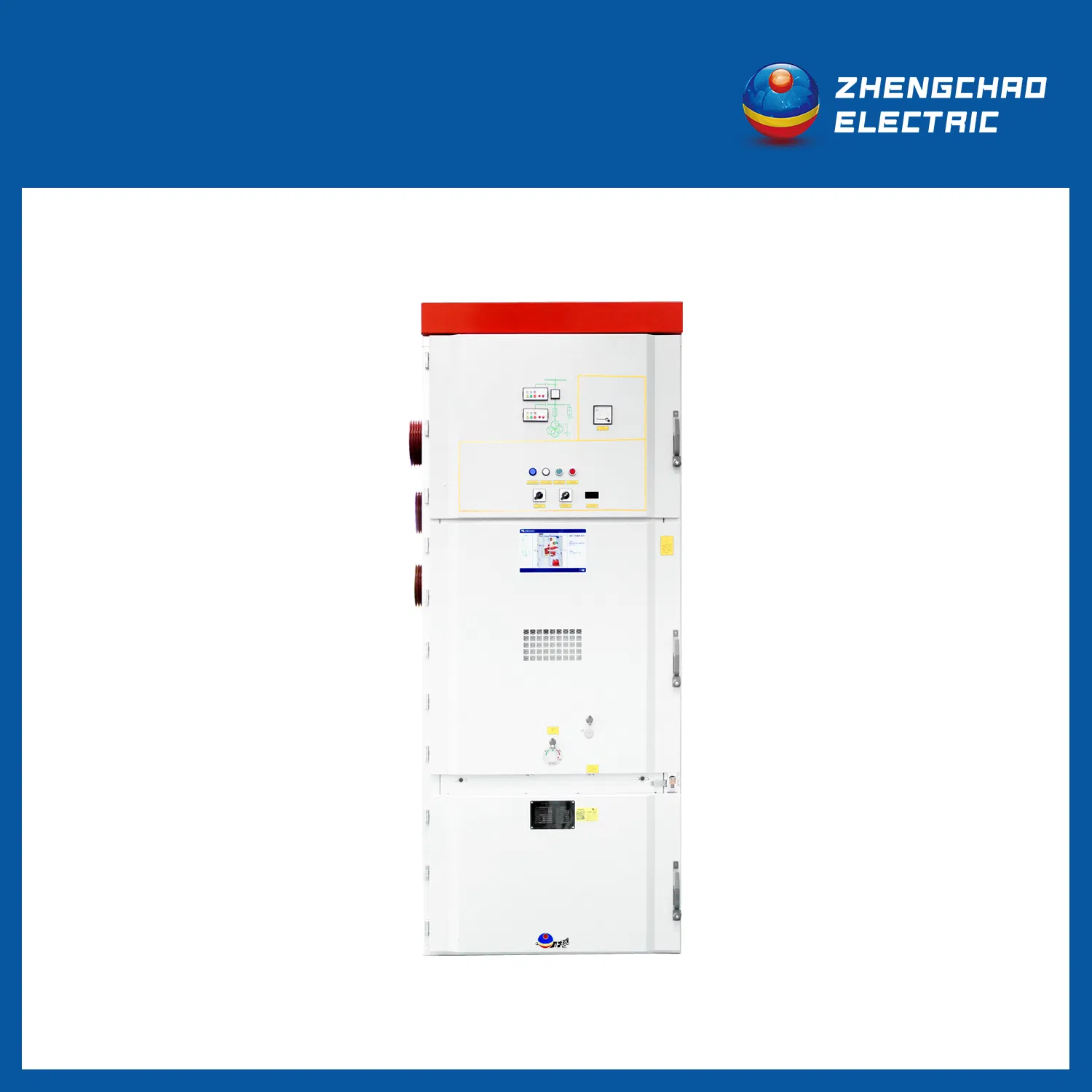

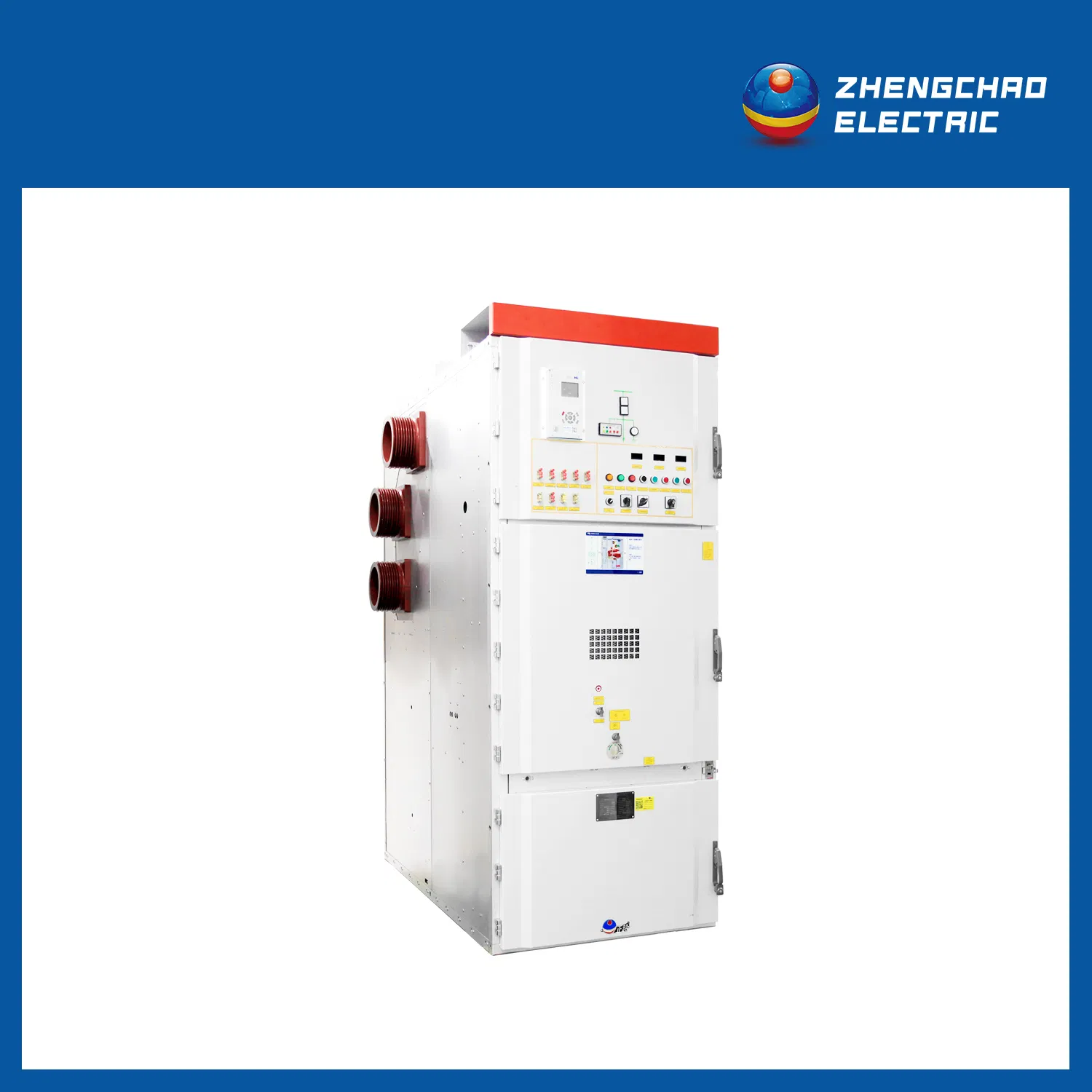

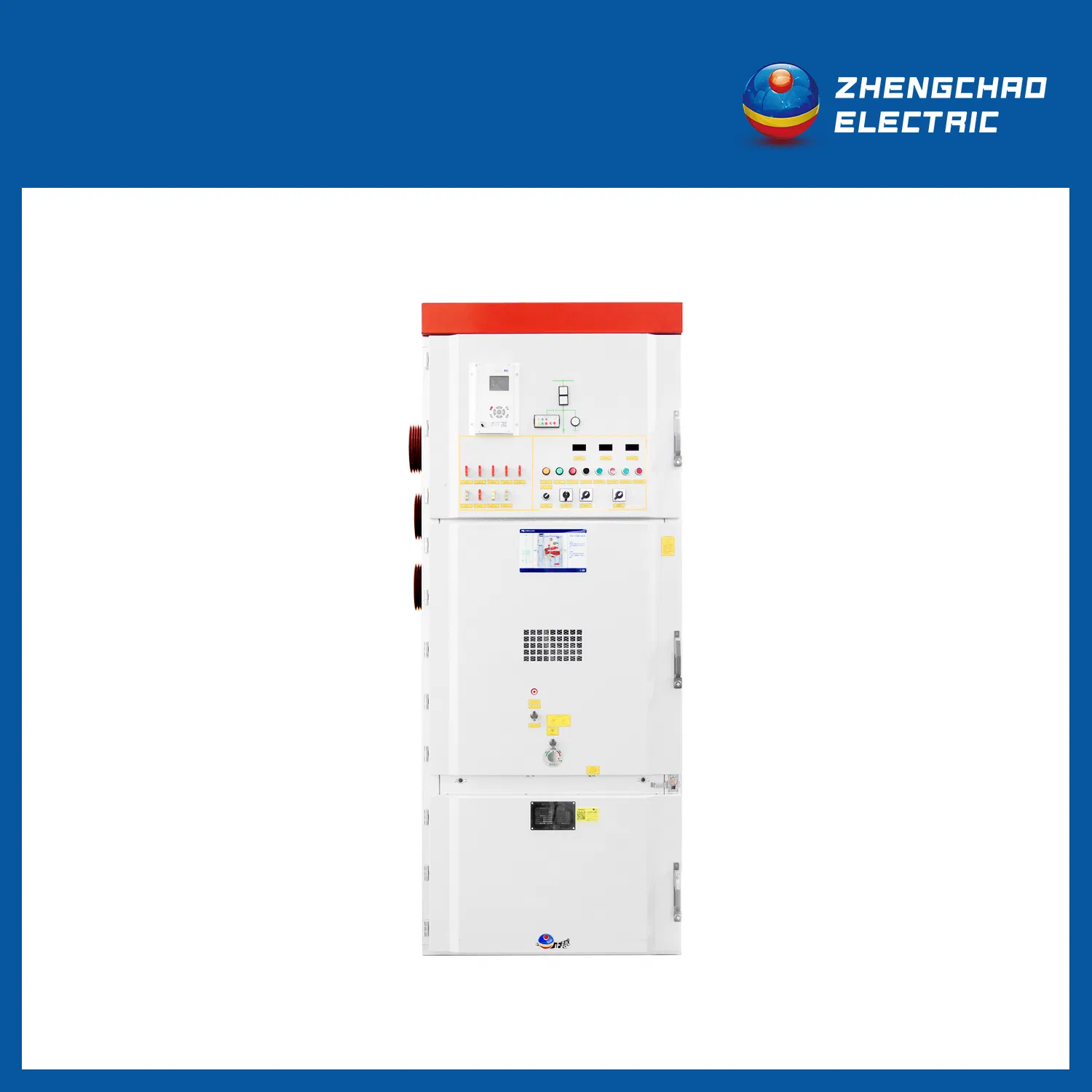

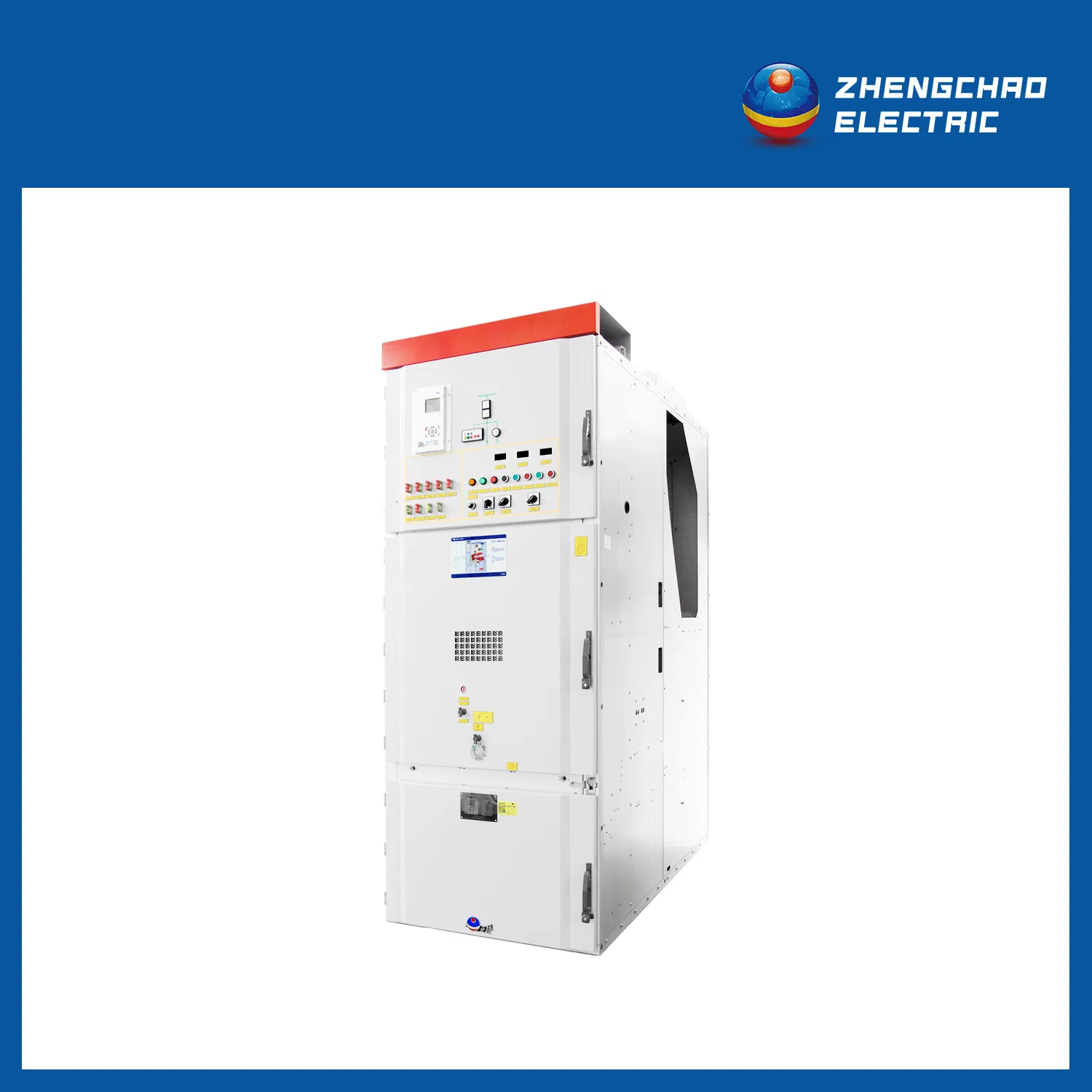

12kv AIS Air Insulated Switchgear for Controlling and Protecting Electrical Networks

1 / 5

12kv AIS Air Insulated Switchgear for Controlling and Protecting Electrical Networks

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

KYN27-12

Voltage Level

Medium Voltage

Installation

Removable

Structure

Withdrawable

Current

Rated Voltage

10/11/12kv

Rated Frequency

50Hz

LSC Category

Lsc2b

Height

2250mm

Width

650/800/1000mm

Depth

1400/1600/1700mm

Origin

China

Technical Parameters

12kv AIS Air Insulated Switchgear for Electrical Network Control & Protection

No.	Item		Unit	Data
1	Rated voltage		kV	12
2	Rated frequency		Hz	50
3	Main busbar rated current		A	630 - 4000
4	Branch busbar rated current		A	630 - 4000
5	Rated insulation levels	Power frequency withstand (1min)	kV	Phases/Earth: 42 \| Across: 48
5	Rated insulation levels	Lighting impulse withstand	kV	Phases/Earth: 75(95) \| Across: 85(110)
6	Rated short-time withstand current		kA	25 / 31.5 / 40
7	Rated duration of short current		s	4
8	Rated peak withstand current		kA	63 / 80 / 100
9	Rated short circuit breaking current		kA	25 / 31.5 / 40
11	Internal Arc		kA/s	25/1 \| 31.5/1 \| 40/1
12	Protection Degree (Enclosure/Compartments)		-	IP 4X / IP 2X
14	Loss of service continuity		-	LSC2B

Standards & Specifications

IEC 62271-1: 2021 High-voltage switchgear and controlgear - Common specifications.

IEC 62271-100: 2021 High-voltage switchgear and controlgear - Alternating-current circuit breakers.

IEC 62271-200: 2021 AC metal-enclosed switchgear and controlgear for rated voltages above 1kV up to 52kV.

IEC 60529: 1989+AMD2:2013 Degrees of protection provided by enclosures (IP Code).

Product Showcase

Frequently Asked Questions

What is the application of KYN27-12 switchgear?

It is primarily used for receiving and distributing power in 3.6-12kV three-phase AC 50Hz electrical networks, providing control, protection, and monitoring.

What is the protection level of the enclosure?

The enclosure provides a protection degree of IP4X, while the protection between compartments is IP2X, ensuring safety during operation.

Does this model support different current ratings?

Yes, the main busbar rated current ranges from 630A up to 4000A, allowing for flexible configuration based on network requirements.

What are the standard dimensions?

The standard height is 2250mm, with various widths (650/800/1000mm) and depths (1400/1600/1700mm) available to fit different installation spaces.

Is the switchgear compliant with international standards?

Absolutely. It complies with the latest IEC 62271-1, IEC 62271-100, and IEC 62271-200 standards for high-voltage switchgear.

What does LSC2B signify?

LSC2B (Loss of Service Continuity) means that other compartments can remain energized and functional while one high-voltage compartment is being serviced.
