| Model NO. | GIS | Voltage Level | High Voltage |
|---|---|---|---|
| Installation | Fixed | Structure | Floorstanding |
| Current | AC & DC | Transport Package | Wooden Cartons |
| Specification | 6,100 × 4,900 × 5,000mm | Origin | China |
| HS Code | 8537201000 | Production Capacity | 2.7 Billion |

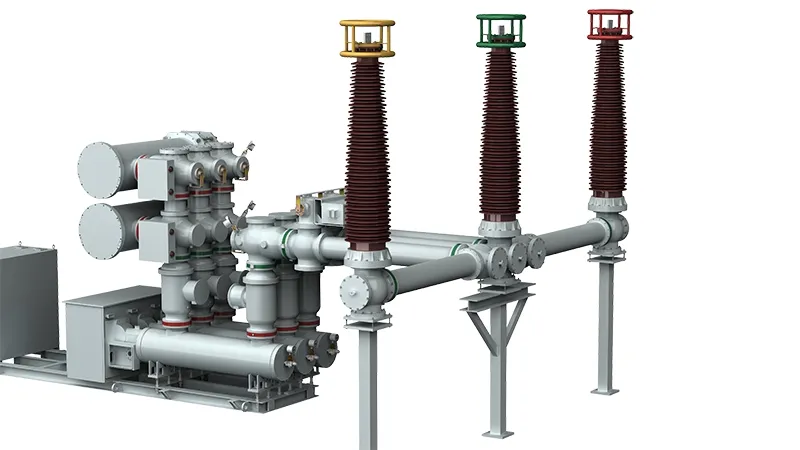

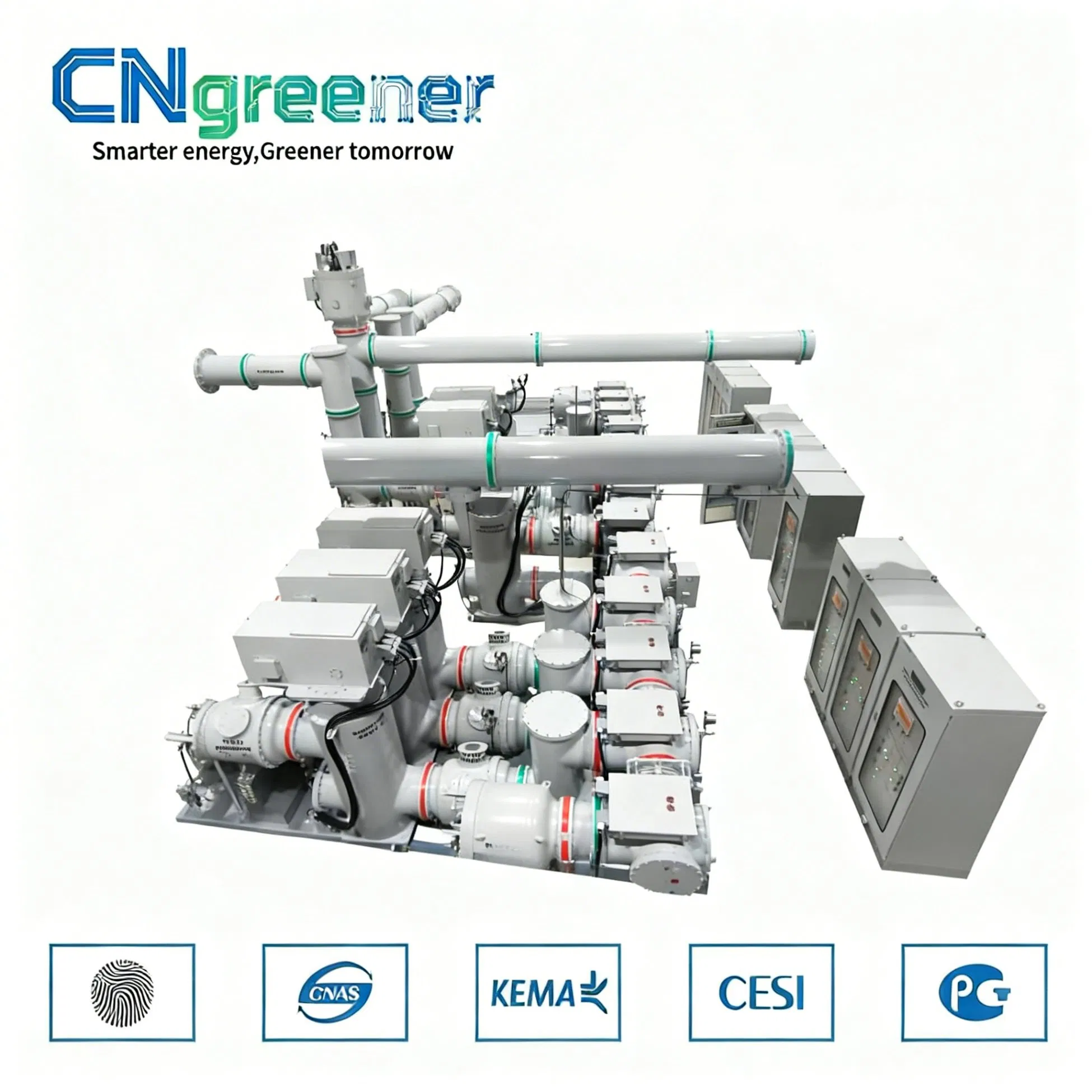

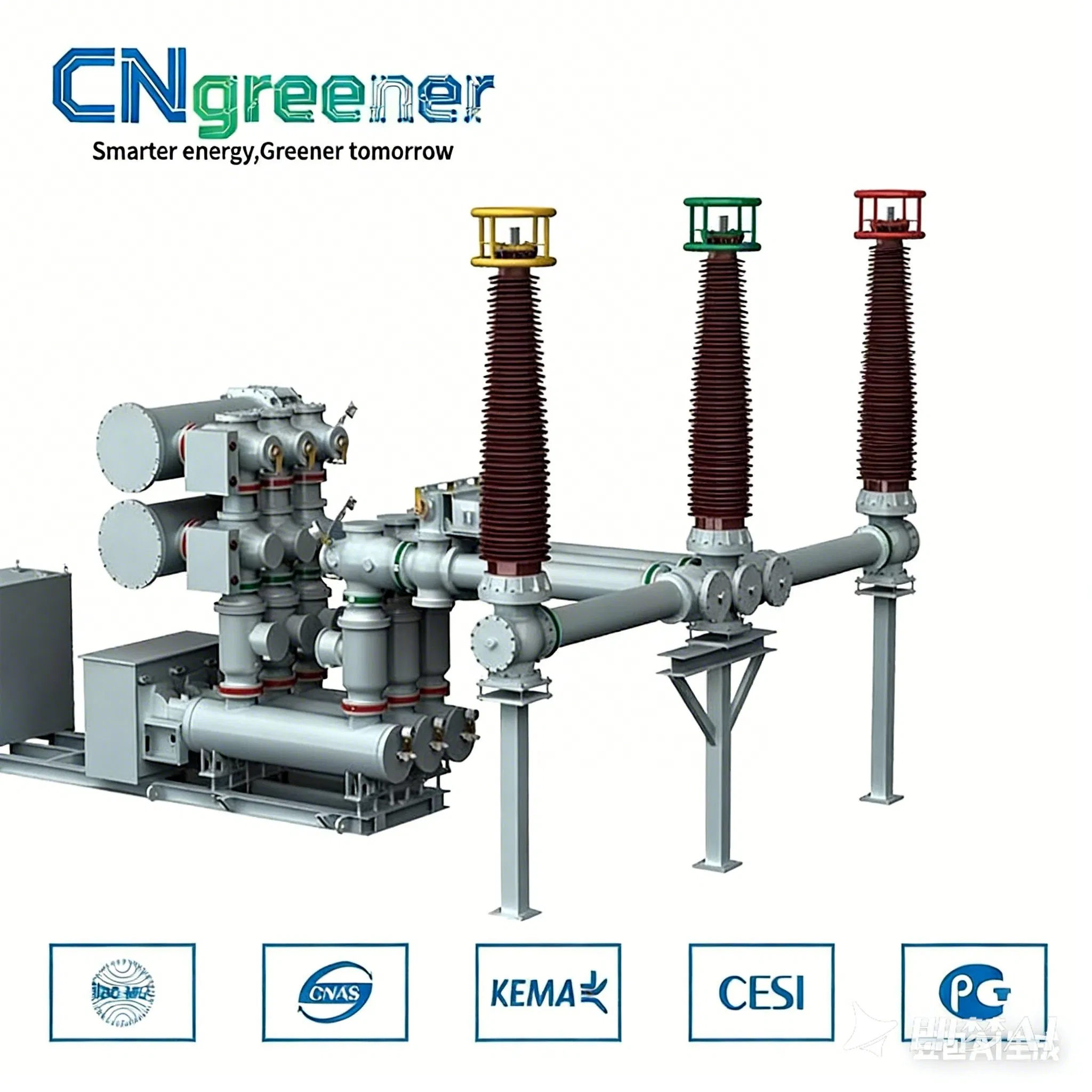

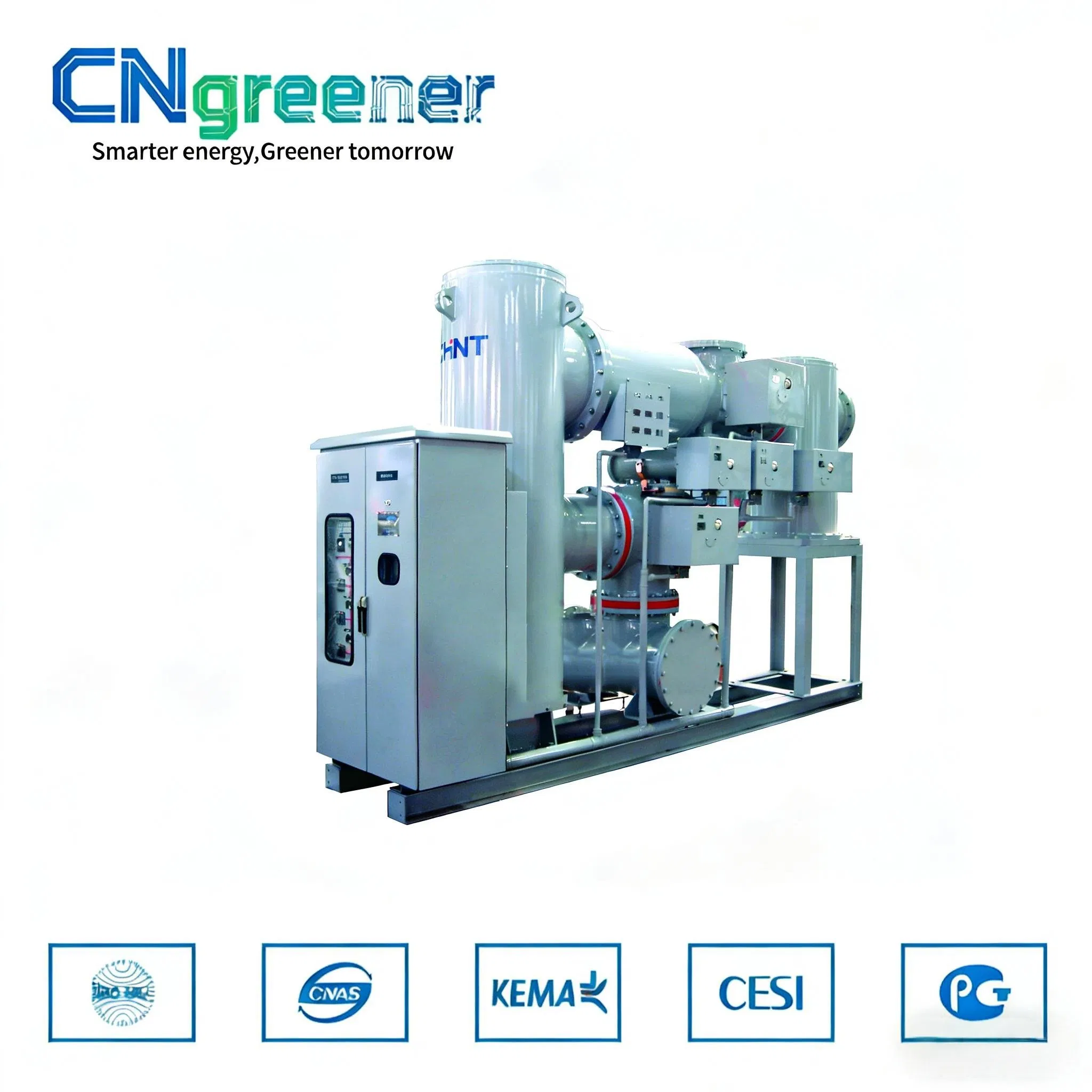

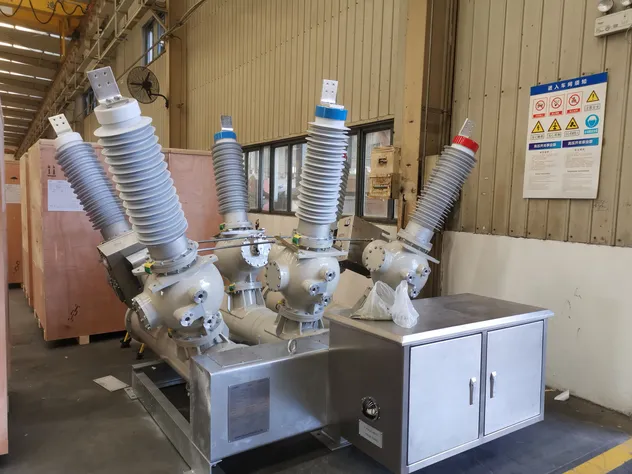

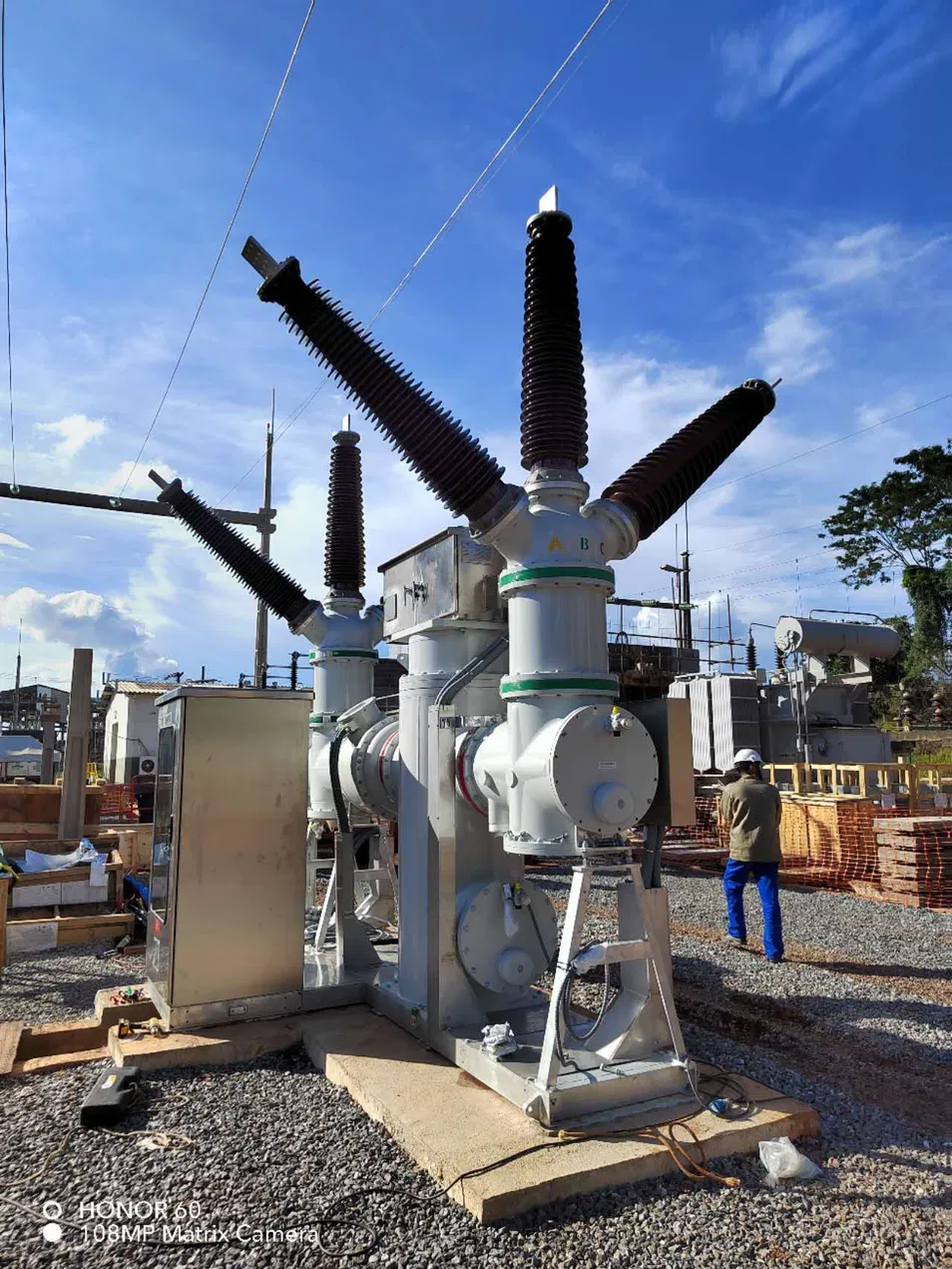

High Voltage GIS Gas Insulated Switchgear (72.5kV / 110kV / 145kV / 220kV / 252kV)
Our GIS Gas Insulated Switchgear is a compact, fully enclosed high-voltage switchgear system using SF6 gas as the insulating and arc-quenching medium. It is designed for reliable operation in urban substations, industrial plants, power utilities, renewable energy projects, and harsh environments where space saving and high safety are required.
The system integrates circuit breaker, disconnector, earthing switch, busbar, and instrument transformers into a sealed metal enclosure, ensuring high reliability, long service life, and minimal maintenance.
| Item | Specification |
|---|---|
| Rated Voltage | 72.5kV / 110kV / 145kV / 220kV / 252kV |
| Rated Current | 1250A / 2000A / 2500A / 3150A |
| Short Circuit Current | 31.5kA / 40kA / 50kA |
| Insulation Medium | SF6 Gas |
| Installation | Indoor / Outdoor |
| Standards | IEC 62271 / GB / ANSI (optional) |

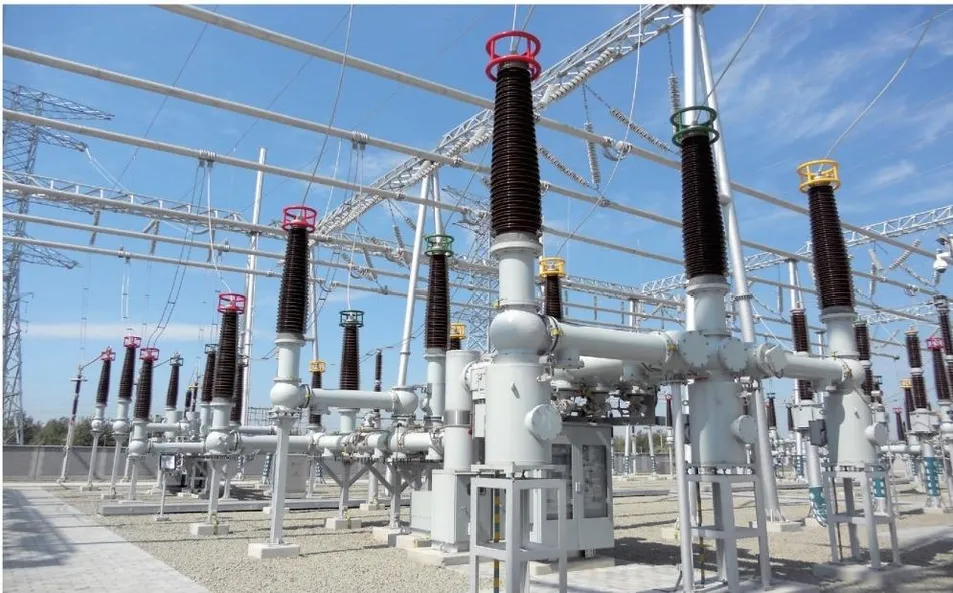

• Power Transmission & Distribution Substations
• Urban & Underground Substations
• Industrial Power Systems
• Renewable Energy (Wind / Solar / Hydro)
• Mining, Petrochemical, Data Centers

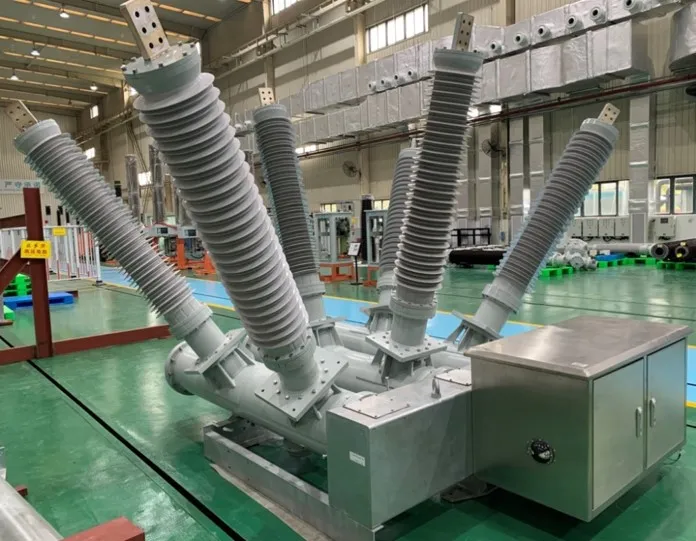

• SF6 Circuit Breaker
• Disconnector & Earthing Switch
• Gas Insulated Busbar
• Current Transformer (CT) & Voltage Transformer (VT)
• Local Control Cabinet
We are a power transmission and distribution integrated solution provider, dedicated to supplying reliable electrical equipment and system solutions for global markets. With transformer manufacturing as our core business, we offer a complete product range covering power transmission, distribution, and low-voltage electrical systems.
