| TECHNICAL PARAMETERS | |
|---|---|

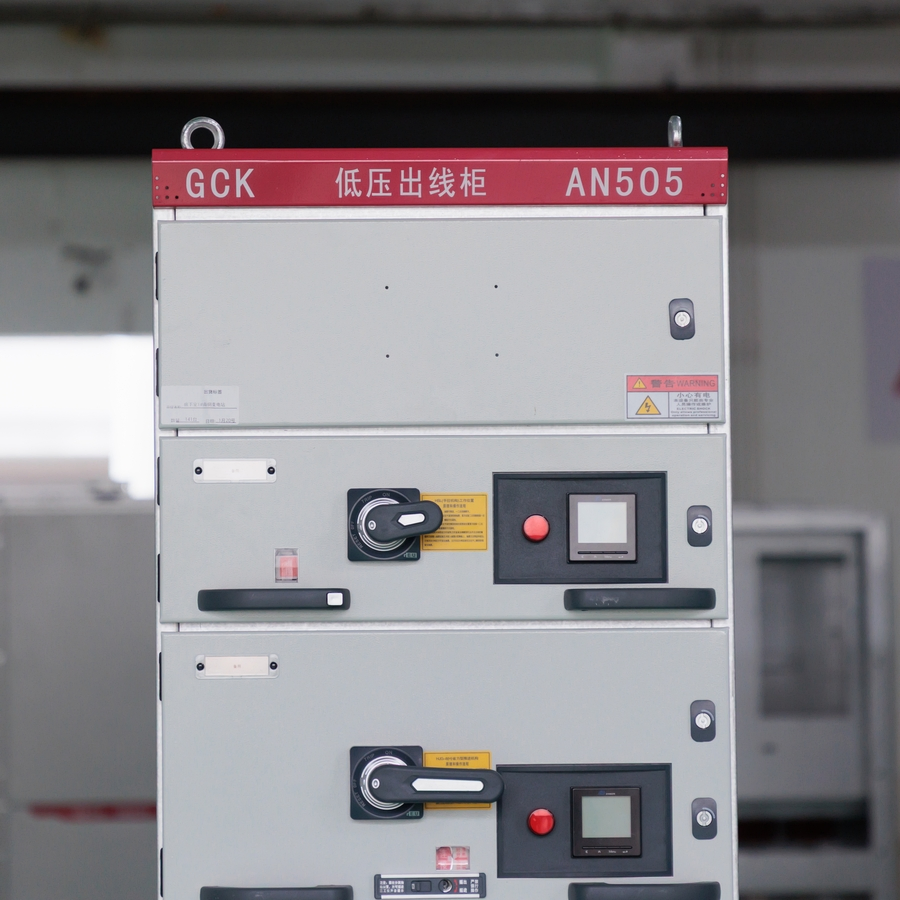

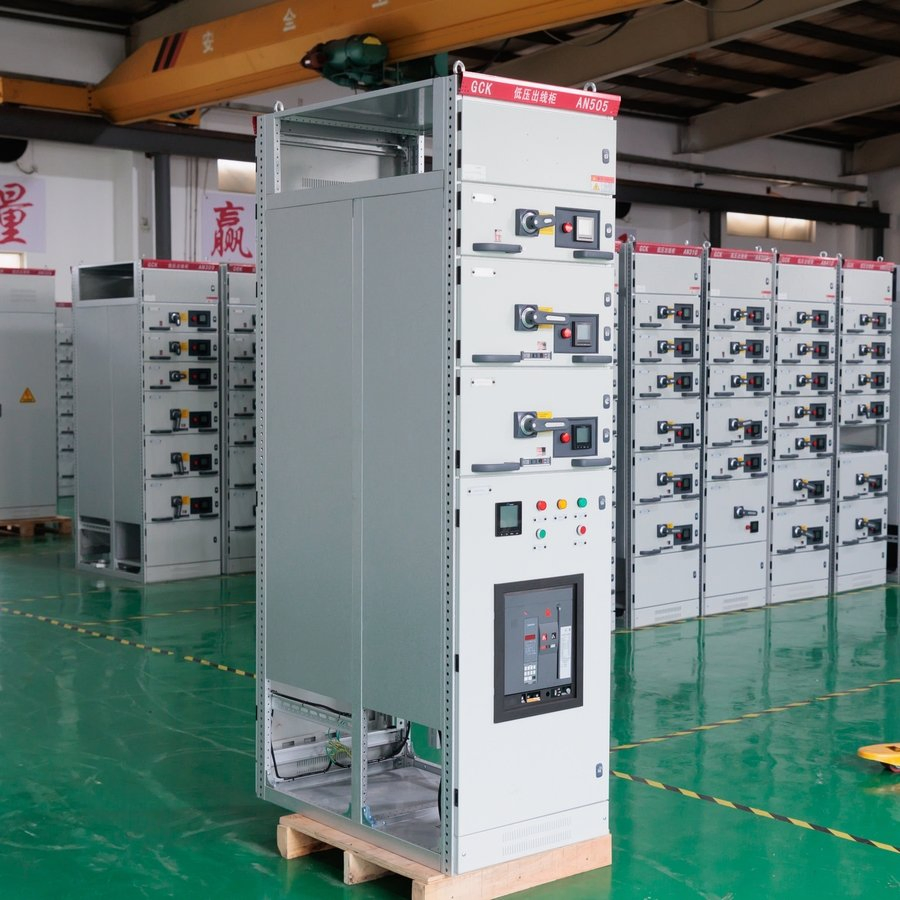

| Product Name | GCK Low Voltage Draw-out Feeder Cabinet |
| Rated Voltage | 400V / 690V |
| Rated Frequency | 50Hz / 60Hz |
| Main Busbar Current | Up To 3150A |
| Drawer Unit Current | 16A ~ 630A |
| Short-Time Withstand | 30KA / 50KA |
| Peak Withstand | 63KA / 105KA |
| Protection Degree | IP30 / IP40 |
| Structure Type | Drawer Type, Modular, Withdrawable |
| Cabinet Material | High-Quality Galvanized Steel Sheet |
| Dimensions (W×D×H) | 600/800×1000×2200mm |
| Operating Environment | -10°C~+40°C |

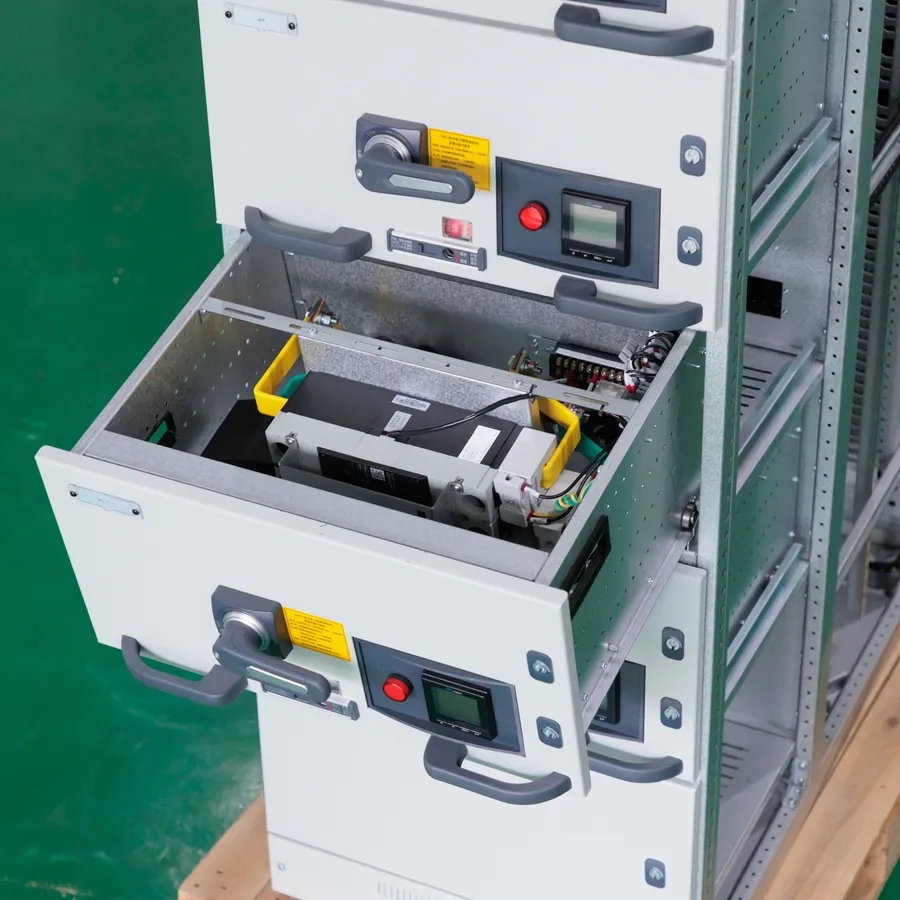

Each feeder drawer operates independently via a plug-in mechanism, allowing maintenance without de-energizing the main busbar. This hot-swappable design minimizes downtime.
Every drawer features "connected/disconnected/test" positions with visible indicators for safe operation and troubleshooting.

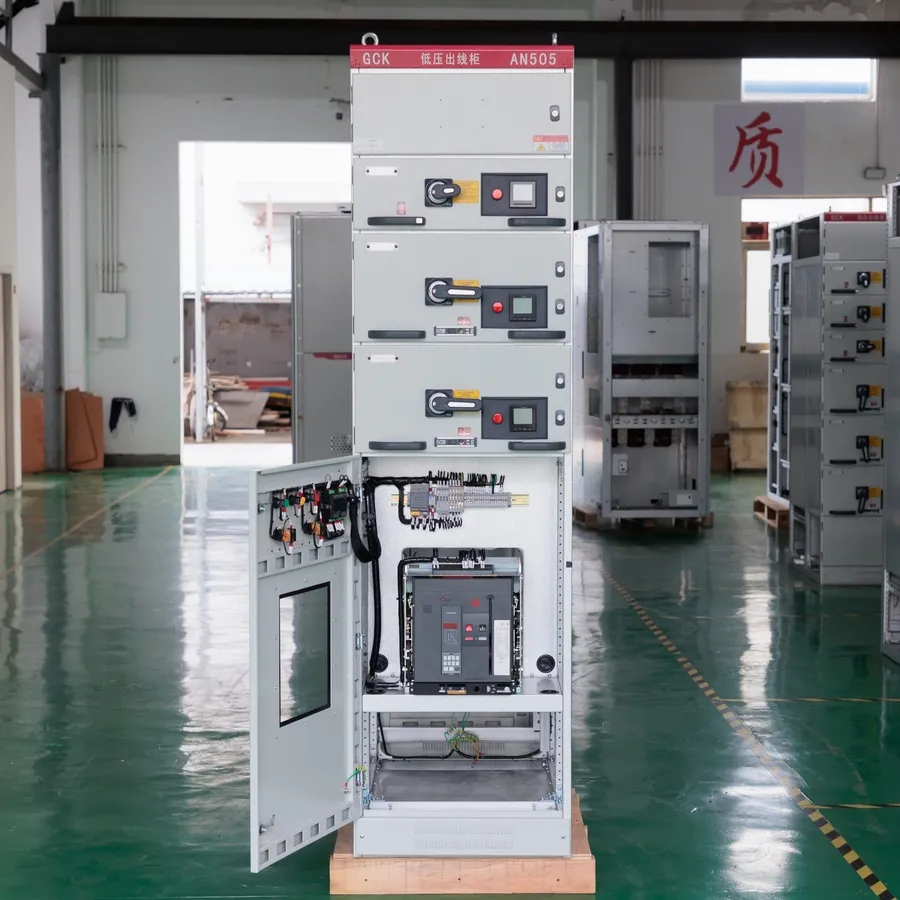

Mechanical and electrical interlocks prevent dangerous misoperations, protecting personnel and equipment during maintenance.

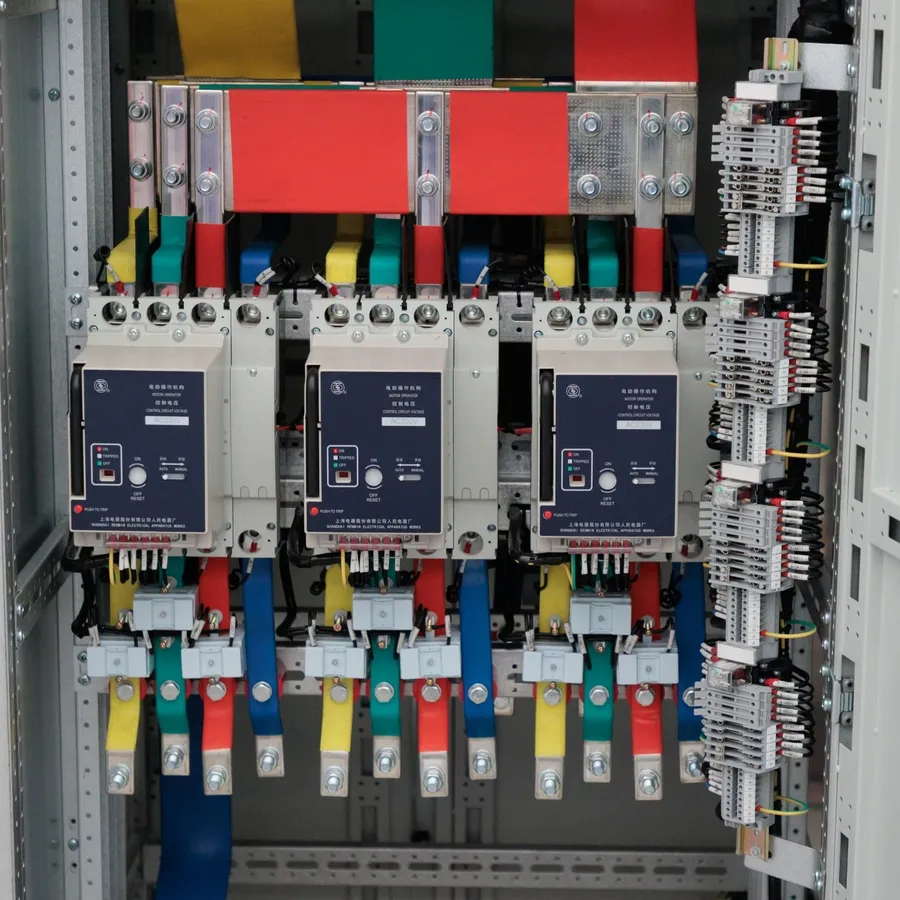

Engineered for currents up to 105kA peak, ensuring robust fault protection and system stability in high-demand environments.

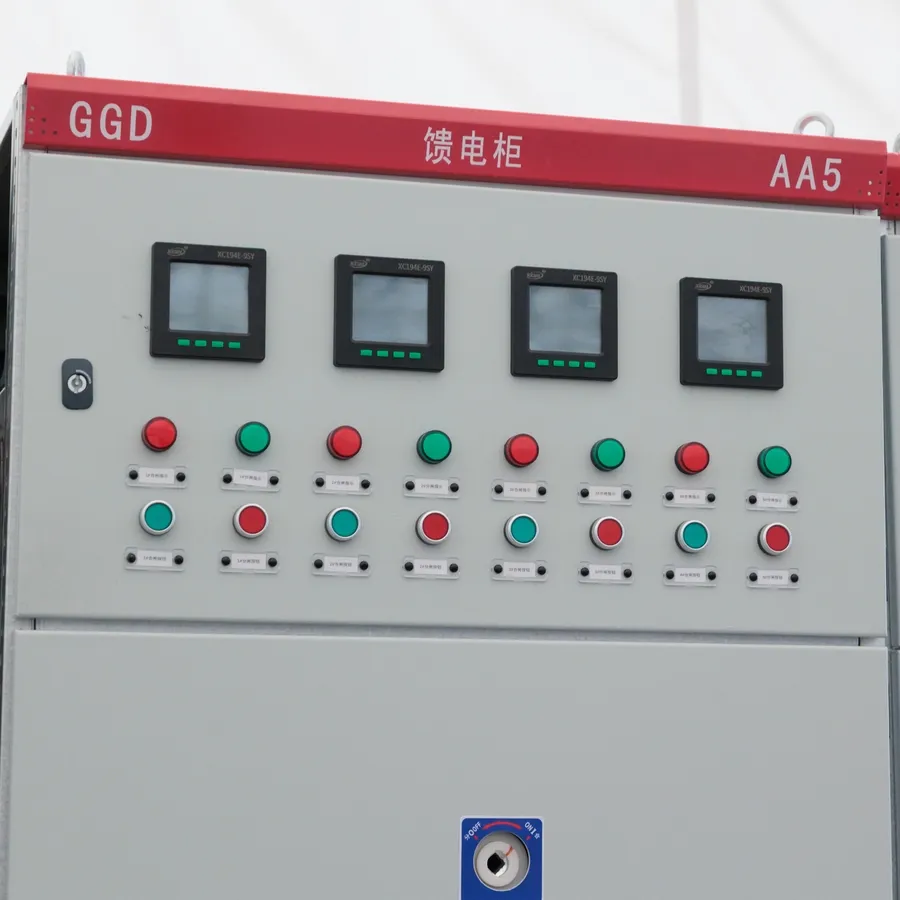

Integrated precision metering tracks voltage, current, and energy consumption, identifying abnormal conditions before failures occur, reducing unplanned downtime by up to 40%.
Standardized drawer interfaces enable seamless capacity upgrades without shutdowns, protecting your capital investment against premature obsolescence.
