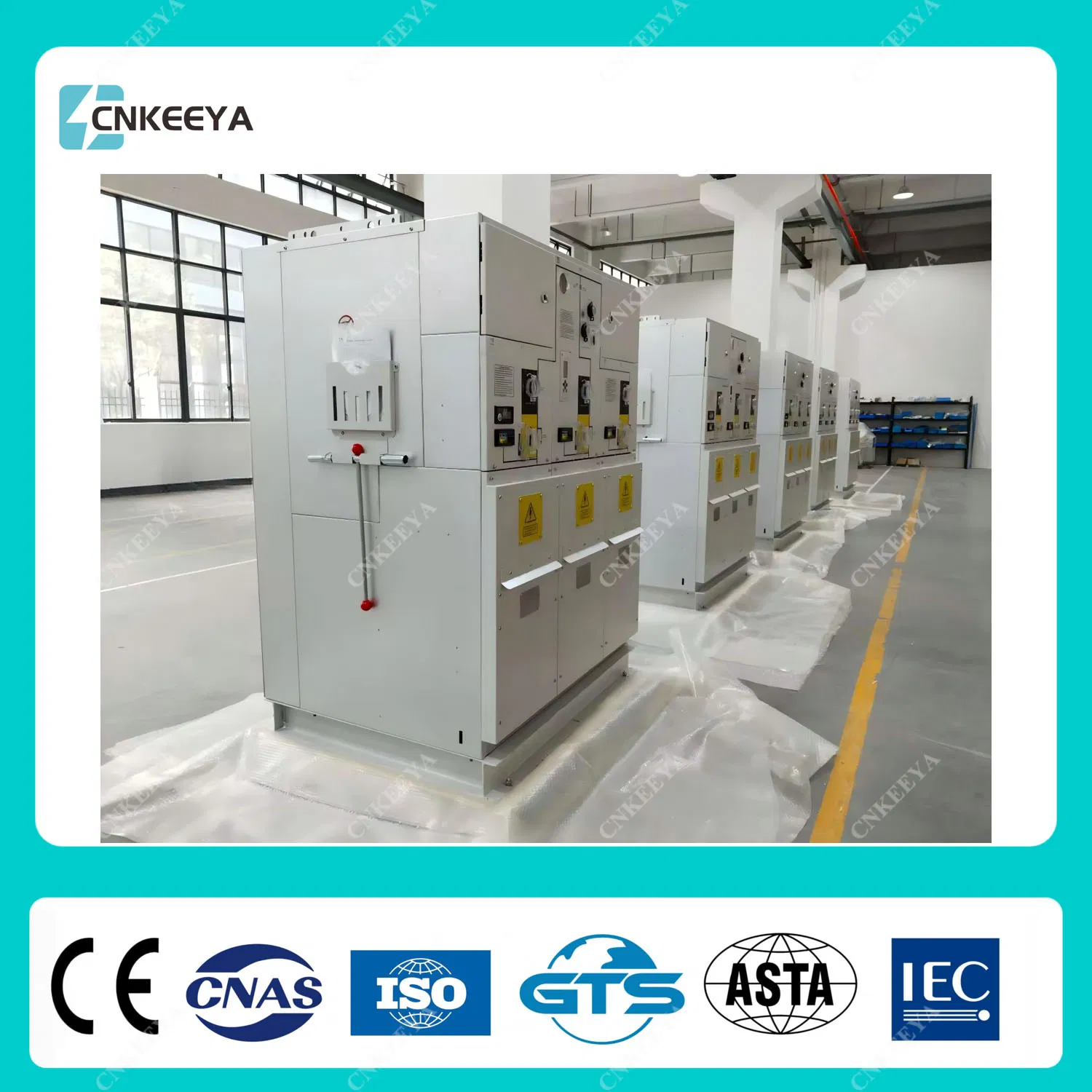

Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale
Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale
Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale
Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale
Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale
1 / 5
Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale
Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale
Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale
Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale
Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale

Cnkeeya ISO9001 Approved Wooden Case 325*751*1345mm China Air Insulated Distribution Cabinet Switchgear Hot Sale

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Voltage Level
Medium Voltage
Installation
Fixed
Structure
Cabinet
Current
AC
Transport Package
Wooden Case
Specification
325*751*1345mm
HS Code
8535210000
Capacity
10,000 Units
Product Description
⚡ Protective Function Identifies fault current automatically; realizes instantaneous current cutoff, time-limited current break, regular flow, directional flow, overvoltage, under-voltage, and single-phase ground protection. Includes cooling load start and inhibition of open circuit.
📊 Measurement Function Measures three-phase current, three-phase voltage, active power, reactive power, active energy, reactive energy, peak/valley electricity, power factor, and frequency.
🎮 Controlling Function Enables on-site operation and remote control. Achieves fault location, automatic fault isolation, and rapid power supply resumption. Realizes automatic load shedding, capacitor cutting, and backup power management.
📡 Communication Function Reports fault and operation information via wireless public networks or specialized networks. Supports various communication protocols and parameter modification via handheld PDA with self-inspection feedback.
💾 Data Record Function Automatically records, saves, and tracks operation and fault data for comprehensive monitoring.
🔄 Synchronous Switching Function Searches for zero-crossing points automatically according to load features. Realizes synchronous switching to effectively restrain over-voltage and inrush phenomena, ideal for capacitors and transformers.
🧠 Intelligence Function Conducts on-line analysis of power network parameters and circuit breaker performance. Cooperates with distribution automation systems for hierarchical remote control management.
👥 Load Management Function Works with intelligent compact solid insulation switch equipment to solve electricity fee issues for scattered or temporary resident customers.
Detailed Photos
Detailed View 1
Detailed View 2

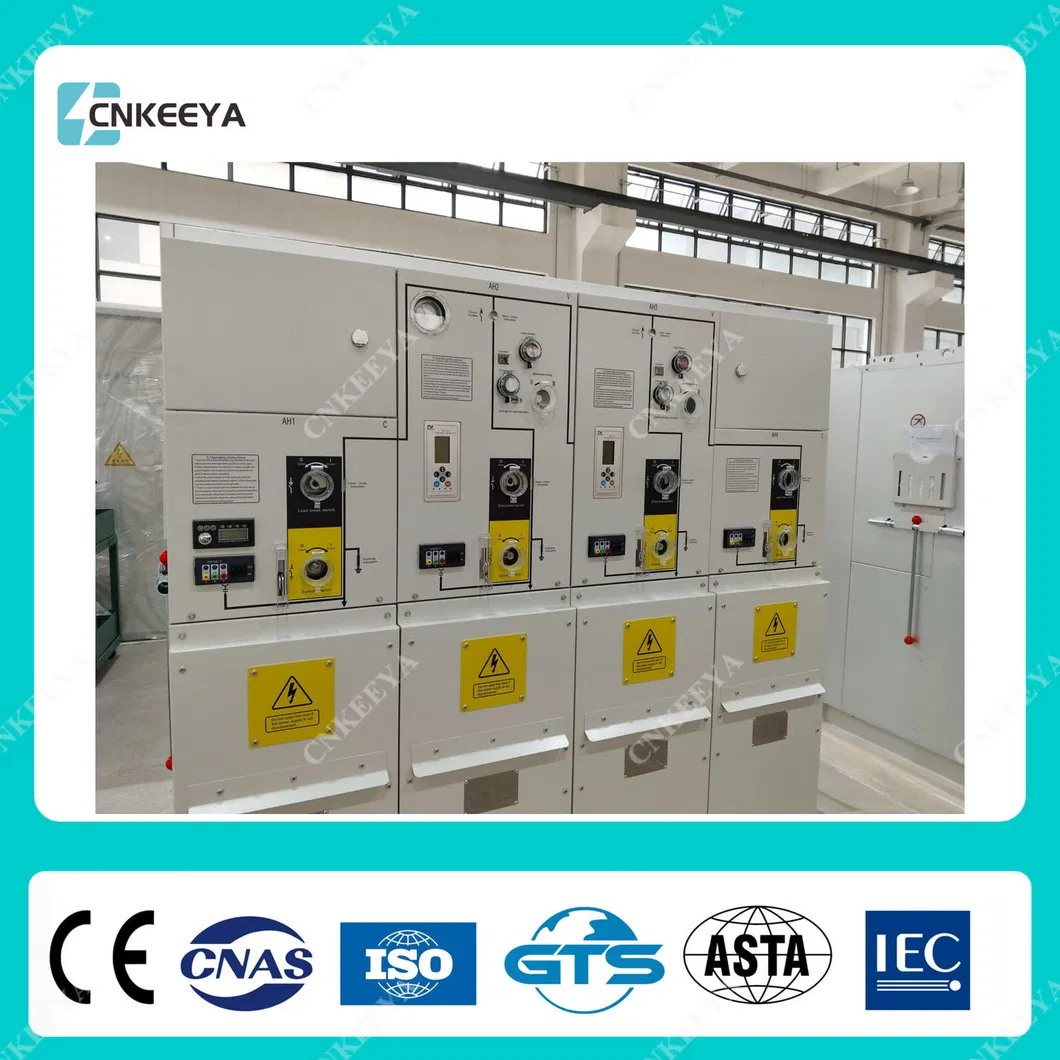

Detailed View 3

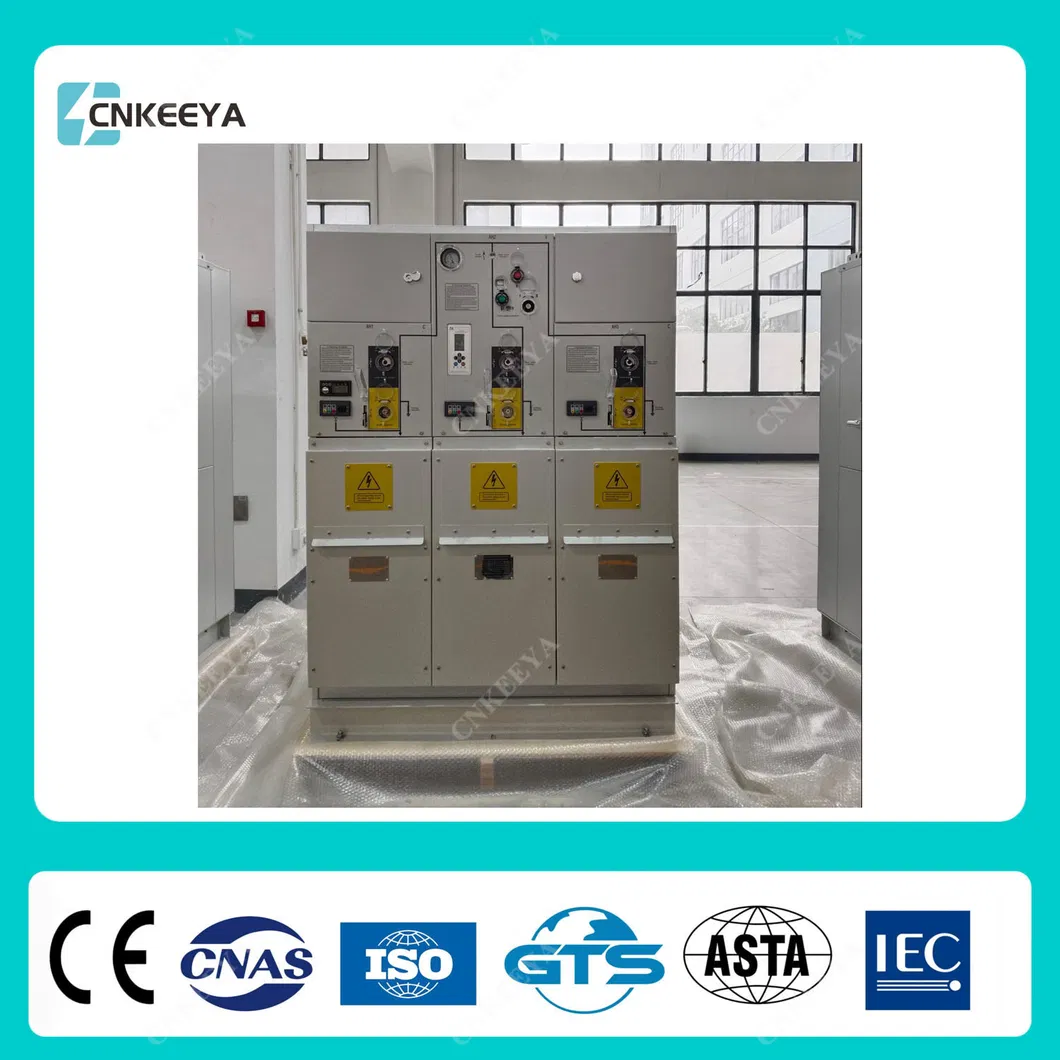

Detailed View 4
Detailed View 5
Technical Parameters
Parameter Item Technical Specifications
Rated voltage40.5KV
Rated current630/1250A
Rated frequency50Hz
Rated short-duration (1 min) power frequency withstand voltage95kV
Rated short-circuit breaking current25kA
Rated short-duration withstand current (4s)25kA
Rated lightning impulse withstand voltage185kV
Rated short-circuit making current (peak value)63kA
Rated peak withstand current63kA
Rated short-circuit current drop-out times30 Times
Mechanical service life of vacuum circuit breaker10000 Times
Mechanical service life of disconnectors/ground switch2000 Times
Protection degree of enclosureIP4X
Rated operating sequence of circuit breakerO-0.3s-CO-180s-CO
Rated work power supplyAC/DC 100/220V
Visual Overview
Profile 1

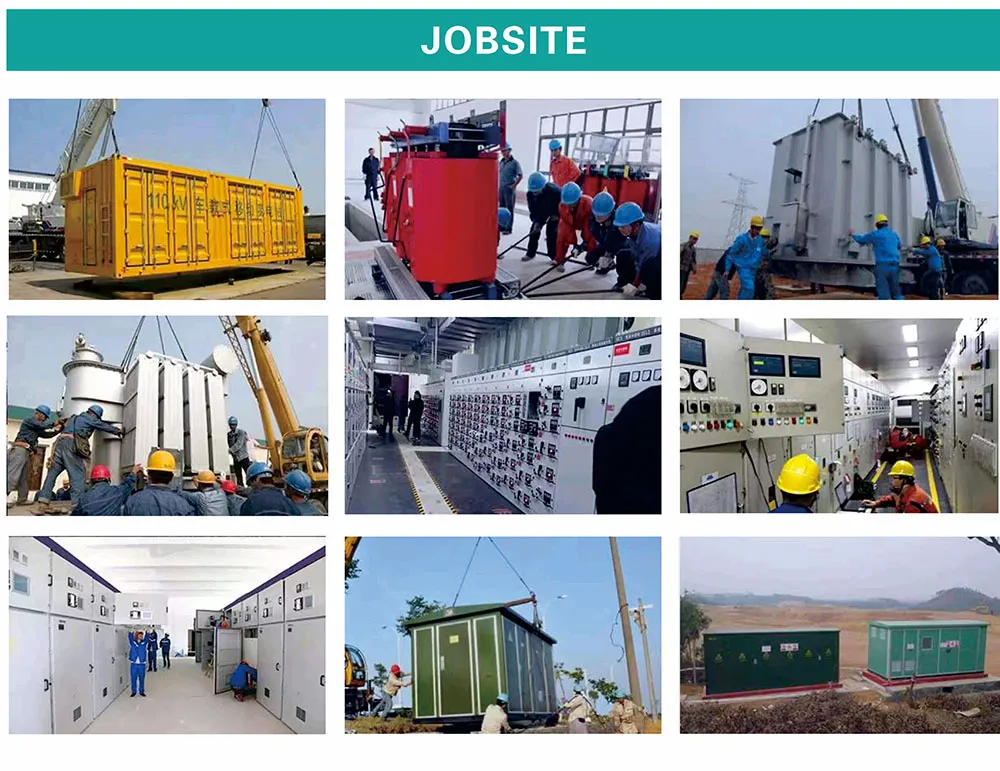

Profile 2
Profile 3
Profile 4

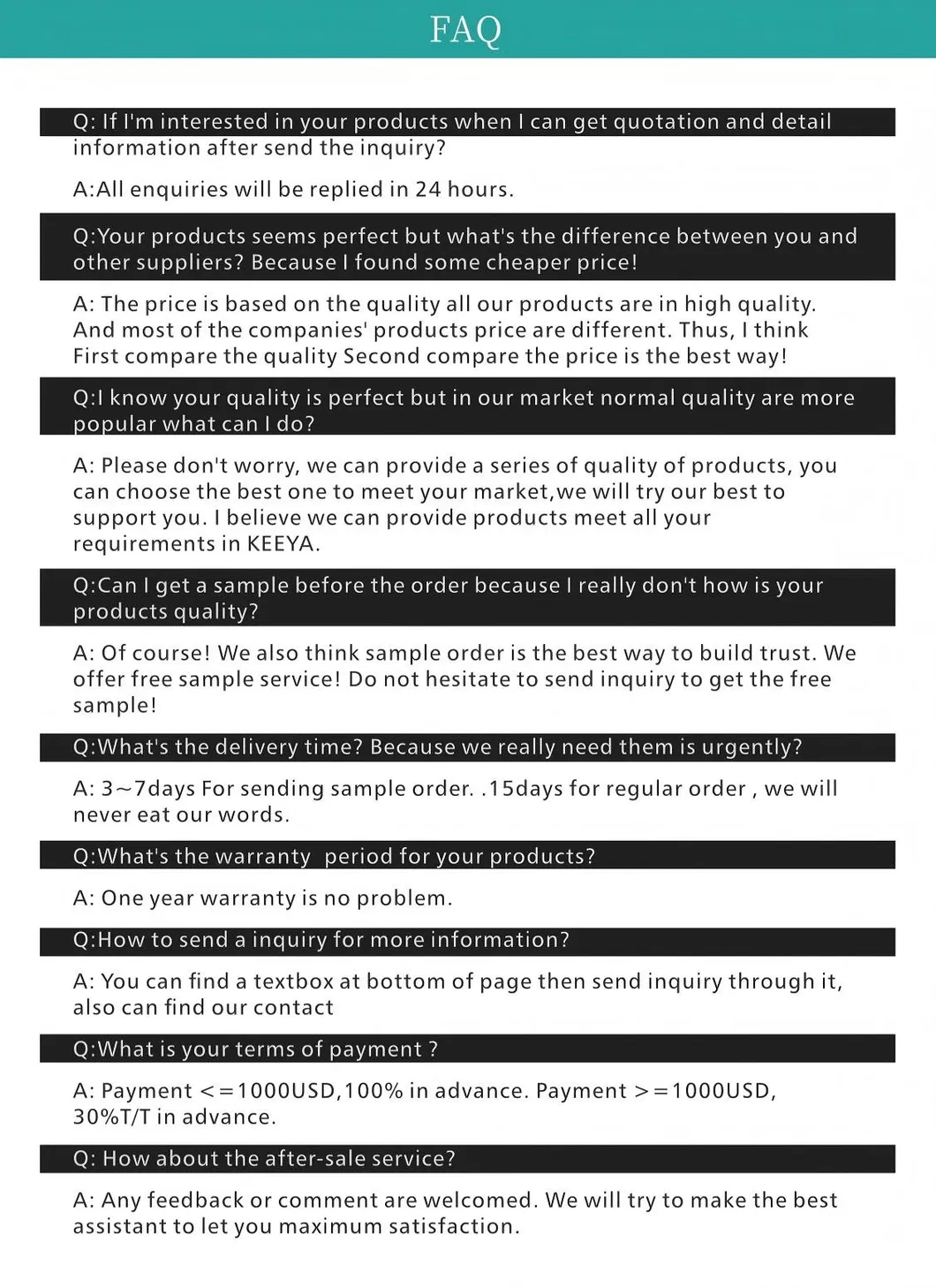

Profile 5
Frequently Asked Questions
What are the main protective functions of this switchgear?
The system features automatic fault identification, instantaneous current cutoff, overvoltage/under-voltage protection, and single-phase ground protection for small current systems.
Can the equipment be operated remotely?
Yes, it supports both on-site operation and remote control, allowing for fault isolation and rapid power resumption via wireless public or special networks.
What is the rated voltage and current for this model?
This equipment is rated for a voltage of 40.5KV and a current range of 630A to 1250A.
Does the controller support data logging?
Yes, it includes a data record function that automatically saves and tracks all operation and fault information.
What is the mechanical service life of the circuit breaker?
The vacuum circuit breaker is designed for a mechanical service life of 10,000 operations.
Is this equipment suitable for switching capacitors?
Absolutely. It features a synchronous switching on/off function that searches for zero-crossing points, effectively restraining over-voltage and inrush current specifically for capacitors and transformers.
