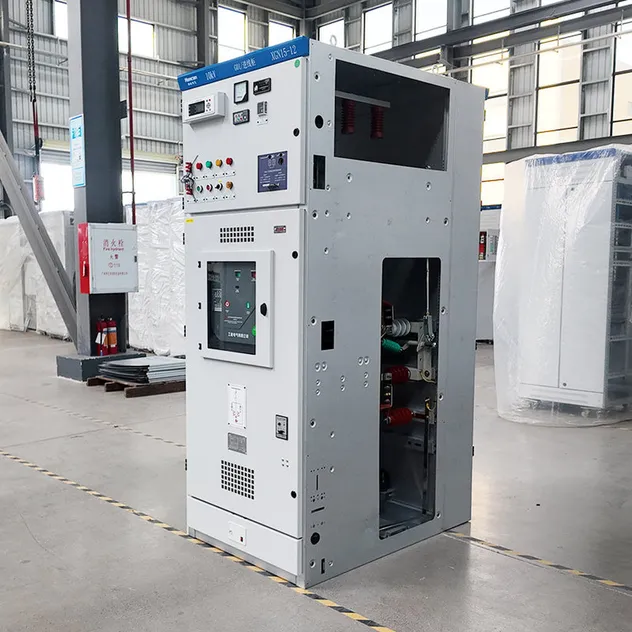

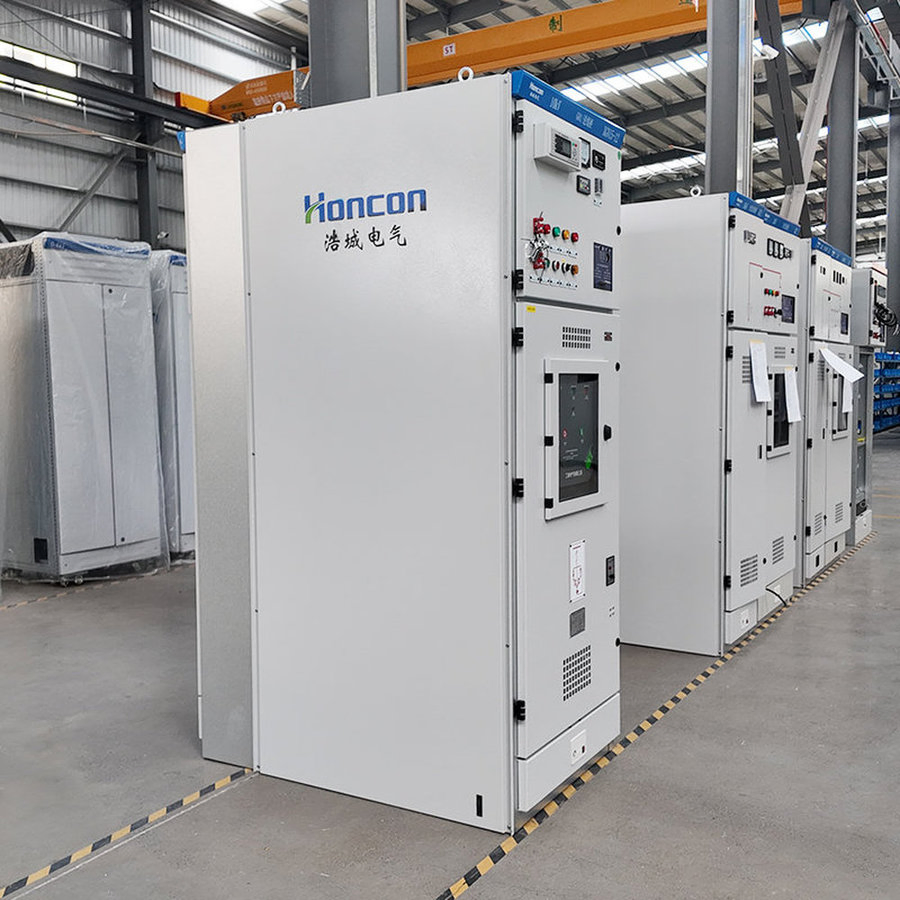

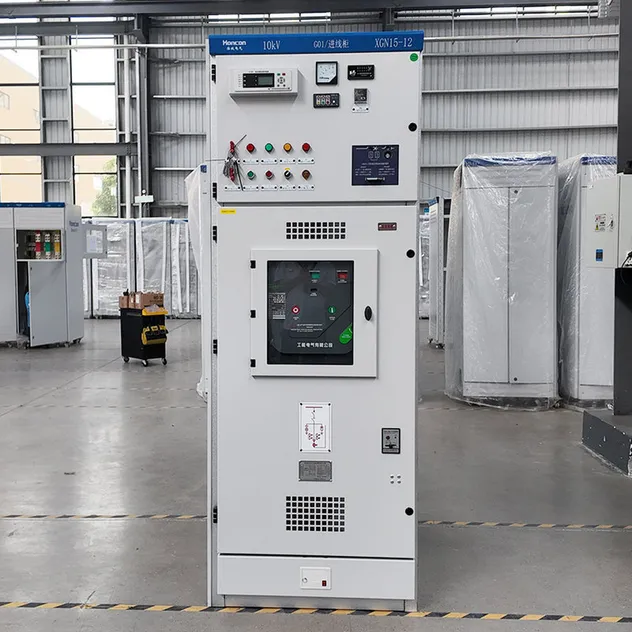

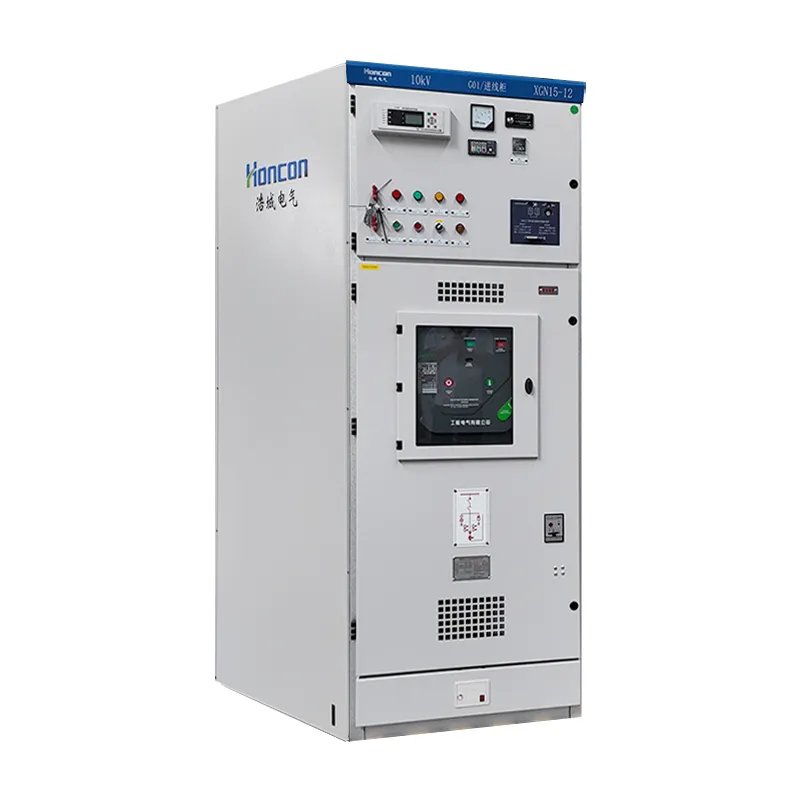

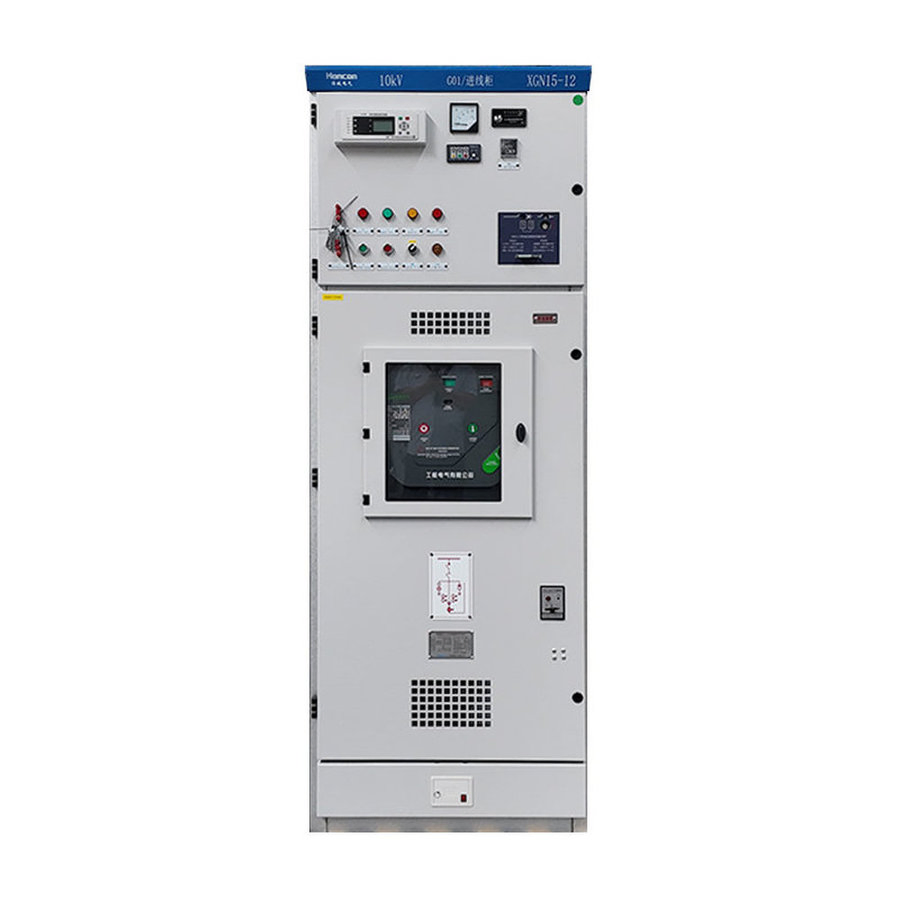

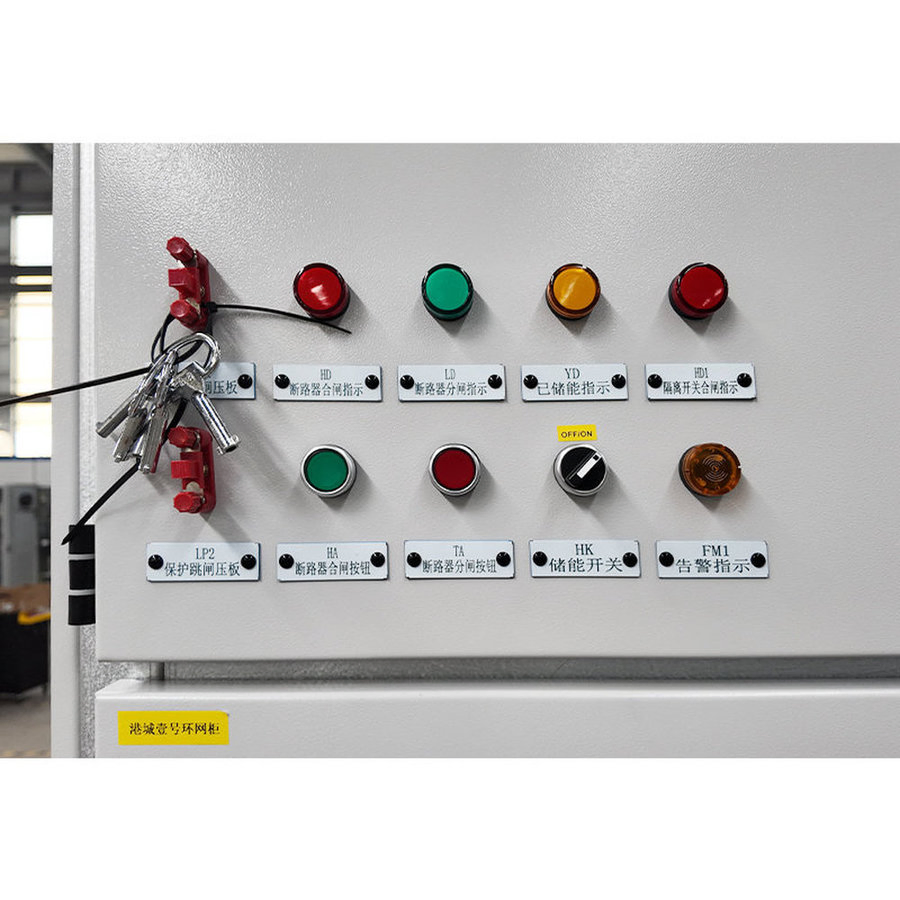

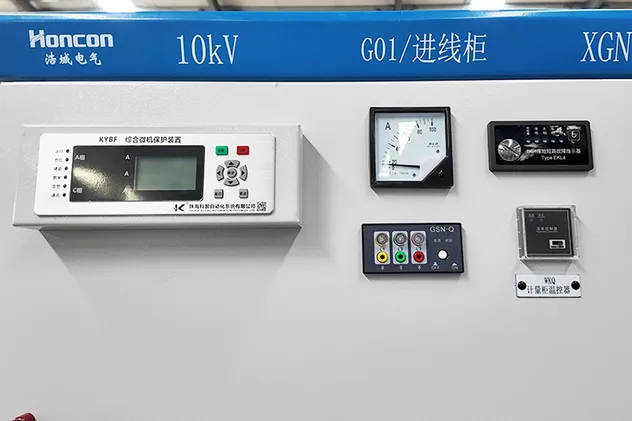

XGN15-12 is a new generation of compact and expandable metal-enclosed switchgear featuring a VCB/SF6 switch as the main switch and air insulation throughout the entire cabinet. Designed specifically for power distribution automation, it offers a simple structure, flexible operation, and reliable interlocking mechanism for convenient installation.
Constructed with high-quality Aluzinc sheet metal for superior corrosion and oxidation resistance. Rated IP3X to prevent external interference.

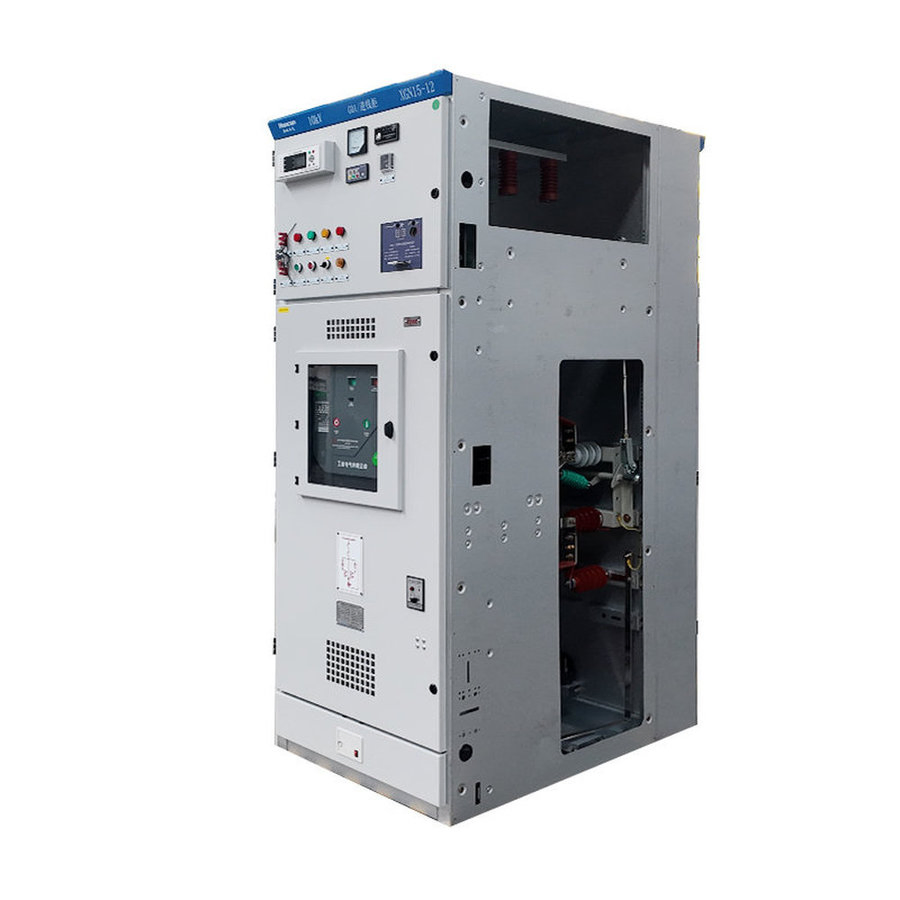

Utilizes three-position load break switches, ensuring safety and operational stability in various environments.

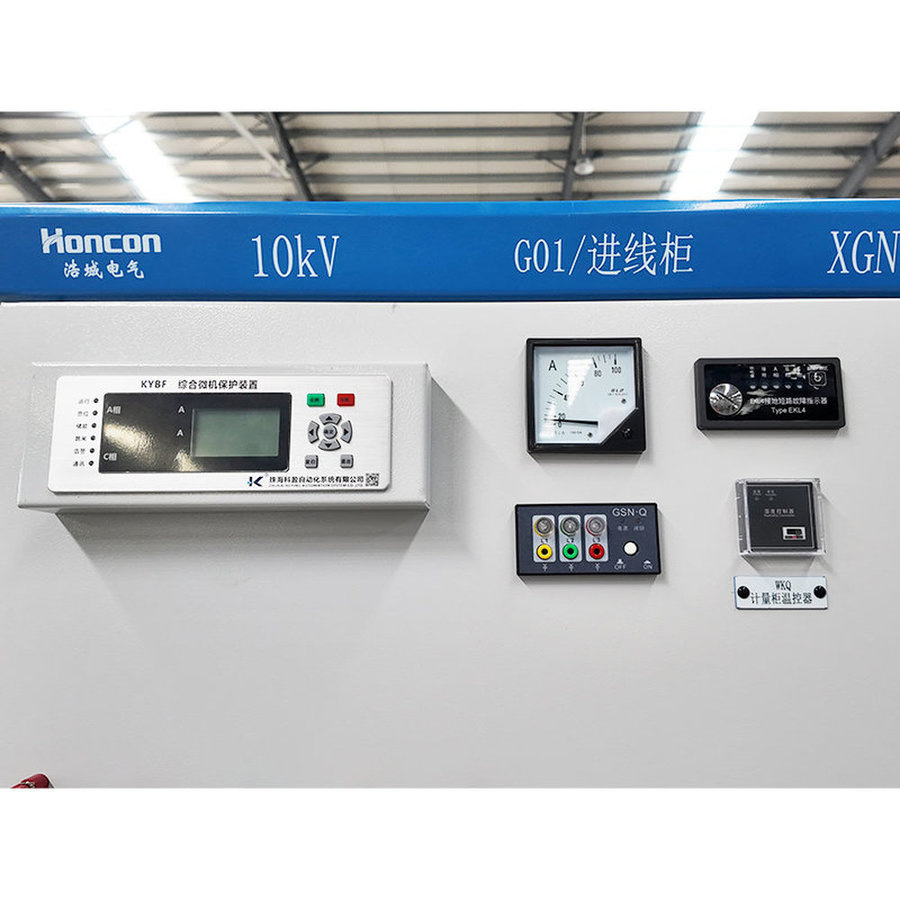

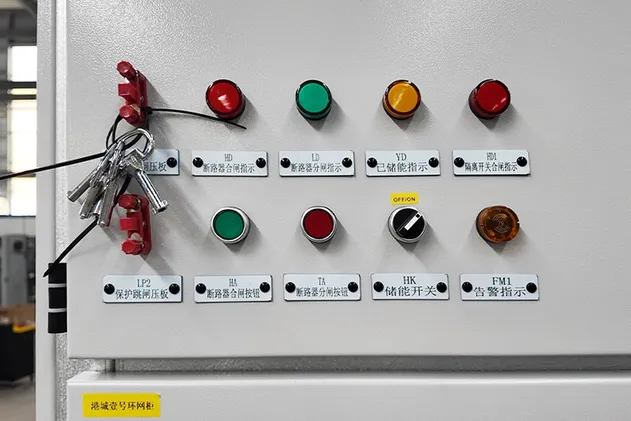

Integrates a "five prevention" mandatory mechanical locking mode between disconnectors, grounding switches, and doors.

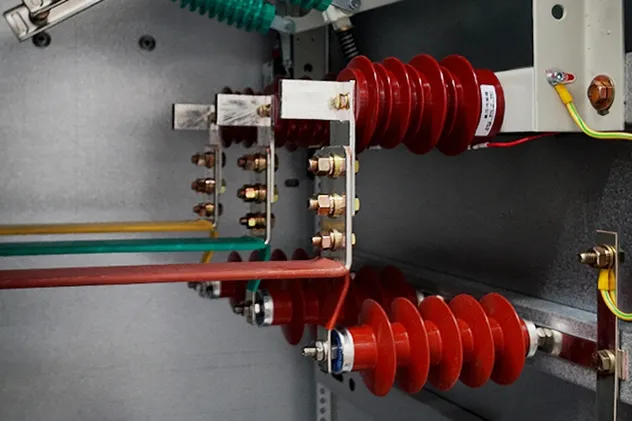

The main switch is housed in an epoxy resin shell filled with SF6 gas, significantly reducing the need for routine maintenance.
| Item | Unit | LBS Unit (12kV) | Circuit Breaker (12kV) | LBS Unit (24kV) | Circuit Breaker (24kV) |
|---|---|---|---|---|---|
| Rated Voltage | kV | 12 | 12 | 24 | 24 |
| Rated Frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 |
| Main Busbar | A | 630 | 630 | 630 | 630 |
| Branch Busbar | A | 630 | 630 | 630 | 630 |
| Power Freq. Withstand | kV | 42 | 42 | 65 | 65 |
| Lightning Impulse | kV | 75 | 75 | 125 | 125 |
| Short Circuit Current | kA | 20/3S | 20/3S | 20/3S | 20/3S |
| Peak Withstand Current | kA | 50 | 63 | 50 | 63 |
| IP Class | - | IP3X | IP3X | IP3X | IP3X |
