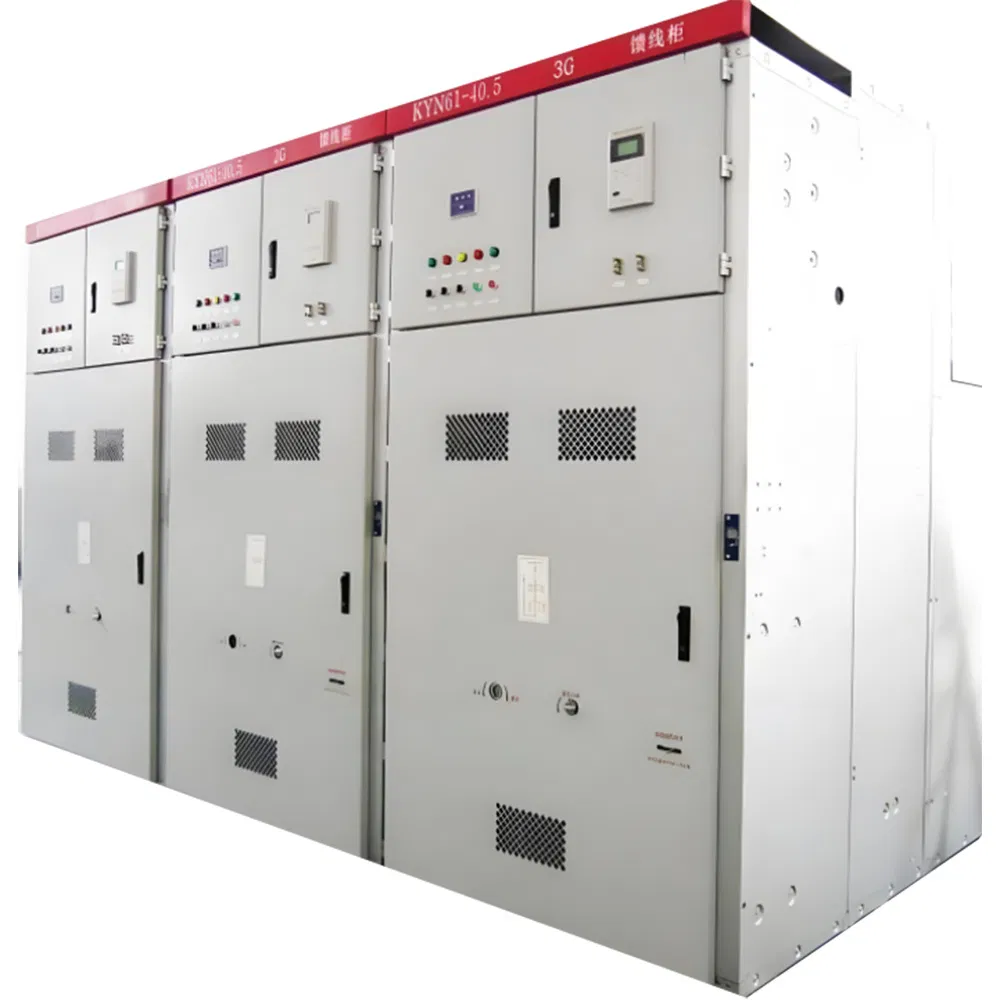

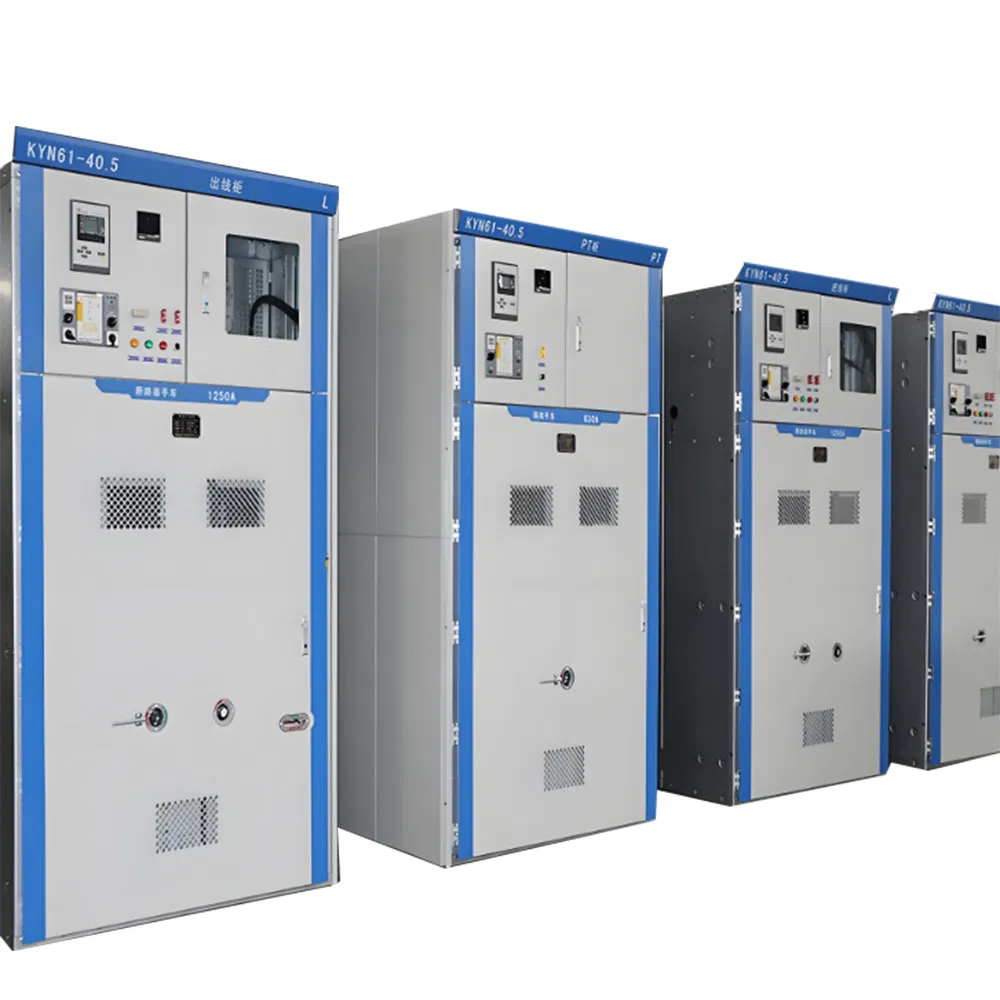

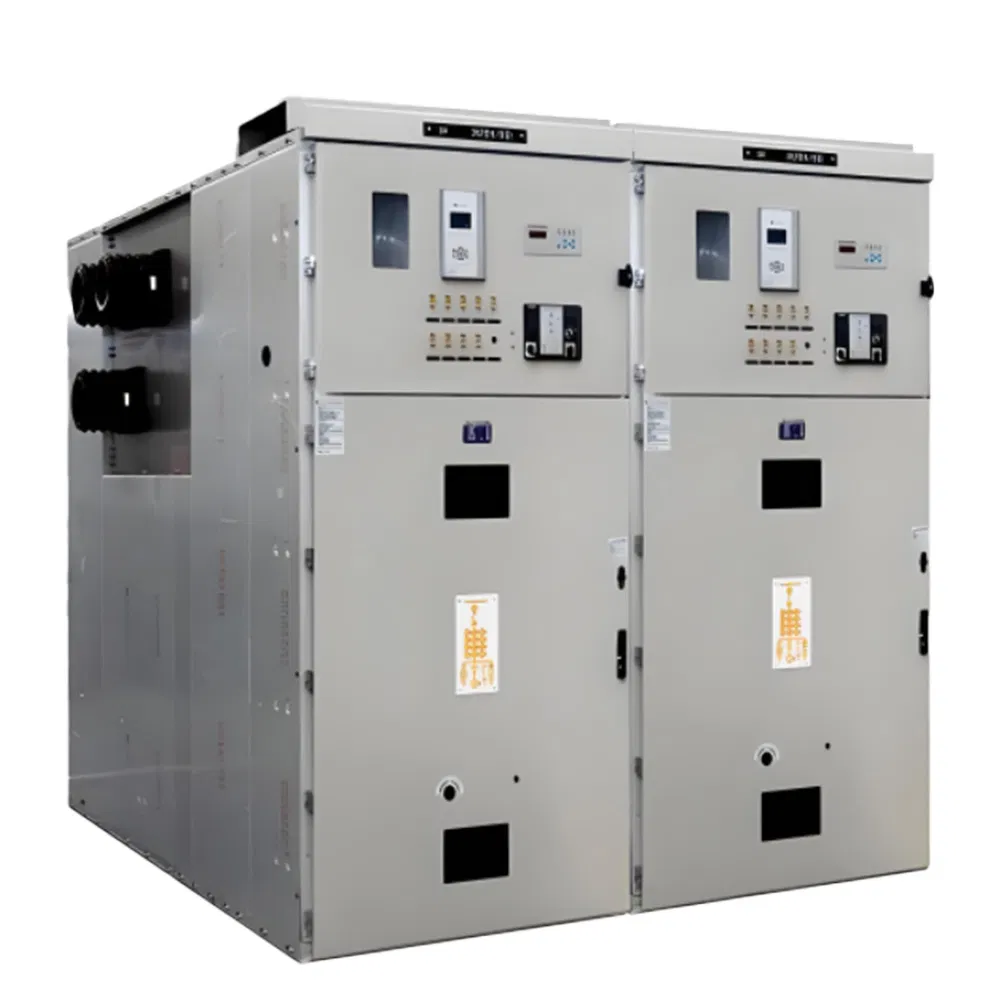

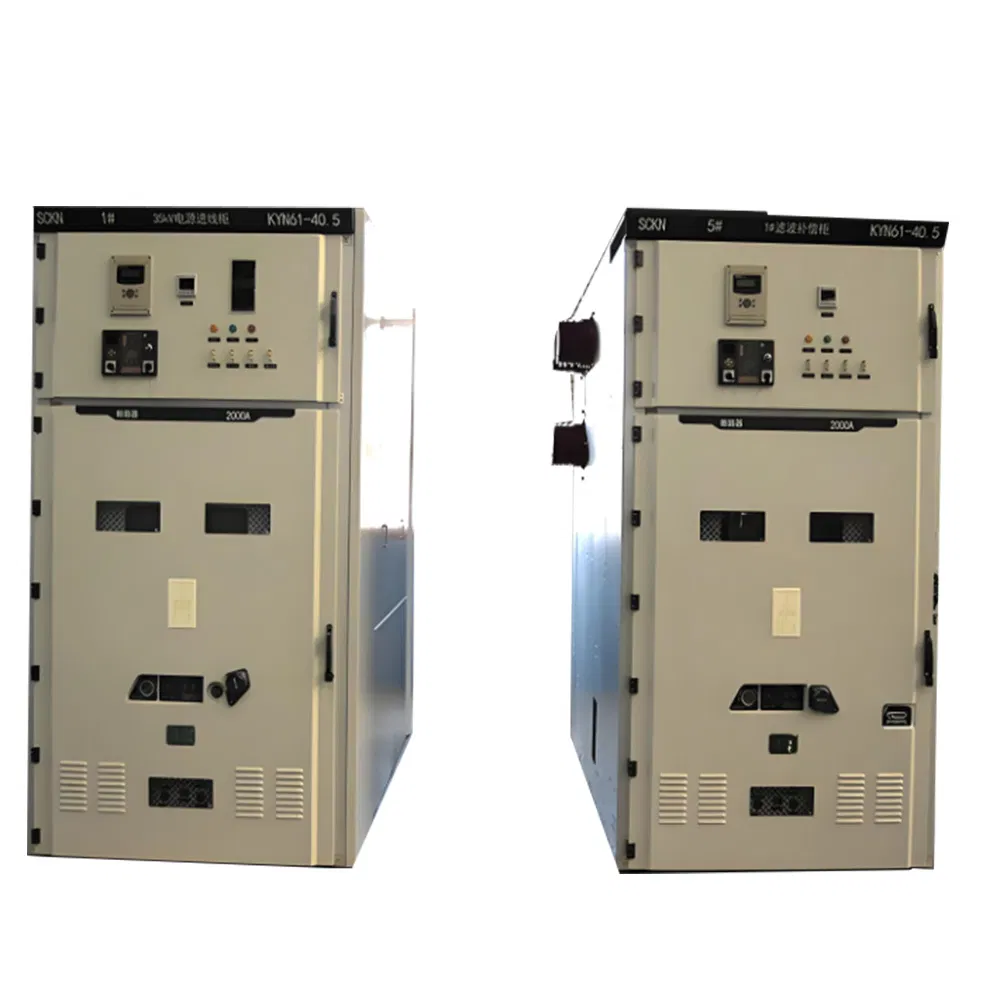

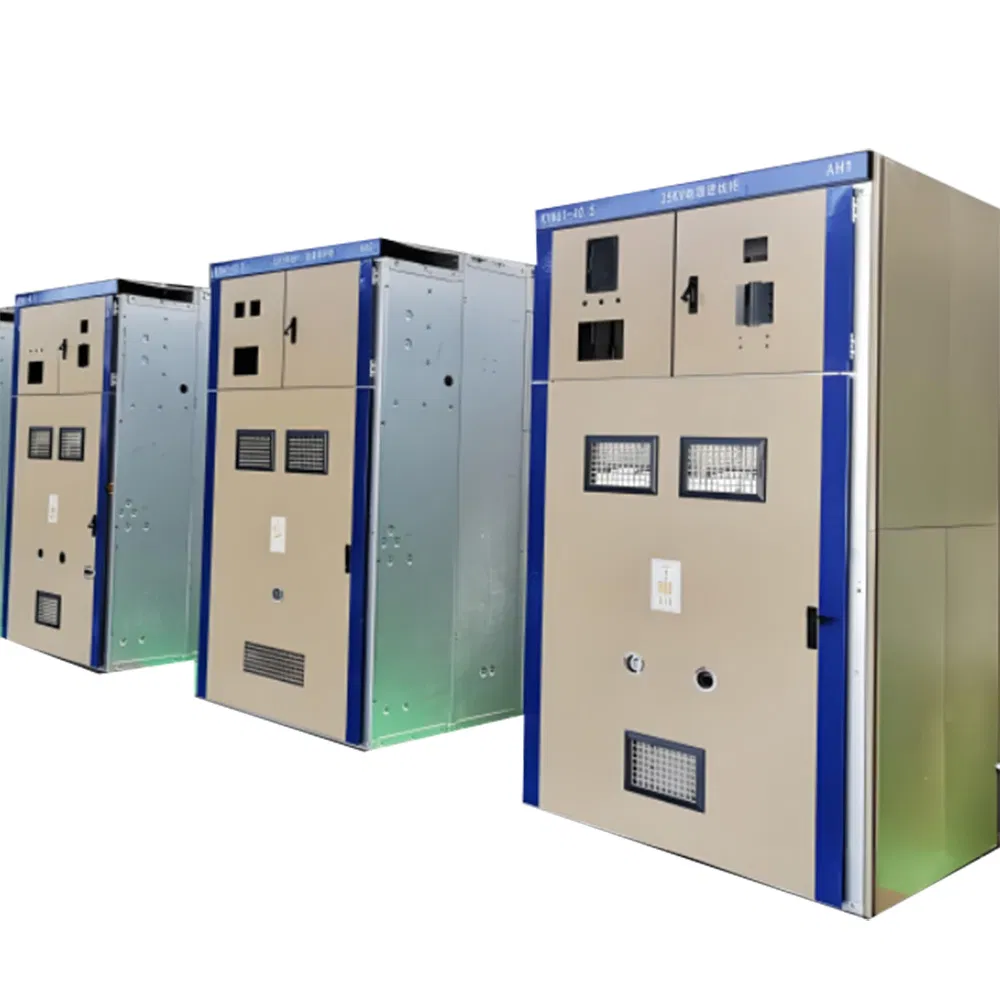

Kyn61 Indoor Armoured Withdrawable AC Metal Enclosed Mv Medium High Voltage Gas Insulated Distribution Panel Modular Electrical Switchgear

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.KYN61-40.5
InstallationFixed
StructureCabinet
CurrentAC
Rated Voltage40.5 KV
Rated Frequency50Hz
Current Rating630A / 1250A / 1300A
Peak Withstand Current50ka / 63ka / 80ka
1min Power Frequency95/110kv
Lightning Shock Resistance185/215kv
Altitude1000m
Ambient Temperature-15°C to 40°C
Transport PackageWooden Case
OriginChina
Product Features & Functions
  • Advanced Design: Armored switchgear designed for testing AC metal-enclosed systems.
  • Precision Build: Cabinet body assembled with steel plate spraying for high matching accuracy.
  • Circuit Breaker: Equipped with ZN85-40.5 fully insulated vacuum circuit breaker.
  • Versatile Use: Suitable for 35kV three-phase AC 50Hz power systems for control and protection.
  • Reliability: Interchangeable handcart design, safe and aesthetically pleasing.

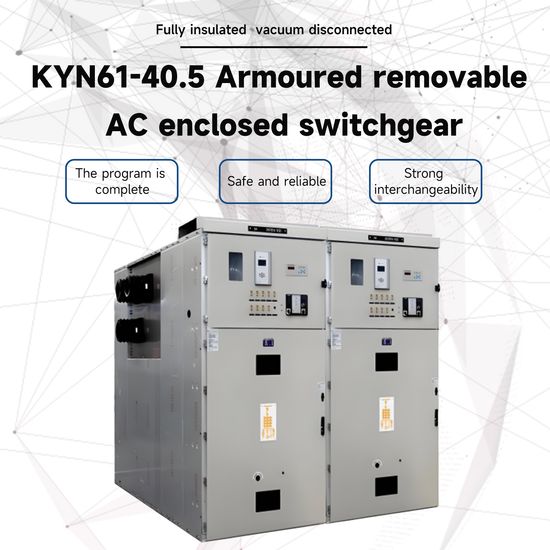

Product Video Cover

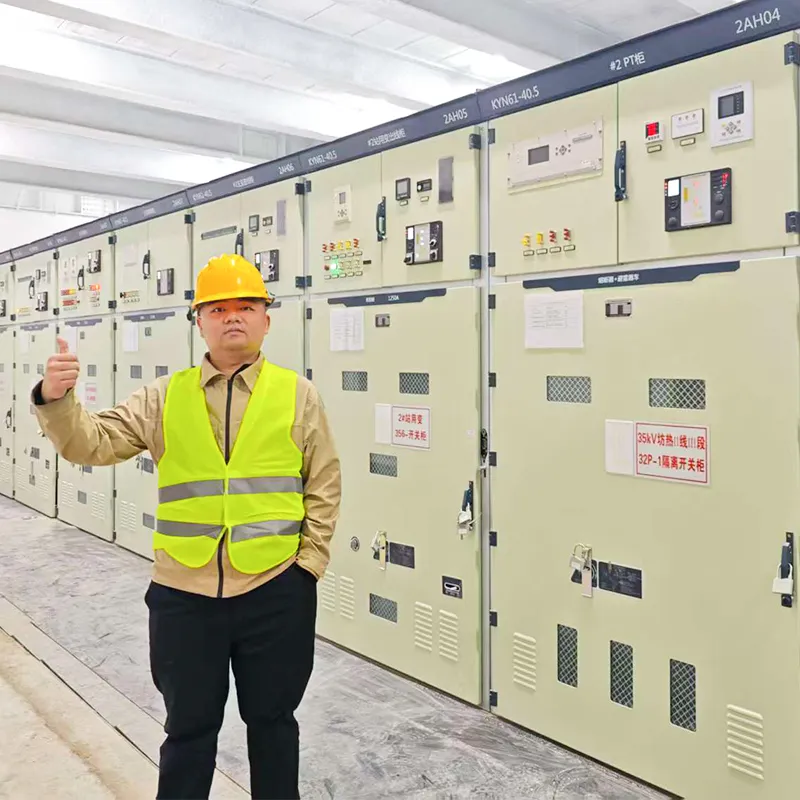

Switchgear View 1

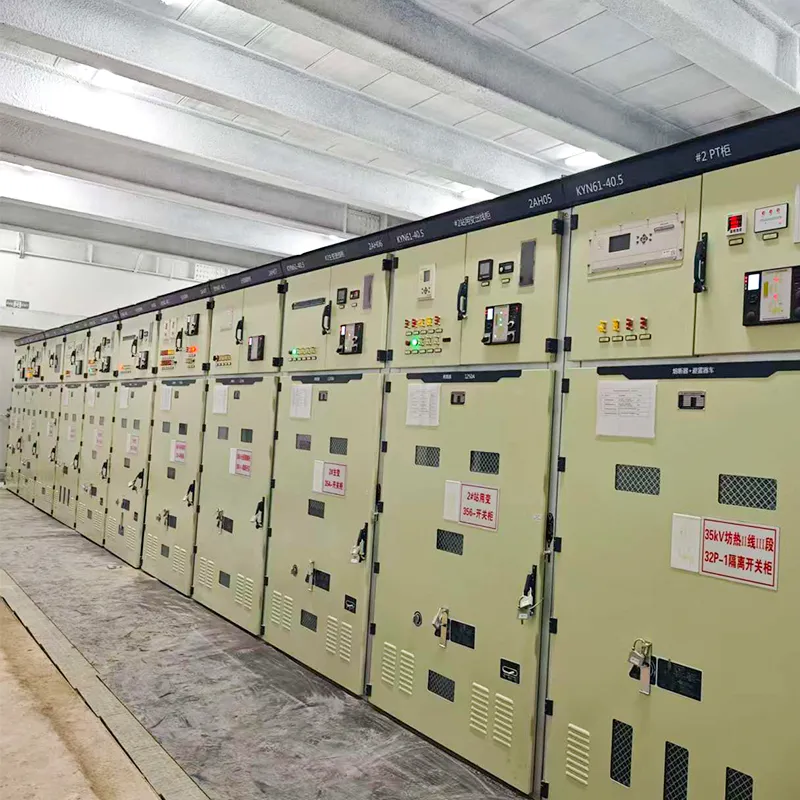

Switchgear View 2
Operating Environment & Quality Assurance

Use Environment:

  • Ambient Temperature: -15°C ~ 40°C
  • Altitude: ≤ 1000m
  • Daily average humidity ≤ 95%
  • Seismic intensity ≤ 8 degrees

Quality Standards:

  • Strict R&D quality system standards
  • Components from international first-class brands
  • Rigorous EMC and temperature protection tests

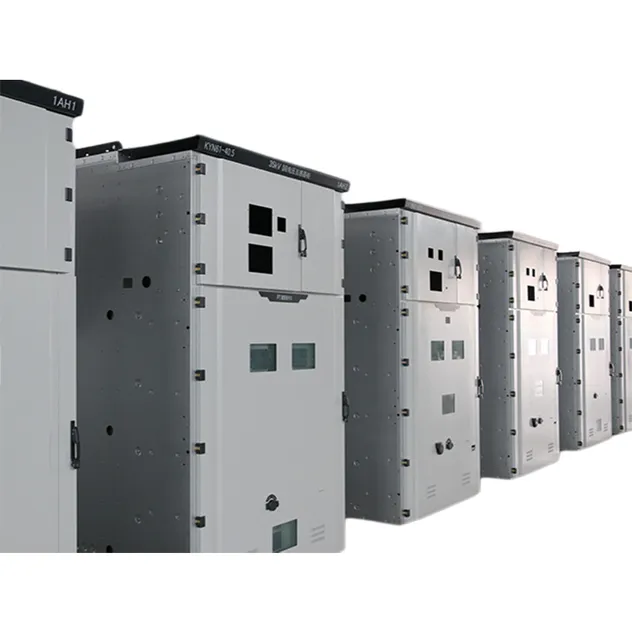

Quality Detail 1
Quality Detail 2
Quality Detail 3
Product Categories
Category Overview 1 Category Overview 2
About the Manufacturer
Facility Image

Established in 2007, the provider is a power equipment system service integrator focusing on research, design, manufacturing, and marketing. Key product series include high and low voltage switchgear, smart charging piles, photovoltaic grid-connected cabinets, and prefabricated substations.

With ISO9001, GB/T 14001, and GB/T 28001 certifications, the equipment serves multiple fields including photovoltaics, power, steel, petroleum, and chemical industries. The company maintains long-term strategic cooperation with multiple domestic and international universities for continuous technological innovation.

Production Line
Certifications & Packaging
Certification Documents
Packaging & Shipping
Frequently Asked Questions
Q1: Are you a professional manufacturer?
A1: Yes, we are a professional factory with 19 years of experience in high and low voltage switchgear, substations, and electrical equipment.
Q2: What is the typical delivery time?
A2: Usually, production and delivery take about 15-20 days.
Q3: How do you handle quality control?
A3: We provide detailed technical analysis for any quality concerns and offer a satisfied solution within 2 days. All products undergo rigorous testing.
Q4: What is the warranty period for your products?
A4: The warranty is 12 months from the date of the bill of lading.
Q5: Do you accept product customization?
A5: Yes, we provide customization based on specific drawings or parameters provided by the client.
Q6: Do the products meet international standards?
A6: Our products have passed relevant certifications recognized globally and comply with standardized packaging for international customs clearance.
