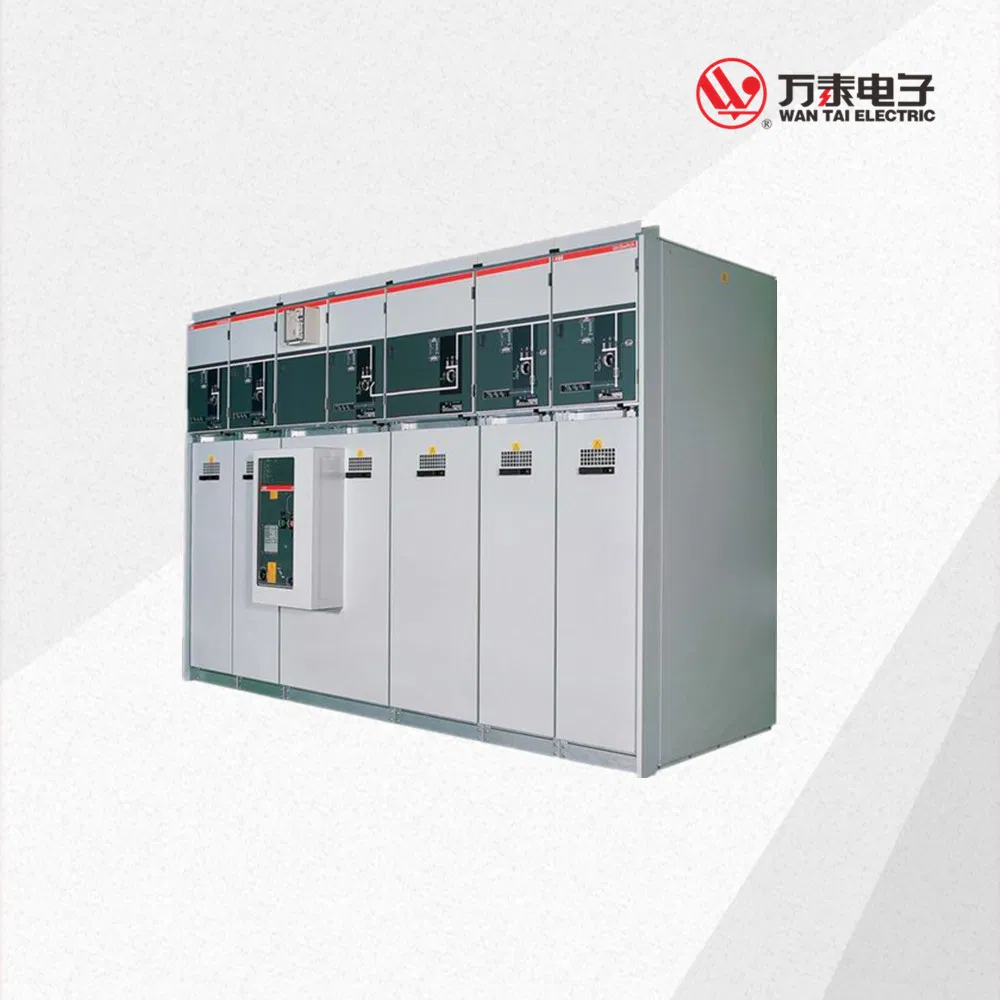

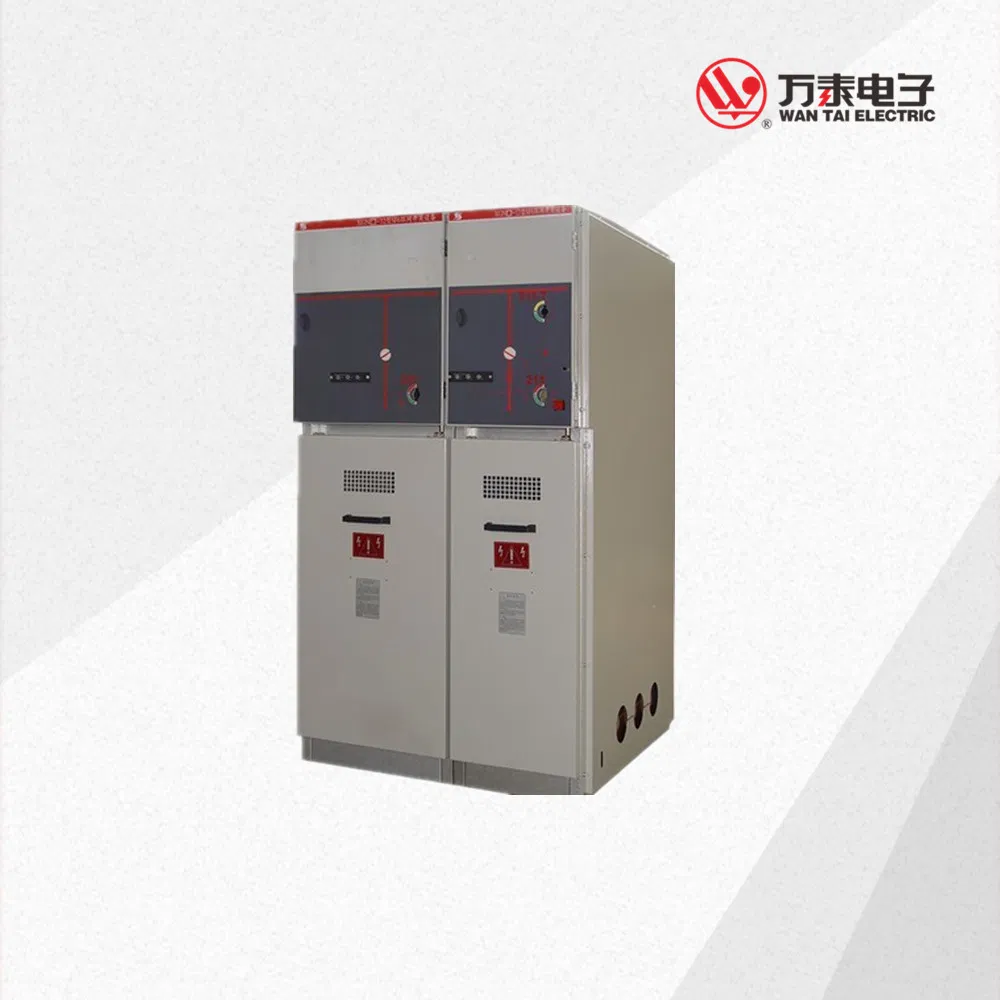

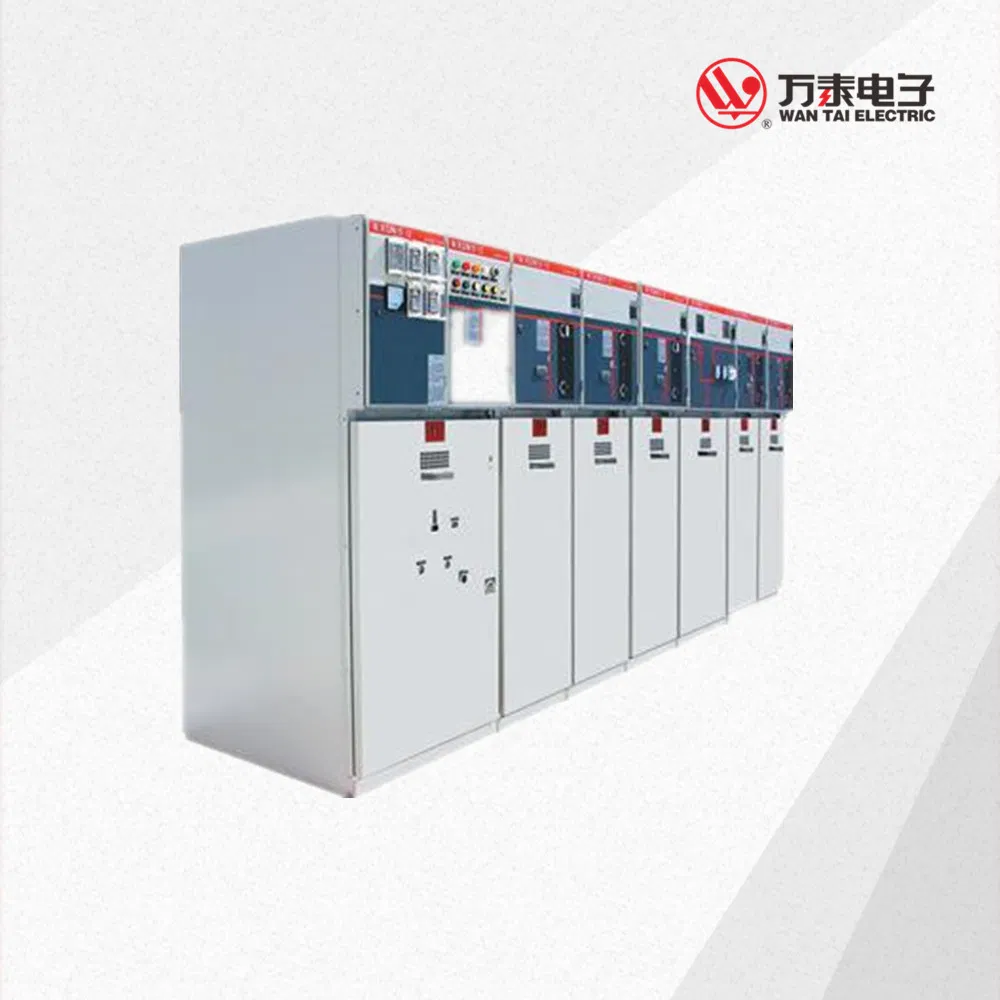

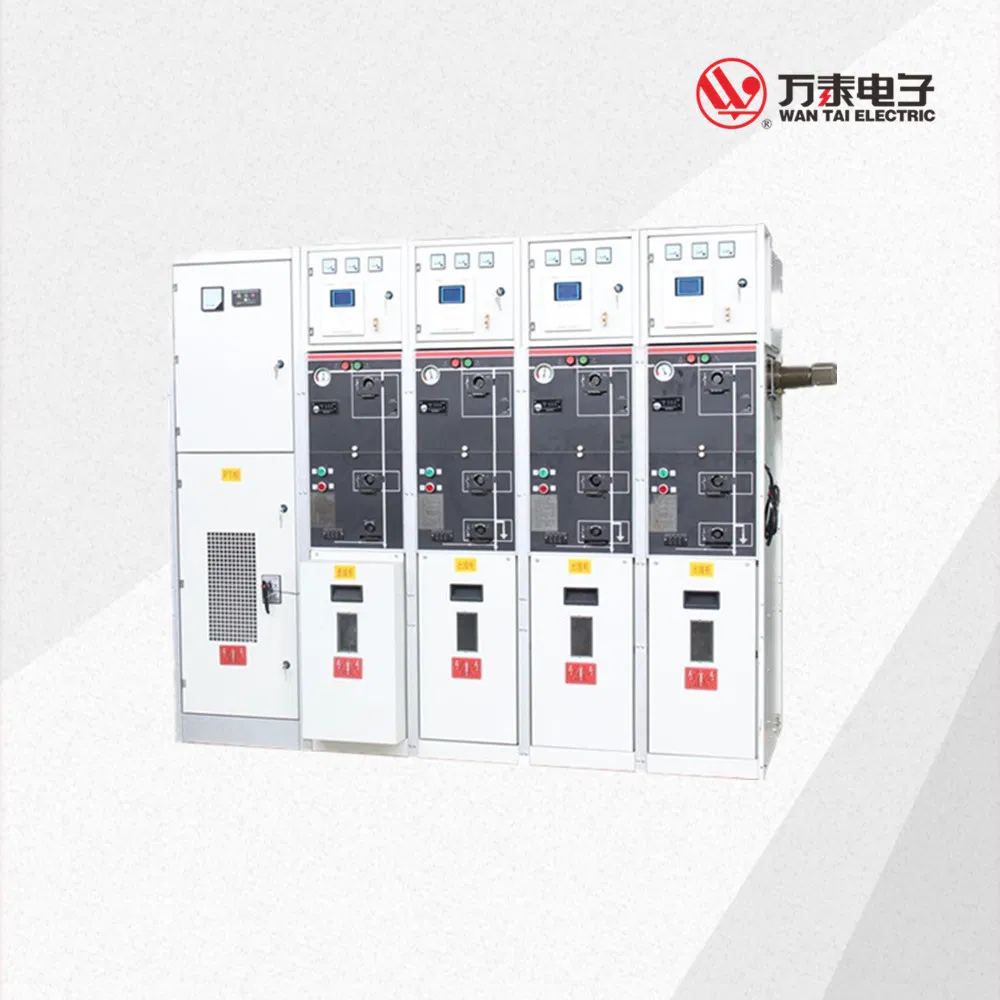

Sf6 Gas Insulated Switchgear, Srm16 6kv/10kv/12kv/24kv /33kv Sf6 Gas Fully Enclosed and Metal Ring Net Switchgear, Medium Voltage Switchgear, Gis Switchgear
It is suitable for the three-phase AC 50 Hz, rated voltage of 3.3, 7.2, 12 KV indoor high-voltage power distribution equipment. Widely used in industrial and civil cable ring network and terminal power supply, suitable for urban residential area, small secondary substations, open and close house, industrial and mining enterprises, shopping malls, airport, subway, small and medium-sized power plants, hospitals, stadiums, railway, tunnel, etc in circuit system for receiving and distribution of electrical energy, it has simple structure, flexible operation, easy installation, reliable interlock etc.
Advanced Vacuum Breaker
The vacuum circuit breaker is built-in, adopting vacuum arc extinguish chamber, with free maintenance, long service life. The number of operations can reach 10,000 times.
Customizable Components
Also the load switch or the fuse can be built-in according to users' requirements.
Scientific Design
Adopting advanced scientific design, it has simple structure and complete protection functions.
Five-Prevention Interlock
With interlocking device, it has 5 preventions: prevent load isolating/closing disconnecting switch, prevent incorrect breaker/load switch operation, prevent earth switch power on in closed position, prevent closing earth switch with electricity, and prevent entering charged compartments.
Rotation Disconnecting Switch
The upper and the lower disconnecting switches are provided with a double fracture of the rotation disconnecting switch.
High Protection Grade
The shell protection grade: IP40. When the door is open, the protection grade is IP20.
Frequently Asked Questions
What is the rated voltage range for the SRM16 SF6 Switchgear?
The SRM16 series is designed for versatile applications, supporting rated voltages of 3.3kV, 6kV, 10kV, 12kV, 24kV, and up to 33kV.
What are the primary applications for this GIS switchgear?
It is widely used in urban residential areas, secondary substations, shopping malls, airports, subways, hospitals, and industrial mining enterprises for power distribution.
How durable is the built-in vacuum circuit breaker?
The vacuum circuit breaker features a vacuum arc extinguish chamber that is maintenance-free and boasts a long service life, capable of up to 10,000 operations.
What safety mechanisms are included in the design?
The switchgear includes a comprehensive "5-prevention" interlocking device to prevent incorrect operations, such as closing switches with electricity or entering charged compartments.
What is the ingress protection (IP) rating of the enclosure?
The shell provides a protection grade of IP40 under normal conditions, and IP20 when the door is opened for maintenance.
Can the switchgear be customized for specific needs?
Yes, load switches or fuses can be built into the system according to specific user requirements and circuit demands.
