Hxgn15-12 Semi-Insulated Ring Main Unit 10kv Air & Sf6 Insulated Switchgear

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	HBRT16-12/630-20	Voltage Level	Medium Voltage
Installation	Removable	Structure	Cabinet
Current	630A/1250A	Rated Voltage	12kv/24kv
Insulation Method	Sf6 Insulation + Air Insulation	Protection Class	IP4X / IP2X
Production Capacity	500/Months	Origin	China

Product Description

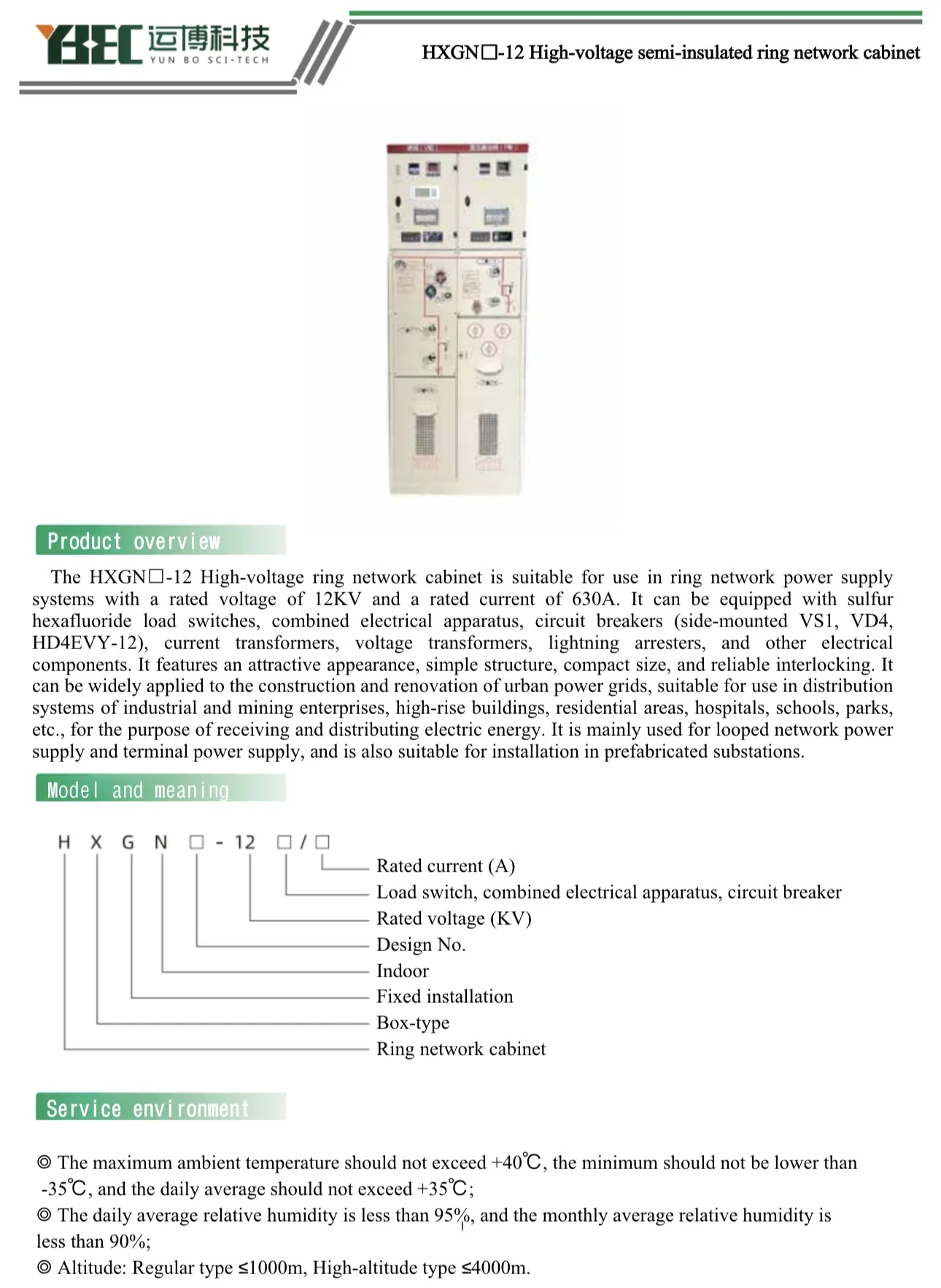

12-24kV Semi-Insulated Ring Main Unit

A cost-effective and high-performance preferred equipment for medium-voltage power distribution, featuring modular and compact design. Applicable to residential quarters, commercial complexes, municipal power distribution, and industrial auxiliary power supply.

⚙️Cost-Effective Distribution

The semi-insulated structure precisely meets small and medium-load needs, optimizing production costs while maintaining core performance compared to fully insulated units.

📦Modular & Compact Design

Narrow width and small volume allow flexible arrangement in corridors and box-type substations. Supports unitized combination and fast on-site assembly.

🛡️Stable & Reliable

Covers rated currents of 630-1250A with short-circuit capacity up to 25kA. Uses mature vacuum interrupter technology for long mechanical life.

✅Five-Prevention Interlocking

Equipped with mechanical interlocking to eliminate misoperation. Full front-operation design allows routine inspection without specialized teams.

Technical Specifications & Drawings

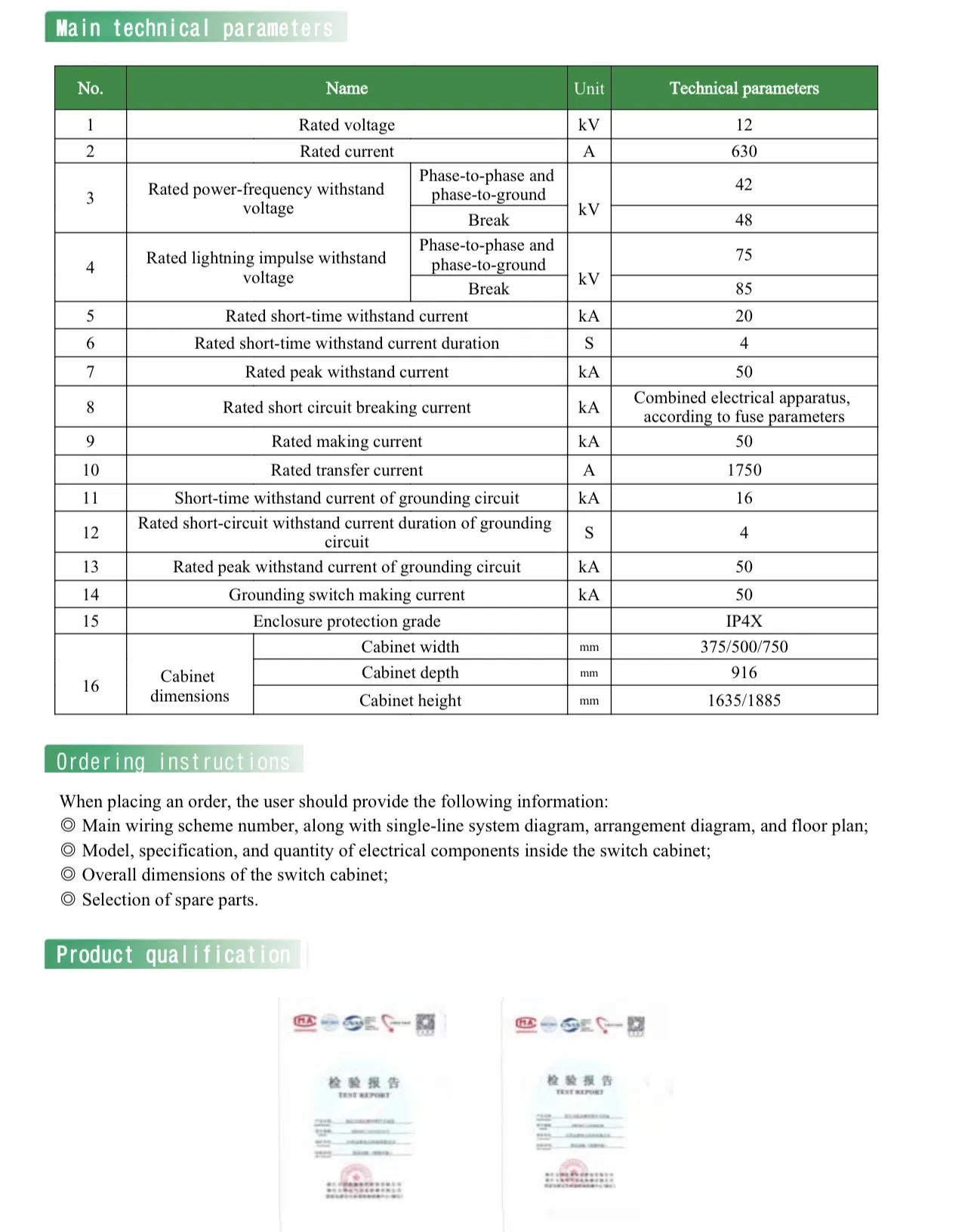

Technical Parameters

Product Model	HXGN15-12kV/24kV	Voltage Class	12kV/24kV
Installation Method	Indoor/Outdoor Floor-Mounted	Structure	Metal-Enclosed Switchgear
Dimensions	5009161885 (customizable)	Color	RAL7035 light gray
Frequency	50Hz / 60Hz	Insulation	SF6 + Air Insulation
Material	Aluzinc Steel Plate	Standard	GB3906, IEC62271-200

Main Product Display

Production & Quality

Factory Advantages & Certifications

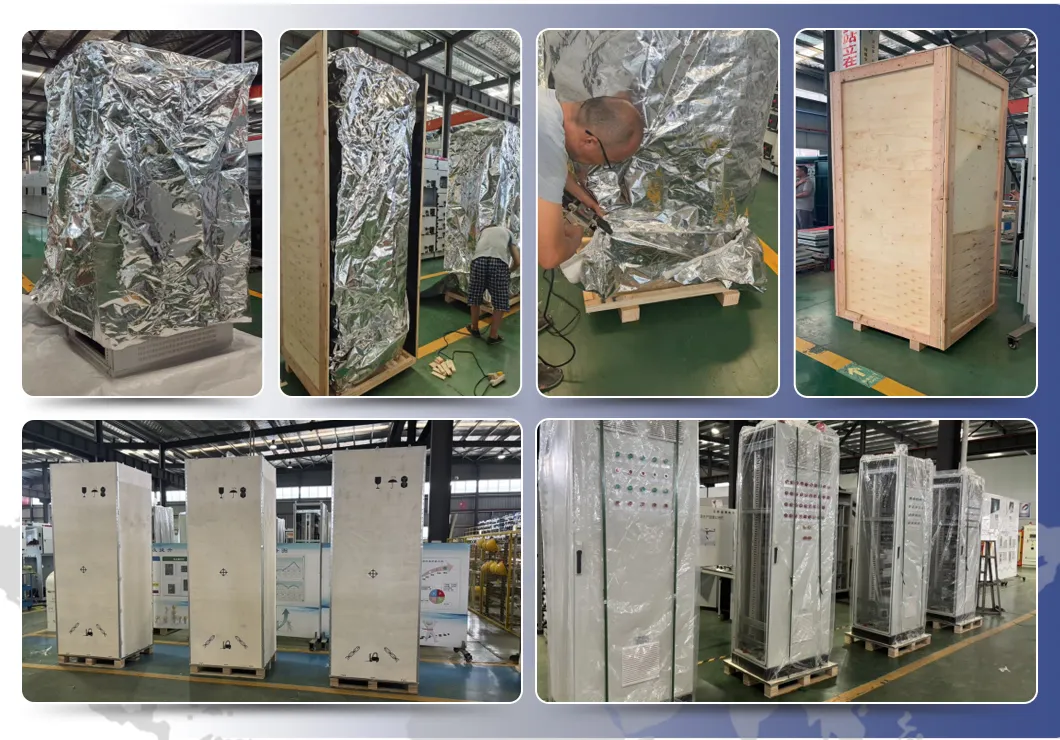

Exhibition & Packaging

Frequently Asked Questions

🔹 What is a Semi-Insulated Ring Main Unit?

It is a medium-voltage switchgear that combines SF6 insulation for core components and air insulation for other parts, providing a cost-effective solution for power distribution.

🔹 What are the primary applications for this equipment?

It is widely used in residential areas, commercial buildings, municipal power grids, and industrial auxiliary power systems where space and cost-efficiency are critical.

🔹 Does the unit include safety interlocks?

Yes, it features a comprehensive mechanical "five-prevention" interlocking system to prevent misoperation and ensure operator safety.

🔹 Can the dimensions be customized?

Yes, the cabinet size and configurations (such as incoming/outgoing line modes) can be customized based on specific project requirements.

🔹 What standards do these switchgears comply with?

Our equipment complies with international standards including IEC62271-200 and national GB3906 standards.

🔹 What is the typical maintenance requirement?

The unit is designed for low maintenance with a vacuum interrupter and front-access design, allowing for easy routine inspections and long mechanical life.
