| Model NO. | Switchgear | Voltage Level | Medium Voltage |
| Installation | Removable | Structure | Cabinet |
| Current | AC | Frequency | 50Hz |
| Rated Voltage | 40.5kv | Phase | Three |
| Protection Level | Enclosure IP4X | Origin | China |

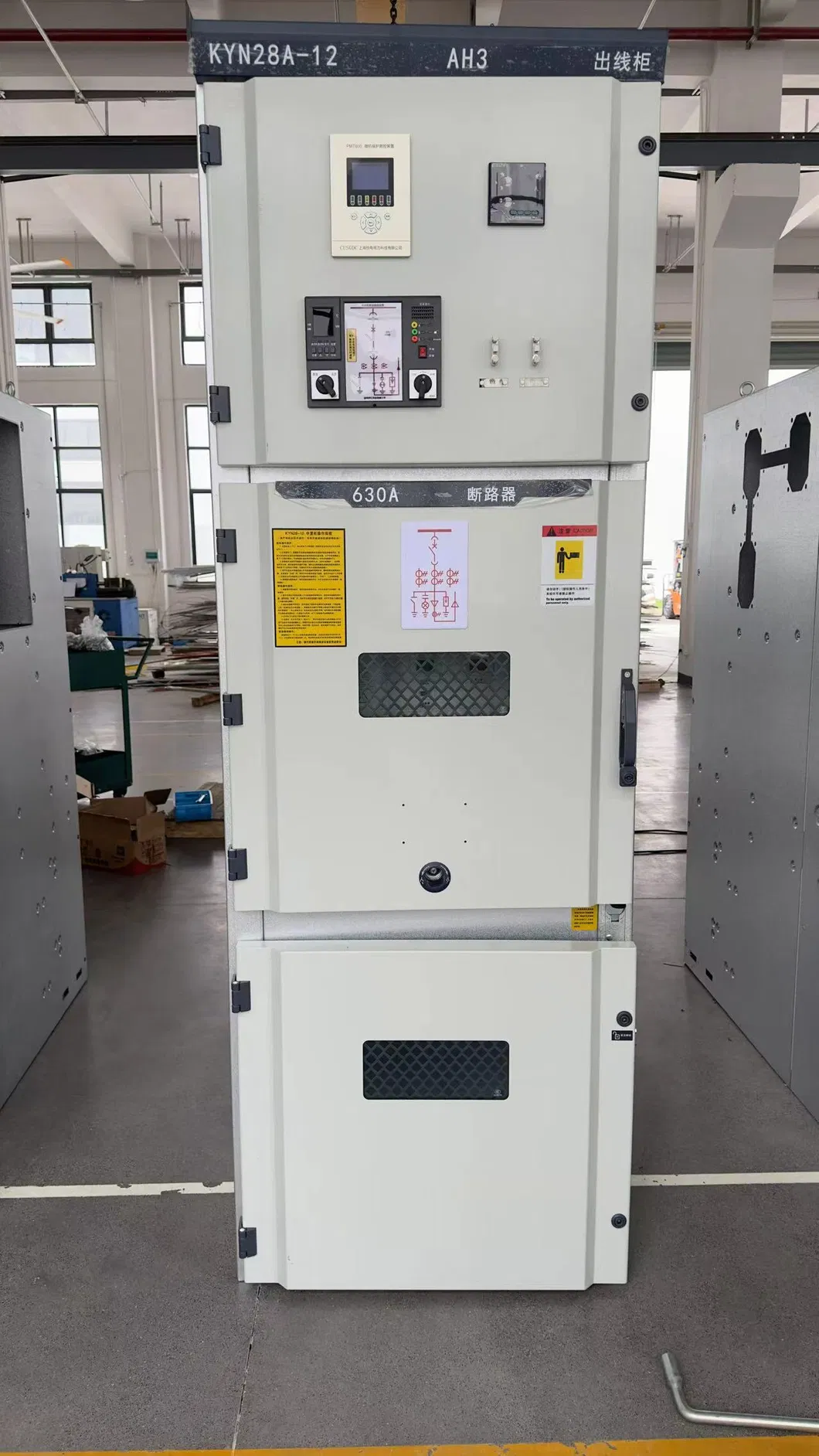

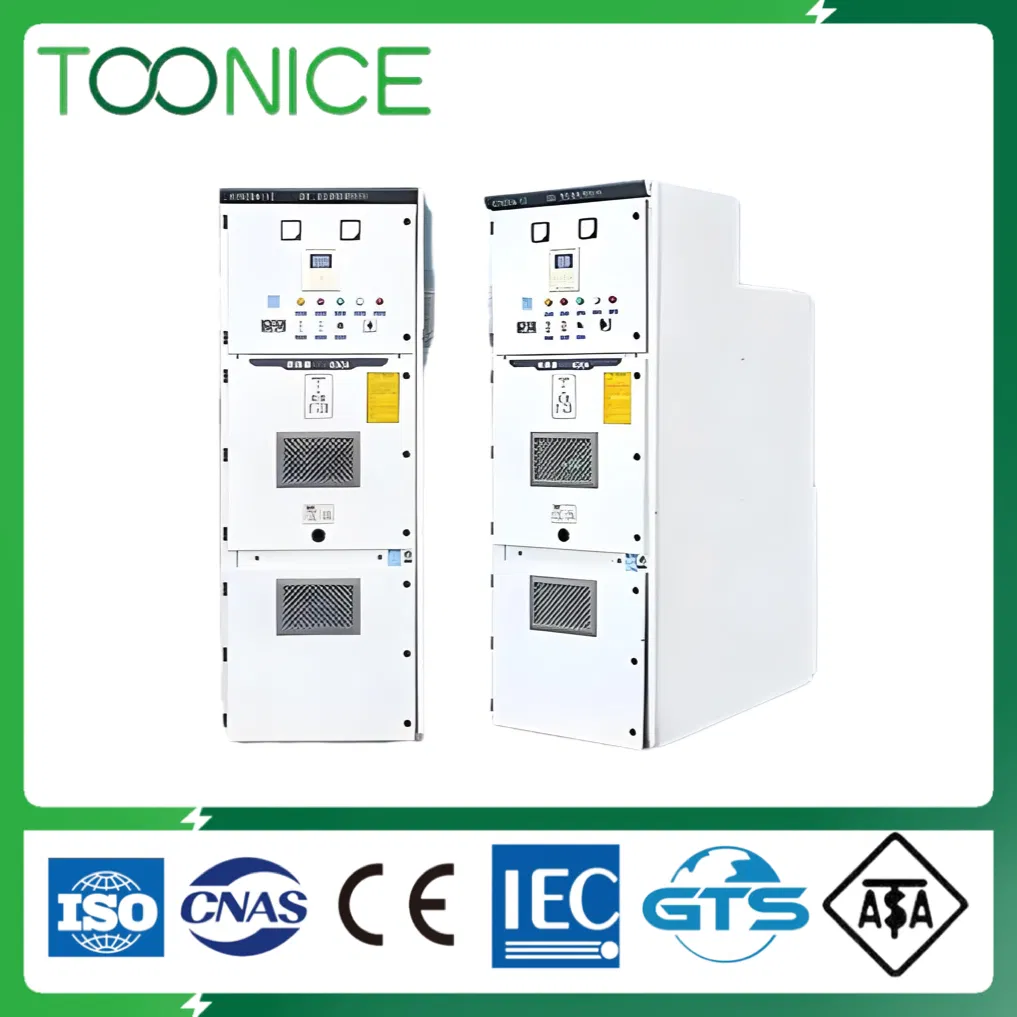

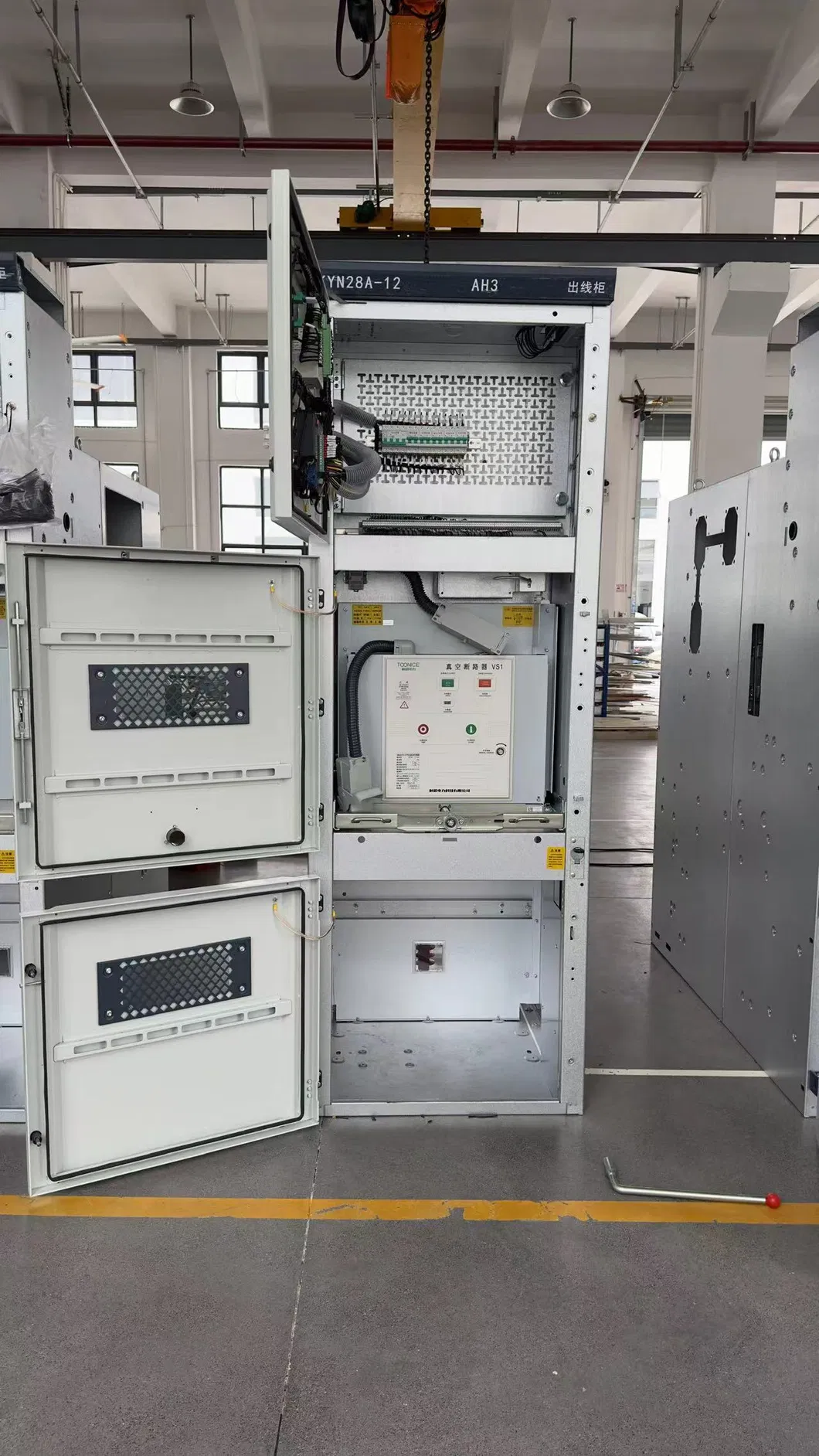

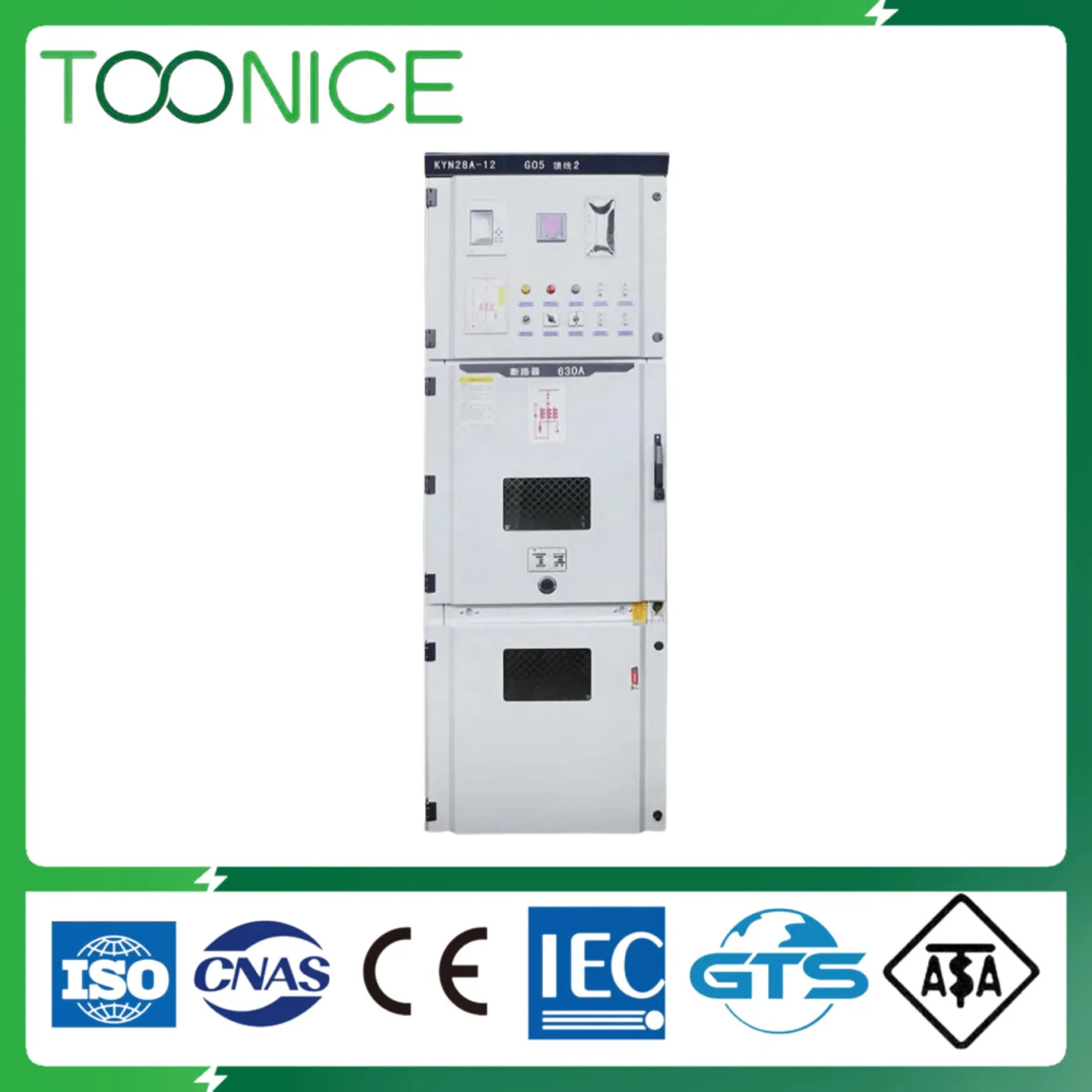

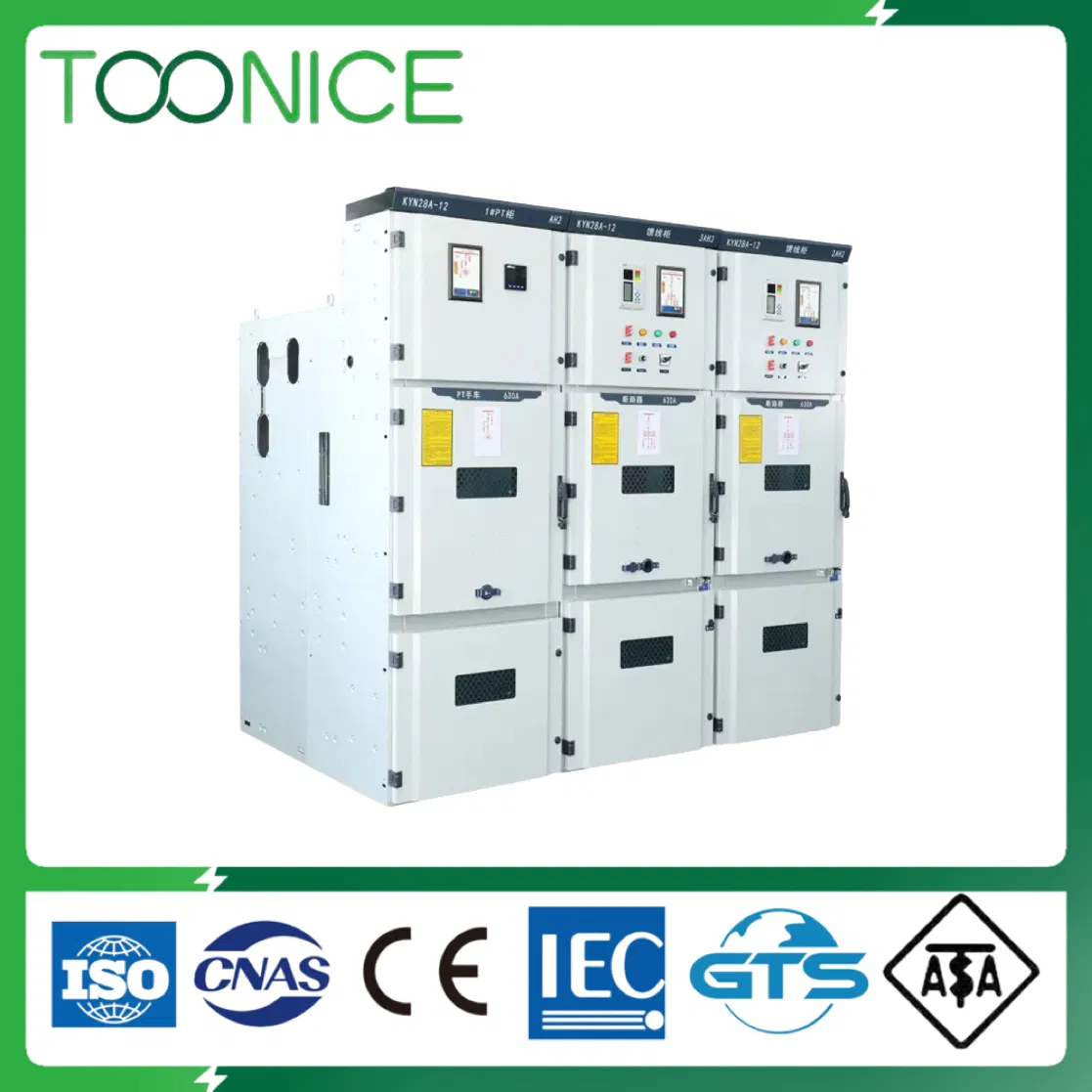

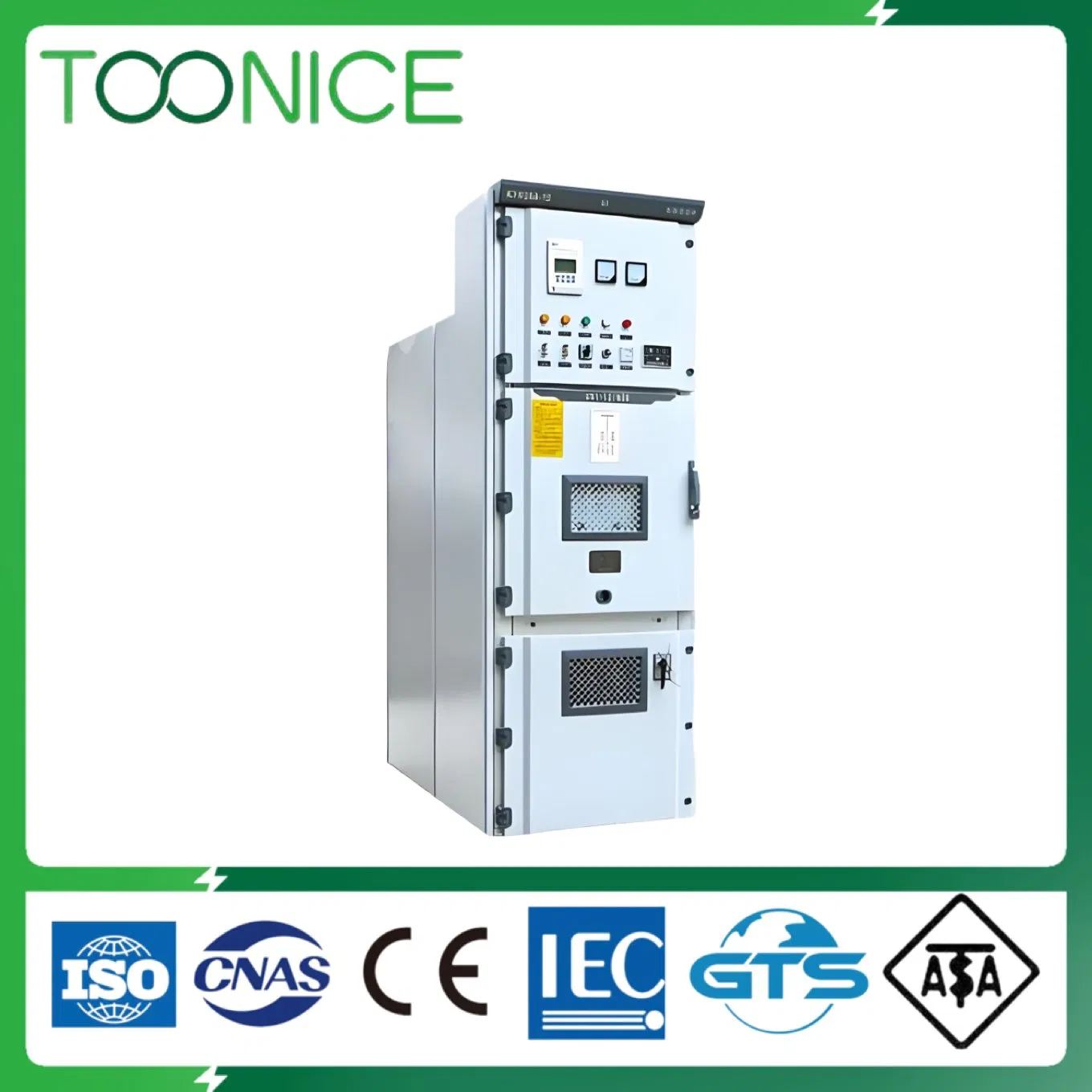

The KYN28-12 armored removable AC metal-enclosed switchgear is suitable for 3.6-12kV three-phase AC 50Hz power grid, used to receive and distribute electrical energy, and to control, monitor and protect the circuit. It is compatible with single busbar, single busbar segmentation systems, or double busbar systems.

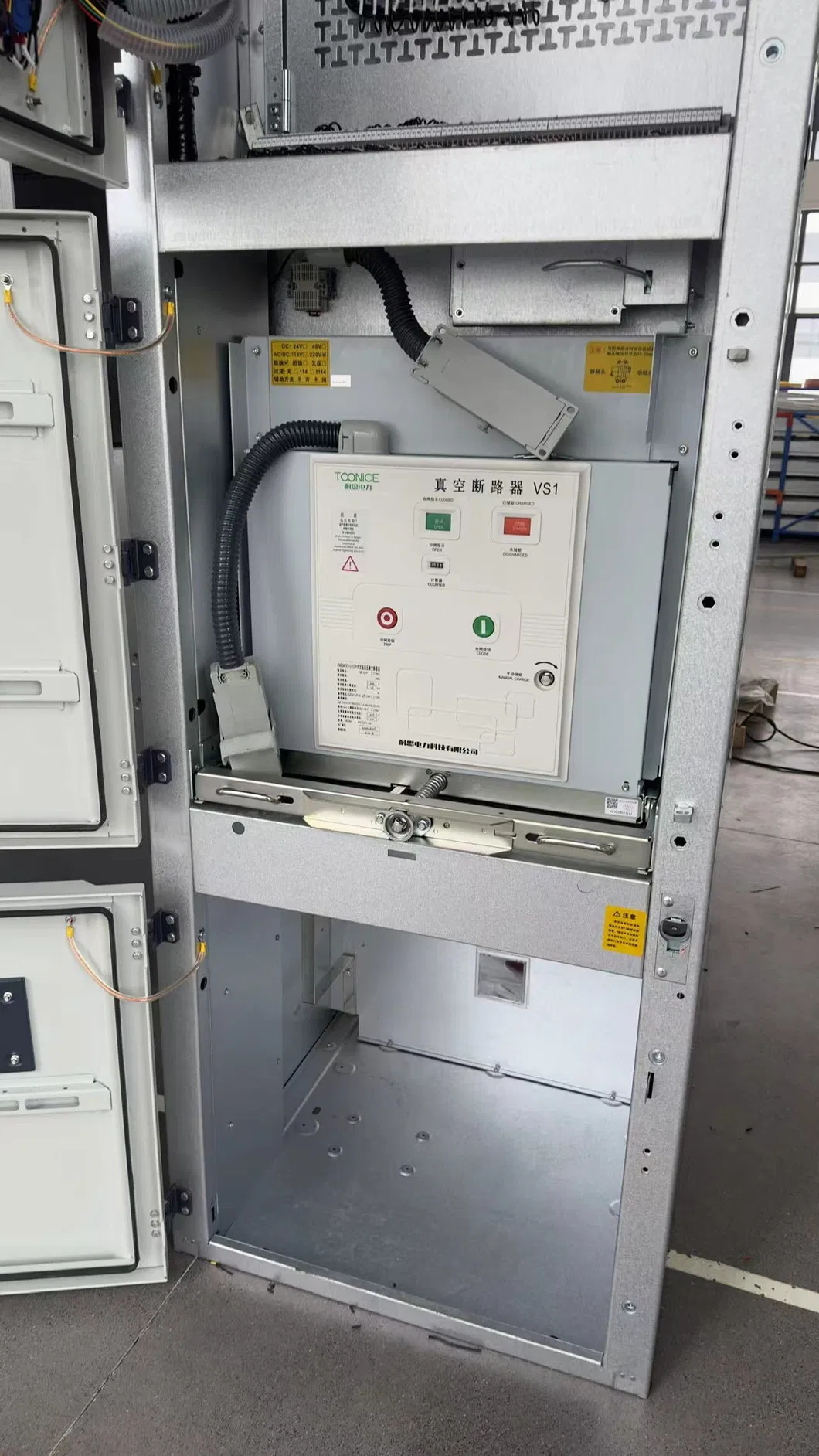

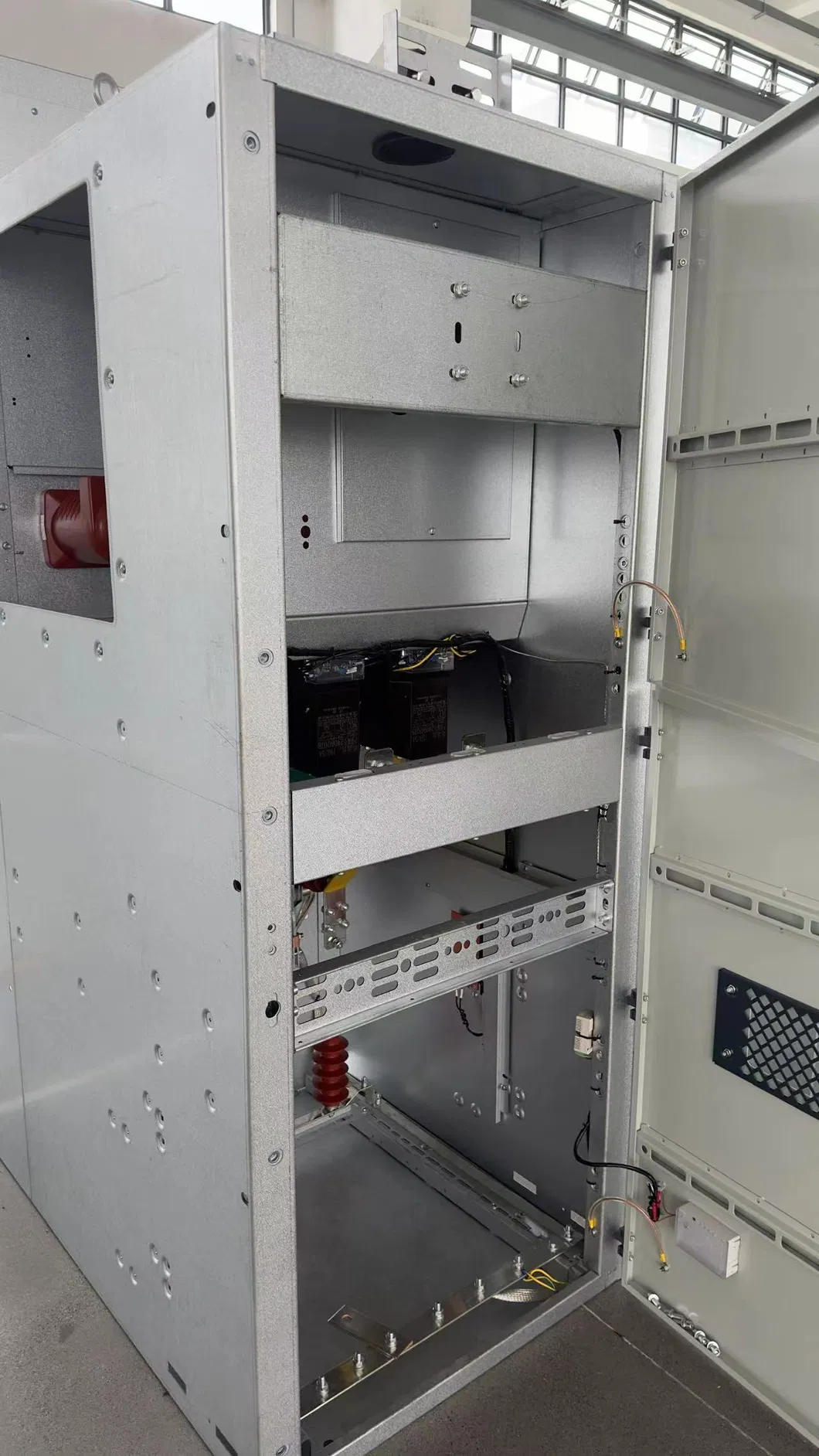

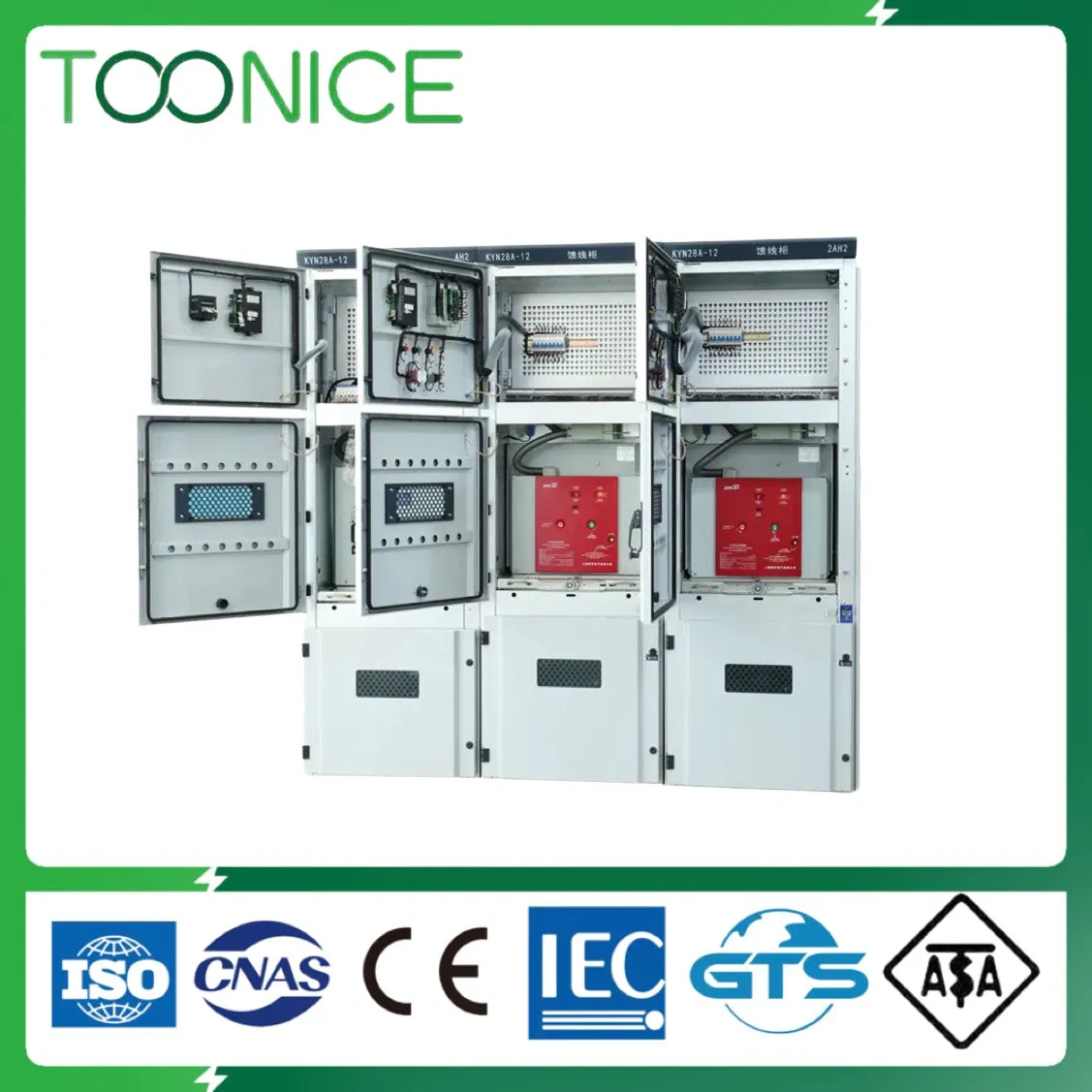

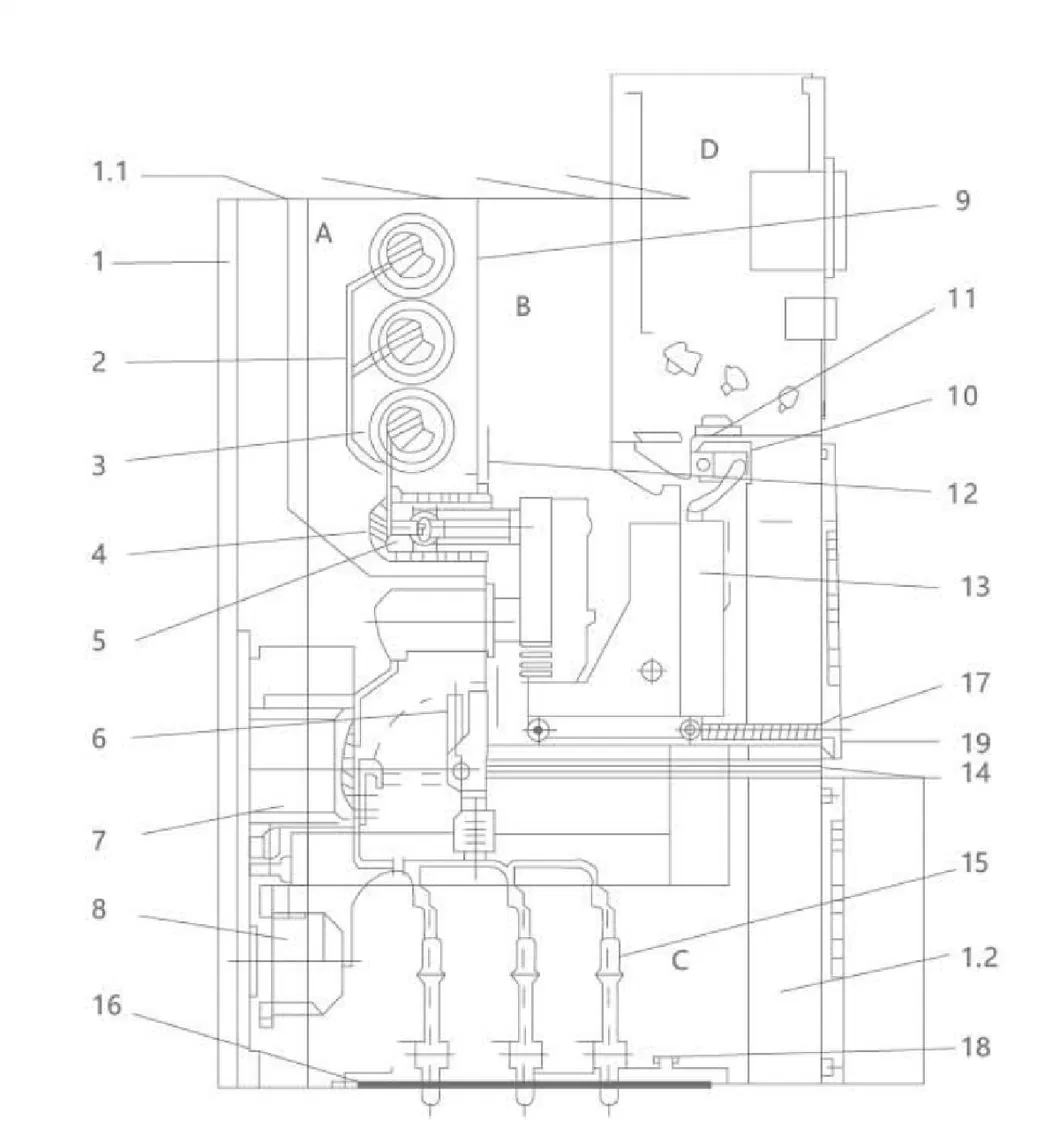

The switchgear enclosure is assembled using bolts, providing high mechanical strength and strong impact resistance. It features an IP4X rating. The system can be equipped with various vacuum circuit breakers such as VD4, VS1, VH1, VK, or ZN28, ensuring an air insulation distance greater than 125mm.
| Condition | Requirement |
|---|---|
| Ambient temperature | -10°C ~ 40°C |
| Relative humidity | Daily average < 95%, Monthly average < 90% |
| Altitude | < 1000m |
| Shockproof Level | < level 8 |
*Avoid fire, explosion hazards, serious pollution, chemical corrosion, and severe vibration.
| Project | Unit | Data |
|---|---|---|
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Rated current of the main bus | A | 630-1250 |
| Rated short-time withstand current (4S) | kA | 25-31.5 |
| Rated peak withstand current | kA | 63-80 |
| 1 min power frequency withstand voltage | kV | 42 / Fracture 48 |
| Lightning impulse withstand voltage | kV | 75 / Fracture 48 |
| Ingress protection | - | Shell IP4X |
1. Switchgear should be positioned according to project drawings. For long rows (10+ sets), installation should start from the middle.
2. Use cranes or forklifts; do not use roller crowbars.
3. Pull out the circuit breaker handcart and store it properly before installation.
4. Level the foundation; the unevenness must not exceed 2mm.
5. Weld firmly to the foundation channel steel or use anchor screws.

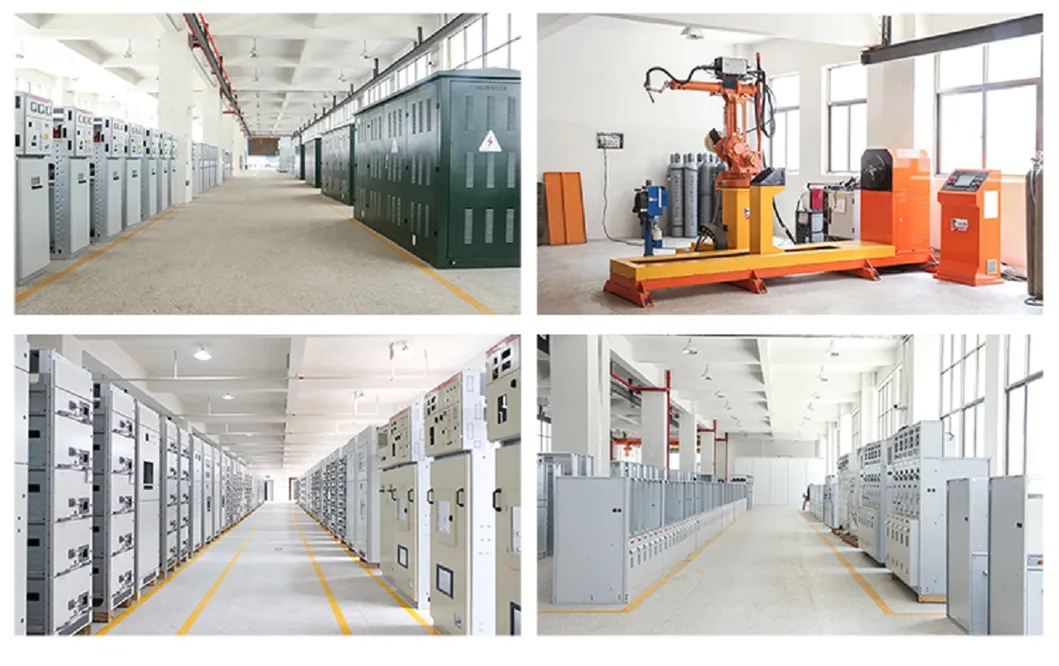

Our production facilities utilize vacuum box helium leak detection systems and local discharge test laboratories. Products are tested according to international IEC standards and are certified under ISO9001, ISO14001, and OHSAS18001 systems.
